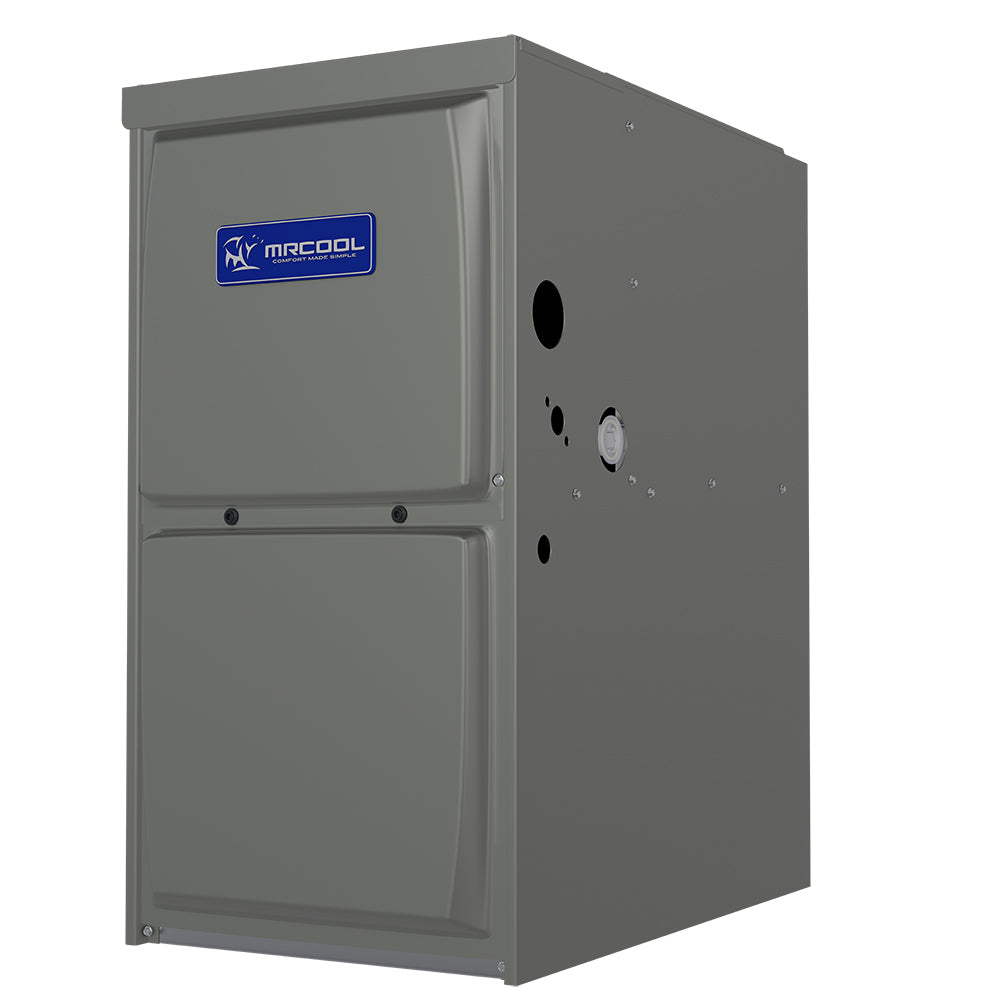

MRCOOL Signature 96% AFUE, 135K BTU, 5 Ton, Multi Position Gas Furnace - 24.5-Inch Cabinet (MGM96SE135D5XA)

MRCOOL Signature 96% AFUE, 135K BTU, 5 Ton, Multi Position Gas Furnace - 24.5-Inch Cabinet (MGM96SE135D5XA)

SKU: MGM96SE135D5XA

Sale price$2,105.00 Regular price$2,736.50
Save 23%



Estimated delivery:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

MRCOOL Signature 96% AFUE, 135K BTU, 5 Ton, Multi Position Gas Furnace - 24.5" Cabinet (MGM96SE135D5XA)

For optimal heating performance, choose the MRCOOL® Signature Series Single-Stage 96% AFUE 135k BTU. It can be installed in an upflow or horizontal configuration and is both energy efficient and quiet running. The unit’s multi-speed high efficiency blower motor aids in the unit’s 96% AFUE. For enhanced cooling SEER ratings, apply this unit with properly matched cooling equipment. The aluminized steel primary heat exchanger with crimped non-welded construction aids in this unit’s durable build and finish.

For optimal operation, the furnace features aluminized steel inshot burners and a durable silicon nitride ignitor for smooth ignition. The single stage gas valve helps to deliver heating to your home quickly and effectively. The removable floor base for bottom return air, zero step horizontal conversion, and left or right utility connections all help to make installation of the furnace easy and time saving. It features a compact 33 inch design and offers standardized widths for easy coil fit. It can be easily vented with PVC pipe and is design certified for direct and non-direct vent applications. An optional LP kit is available as well for a liquid propane conversion. Thanks to the easily removable slide out blower design, maintenance is a breeze. MRCOOL® backs this product with a lifetime heat exchanger warranty and a 10-year parts warranty.




Dimensions

29" D x 33" H x 24.5" W

AFUE

96%

CFM

2000

Tonnage

5 Ton

Fuel Type

Gas

BTU Input

132,000

BTU Output

127,000

Voltage

120V

Phase

1

Cycle

60Hz

Max Fuse Breaker

15

Full Load

10.9

GAS Connection Size

1/2"

AHRI Certified

Yes

Gross Weight

174 lbs



Mini Split FAQ

What BTU rating should I choose for my air handler?

  • This depends on the coverage area/room size you are trying to heat/cool
  • An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area
Air Handler BTU Coverage Area/Room Size (Sq Ft.)*
9K BTU
Up to 375 Sq. ft
12K BTU Up to 500 Sq. ft
18K BTU Up to 750 Sq. ft
24k BTU Up to 1000 Sq. ft
36k BTU  Up to 1500 Sq. ft

*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.

Shipping & Returns

*Shipping Policy

  • Shipping is Free
  • Large appliances ship via Freight Curbside shipment. Meaning the carrier will drop off your item on your property not inside your home. The courier company will call ahead of time to schedule a drop off date
  • For the full details, visit our Shipping Page

Return/Refund Policy
  • 30-Day Return Policy
  • If your order arrives damaged, we will exchange you for a new one. Damage must be reported within 24 hours.
  • For more details, visit our Return Policy Page



Customer Reviews

Based on 24 reviews
96%
(23)
4%
(1)
0%
(0)
0%
(0)
0%
(0)
P
Peter K. (Phoenix, AZ)
Pretty Easy Install and Works Great!

Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!

W
WesD (Chicago, IL)
Installed and working great

Installed with ceiling cassettes... Quiet and keeping us cool so far !

D
Deborah B. (Memphis, TN)
Heat pump unit

My unit arrived on time and undamaged. It was installed without a problem. I hate the fuse unit didn't come with it. They did UPS it to me so I didn't have to put installation on hold. The unit is very quiet and works well.

N
Nat R. (Odessa, TX)
4 ton condensing unit

Very good delivery service installed and works like a Should

w
walter w. (Port Neches, TX)
Old r22 unit, same capacity, worked better in temperature extremes

Product came packaged well, undamaged. Installation was difficult, followed instructions for suction line above coil on bilevel installation with coil above condenser. 108 inside house on startup, 103 ambient. First start, high pressure 500, low pressure 170, supply air temp 66 degrees. Very worried at first, but after house cooed down, everything within parameters. Researched 410a refrigerant, found out it looses efficiency exponentially during temperature extremes. My old r22 unit would supply 54 degree supply air in comparable operating conditions. EPA, government, a/c manufactures all lying to American public
