Dimensions |
28 3/8" D x 33" H x 17 1/2" W |
AFUE |
80% |
CFM |
1570 |
Tonnage |
4 |
Heating Capacity |
88,000 BTU |
Fuel Type |
Natural Gas |
BTU Input |
88000 |
BTU Output |
70400 |
Voltage |
120 |
Phase |
1 |
Cycle |
60 |
Stage |
Single |
Max Fuse Breaker |
15 |
Min Circuit Ampacity |
8.4 |
Color |
Gray |
Color Family |
Gray |
Full Load |
8.4 |
Number Of Burners |
8 |
GAS Connection Size |
1/2 |
Blower Motor Type |
ECM |
Blower Motor HP |
3/4 |
Blower Motor Speeds |
5 |
Blower Motor RPM |
945-1570 |
Heat Exchanger Type |
Aluminized steel |
Ignition Type |
Silicon Nitride Ignitor |

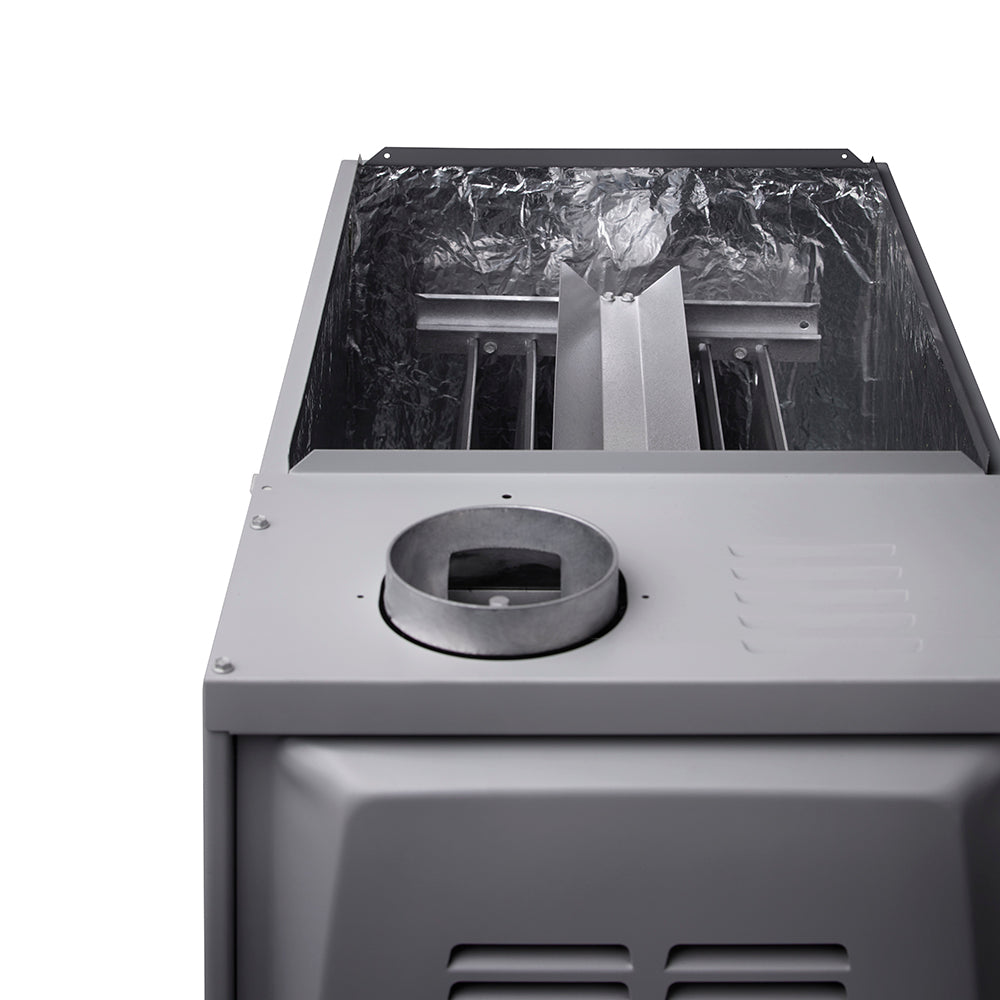

Vent Connector |
4 inch |
LP KIT Included |
No |
LP KIT Available |
yes |
CSA Certified |
Yes |
ISO Certified |
No |
Energy Star Compliant |
No |
Energy Star Certified |
No |
AHRI Certified |
Yes |
Registered Warranty |
Registered 10 Year Parts Warranty |
Base Warranty |
5 Year Parts Warranty |
Registered Heat Exchanger Warranty |
Registered 20 year Heat Exchanger Warranty |
Base Heat Exchanger Warranty |
20 year Heat Exchanger Warranty |
Has Batteries |
No |
Contains Electronics |
Yes |
Contains Chemicals |
No |
Contains Aerosol |
No |
Contains Compressed GAS |
No |
Proposition 65 Warning |
Yes |
Restricted States |
Yes (California) |
Net Weight |
140 lbs |
What BTU rating should I choose for my air handler?
Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
9K BTU | Up to 375 Sq. ft |
12K BTU | Up to 500 Sq. ft |
18K BTU | Up to 750 Sq. ft |
24k BTU | Up to 1000 Sq. ft |
36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
