80% AFUE 3 Ton 45,000 BTU Downflow Multi-Speed Gas Furnace
When harsh winter weather strikes, nothing compares to the warmth and safety a powerful reliable gas furnace can provide. While furnace heating technology has been around for decades, not all systems are created equally. Some are definitely better than others. One of the best on the market is the MRCOOL single stage, 80% AFUE gas furnace.
This system can be installed down flow, and is designed to operate for decades, provide powerful heating capability, and, best of all, keep your heating bill affordable at the same time. It does the latter via its 80% AFUE energy efficiency rating. That mark of quality ensures 80% of every dollar you spend on heating fuel gets turned into real, effective heat for your home.
|
Dimensions |
28 3/8" D x 33" H x 14 1/2" W |
|
AFUE |
80% |
|
CFM |
1275 |
|
Tonnage |
3 |
|
Heating Capacity |
44,000 BTU |
|
Fuel Type |
Natural Gas |
|
Btu Input |
44000 |
|
Btu Output |
35200 |
|
Voltage |
120 |
|
Phase |
1 |
|
Cycle |
60 |
|
Stage |
Single |
|
Max Fuse Breaker |
15 |
|
Min Circuit Ampacity |
6.8 |
|
Color |
Gray |
|
Color Family |
Gray |
|
Full Load |
6.8 |
|
Number Of Burners |
4 |
|
Gas Connection Size |
1/2 |
|
Blower Motor Type |
ECM |
|
Blower Motor HP |
1/2 |
|
Blower Motor Speeds |
5 |
|
Blower Motor RPM |
565-1275 |
|
Heat Exchanger Type |
Aluminized steel |
|
Ignition Type |
Silicon Nitride Ignitor |
|

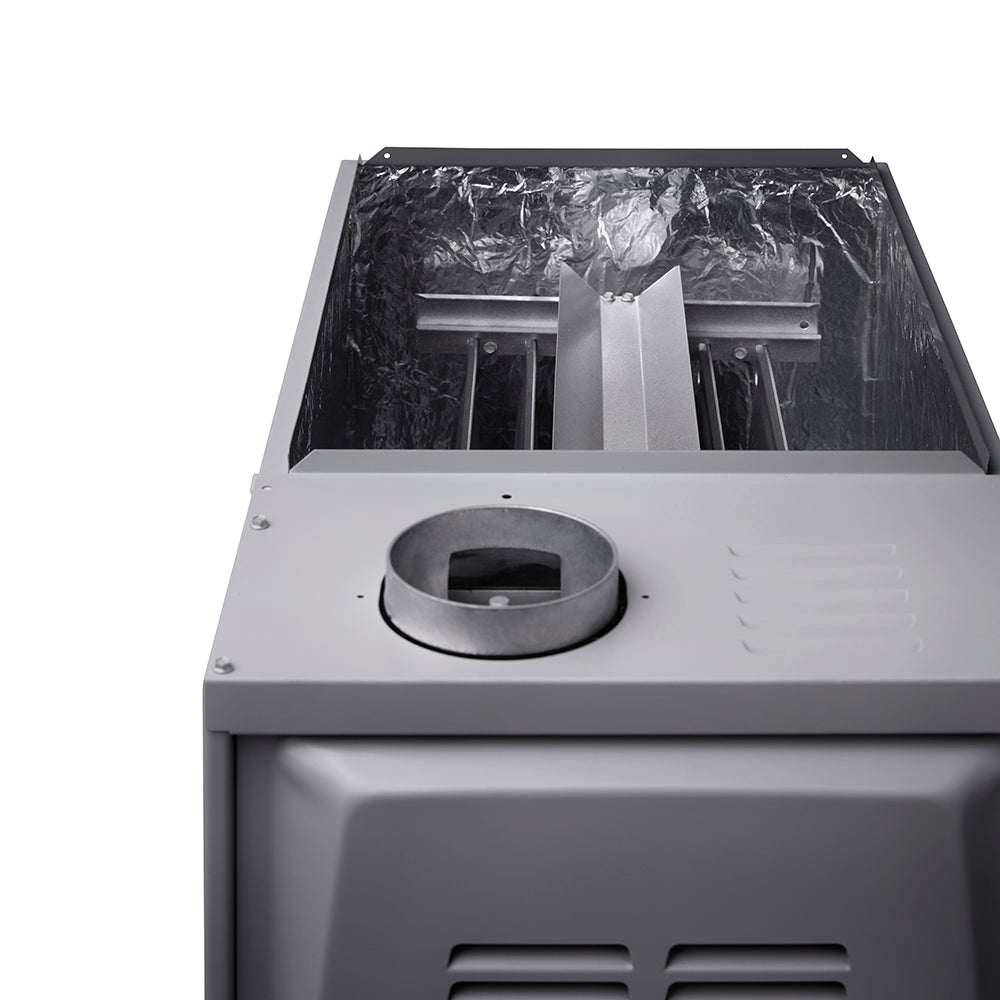

Vent Connector |
4 inch |
|
LP KIT Included |
No |
|
LP KIT Available |
yes |
|
CSA Certified |
Yes |
|
ISO Certified |
No |
|
Energy Star Compliant |
No |
|
Energy Star Certified |
No |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Registered 10 Year Parts Warranty |
|
Base Warranty |
5 Year Parts Warranty |
|
Registered Heat Exchanger Warranty |
Registered 20 year Heat Exchanger Warranty |
|
Base Heat Exchanger Warranty |
20 year Heat Exchanger Warranty |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
No |
|
Contains Aerosol |
No |
|
Contains Compressed GAS |
No |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
Yes (California) |
|
Net Weight |
113 lbs |
*Shipping Policy
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Fast delivery and great customer service . Would purchase from company again
Not great installation instructions, but great product
I recently removed my old gas furnace and replaced it with the MRCOOL Hyper Heat - Central Heat Pump & Gas Furnace Split System - 24K BTU, 96% AFUE - 17.5" Cabinet - Multi-Position. This system was very straight forward and simple to install. I live in Colorado and have been enjoying the cool all summer. I tested the heat function but have not had a cold season yet, with my new system. I'm sure it will heat as good as it cools.
