MRCOOL Signature 80% AFUE, 110K BTU, Downflow Multi-Speed Gas Furnace - 21-Inch Cabinet (MGD80SE110C5A)

MRCOOL Signature 80% AFUE, 110K BTU, Downflow Multi-Speed Gas Furnace - 21-Inch Cabinet (MGD80SE110C5A)

SKU: MGD80SE110C5A

Sale price$1,569.00 Regular price$2,499.00
Save 37%



Estimated delivery:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

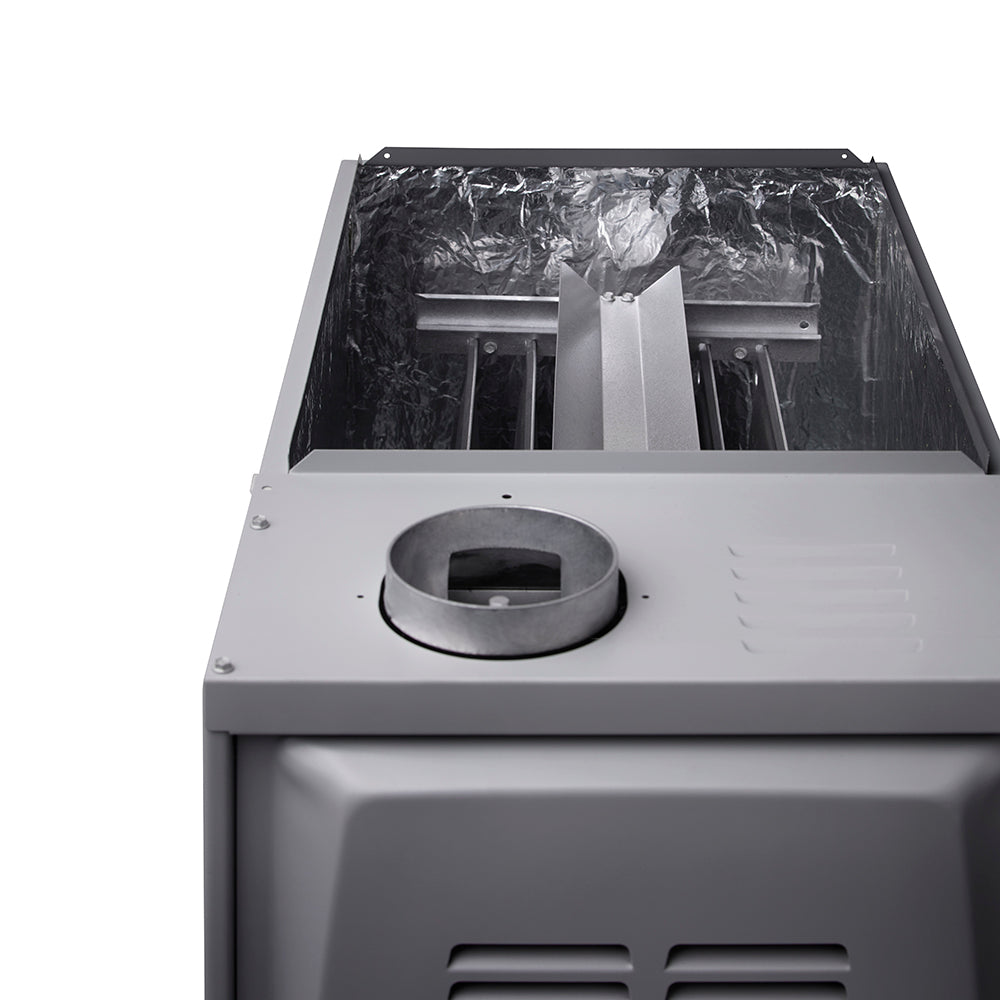

MRCOOL Signature 80% AFUE, 110K BTU, Downflow Multi-Speed Gas Furnace - 21" Cabinet (MGD80SE110C5A)

80% AFUE 5 Ton 110,000 BTU Downflow Multi-Speed Gas Furnace



When harsh winter weather strikes, nothing compares to the warmth and safety a powerful reliable gas furnace can provide. While furnace heating technology has been around for decades, not all systems are created equally. Some are definitely better than others. One of the best on the market is the MRCOOL single stage, 80% AFUE gas furnace.

This system can be installed down flow, and is designed to operate for decades, provide powerful heating capability, and, best of all, keep your heating bill affordable at the same time. It does the latter via its 80% AFUE energy efficiency rating. That mark of quality ensures 80% of every dollar you spend on heating fuel gets turned into real, effective heat for your home.



Features

  • Easily removable slide out blower design
  • Registered 10-year parts warranty
  • Rotatable draft inducer for venting flexibility
  • Downflow furnace
  • Heating efficiency of 80% AFUE
  • AHRI Certified
  • LP kit not included
  • Aluminized steel tapered crimped non-welded clam shell heat exchanger design
  • Compact 33" height
  • Left or right utility connections
  • Multi-speed high efficiency (constant torque) blower motor
  • Zero step horizontal conversion

Dimensions

28 3/8" D x 33" H x 21" W

AFUE

80%

CFM

2165

Tonnage

5

Heating Capacity

110,000 BTU

Fuel Type

Natural Gas

BTU Input

110000

BTU Output

88000

Voltage

120

Phase

1

Cycle

60

Stage

Single

Max Fuse Breaker

15

Min Circuit Ampacity

10.9

Color

Gray

Color Family

Gray

Full Load

10.9

Number Of Burners

10

GAS Connection Size

1/2

Blower Motor Type

ECM

Blower Motor HP

1

Blower Motor Speeds

5

Blower Motor RPM

1200-2165

Heat Exchanger Type

Aluminized steel

Ignition Type

Silicon Nitride Ignitor

Vent Connector

4 inch

LP KIT Included

No

LP KIT Available

yes

CSA Certified

Yes

ISO Certified

No

Energy Star Compliant

No

Energy Star Certified

No

AHRI Certified

Yes

Registered Warranty

Registered 10 Year Parts Warranty

Base Warranty

5 Year Parts Warranty

Registered Heat Exchanger Warranty

Registered 20 year Heat Exchanger Warranty

Base Heat Exchanger Warranty

20 year Heat Exchanger Warranty

Has Batteries

No

Contains Electronics

Yes

Contains Chemicals

No

Contains Aerosol

No

Contains Compressed GAS

No

Proposition 65 Warning

Yes

Restricted States

Yes (California)

Net Weight

160 lbs



Mini Split FAQ

What BTU rating should I choose for my air handler?

  • This depends on the coverage area/room size you are trying to heat/cool
  • An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area
Air Handler BTU Coverage Area/Room Size (Sq Ft.)*
9K BTU
Up to 375 Sq. ft
12K BTU Up to 500 Sq. ft
18K BTU Up to 750 Sq. ft
24k BTU Up to 1000 Sq. ft
36k BTU  Up to 1500 Sq. ft

*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.

Shipping & Returns

*Shipping Policy

  • Shipping is Free
  • Large appliances ship via Freight Curbside shipment. Meaning the carrier will drop off your item on your property not inside your home. The courier company will call ahead of time to schedule a drop off date
  • For the full details, visit our Shipping Page

Return/Refund Policy
  • 30-Day Return Policy
  • If your order arrives damaged, we will exchange you for a new one. Damage must be reported within 24 hours.
  • For more details, visit our Return Policy Page



Customer Reviews

Based on 23 reviews
96%
(22)
4%
(1)
0%
(0)
0%
(0)
0%
(0)
P
Peter K. (Phoenix, US)
Pretty Easy Install and Works Great!

Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!

W
WesD (Chicago, US)
Installed and working great

Installed with ceiling cassettes... Quiet and keeping us cool so far !

N
Nat R. (Odessa, US)
4 ton condensing unit

Very good delivery service installed and works like a Should

w
walter w. (Port Neches, US)
Old r22 unit, same capacity, worked better in temperature extremes

Product came packaged well, undamaged. Installation was difficult, followed instructions for suction line above coil on bilevel installation with coil above condenser. 108 inside house on startup, 103 ambient. First start, high pressure 500, low pressure 170, supply air temp 66 degrees. Very worried at first, but after house cooed down, everything within parameters. Researched 410a refrigerant, found out it looses efficiency exponentially during temperature extremes. My old r22 unit would supply 54 degree supply air in comparable operating conditions. EPA, government, a/c manufactures all lying to American public

j
justin N. (New York, US)
Well built

First time ever installing Mr cool unit was built very good it has a dc converted fan motor,came with a salt shelf type coating om inside of unit over all very impressed 5star system
