The MRCOOL® Signature Series 36k Heat Pump Condenser is a dependable, high-efficiency solution designed to provide reliable year-round comfort. With energy performance ratings of 14.3 SEER2 and 11.7 EER2, it delivers consistent heating and cooling while helping reduce energy consumption and utility bills. Whether battling summer heat or winter cold, this unit ensures your home stays comfortable in every season.
Factory pre-charged with R-454B refrigerant, this system supports eco-conscious upgrades, while the pre-charged design simplifies installation to save you on time and labor costs. At its core, a single-speed scroll compressor provides dependable operation. Inner-groove copper tubing improves heat transfer, enhancing system responsiveness and efficiency. Built-in temperature and pressure sensors monitor conditions to help prevent system strain, while an intelligent defrost function ensures continued performance in colder climates.
Despite its large capacity, the unit operates quietly, just 63 decibels, thanks to a precision-engineered sound-dampening top that minimizes noise without compromising airflow. It’s an ideal solution for noise-sensitive environments. Durability is built in with a steel louver coil guard and wire fan discharge grille designed to provide added protection for internal components and extend the longevity of the unit. Installation and maintenance are hassle-free with features like sweat connection service valves and an accessible gauge port.
Backed by a 10-year limited parts warranty and a limited lifetime compressor warranty, the MRCOOL® Signature Series 36k Heat Pump Condenser offers reliable comfort and long-term value.
| Net Dimensions (In) | 29.14 D x 25 H x 29.14 W |
| Net Weight (Lbs) | 173 |
| Works With | Signature Series Multi-Position or Stud Mount Air Handlers |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| HSPF2 | 7.5 |
| CFM | 2750 |
| Tonnage | 3 |
| Cooling Capacity (Btu) | 33000 |
| Heating Capacity (Btu) | 33000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 30 |
| Min Circuit Ampacity (A) | 22.2 |
| Color | Grey |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 102.3 |
| Decibel Rating (Dba) | 63 |
| Inverter | No |
| Min Ambient Cool (F) | 59 |
| Min Ambient Heat (F) | 5 |
| Max Lineset Length (Ft) | 150 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | PSC |
| Condenser Fan Motor Hp | 1/7 |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Gross Depth (In) | 30.3 |
| Gross Height (In) | 26.2 |
| Gross Width (In) | 30.3 |
| Gross Weight (Lbs) | 182 |

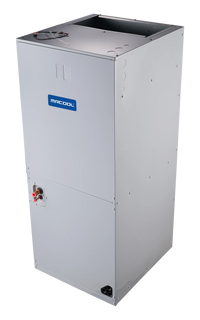

The MRCOOL® Signature Series 36k Multi-Position Air Handler delivers dependable, energy-efficient comfort in any season. With the addition of environmentally friendly R-454B refrigerant, this system supports cleaner standards while helping to lower energy costs and reduce your home's carbon footprint. Designed for flexibility and space efficiency, the unit can be installed in upflow, downflow, or horizontal positions, making it an ideal choice to accommodate a wide variety of residential layouts. Its compact, modern design allows it to fit easily into tight areas like attics, closets, or crawl spaces without sacrificing performance. When paired with a compatible heat pump or condenser, it provides powerful, year-round heating and cooling.
The air handler features a durable galvanized steel cabinet, a high-efficiency ECM blower motor, and copper “A” coils with enhanced aluminum fins for optimized heat transfer and humidity control. Internal thermal insulation minimizes energy loss and condensation, improving both comfort and efficiency. Installation is straightforward and designed to reduce labor time and complexity. A built in air filter rack makes maintenance quick and convenient, while an optional electric heat kit enhances performance in colder climates.
For smart home convenience, this unit works seamlessly with most third-party thermostats, giving you the freedom to choose how you control your comfort without being locked into a specific brand. Backed by a 10-year limited parts warranty, the MRCOOL® Signature Series 36k Multi-Position Air Handler offers lasting performance, efficient operation, and flexible installation for total home comfort.
| Net Dimensions (In) | 22 D x 45.75 H x 19.625 W |
| Net Weight (Lbs) | 129 |
| Works With | Signature Series Top Discharge Condensers |
| CFM | 1131 |
| Tonnage | 3 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 6 |
| Min Circuit Ampacity (A) | 4.5 |
| Mount Type | Multi-Position |
| Color | Grey |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 55 |
| Air Flow Direction | Multi-Position |
| Drain Connection Size | 3/4 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Blower Motor Type | ECM |
| Blower Motor Hp | 45659 |
| Blower Motor Speeds | 5 |
| Blower Motor Rpm | 1000 |
| Filter Type | Replaceable |
| Filter Size | 18 * 21 * 1 |
| Metering Device | Orifice |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kW, 7.5kW, 10kW |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Gross Depth (In) | 25.6 |
| Gross Height (In) | 47.625 |
| Gross Width (In) | 22.83 |
| Gross Weight (Lbs) | 142 |
