MRCOOL Signature 48K BTU, 4 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 21-Inch Cabinet (MCVP48CNPA)

Click on image to zoom Click on image to zoom

MRCOOL Signature 48K BTU, 4 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 21-Inch Cabinet (MCVP48CNPA)

Name: MRCOOL Signature 48K BTU, 4 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 21-Inch Cabinet (MCVP48CNPA)
Brand: MRCOOL
SKU: MCVP48CNPA
Price: 724.0 USD
Availability: InStock
Rating: 4.85 (46 reviews)

| Authorized Dealer

SKU: MCVP48CNPA

$724.00 $1,299.00

BTUs

48K 48K
49K 49K
60K 60K

Air Flow Position

Upflow Upflow
Horizontal Horizontal
Downflow Downflow

In Stock Estimated delivery: Jul 19th-28th

Only available for purchase with second MRCOOL product.

Secure Payment

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Shipping*
30-Day Return Policy⁺

MRCOOL Signature 48K BTU, 4 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 21" Cabinet (MCVP48CNPA)

4 Ton BTU R410A Upflow Cased Evaporator Coil

This is a brand new 4 ton, R410A refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

Features

Interlocking door assemblies and snug line sealgrommets to minimize air leakage
All units UL Listed and AHRI Certified
One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections

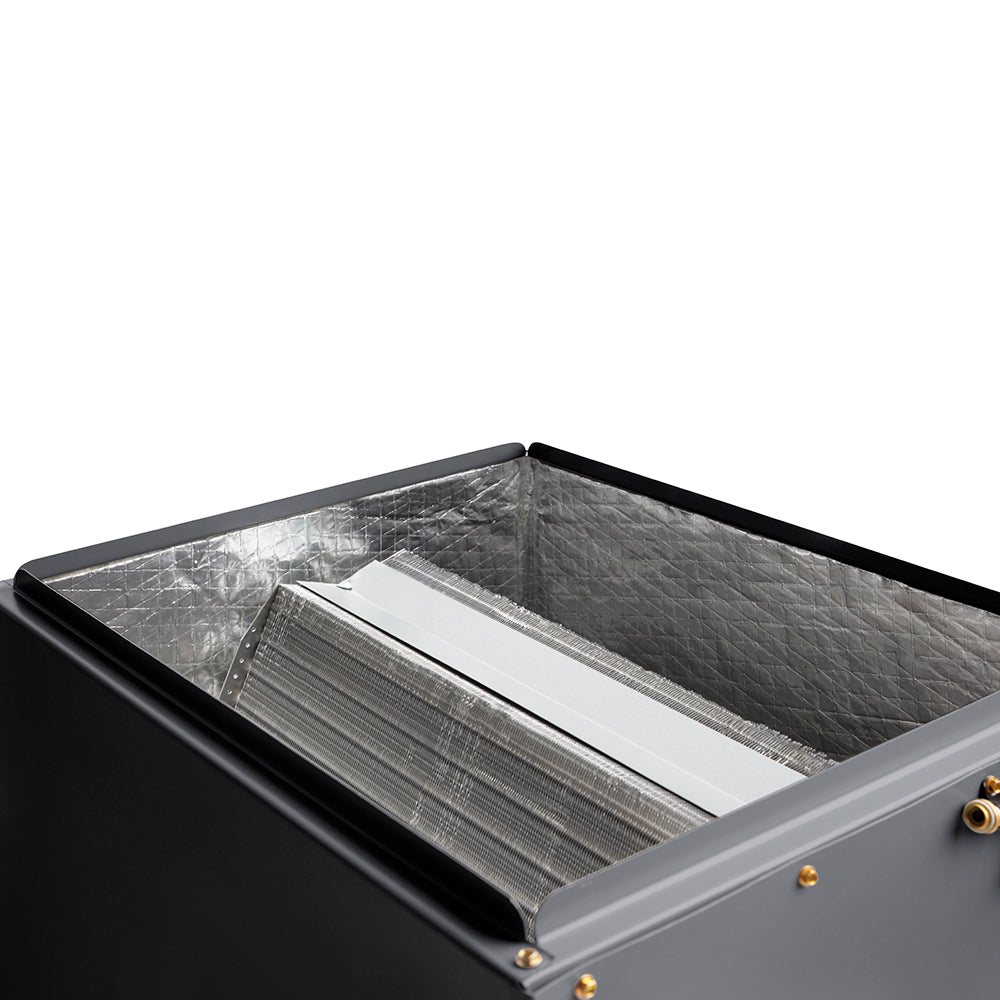

Foil-face insulation for easy cleaning
All drain pans are compatible with UV lights
Two dual drain on front of coil for install flexibility of drain lines around furnace vent and utility connections.
Superior service access to components, withtubing located at door split and foil-face insulation
10-Year Parts Limited Warranty

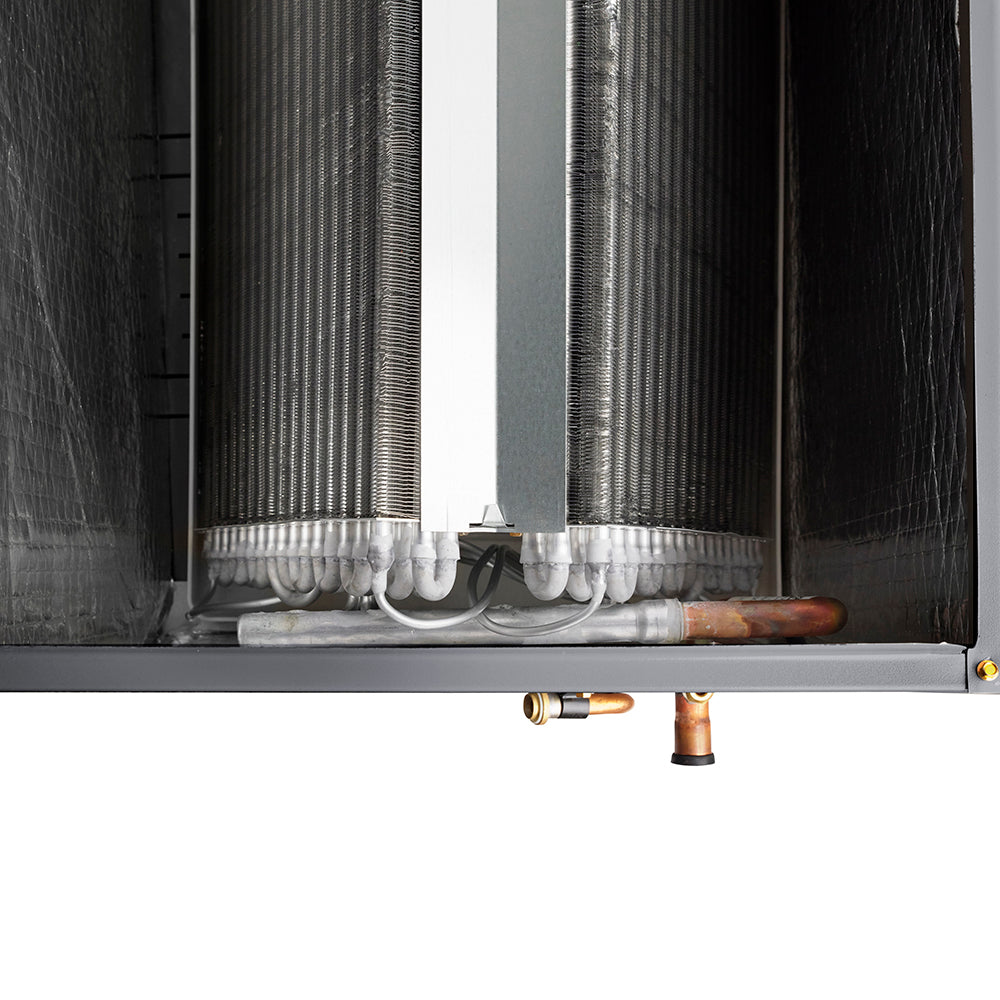

Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
Tubing located at door split for easy coil service or cleaning
Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage

DIMENSIONS
Dimensions	21" D x 27.5" H x 21" W
Net Weight	60
Liquid Line Size	3/8
Suction Line Size	7/8
Drain Connection Size	3/4
GENERAL INFORMATION
Color	Gray
Color Family	Gray
UL Reconized	yes
Tonnage	4
Refrigerant Type	R-410A
Line Set Length	15ft, 25ft, 35ft, 50ft
Max Lineset Length	50ft
Lineset Fitting Type	Sweat
UL Listed	yes
Energy Star Compliant	no
Energy Star Certified	no
AHRI Certified	yes
Contains Chemicals	Yes
Contains Aerosol	Yes
Contains Compressed GAS	Yes
Proposition 65 Warning	Yes
Restricted States	No
Registered Warranty	Registered 10 Year Parts Warranty
Base Warranty	5 Year Parts Warranty
Registered Parts Warranty	Registered 10 Year Parts Warranty
Base Parts Warranty	5 Year Parts Warranty
FEATURES
Cooling Capacity	48000
Lineset Included	No
