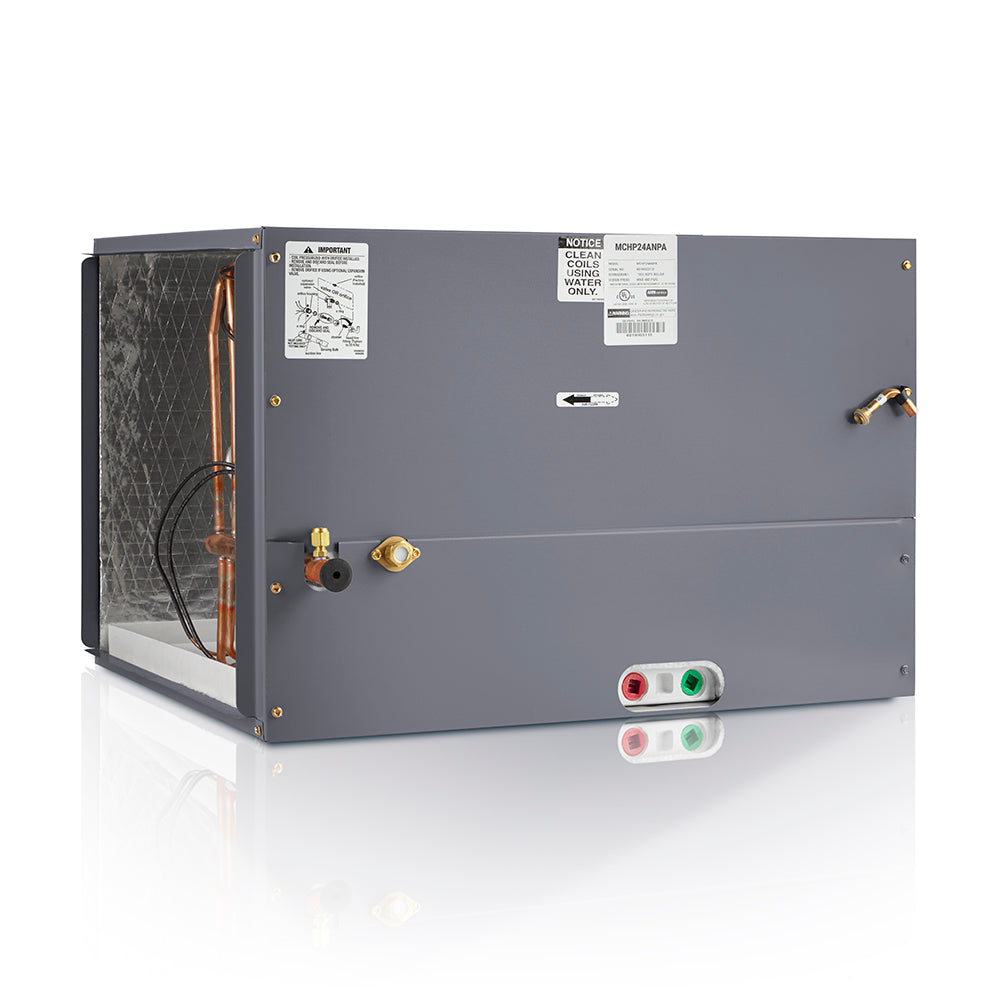

4 Ton BTU R410A Horizontal Cased Evaporator Coil
This is a brand new 4 ton, R410A refrigerant, horizontal cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
|
Dimensions |
31.5" D x 17.5" H x 21.5" W |
|
Tonnage |
4 |
|
Cooling Capacity |
48000 |
|
Color |
Gray |
|
Color Family |
Gray |
|
Refrigerant Type |
R-410A |
|
Drain Connection Size |
3/4 |
|
Lineset Included |
No |
|
Line Set Length |
15ft, 25ft, 35ft, 50ft |
|
Max Lineset Length |
50ft |
|
Lineset Fitting Type |
Sweat |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
7/8 |
|
UL Reconized |
yes |
|
UL Listed |
yes |
|
Energy Star Compliant |
no |
|
Energy Star Certified |
no |
|
AHRI Certified |
yes |
|
Registered Warranty |
Registered 10 Year Parts Warranty |
|
Base Warranty |
5 Year Parts Warranty |
|
Registered Parts Warranty |
Registered 10 Year Parts Warranty |
|
Base Parts Warranty |
5 Year Parts Warranty |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed GAS |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
No |
|
Net Weight |
60 |
