MRCOOL Signature 36K BTU, 3 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 17.5-Inch Cabinet (MCVP36BNPA)

MRCOOL Signature 36K BTU, 3 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 17.5-Inch Cabinet (MCVP36BNPA)

SKU: MCVP36BNPA

Sale price$514.00 Regular price$599.00
Save 14%



Estimated restock:
Add to Cart
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

MRCOOL Signature 36K BTU, 3 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 17.5" Cabinet (MCVP36BNPA)

3 Ton BTU R410A Upflow Cased Evaporator Coil



This is a brand new 3 ton, R410A refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.



Features

  • Interlocking door assemblies and snug line sealgrommets to minimize air leakage
  • All units UL Listed and AHRI Certified
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections

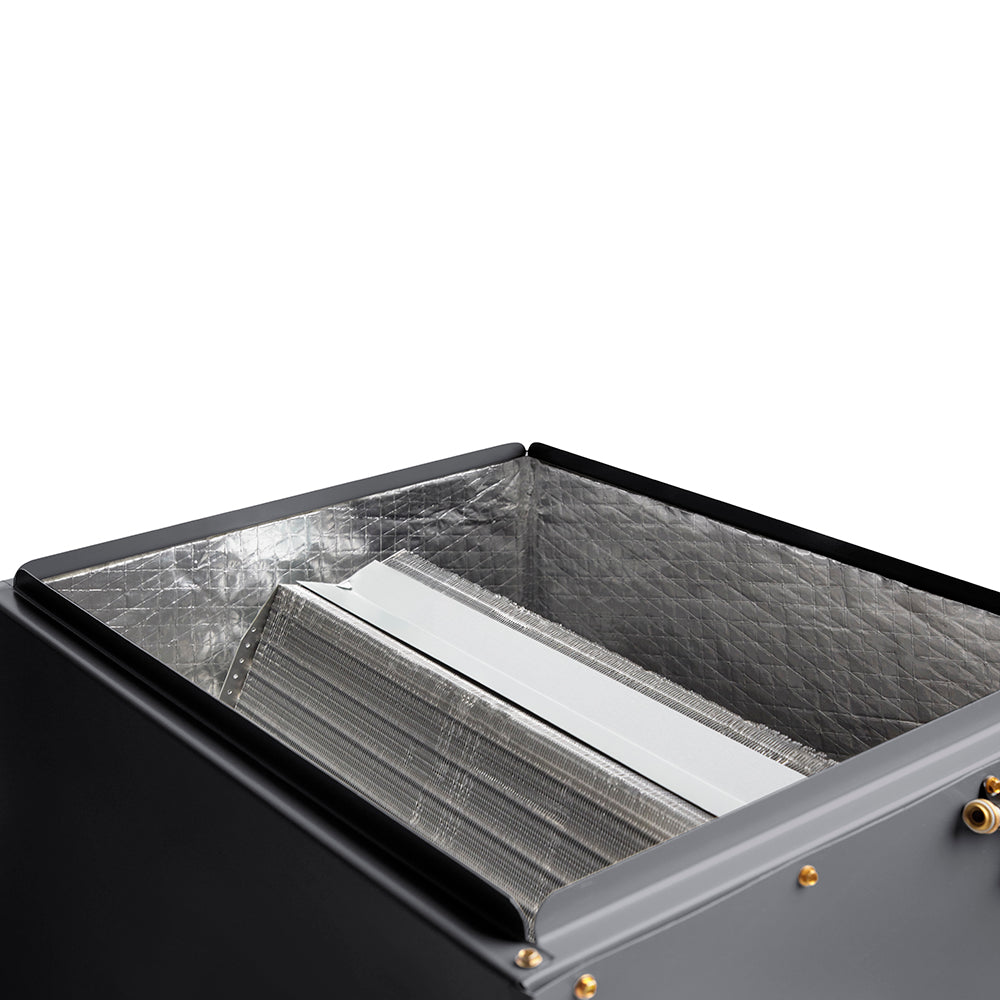

  • Foil-face insulation for easy cleaning
  • All drain pans are compatible with UV lights
  • Two dual drain on front of coil for install flexibility of drain lines around furnace vent and utility connections.
  • Superior service access to components, withtubing located at door split and foil-face insulation
  • 10-Year Parts Limited Warranty

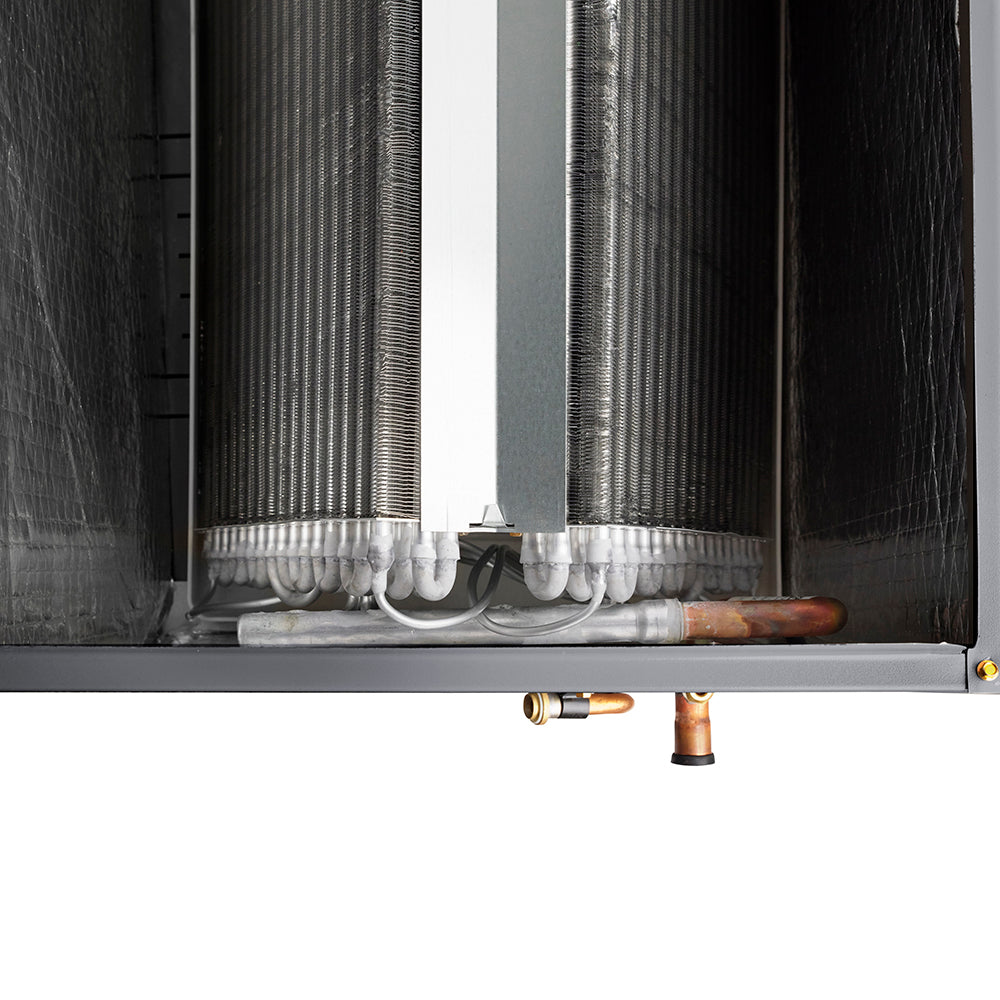

  • Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
  • Tubing located at door split for easy coil service or cleaning
  • Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage

Dimensions

21" D x 22.5" H x 17.5" W

Tonnage

3

Cooling Capacity

36000

Color

Gray

Color Family

Gray

Refrigerant Type

R-410A

Drain Connection Size

3/4

Lineset Included

No

Line Set Length

15ft, 25ft, 35ft, 50ft

Max Lineset Length

50ft

Lineset Fitting Type

Sweat

Liquid Line Size

3/8

Suction Line Size

3/4

UL Reconized

yes

UL Listed

yes

Energy Star Compliant

no

Energy Star Certified

no

AHRI Certified

yes

Registered Warranty

Registered 10 Year Parts Warranty

Base Warranty

5 Year Parts Warranty

Registered Parts Warranty

Registered 10 Year Parts Warranty

Base Parts Warranty

5 Year Parts Warranty

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed GAS

Yes

Proposition 65 Warning

Yes

Restricted States

No

Net Weight

50



Shipping & Returns

*Shipping Policy

  • Shipping is Free
  • Large appliances ship via Freight Curbside shipment. Meaning the carrier will drop off your item on your property not inside your home. The courier company will call ahead of time to schedule a drop off date
  • For the full details, visit our Shipping Page

Return/Refund Policy
  • 30-Day Return Policy
  • If your order arrives damaged, we will exchange you for a new one. Damage must be reported within 24 hours.
  • For more details, visit our Return Policy Page



Email Quote

Customer Reviews

Based on 35 reviews
89%
(31)
11%
(4)
0%
(0)
0%
(0)
0%
(0)
R
Robert W. (Marietta, GA)
Decent Company

I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.

P
Peter K. (Phoenix, AZ)
Pretty Easy Install and Works Great!

Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!

W
Wes D. (Chicago, IL)
Installed and working great

Installed with ceiling cassettes... Quiet and keeping us cool so far !

R
Richard H. (Lancaster, PA)
Great unit!

Overall Great Unit and working with HOD was simple. Unit arrived on time and in good shape.

J
Jim H. (Colbert, WA)
Mr Cool - 36000 4 zone

Install was as stated and works good but struggles at heating house when temperatures are below freezing. I am concerned what will happen once we get to 20 and lower. Over all I like the product but they should be more honest about heating at low temperatures.
