MRCOOL Signature 30K BTU, 2.5 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 17.5-Inch Cabinet (MCVP30BNPA)

MRCOOL Signature 30K BTU, 2.5 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 17.5-Inch Cabinet (MCVP30BNPA)

SKU: MCVP30BNPA

Sale price$476.00 Regular price$549.00
Save 13%



Estimated restock:
Add to Cart
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

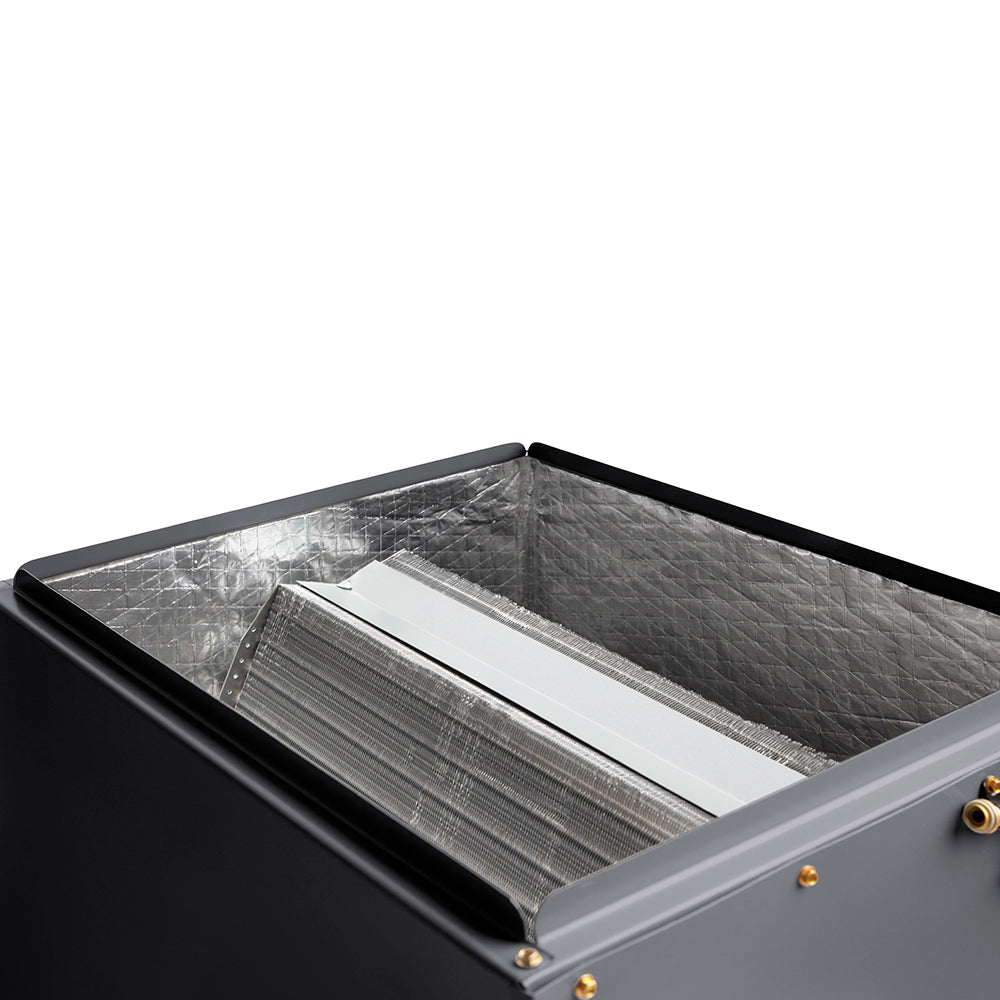

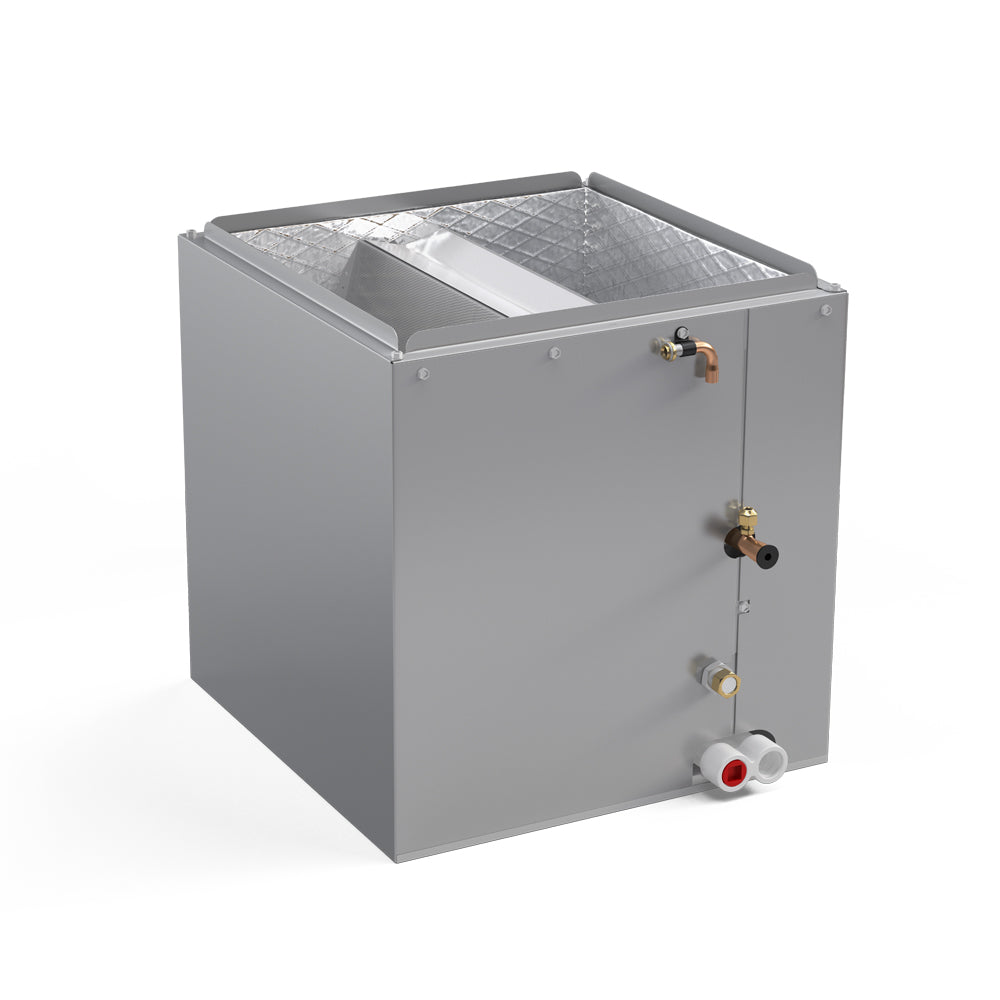

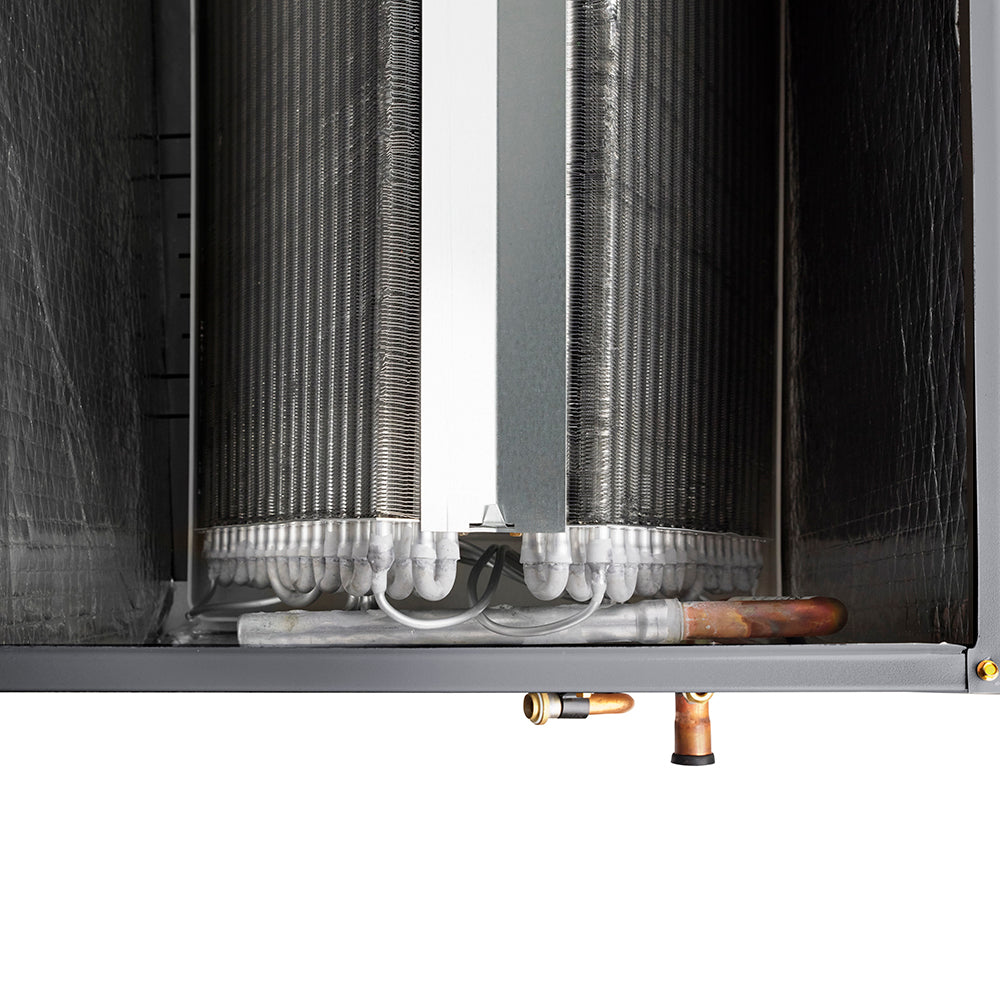

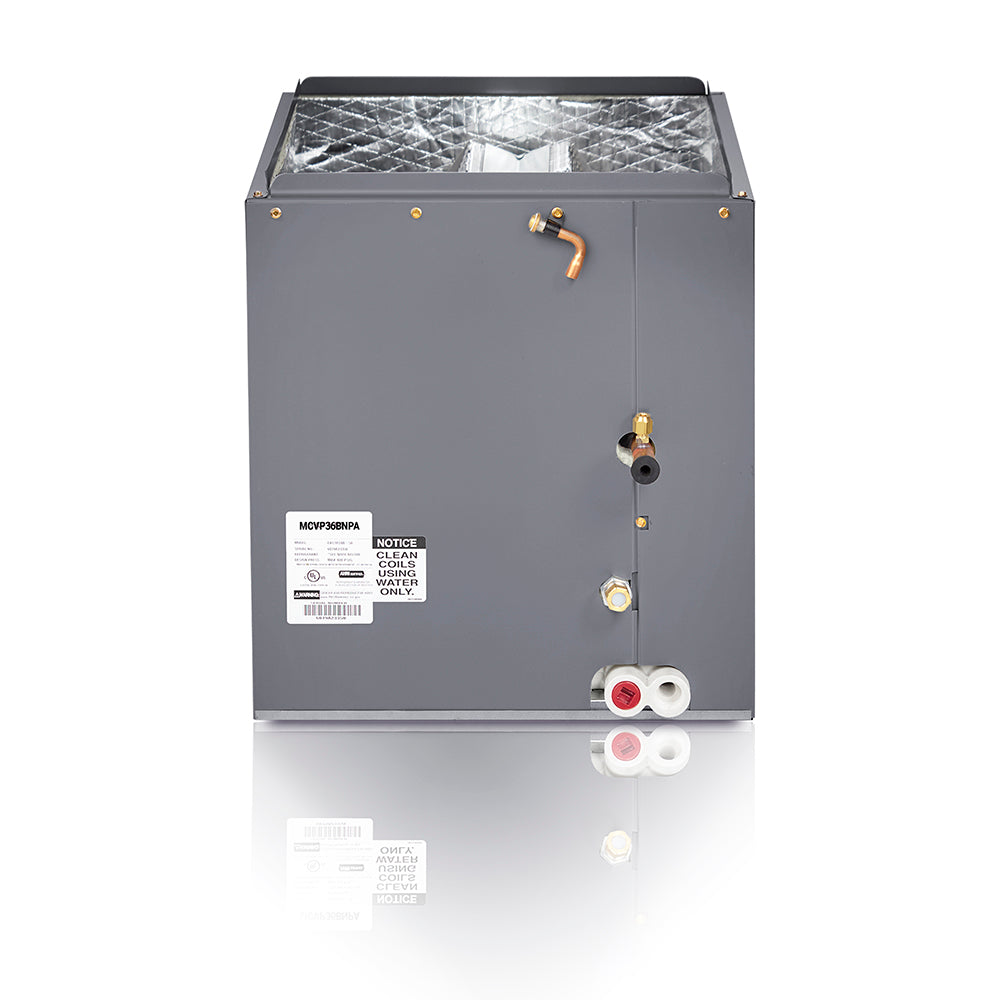

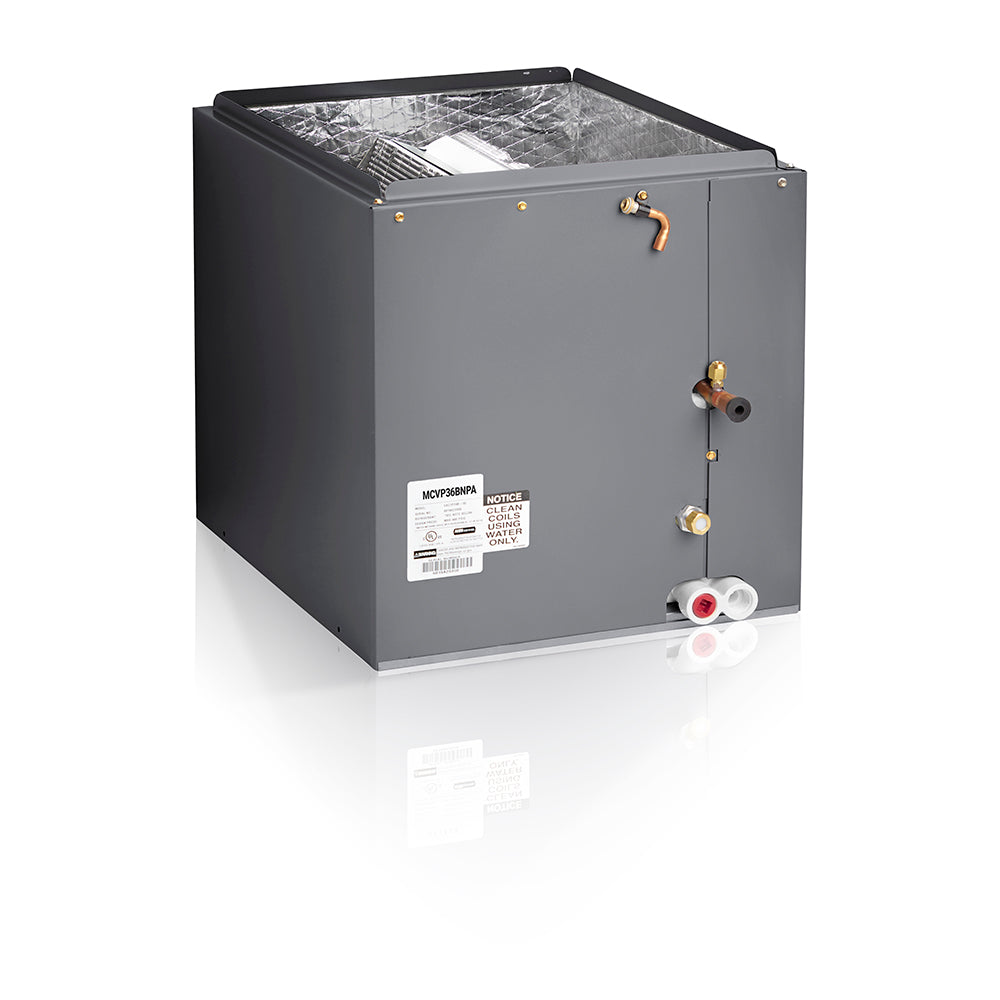

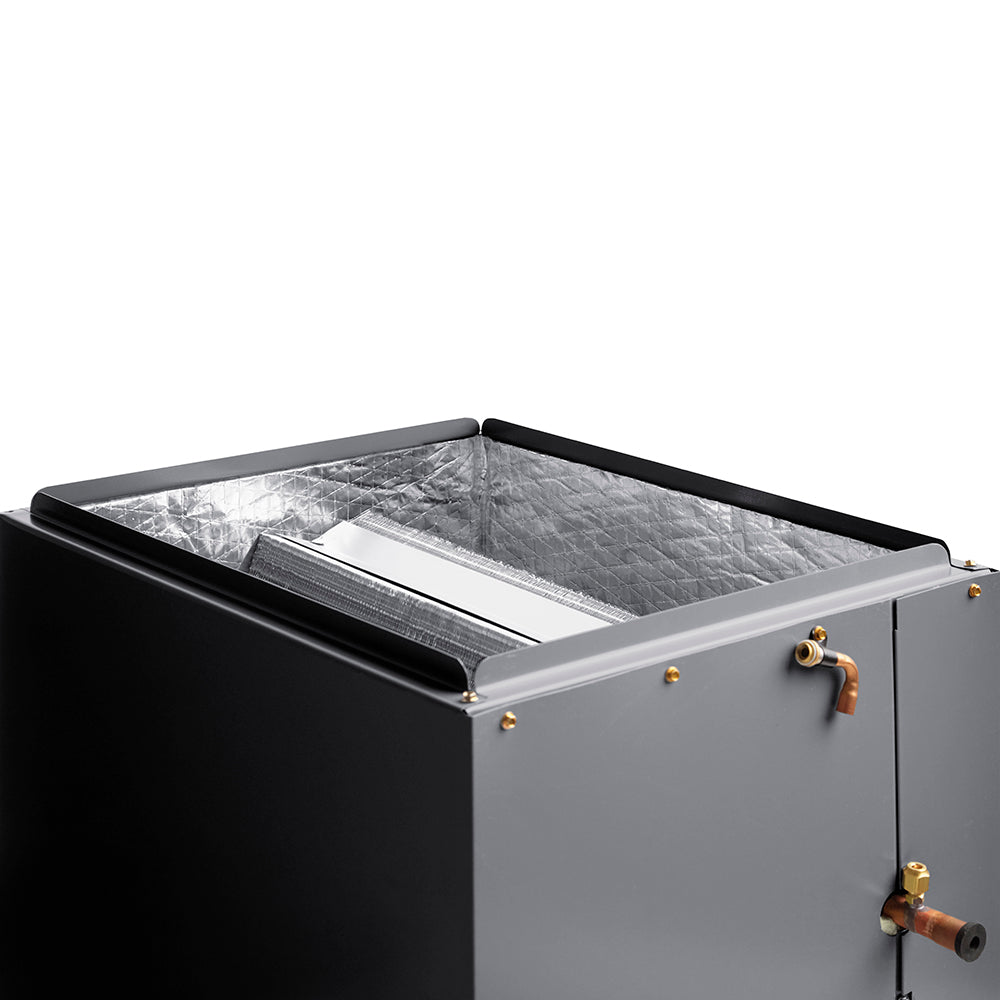

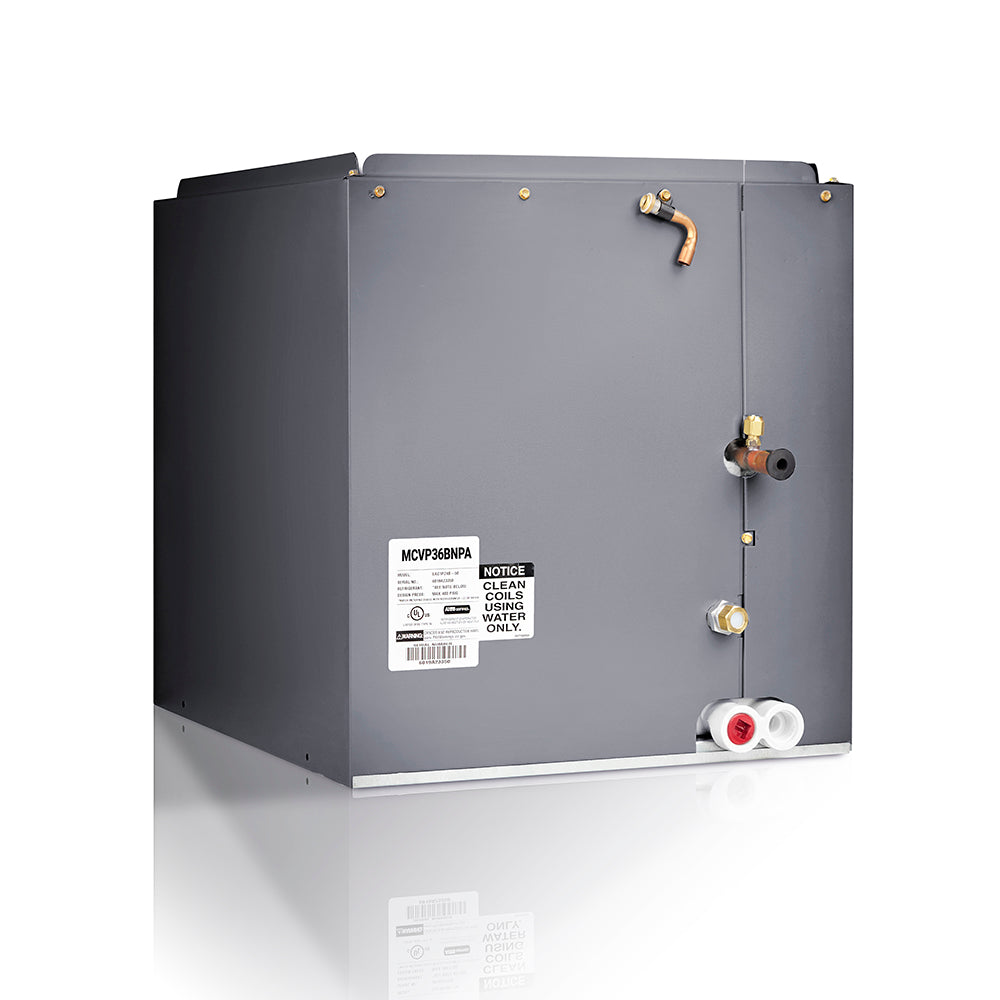

MRCOOL Signature 30K BTU, 2.5 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 17.5" Cabinet (MCVP30BNPA)

2.5 Ton BTU R410A Upflow Cased Evaporator Coil



This is a brand new 2.5 ton, R410A refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.



Features

  • Interlocking door assemblies and snug line sealgrommets to minimize air leakage
  • All units UL Listed and AHRI Certified
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections
  • Foil-face insulation for easy cleaning
  • All drain pans are compatible with UV lights
  • Two dual drain on front of coil for install flexibility of drain lines around furnace vent and utility connections.
  • Superior service access to components, withtubing located at door split and foil-face insulation
  • 10-Year Parts Limited Warranty Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
  • Tubing located at door split for easy coil service or cleaning
  • Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage



Dimensions

21" D x 22.5" H x 17.5" W

Tonnage

2 1/2

Cooling Capacity

30000

Color

Gray

Color Family

Gray

Refrigerant Type

R-410A

Drain Connection Size

3/4

Lineset Included

No

Line Set Length

15ft, 25ft, 35ft, 50ft

Max Lineset Length

50ft

Lineset Fitting Type

Sweat

Liquid Line Size

3/8

Suction Line Size

3/4

UL Reconized

yes

UL Listed

yes

Energy Star Compliant

no

Energy Star Certified

no

AHRI Certified

yes

Registered Warranty

Registered 10 Year Parts Warranty

Base Warranty

5 Year Parts Warranty

Registered Parts Warranty

Registered 10 Year Parts Warranty

Base Parts Warranty

5 Year Parts Warranty

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed GAS

Yes

Proposition 65 Warning

Yes

Restricted States

No

Net Weight

50
