MRCOOL Signature 30K BTU, 2.5 Ton, 16 SEER, R410A Horizontal Cased Evaporator Coil - 17.5-Inch Cabinet (MCHP30BNPA)

MRCOOLSKU: MCHP30BNPA
49 reviews

Price:
Sale price$473.00 Regular price$549.00SAVE 13%
Low Stock
Estimated delivery: Nov 19th-28th
Free shipping — delivered to your door by parcel carrier

Free shipping

Included on every order
Ships free by parcel carrier. Your order ships with FedEx, UPS, USPS, or similar.
Tracking lands in your inbox. We email your tracking number as soon as the order leaves our warehouse.
Delivered to your door. Most parcel deliveries don't require a signature, so you don't need to be home.
Something arrives damaged: contact us right away and we'll make it right.

Description

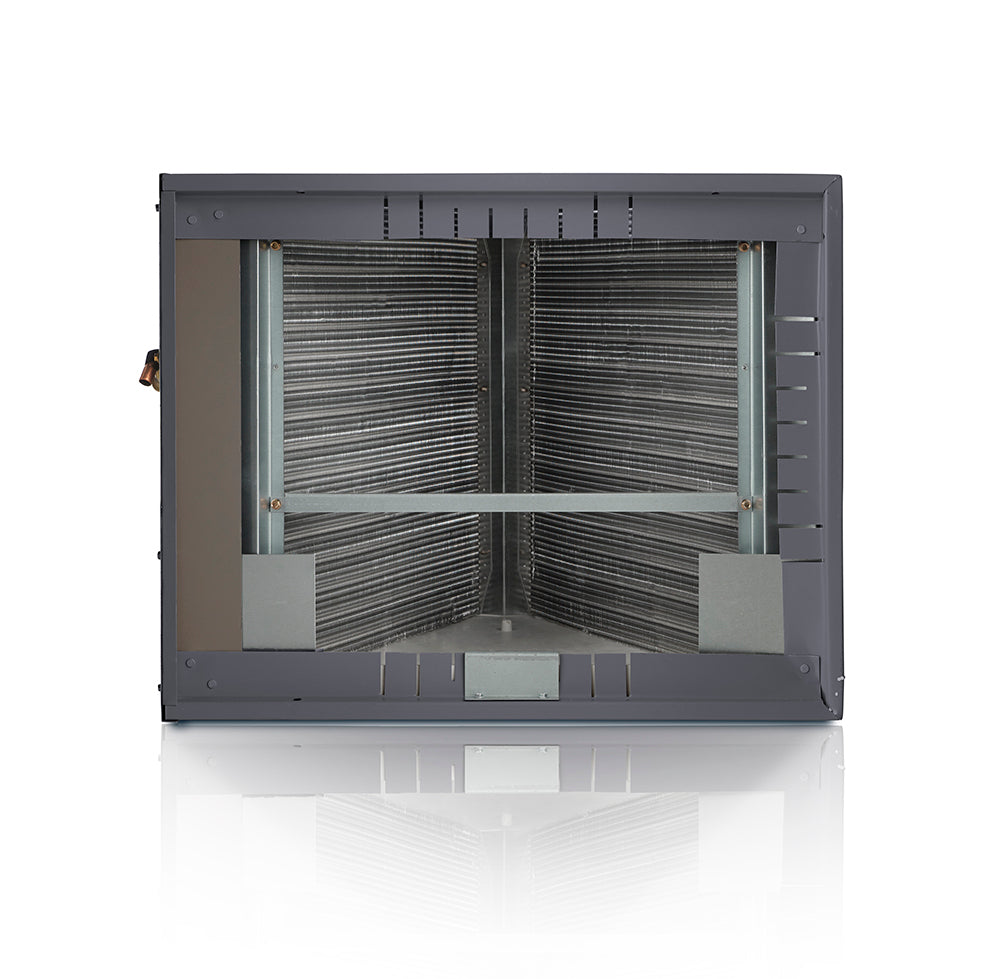

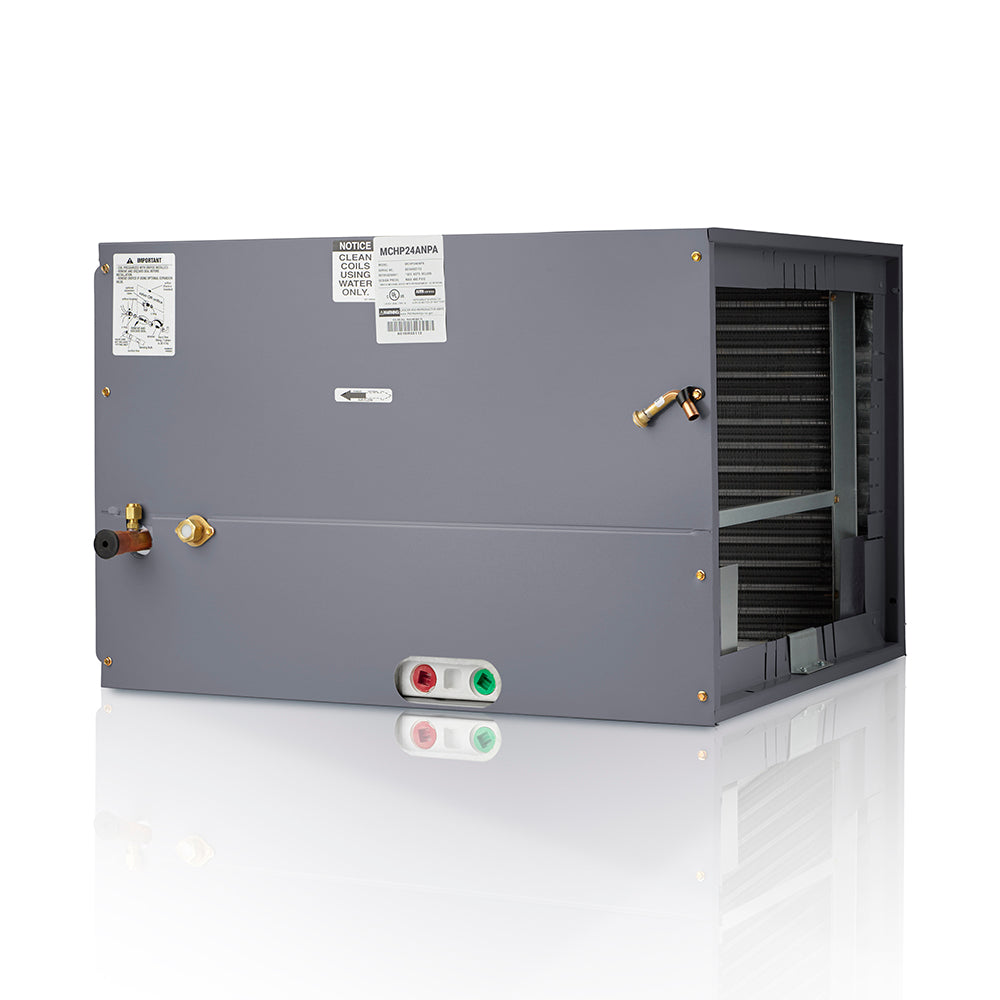

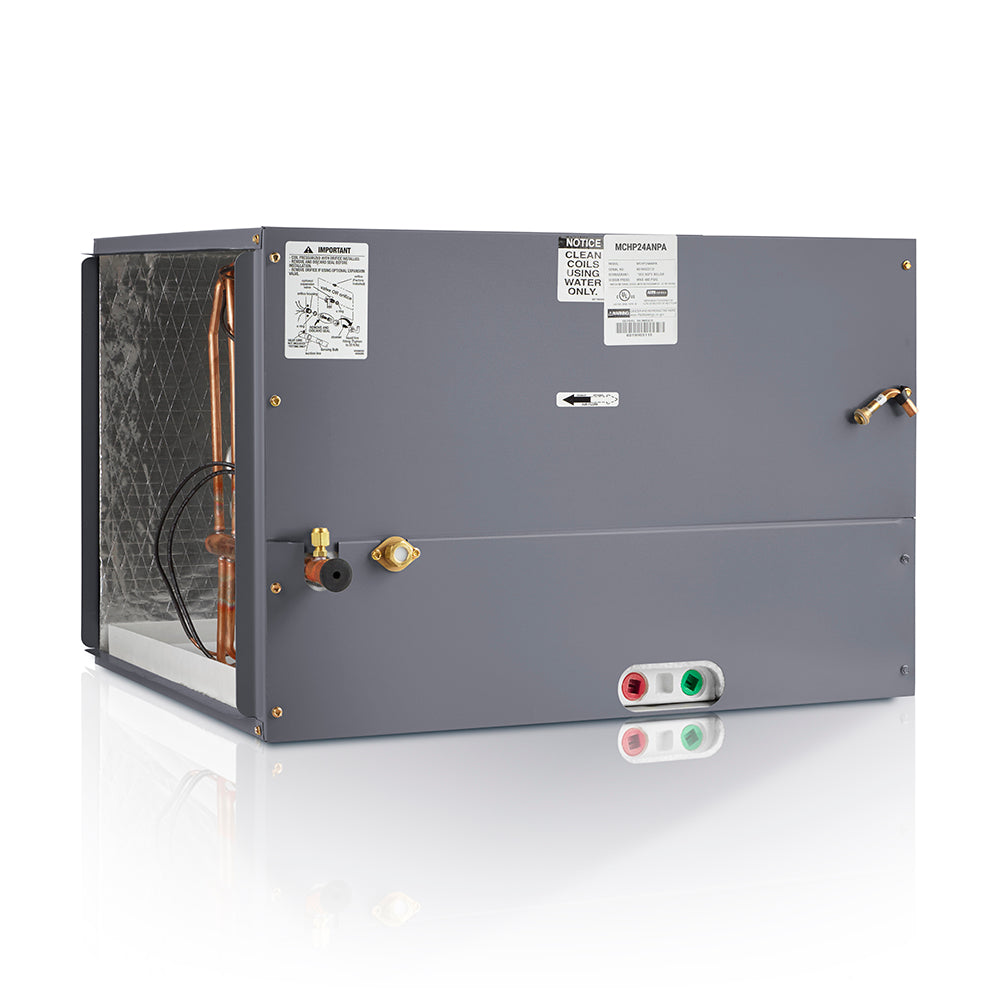

2.5 Ton BTU R410A Horizontal Cased Evaporator Coil

This is a brand new 2.5 ton, R410A refrigerant, horizontal cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

Features

  • Interlocking door assemblies and snug line sealgrommets to minimize air leakage
  • All units UL Listed and AHRI Certified
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • Insulated galvanized steel case with durable embossed finish
  • Foil-face insulation for easy cleaning
  • All drain pans are compatible with UV lights
  • Removable top panels for easy service or cleaning
  • Superior service access to components, withtubing located at door split and foil-face insulation
  • 10-Year Parts Limited Warranty
  • Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
  • Tubing located at door split for easy coil service or cleaning
  • Refrigerant lines extend outside of the cabinet for easy connection
DIMENSIONS
Dimensions
26.5" D x 17.5" H x 21.5" W
Net Weight
53
Liquid Line Size
3/8
Suction Line Size
3/4
Drain Connection Size
3/4
GENERAL INFORMATION
Color
Gray
Color Family
Gray
UL Reconized
yes
Tonnage
2 1/2
Refrigerant Type
R-410A
Line Set Length
15ft, 25ft, 35ft, 50ft
Max Lineset Length
50ft
Lineset Fitting Type
Sweat
UL Listed
yes
Energy Star Compliant
no
Energy Star Certified
no
AHRI Certified
yes
Contains Chemicals
Yes
Contains Aerosol
Yes
Contains Compressed GAS
Yes
Proposition 65 Warning
Yes
Restricted States
No
Registered Warranty
Registered 10 Year Parts Warranty
Base Warranty
5 Year Parts Warranty
Registered Parts Warranty
Registered 10 Year Parts Warranty
Base Parts Warranty
5 Year Parts Warranty
FEATURES
Cooling Capacity
30000
Lineset Included
No
