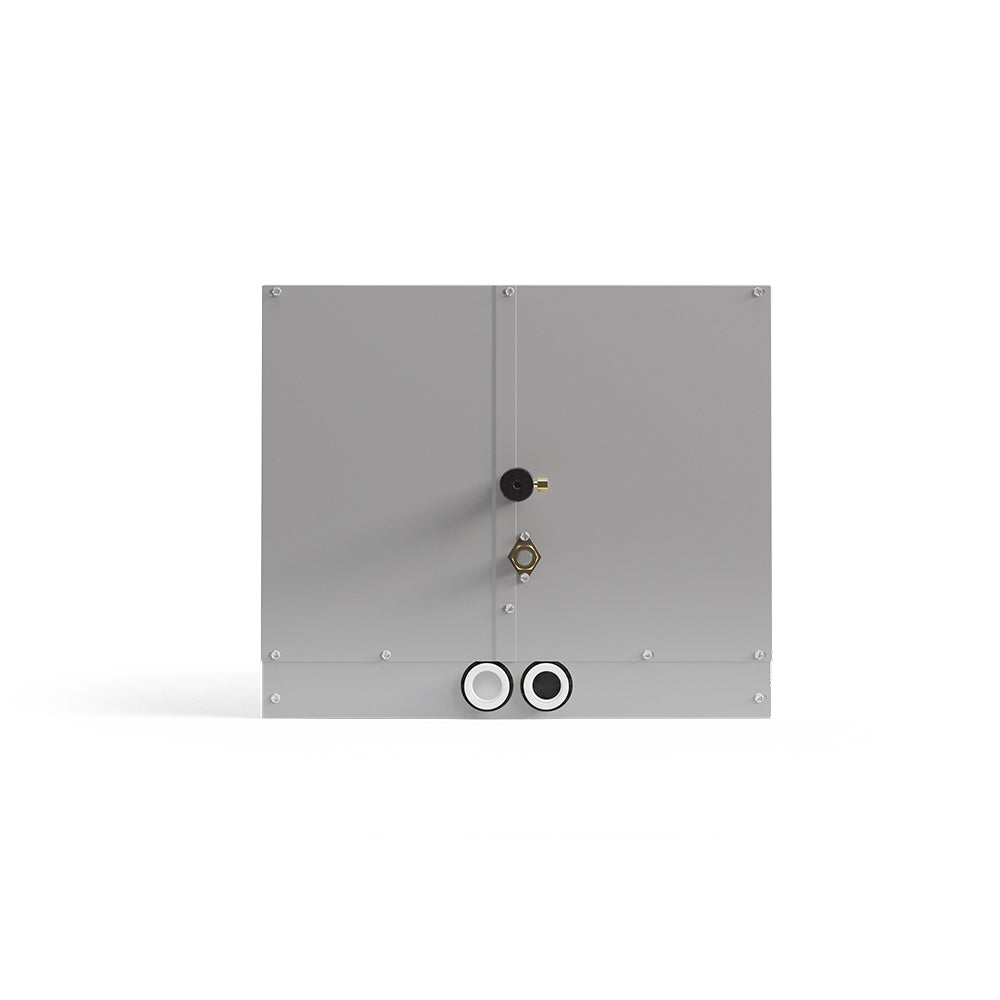

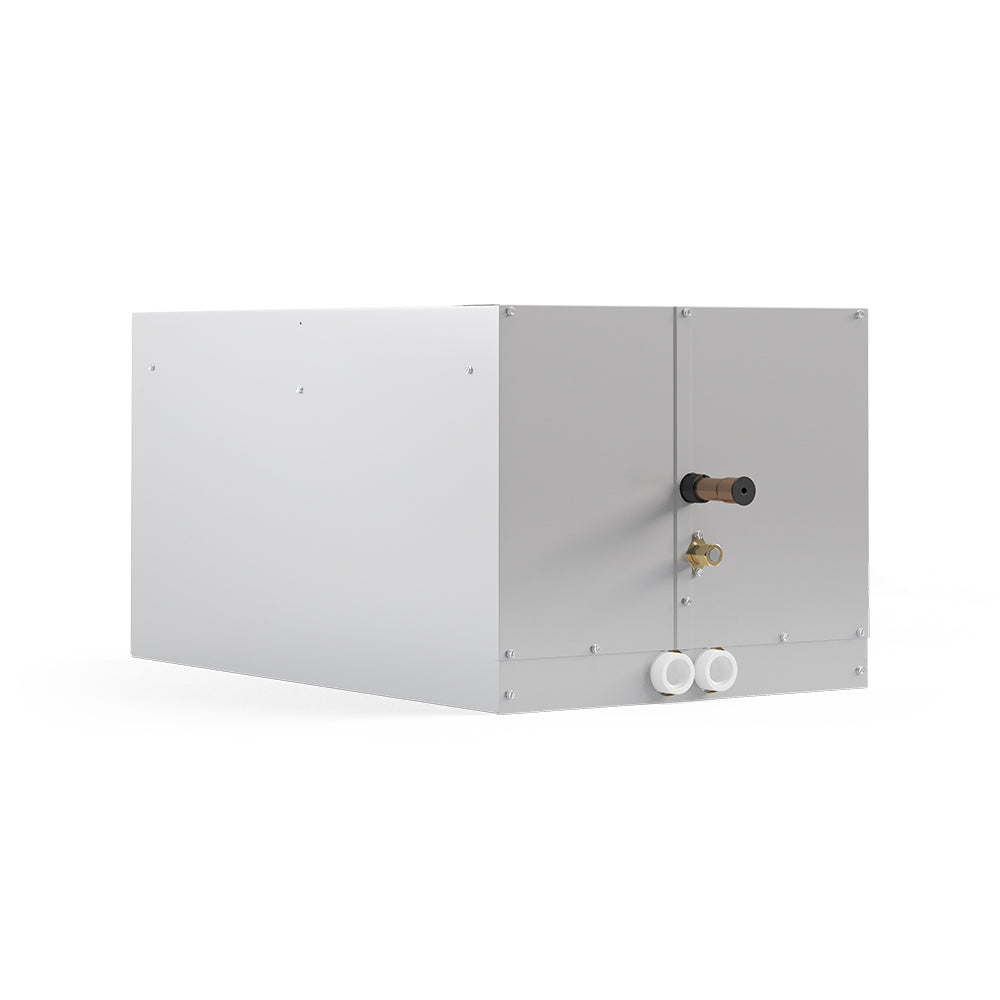

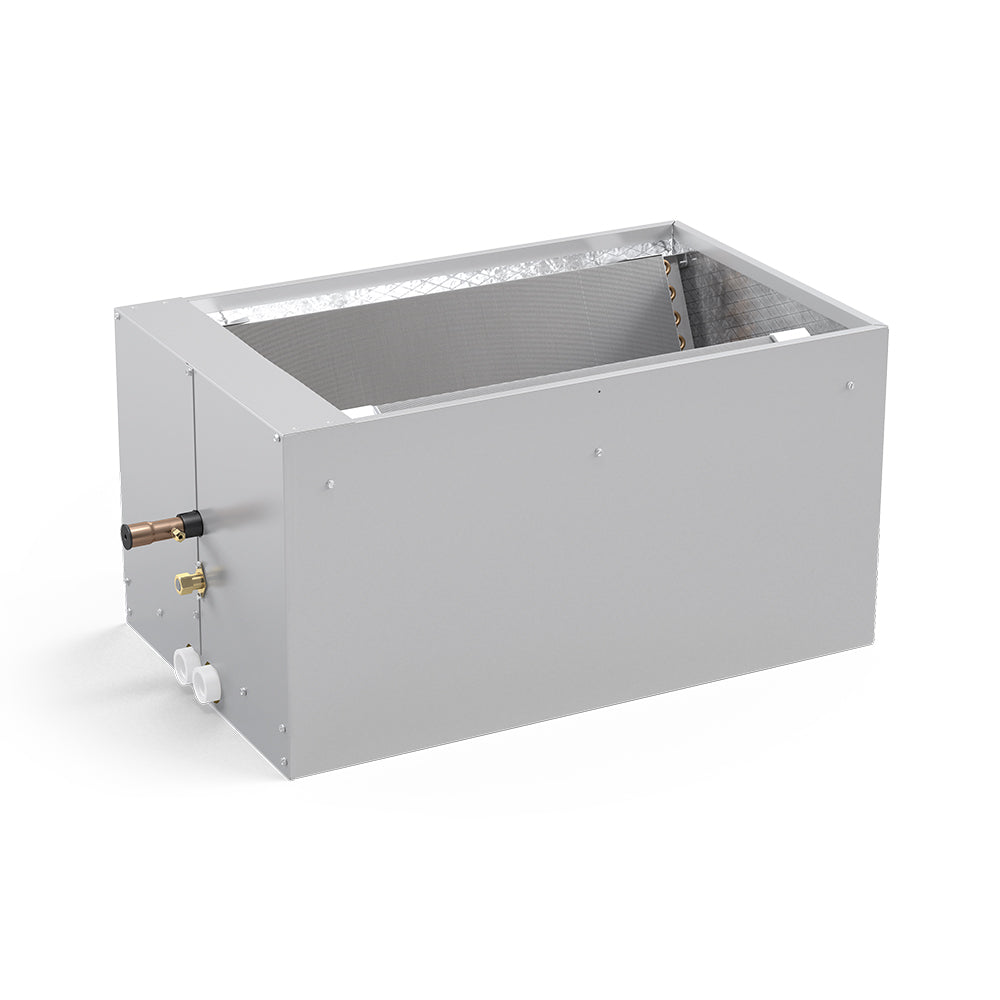

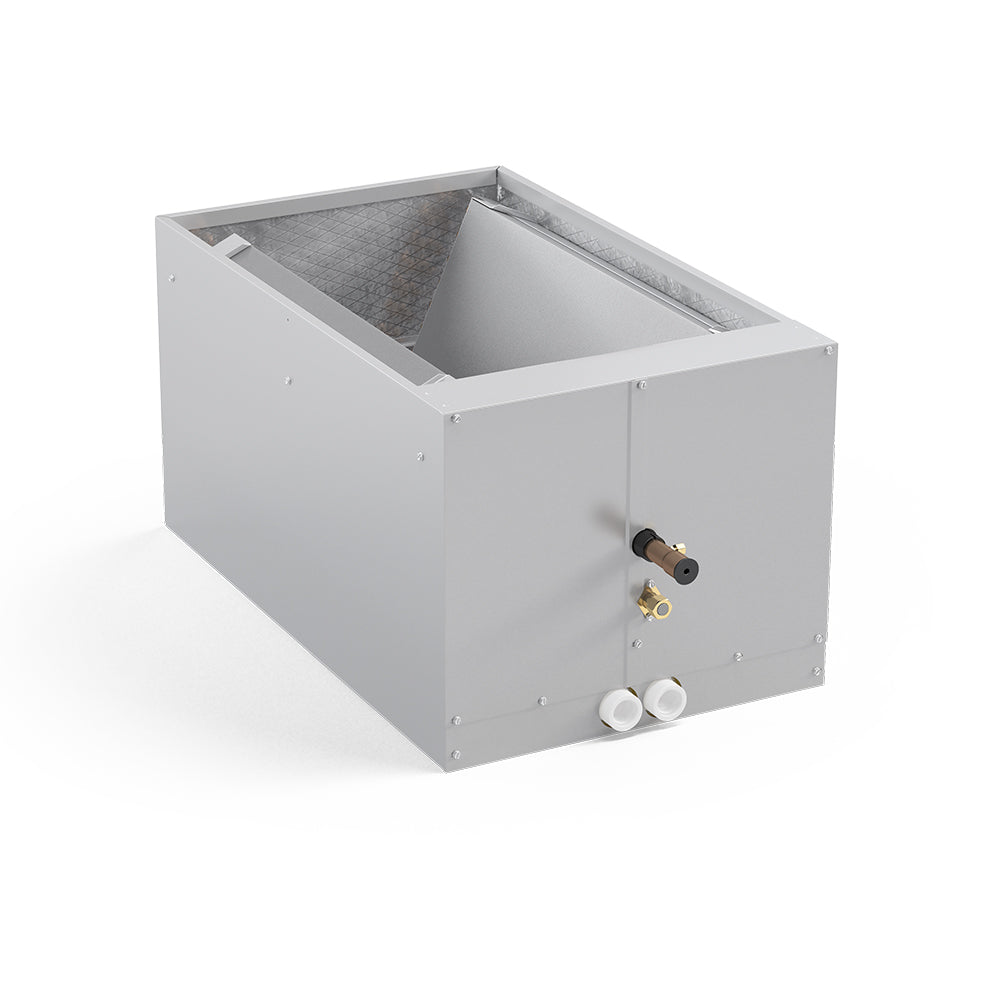

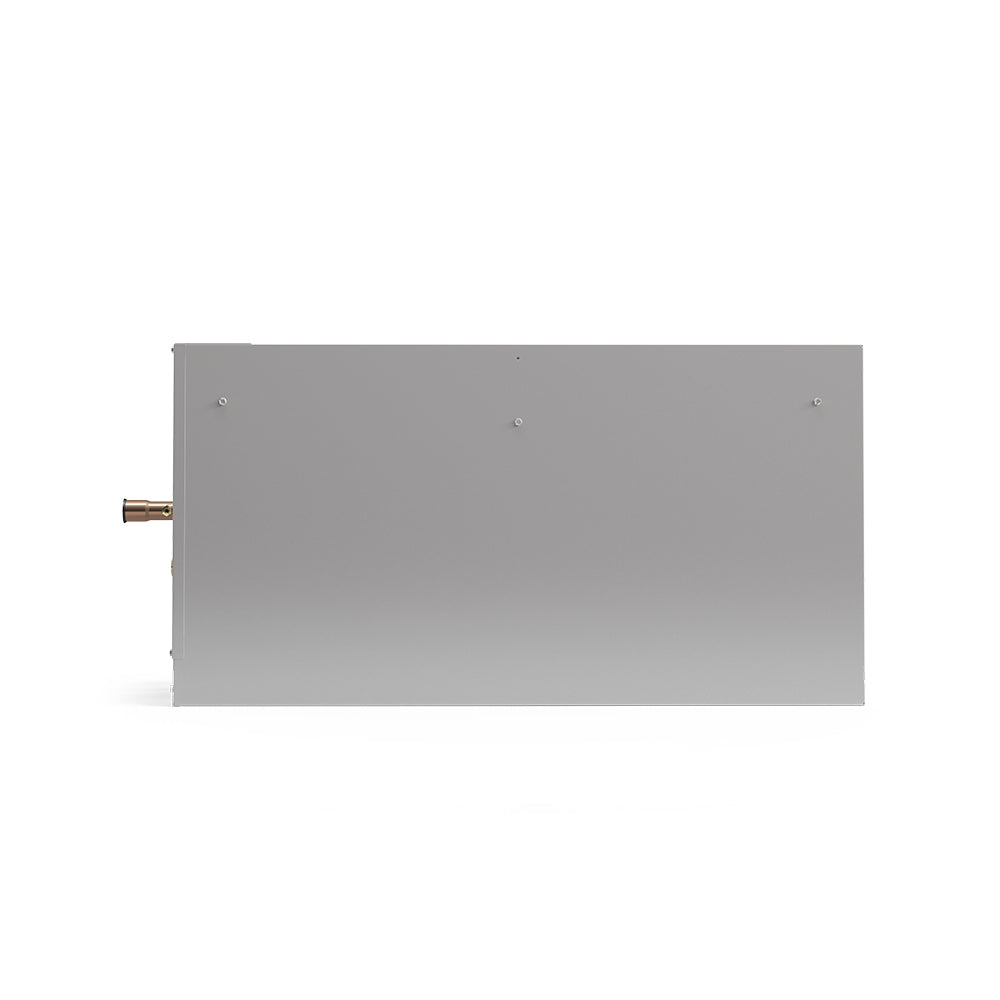

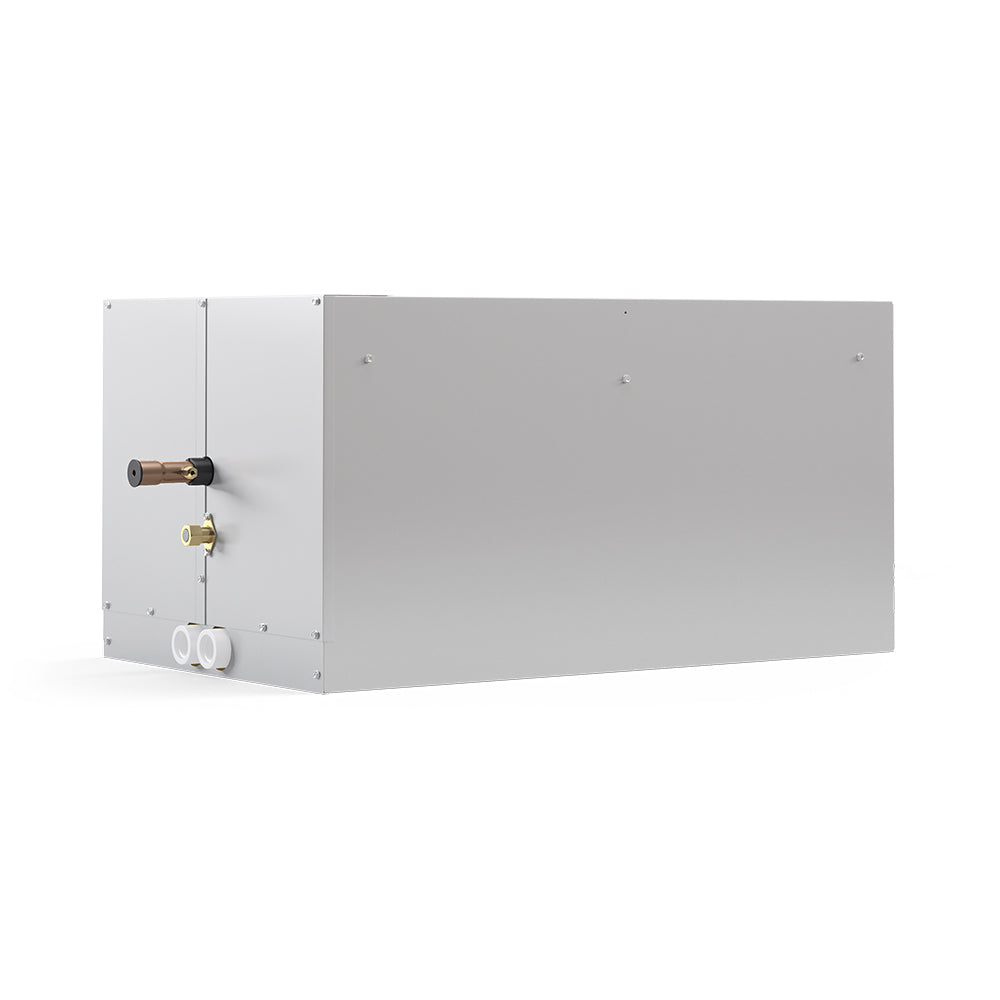

3 Ton BTU R410A Downflow Cased Evaporator Coil
This is a brand new 3 ton, R410A refrigerant, downflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
|
Dimensions |
16 1/8" D x 21" H x 26 1/8" W |
|
Tonnage |
3 |
|
Cooling Capacity |
36000 |
|
Color |
Gray |
|
Color Family |
Gray |
|
Refrigerant Type |
R-410A |
|
Drain Connection Size |
3/4 |
|
Lineset Included |
No |
|
Line Set Length |
15ft, 25ft, 35ft, 50ft |
|
Max Lineset Length |
50ft |
|
Lineset Fitting Type |
Sweat |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
7/8 |
|
UL Reconized |
yes |
|
UL Listed |
yes |
|
Energy Star Compliant |
no |
|
Energy Star Certified |
no |
|
AHRI Certified |
yes |
|
Registered Warranty |
Registered 10 Year Parts Warranty |
|
Base Warranty |
5 Year Parts Warranty |
|
Registered Parts Warranty |
Registered 10 Year Parts Warranty |
|
Base Parts Warranty |
5 Year Parts Warranty |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed GAS |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
No |
|
Net Weight |
60 |
*Shipping Policy
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Fast delivery and great customer service . Would purchase from company again
Not great installation instructions, but great product
I recently removed my old gas furnace and replaced it with the MRCOOL Hyper Heat - Central Heat Pump & Gas Furnace Split System - 24K BTU, 96% AFUE - 17.5" Cabinet - Multi-Position. This system was very straight forward and simple to install. I live in Colorado and have been enjoying the cool all summer. I tested the heat function but have not had a cold season yet, with my new system. I'm sure it will heat as good as it cools.
