MRCOOL Signature 36K BTU, 3 Ton, 16 SEER, R410A Downflow Cased Evaporator Coil - 14.5-Inch Cabinet (MCDP3036ANPA)

MRCOOL Signature 36K BTU, 3 Ton, 16 SEER, R410A Downflow Cased Evaporator Coil - 14.5-Inch Cabinet (MCDP3036ANPA)

SKU: MCDP3036ANPA

Sale price$626.00 Regular price$899.00
Save 30%



Estimated delivery:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

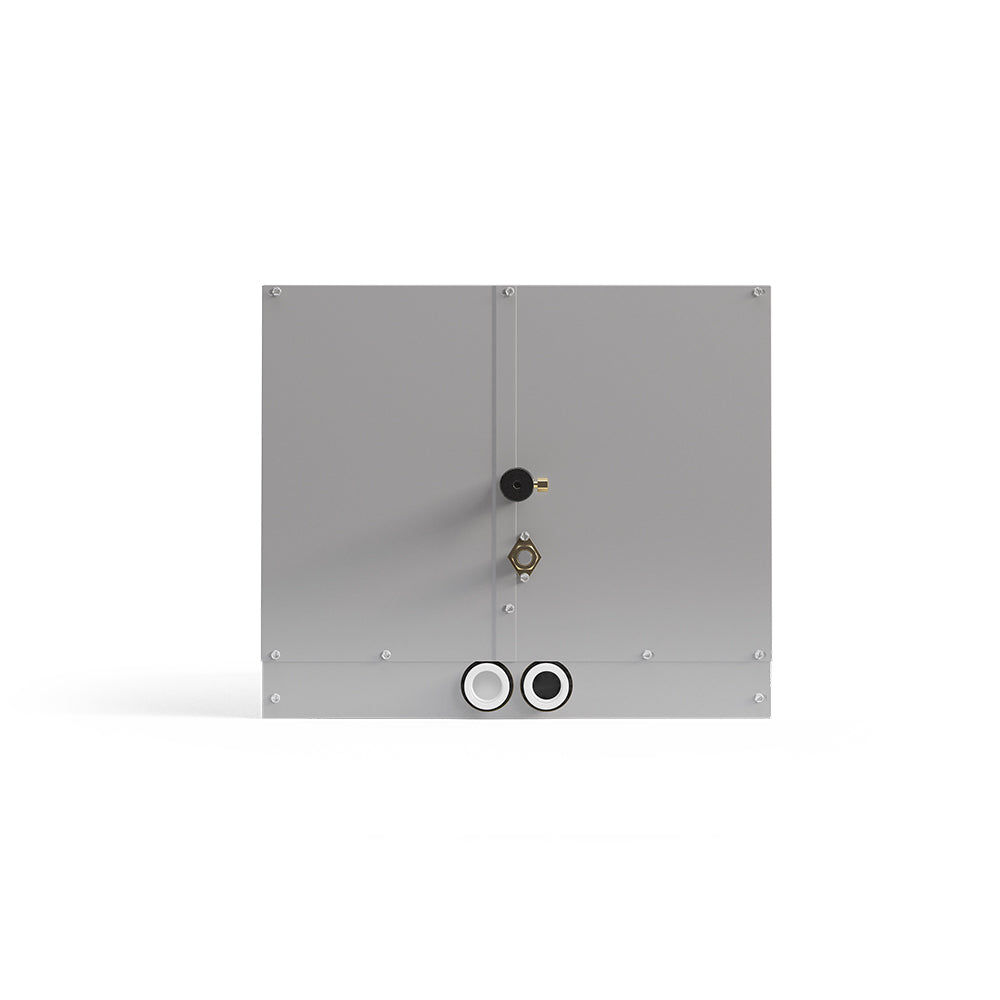

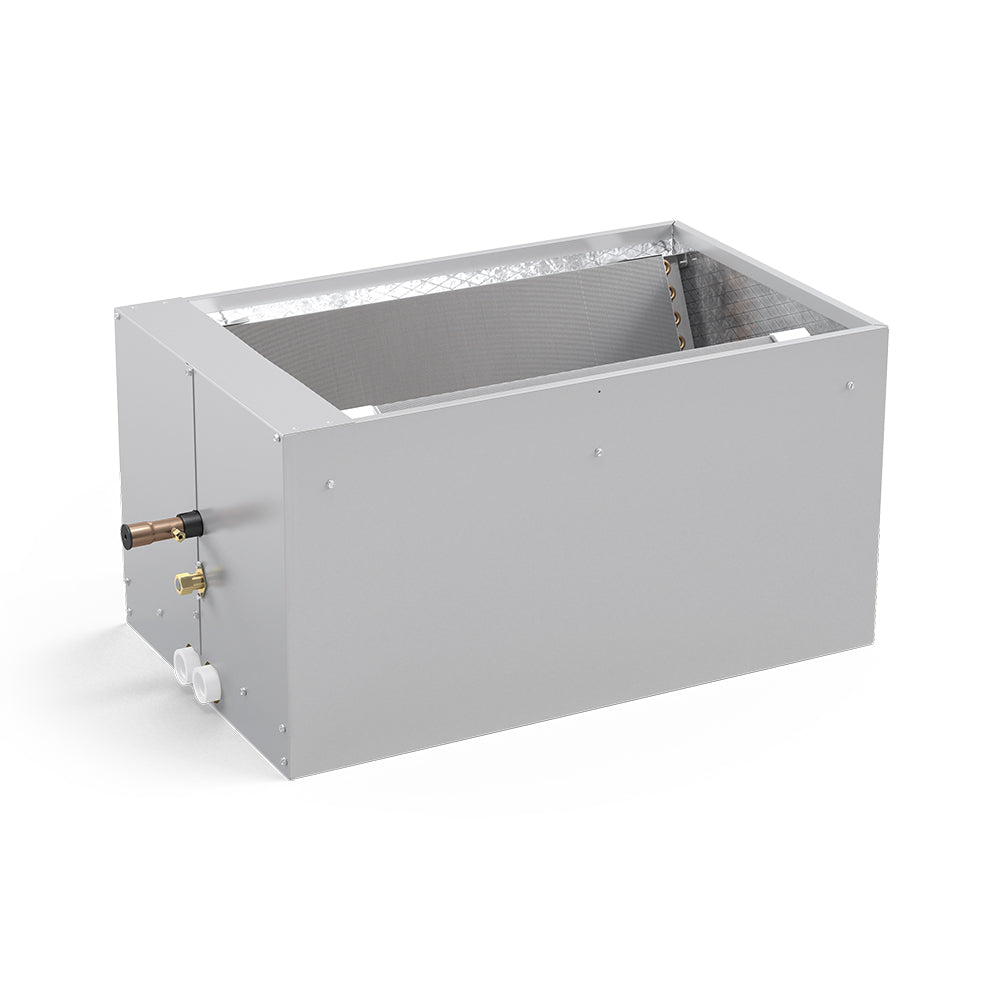

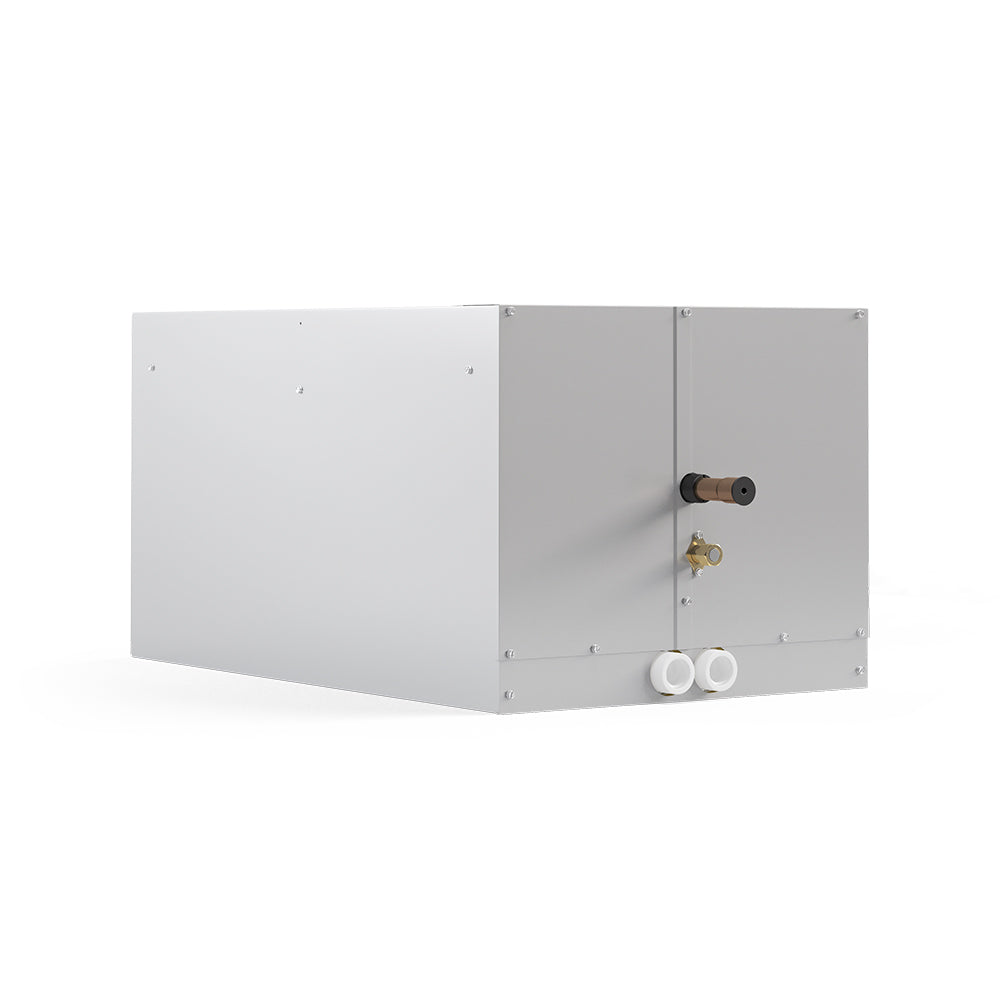

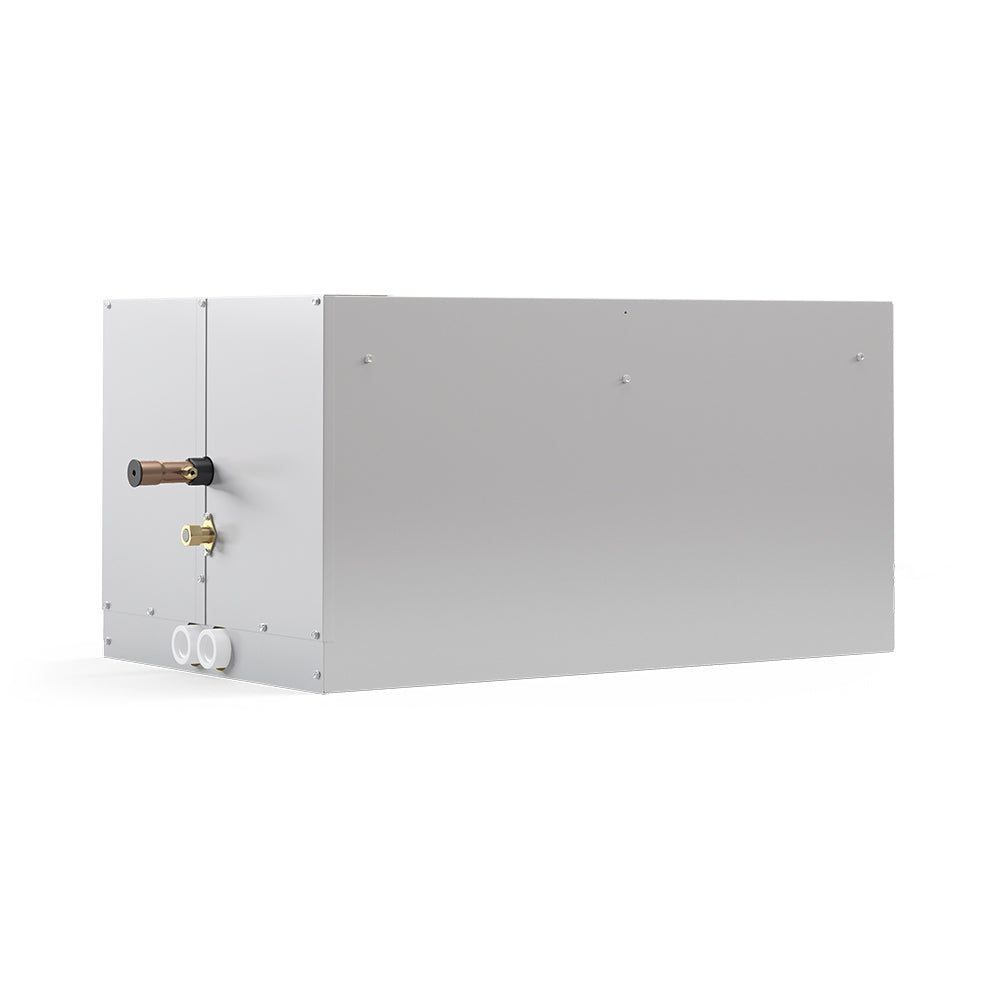

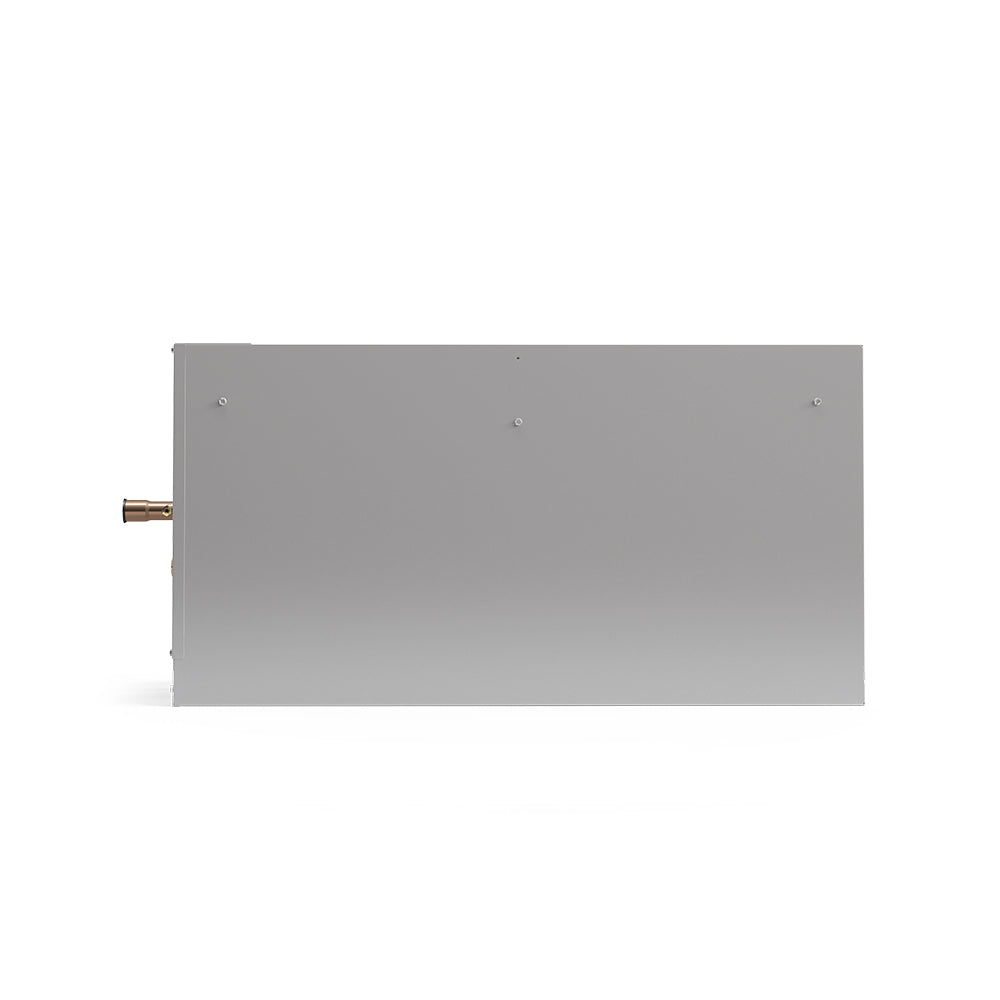

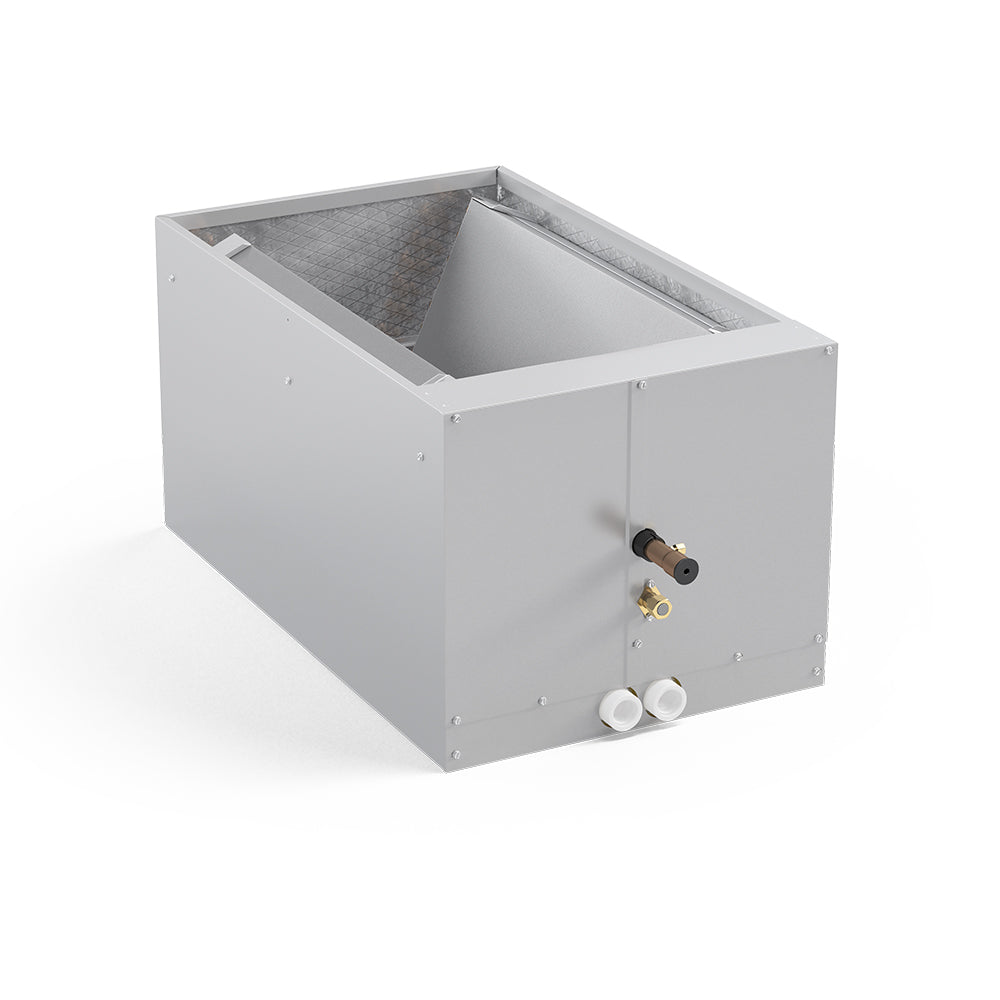

MRCOOL Signature 36K BTU, 3 Ton, 16 SEER, R410A Downflow Cased Evaporator Coil - 14.5" Cabinet (MCDP3036ANPA)

3 Ton BTU R410A Downflow Cased Evaporator Coil



This is a brand new 3 ton, R410A refrigerant, downflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.



Features

  • Interlocking door assemblies and snug line sealgrommets to minimize air leakage
  • All units UL Listed and AHRI Certified
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • Heavy-gauge steel constructed cabinet for optimal support of the furnace, no need for additional bracing or structure.
  • Foil-face insulation for easy cleaning
  • All drain pans are compatible with UV lights
  • Removable Cabinet panels for easy coil service
  • Superior service access to components, withtubing located at door split and foil-face insulation
  • 10-Year Parts Limited Warranty
  • Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
  • Tubing located at door split for easy coil service or cleaning

Dimensions

16 1/8" D x 14 1/2" H x 26 1/8" W

Tonnage

3

Cooling Capacity

36000

Color

Gray

Color Family

Gray

Refrigerant Type

R-410A

Drain Connection Size

3/4

Lineset Included

No

Line Set Length

15ft, 25ft, 35ft, 50ft

Max Lineset Length

50ft

Lineset Fitting Type

Sweat

Liquid Line Size

3/8

Suction Line Size

7/8

UL Reconized

yes

UL Listed

yes

Energy Star Compliant

no

Energy Star Certified

no

AHRI Certified

yes

Registered Warranty

Registered 10 Year Parts Warranty

Base Warranty

5 Year Parts Warranty

Registered Parts Warranty

Registered 10 Year Parts Warranty

Base Parts Warranty

5 Year Parts Warranty

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed GAS

Yes

Proposition 65 Warning

Yes

Restricted States

No

Net Weight

58



Mini Split FAQ

What BTU rating should I choose for my air handler?

  • This depends on the coverage area/room size you are trying to heat/cool
  • An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area
Air Handler BTU Coverage Area/Room Size (Sq Ft.)*
9K BTU
Up to 375 Sq. ft
12K BTU Up to 500 Sq. ft
18K BTU Up to 750 Sq. ft
24k BTU Up to 1000 Sq. ft
36k BTU  Up to 1500 Sq. ft

*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.

Shipping & Returns

*Shipping Policy

  • Shipping is Free
  • Large appliances ship via Freight Curbside shipment. Meaning the carrier will drop off your item on your property not inside your home. The courier company will call ahead of time to schedule a drop off date
  • For the full details, visit our Shipping Page

Return/Refund Policy
  • 30-Day Return Policy
  • If your order arrives damaged, we will exchange you for a new one. Damage must be reported within 24 hours.
  • For more details, visit our Return Policy Page



Customer Reviews

Based on 24 reviews
96%
(23)
4%
(1)
0%
(0)
0%
(0)
0%
(0)
P
Peter K. (Phoenix, US)
Pretty Easy Install and Works Great!

Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!

W
WesD (Chicago, US)
Installed and working great

Installed with ceiling cassettes... Quiet and keeping us cool so far !

D
Deborah B. (Memphis, US)
Heat pump unit

My unit arrived on time and undamaged. It was installed without a problem. I hate the fuse unit didn't come with it. They did UPS it to me so I didn't have to put installation on hold. The unit is very quiet and works well.

N
Nat R. (Odessa, US)
4 ton condensing unit

Very good delivery service installed and works like a Should

w
walter w. (Port Neches, US)
Old r22 unit, same capacity, worked better in temperature extremes

Product came packaged well, undamaged. Installation was difficult, followed instructions for suction line above coil on bilevel installation with coil above condenser. 108 inside house on startup, 103 ambient. First start, high pressure 500, low pressure 170, supply air temp 66 degrees. Very worried at first, but after house cooed down, everything within parameters. Researched 410a refrigerant, found out it looses efficiency exponentially during temperature extremes. My old r22 unit would supply 54 degree supply air in comparable operating conditions. EPA, government, a/c manufactures all lying to American public
