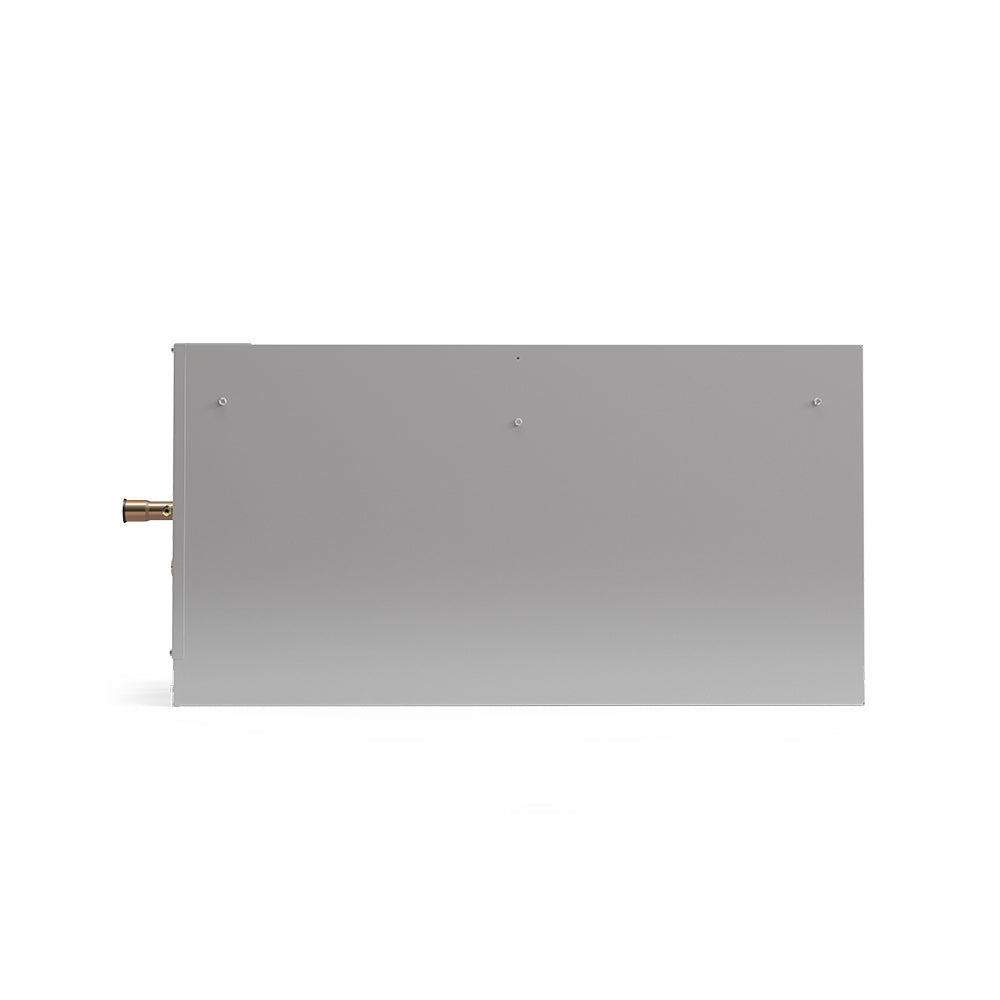

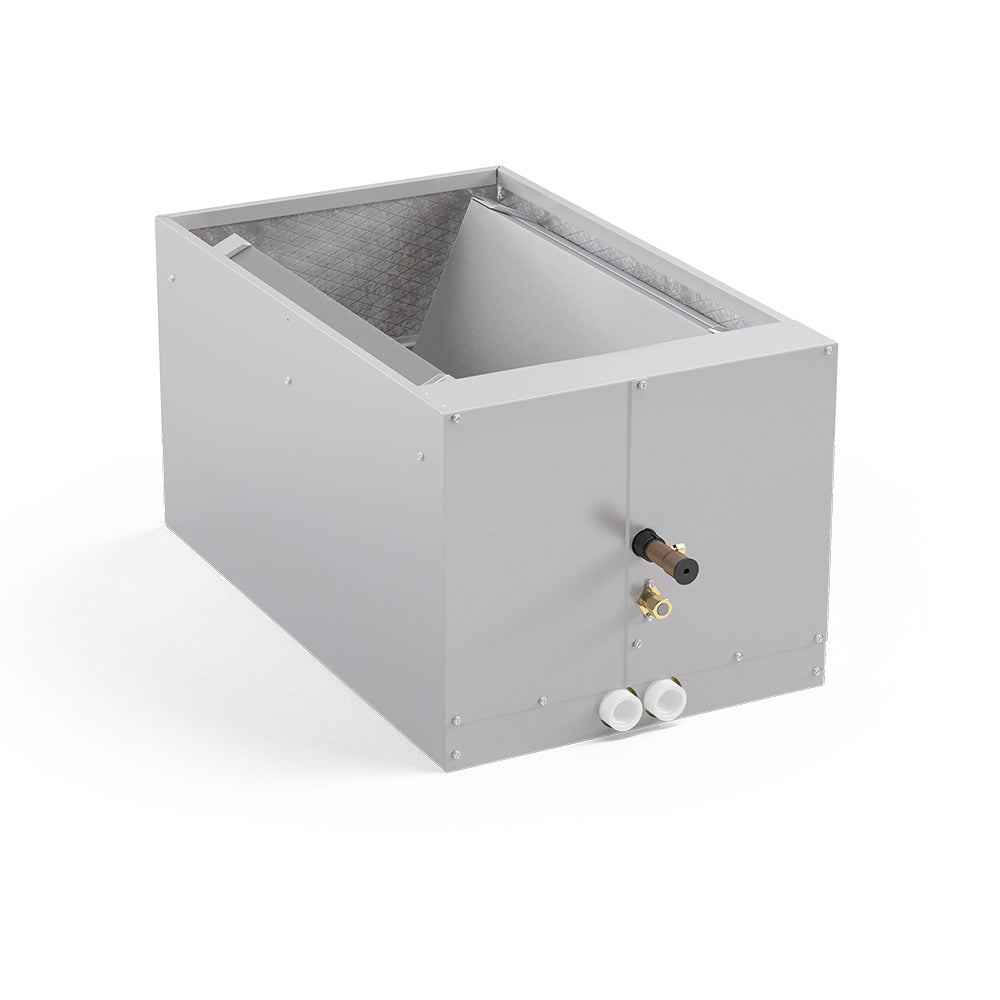

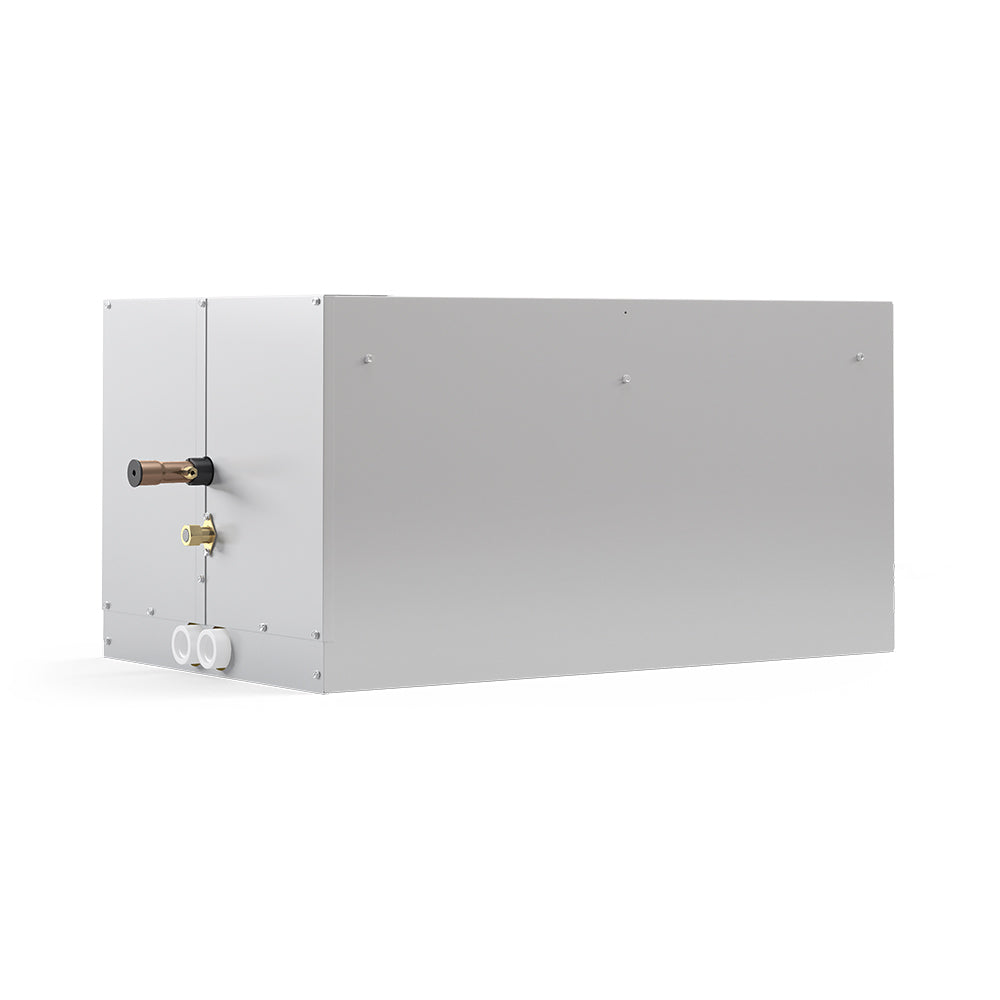

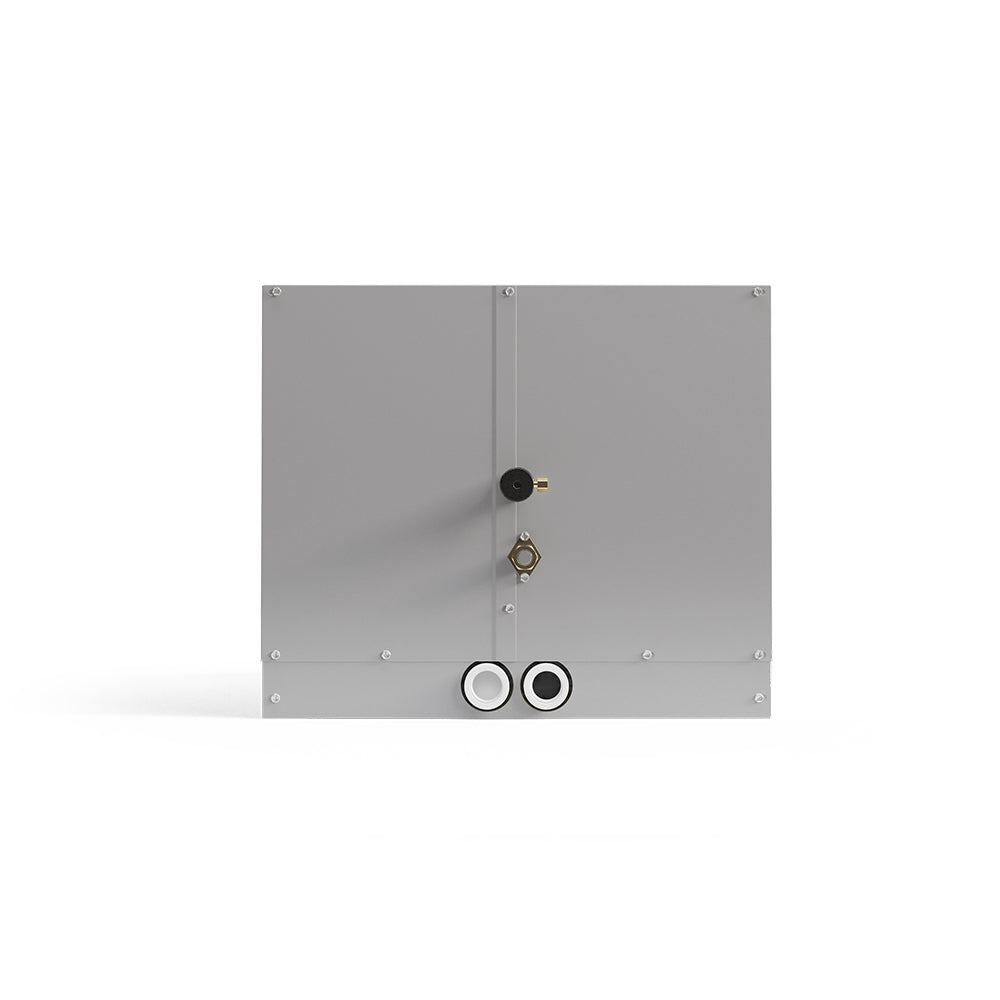

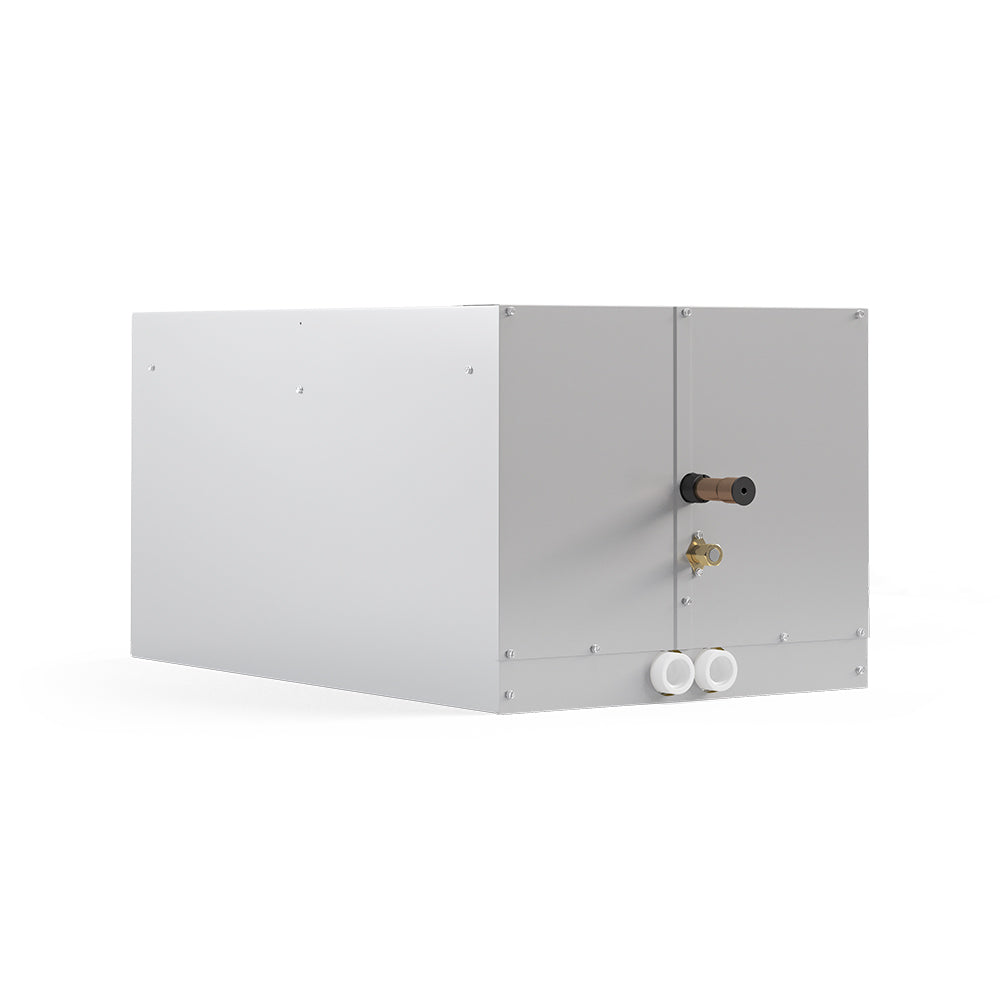

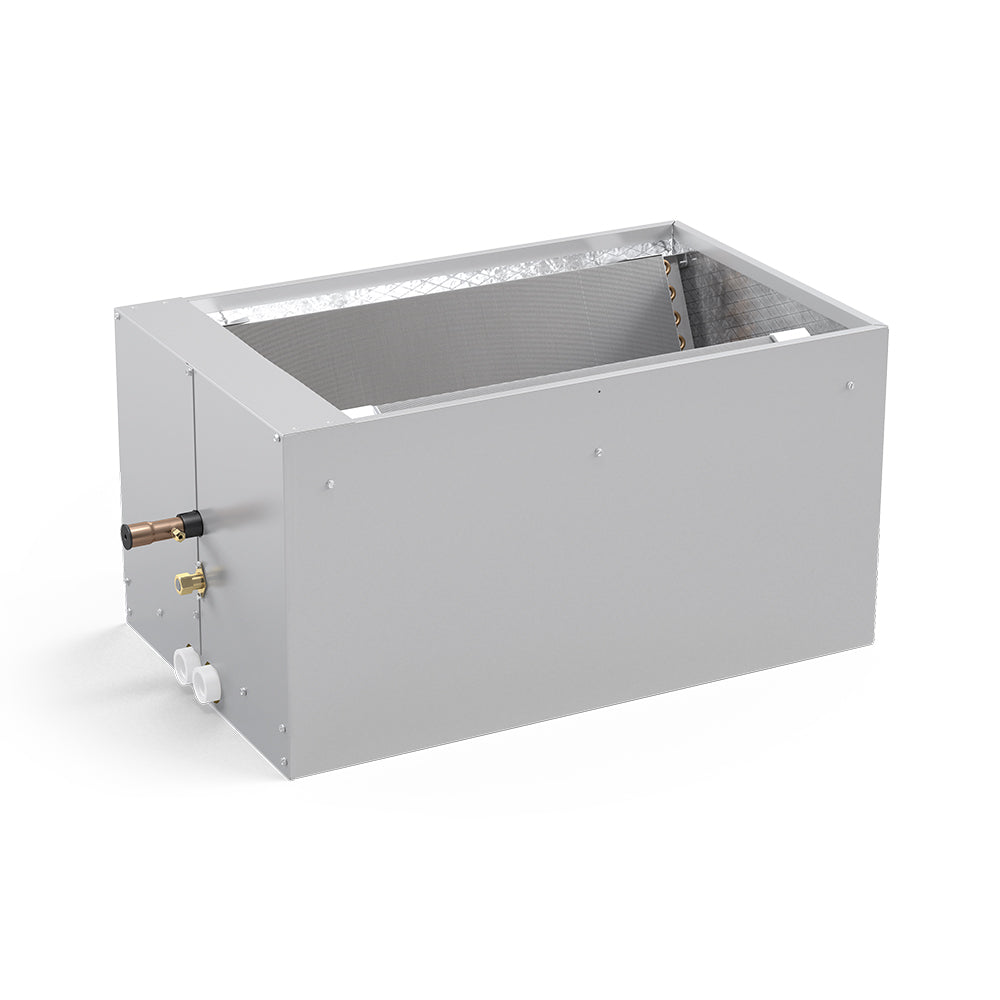

1.5 Ton BTU R410A Downflow Cased Evaporator Coil
This is a brand new 1.5 ton, R410A refrigerant, downflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
|
Dimensions |
14 1/8" D x 14 1/2" H x 26 1/8" W |
|
Tonnage |
1 1/2 |
|
Cooling Capacity |
18000 |
|
Color |
Gray |
|
Color Family |
Gray |
|
Refrigerant Type |
R-410A |
|
Drain Connection Size |
3/4 |
|
Lineset Included |
No |
|
Line Set Length |
15ft, 25ft, 35ft, 50ft |
|
Max Lineset Length |
50ft |
|
Lineset Fitting Type |
Sweat |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
7/8 |
|
UL Reconized |
yes |
|
UL Listed |
yes |
|
Energy Star Compliant |
no |
|
Energy Star Certified |
no |
|
AHRI Certified |
yes |
|
Registered Warranty |
Registered 10 Year Parts Warranty |
|
Base Warranty |
5 Year Parts Warranty |
|
Registered Parts Warranty |
Registered 10 Year Parts Warranty |
|
Base Parts Warranty |
5 Year Parts Warranty |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed GAS |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
No |
|
Net Weight |
44 |
| Brochure |
| Specs |
| Warranty Doc |
*Shipping Policy
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Overall Great Unit and working with HOD was simple. Unit arrived on time and in good shape.
Install was as stated and works good but struggles at heating house when temperatures are below freezing. I am concerned what will happen once we get to 20 and lower. Over all I like the product but they should be more honest about heating at low temperatures.
