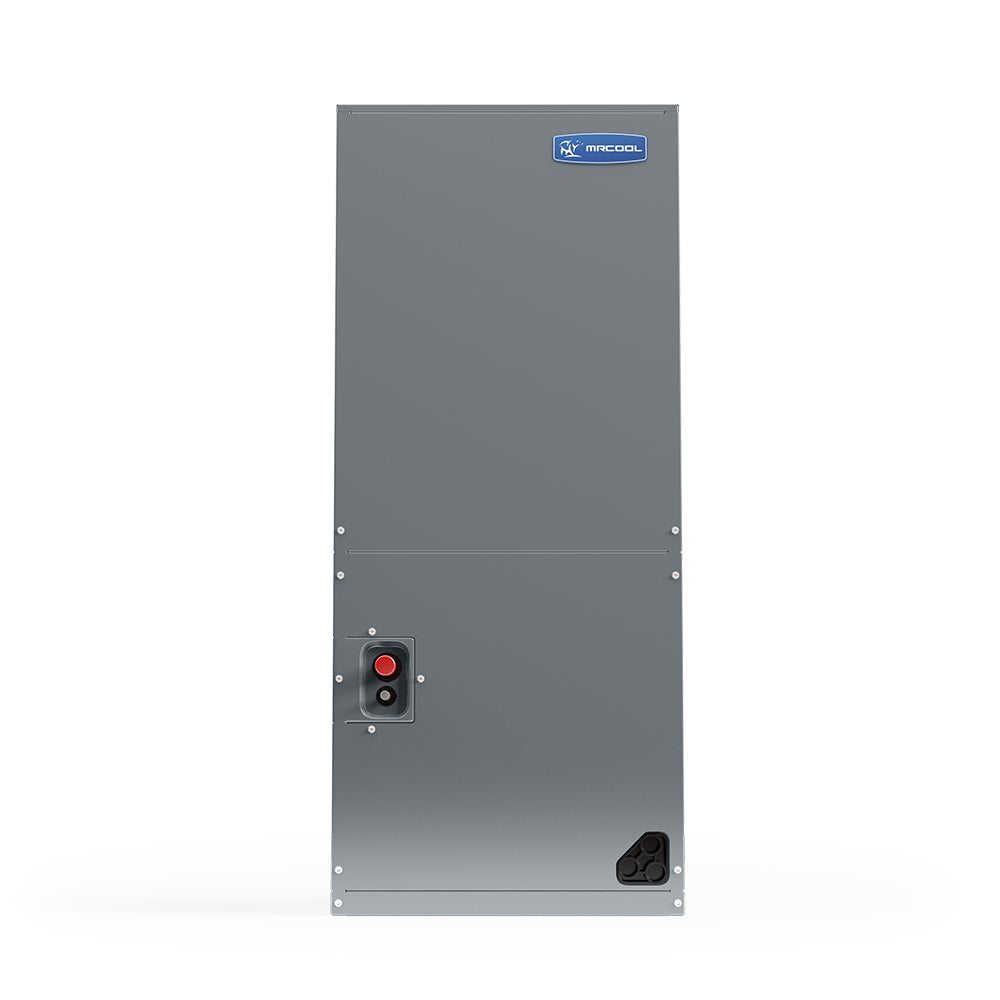

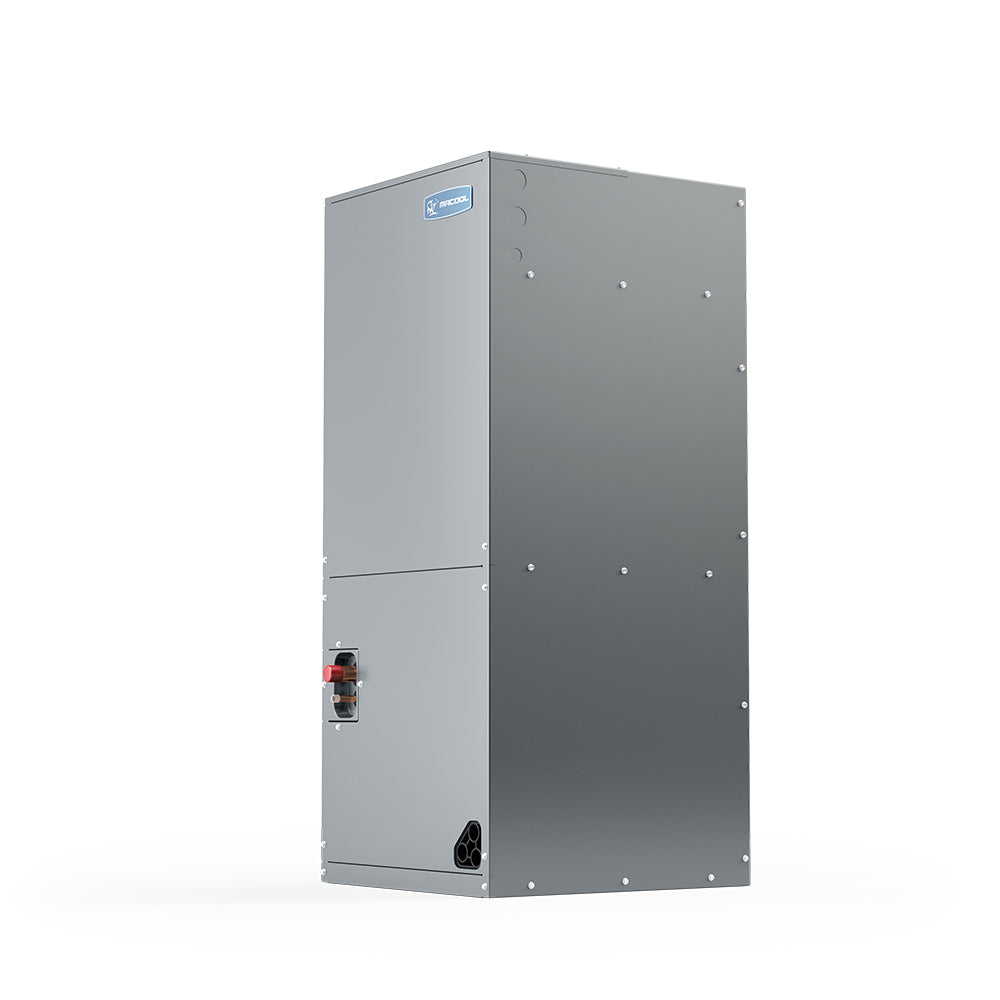

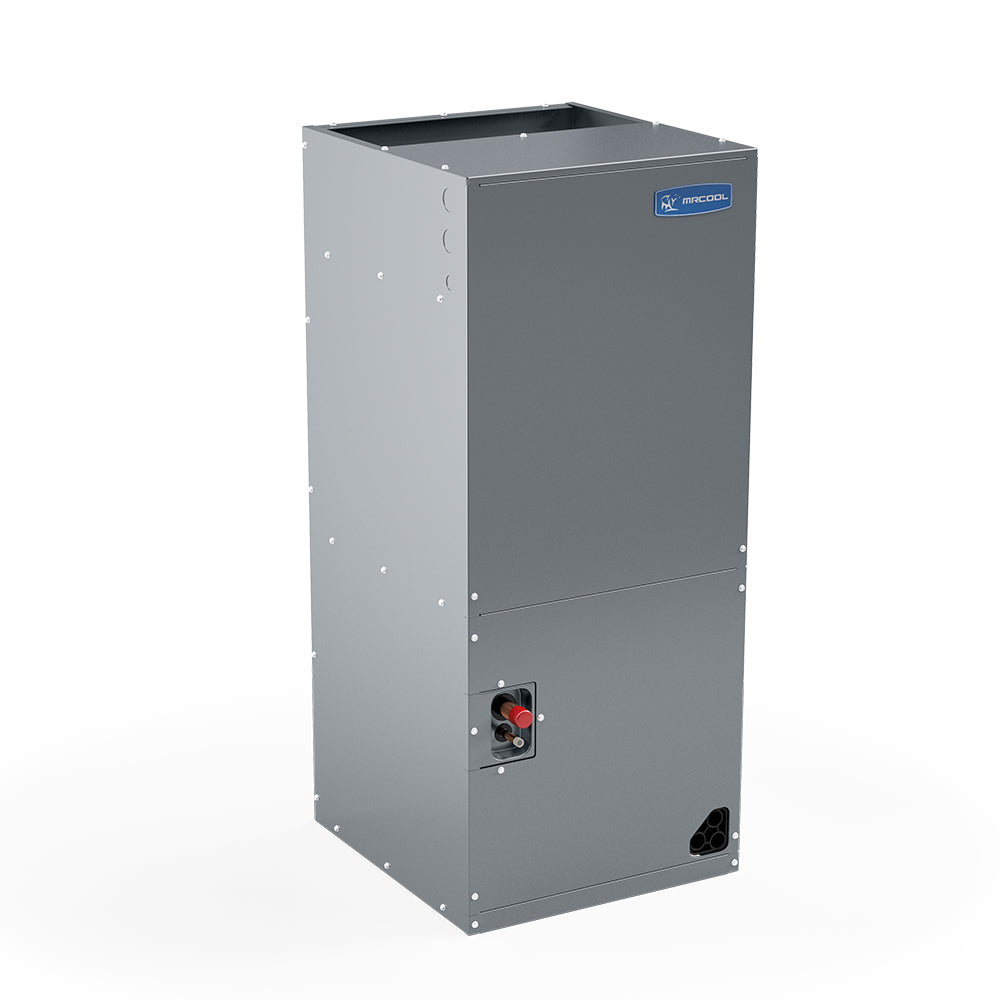

ProDirect 2.5 Ton 14 SEER Split System A/C Air Handler - Multiposition
No one in your home needs to endure another uncomfortable night, so make sure that you solve your comfort crisis with the MRCOOL multiposition ProDirect 2.5 Ton 14 SEER Split System Air Handler.
The components within this air handler are specifically designed to keep you at the highest level of comfort, like the "A" shaped evaporator coil which absorbs any discomfort you may have in your home, or the three-speed direct drive motor, which will help cover your home in the exact temperature that you want.
The air handler also comes with a removable filter to make your home's air clean and contaminant-free. For extra heating power, this unit can have auxiliary heat kits installed in it. Getting a new home comfort unit can be stressful, but this system is soundly built and guarded by a galvanized steel cabinet that ensures your comfort is never compromised.
To take it a step further, you can enjoy a reliable warranty if you register your air handler online. Forget about discomfort with the power of this MRCOOL ProDirect 2.5 ton split system air handler.
|
Dimensions |
22" D x 45 3/4" H x 19 2/3" W |
|
SEER |
14 |
|
CFM |
1204/1060/919 |
|
Cooling Capacity |
30000 BTU |
|
Voltage |
208-230 V |
|
Phase |
1 |
|
Cycle |
60 Hz |
|
Decibel Rating |
42-48 dBA |
|
Decibel Rating Low |
42 dBA |
|
Decibel Rating High |
48 dBA |
|
Number Of Speeds |
3 Speed |
|
Blower Motor Speeds |
3 Speed |
|
Blower Motor Rpm |
670/600/530 |
|
Filter Type |
Replacable |
|
ETL Listed |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
10 Year Limited Warranty |
|
Net Weight |
132 lbs |
|
Gross Depth |
25-3/5in |
|
Gross Height |
47-5/8in |
|
Gross Width |
22-5/6in |
|
Gross Weight |
143 lbs |
*Shipping Policy
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Fast delivery and great customer service . Would purchase from company again
Not great installation instructions, but great product
I recently removed my old gas furnace and replaced it with the MRCOOL Hyper Heat - Central Heat Pump & Gas Furnace Split System - 24K BTU, 96% AFUE - 17.5" Cabinet - Multi-Position. This system was very straight forward and simple to install. I live in Colorado and have been enjoying the cool all summer. I tested the heat function but have not had a cold season yet, with my new system. I'm sure it will heat as good as it cools.
