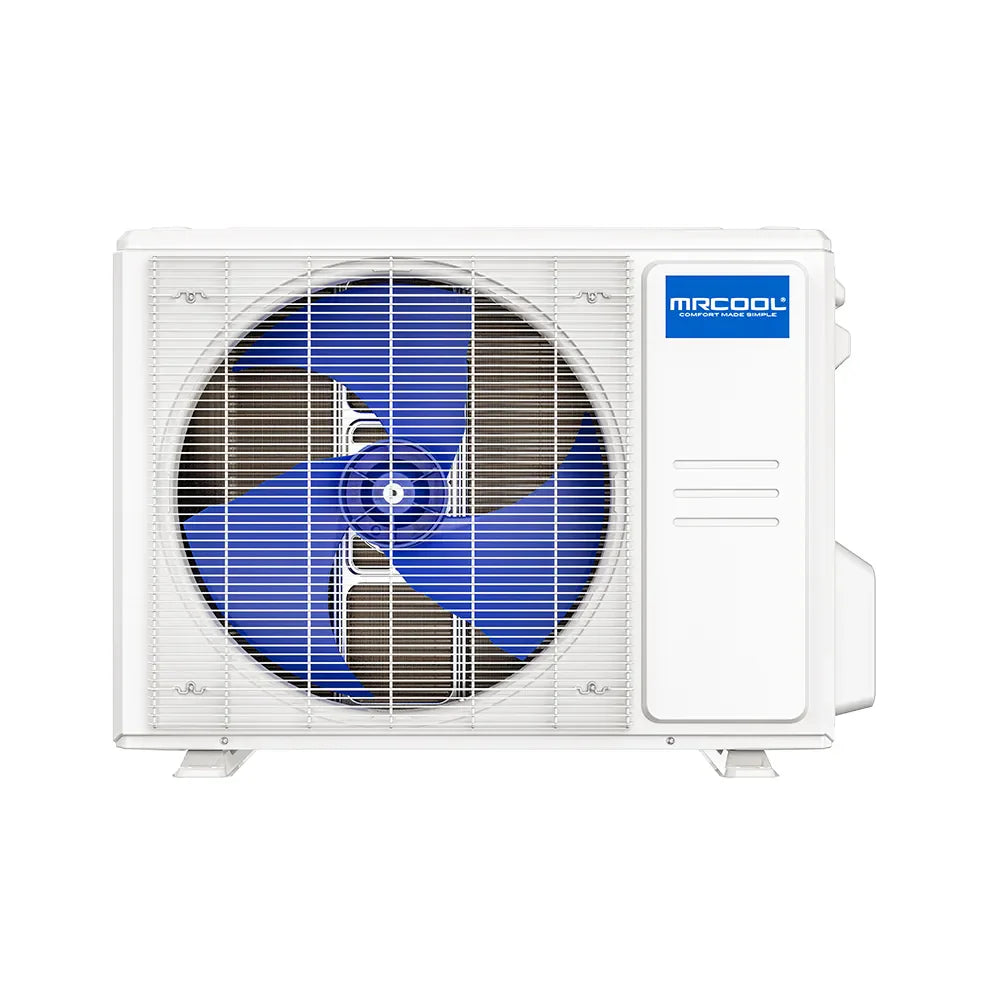

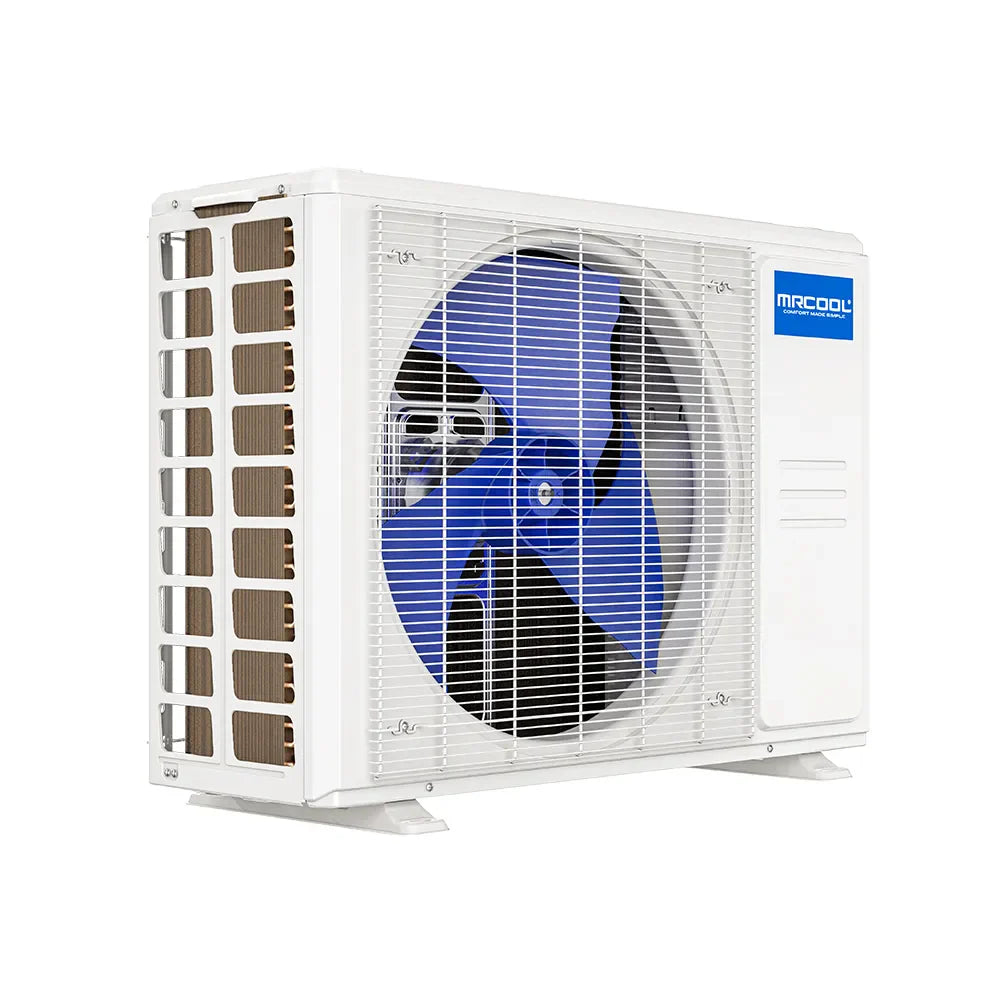

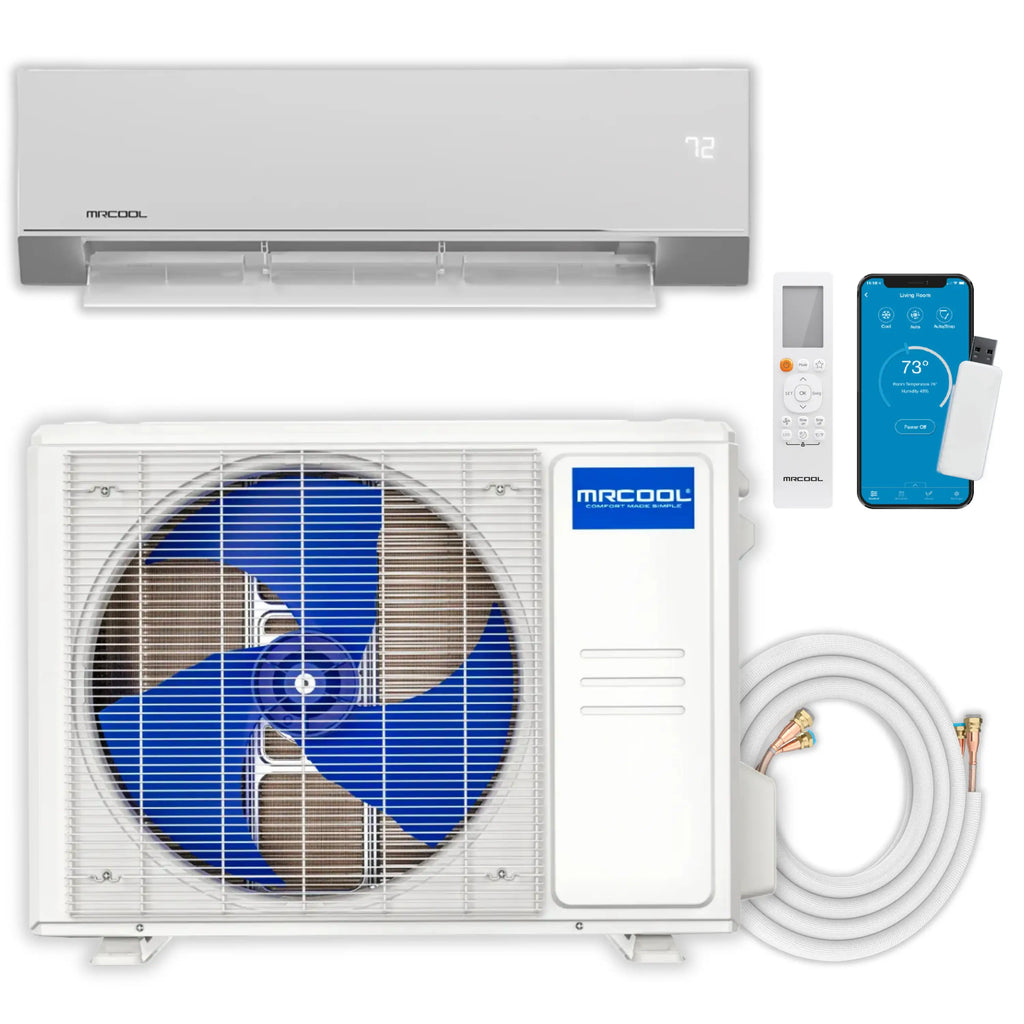

The MRCOOL® OLYMPUS ESTAR® 9k Series condenser offers reliable heating and cooling for spaces up to 400 square feet, making it an excellent choice for rooms, home offices, garages, and other compact areas. Its space-saving design makes installation fast and straightforward, even in more confined or challenging spaces. Featuring Wi-Fi connectivity and the MRCOOL® Smart HVAC app, you can manage the system's temperature, fan speed, and settings directly from your smartphone or tablet—giving you the flexibility to adjust your climate from virtually anywhere. If you prefer traditional control, the included remote provides easy access to all essential functions.
Designed with energy savings in mind, the unit delivers impressive SEER2 and EER2 ratings of 25.8 and 14.9, respectively, along with a HSPF2-4 rating of 12.5, helping you lower utility costs while maintaining optimal comfort. The outdoor fan runs quietly at just 52.5 dB, so you can enjoy consistent performance without disruptions. The air handler uses R-454B refrigerant, an eco-friendly choice that helps protect the environment while maintaining excellent efficiency and performance. For additional convenience, it is compatible with voice control via Amazon Alexa and Google Assistant, so you can adjust settings hands-free. The MRCOOL® OLYMPUS ESTAR® 9k Series is also backed by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, ensuring reliable performance, advanced technology, and long-lasting peace of mind.
| Net Dimensions (In) | 12.99 D x 21.81 H x 31.69 W |
| Net Weight (Lbs) | 72.75 |
| SEER2 | Up to 27.4 |
| EER2 | Up to 15.4 |
| HSPF2-4 | 12.5 |
| HSPF2-5 | 9.5 |
| Tonnage | 0.75 |
| Cooling Capacity (Btu) | 9000 |
| Heating Capacity (Btu) | 12000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 15 |
| Color | White |
| Max Coverage Area | Up to 400 |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 35.27 |
| Decibel Rating (Dba) | 56 |
| Inverter | DC |
| Max Lineset Length (Ft) | 82 |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Rpm | 850/680/450 |
| Metering Device | EXV |
| Ul Listed | Yes |
| Csa Listed | Yes |
| Etl Listed | Yes |
| Energy Star Certified | Yes |
| Ahri Certified | Yes |
| Base Warranty | 5-Year Parts/7-Year Compressor |
| Base Parts Warranty | 5-Year |
| Base Compressor Warranty | 7-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Depth (In) | 14.57 |
| Gross Height (In) | 24.24 |
| Gross Width (In) | 36.02 |
| Gross Weight (Lbs) | 78.7 |

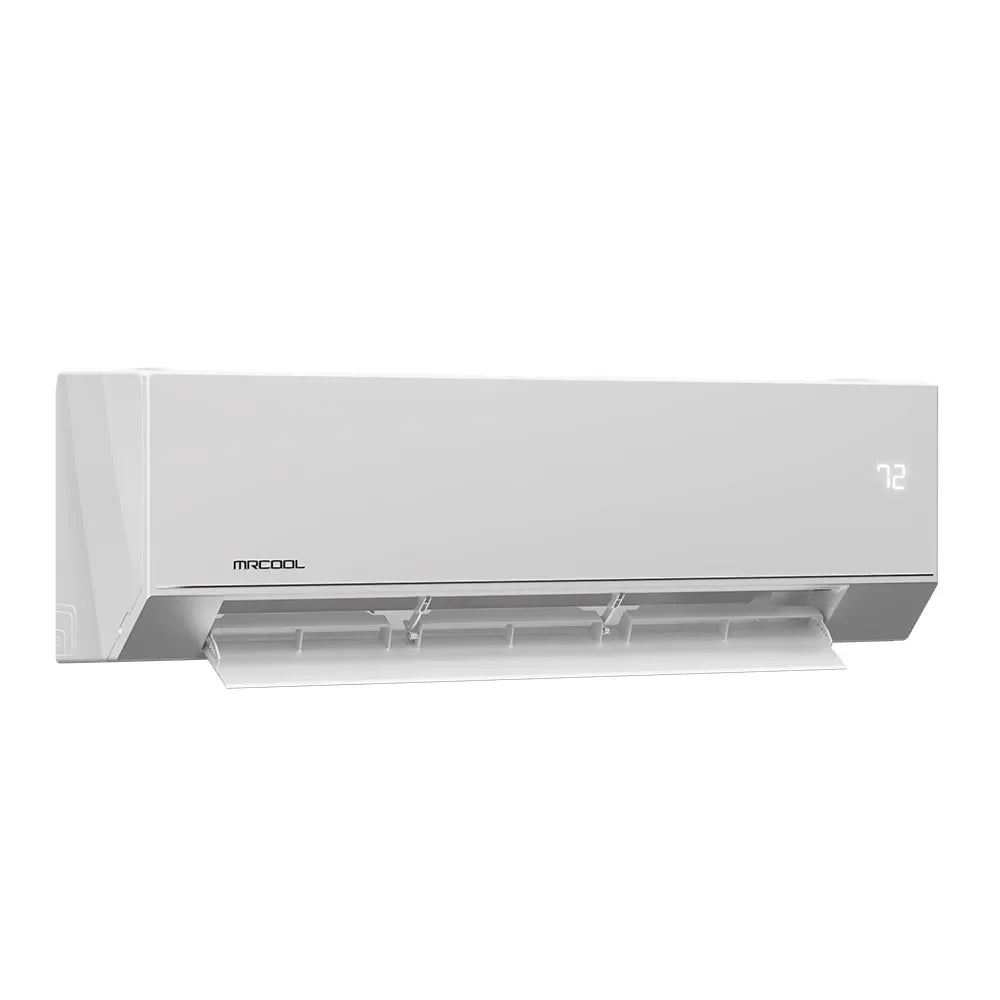

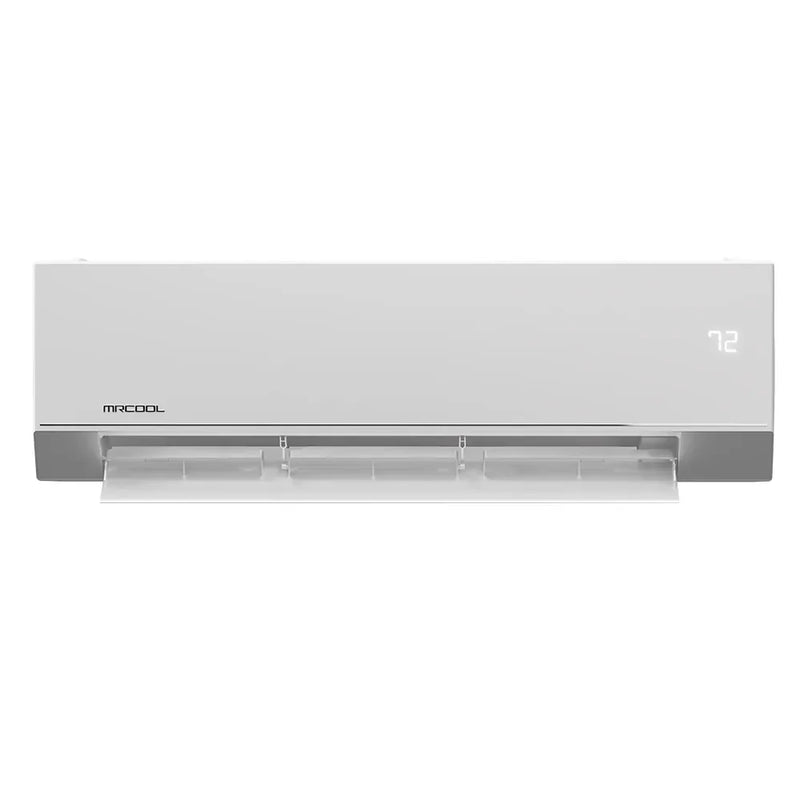

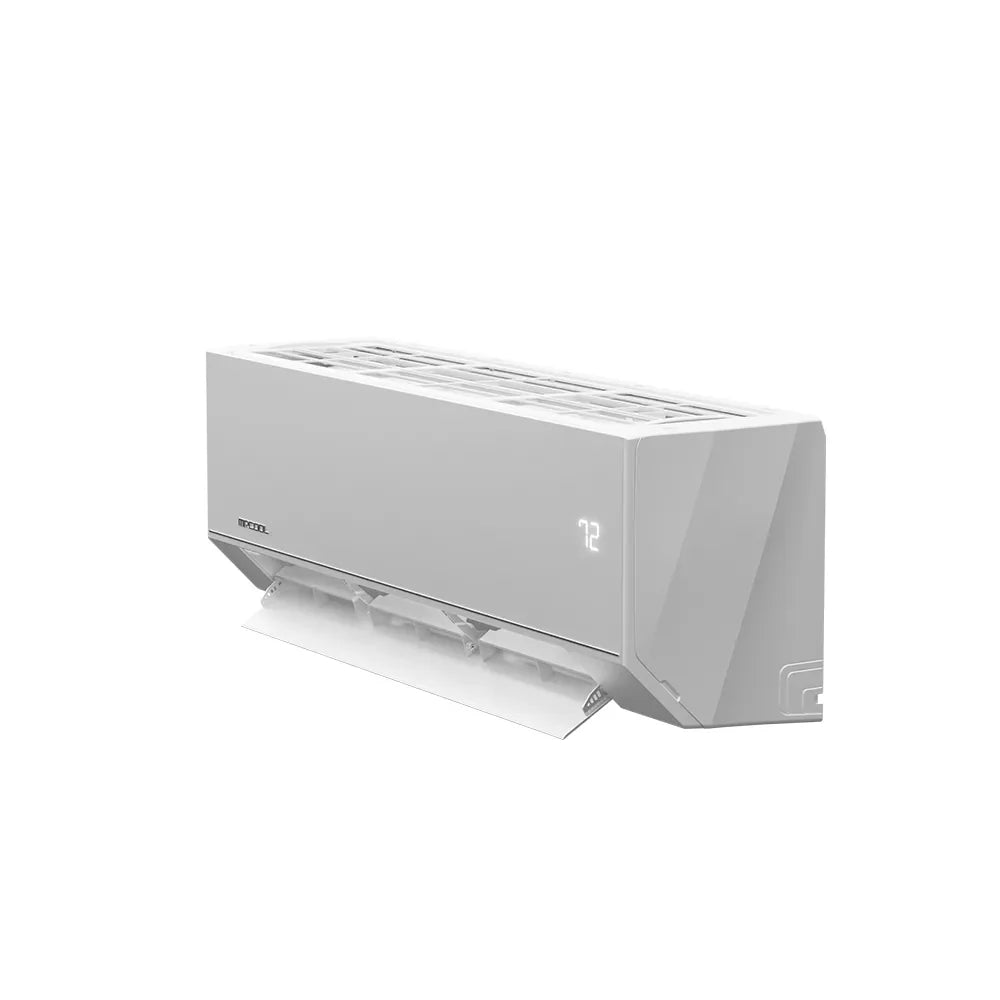

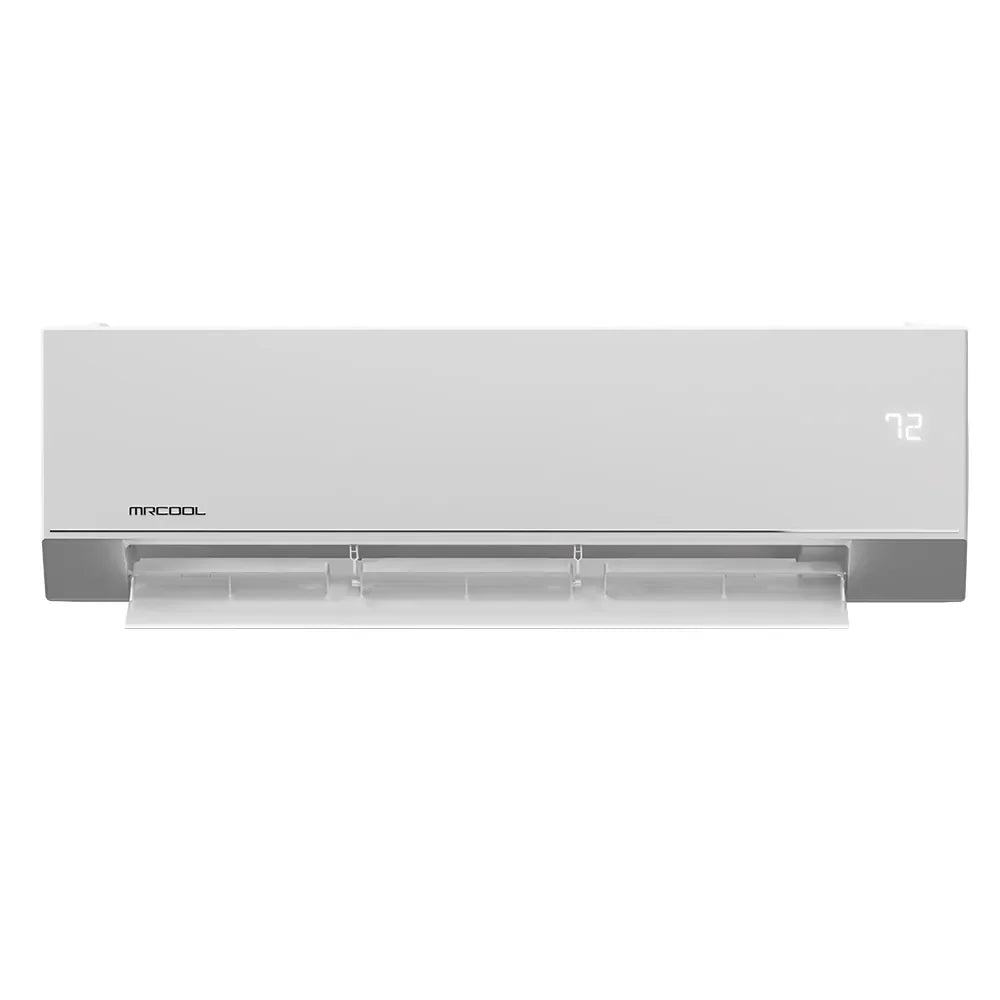

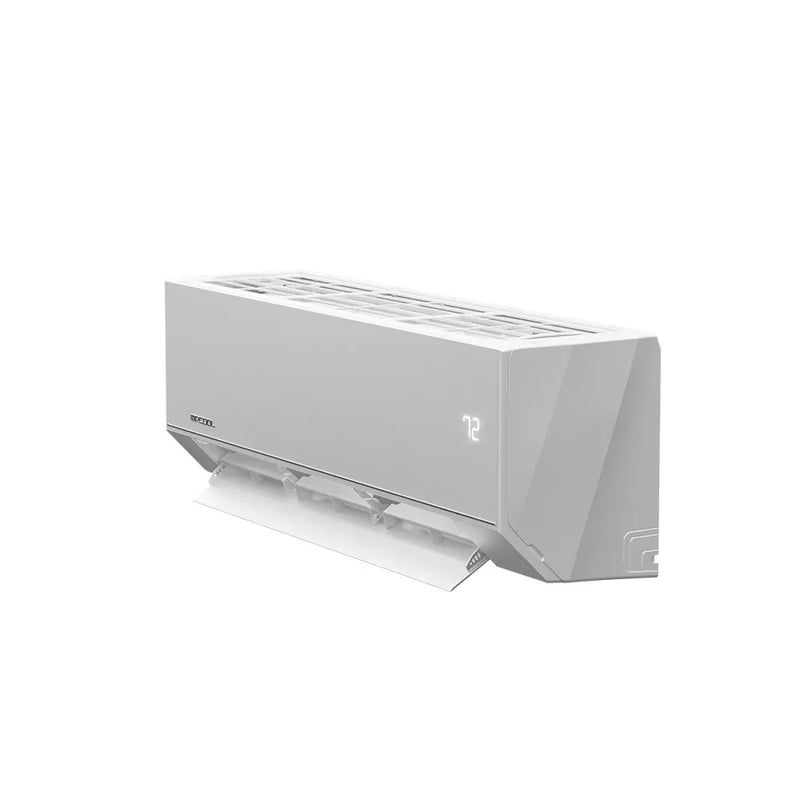

Enjoy reliable heating and cooling with the MRCOOL® OLYMPUS ESTAR® 9k Series air handler, designed to deliver year-round comfort for spaces up to 400 square feet—ideal for single rooms, home offices, garages, and more. Its compact size allows for quick and easy installation, making setup a breeze for your installer. Equipped with the MRCOOL® Smart HVAC app, this unit offers convenient Wi-Fi connectivity, letting you control it from your smartphone or tablet, no matter where you are. Prefer a more traditional approach? Use the included remote control for simple access to your preferred settings. Built with efficiency in mind, the unit boasts impressive performance ratings: SEER2 of 25.8, EER2 of 14.9, and HSPF2-4 of 12.5—helping you cut down on energy costs. With multiple indoor fan speeds and whisper-quiet operation at just 47 dB, you’ll barely notice it’s there while enjoying consistent comfort. Now using eco-friendly R-454B refrigerant, this system is better for the environment without compromising on power or performance. You’ll also enjoy versatile control options, including voice command compatibility with Amazon Alexa and Google Assistant. Backed by an industry-leading warranty—including a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty—the MRCOOL® OLYMPUS ESTAR® 9k Series offers advanced technology, dependable performance, and personalized climate control for years to come.
| Net Dimensions (In) | 9.09 D x 11.81 H x 33.74 W |
| Net Weight (Lbs) | 23.37 |
| Tonnage | 0.75 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | Up to 400 |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 38/38/33/20.5/19.5 |
| Decibel Rating Low (Dba) | 19.5 |
| Decibel Rating High (Dba) | 38 |
| Number Of Speeds | 5 (Variable) |
| Oscillation | Yes |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Blower Motor Speeds | 441.4/323.7/229.6/176.6/147.2 |
| Blower Motor Rpm | 1100/850/700 |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works With Ios | Yes |
| Works With Android | Yes |
| Remote Control Included | Yes |
| Ul Listed | Yes |
| Csa Listed | Yes |
| Etl Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Depth (In) | 12.2 |
| Gross Height (In) | 14.57 |
| Gross Width (In) | 36.22 |
| Gross Weight (Lbs) | 29.98 |
| Condenser |
| Brochure |
| Install Manual |
| Service Manual |
| Warranty Doc |
| AHRI Cert |
| Energy Guide |
| Air Handler |
| Brochure |
| Install Manual |
| Specs |
| Service Manual |
| Warranty Doc |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
