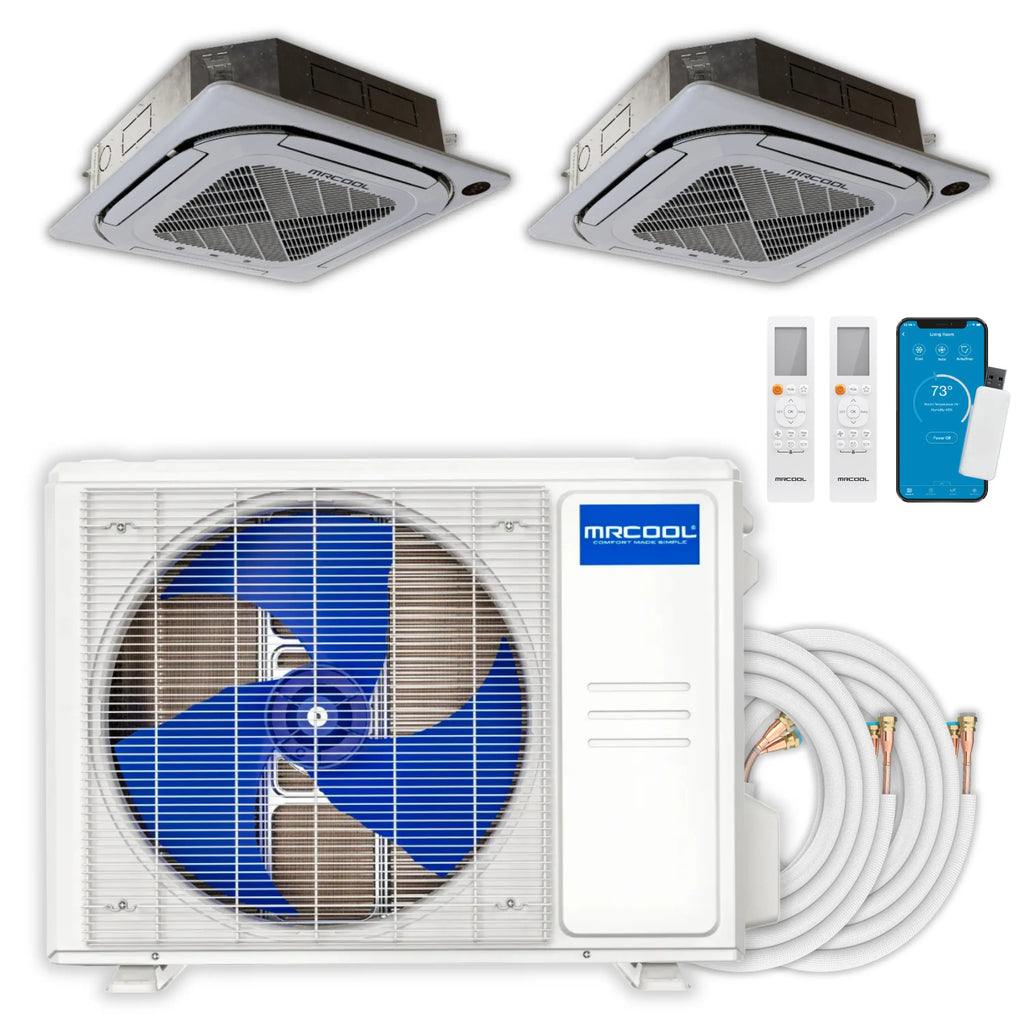

The MRCOOL® Olympus 36,000 BTU multi-zone heat pump condenser is a high-capacity, heat pump condenser built to power up to five indoor units simultaneously. Designed for homeowners who want efficient and individualized temperature control across multiple rooms, this ductless system delivers tailored comfort to every zone—making it an excellent fit for modern, multi-room living spaces.
Featuring cutting-edge inverter technology, the system provides exceptional energy performance, with SEER2 ratings up to 24 and HSPF2-4 up to 9.5. It operates reliably even in extreme outdoor conditions, functioning in temperatures as low as 5°F to keep your home comfortable year-round. Compatibility with a variety of MRCOOL indoor units—including wall-mounted, ceiling cassette, and concealed duct options—means it’s easy to customize the setup to suit your home’s layout and aesthetic. Smart control options enhance everyday convenience, offering seamless operation through the MRCOOL SmartHVAC app, included remote control, or voice commands via Amazon Alexa and Google Assistant.
Additional features like sleep mode, auto restart, and built-in refrigerant leak detection further improve safety, energy efficiency, and peace of mind. Backed by a 7-year limited warranty on the compressor and a 5-year parts warranty (when installed by a professional), the MRCOOL® Olympus MULTI5-36HP230C-O is a reliable, energy-efficient choice for those looking to achieve flexible, zone-specific heating and cooling throughout their home.
Installation by a licensed professional required where applicable 7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional R-454B environmentally friendly friendly refrigerant Energy Star Certified
| Net Dimensions (In) | 16.14 D x 31.89 H x 37.24 W |
| Net Weight (Lbs) | 168.87 |
| SEER2 | Up to 24 |
| EER2 | Up to 12 |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 7 |
| Tonnage | 3 |
| Cooling Capacity (Btu) | 36000 |
| Heating Capacity (Btu) | 37000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 35 |
| Min Circuit Ampacity (A) | 30.5 |
| Color | White |
| Max Coverage Area | Up to 1500 |
| Zone Capacity | 5 |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 120.63 |
| Decibel Rating (Dba) | 64.5 |
| Inverter | DC |

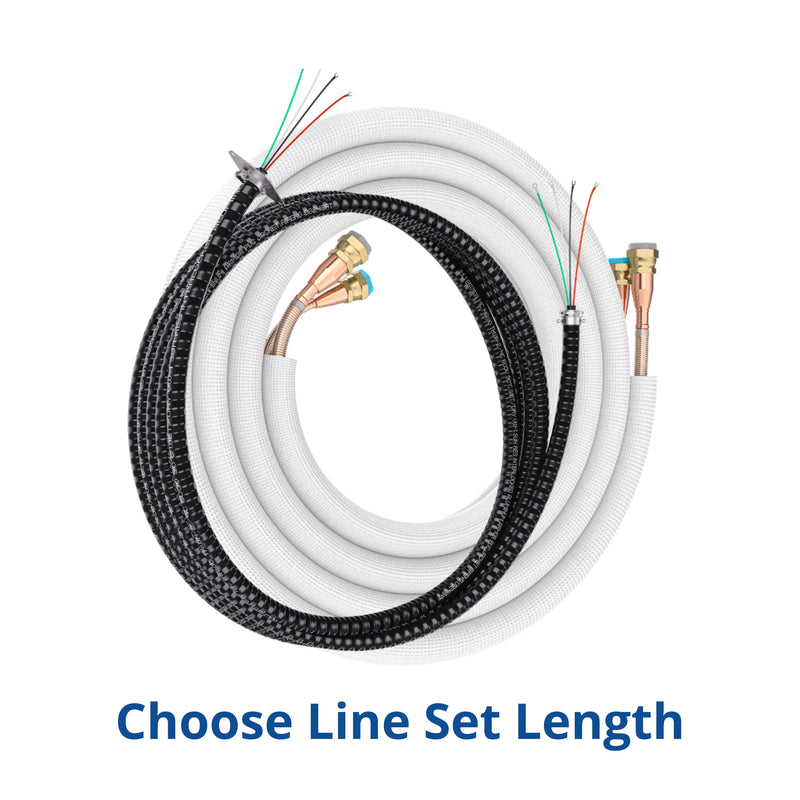

| Max Lineset Length (Ft) | 262.4 total |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 5 x 1/4 |
| Suction Line Size | 4 x 3/8 + 1 x 1/2 |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Rpm | 900/750/600 |
| Metering Device | EXV |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Base Warranty | 5-Year Parts/7-Year Compressor |
| Base Parts Warranty | 5-Year |
| Base Compressor Warranty | 7-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Depth (In) | 19.68 |
| Gross Height (In) | 34.84 |
| Gross Width (In) | 42.91 |
| Gross Weight (Lbs) | 180.12 |

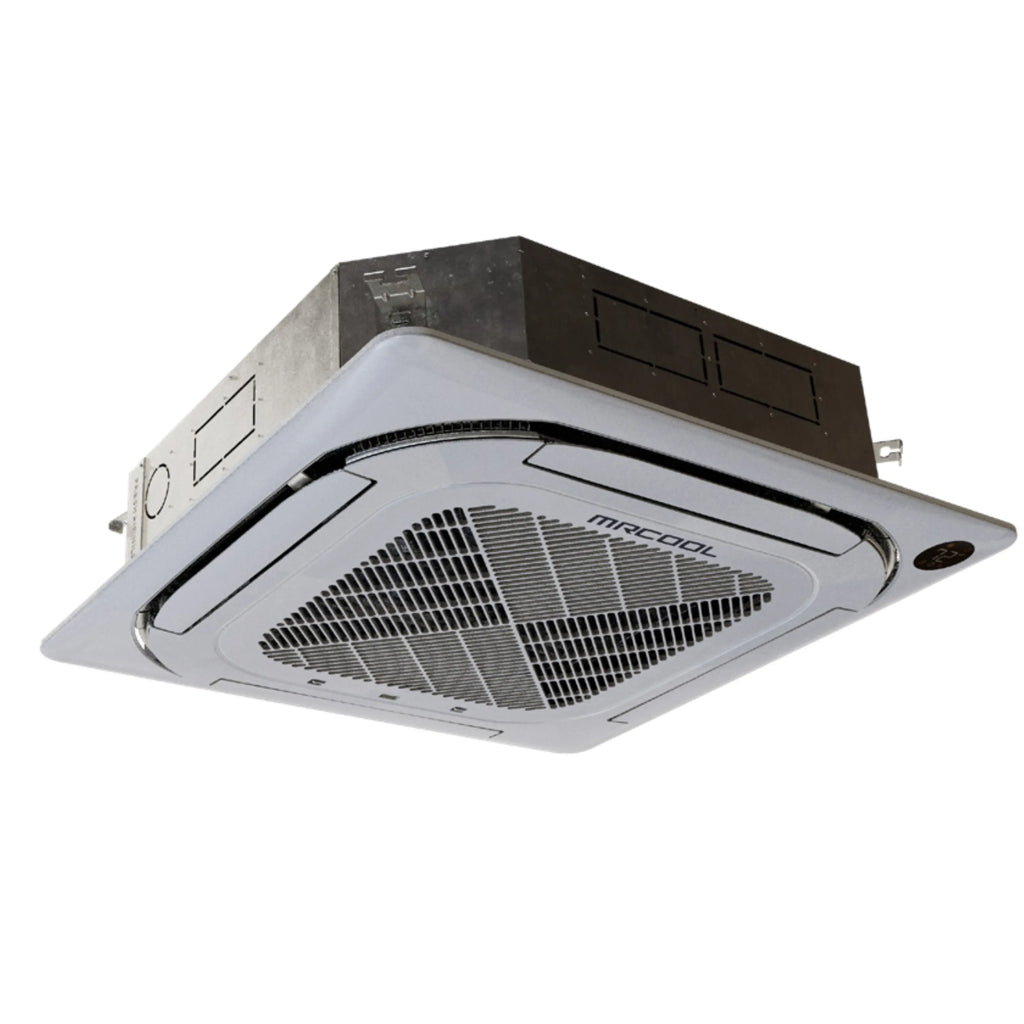

The MRCOOL® OLYMPUS 24K CASSETTE offers powerful heating and cooling for areas up to 1,050 square feet, making it a perfect solution for larger bedrooms, home offices, or smaller commercial spaces. Designed to mount seamlessly within the ceiling, this system integrates effortlessly into your environment, providing a modern and sophisticated aesthetic that complements any room’s décor. Its versatile design makes it a great option for both residential and business settings, optimizing space while delivering efficient climate control. Operating at a quiet 48.5 dB, the indoor fan ensures a serene atmosphere without sacrificing performance. The minimal noise level allows for uninterrupted comfort, making it ideal for noise-sensitive areas like bedrooms, offices, or nurseries. The quiet operation promotes a peaceful setting that enhances relaxation and productivity.
The unit is equipped with R-454B refrigerant, an environmentally friendly choice that offers superior performance with a reduced environmental impact. With its low global warming potential, R-454B refrigerant not only minimizes the carbon footprint of your system but also maintains high energy efficiency. This makes it a great option for homeowners and businesses looking to reduce their environmental impact while enjoying reliable, energy-saving performance. Backed by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, the MRCOOL® OLYMPUS 24K CASSETTE ensures long-lasting durability and cutting-edge technology. This unit is an ideal choice for those who seek a balance of efficiency, modern aesthetics, and exceptional comfort.
| Net Dimensions (In) | 32.68 D x 8.07 H x 32.68 W |
| Net Weight (Lbs) | 47.18 |
| Tonnage | 2 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Ceiling |
| Color | White |
| Max Coverage Area | Up to 1050 |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 48.5/45/42.5/33.5/33.5 |
| Decibel Rating Low (Dba) | 33.5 |
| Decibel Rating High (Dba) | 48.5 |
| Air Flow Direction | Downflow |
| Number Of Speeds | 5 (Variable) |
| Oscillation | Yes |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| Blower Motor Speeds | 765.2/706.3/635.7/547.4/547.4 |
| Blower Motor Rpm | 624/568/426 |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works With Ios | No |
| Works With Android | No |
| Remote Control Included | Yes |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Weight (Lbs) | 59.08 |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
