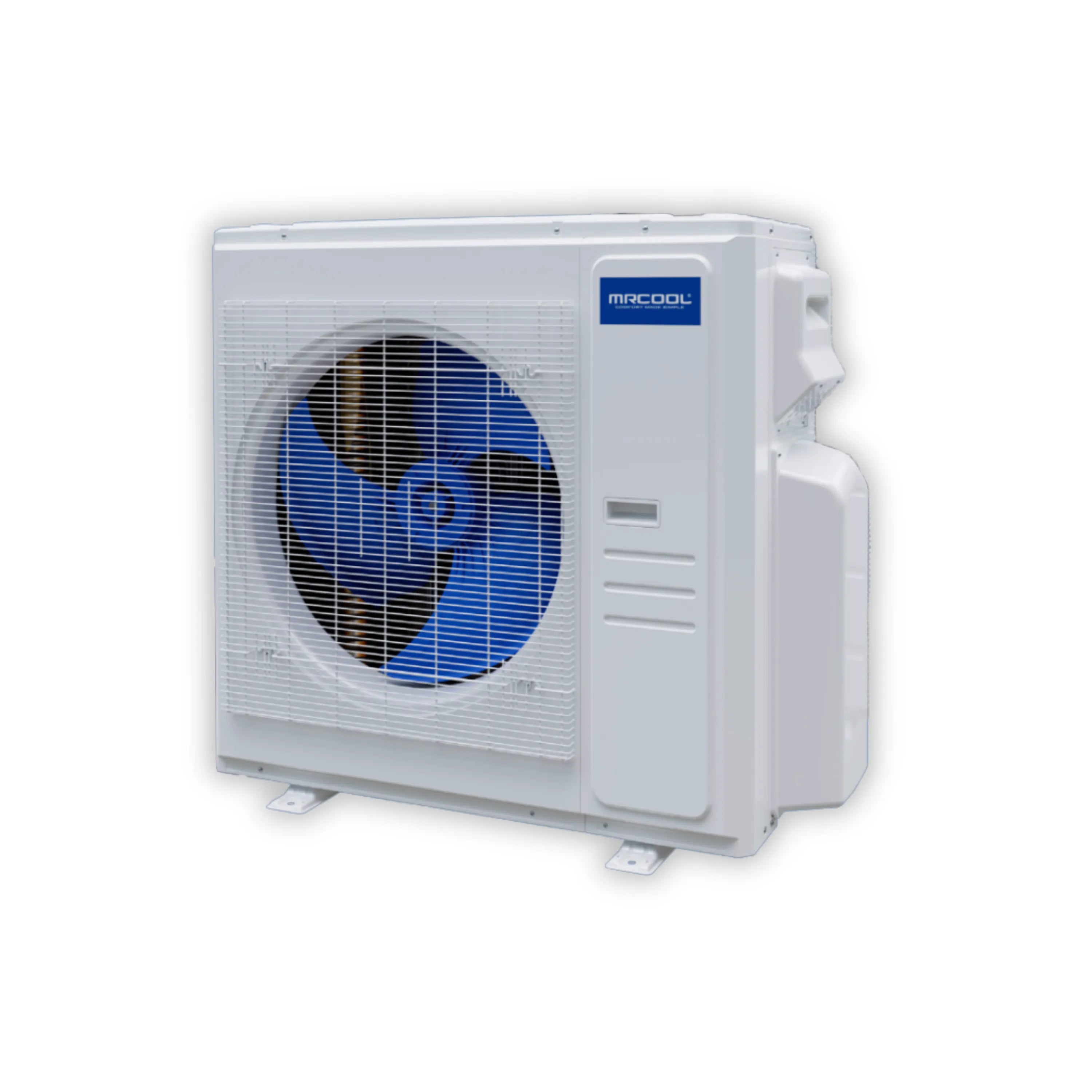

The MRCOOL® Olympus 36,000 BTU multi-zone heat pump condenser is a high-capacity, heat pump condenser built to power up to five indoor units simultaneously. Designed for homeowners who want efficient and individualized temperature control across multiple rooms, this ductless system delivers tailored comfort to every zone—making it an excellent fit for modern, multi-room living spaces.
Featuring cutting-edge inverter technology, the system provides exceptional energy performance, with SEER2 ratings up to 24 and HSPF2-4 up to 9.5. It operates reliably even in extreme outdoor conditions, functioning in temperatures as low as 5°F to keep your home comfortable year-round. Compatibility with a variety of MRCOOL indoor units—including wall-mounted, ceiling cassette, and concealed duct options—means it’s easy to customize the setup to suit your home’s layout and aesthetic. Smart control options enhance everyday convenience, offering seamless operation through the MRCOOL SmartHVAC app, included remote control, or voice commands via Amazon Alexa and Google Assistant.
Additional features like sleep mode, auto restart, and built-in refrigerant leak detection further improve safety, energy efficiency, and peace of mind. Backed by a 7-year limited warranty on the compressor and a 5-year parts warranty (when installed by a professional), the MRCOOL® Olympus MULTI5-36HP230C-O is a reliable, energy-efficient choice for those looking to achieve flexible, zone-specific heating and cooling throughout their home.
Installation by a licensed professional required where applicable 7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional R-454B environmentally friendly friendly refrigerant Energy Star Certified
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 16.14 D x 31.89 H x 37.24 W |
| Net Weight (Lbs) | 168.87 |
| Gross Depth (In) | 19.68 |
| Gross Height (In) | 34.84 |
| Gross Width (In) | 42.91 |
| Gross Weight (Lbs) | 180.12 |
| GENERAL INFORMATION | |
| Color | White |
| Max Coverage Area | Up to 1500 |
| Inverter | DC |
| Metering Device | EXV |
| CAPACITY & PERFORMANCE | |
| SEER2 | Up to 24 |
| EER2 | Up to 12 |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 7 |
| Tonnage | 3 |
| Cooling Capacity (Btu) | 36000 |
| Heating Capacity (Btu) | 37000 |
| Cycle | 60 |
| Zone Capacity | 5 |
| COMPRESSOR & MOTORS | |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Rpm | 900/750/600 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 64.5 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 35 |
| Min Circuit Ampacity (A) | 30.5 |

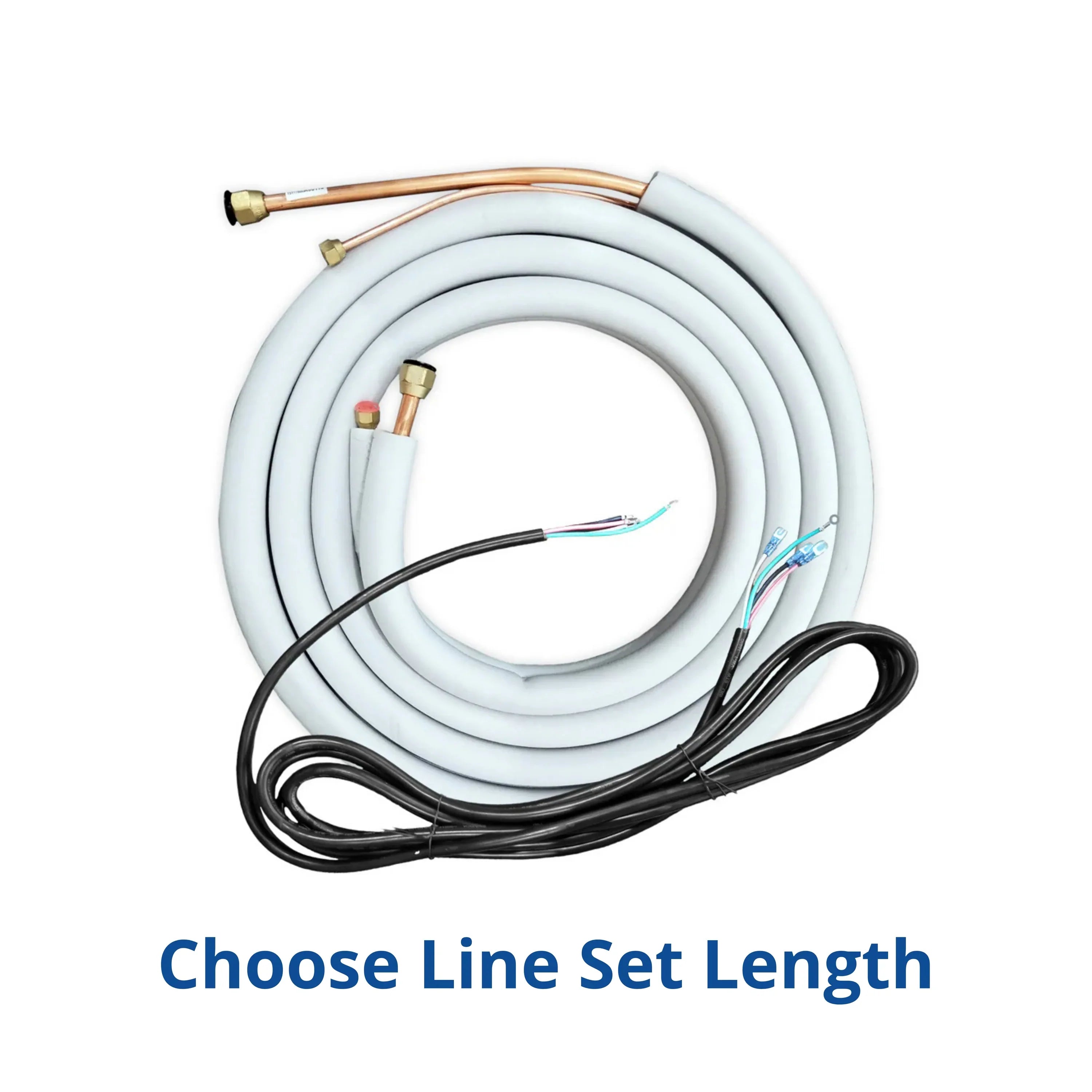

| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 120.63 |
| Max Lineset Length (Ft) | 262.4 total |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 5 x 1/4 |
| Suction Line Size | 4 x 3/8 + 1 x 1/2 |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| WARRANTY | |
| Base Warranty | 5-Year Parts/7-Year Compressor |
| Base Parts Warranty | 5-Year |
| Base Compressor Warranty | 7-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |

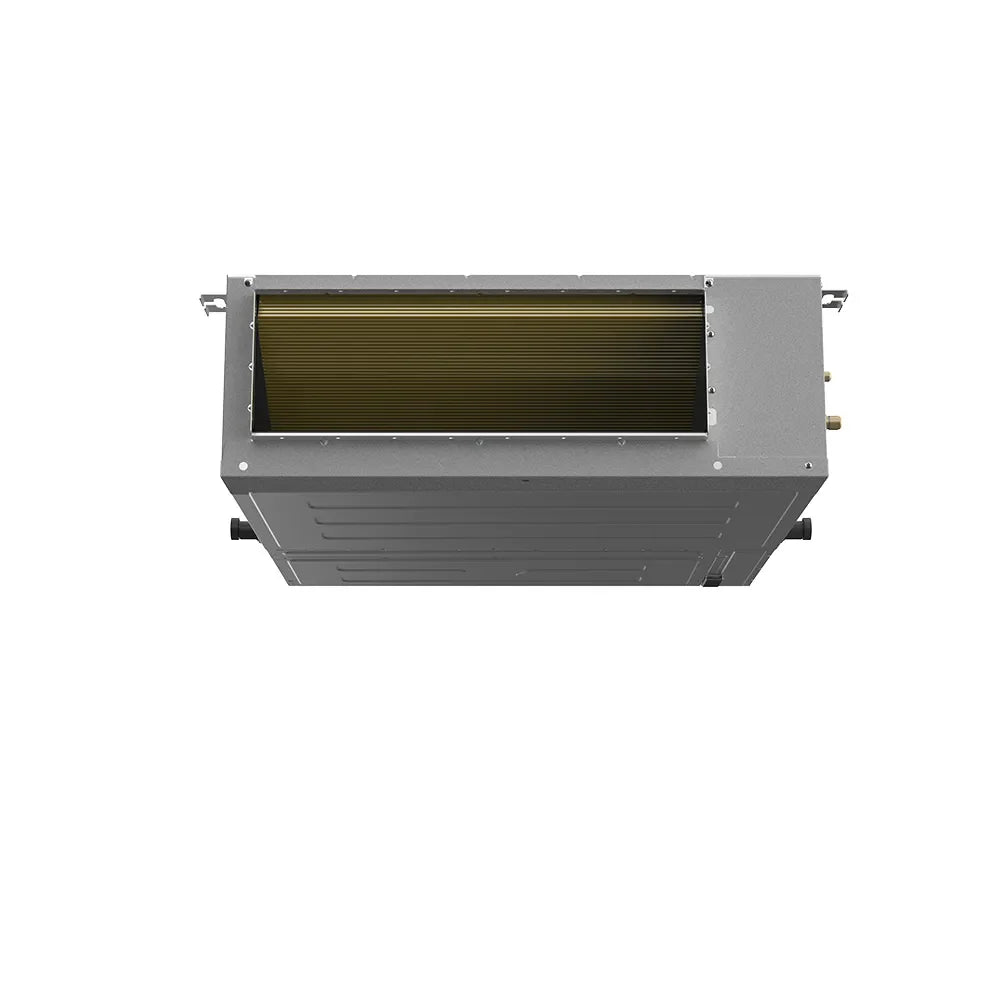

The MRCOOL® OLYMPUS 24K DUCT Air Handler offers powerful and efficient heating and cooling for areas up to 1,050 square feet, making it an excellent choice for larger bedrooms, home offices, and compact commercial spaces. Its low-profile ceiling-mounted design allows for a flush installation that blends effortlessly into any space, maintaining a clean and contemporary look. Ideal for both residential and light commercial use, this air handler is engineered for flexibility and style—delivering high performance while preserving valuable floor and wall space.
Whether you're outfitting a modern home or a small office, it’s designed to meet your comfort needs without disrupting your room’s layout or design. For convenient operation, the unit includes both a wired wall controller and a handheld remote, offering flexible options for temperature control whether you're working, relaxing, or entertaining. No need to interrupt your day to adjust the settings—just set your ideal climate with ease. Environmentally responsible, the system uses R-454B refrigerant, which offers strong performance with a significantly lower global warming potential. This helps reduce your carbon footprint while keeping energy efficiency and indoor comfort at the forefront.
The MRCOOL® OLYMPUS 24K DUCT Air Handler is supported by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, providing long-term reliability and peace of mind. For those seeking an energy-efficient, discreet, and modern comfort solution, this system delivers performance without compromise.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 29.53 D x 9.65 H x 39.37 W |
| Net Weight (Lbs) | 80.47 |
| Gross Weight (Lbs) | 91.93 |
| GENERAL INFORMATION | |
| Mount Type | Ducted |
| Color | Metal |
| Max Coverage Area | Up to 1050 |
| Air Flow Direction | Ducted |
| Number Of Speeds | 5 (Variable) |
| Oscillation | No |
| CAPACITY & PERFORMANCE | |
| Tonnage | 2 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Blower Motor Speeds | 853.5/706.3/618/500.3/500.3 |
| Blower Motor Rpm | 950/800/500 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 40/40/37/35/29.5 |
| Decibel Rating Low (Dba) | 29.5 |
| Decibel Rating High (Dba) | 40 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| FILTER & HEATING | |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works With Ios | No |
| Works With Android | No |
| Remote Control Included | Yes |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| WARRANTY | |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
This remote is included with each air handler in MRCOOL's 5th Generation DIY or Advantage Mini Split Systems.
| DIMENSIONS | |
|---|---|
| Dimensions | 2" W x 6" L x 1" H |
| GENERAL INFORMATION | |
| Color | White |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States |
|
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
