What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

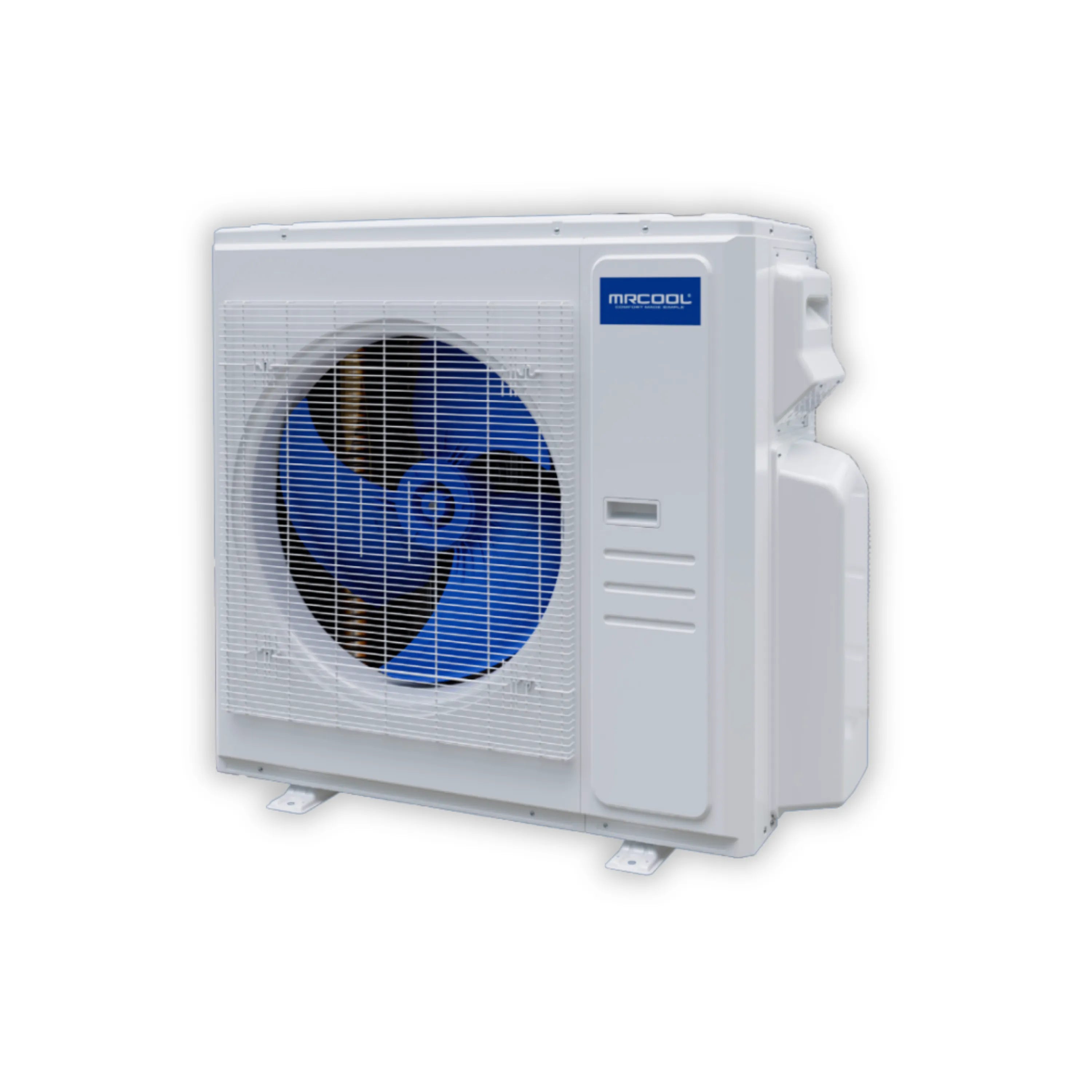

The MRCOOL® Olympus 36,000 BTU multi-zone heat pump condenser is a high-capacity, heat pump condenser built to power up to five indoor units simultaneously. Designed for homeowners who want efficient and individualized temperature control across multiple rooms, this ductless system delivers tailored comfort to every zone—making it an excellent fit for modern, multi-room living spaces.
Featuring cutting-edge inverter technology, the system provides exceptional energy performance, with SEER2 ratings up to 24 and HSPF2-4 up to 9.5. It operates reliably even in extreme outdoor conditions, functioning in temperatures as low as 5°F to keep your home comfortable year-round. Compatibility with a variety of MRCOOL indoor units—including wall-mounted, ceiling cassette, and concealed duct options—means it’s easy to customize the setup to suit your home’s layout and aesthetic. Smart control options enhance everyday convenience, offering seamless operation through the MRCOOL SmartHVAC app, included remote control, or voice commands via Amazon Alexa and Google Assistant.
Additional features like sleep mode, auto restart, and built-in refrigerant leak detection further improve safety, energy efficiency, and peace of mind. Backed by a 7-year limited warranty on the compressor and a 5-year parts warranty (when installed by a professional), the MRCOOL® Olympus MULTI5-36HP230C-O is a reliable, energy-efficient choice for those looking to achieve flexible, zone-specific heating and cooling throughout their home.
Features
Installation by a licensed professional required where applicable 7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional R-454B environmentally friendly friendly refrigerant Energy Star Certified
Works With
- O-09-HP-WMAH-230C-O
- DUCT-09HP-230B-O
- CASSETTE09HP-230C-O
- O-12-HP-WMAH-230C-O
- DUCT-12HP-230B-O
- CASSETTE12HP-230C-O
- O-18-HP-WMAH-230C-O
- DUCT-18-HP-230B-O
- CASSETTE18HP-230C-O
- O-24-HP-WMAH-230C-O
- DUCT-24HP-230B-O
- CASSETTE24HP-230C-O
- Net Dimensions (In)
- 16.14 D x 31.89 H x 37.24 W
- Net Weight (Lbs)
- 168.87
- Gross Depth (In)
- 19.68
- Gross Height (In)
- 34.84
- Gross Width (In)
- 42.91
- Gross Weight (Lbs)
- 180.12
- Color
- White
- Max Coverage Area
- Up to 1500
- Inverter
- DC
- Metering Device
- EXV
- SEER2
- Up to 24
- EER2
- Up to 12
- HSPF2-4
- 9.5
- HSPF2-5
- 7
- Tonnage
- 3
- Cooling Capacity (Btu)
- 36000
- Heating Capacity (Btu)
- 37000
- Cycle
- 60
- Zone Capacity
- 5
- Compressor Motor Type
- Rotary
- Condenser Fan Motor Rpm
- 900/750/600
- Decibel Rating (Dba)
- 64.5
- Voltage (V)
- 208/230
- Phase
- 1
- Max Fuse Breaker (A)
- 35
- Min Circuit Ampacity (A)
- 30.5
- Refrigerant Type
- R-454B
- Refrigerant Volume (Oz)
- 120.63
- Max Lineset Length (Ft)
- 262.4 total
- Lineset Fitting Type
- Flare
- Liquid Line Size
- 5 x 1/4
- Suction Line Size
- 4 x 3/8 + 1 x 1/2
- UL Listed
- Yes
- CSA Listed
- Yes
- ETL Listed
- Yes
- Energy Star Certified
- Yes
- AHRI Certified
- Yes
- Has Batteries
- Yes
- Contains Electronics
- Yes
- Contains Chemicals
- Yes
- Contains Compressed Gas
- Yes
- Proposition 65 Warning
- Yes
- Restricted States
- GU, PR, VI
- Base Warranty
- 5-Year Parts/7-Year Compressor
- Base Parts Warranty
- 5-Year
- Base Compressor Warranty
- 7-Year
- Base Remote Warranty
- 5 Year
- Registered Labor Warranty
- None
- Base Labor Warranty
- None

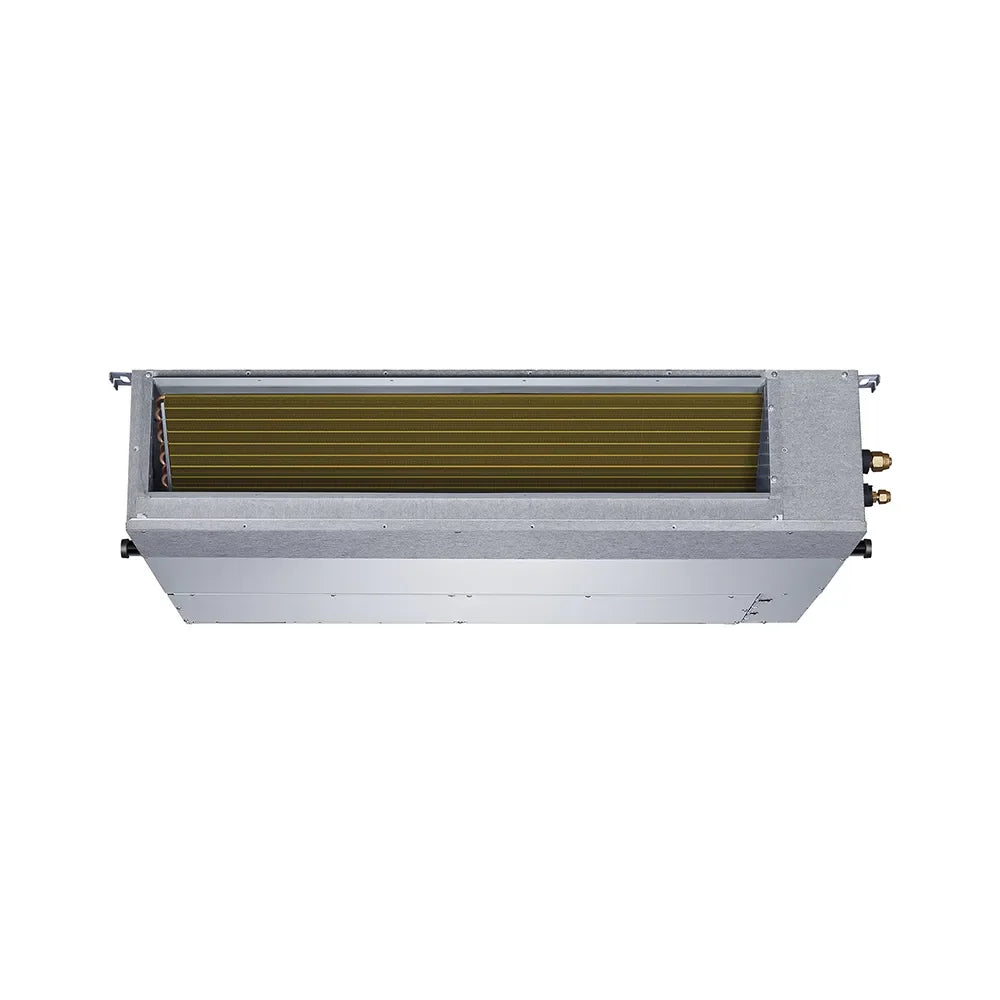

The MRCOOL® OLYMPUS 18K DUCT Air Handler delivers dependable heating and cooling for areas up to 800 square feet, making it an excellent solution for spacious bedrooms, home offices, or compact commercial spaces. Its low-profile, ceiling-concealed installation allows it to virtually disappear from view, maintaining a clean and modern interior without sacrificing performance.
Designed with versatility in mind, this system seamlessly blends into residential or light commercial environments, offering both elegance and efficiency in one compact package. Whether you're looking to optimize comfort at home or in a workspace, this unit is engineered to provide precise climate control without dominating your space. Control is effortless thanks to the included wired wall-mounted controller and handheld remote. Adjusting your temperature preferences is simple and convenient—no need to interrupt your routine or leave your seat. Environmentally conscious performance is also a hallmark of this system, utilizing advanced R-454B refrigerant. This low global warming potential refrigerant provides outstanding heating and cooling while significantly reducing your carbon footprint. It's an ideal choice for anyone seeking high performance paired with sustainability.
The MRCOOL® OLYMPUS 18K DUCT Air Handler is backed by a limited lifetime warranty, along with 7-year compressor protection and a 5-year parts warranty. It’s the perfect choice for those who prioritize comfort, energy efficiency, and modern convenience in a sleek, discreet design.
Works With
- O-ES-18-HP-C-230C-O1
- MULTI4-27HP230C-O
- MULTI5-36HP230C-O
- MULTI6-48HP230C-O
- Net Dimensions (In)
- 26.54 D x 8.27 H x 34.65 W
- Net Weight (Lbs)
- 54.45
- Gross Weight (Lbs)
- 66.14
- Mount Type
- Ducted
- Color
- Metal
- Max Coverage Area
- Up to 800
- Air Flow Direction
- Ducted
- Number Of Speeds
- 5 (Variable)
- Oscillation
- No
- Tonnage
- 1.5
- Cycle
- 60
- Blower Motor Speeds
- 600.4/559.2/500.3/441.4/441.4
- Blower Motor Rpm
- 780/700/550
- Decibel Rating (Dba)
- 40/40/39/38/32
- Decibel Rating Low (Dba)
- 32
- Decibel Rating High (Dba)
- 40
- Voltage (V)
- 208/230
- Phase
- 1
- Max Fuse Breaker (A)
- 15
- Min Circuit Ampacity (A)
- 3
- Refrigerant Type
- R-454B
- Lineset Fitting Type
- Flare
- Liquid Line Size
- 1/4
- Suction Line Size
- 1/2
- Auxiliary Heater Included
- No
- Auxiliary Heater Available
- No
- Fan Only Option
- Yes
- Sleep Mode
- Yes
- Auto Cool
- Yes
- Wifi Compatibility
- No
- App Compatibility
- No
- Works With Ios
- No
- Works With Android
- No
- Remote Control Included
- Yes
- Ul Listed
- Yes
- Csa Listed
- Yes
- Etl Listed
- Yes
- Has Batteries
- Yes
- Contains Electronics
- Yes
- Contains Chemicals
- Yes
- Contains Compressed Gas
- Yes
- Proposition 65 Warning
- Yes
- Restricted States
- GU, PR, VI
- Base Warranty
- 5-Year Parts
- Base Parts Warranty
- 5-Year
- Base Remote Warranty
- 5 Year
- Registered Labor Warranty
- None
- Base Labor Warranty
- None
MRCOOL Mini Split BTU Guide
Drawn to scale — 1 square = 2 × 2 ftThis system’s condenser supports up to 36K BTU connected. Toggle zones to see how your mix loads it — MRCOOL allows connecting more than 100% because zones rarely all run at max.
