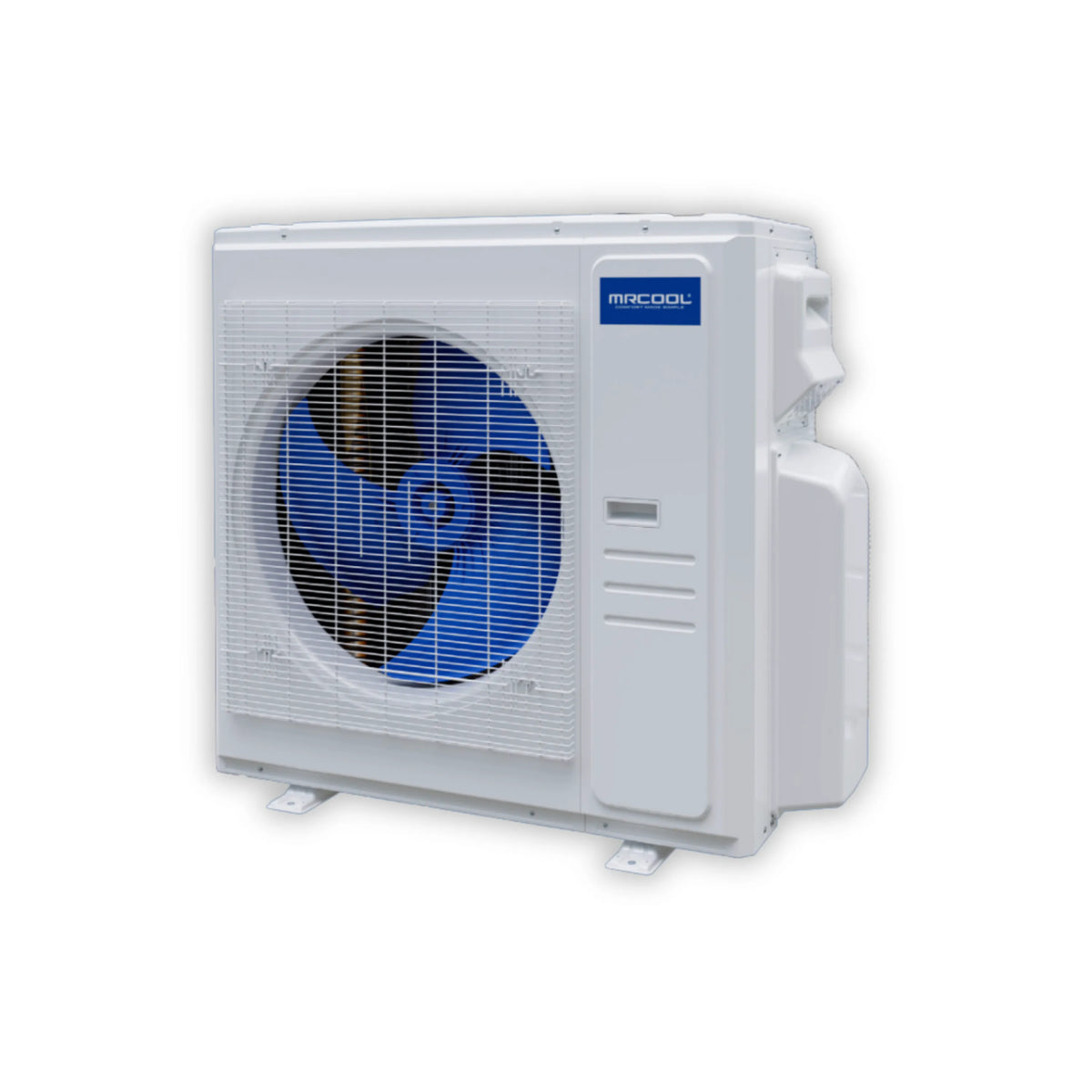

The MRCOOL® Olympus MULTI4-27HP230C-O is a powerful 27,000 BTU multi-zone heat pump condenser capable of supporting up to four indoor units at once. Ideal for homeowners aiming to maintain precise temperature control in multiple areas, this ductless system allows for customized climate settings in each zone, offering a versatile and energy-smart solution for today’s homes. Engineered with advanced inverter technology, it boasts impressive energy efficiency—reaching SEER2 ratings up to 25 and HSPF2-4 up to 9.5. Designed to perform in a wide range of outdoor temperatures, this unit remains reliable even in cold weather down to 5°F, delivering year-round comfort. It’s also compatible with a variety of MRCOOL indoor unit types, including wall-mounted, ceiling cassette, and concealed duct options, making it easy to tailor the system to your home’s design and needs.
Convenience is built in, with smart control options like the MRCOOL SmartHVAC app, handheld remotes, or voice control via Amazon Alexa and Google Assistant. Additional features such as sleep mode, auto restart, and refrigerant leak detection provide added safety, ease of use, and peace of mind. Covered by a 7-year compressor warranty and a 5-year parts warranty (when professionally installed), the MRCOOL® Olympus MULTI4-27HP230C-O is a dependable, high-efficiency choice for those seeking flexible, zone-specific heating and cooling.
| Net Dimensions (In) | 16.14 D x 31.89 H x 37.24 W |
| Net Weight (Lbs) | 138.89 |
| SEER2 | Up to 25 |
| EER2 | Up to 13 |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 7 |
| TONNAGE | 2.25 |
| Cooling Capacity (Btu) | 27000 |
| Heating Capacity (Btu) | 27000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 25 |
| Min Circuit Ampacity (A) | 23 |
| Color | White |
| Max Coverage Area | Up to 1125 |
| Zone Capacity | 4 |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 84.66 |
| Decibel Rating (Dba) | 61 |
| Inverter | DC |
| Max Lineset Length (Ft) | 262.4 total |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 4 x 1/4 |
| Suction Line Size | 3 x 3/8 + 1 x 1/2 |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Rpm | 800/700/650 |
| Metering Device | EXV |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed2 | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Base Warranty | 5-Year Parts/7-Year Compressor |
| Base Parts Warranty | 5-Year |
| Base Compressor Warranty | 7-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Depth (In) | 19.68 |
| Gross Height (In) | 34.84 |
| Gross Width (In) | 42.91 |
| Gross Weight (Lbs) | 149.69 |

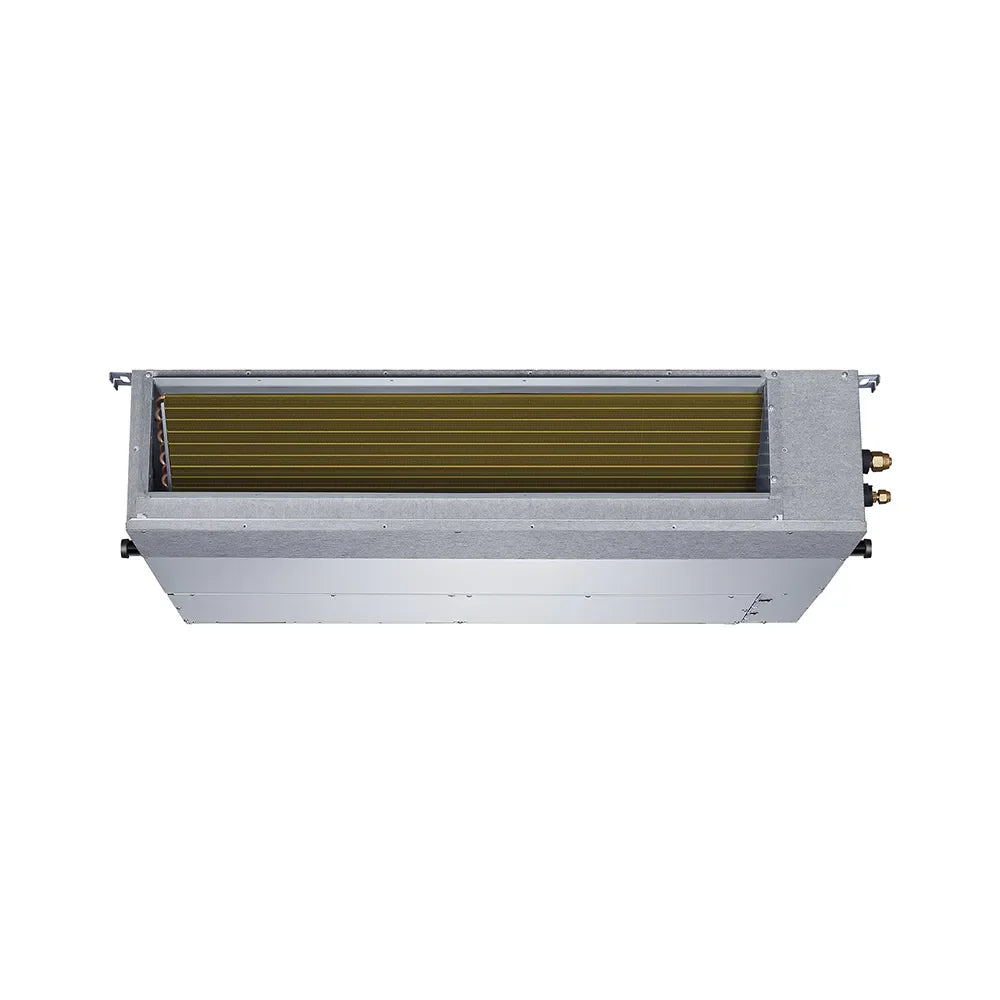

The MRCOOL® OLYMPUS 12K DUCT Air Handler delivers efficient and reliable heating and cooling for spaces up to 550 square feet, making it a great choice for bedrooms, home offices, and similarly sized areas. Designed for a discreet ceiling installation, the unit offers a flush-mount finish that seamlessly integrates with your space, enhancing the room’s aesthetic with a clean, modern look. Its compact and versatile design suits both residential and commercial applications, providing an ideal climate solution without sacrificing valuable square footage. For added convenience, the system includes both a wired wall-mounted controller and a handheld remote. Whether you prefer adjusting settings from the wall or without leaving the comfort of your couch, climate control is always within easy reach. This model features R-454B refrigerant, a high-efficiency, environmentally friendly option that delivers outstanding performance while minimizing environmental impact. With a low global warming potential, R-454B supports sustainability and helps reduce your household’s carbon footprint, all without compromising system effectiveness or energy efficiency.
The MRCOOL® OLYMPUS 12K DUCT Air Handler is backed by a limited lifetime warranty, along with 7-year compressor protection and a 5-year parts warranty—ensuring long-lasting performance and peace of mind. For those seeking energy-conscious comfort, modern design, and reliable climate control, this unit offers a high-performance solution tailored to today’s demands.
| Net Dimensions (In) | 19.92 D x 7.87 H x 27.56 W |
| Net Weight (Lbs) | 39.46 |
| Tonnage | 1 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Ducted |
| Color | Metal |
| Max Coverage Area | Up to 550 |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 36/36/34.5/32.5/25.5 |
| Decibel Rating Low (Dba) | 25.5 |
| Decibel Rating High (Dba) | 36 |
| Air Flow Direction | Ducted |
| Number Of Speeds | 5 (Variable) |
| Oscillation | No |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Blower Motor Speeds | 400.2/323.7/264.9/176.6/117.7 |
| Blower Motor Rpm | 780/680/580 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works With Ios | No |
| Works With Android | No |
| Remote Control Included | Yes |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Weight (Lbs) | 46.74 |
The MRCOOL® OLYMPUS 18K DUCT Air Handler delivers dependable heating and cooling for areas up to 800 square feet, making it an excellent solution for spacious bedrooms, home offices, or compact commercial spaces. Its low-profile, ceiling-concealed installation allows it to virtually disappear from view, maintaining a clean and modern interior without sacrificing performance.
Designed with versatility in mind, this system seamlessly blends into residential or light commercial environments, offering both elegance and efficiency in one compact package. Whether you're looking to optimize comfort at home or in a workspace, this unit is engineered to provide precise climate control without dominating your space. Control is effortless thanks to the included wired wall-mounted controller and handheld remote. Adjusting your temperature preferences is simple and convenient—no need to interrupt your routine or leave your seat. Environmentally conscious performance is also a hallmark of this system, utilizing advanced R-454B refrigerant. This low global warming potential refrigerant provides outstanding heating and cooling while significantly reducing your carbon footprint. It's an ideal choice for anyone seeking high performance paired with sustainability.
The MRCOOL® OLYMPUS 18K DUCT Air Handler is backed by a limited lifetime warranty, along with 7-year compressor protection and a 5-year parts warranty. It’s the perfect choice for those who prioritize comfort, energy efficiency, and modern convenience in a sleek, discreet design.
| Net Dimensions (In) | 26.54 D x 8.27 H x 34.65 W |
| Net Weight (Lbs) | 54.45 |
| Tonnage | 1.5 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Ducted |
| Color | Metal |
| Max Coverage Area | Up to 800 |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 40/40/39/38/32 |
| Decibel Rating Low (Dba) | 32 |
| Decibel Rating High (Dba) | 40 |
| Air Flow Direction | Ducted |
| Number Of Speeds | 5 (Variable) |
| Oscillation | No |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 1/4 |
| Suction Line Size | 1/2 |
| Blower Motor Speeds | 600.4/559.2/500.3/441.4/441.4 |
| Blower Motor Rpm | 780/700/550 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works With Ios | No |
| Works With Android | No |
| Remote Control Included | Yes |
| Ul Listed | Yes |
| Csa Listed | Yes |
| Etl Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Weight (Lbs) | 66.14 |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
