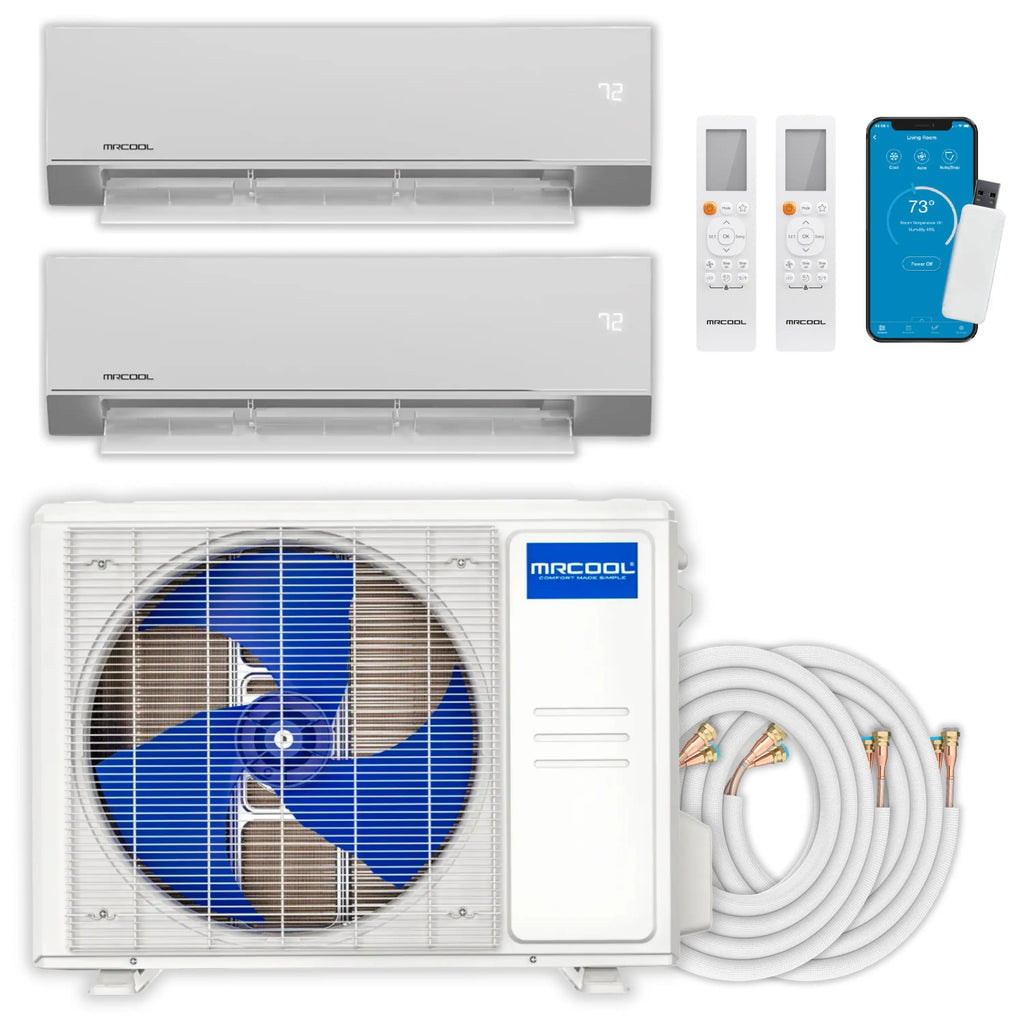

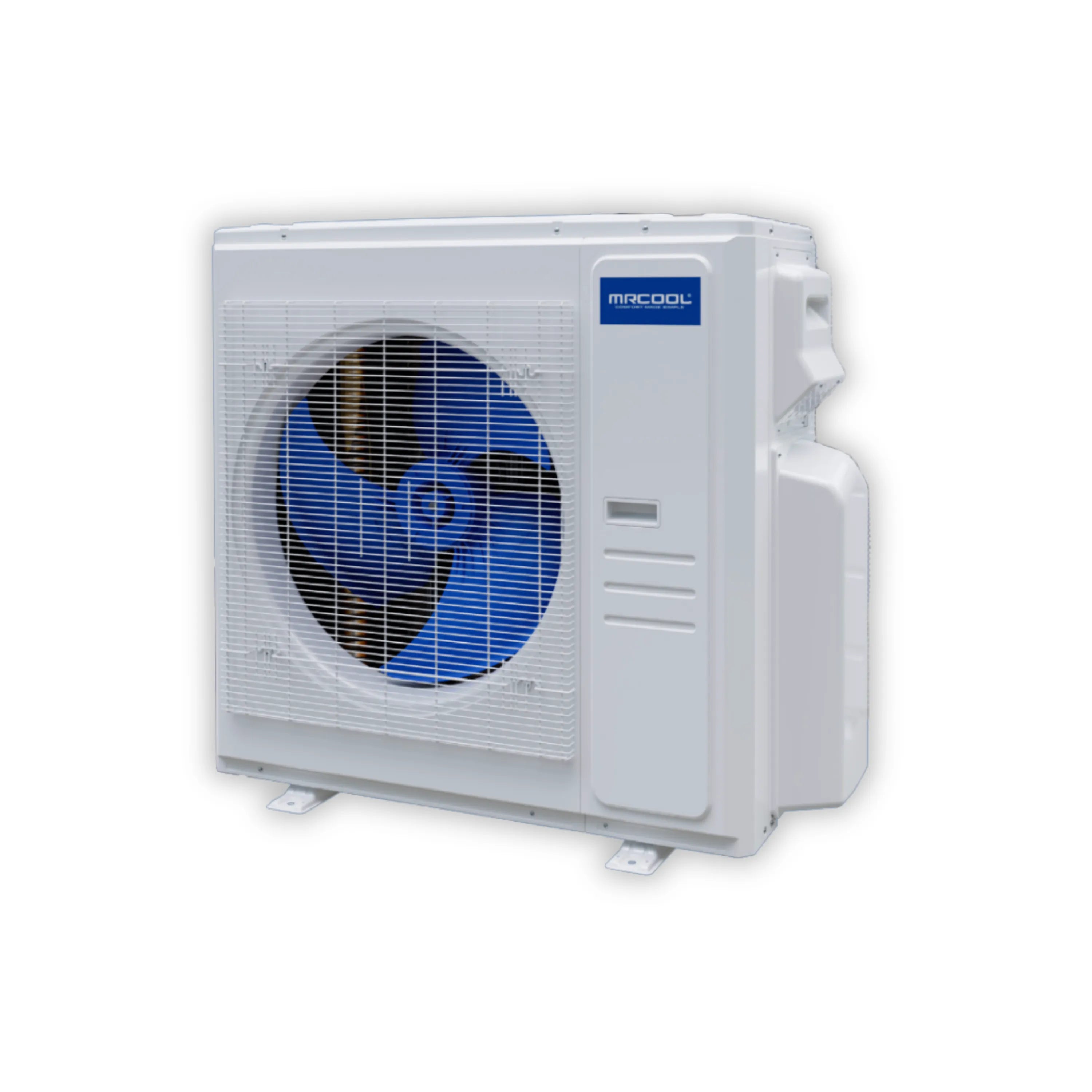

The MRCOOL® Olympus MULTI3-18HP230C-O is a high-performance 18,000 BTU multi-zone heat pump condenser designed to power up to three indoor units simultaneously. Perfect for homeowners looking to efficiently manage temperatures in multiple spaces, this ductless system offers individualized climate control for each connected zone, making it a flexible solution for modern living environments. Built with advanced inverter technology, the unit delivers impressive efficiency, with SEER2 ratings up to 25.1 and HSPF2-4 up to 10. It performs reliably in diverse conditions, operating in outdoor temperatures as low as 5°F, ensuring comfort in both summer and winter months. This model is compatible with various
MRCOOL indoor units, including wall-mounted, ceiling cassette, and concealed duct options, giving users the freedom to tailor the system to their home’s layout and aesthetics. Smart features elevate user convenience, with control options that include the MRCOOL SmartHVAC app, traditional remotes, or even voice commands via Amazon Alexa and Google Assistant. Additional functions such as sleep mode, auto restart, and refrigerant leak detection contribute to enhanced safety and comfort. Backed by a 7-year warranty on the compressor and 5 years on parts (with professional installation), the MRCOOL®Olympus MULTI3-18HP230C-O is a reliable and energy-efficient choice for those seeking customized, zone-specific heating and cooling.
| Net Dimensions (In) | 13.46 D x 26.5 H x 35.04 W |
| Net Weight (Lbs) | 100.53 |
| SEER2 | Up to 25.1 |
| EER2 | Up to 14 |
| HSPF2-4 | 9.8 |
| HSPF2-5 | 7.8 |
| Tonnage | 1.5 |
| Cooling Capacity (Btu) | 18000 |
| Heating Capacity (Btu) | 19000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 20 |
| Min Circuit Ampacity (A) | 16 |
| Color | White |
| Max Coverage Area | Up to 750 |
| Zone Capacity | 3 |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 61.73 |
| Decibel Rating (Dba) | 59.5 |
| Inverter | DC |
| Max Lineset Length (Ft) | 196.8 total |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 3 x 1/4 |
| Suction Line Size | 3 x 3/8 |
| Compressor Motor Type | Twin-Rotary |
| Condenser Fan Motor Rpm | 750/600/500 |
| Metering Device | EXV + Capillary |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Base Warranty | 5-Year Parts/7-Year Compressor |
| Base Parts Warranty | 5-Year |
| Base Compressor Warranty | 7-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Depth (In) | 17.24 |
| Gross Height (In) | 29.53 |
| Gross Width (In) | 40.55 |
| Gross Weight (Lbs) | 109.35 |

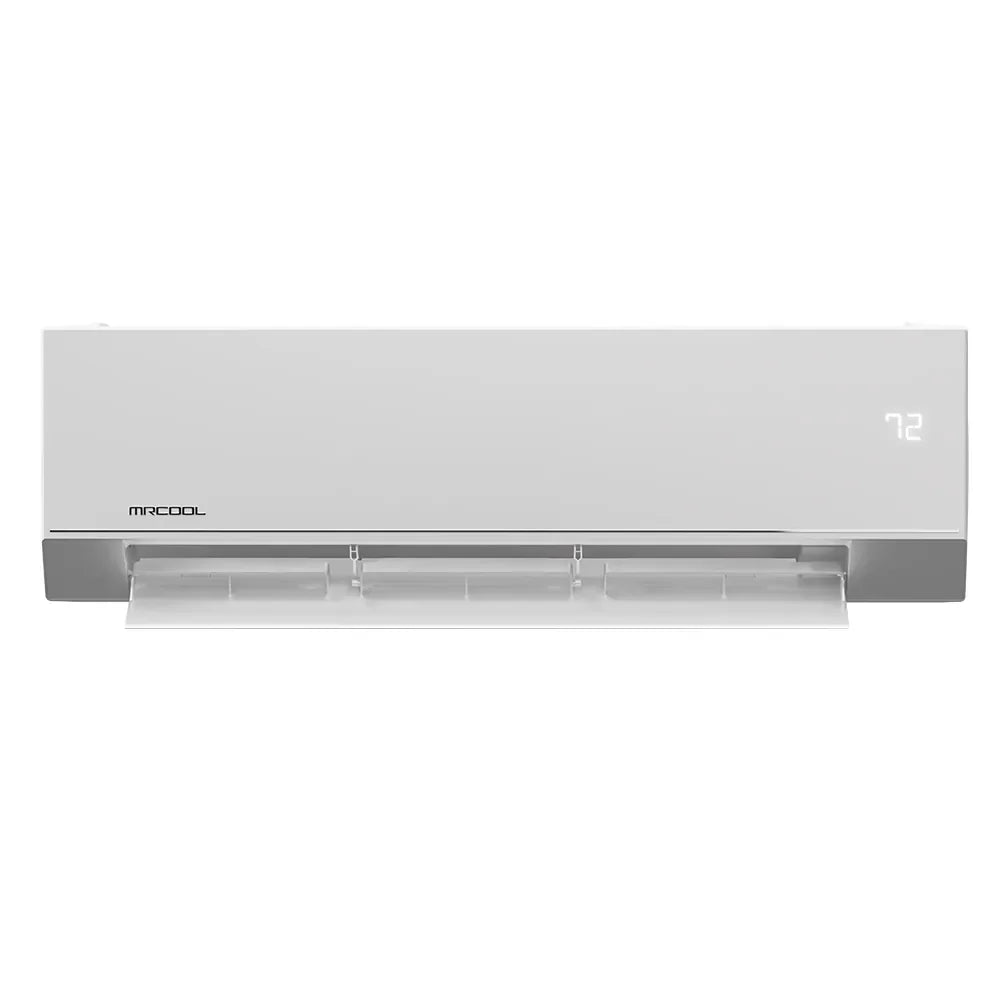

Enjoy reliable heating and cooling with the MRCOOL® OLYMPUS ESTAR® 9k Series air handler, designed to deliver year-round comfort for spaces up to 400 square feet—ideal for single rooms, home offices, garages, and more. Its compact size allows for quick and easy installation, making setup a breeze for your installer. Equipped with the MRCOOL® Smart HVAC app, this unit offers convenient Wi-Fi connectivity, letting you control it from your smartphone or tablet, no matter where you are. Prefer a more traditional approach? Use the included remote control for simple access to your preferred settings. Built with efficiency in mind, the unit boasts impressive performance ratings: SEER2 of 25.8, EER2 of 14.9, and HSPF2-4 of 12.5—helping you cut down on energy costs. With multiple indoor fan speeds and whisper-quiet operation at just 47 dB, you’ll barely notice it’s there while enjoying consistent comfort. Now using eco-friendly R-454B refrigerant, this system is better for the environment without compromising on power or performance. You’ll also enjoy versatile control options, including voice command compatibility with Amazon Alexa and Google Assistant. Backed by an industry-leading warranty—including a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty—the MRCOOL® OLYMPUS ESTAR® 9k Series offers advanced technology, dependable performance, and personalized climate control for years to come.
| Net Dimensions (In) | 9.09 D x 11.81 H x 33.74 W |
| Net Weight (Lbs) | 23.37 |
| Tonnage | 0.75 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | Up to 400 |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 38/38/33/20.5/19.5 |
| Decibel Rating Low (Dba) | 19.5 |
| Decibel Rating High (Dba) | 38 |
| Number Of Speeds | 5 (Variable) |
| Oscillation | Yes |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Blower Motor Speeds | 441.4/323.7/229.6/176.6/147.2 |
| Blower Motor Rpm | 1100/850/700 |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works With Ios | Yes |
| Works With Android | Yes |
| Remote Control Included | Yes |
| Ul Listed | Yes |
| Csa Listed | Yes |
| Etl Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Depth (In) | 12.2 |
| Gross Height (In) | 14.57 |
| Gross Width (In) | 36.22 |
| Gross Weight (Lbs) | 29.98 |
This remote is included with each air handler in MRCOOL's 5th Generation DIY or Advantage Mini Split Systems.
| Dimensions | 2" W x 6" L x 1" H |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States | GU;PR;VI |
| Color | White |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
