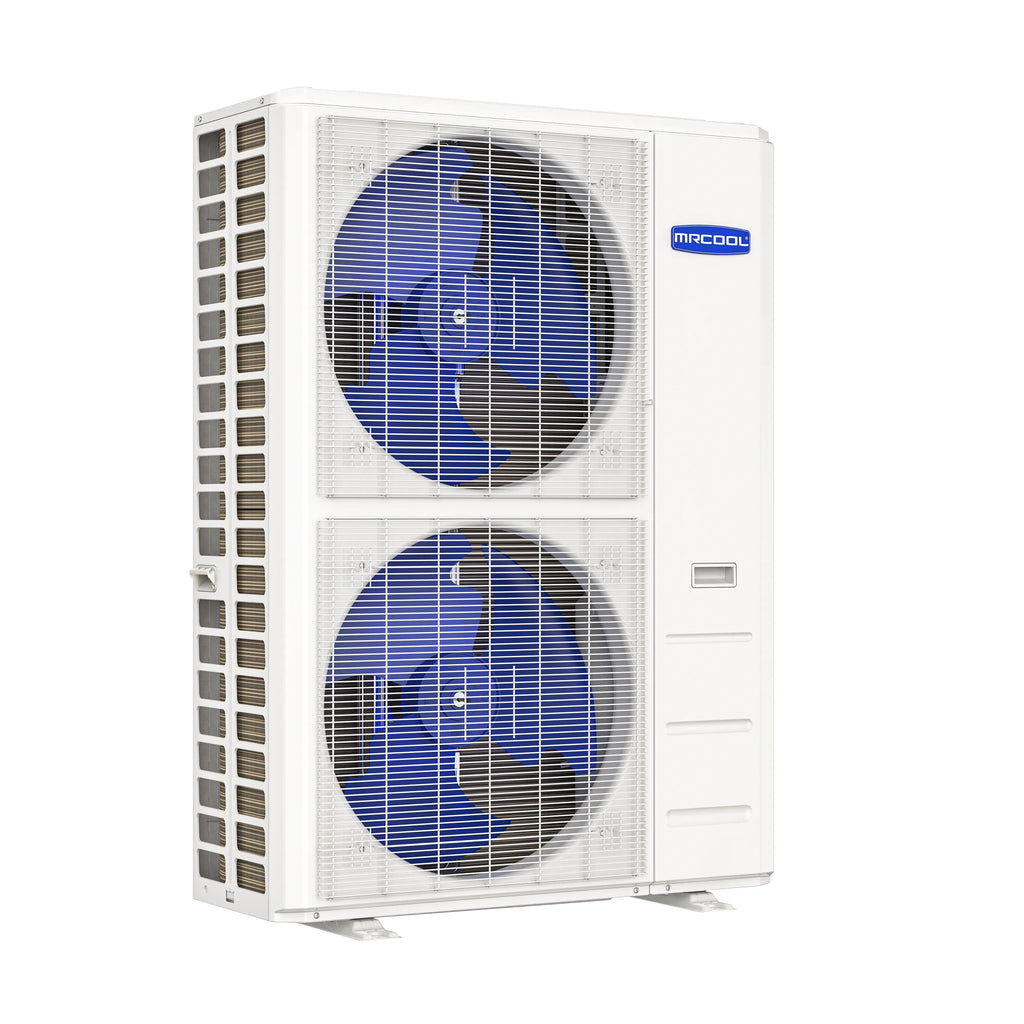

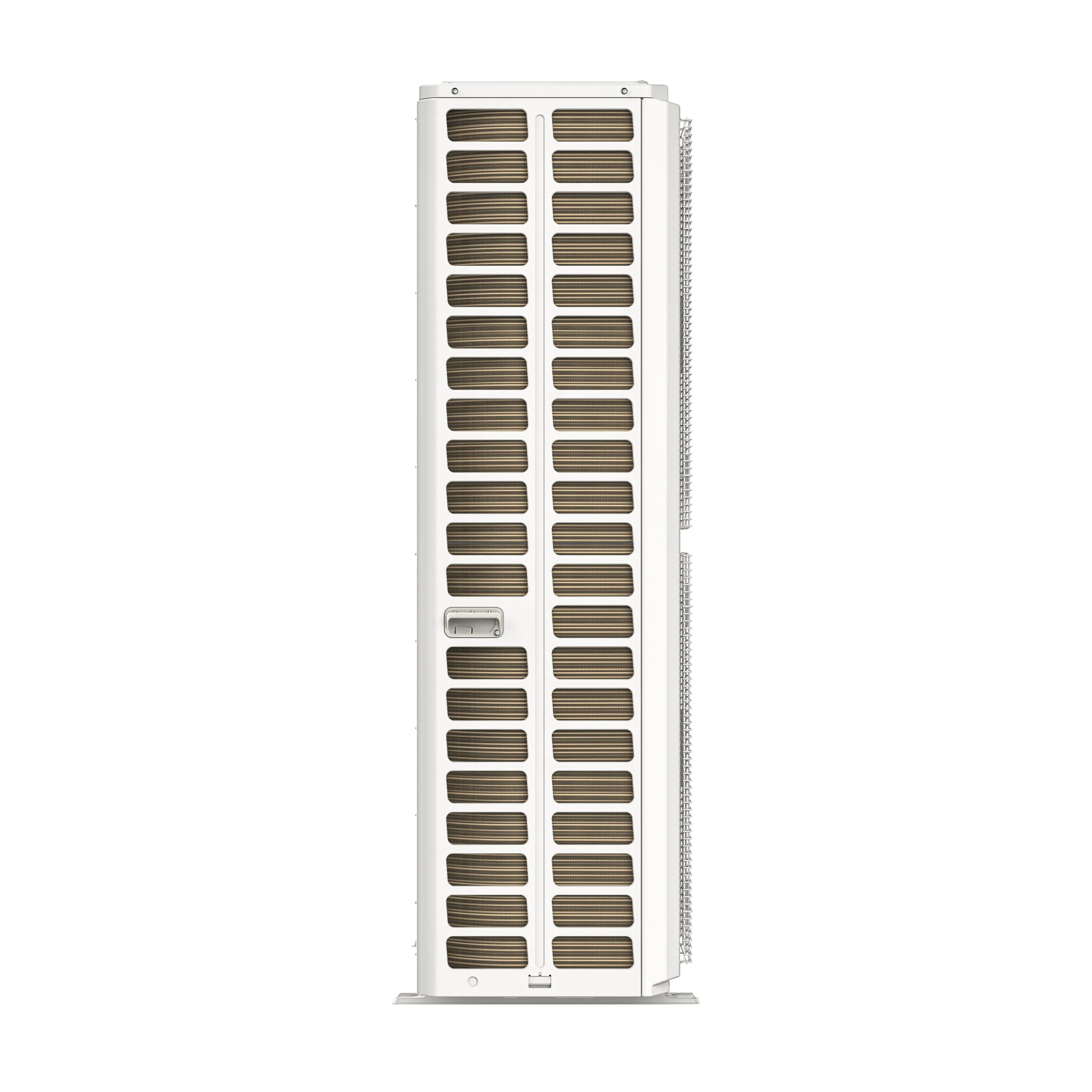

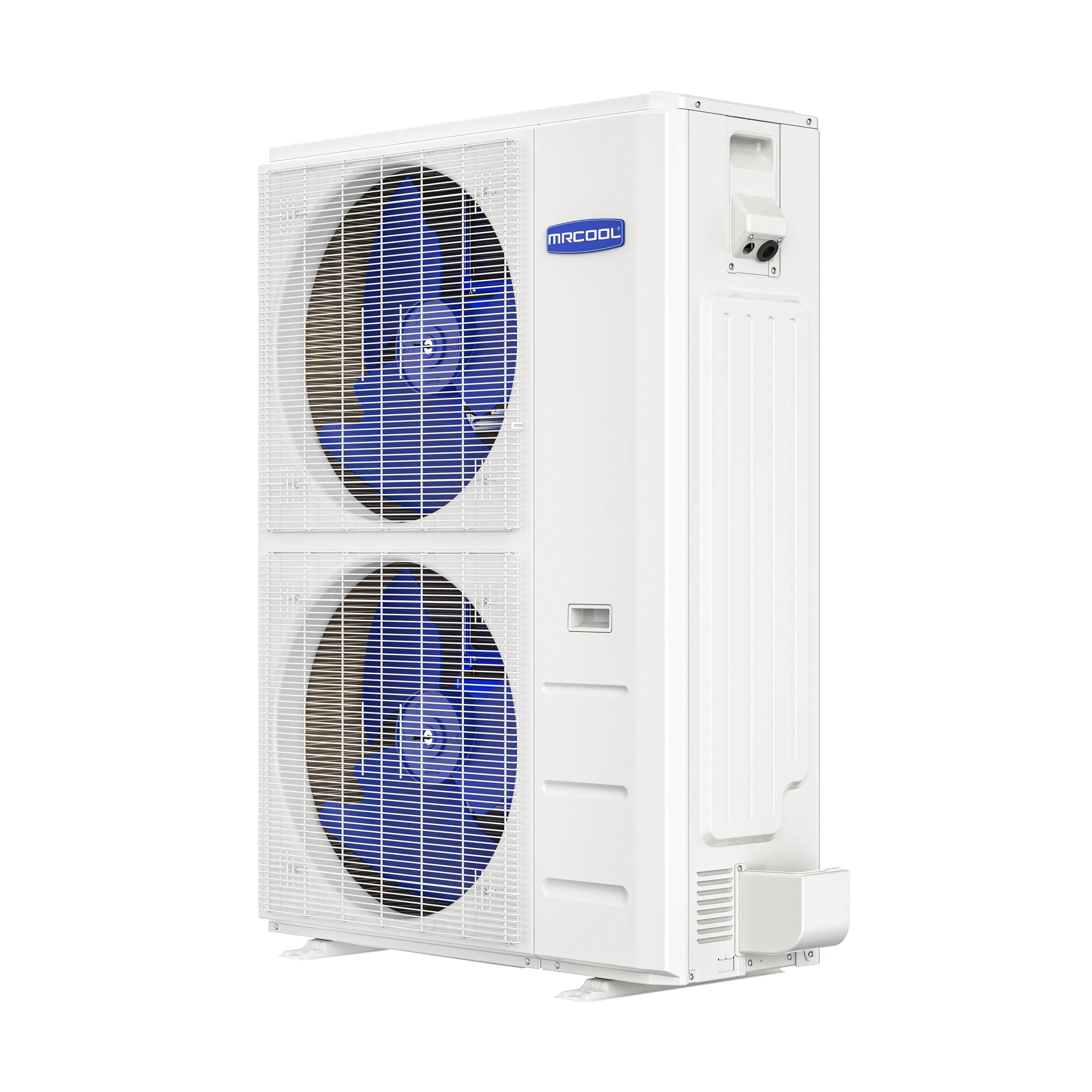

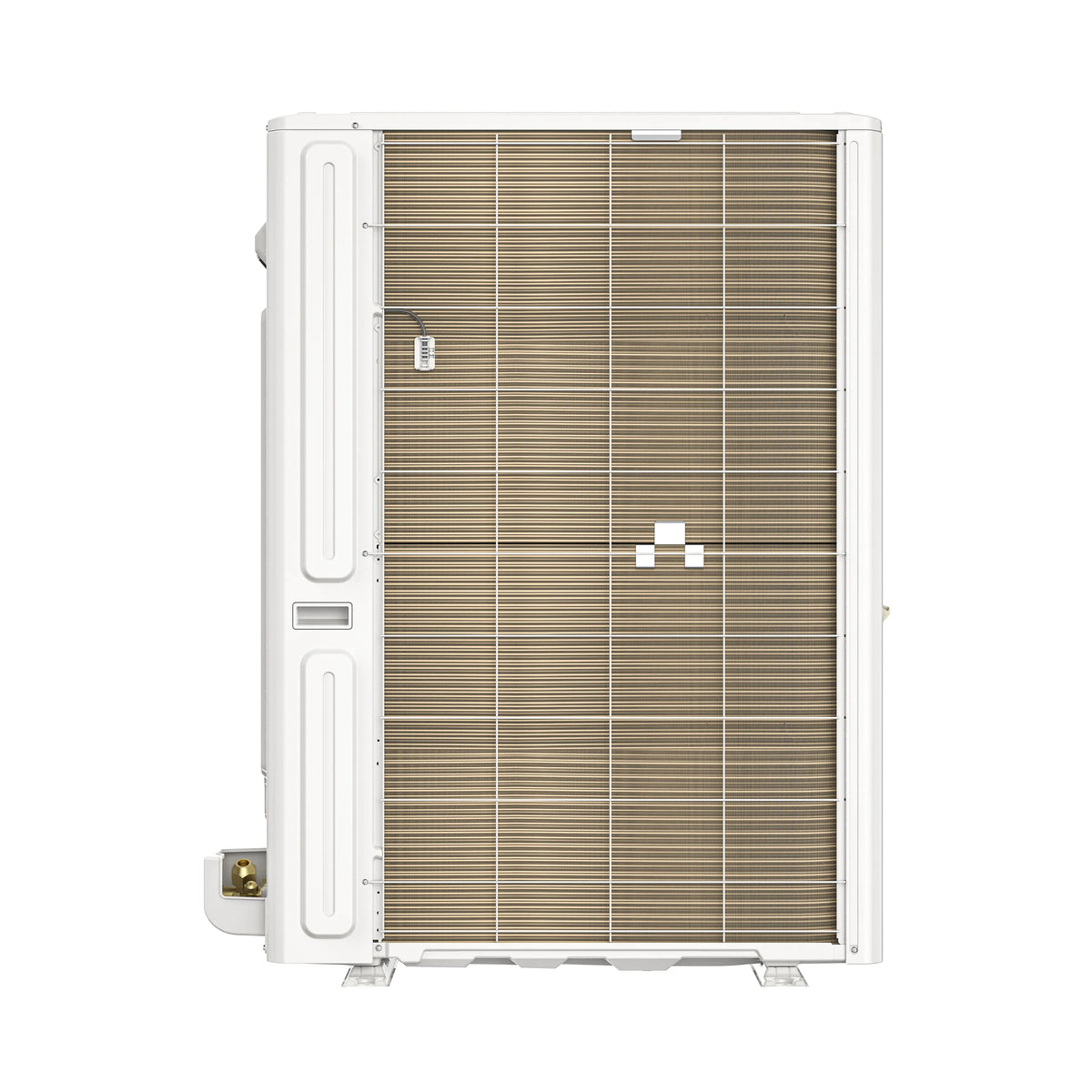

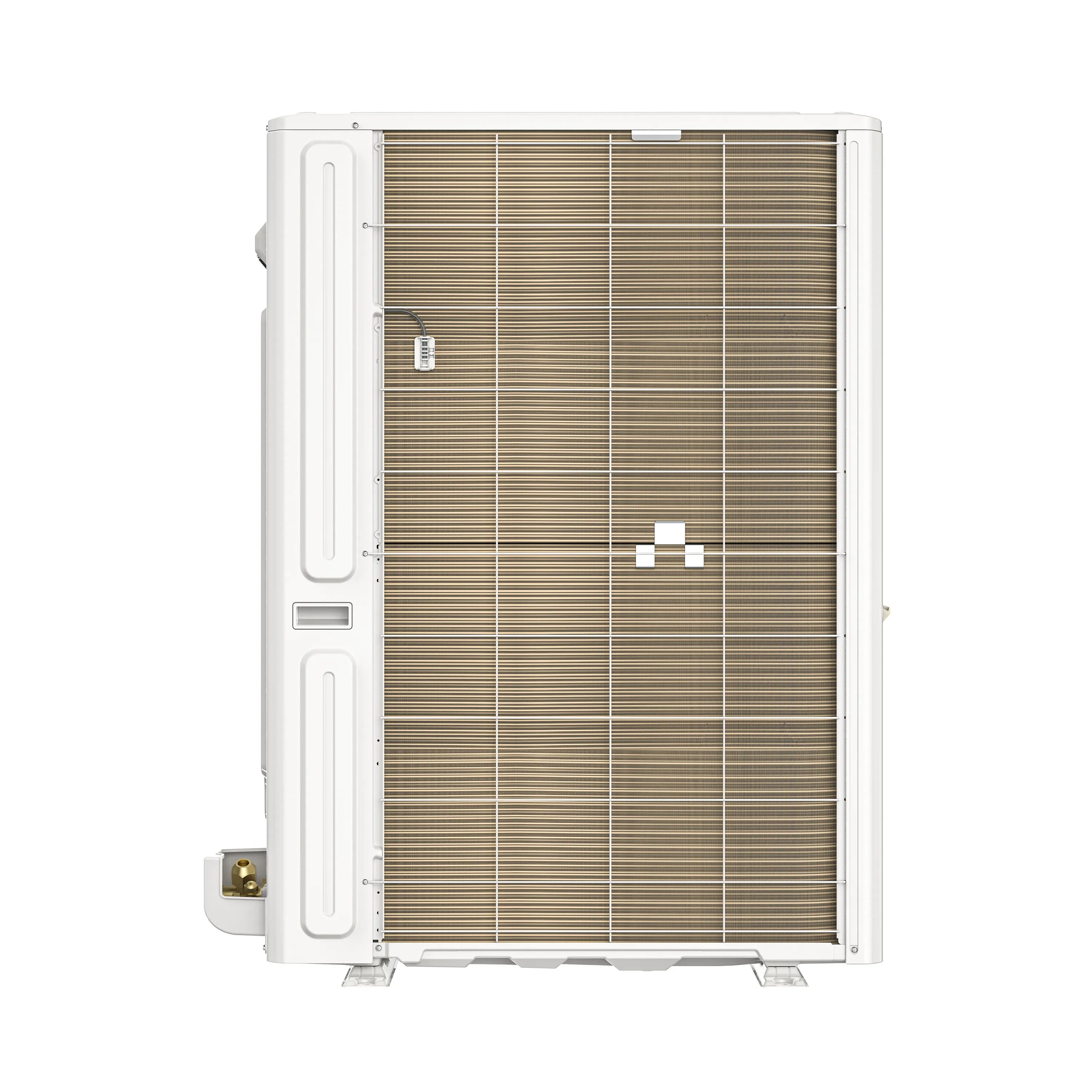

The 60K MRCOOL® Hyper Heat Central Ducted Condenser is built to perform exceptionally in all weather conditions, whether enduring the chill of winter or the heat of summer. This advanced Hyper Heat system leverages DC Inverter technology and variable speed capabilities to ensure reliable and efficient operation. With a SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9, it offers robust heating and cooling while optimizing energy usage. The included MRCOOL® Smart thermostat makes it easy to control your home’s climate.

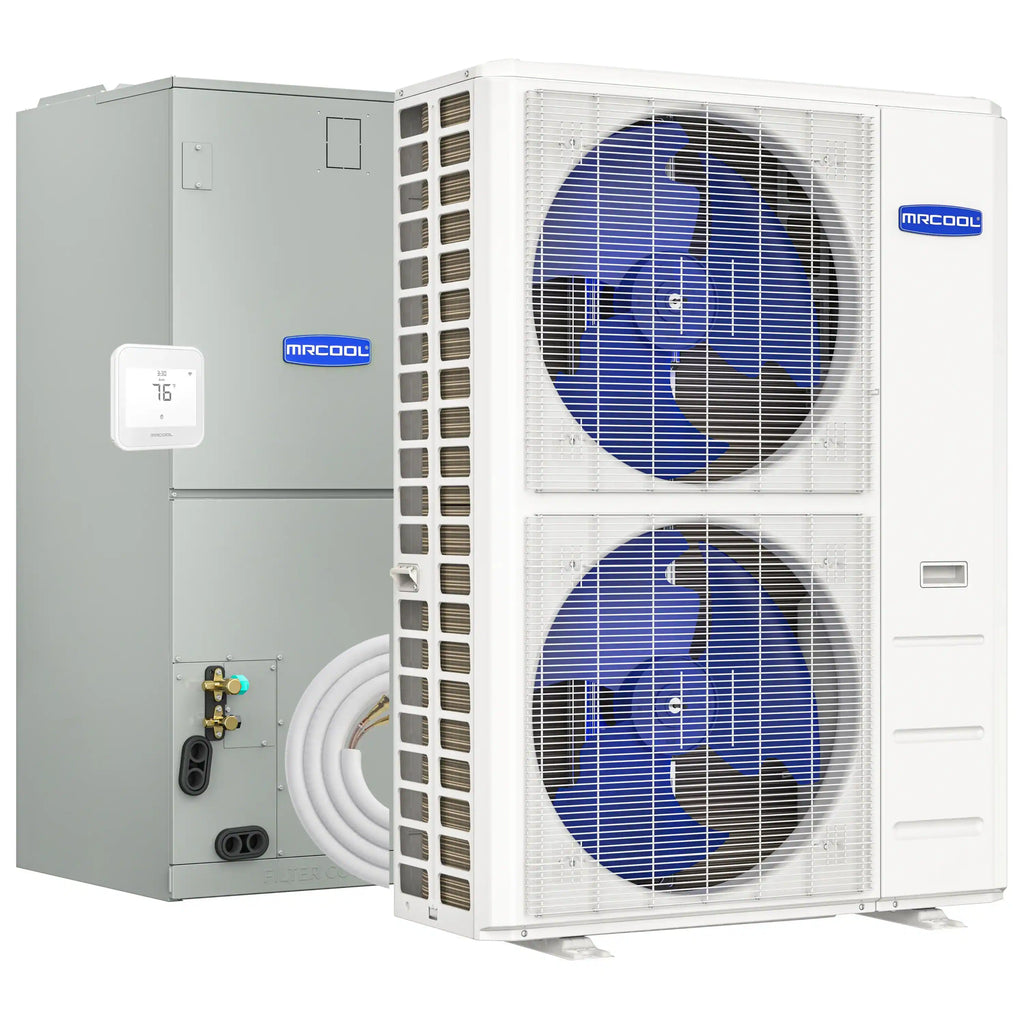

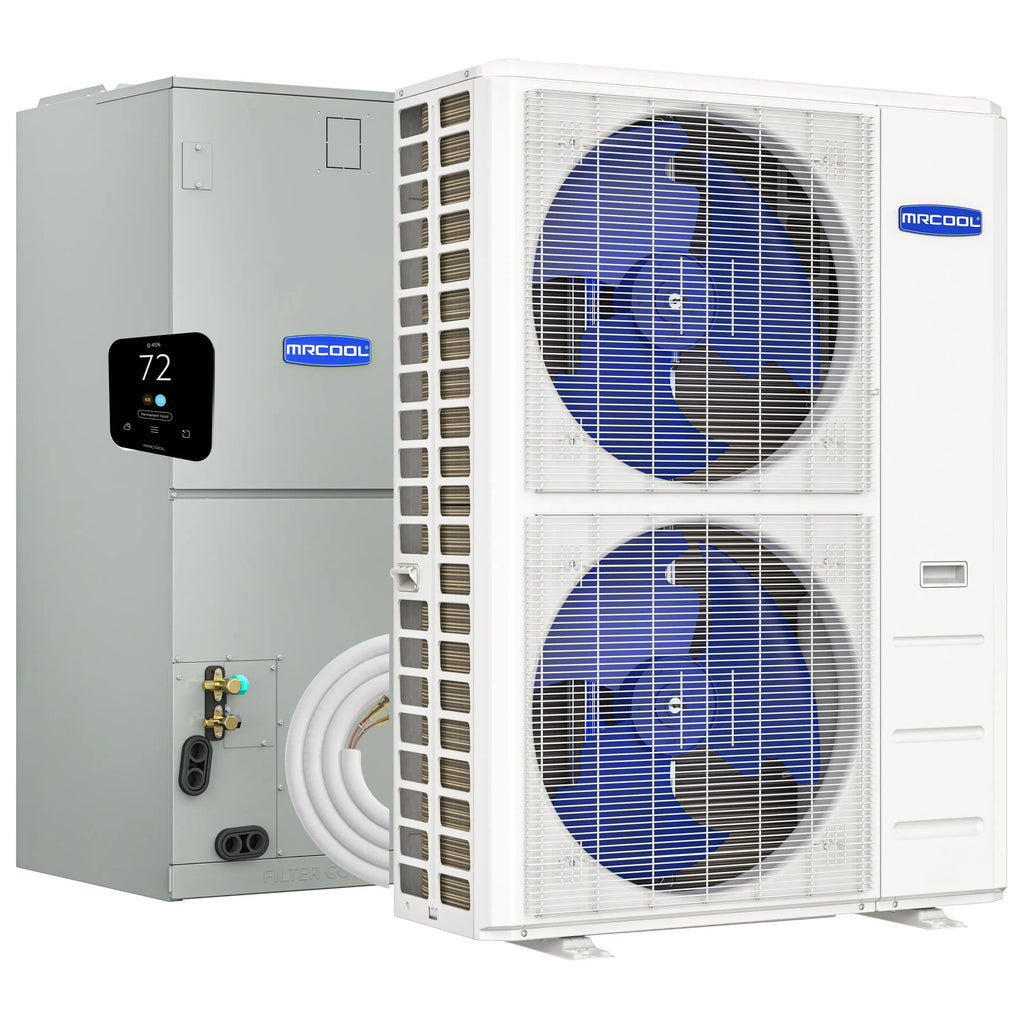

The 60K MRCOOL® VersaPro® Central Ducted Air Handler pairs seamlessly with the 60K MRCOOL® Hyper Heat Central Ducted Condenser. Designed for versatility, the air handler supports a variety of installation options and can be paired with an optional heat kit to enhance functionality. It uses R-454B refrigerant, an eco-conscious choice that reduces environmental impact. Durability is key to the outdoor heat pump, which is constructed with painted galvanized steel for lasting strength. The air handler is designed for convenience, featuring a compact size, slide-out blower, and a self-diagnostic panel to simplify maintenance and troubleshooting.
With a 10-year warranty covering the compressor, parts, and labor, you can enjoy peace of mind knowing your system is covered. The labor warranty activates automatically at installation, with no registration necessary. Upgrade your home’s heating and cooling with the reliable, efficient 60K MRCOOL® Hyper Heat Central Ducted Condenser today!
|
Dimensions |
16.34" D x 52.48" H x 37.48" W |
|
SEER2 |
16 |
|
EER2 |
10 |
|
HSPF-4 |
9 |
|
HSPF-5 |
8 |
|
CFM |
2648.6 |
|
Tonnage |
5 |
|
Cooling Capacity (BTU) |
54000 |
|
Heating Capacity (BTU) |
56000 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
40 |
|
Min Circuit Ampacity (A) |
40 |
|
Color |
gray |
|
Refrigerant Type |
R454B |
|
Refrigerant Volume(OZ) |
183.42 |
|
Decibel Rating (DBA) |
65 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Base Labor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
242.95 |
|
Gross Depth (In) |
19.49 |
|
Gross Height (In) |
58.27 |
|
Gross Width (In) |
43.11 |
|
Gross Weight (Lbs) |
275.13 |

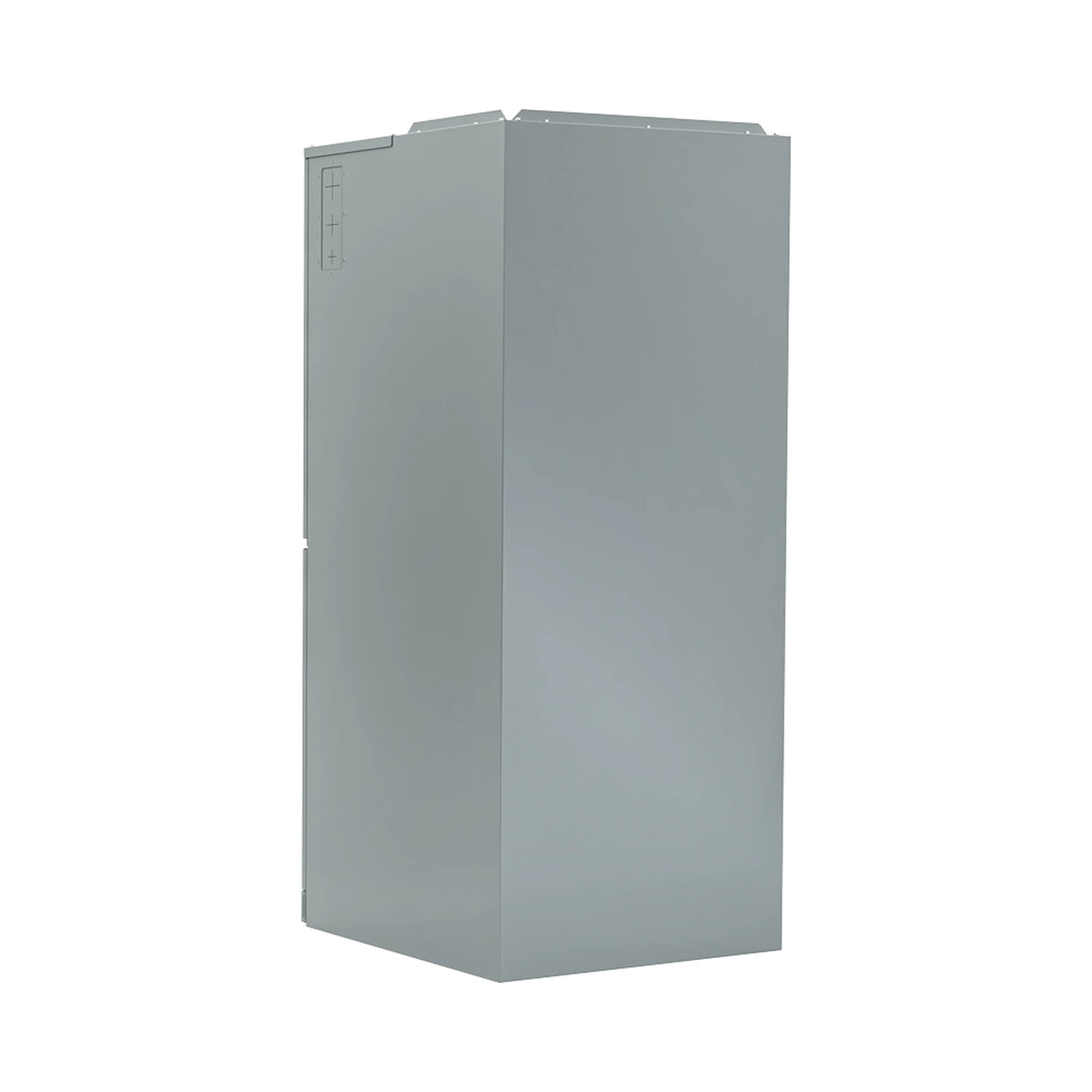

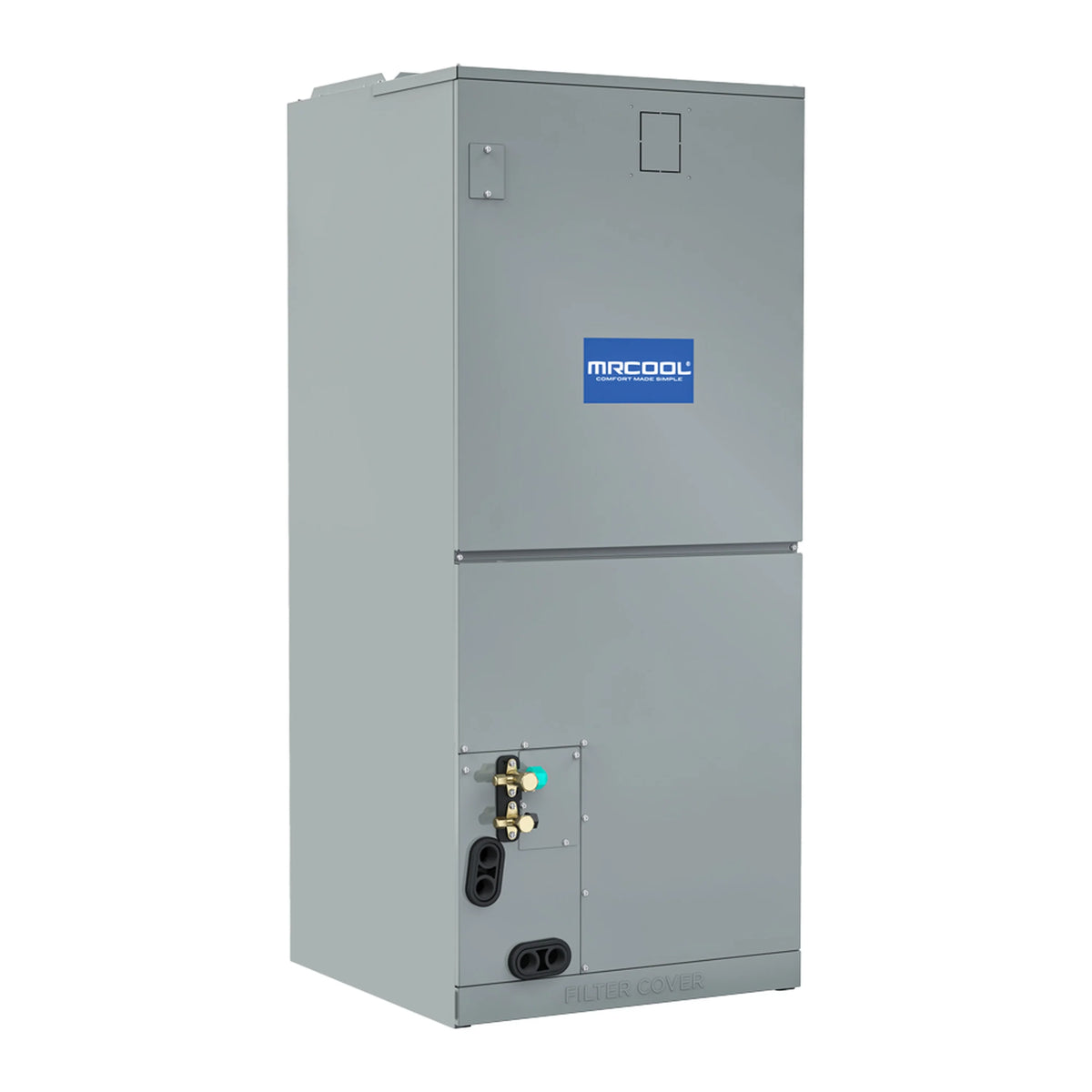

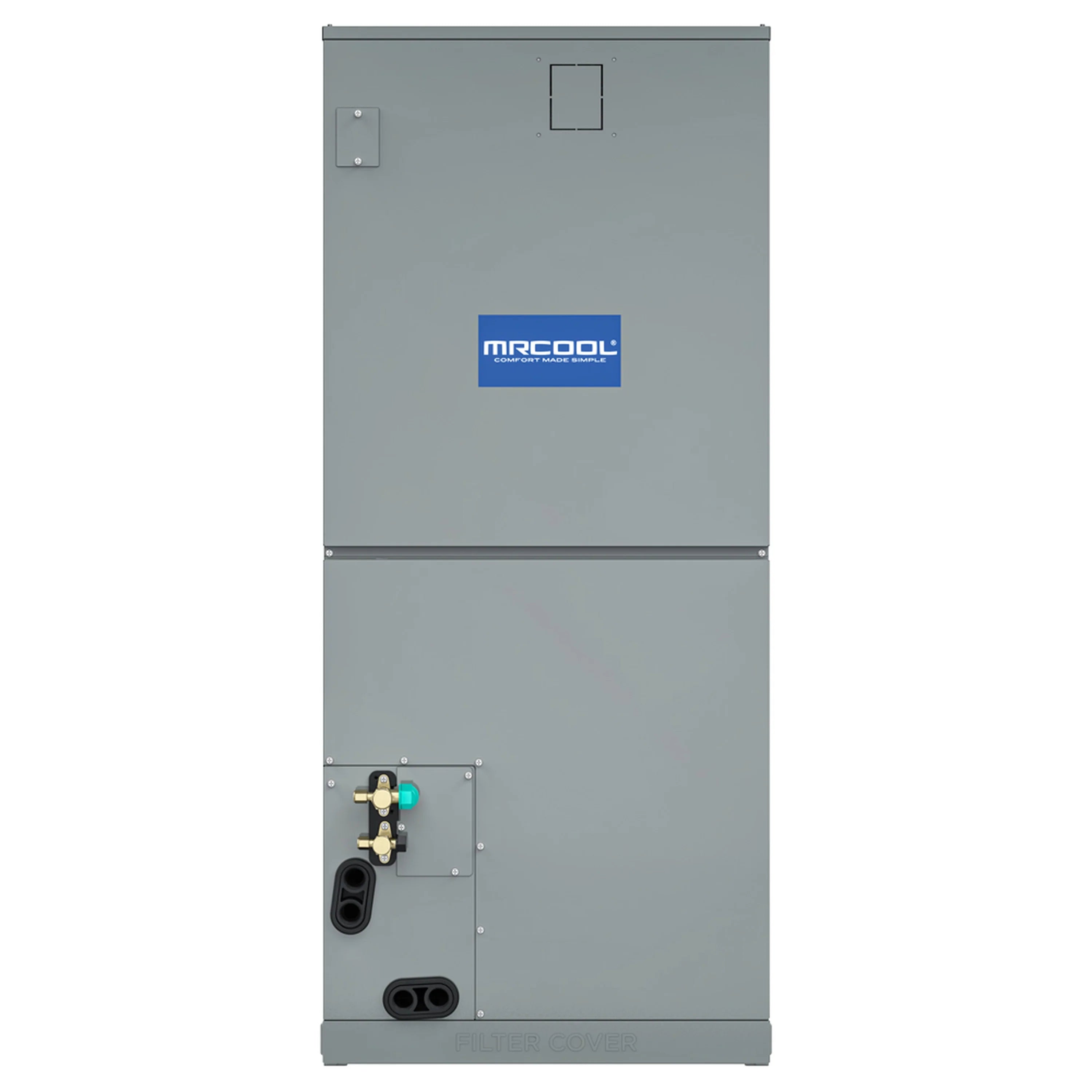

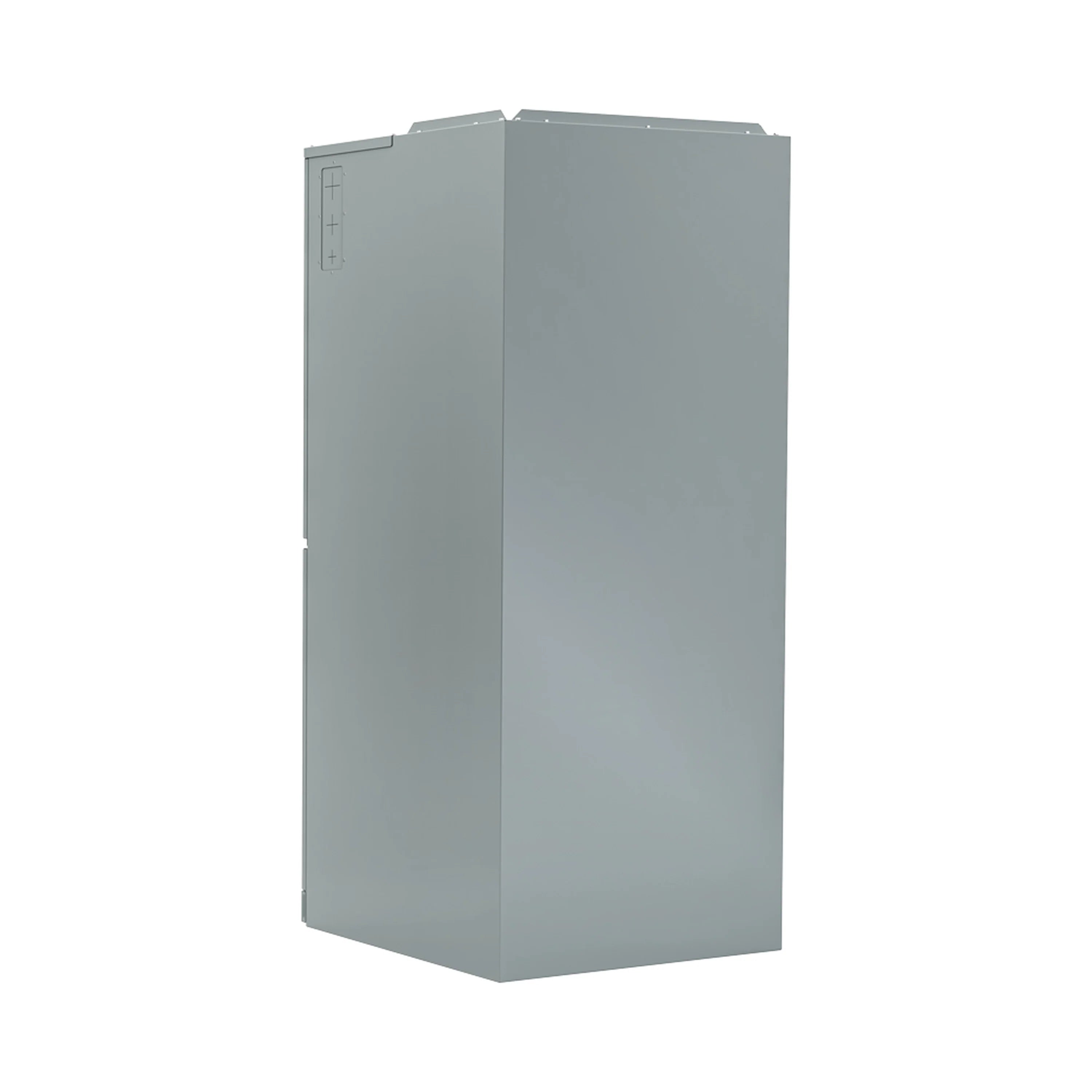

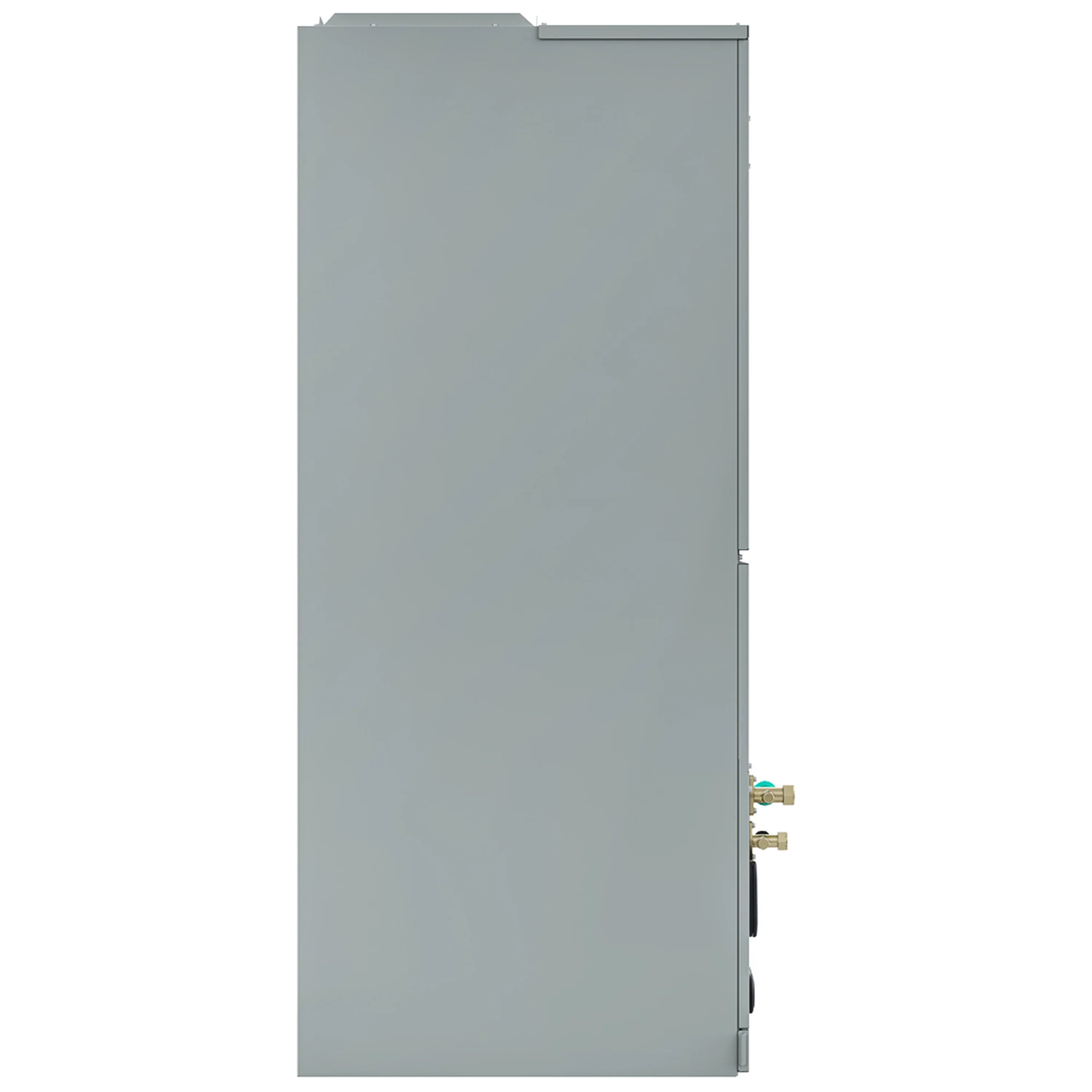

The 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for year-round heating and cooling in spaces up to 2,500 square feet. With a SEER2 rating of up to 16, it offers energy-efficient climate control for your home. This air handler is designed to withstand everyday use and is built with durable, painted galvanized steel. It includes a self-diagnostics panel that helps quickly identify and resolve any issues, making maintenance straightforward. This unit provides flexible installation options, including upflow, downflow, and horizontal left or right configurations, ensuring it fits various room layouts. It uses R-454B refrigerant, which is eco-friendly and reduces environmental impact.
For those needing extra warmth, an optional heat kit can be added to expand the unit's capabilities. The included MRCOOL® Smart Thermostat provides accurate and dependable temperature control, ensuring optimal comfort in your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing for convenient remote access and control. This air handler is fully compatible with our Central Ducted Hyper Heat Condenser. With a 10-year warranty, the 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable and efficient option to enhance your home's comfort. This user-friendly system is built to last and provides effective climate control throughout the year.
|
Dimensions |
24.49" D x 52.99" H x 21.02" w |
|
CFM |
1807.00/1583.33/1359.67/1136.00 |
|
Tonnage |
5 |
|
Cooling Capacity (BTU) |
54000 |
|
Heating Capacity (BTU) |
54000 |
|
Voltage (V) |
115/208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Ma Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
14.5/11.0 |
|
Color |
gray |
|
Decibel Rating Low (DBA) |
34.5 |
|
Decibel Rating High (DBA) |
56 |
|
Number of Speeds |
4 |
|
Max Lineset Length (FT) |
246 ft |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Filter Type |
Replaceable |
|
Filter Size |
23x20x1 |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater AVAILABLE |
Yes |
|
Auxiliary Heater Sizes |
10kW/15kW/20kW |
|
Adjustable Thermostat |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
162.92 |
|
Gross Depth (In) |
26.77 |
|
Gross Height (In) |
56.5 |
|
Gross Width (In) |
27.95 |
|
Gross Weight (Lbs) |
190.92 |

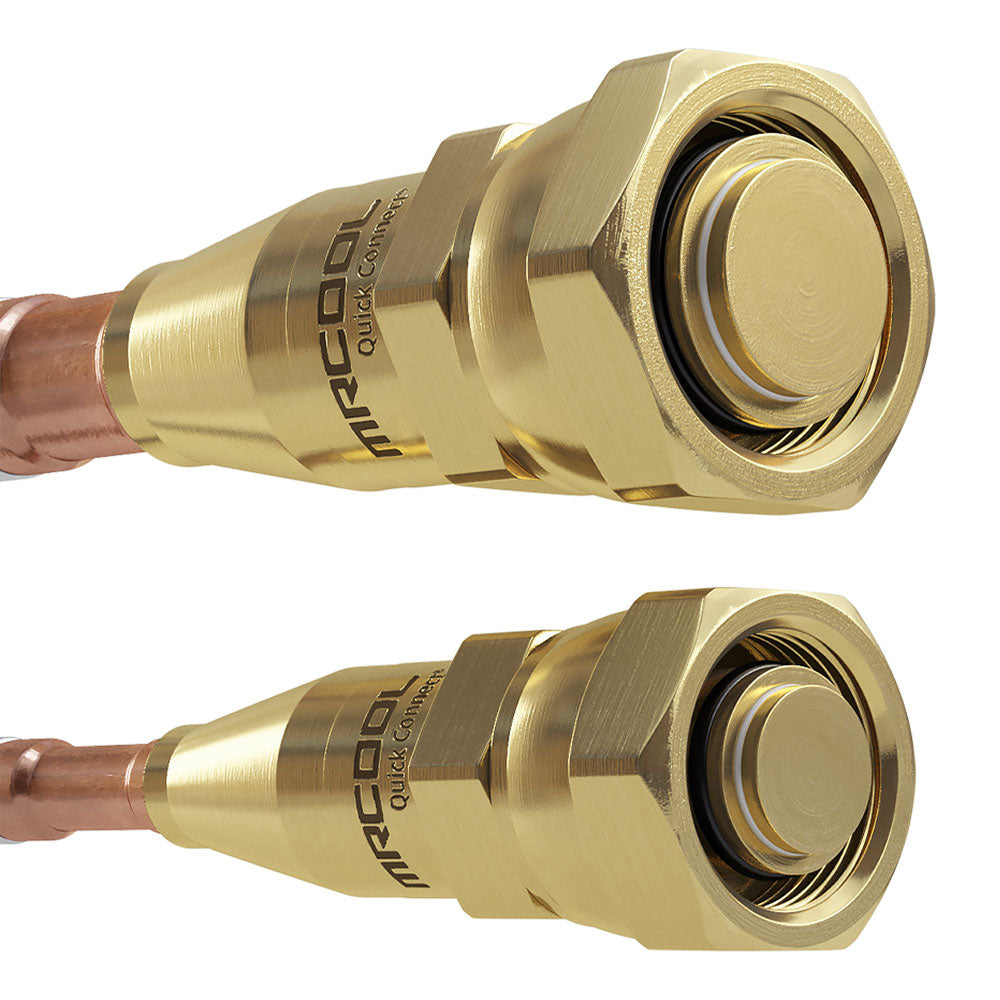

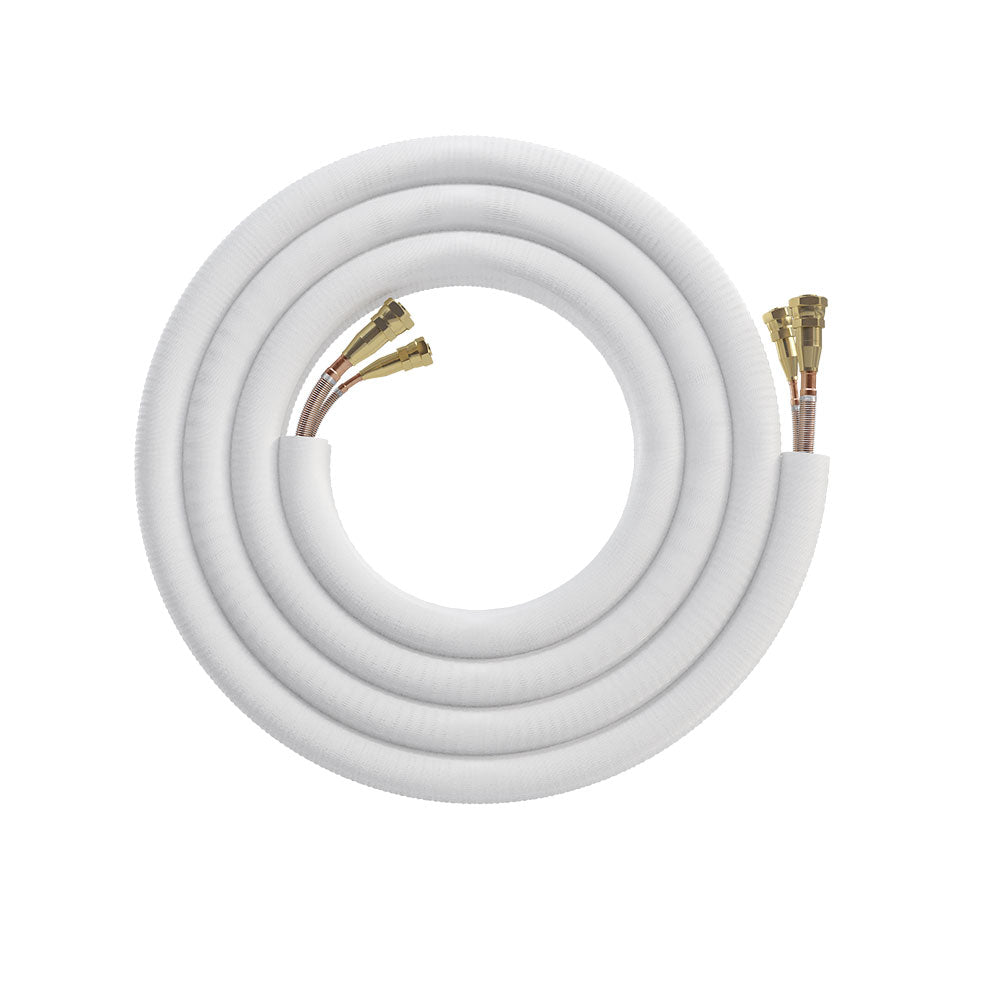

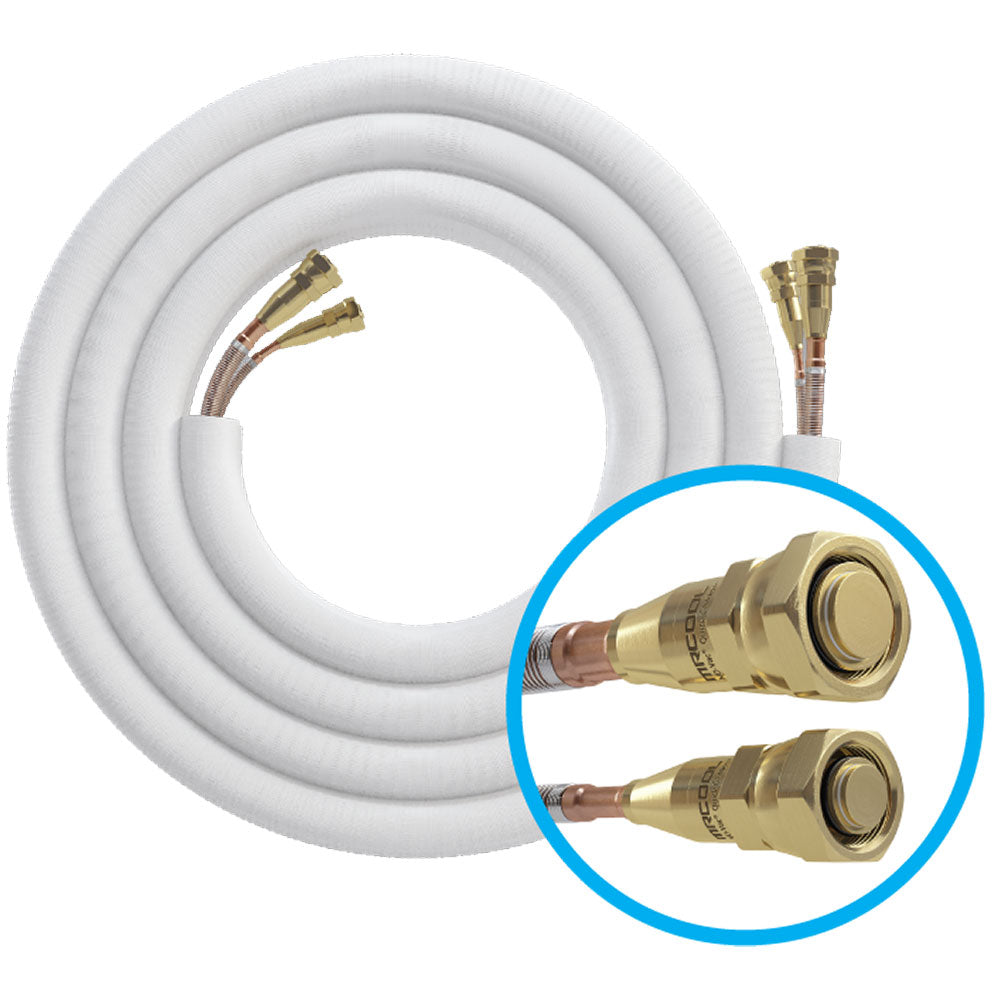

MRCOOL 15 Ft. R-454B No-Vac Lineset (NV15-3834-O)
15' R-454B No-Vac Lineset
|
Dimensions |
30" D x 30" H x 5" W |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (Oz) |
2.11 |
|
Line Set Length |
15ft |
|
Lineset Fitting Type |
Quick-Connect |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Contains Chemicals |
Yes |
|
Net Weight (Lbs) |
14 |
|
Gross Weight (Lbs) |
17 |
Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat, which boasts personalized heating and cooling options alongside a straightforward DIY installation process. This thermostat empowers you to customize settings effortlessly, enhancing your comfort while simultaneously reducing energy consumption. Choose from a plethora of modes and options to curate your ideal environment, including the convenient vacation mode, ensuring home safety during your absence without unnecessarily inflating energy bills.
Control lies at the heart of this Smart Thermostat, providing multiple avenues such as the intuitive touch-screen display, voice commands via popular virtual assistants like Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app offers a range of useful features, from an air filter cleaning monitor to a timeline displaying recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings.
With its unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even in the event of an internet outage, you can maintain control using the thermostat directly, adjusting temperature and settings as needed. With the added reassurance of a 3-year warranty, the MRCOOL Smart Thermostat provides peace of mind alongside unparalleled technology, comfort, and efficiency.
|
Dimensions |
3.9" D x 1" H x 3.9" W |
|
Voltage (V) |
24 |
| Sleep Mode | Yes |
| Base Parts Warranty | 3 Years |
| Gross Dimensions | 6.5" D x 2.12" H x 5.37" W |
| Gross Weight (lbs) | 0.95 |
*Shipping Policy
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Very good customer service will be buying from them again
Was easy to install. Directions were easy to follow and unit is working great
