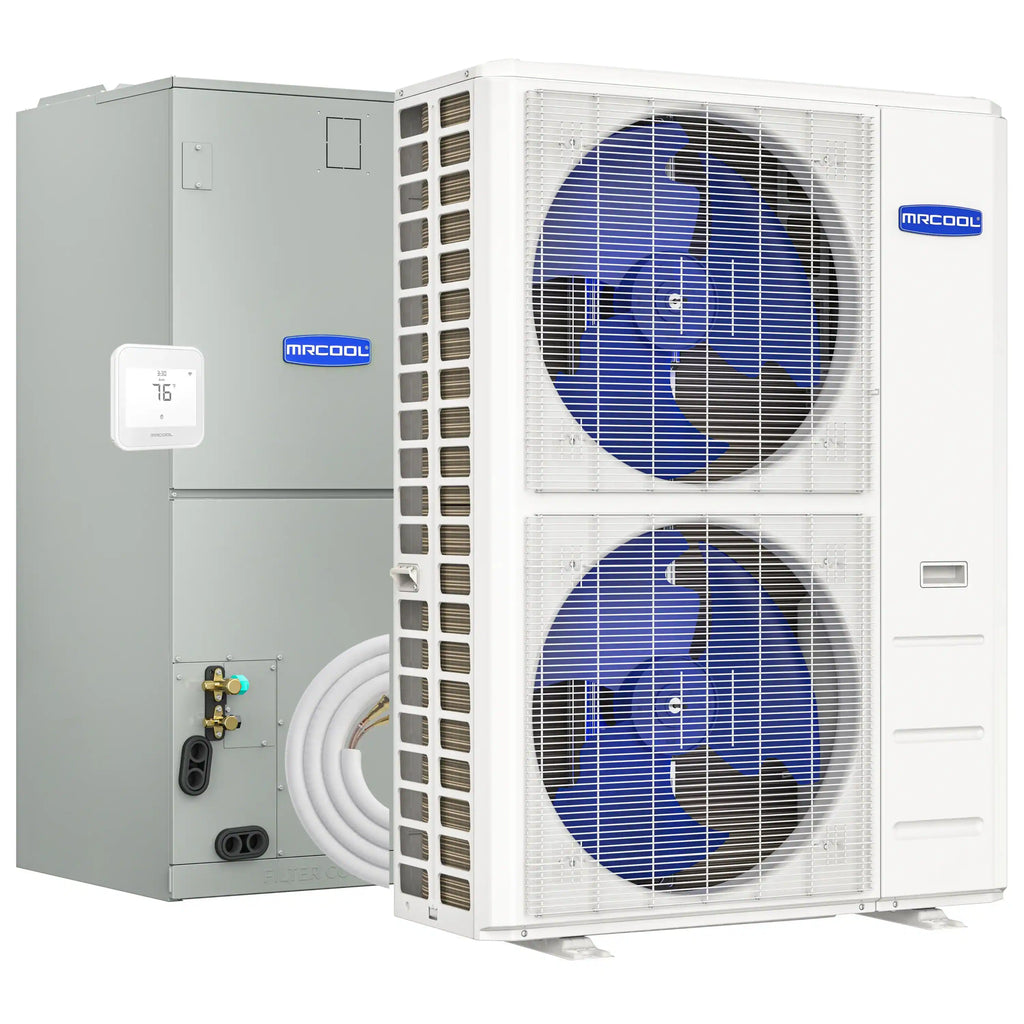

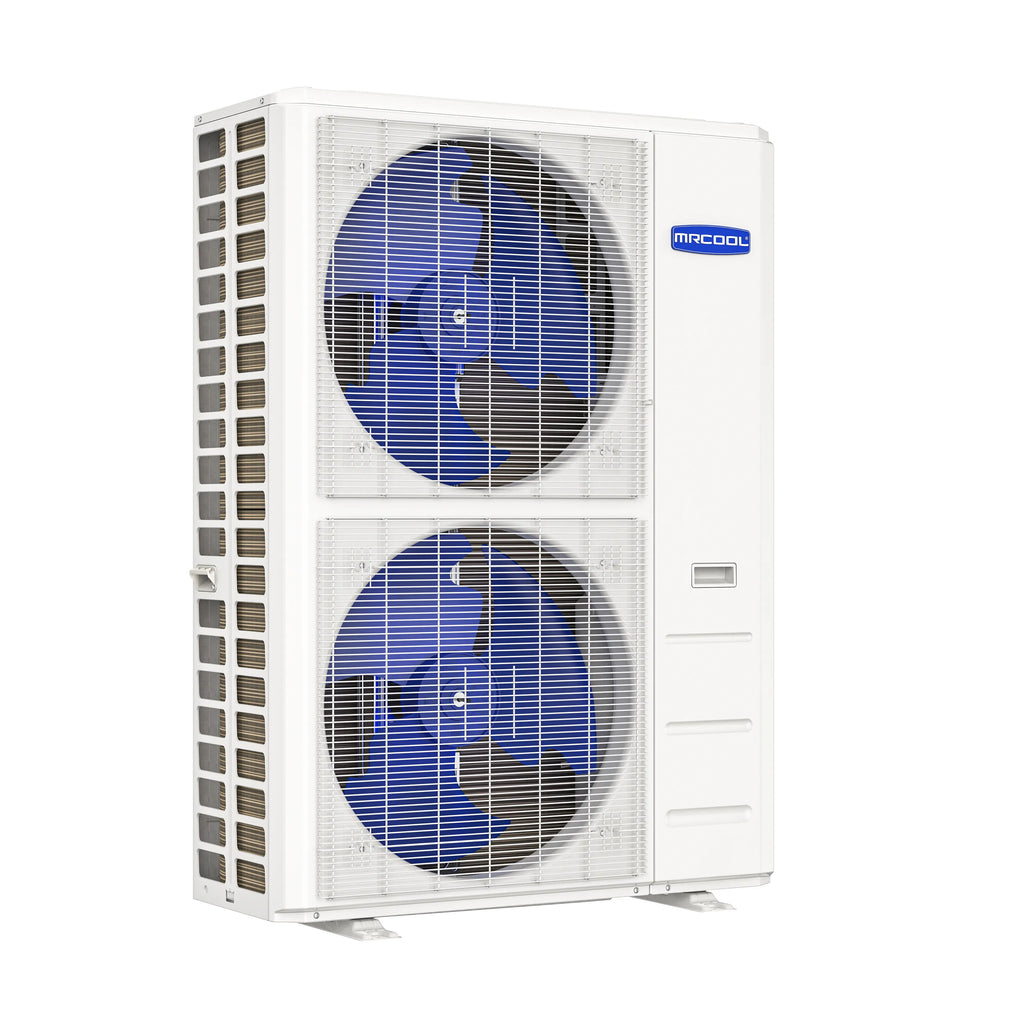

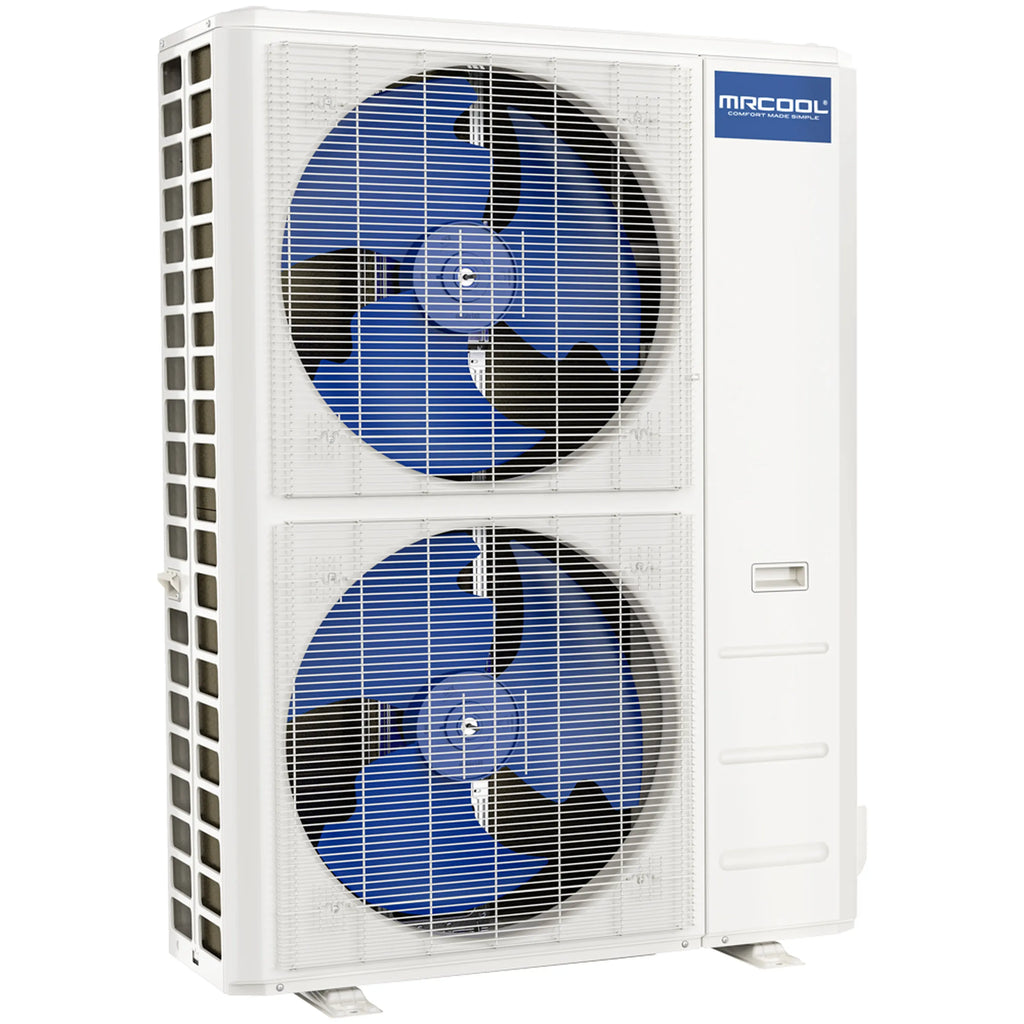

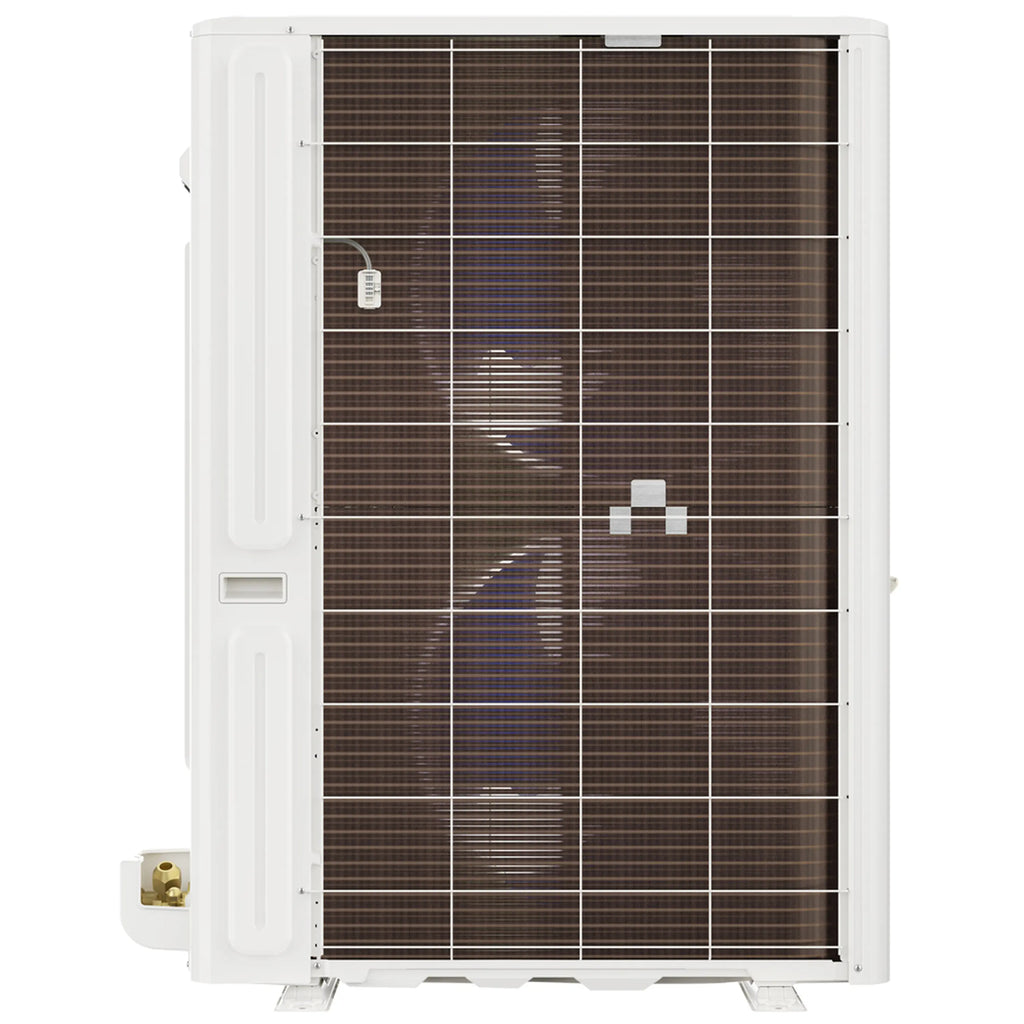

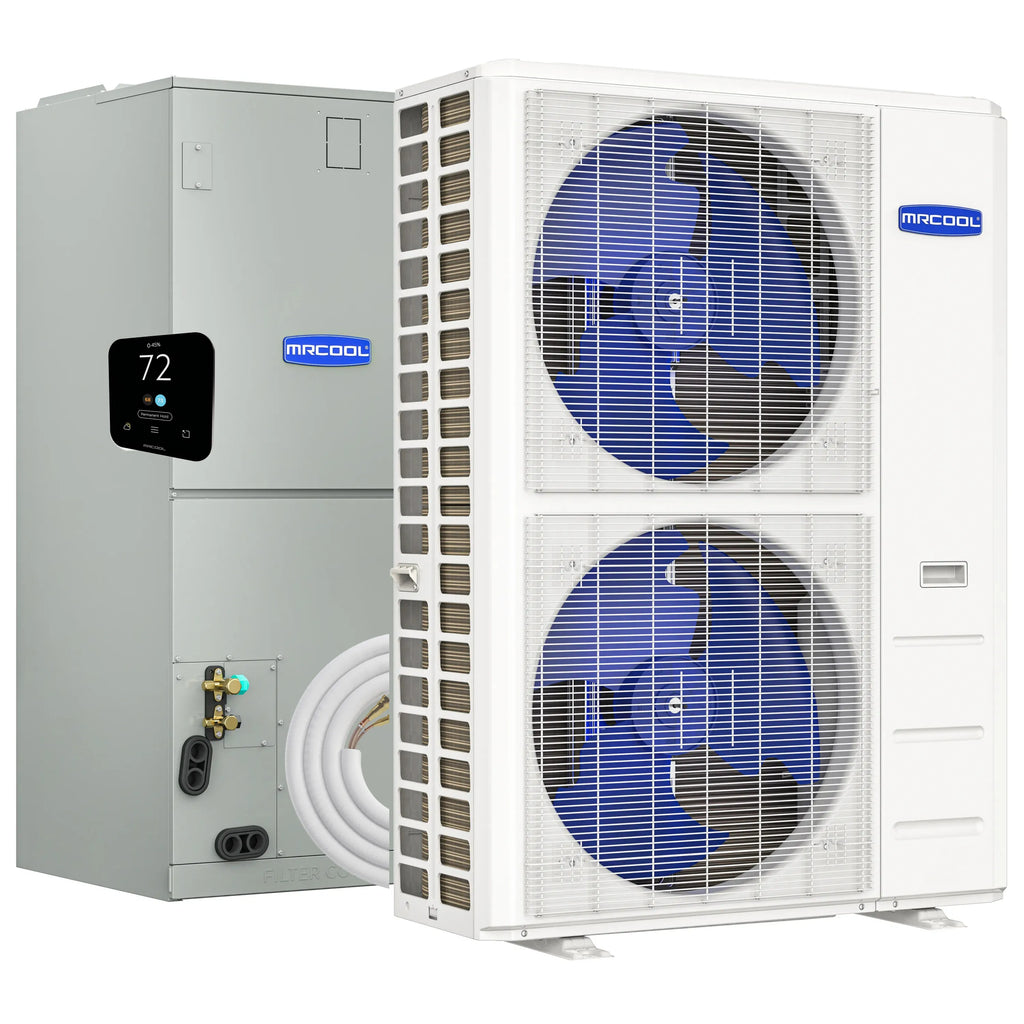

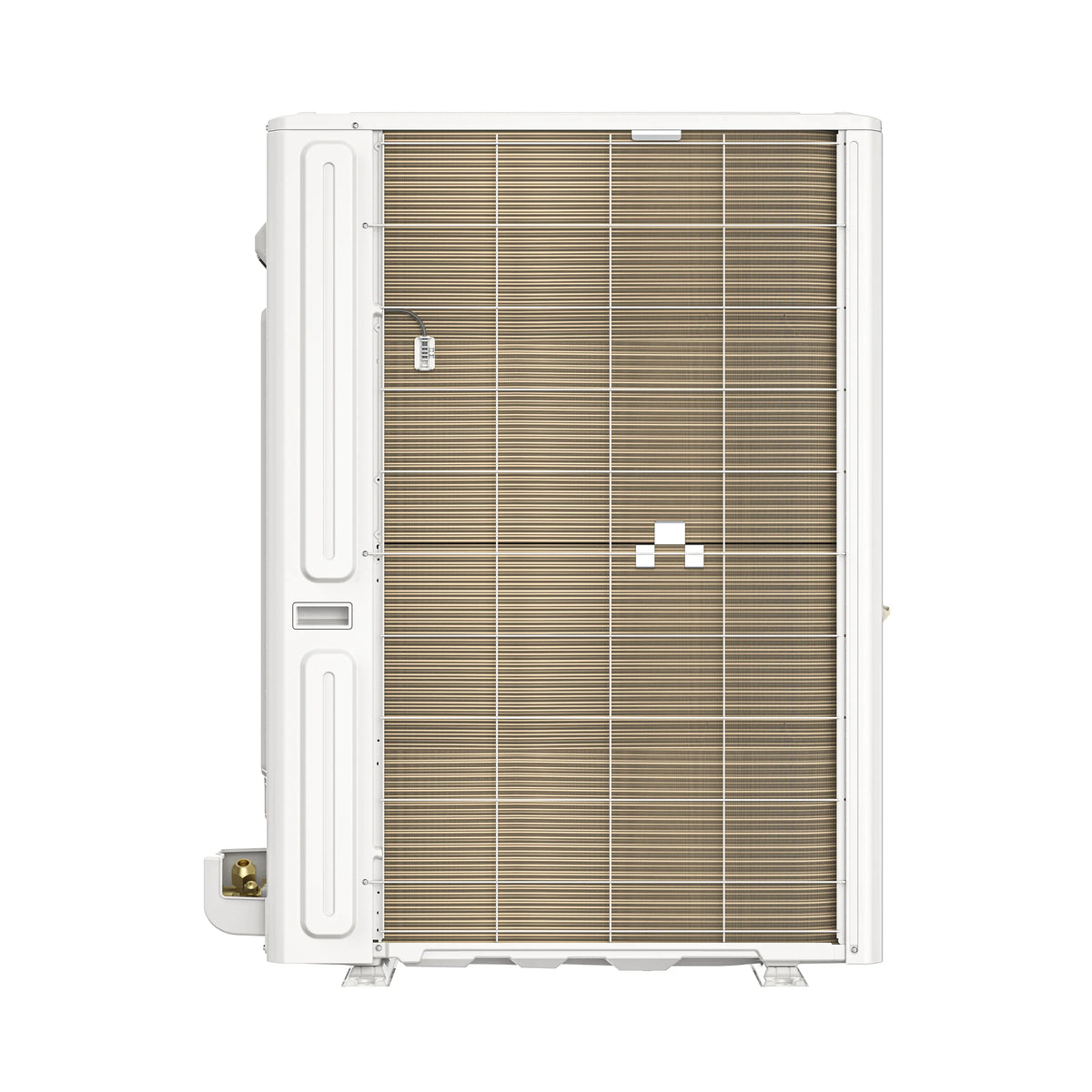

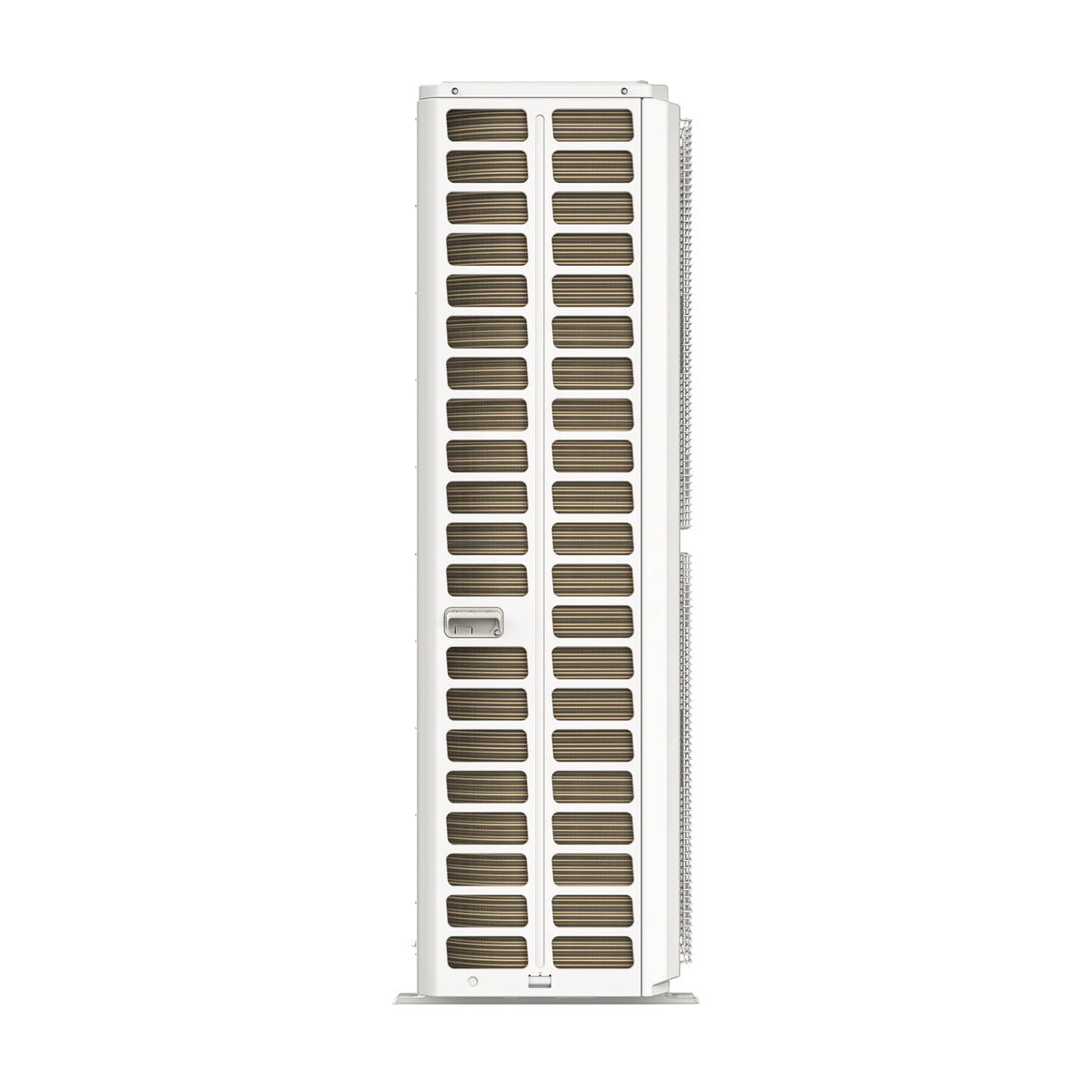

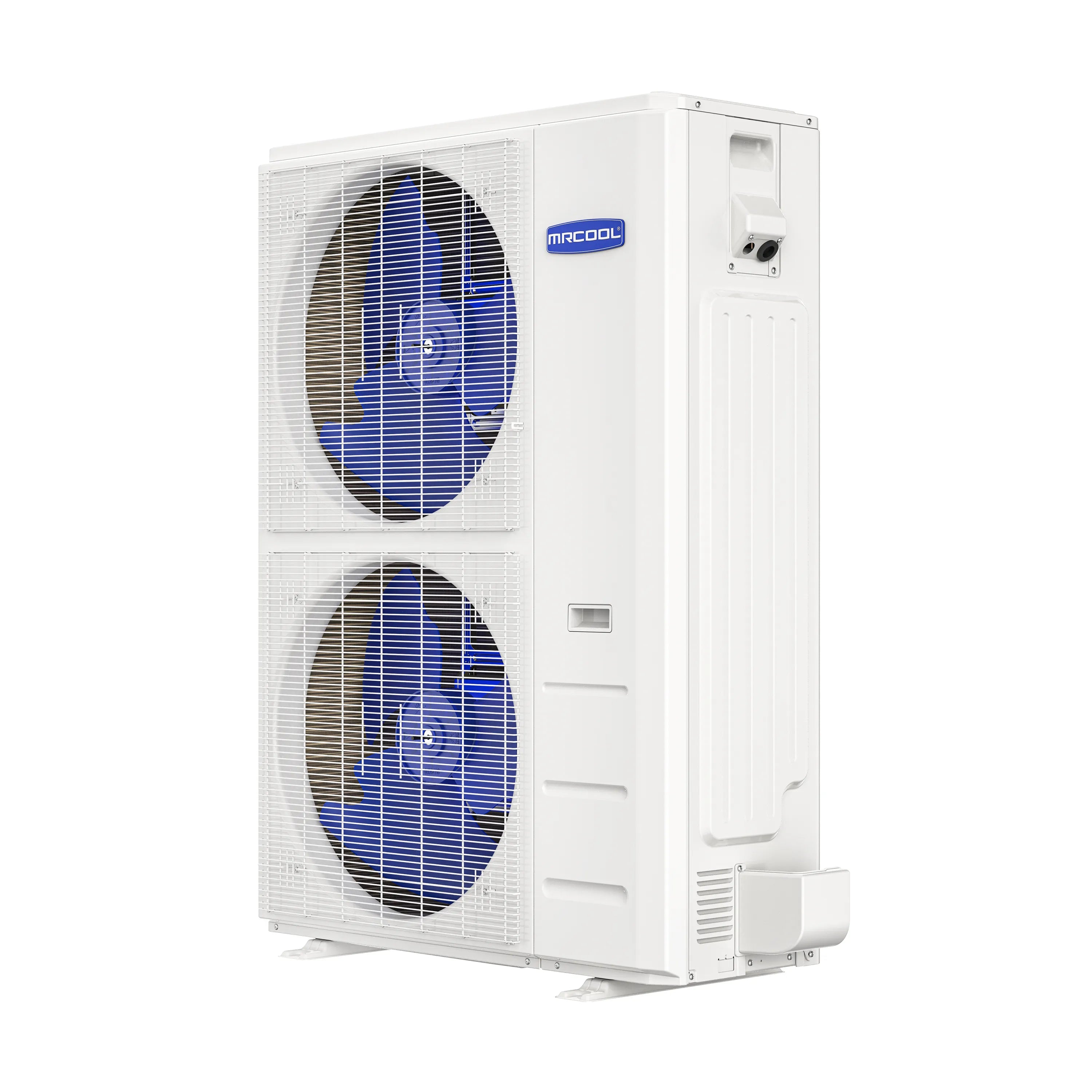

The 48K MRCOOL® Hyper Heat Central Ducted Condenser is crafted to provide outstanding performance in even the most extreme climates, from icy winters to scorching summers. This Hyper Heat system utilizes DC Inverter technology and variable speed functionality to deliver consistent, high-quality operation. With a SEER2 rating of up to 16.5 and an HSPF2-4 rating of up to 9.5, it offers powerful heating and cooling while maximizing energy efficiency. A MRCOOL® Smart thermostat is included, giving you complete control over your indoor environment with ease.
The 48K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 48K MRCOOL® VersaPro® Central Ducted Air Handler. The air handler is built for flexibility, supports various installation options, and is compatible with an optional heat kit for added capability. The system features R-454B refrigerant, a sustainable choice that minimizes its impact on the environment. Durability is a hallmark of the outdoor heat pump, constructed with a painted galvanized steel exterior for long-term resilience. The air handler is thoughtfully designed with a compact form, slide-out blower, and self-diagnostic panel to streamline maintenance and troubleshooting.
Enjoy peace of mind with the system’s 10-year warranty, covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, so no registration is required. Enhance your home’s comfort with the efficient and reliable 48K MRCOOL® Hyper Heat Central Ducted Condenser today!
|
Dimensions |
16.34" D x 38.39" H x 38.58" W |
|
SEER2 |
16.5 |
|
EER2 |
10.5 |
|
HSPF-4 |
9.5 |
|
HSPF-5 |
8 |
|
CFM |
3037.1 |
|
Tonnage |
4 |
|
Cooling Capacity (BTU) |
48000 |
|
Heating Capacity (BTU) |
50000 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
40 |
|
Min Circuit Ampacity (A) |
38 |
|
Color |
gray |
|
Refrigerant Type |
R454B |
|
Refrigerant Volume (OZ) |
134.04 |
|
Decibel Rating (DBA) |
65 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Base Labor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
201.06 |
|
Gross Depth (In) |
19.68 |
|
Gross Height (In) |
42.52 |
|
Gross Width (In) |
45.08 |
|
Gross Weight (Lbs) |
232.36 |

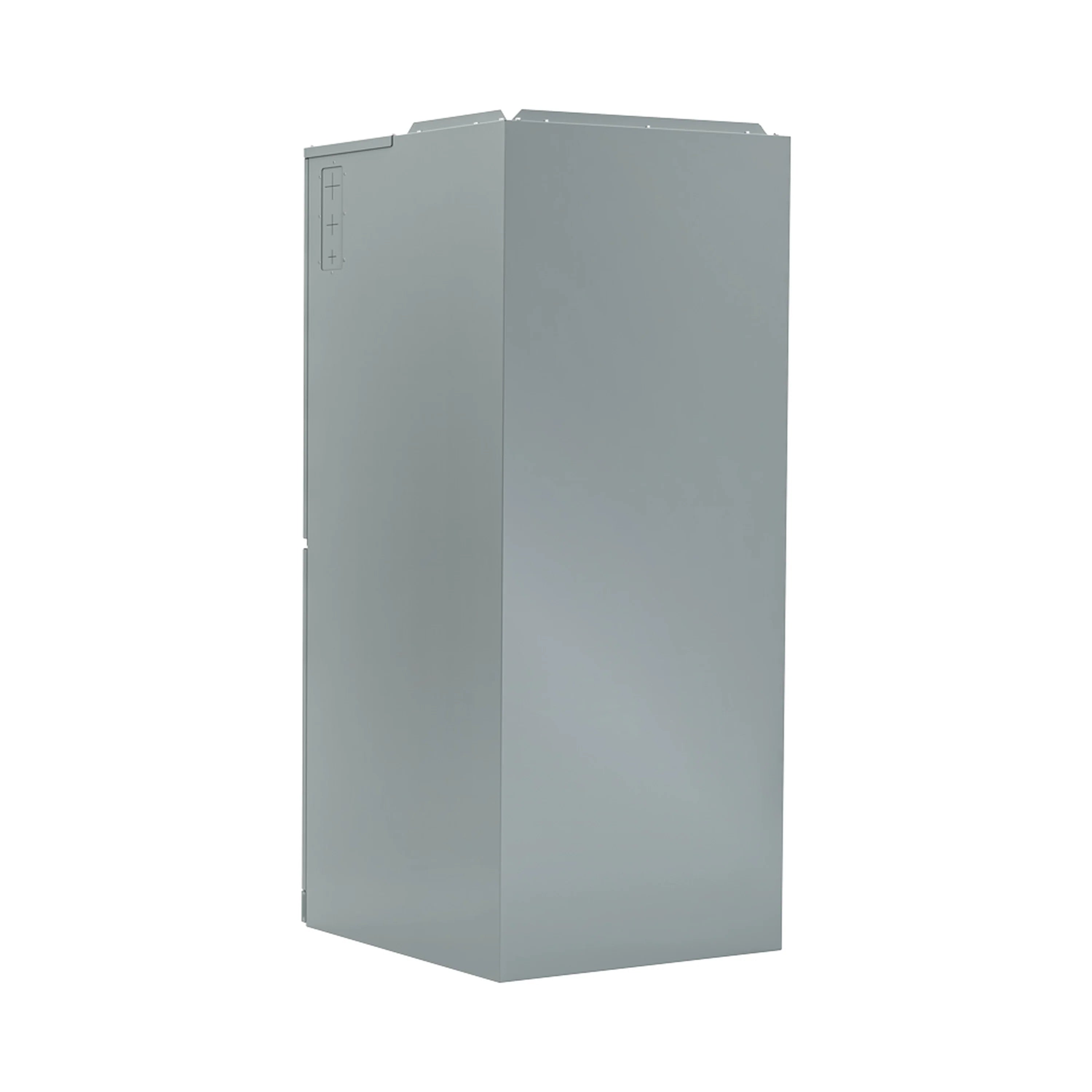

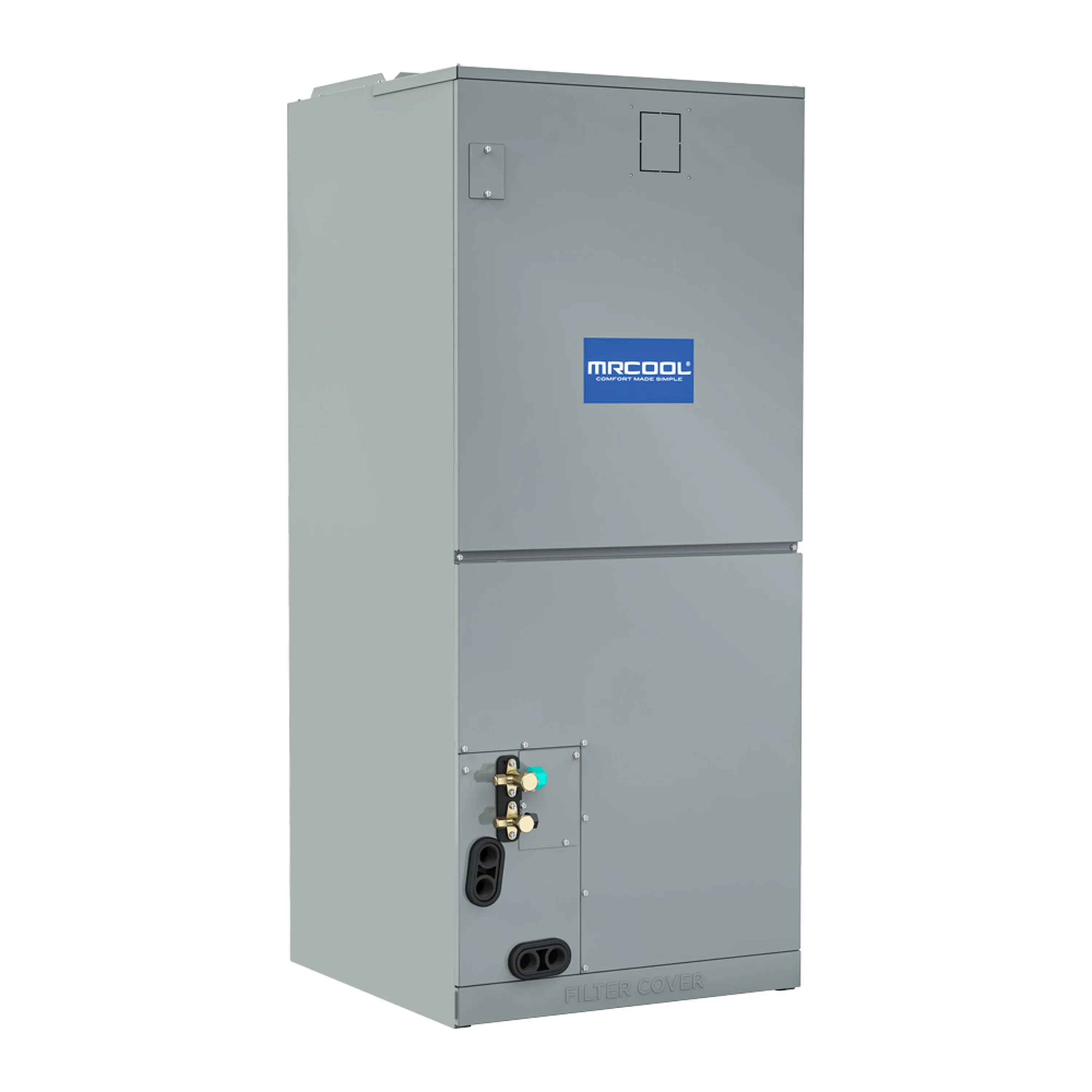

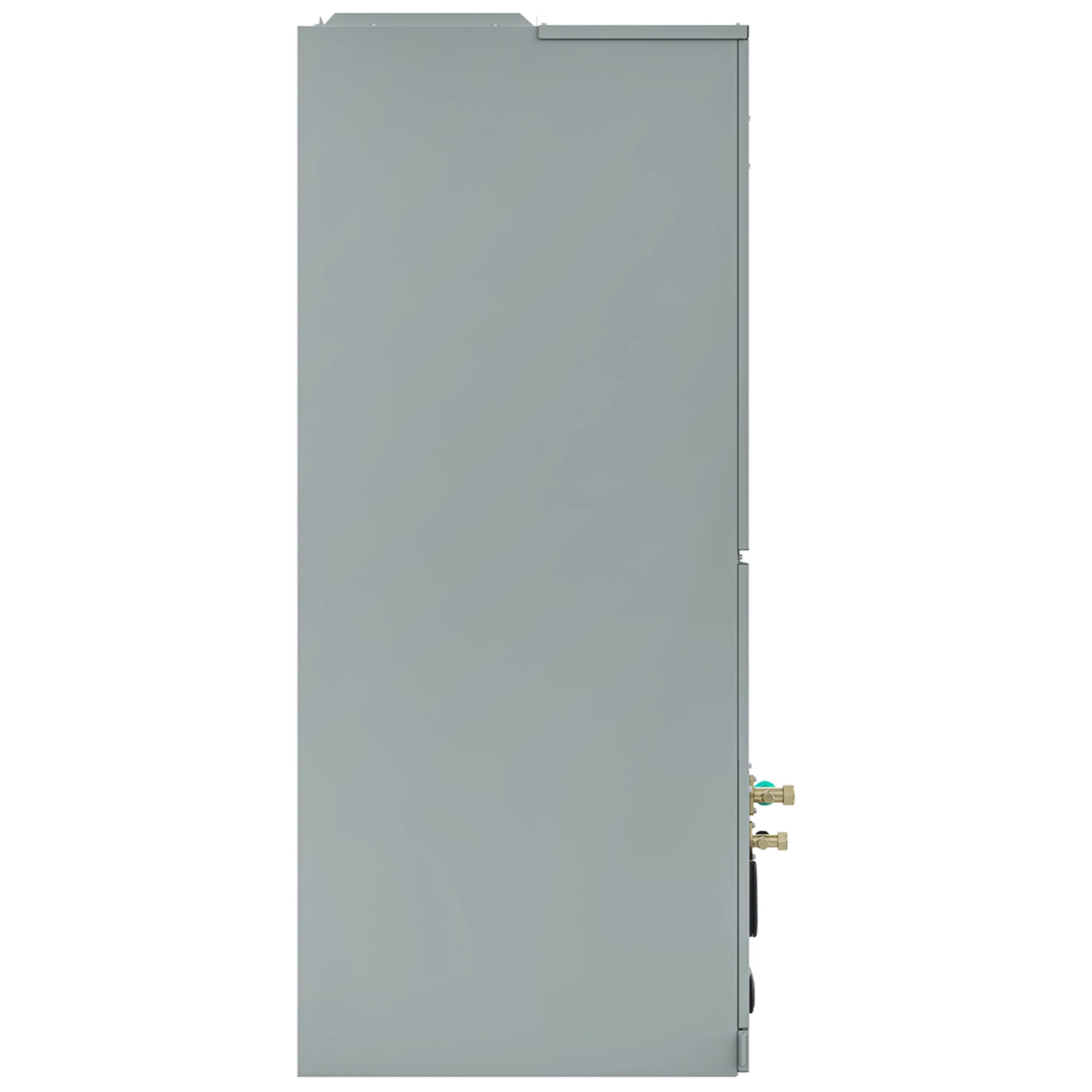

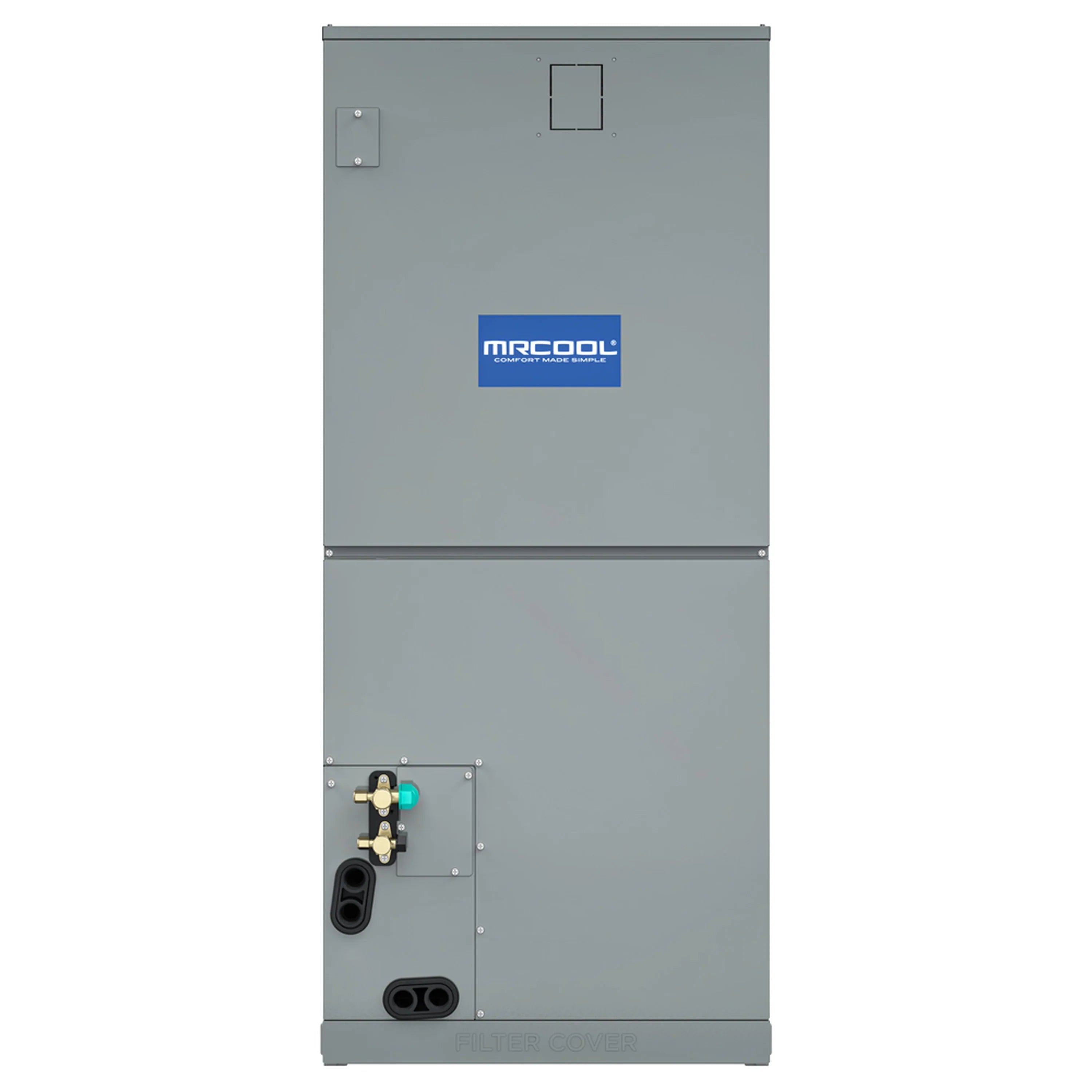

Experience year-round comfort with the 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler, engineered for efficient and reliable heating and cooling. With an impressive SEER2 rating of up to 16.5, this unit is ideal for spaces up to 2,000 square feet, making it the perfect solution to modernize your older HVAC system. Crafted from durable painted galvanized steel, this air handler is built to last. Its self-diagnostics panel helps quickly identify issues, making maintenance easier and reducing troubleshooting time. Versatility is key with this model, offering flexible installation options, including upflow, downflow, and horizontal configurations left or right configurations, so it can adapt to different layouts.
This air handler utilizes R-454B refrigerant, and an optional heat kit is readily available for those seeking additional warmth, enhancing its versatility. Compatible with our Central Ducted Hyper Heat Condenser, this air handler ensures optimal performance and comfort. The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing you to adjust settings remotely for added convenience. Backed by a 10-year warranty, the 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for upgrading your home’s HVAC system. It’s an affordable option that enhances comfort while offering energy savings.
|
Dimensions |
24.49" D x 52.99" H x 21.02" W |
|
CFM |
1600.99/1471.50/1283.15/1094.80 |
|
Tonnage |
4 |
|
Cooling Capacity (BTU) |
48000 |
|
Heating Capacity (BTU) |
48000 |
|
Voltage (V) |
115/208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
14.5/11.0 |
|
Color |
gray |
|
Decibel Rating Low (DBA) |
44 |
|
Decibel Rating High (DBA) |
53 |
|
Number of Speeds |
3 |
|
Max Lineset Length (FT) |
246 ft |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Filter Type |
Replaceable |
|
Filter Size |
23x20x1 |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
Yes |
|
Auxiliary Heater Sizes |
8kW/10kW/15kW/20kW |
|
Adjustable Thermostat |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
162.92 |
|
Gross Depth (In) |
26.77 |
|
Gross Height (In) |
56.5 |
|
Gross Width (In) |
27.95 |
|
Gross Weight (Lbs) |
190.92 |

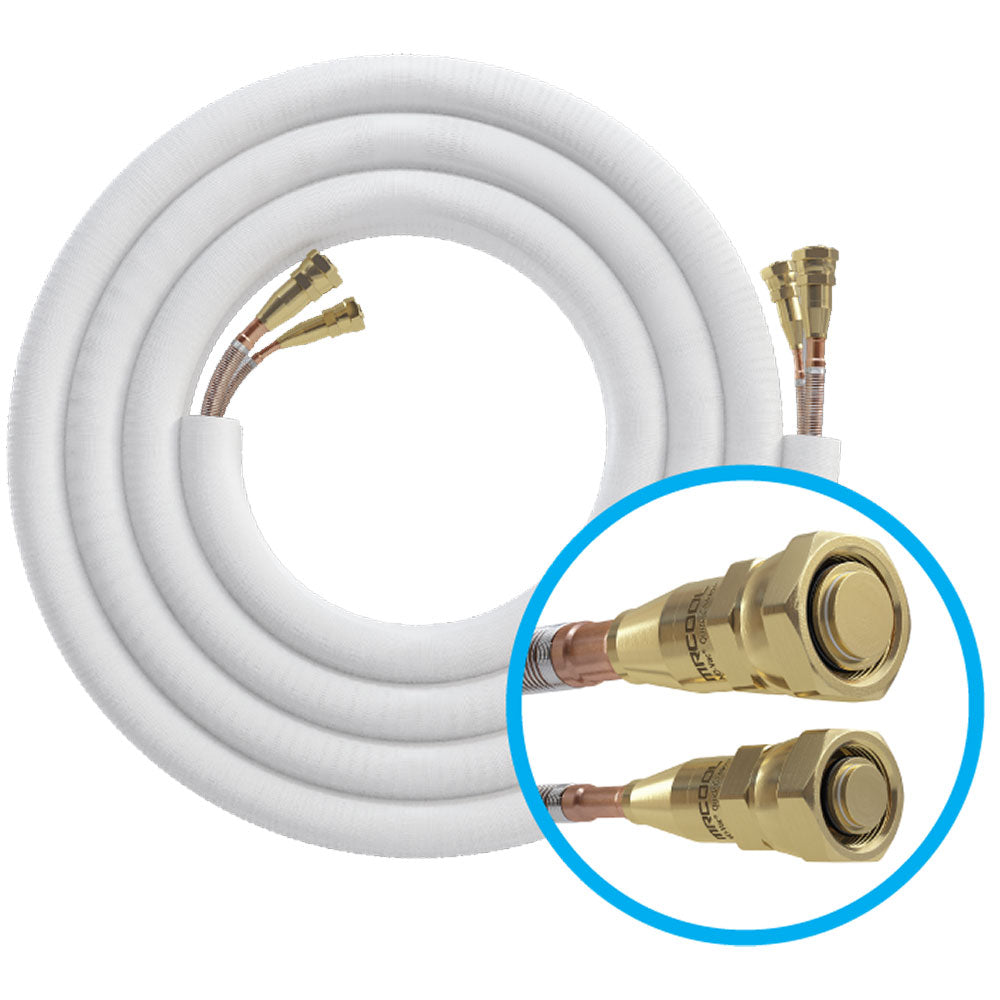

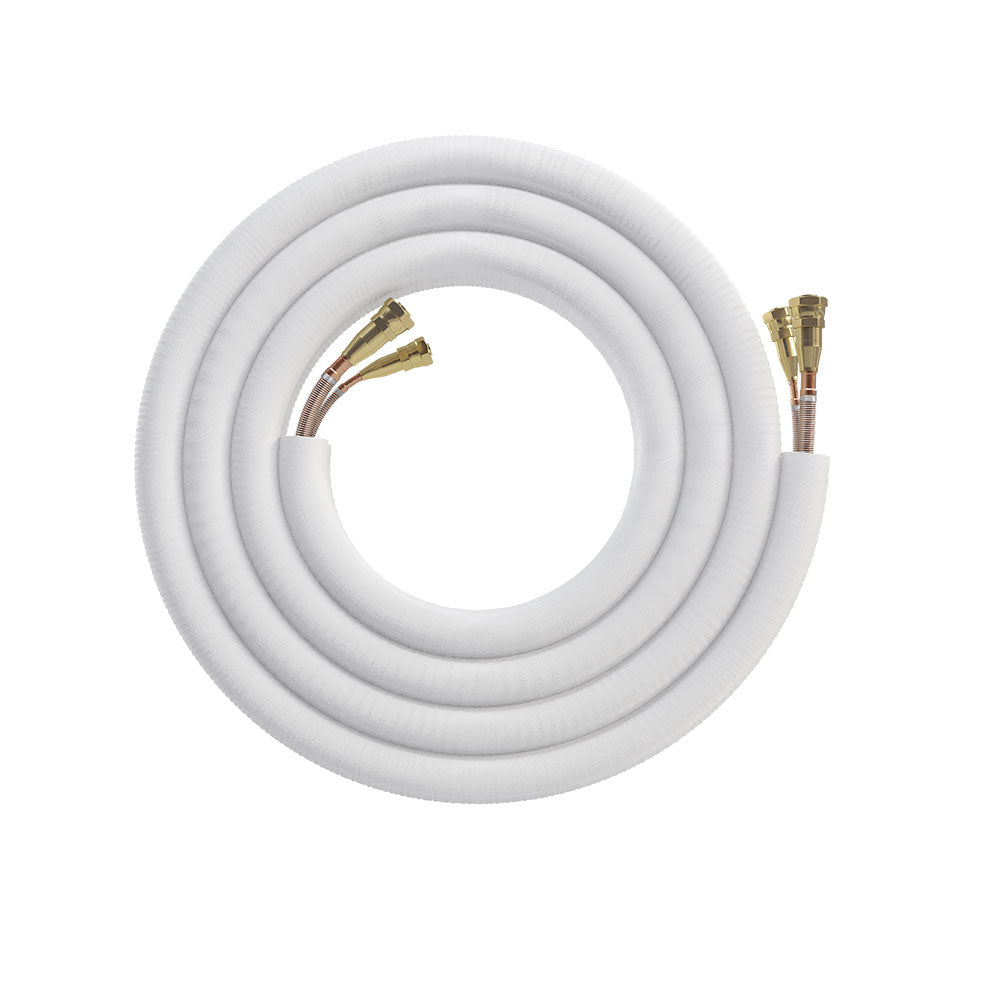

25' R-454B No-Vac Lineset
|
Dimensions |
35" D x 35" H x 5" W |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (Oz) |
2.11 |
|
Line Set Length |
25ft |
|

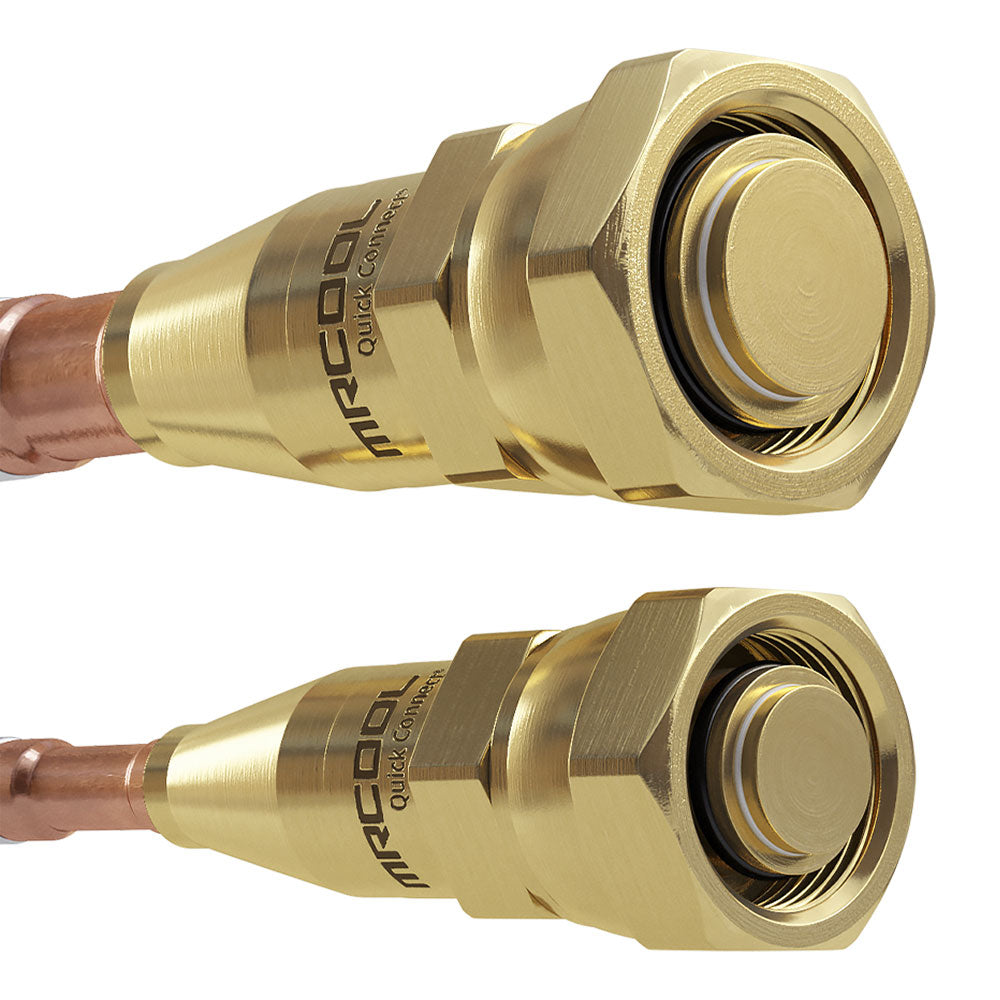

Lineset Fitting Type |
Quick-Connect |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Contains Chemicals |
Yes |
|
Net Weight (Lbs) |
22 |
|
Gross Weight (Lbs) |
27 |

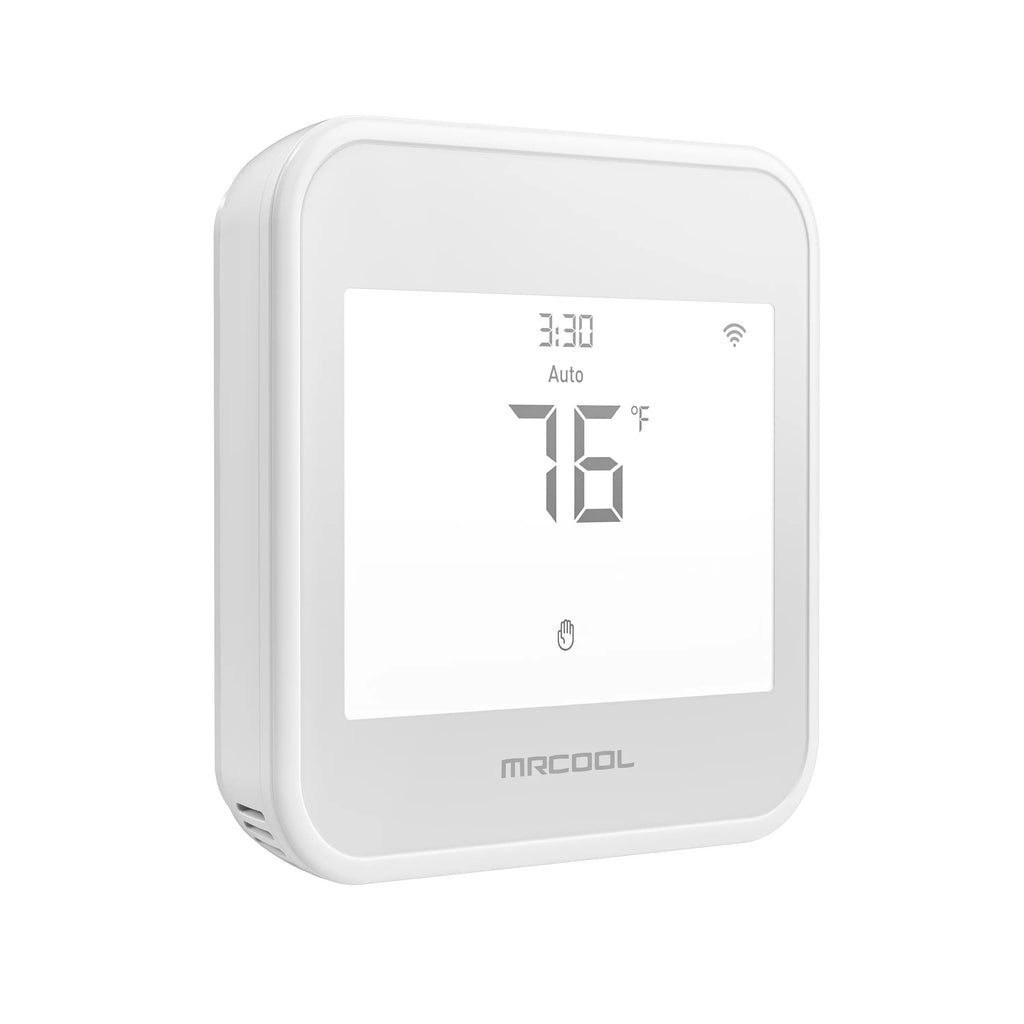

Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat, which boasts personalized heating and cooling options alongside a straightforward DIY installation process. This thermostat empowers you to customize settings effortlessly, enhancing your comfort while simultaneously reducing energy consumption. Choose from a plethora of modes and options to curate your ideal environment, including the convenient vacation mode, ensuring home safety during your absence without unnecessarily inflating energy bills.
Control lies at the heart of this Smart Thermostat, providing multiple avenues such as the intuitive touch-screen display, voice commands via popular virtual assistants like Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app offers a range of useful features, from an air filter cleaning monitor to a timeline displaying recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings.
With its unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even in the event of an internet outage, you can maintain control using the thermostat directly, adjusting temperature and settings as needed. With the added reassurance of a 3-year warranty, the MRCOOL Smart Thermostat provides peace of mind alongside unparalleled technology, comfort, and efficiency.
|
Dimensions |
3.9" D x 1" H x 3.9" W |
|
Voltage (V) |
24 |
| Sleep Mode | Yes |
| Base Parts Warranty | 3 Years |
| Gross Dimensions | 6.5" D x 2.12" H x 5.37" W |
| Gross Weight (lbs) | 0.95 |
