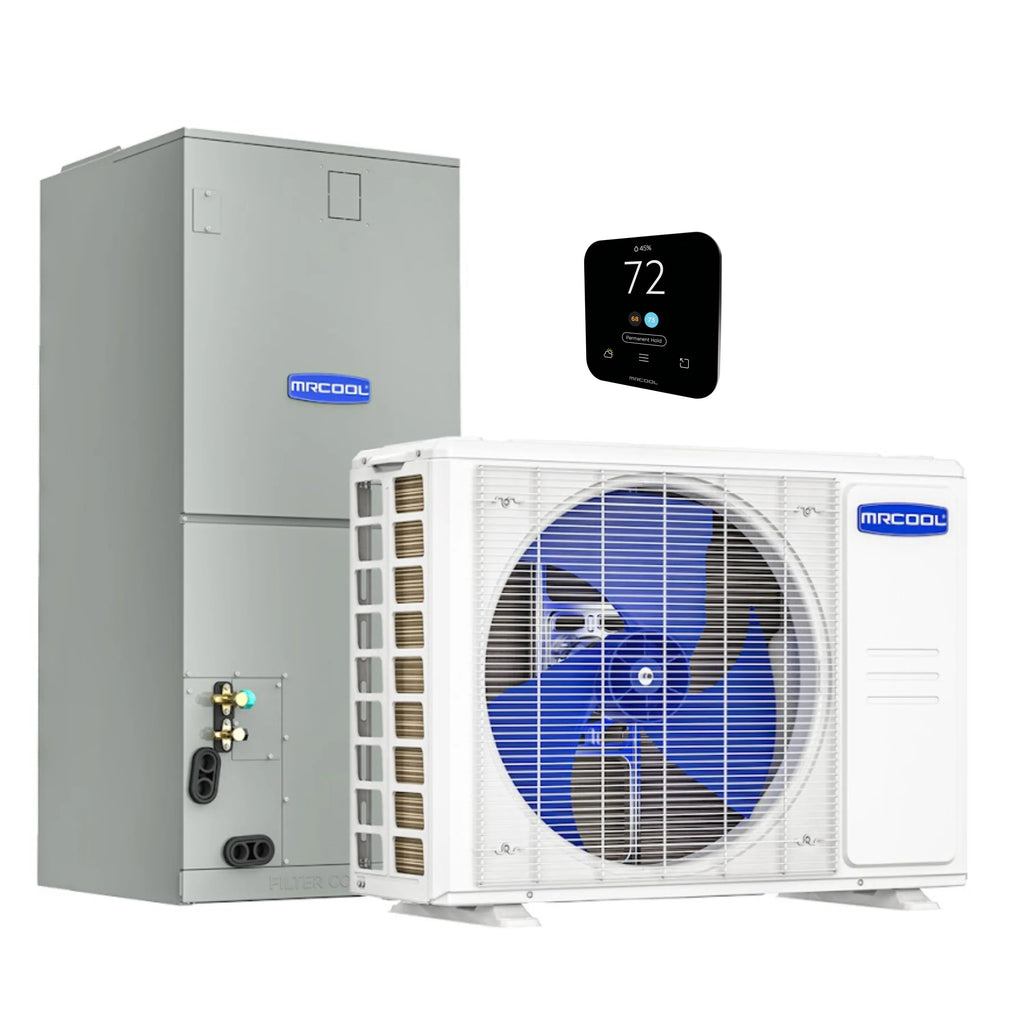

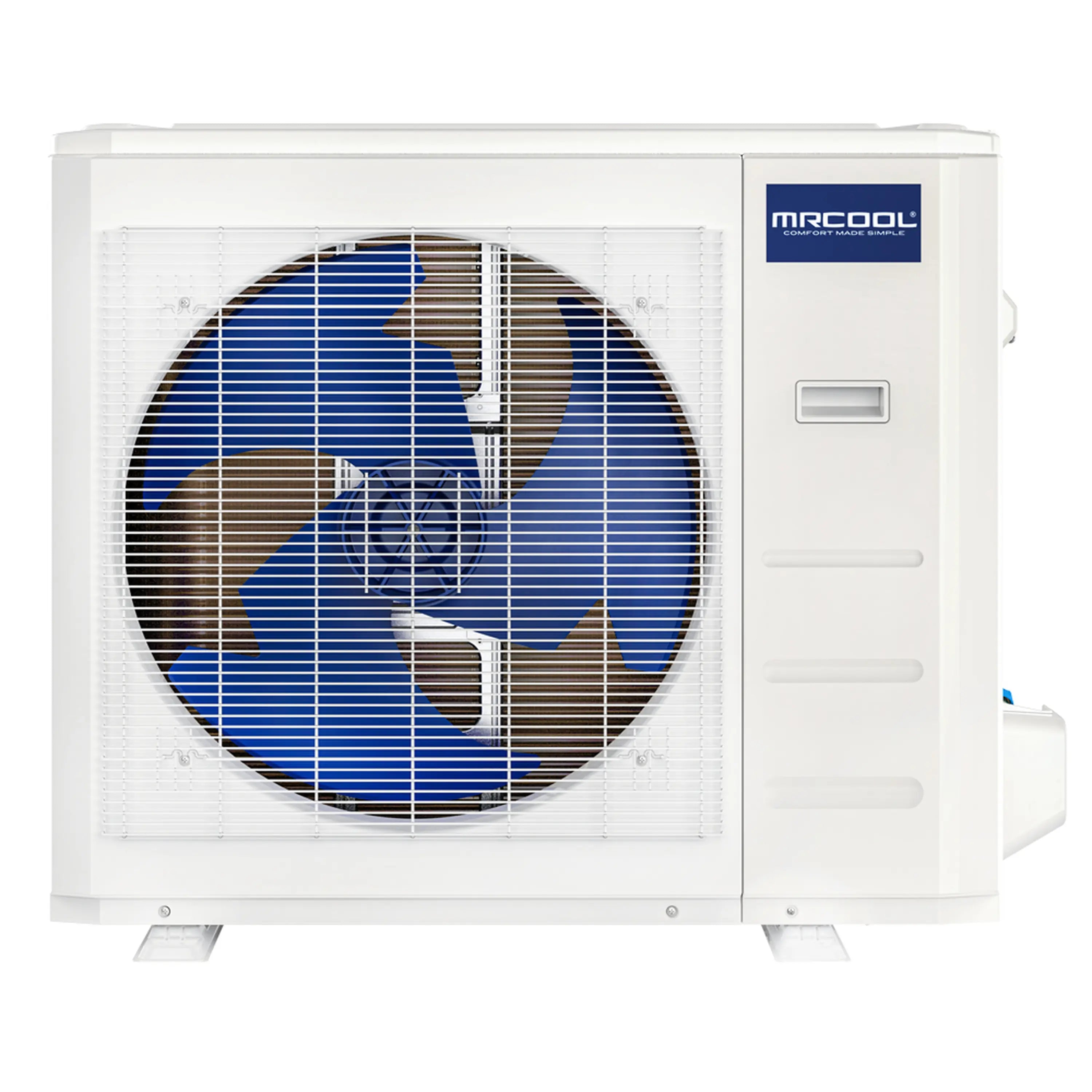

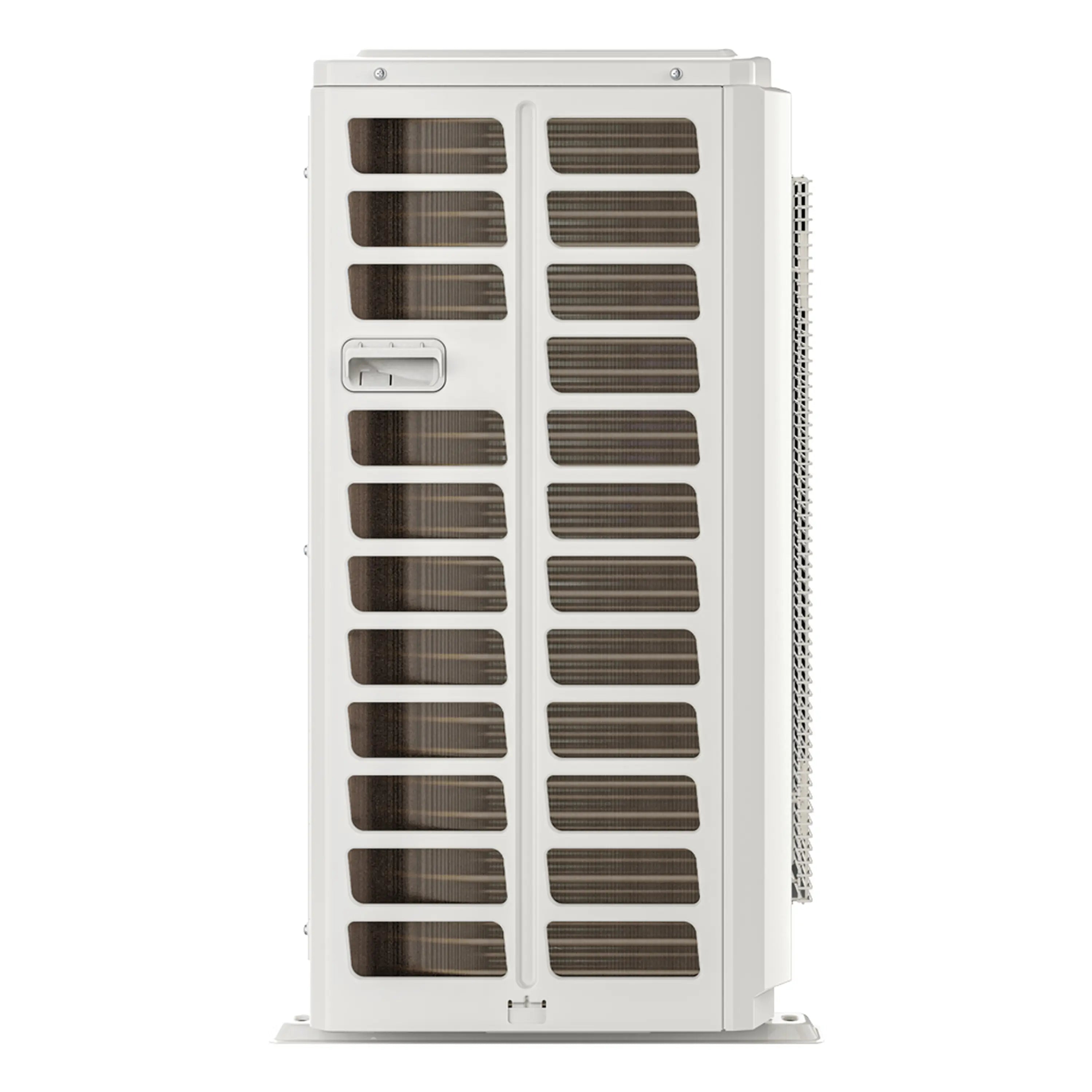

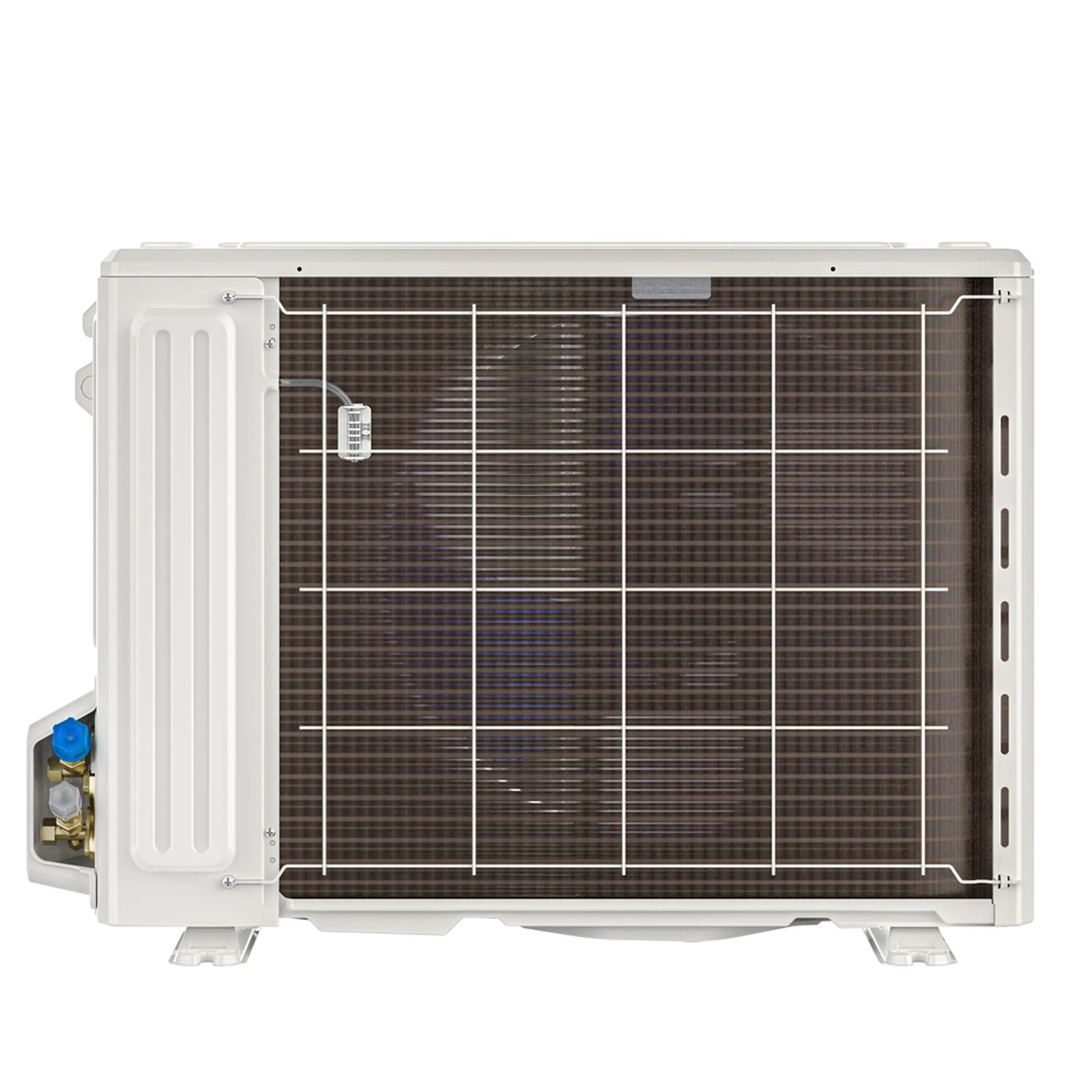

Maintain year-round comfort in your home with the 24K MRCOOL® Hyper Heat Central Ducted Condenser, a reliable system designed to perform in both freezing temperatures and scorching heat. This cutting-edge unit combines powerful performance with energy efficiency, featuring a DC Inverter and variable speed technology. With a SEER2 rating of up to 18.3 and an HSPF-4 rating of up to 10, it offers excellent heating capabilities while optimizing energy use. You can also enjoy effortless control with the included MRCOOL® Smart thermostat making temperature adjustments simple and efficient. The 24K MRCOOL® Hyper Heat Central Ducted Condenser is also designed to work with the 24K MRCOOL® VersaPro® Central Ducted Air Handler. Installation is straightforward with an adaptable air handler that supports multiple configurations, and a heat kit can be added for additional functionality.
This central ducted unit uses R-454B refrigerant, a modern choice designed to reduce environmental impact. Additionally, the Hyper Heat Condenser is fully compatible with the 2-Ton MRCOOL® VersaPro® Central Ducted Air Handler. The outdoor heat pump boasts a durable painted galvanized steel exterior for long-lasting performance. The air handler complements this with a compact design, slide-out blower, and a self-diagnostics panel, allowing straightforward maintenance and troubleshooting. To ensure peace of mind, the 24K MRCOOL® Hyper Heat Central Ducted Condenser comes with a 10-year warranty that covers the compressor, parts, and labor. The labor warranty is activated automatically at installation, providing seamless and worry-free protection.
|
Dimensions |
13.46" D x 26.5" H x 35.04" W |
|
SEER2 |
18.3 |
|
EER2 |
11.7 |
|
HSPF-4 |
10 |
|
HSPF-5 |
8 |
|
CFM |
1765.7 |
|
Tonnage |
2 |
|
Cooling Capacity (BTU) |
23000 |
|
Heating Capacity (BTU) |
24000 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker(A) |
20 |
|
Min Circuit Ampacity (A) |
19 |
|
Color |
gray |
|
Refrigerant Type |
R454B |
|
Refrigerant Volume (OZ) |
74.08 |
|
Decibel Rating (DBA) |
60 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Base Labor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
102.29 |
|
Gross Depth (In) |
15.67 |
|
Gross Height (In) |
29.13 |
|
Gross Width (In) |
39.17 |
|
Gross Weight (Lbs) |
109.13 |

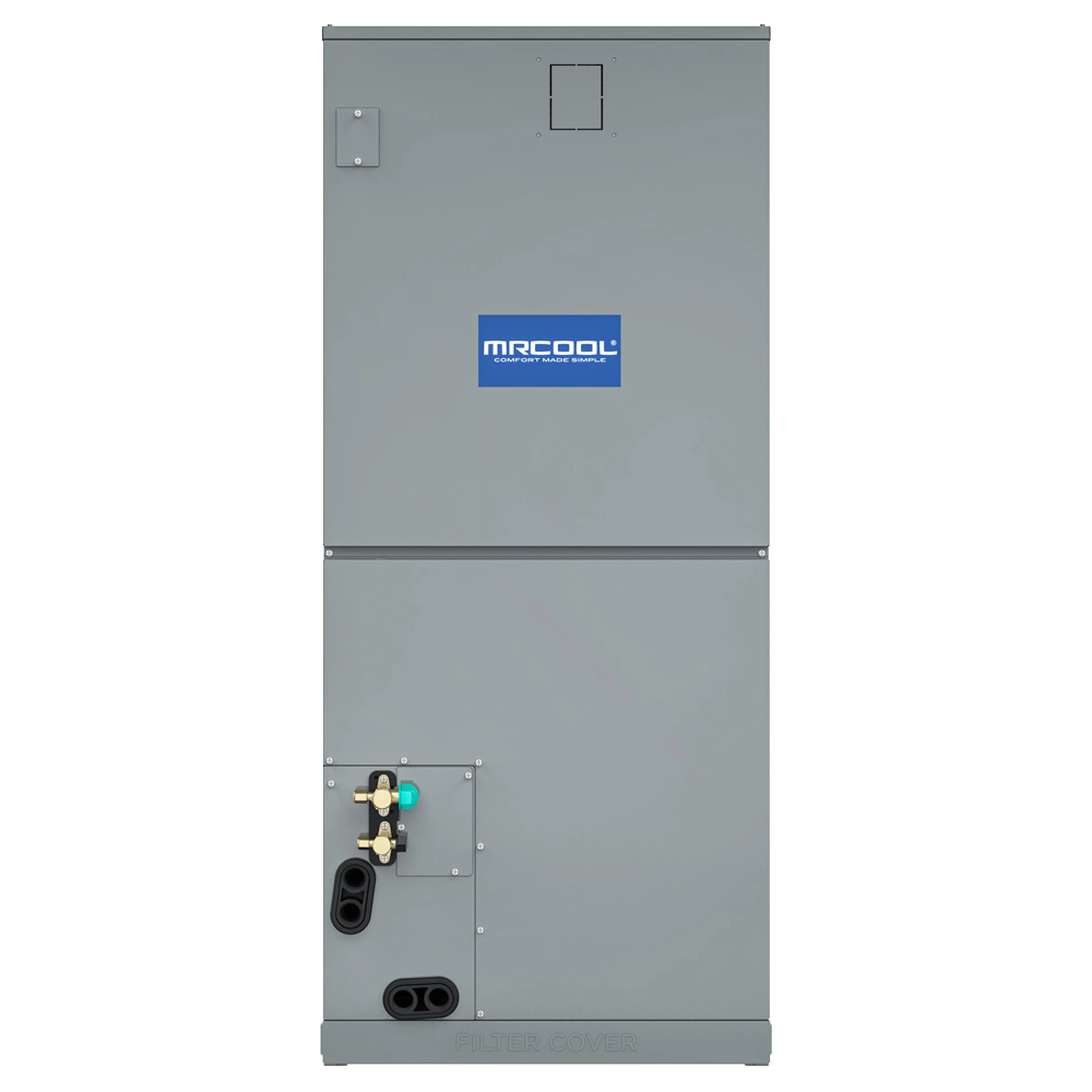

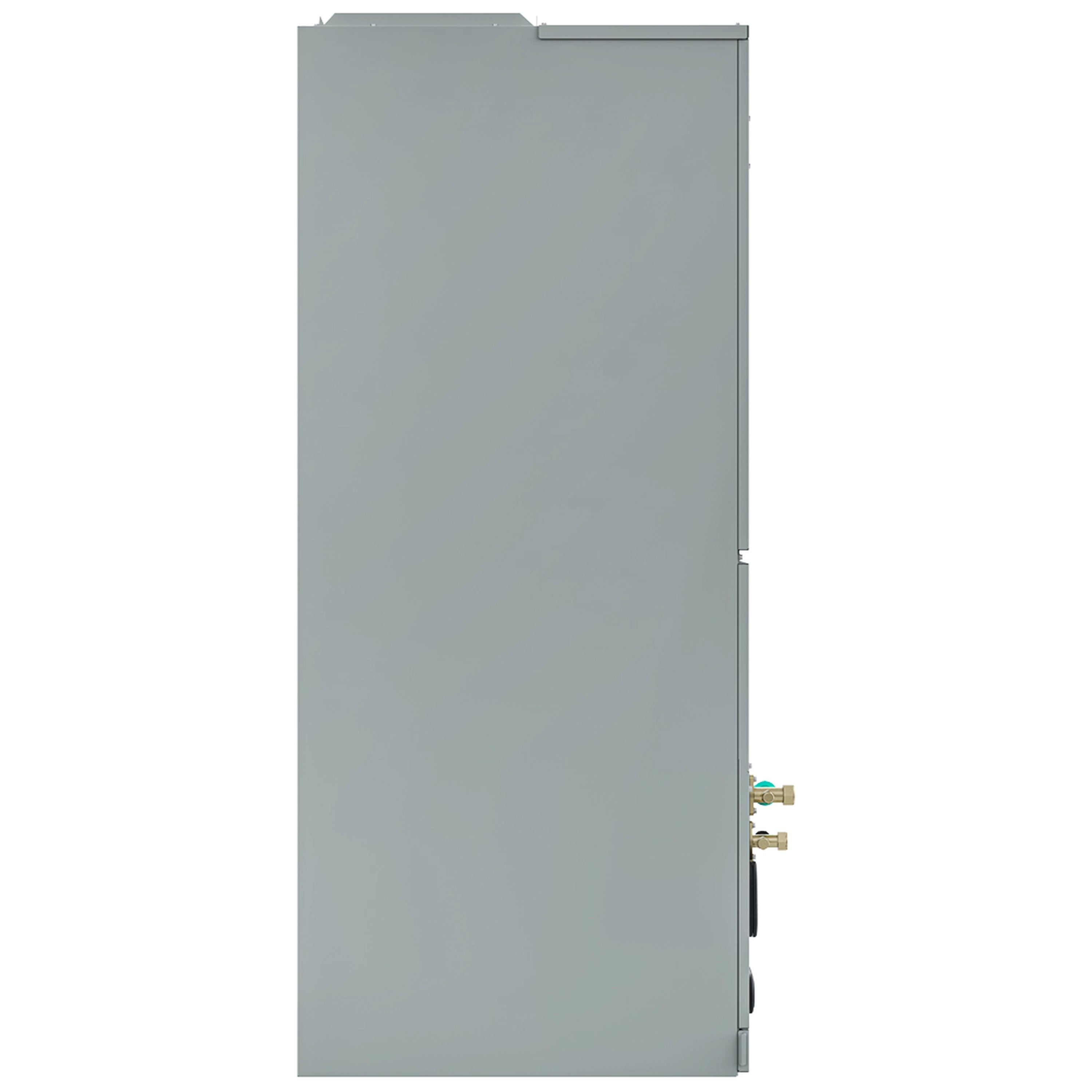

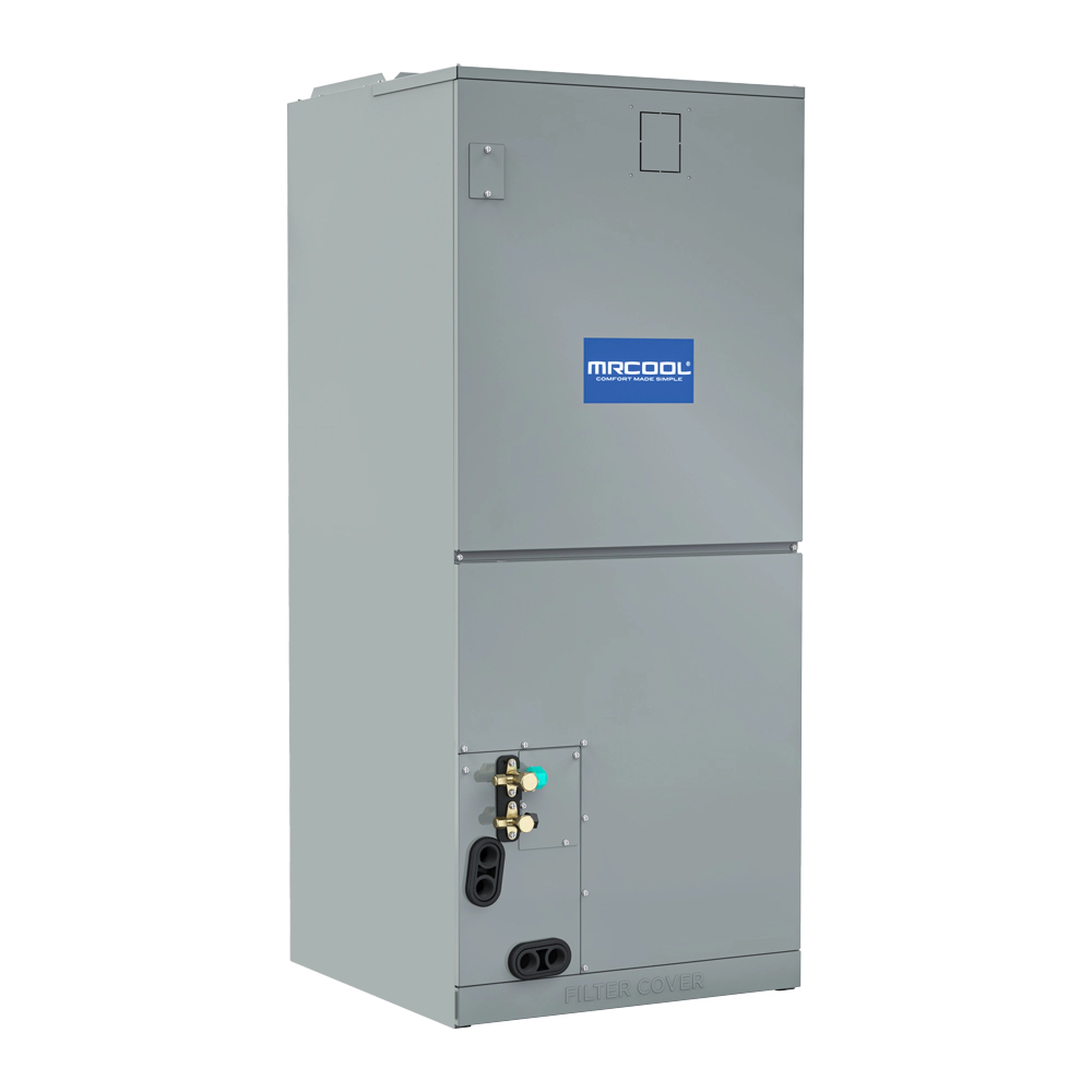

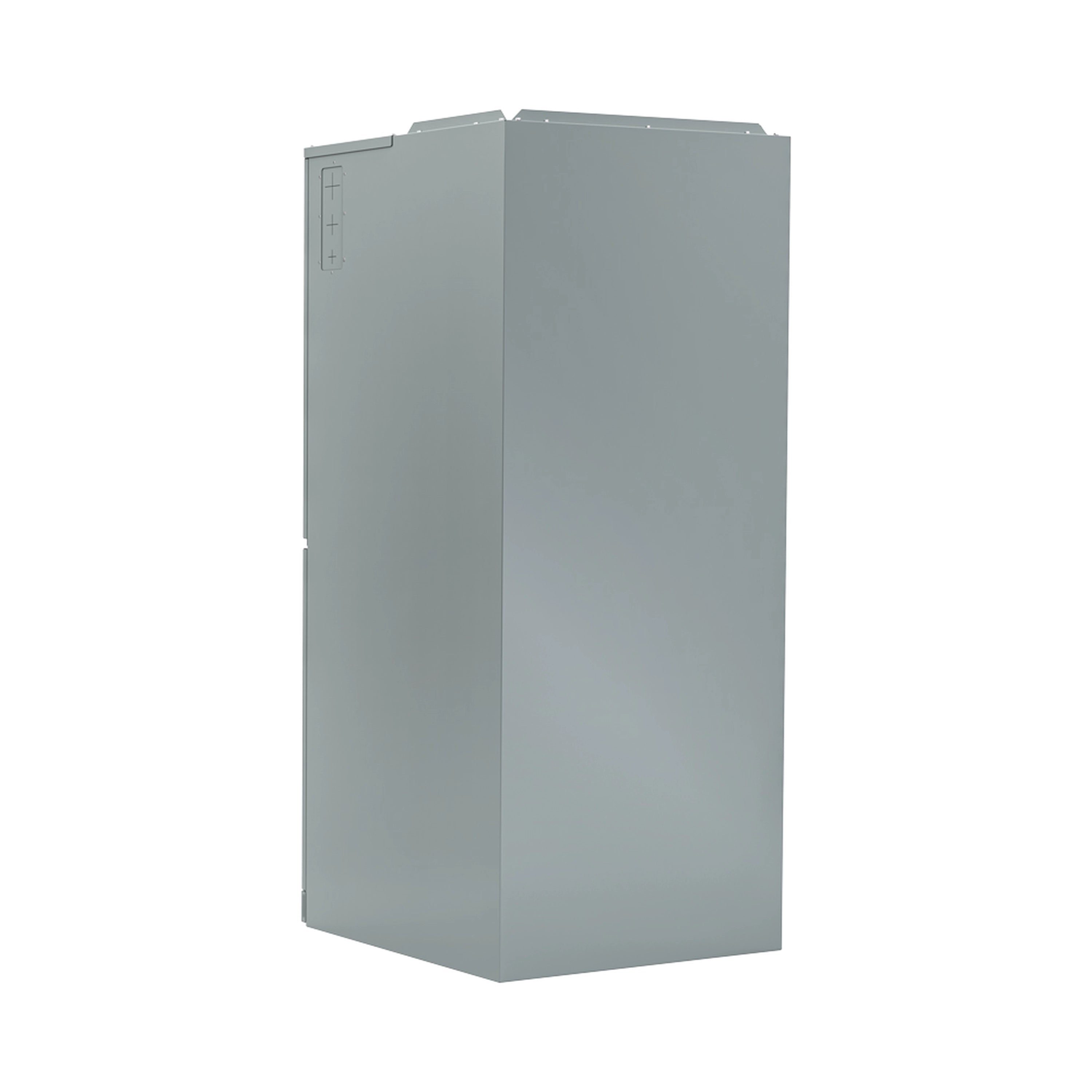

The 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient option for year-round heating and cooling your home. With a SEER2 rating of up to 18.3, it’s suitable for spaces up to 1,000 square feet, making it a practical choice for replacing older HVAC systems. Built with durability in mind, the air handler features a painted galvanized steel exterior, ensuring long-lasting performance. The self-diagnostics panel makes maintenance easier, helping identify error codes quickly and simplifying troubleshooting.
The unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations to fit various home layouts. It also uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining performance. Plus, this air handler works seamlessly with our Central Ducted Hyper Heat system for reliable whole-home comfort. If you need additional heating, an optional heat kit can be added. The included wireless remote offers the Follow Me function, adjusting the airflow temperature based on its location for personalized comfort. Combined with the MRCOOL® Smart thermostat, which ensures reliable and easy temperature control, maintaining your home’s ideal comfort level has never been simpler. With a 10-year warranty, the 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers dependable performance, energy efficiency, and flexibility, making it an innovative and cost-effective upgrade for your home’s HVAC system.
|
Dimensions |
17.52" D x 45" H x 21.02" W |
|
CFM |
824.04/759.29/694.55/629.80 |
|
Tonnage |
2 |
|
Cooling Capacity (BTU) |
24000 |
|
Heating Capacity (BTU) |
26000 |
|
Voltage (V) |
115/208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
5.5/4.0 |
|
Color |
gray |
|
Decibel Rating Low (DBA) |
28 |
|
Decibel Rating High (DBA) |
44 |
|
Number of Speeds |
3 |
|
Max Lineset Length (FT) |
164 ft |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Filter Type |
Replaceable |
|
Filter Size |
16x20x1 |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
Yes |
|
Auxiliary Heater Sizes |
5kW/8kW/10kW/15kW |
|
Adjustable Thermostat |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
105.6 |
|
Gross Depth (In) |
20.87 |
|
Gross Height (In) |
48.62 |
|
Gross Width (In) |
26.57 |
|
Gross Weight (Lbs) |
127.43 |

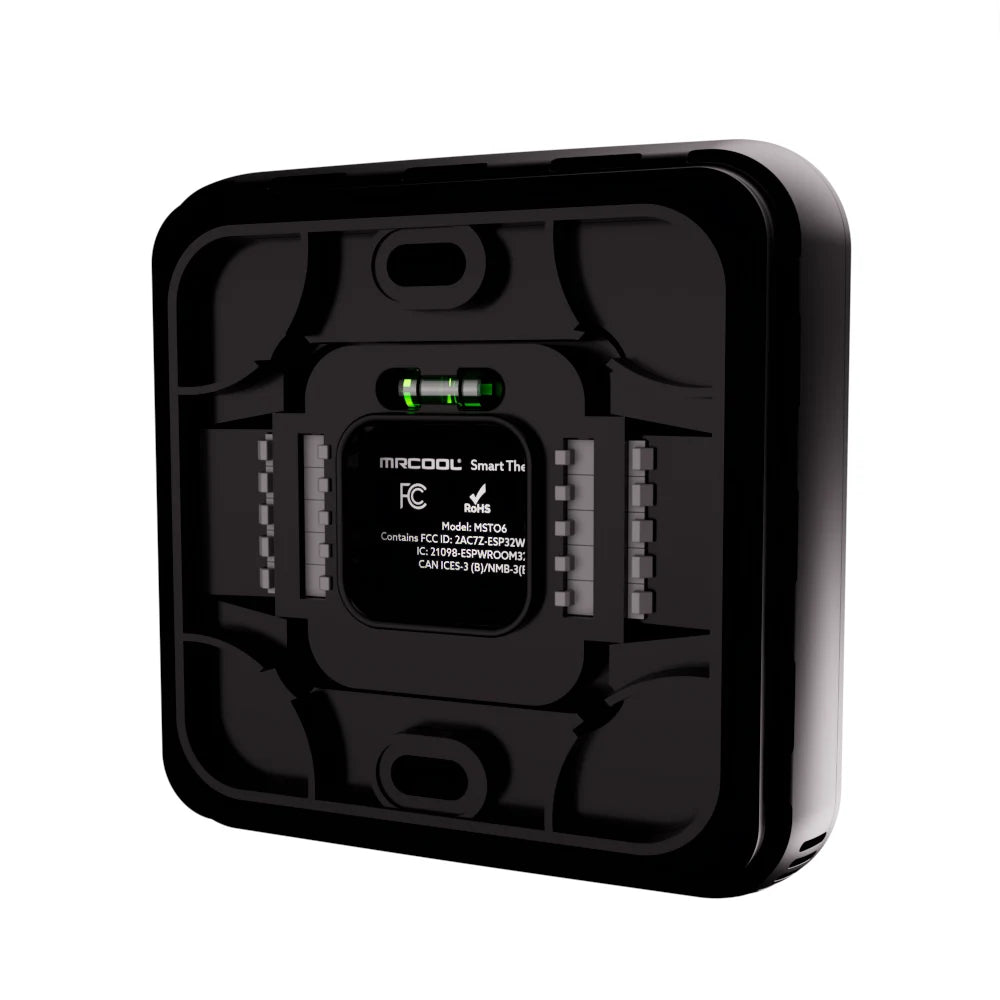

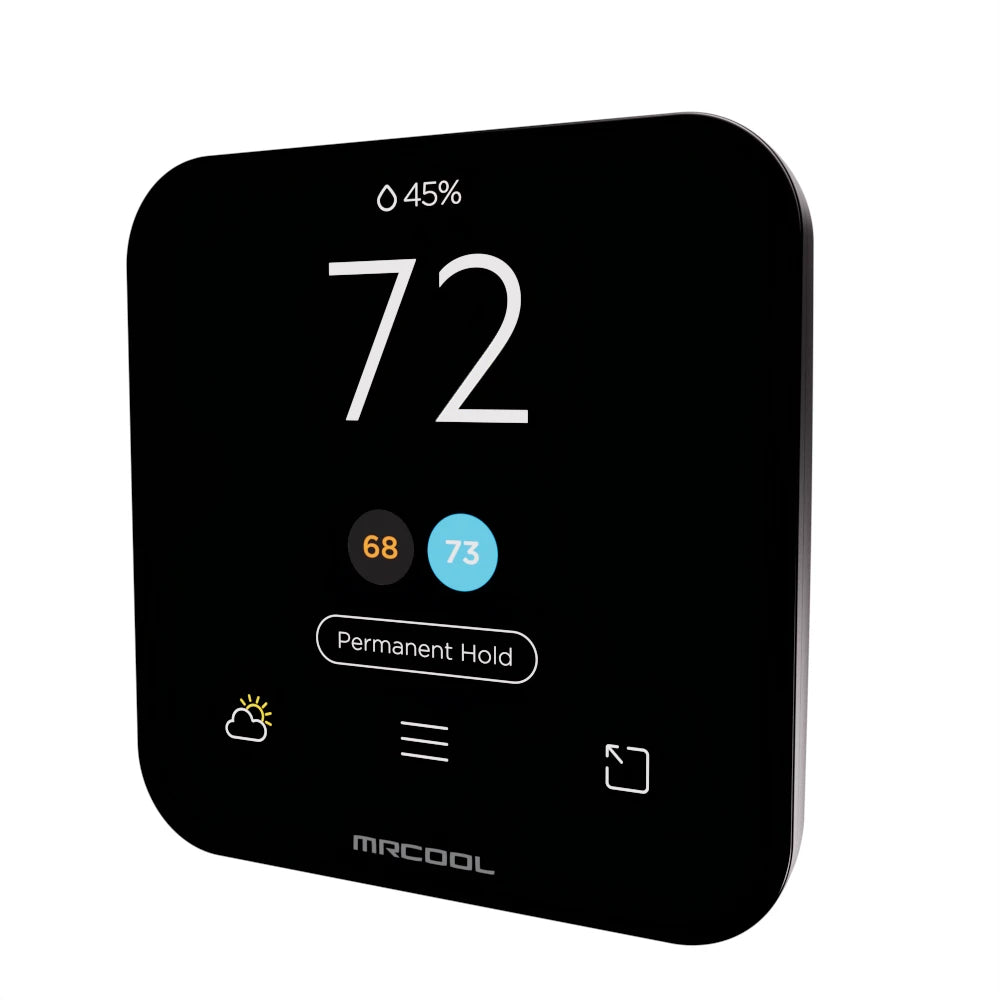

Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat, which boasts personalized heating and cooling options alongside a straightforward DIY installation process. This thermostat empowers you to customize settings effortlessly, enhancing your comfort while simultaneously reducing energy consumption. Choose from a plethora of modes and options to curate your ideal environment, including the convenient vacation mode, ensuring home safety during your absence without unnecessarily inflating energy bills.
Control lies at the heart of this Smart Thermostat, providing multiple avenues such as the intuitive touch-screen display, voice commands via popular virtual assistants like Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app offers a range of useful features, from an air filter cleaning monitor to a timeline displaying recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings.
With its unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even in the event of an internet outage, you can maintain control using the thermostat directly, adjusting temperature and settings as needed. With the added reassurance of a 3-year warranty, the MRCOOL Smart Thermostat provides peace of mind alongside unparalleled technology, comfort, and efficiency.
|
Dimensions |
3.9" D x 1" H x 3.9" W |
|
Voltage (V) |
24 |
| Sleep Mode | Yes |
| Base Parts Warranty | 3 Years |
| Gross Dimensions | 6.5" D x 2.12" H x 5.37" W |
| Gross Weight (lbs) | 0.95 |
