MRCOOL GeoCool 60K BTU, 5 Ton, Downflow Two-Stage CuNi Coil Left w/Heater (GCHPD060TGTANDL)

White HVAC heat pump unit with access panels, piping connections, and control buttons

White HVAC heat pump outdoor unit with service panels and dual water inlet/outlet ports

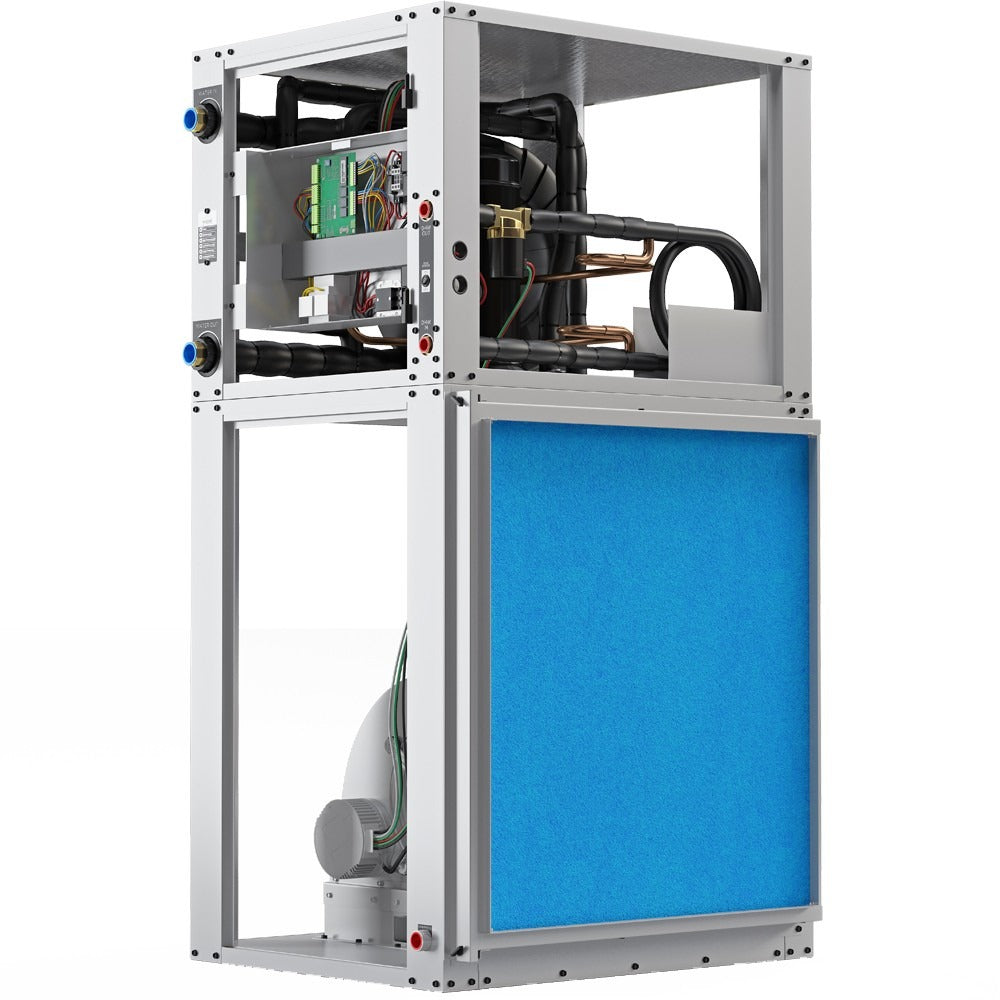

HVAC heat pump with open front showing internal piping, wiring, and control components

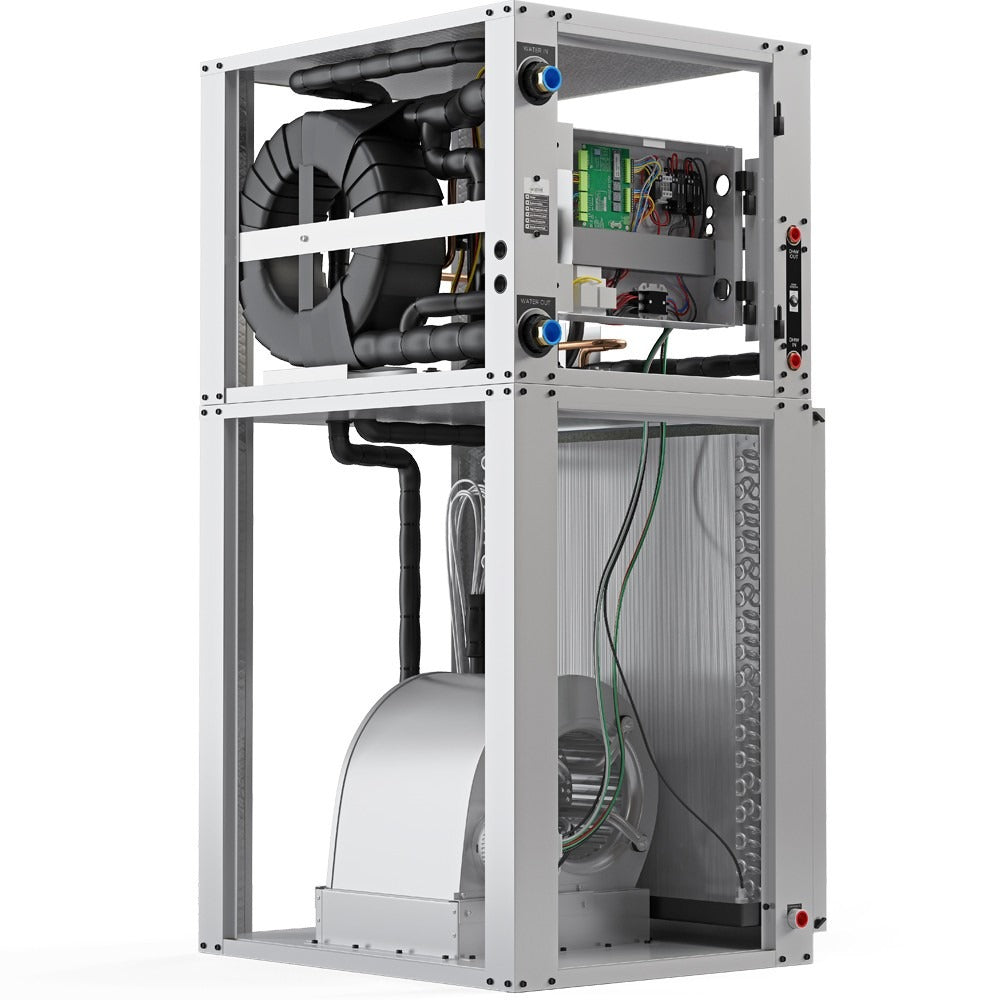

HVAC heat pump with open frame showing compressor, circuit board, and refrigerant lines

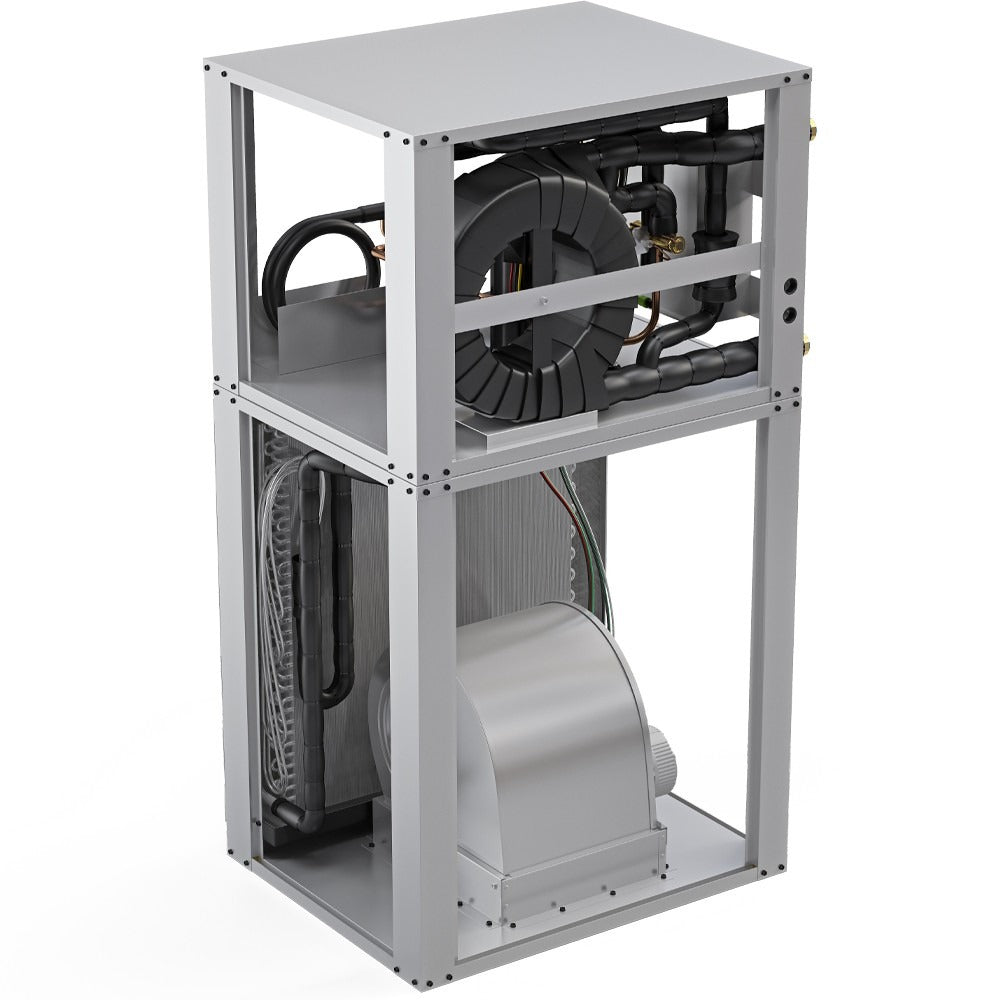

HVAC heat pump with open sides showing compressor housing and condenser coil section

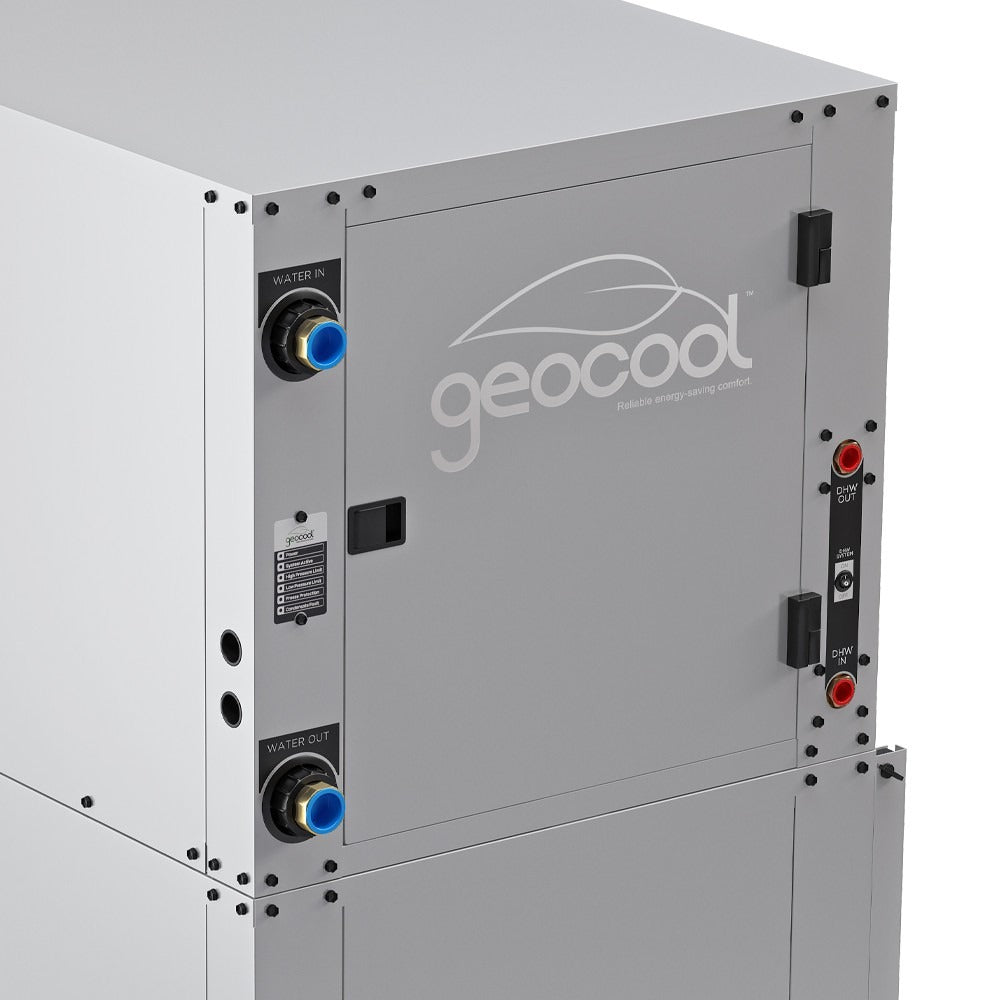

White HVAC heat pump exterior with water in/out ports and control indicator buttons

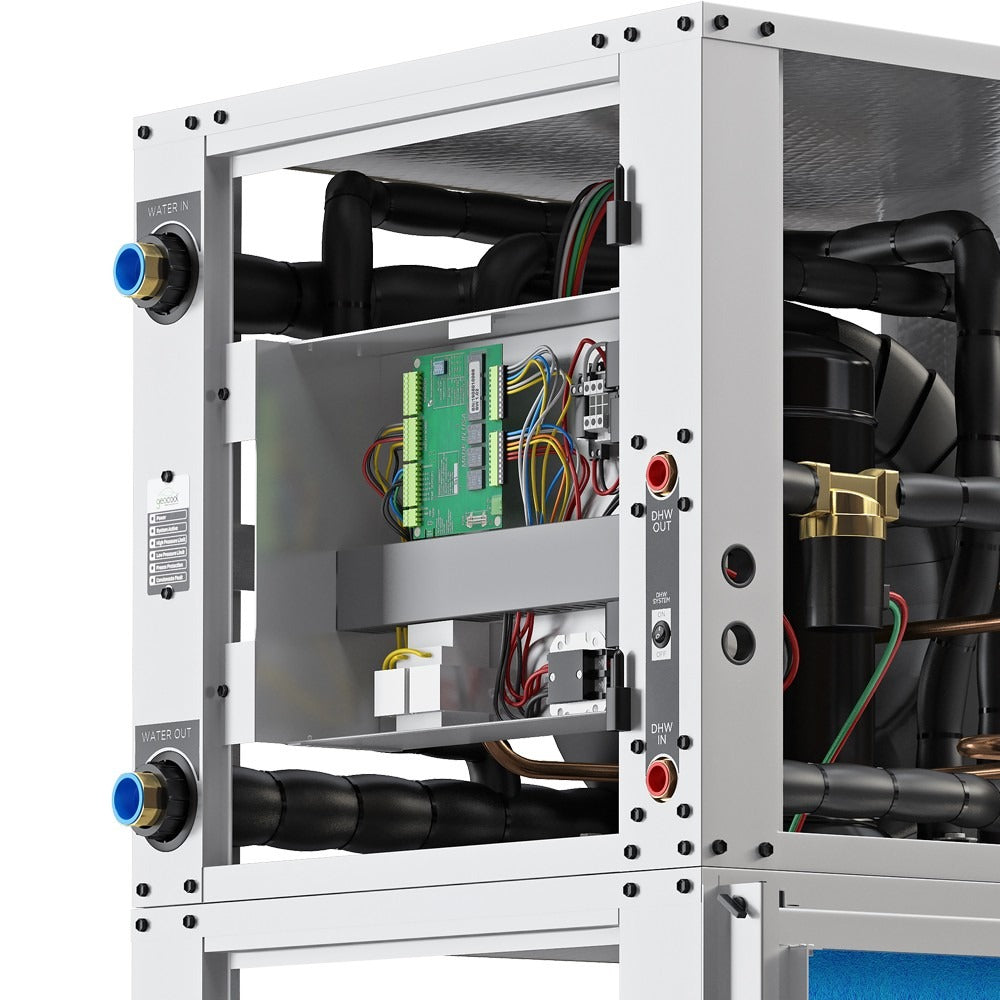

HVAC heat pump open cabinet showing circuit board, valves, and insulated refrigerant tubing

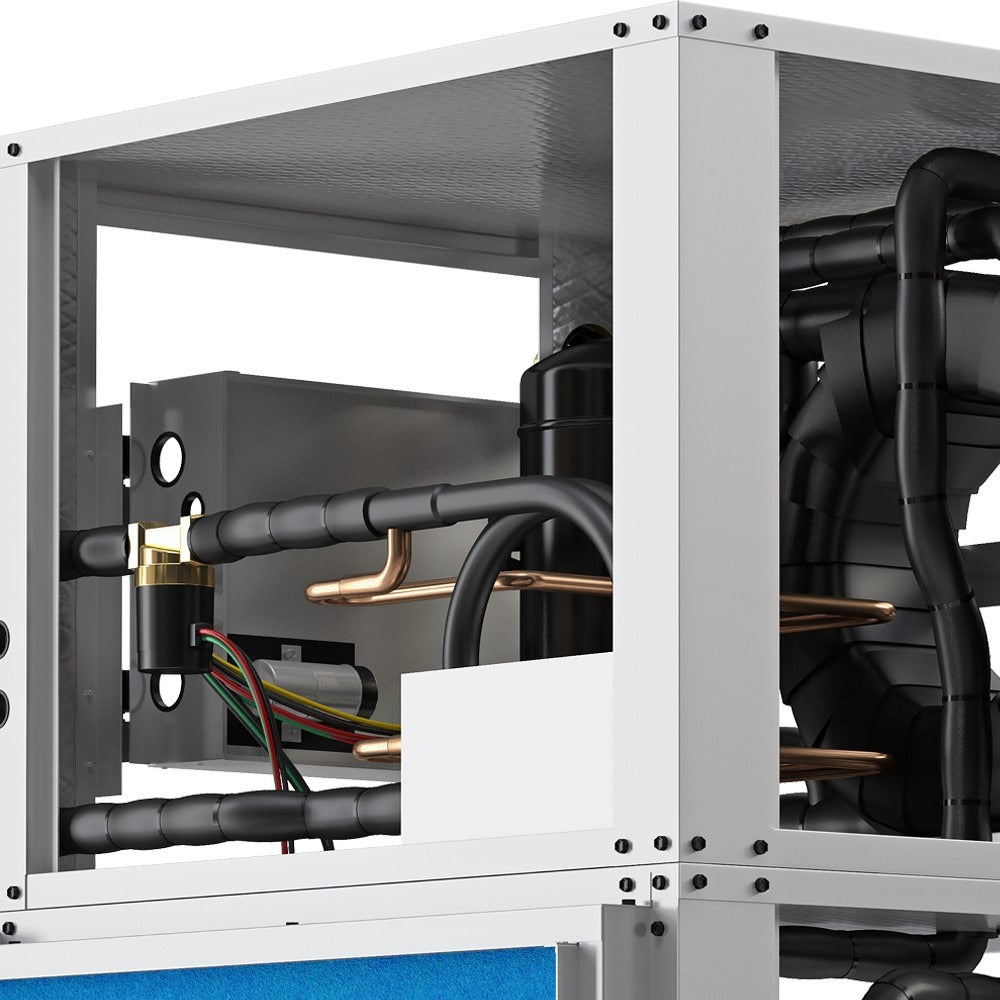

HVAC heat pump close-up of copper fittings and black insulated refrigerant lines inside

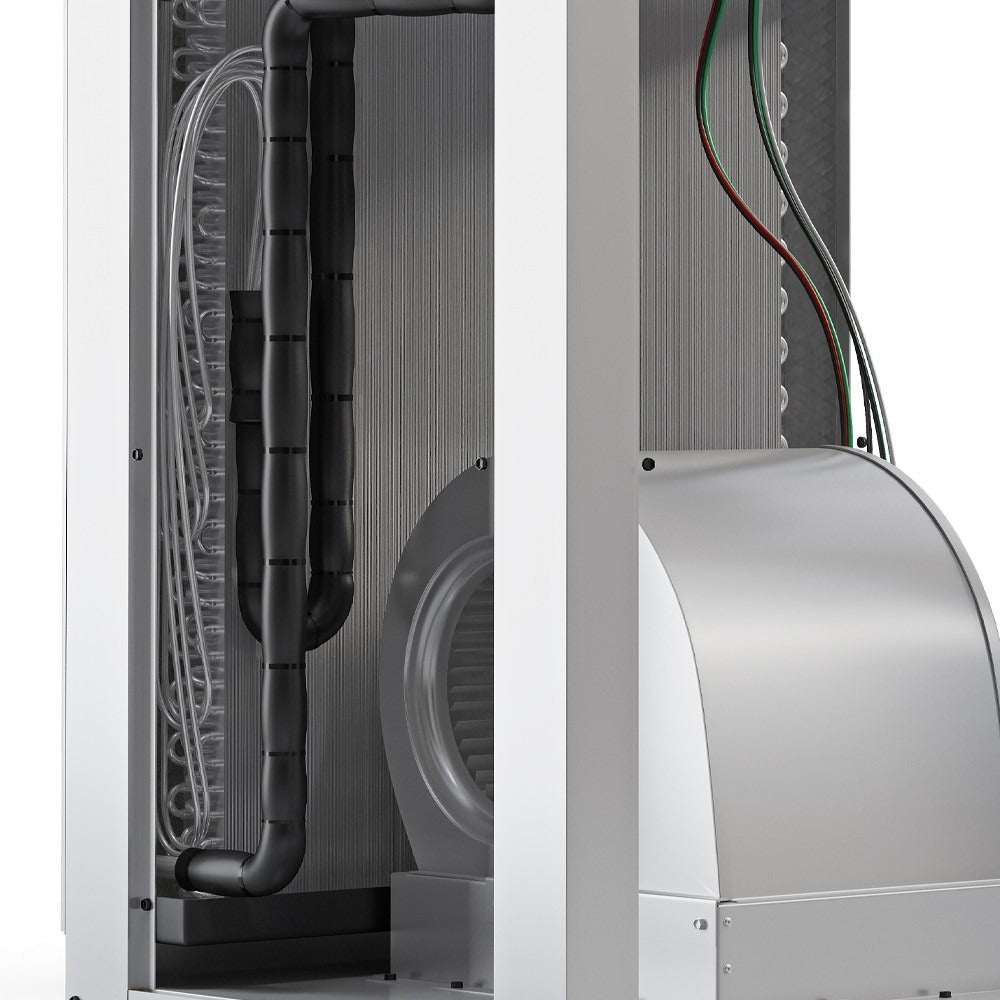

HVAC heat pump close-up of compressor area with wiring harness and duct-like tubing

Click on image to zoom Click on image to zoom

MRCOOL GeoCool 60K BTU, 5 Ton, Downflow Two-Stage CuNi Coil Left w/Heater (GCHPD060TGTANDL)

Name: MRCOOL GeoCool 60K BTU, 5 Ton, Downflow Two-Stage CuNi Coil Left w/Heater (GCHPD060TGTANDL)
Brand: MRCOOL
SKU: GCHPD060TGTANDL
Price: 7053.0 USD
Availability: OutOfStock
Rating: 4.85 (47 reviews)

| Authorized Dealer

SKU: GCHPD060TGTANDL

$7,053.00 $7,999.00

BTUs

24K 24K
36K 36K
48K 48K
60K 60K

Out of Stock No restock estimate

Secure Payment

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Shipping*
30-Day Return Policy⁺

MRCOOL GeoCool 60K BTU, 5 Ton, Downflow Two-Stage CuNi Coil Left w/Heater (GCHPD060TGTANDL)

DIMENSIONS & WEIGHT
Dimensions	62.5" H x 32" L x 25.75" W
Weight (lbs)	380.00
GENERAL INFORMATION
Model	GCHPD060TGTANDL
Air Flow Direction	Downflow
Avg Coverage Area	2,500 - 3,000 Sq Ft
CAPACITY & PERFORMANCE
Cooling Capacity	5 Ton
EER	31
Primary Heating Capacity	55,001 - 60,000 BTU
COMPRESSOR & MOTORS
Blower Motor	Variable Speed
Compressor	Two Stage
ELECTRICAL REQUIREMENTS
Electrical Phase	1-Phase
Max Overcurrent Protection	65 amps
Voltage	240
FILTER & HEATING
Heat Pump Efficiency (COP)	5.29
CONTROLS & CONNECTIVITY
HWG Connection	1/2 inch
Loop Connection	1 inch
SAFETY
AHRI Number	204370721
California Residents	See Prop 65 WARNING
WARRANTY
Warranty	5 Year
