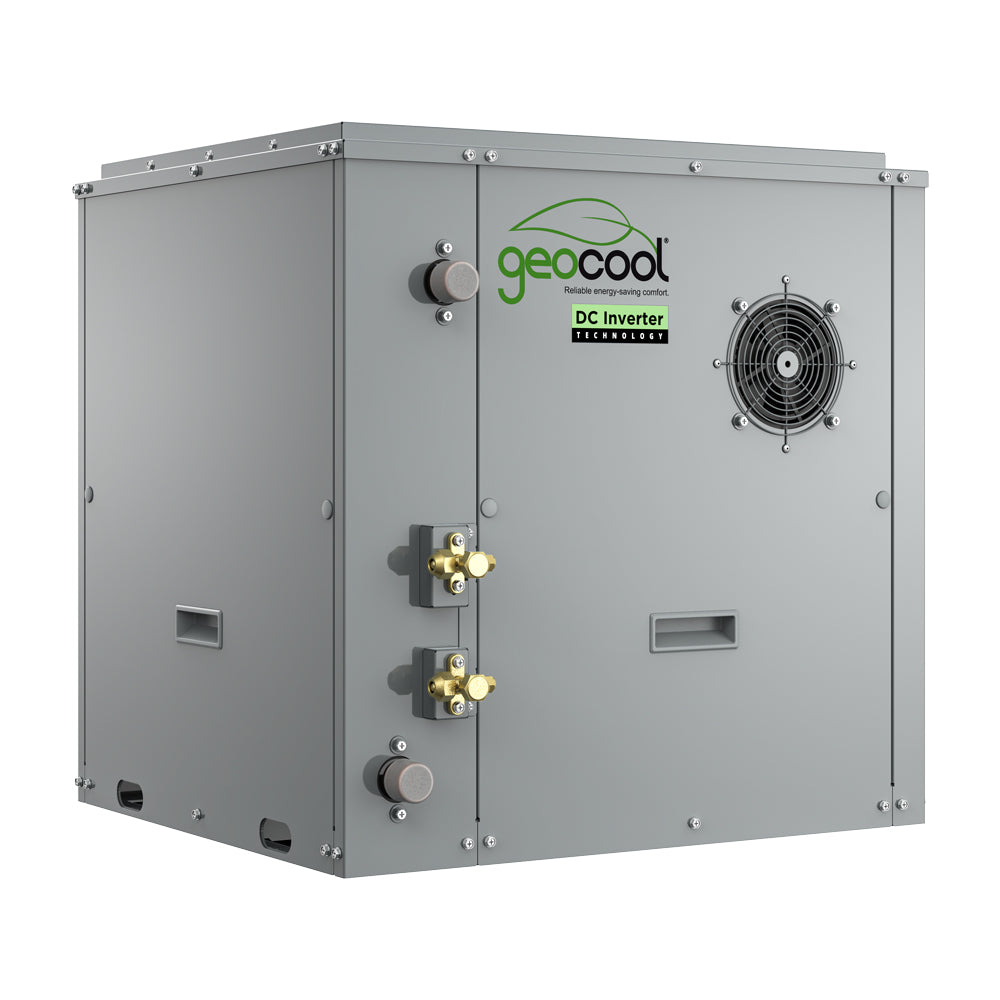

GeoCool 60K BTU 5T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor
Prepare to enjoy impressive performance and exceptional energy efficiency with the MRCOOL® Geocool® Geothermal Split System Compressor. With an all DC inverter system and a high precision electronic expansion valve, you can expect a much quieter, stable, and energy-saving experience with more accurate temperature control than with standard heating and cooling systems. The open loop water-to-air system’s superb energy efficiency boasts up to 70 EER, significantly lowering utility costs. Installation is easy with the compatible MRCOOL® Geocool® No-Vac® Line Set.
The system features multiple flexible installation options including vertical, horizontal, and split configurations. This makes this system an excellent solution if your home has space constraints or requires modification to a different air outlet method. The compressor features multiple protections against potential damage along with a reliable and durable build and finish. The co-axial copper-nickel heat exchanger makes the system suitable for salt solution and lower water quality, and improves corrosion resistance and unit reliability. With a cooling noise level as low as 58dBA and heating noise level as low as 60dBa, you’re able to enjoy superior comfort without any distraction. For peace of mind, this MRCOOL® Geocool® Geothermal Split System Compressor offers a 10-year parts warranty as well as a 5-year limited labor warranty.
|
Dimensions |
24.81 in D x 29.94 in H x 22.43 in W |
|
EER |
Up to 70 |
|
Cooling Capacity |
Up to 62000 BTU |
|
Heating Capacity |
Up to 55000 BTU |
|
Voltage |
208V / 230V |
|
Phase |
1 |
|
Cycle |
60Hz |
|
Max Fuse Breaker |
35 A |
|
Min Circuit Ampacity |
26 A |
|
Color |
Gray |
|
Color Family |
Gray |
|
Rated Load |
28 A |
|
Refrigerant Type |
R410a |
|
Inverter |
DC |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Compressor Motor Type |
Rotary Inverter |
|
Overload Protection |
yes |
|
UL Listed |
yes |
|
Energy Star Certified |
yes |
|
AHRI Certified |
yes |
|
Base Parts Warranty |
10 years |
|
Base Labor Warranty |
5 Year Limited |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Gross Weight |
253.5 lbs |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
*Shipping Policy
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Very good delivery service installed and works like a Should
Product came packaged well, undamaged. Installation was difficult, followed instructions for suction line above coil on bilevel installation with coil above condenser. 108 inside house on startup, 103 ambient. First start, high pressure 500, low pressure 170, supply air temp 66 degrees. Very worried at first, but after house cooed down, everything within parameters. Researched 410a refrigerant, found out it looses efficiency exponentially during temperature extremes. My old r22 unit would supply 54 degree supply air in comparable operating conditions. EPA, government, a/c manufactures all lying to American public
First time ever installing Mr cool unit was built very good it has a dc converted fan motor,came with a salt shelf type coating om inside of unit over all very impressed 5star system
