Description

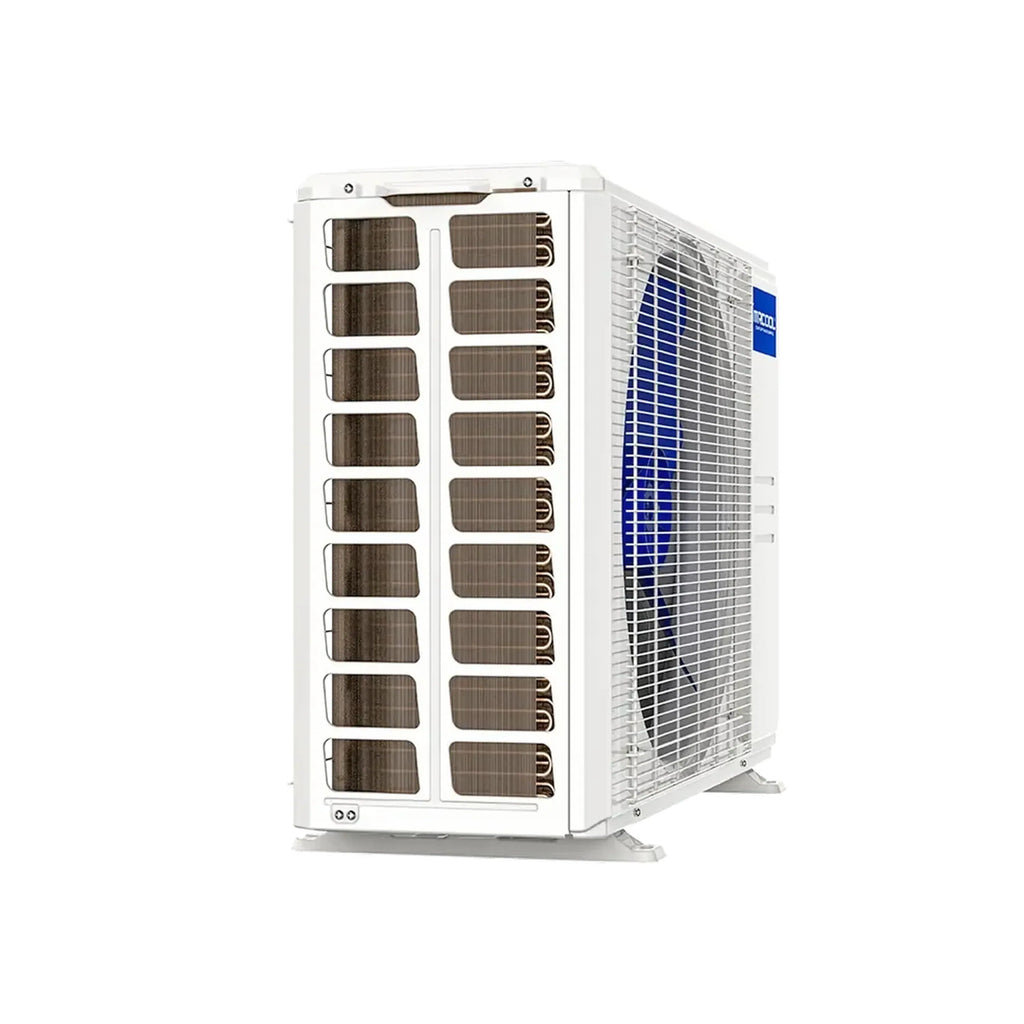

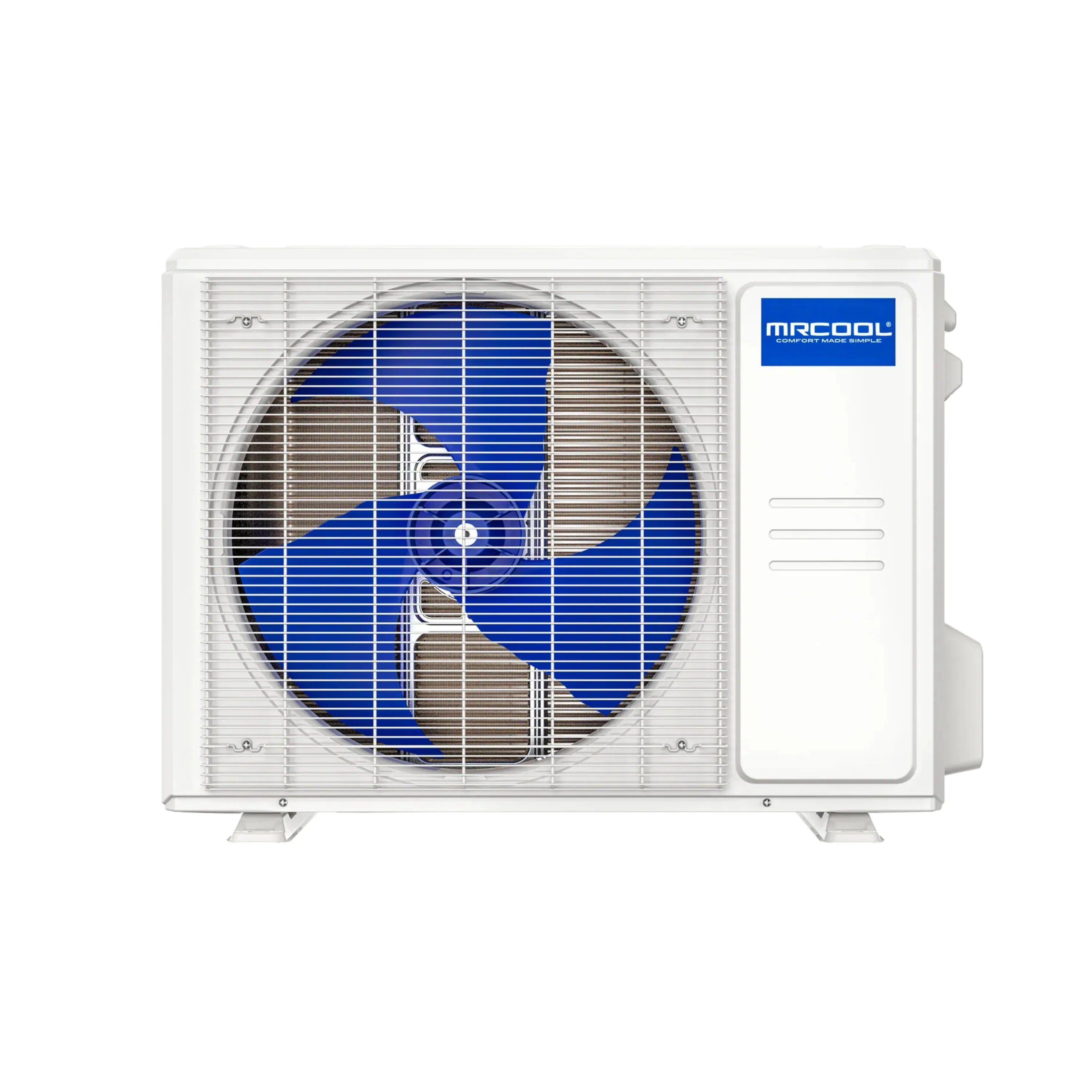

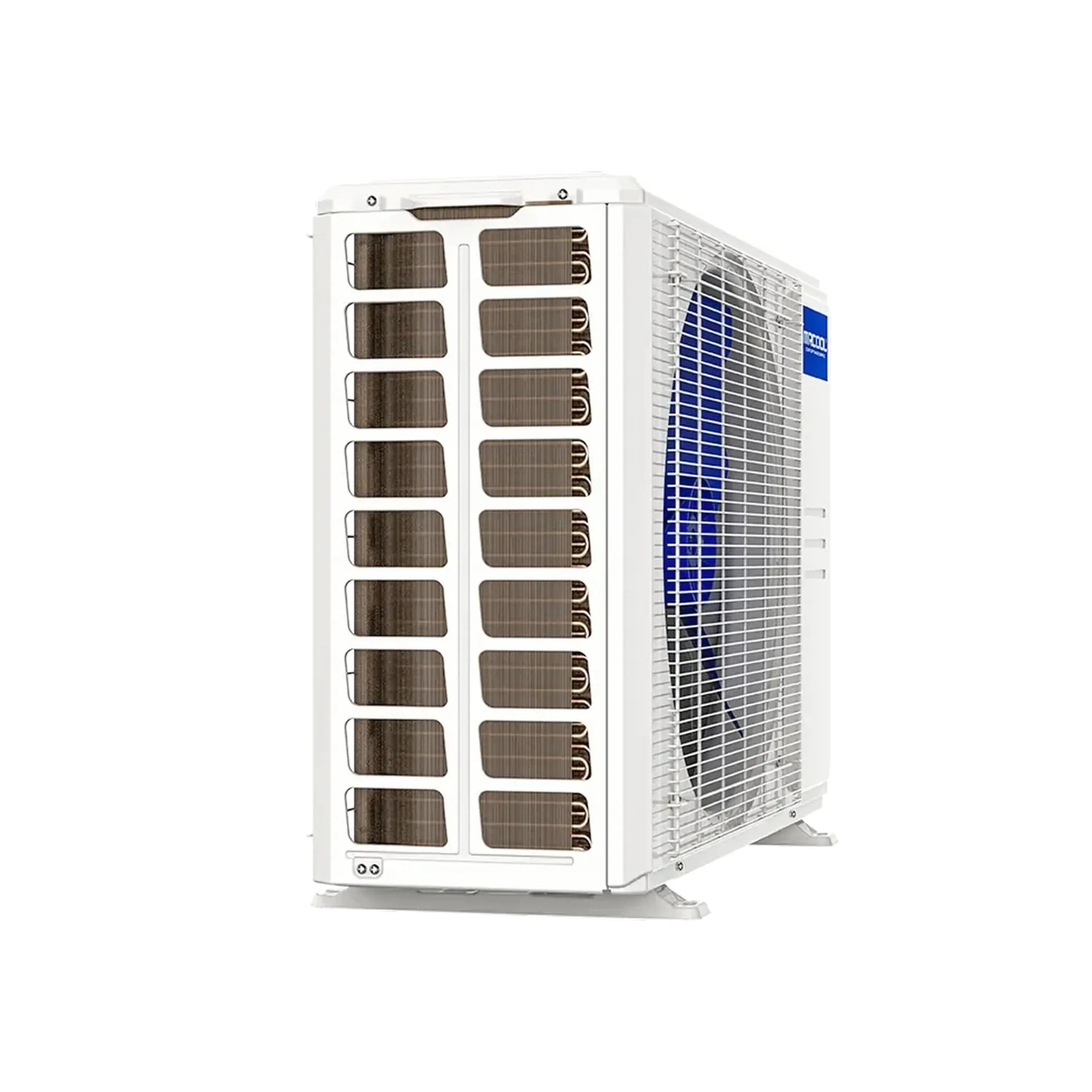

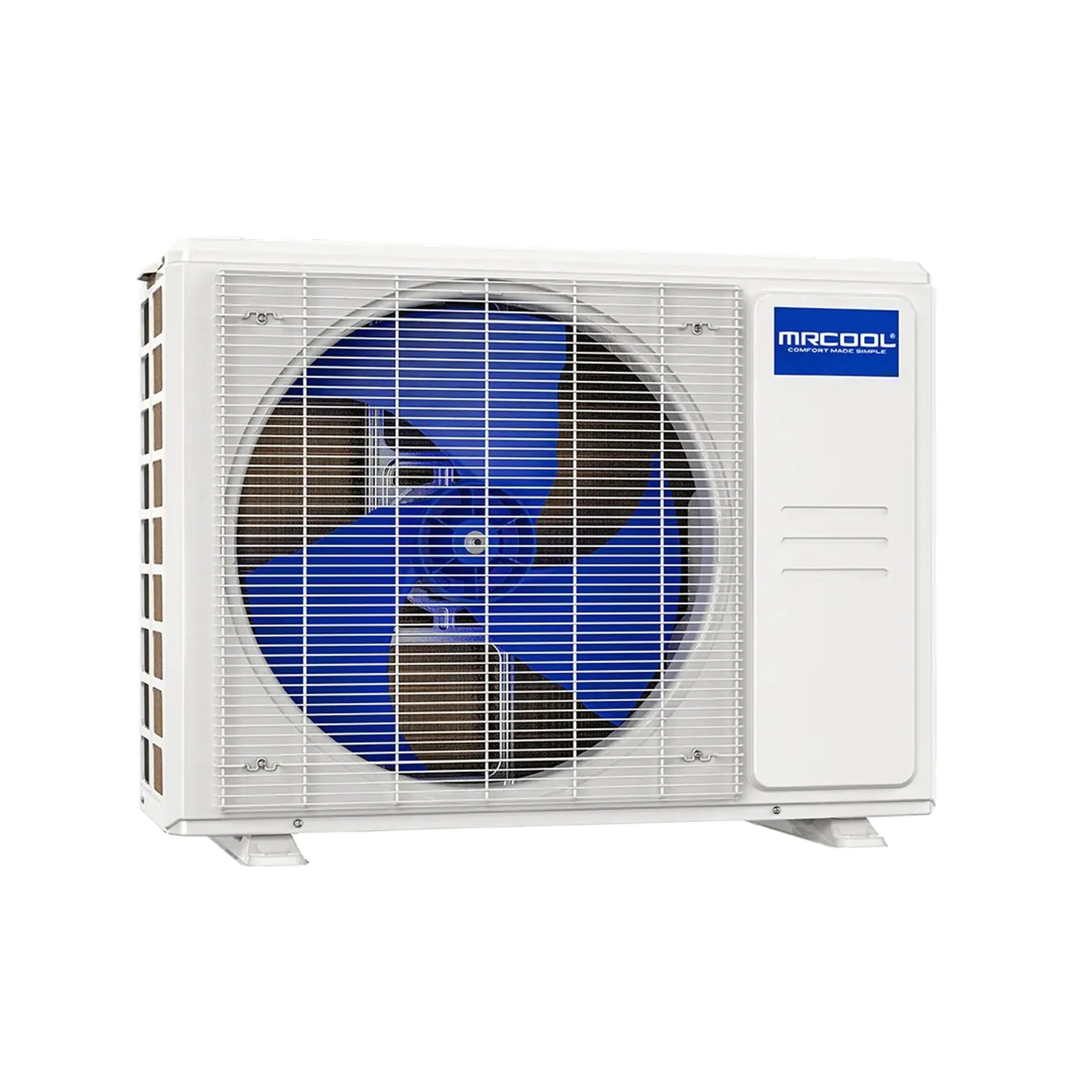

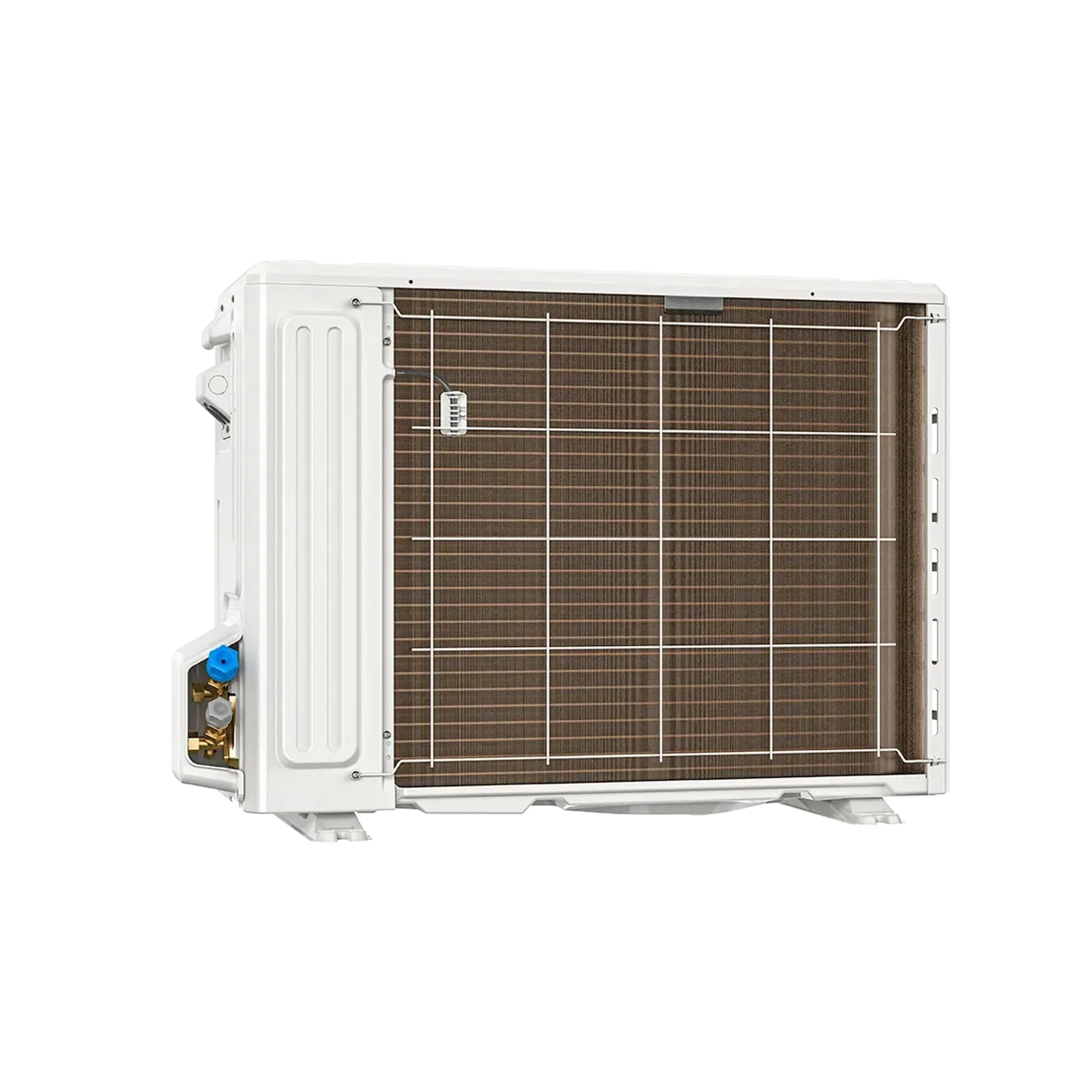

- Condenser Dimensions
- 28.35 W" x 10.63 D" x 19.49 H"

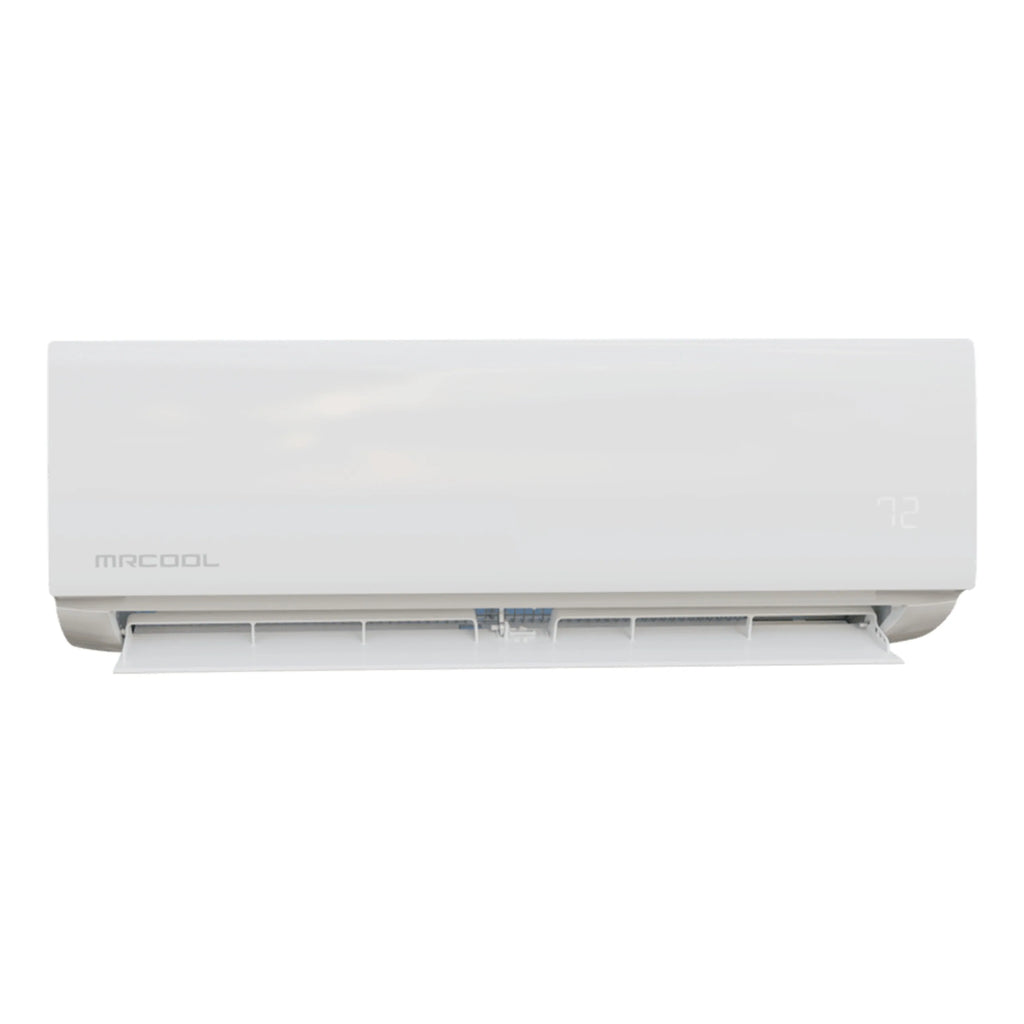

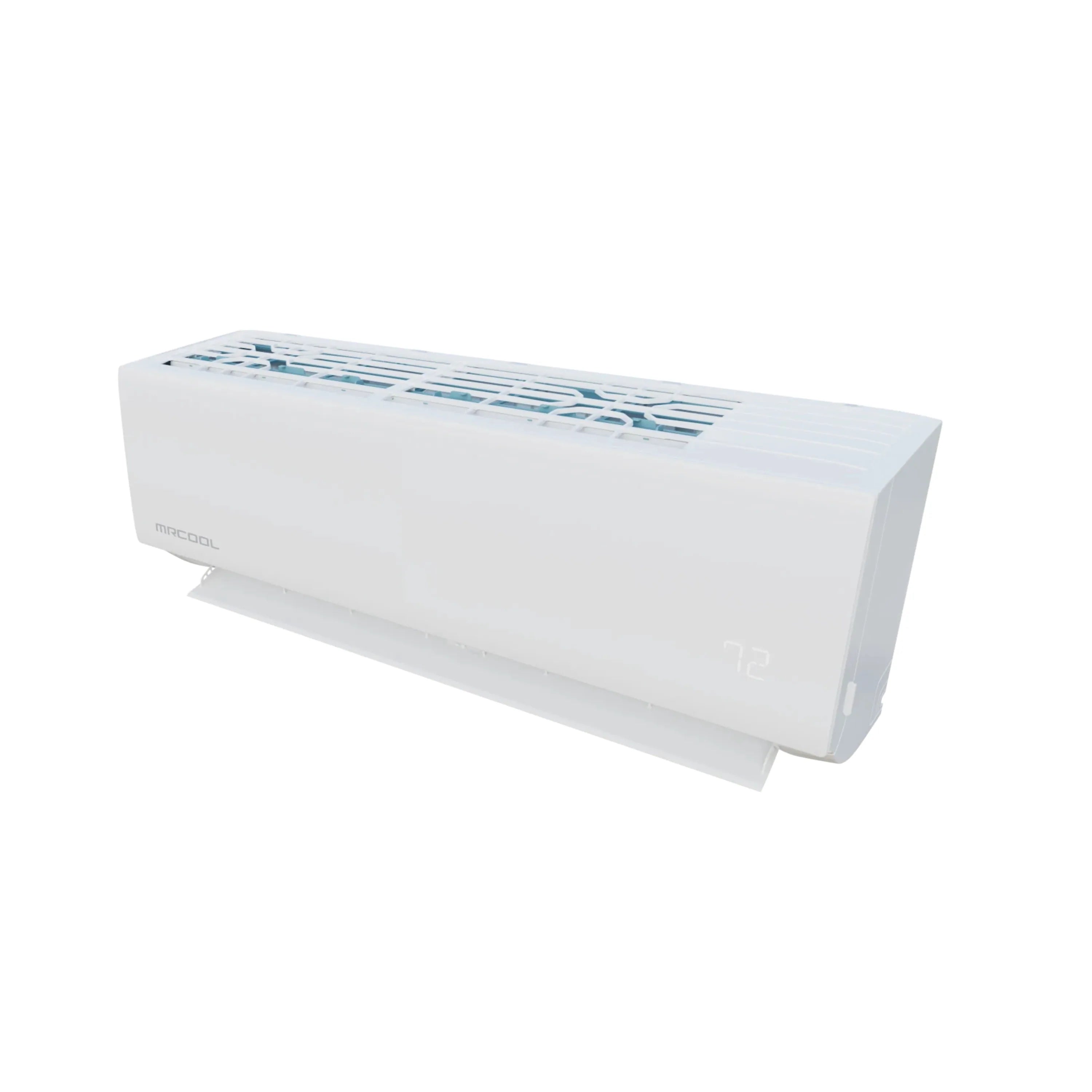

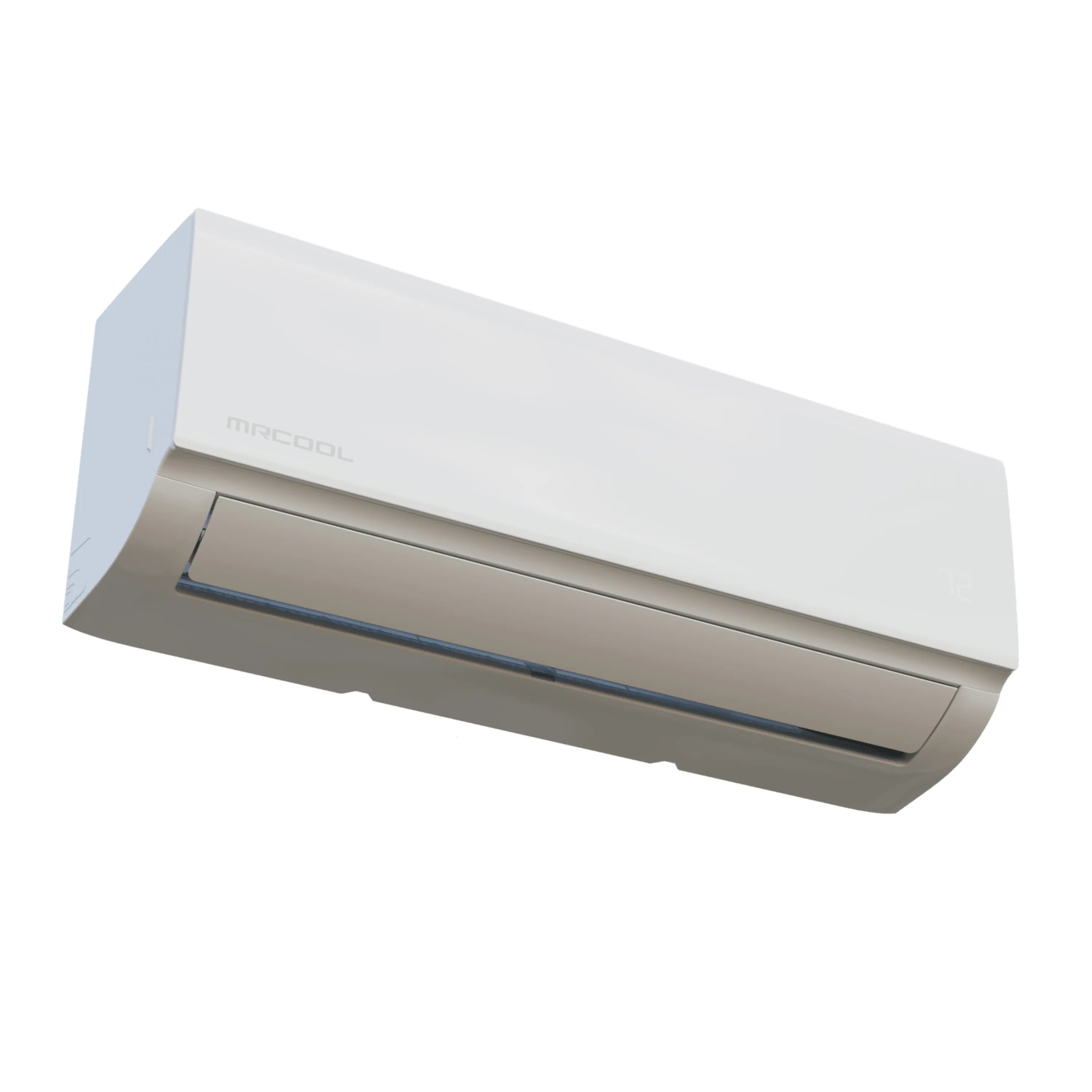

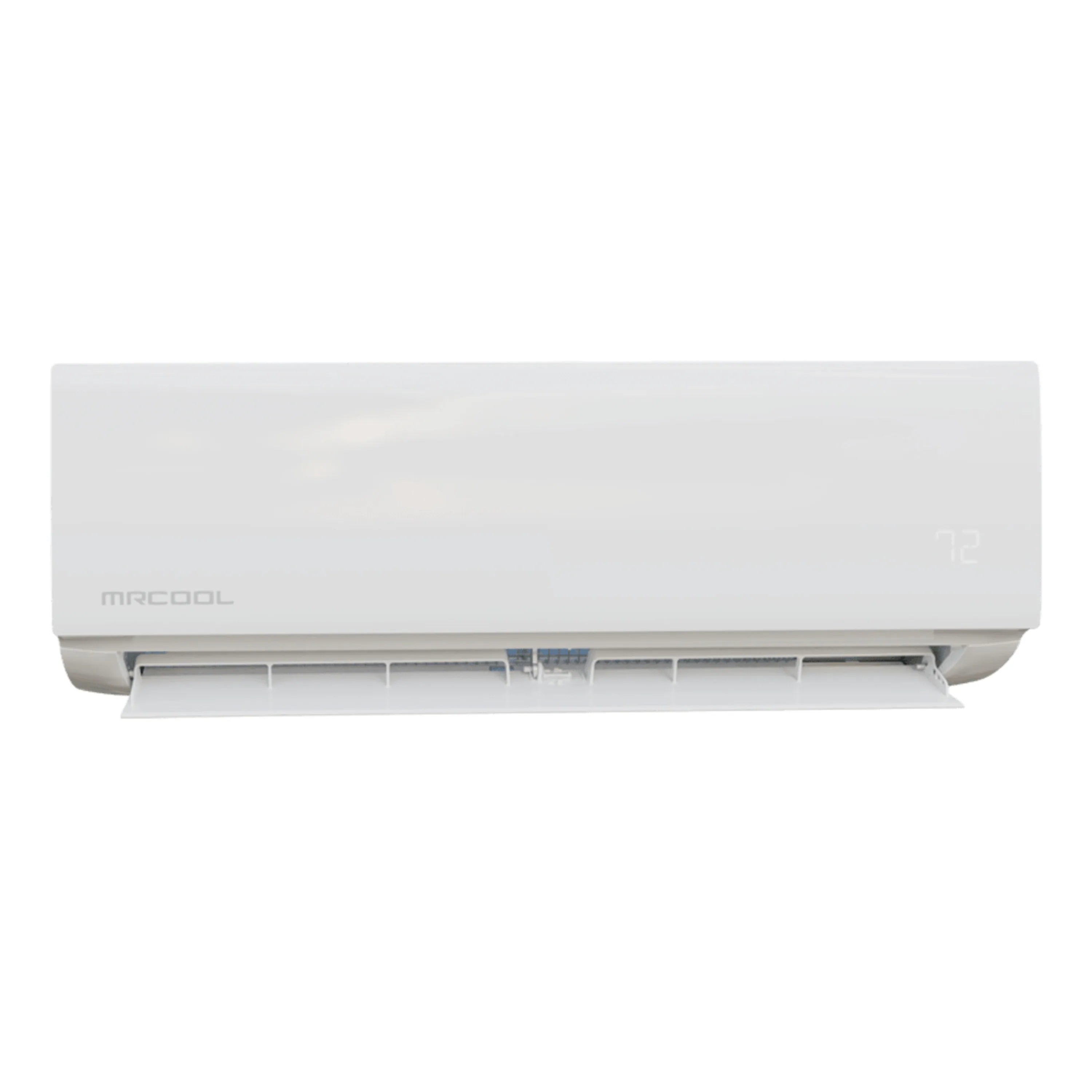

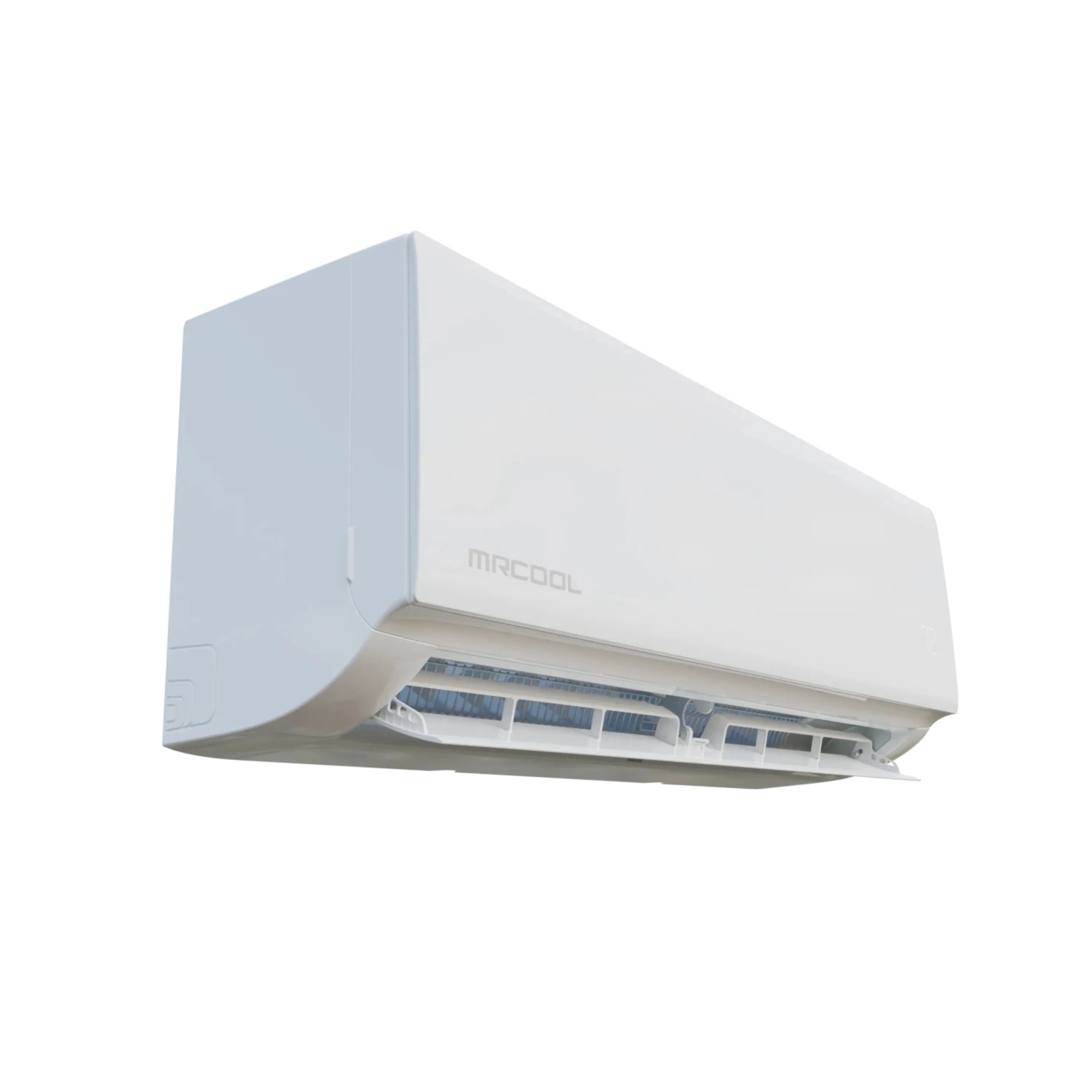

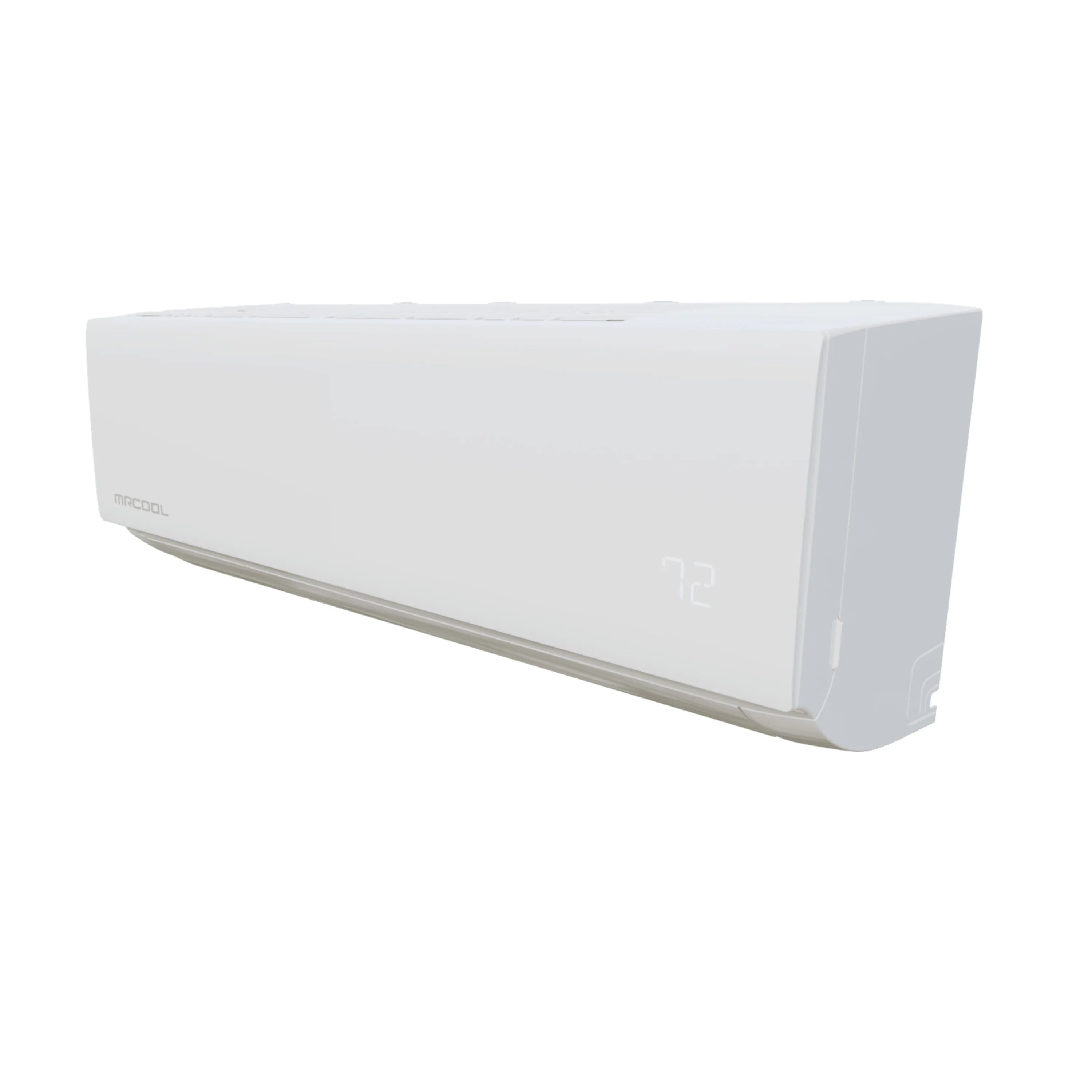

- Air Handler Dimensions
- 28.7 W" x 7.87 D" x 11.5 H"
- Condenser Weight
- 54.67 lbs
- Air Handler Weight
- 23.81 lbs
- Inverter Technology
- Yes
- Zone Capacity
- 1
- Cooling Capacity
- 9,000 BTU
- SEER2
- 17.5
- EER2
- 9.8
- Outdoor Operating Temperature (Cooling)
- -13 to 122°F
- Heating Capacity
- 9,000 BTU
- HSPF2-4
- 8.8
- HSPF2-5
- 6.8
- Outdoor Operating Temperature (Heating)
- -13 to 75°F
- Coverage Area
- Up to 400 sq ft.
- Outdoor Noise Level
- 54 dB(A)
- Indoor Noise Level (High / Low)
- 43 / 18 dB(A)
- Voltage
- 115V
- Phase
- 1
- Cycle
- 60Hz
- Min Circuit Ampacity
- 17A
- Max Fuse Breaker
- 20A
- Line Set Length
- 11.5 ft.
- Refrigerant Type
- R-454B
- Refrigerant Volume
- 17.28 oz
- Liquid Line Size
- 1/4"
- Suction Line Size
- 3/8"
- Max Line Set Length
- 75 ft.
- Wifi Compatibility
- Yes
- App Compatibility
- Yes
- Works with IOS
- Yes
- Works with Android
- Yes
- Remote Control Included
- Yes
- Warranty
- 2 Years Compressor / 1 Year Parts
MRCOOL Mini Split BTU Guide
Drawn to scale — 1 square = 2 × 2 ft
