Description

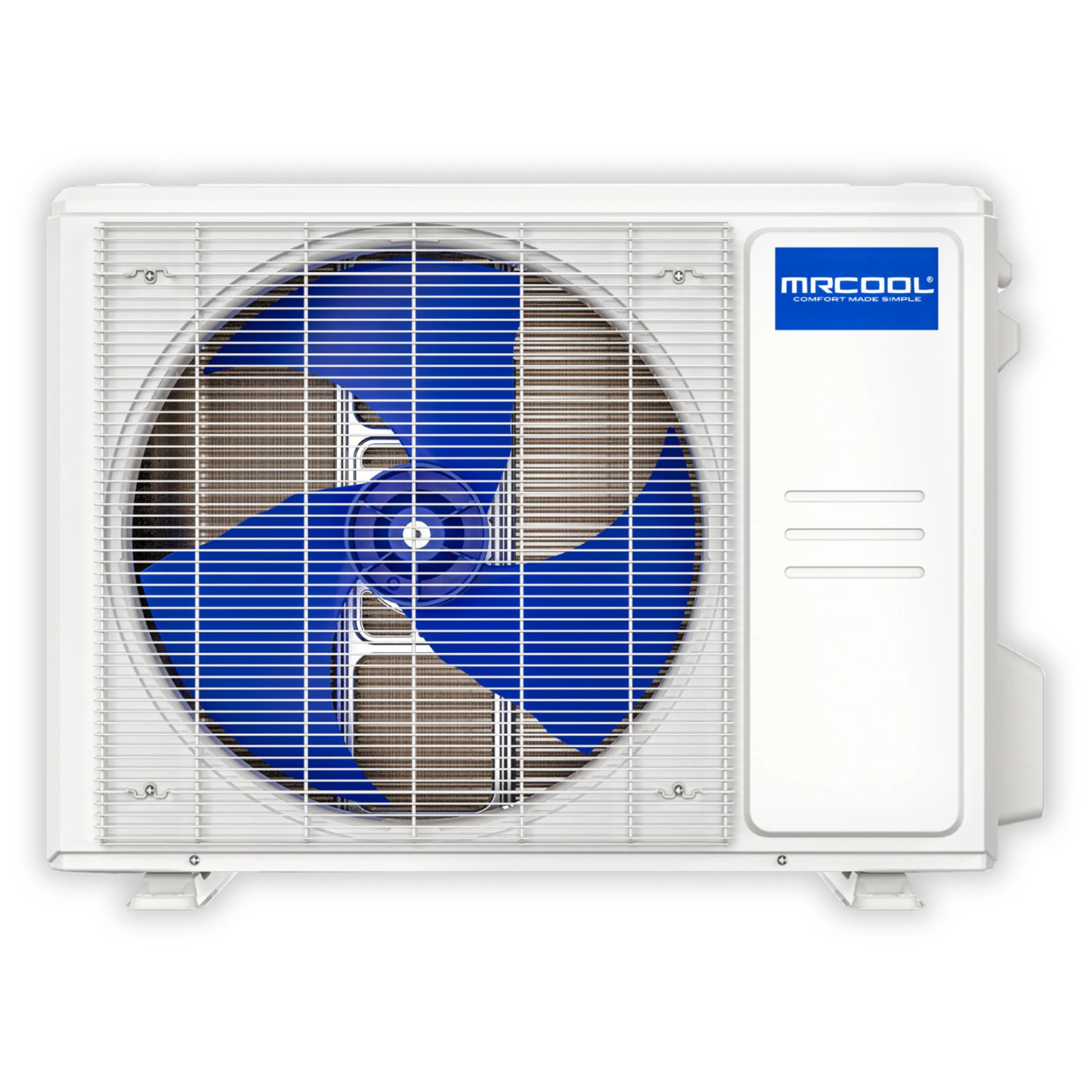

- Condenser Dimensions
- 30.12 W" x 11.93 D" x 21.85 H"
- Air Handler Dimensions
- 31.57 W" x 7.44 D" x 11.69 H"
- Condenser Weight
- 65.48 lbs / 29.7 kg
- Air Handler Weight
- 24.91 lbs / 11.3 kg
- Coverage Area
- 200 - 350 sq ft.
- Inverter
- DC
- Quiet Mode
- Yes
- Zone Capacity
- 1
- Cooling Capacity
- 9,000 BTU
- EER2
- 14
- SEER2
- 23.6
- Heating Capacity
- 10,000 BTU
- HSPF2-4
- 11.5
- HSPF2-5
- 8.6
- Cycle
- 60 Hz
- Compressor Type
- Rotary
- Outdoor Noise Level
- 54 dB(A)
- Indoor Noise Level (Hi/Mi/Lo)
- 43.0/39.5/33.5/24.0/18.0 dB(A)
- Voltage
- 115V
- Phase
- 1
- Max Fuse Breaker
- 20A
- Min Circuit Ampacity
- 18A
- Refrigerant Type
- R-454B
- Refrigerant Volume
- 30.34 oz
- Liquid Line Size
- 1/4"
- Suction Line Size
- 3/8"

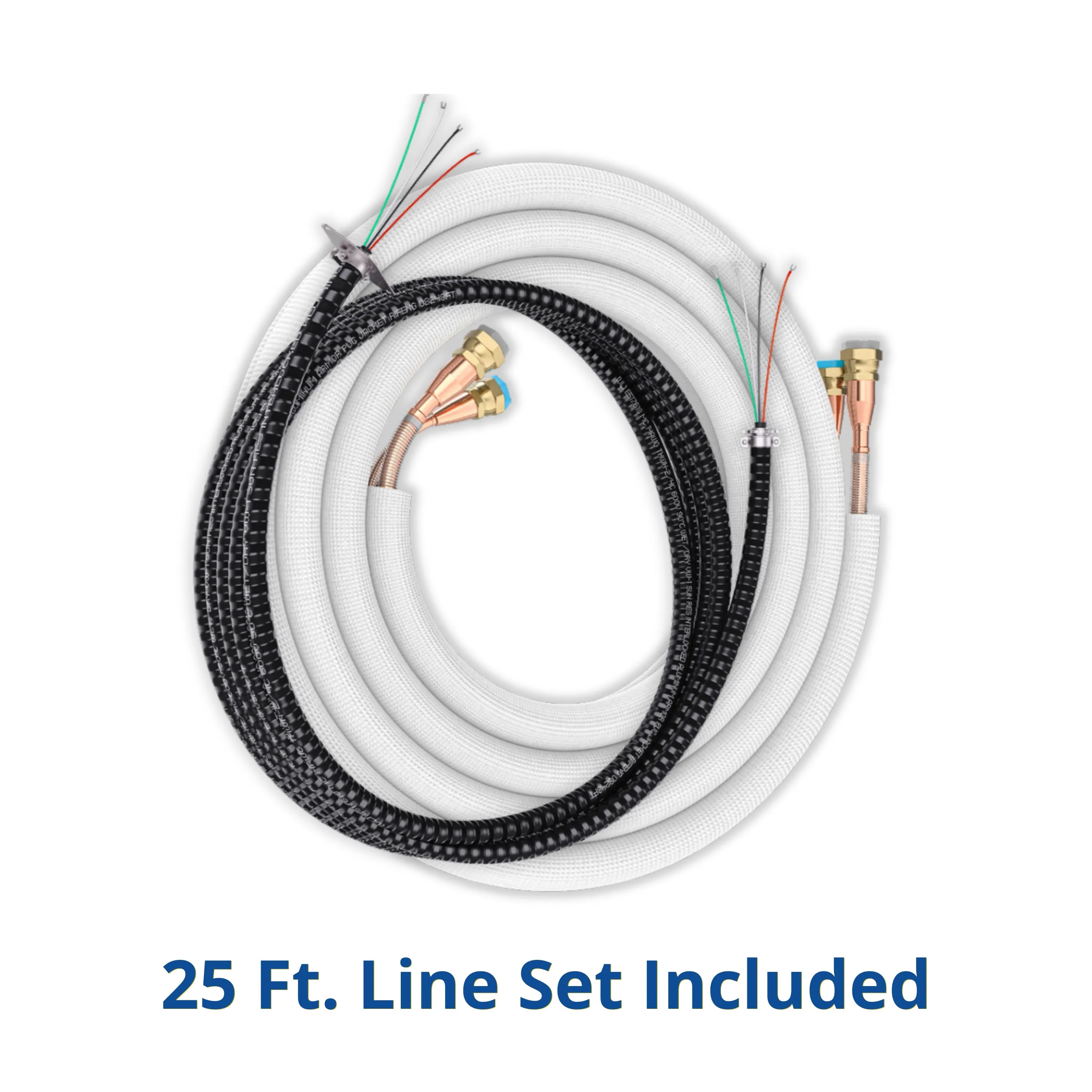

- Max Line Set Length
- 82 ft.
- Fan Only Option
- Yes
- Auto Cool
- Yes
- Wifi Compatibility
- Yes
- App Compatibility
- Yes
- Works with IOS
- Yes
- Works with Android
- Yes

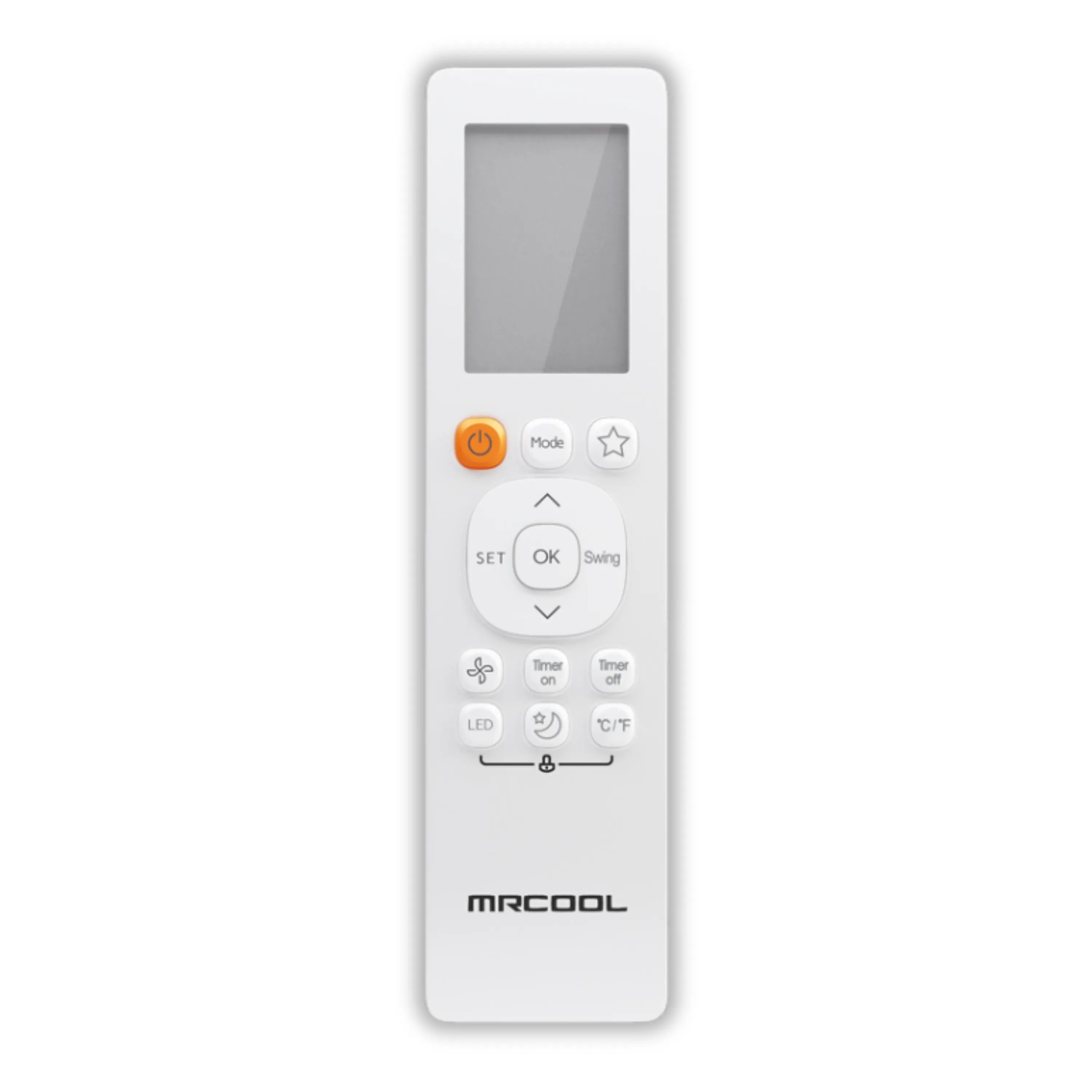

- Remote Control Included
- Yes
- Certifications
- UL Listed
- ETL Listed
- Energy Star Certified
- AHRI Certified
- Warranty
- 7 Years Compressor 5 Years Parts Extended Limited Lifetime Replacement *If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty **The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.
MRCOOL Mini Split BTU Guide
Drawn to scale — 1 square = 2 × 2 ft
