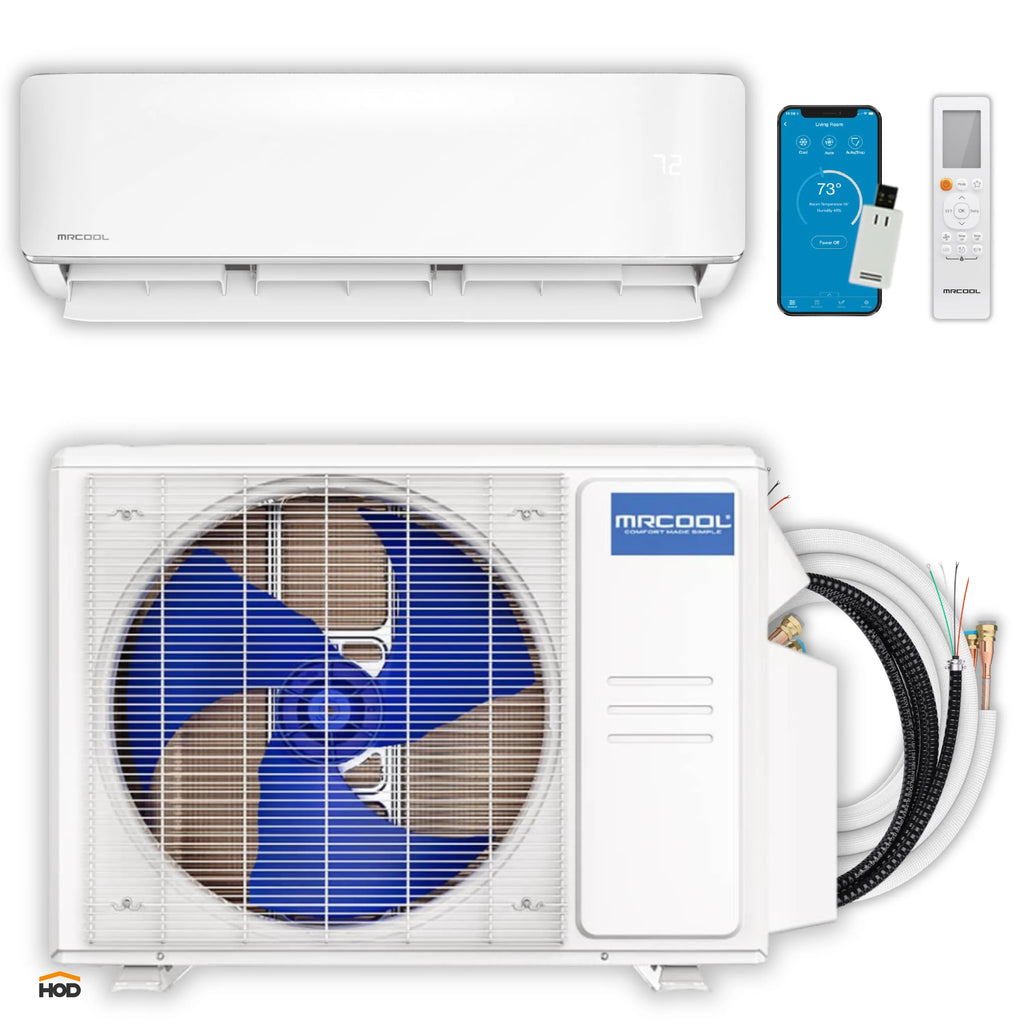

The MRCOOL DIY EZPRO 24K BTU Ductless Mini Split Heat Pump System (EZPRO-24-HP-23011DE-O) is a 2-ton single-zone heating and cooling solution delivering 24,000 BTU/h cooling and 25,000 BTU/h heating for spaces up to 1,050 sq. ft., powered by future-ready R-454B refrigerant.
With high efficiency of up to 18.9 SEER2 and 8.7 HSPF2-4, this 208-230V plug-and-play system installs in hours using the included 11.5 ft pre-charged Quick Connect® line set — no HVAC license, vacuum pumps, or refrigerant handling required. ETL listed, AHRI certified, NEEP ccASHP listed, and CEE Tier 1 – North qualified for rebate eligibility, and backed by a 5-year compressor warranty and 3-year parts warranty with online registration.
| Dimensions & Weight | |
|---|---|
| Indoor Unit Dimensions | 42.60 W" x 9.21 D" x 13.27 H" |
| Outdoor Unit Dimensions | 35.04 W" x 13.46 D" x 26.50 H" |
| Indoor Unit Net Weight | 35.49 lbs |
| Indoor Unit Gross Weight | 49.60 lbs |
| Outdoor Unit Net Weight | 95.90 lbs |
| Outdoor Unit Gross Weight | 117.73 lbs |
| Indoor Packing Dimensions | 46.73 W" x 17.67 D" x 14.09 H" |
| Outdoor Packing Dimensions | 39.17 W" x 15.67 D" x 29.13 H" |
| General Information | |
| Series | MRCOOL DIY Easy Pro |

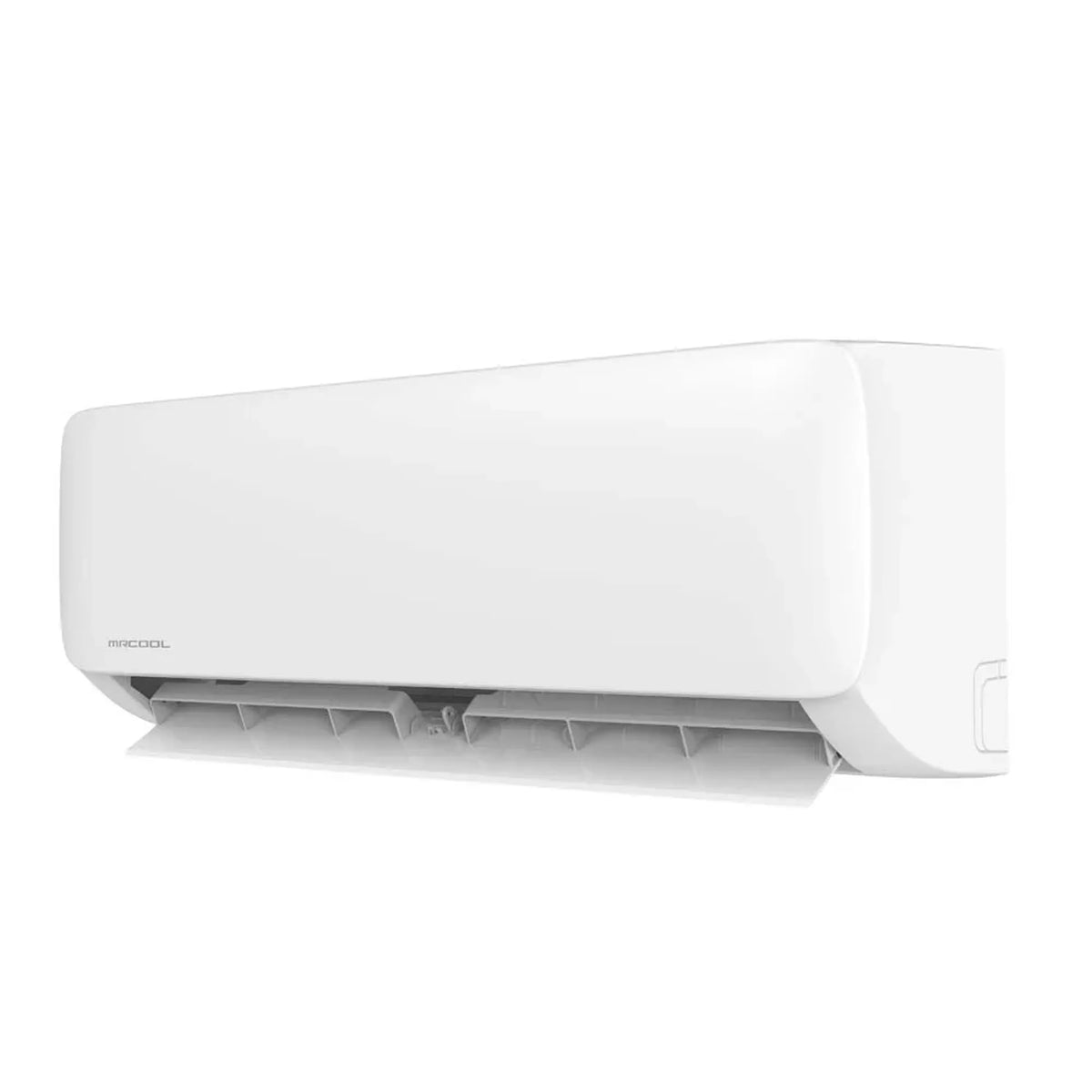

| Indoor Unit Model | EZPRO-24-HP-WMAH-230DE-O |

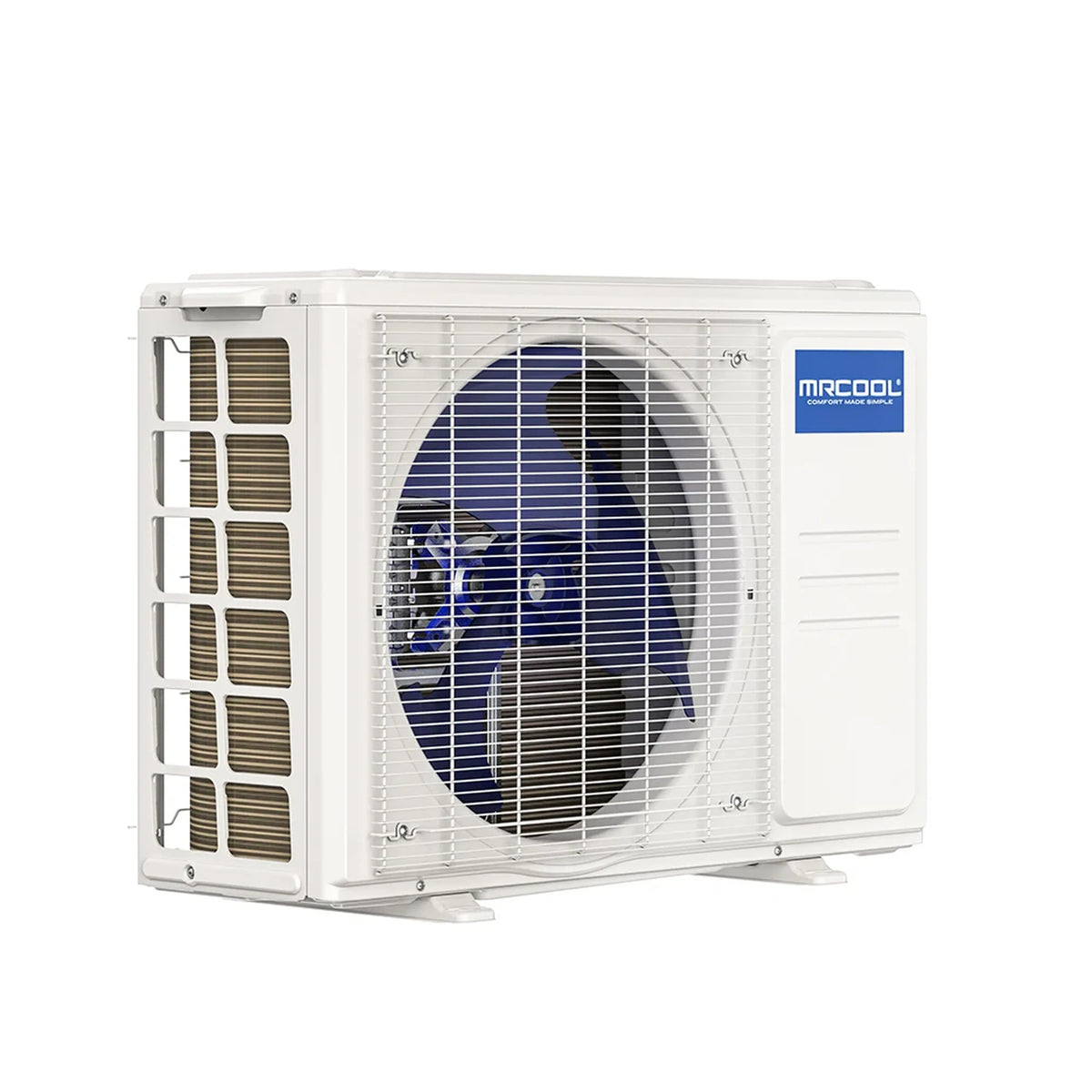

| Outdoor Unit Model | EZPRO-24-HP-C-23011DE-O |
| System Type | Single-Zone Ductless Mini-Split Heat Pump |
| Tonnage | 2 |
| Mount Type | Wall |
| Color | White |
| Configuration | DIY Pre-Charged Quick Connect |
| Capacity & Performance | |
| Cooling Capacity | 24,000 Btu/h |
| Heating Capacity | 25,000 Btu/h |
| SEER2 | 18.9 |
| EER2 | 9.7 |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 6.9 |
| Max Coverage Area | Up to 1,050 sq. ft. |
| Operating Temperature Range | -13°F to 122°F |
| Min Ambient Cooling | 5°F |
| Compressor Type | Rotary |
| Inverter | DC Inverter |
| Noise Levels | |
| Indoor Noise Level (Turbo/Hi/Mid/Lo/Silent) | 51.5 / 45.5 / 40.5 / 26.5 / 21.5 dB(A) |
| Outdoor Noise Level | 61 dB(A) |
| Electrical Requirements | |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Indoor Min Circuit Ampacity | 3.0 A |
| Indoor Max Fuse (Breaker) | 15.0 A |
| Outdoor Min Circuit Ampacity | 19.0 A |
| Outdoor Max Fuse (Breaker) | 20.0 A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Charge | 50.44 oz |
| Liquid Line Size | 3/8" |
| Gas (Suction) Line Size | 5/8" |
| Included Line Set Length | 11.5 ft (Pre-Charged Quick Connect®) |
| Max Line Set Length | 82 ft |
| Controls & Connectivity | |
| WiFi Compatibility | Yes |
| App Compatibility | MRCOOL Comfort App |
| Works with iOS | Yes |
| Works with Android | Yes |
| Amazon Alexa | Yes |
| Google Assistant | Yes |
| Remote Control Included | Yes |
| Follow Me® Function | Yes |
| Indoor Unit Features | |
| Number of Fan Speeds | 5 |
| Filter Type | Reusable / Washable |
| Fan-Only Mode | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Auto Restart | Yes |
| Active Clean Technology | Yes |
| Outdoor Unit Features | |
| Condenser Coil | Gold Fin® Corrosion-Resistant |
| Refrigerant Leakage Detection | Yes |
| Low Ambient Cooling | Down to 5°F |
| Timer Mode | Yes |
| Certifications | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| NEEP ccASHP Listed | Yes |
| CEE Tier 1 - North | Yes |
| Energy Star Certified | Yes |
| Warranty | |
| Compressor Warranty | 5 Years (with online registration) |
| Parts Warranty | 3 Years (with online registration) |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
