Our new 5th Generation MRCOOL® DIY® 55k BTU Multi-Zone Ductless Mini-Split Condenser is one of the most efficient and innovative units in the industry, and we’re excited to finally share it with you! On top of saving time and money because you won’t need an HVAC professional, this system will give you a good sense of accomplishment because you’ll have installed it yourself! The whole family will be able to enjoy the comfort of this condenser, because it can heat and cool up to 6 different spaces that equal up to 2290 sq. ft., giving you the ability to heat and cool an entire home to your exact specifications using a single MRCOOL® system.
The system’s patented pre-charged Quick-Connect® line sets essentially fast-forward the installation of this system, enabling you to skip the evacuation and charging steps and simplifying the entire process. We utilize new R-454B refrigerant in these line sets, which is a much more environmentally friendly and efficient choice. Features like these assist this unit in achieving its impressive SEER2 of 22, and its HSPF2-4 of 10.6, both of which signify that this system will help you save money throughout the entire time you use it. Once you install this condenser, you’ll be met with a variety of features to help you control your comfort.
One of these features is the Smart HVAC app, available on Apple and Android, that allows you to operate your system from the convenience of your phone. Set schedules, manage different modes, monitor energy consumption, and more all without having to leave the couch! You can also set up voice control through Amazon Alexa or Google Home, meaning you can control your comfort without moving a finger. This system ensures you’ll be enjoying ultimate convenience and superior comfort. The warranty for this unit is one of the best in the industry, and we’re proud to have your back. You can enjoy the peace of mind of a 5 year parts warranty, a 7 year compressor warranty, and, once you enroll in the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. If you need perfect comfort but don’t want to break the bank, this MRCOOL® DIY® condenser is your answer!
| Dimensions | 16.34" D x 52.48" H x 37.48" W |
|
SEER2 |
22 |
|
EER2 |
12 |
|
HSPF2-4 |
10.6 |
|
HSPF2-5 |
8.5 |
|
Tonnage |
4.6 |
|
Cooling Capacity (BTU) |
47000 |
|
Heating Capacity (BTU) |
55000 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
45 |
|
Min Circuit Ampacity (A) |
43 |
|
Color |
White |
|
Zone Capacity |
6 |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (OZ) |
151.68 |
|
Decibel Rating (DBA) |
64 |
|
Inverter |
DC |
|
Line Set Length |
25 |
|
Max Lineset Length (FT) |
221.4 |
|
Liquid LIne Size |
1/4 |
|
Suctio Line Size |
(3/8 X4) (1/2 X2) |
|
Compressor Motor Type |
Rotary |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contans Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |

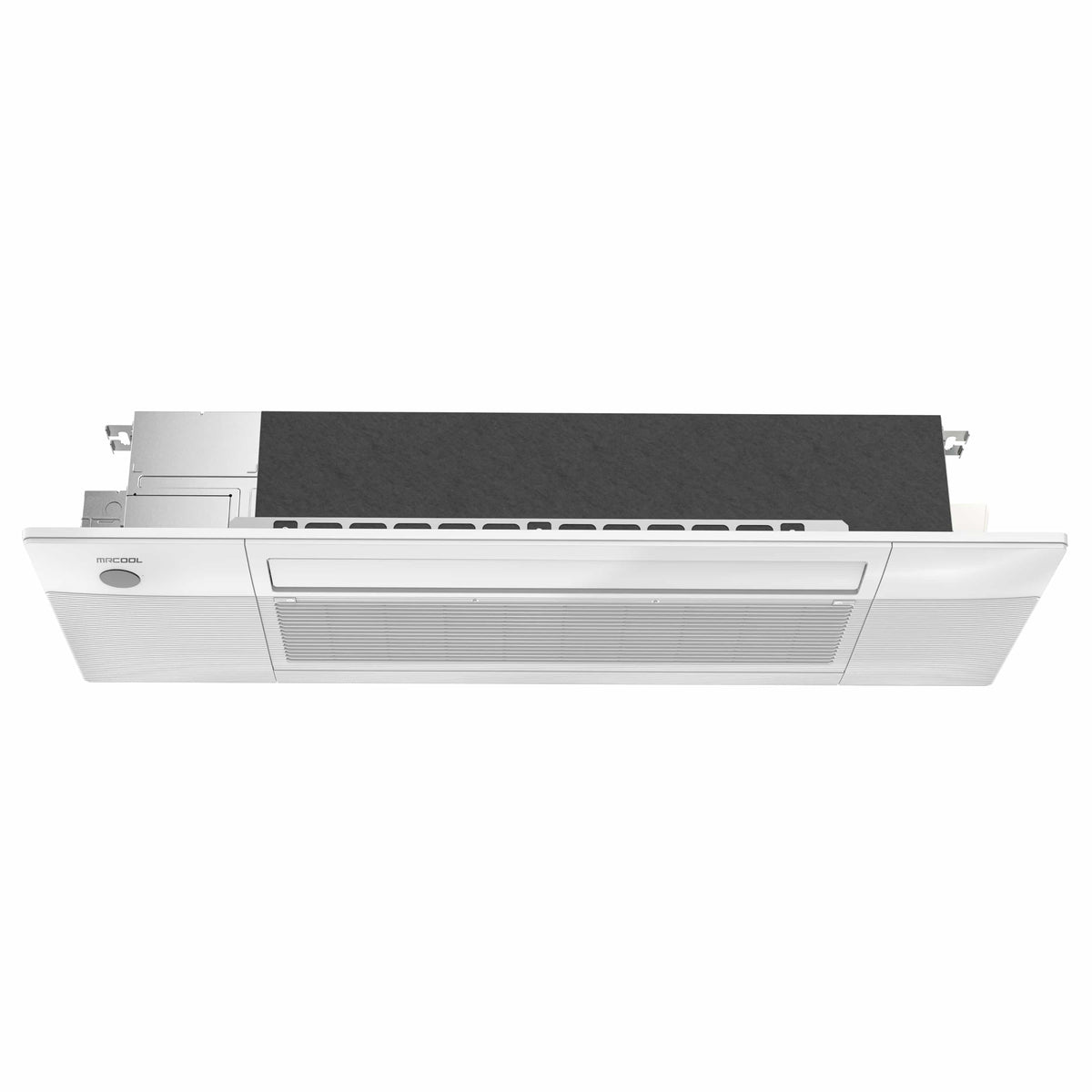

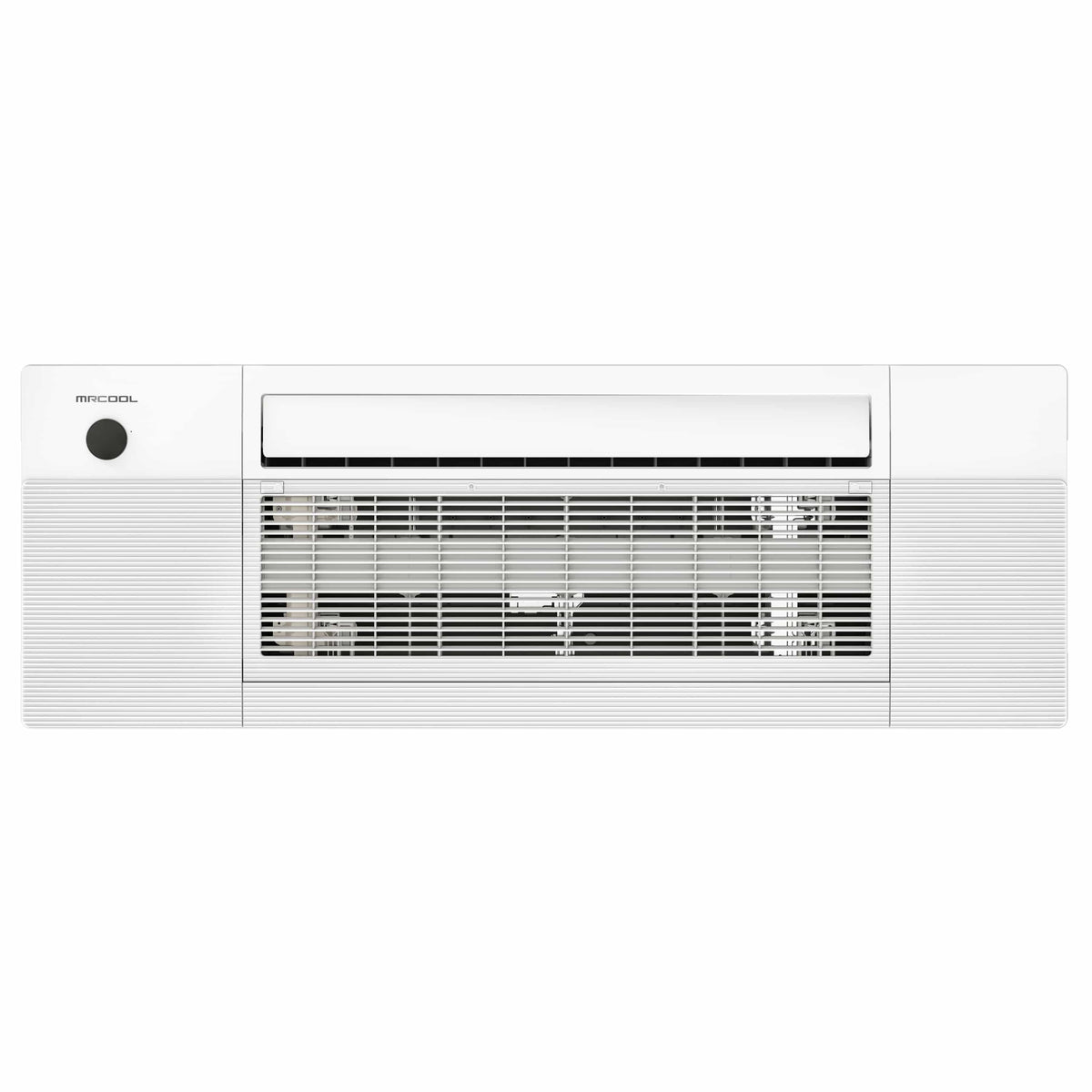

The 5th Generation MRCOOL® DIY® Series OuttaSight® 12K BTU 230V One-Way Ceiling Cassette is a sleek, efficient, and space-saving climate solution for areas up to 550 sq. ft. Engineered for easy installation, it seamlessly integrates into multi-zone systems, making it ideal for both new constructions and retrofit projects without requiring ductwork or wall space.

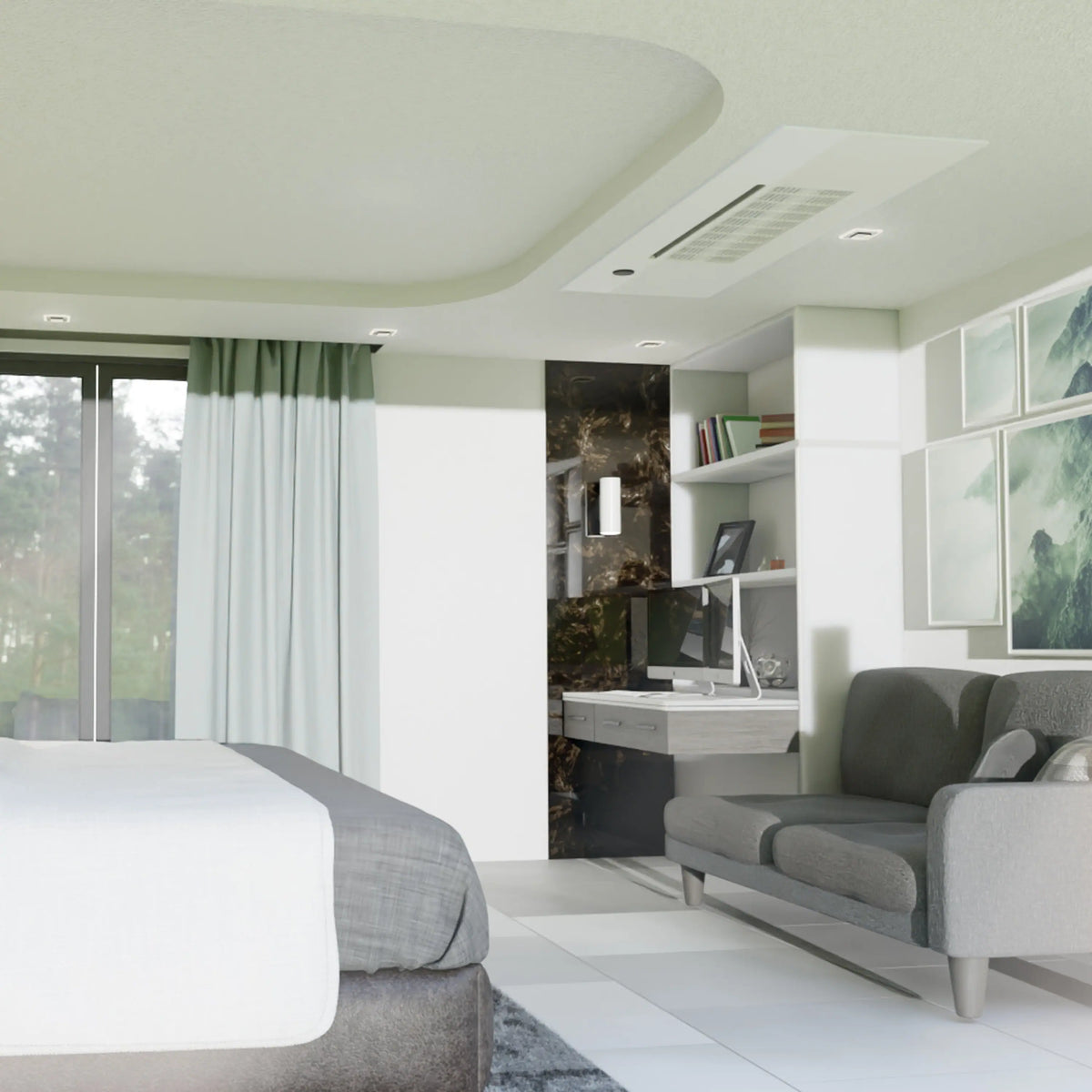

Designed for discreet placement, this cassette mounts flush between 16” ceiling joists, including pre-manufactured I-joists, providing a clean, modern appearance while maximizing room layout flexibility. It connects effortlessly to the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-454B, a more environmentally friendly refrigerant, eliminating the need for vacuuming and reducing installation time. With advanced filtration technology, this unit enhances indoor air quality, while the Elevation function lowers the filter panel for easy maintenance and cleaning. It operates quietly, ensuring a comfortable and peaceful environment in any room.
The cassette is fully controllable through a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant, giving you ultimate convenience and customization. Backed by an industry-leading warranty, including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, this system offers long-term dependability and year-round comfort.
|
Dimensions |
13.19" D x 8.98" H x 50.31" W |
|
CFM |
353 / 312 / 283 / 247 / 177 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
3 |
|
Mount Type |
Ceiling |
|
Color |
White |
|
Rated Load |
1 |
|
Max Coverage Area |
550 |
|
Refrigerant Type |
R-454B |
|
Decibel Rating (DBA) |
37 |
|
Decibel Rating Low (DBA) |
24 |
|
Decibel Rating High (DBA) |
41 |
|
Air Flow Direction |
1-Way |
|
Liquid Line Size |
1/4 |
|
Suction Line Size |
3/8 |
|
Blower Motor RPM |
1075/982/797 |
|
Filter Type |
Reusable |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Sleep Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
Registered Warranty |
Limited Lifetime Compressor |
|
Base Warranty |
5-Year Part/7-Year Compressor |
|
Bas Parts Warranty |
5 Years |
|
Registered Compressor Warranty |
Limited Lifetime Compressor |
|
Base Compressor Warranty |
7 Years |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
GU;PR;VI |
|
Net Weight (Lbs) |
45 |
|
Gross Weight (Lbs) |
88 |

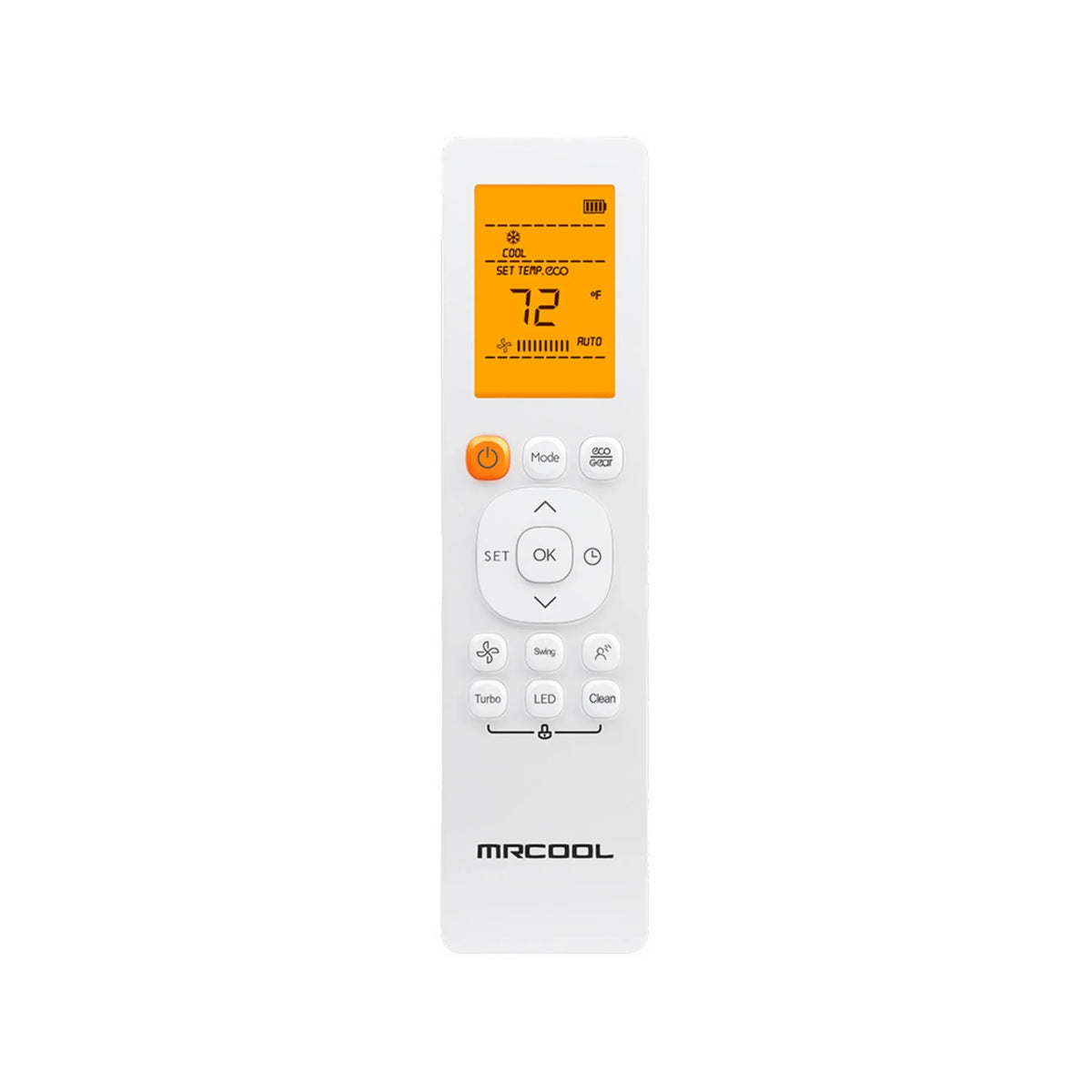

This remote is included with each air handler in MRCOOL's 5th Generation DIY Ductless Mini Split Systems.
| Dimensions | 2" W x 6" L x 1" H |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States | GU;PR;VI |
| Color | White |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
