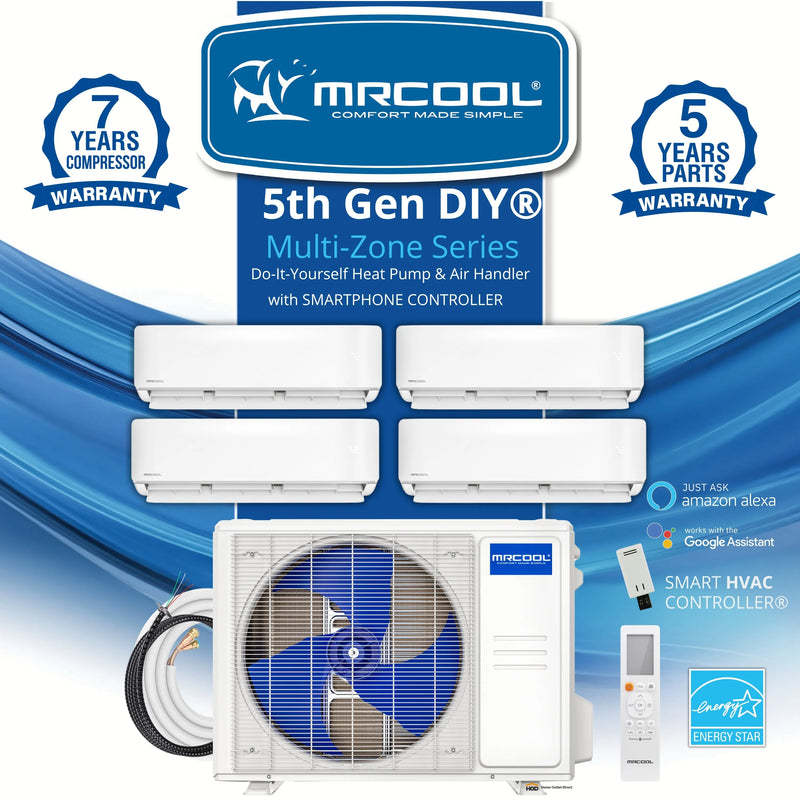

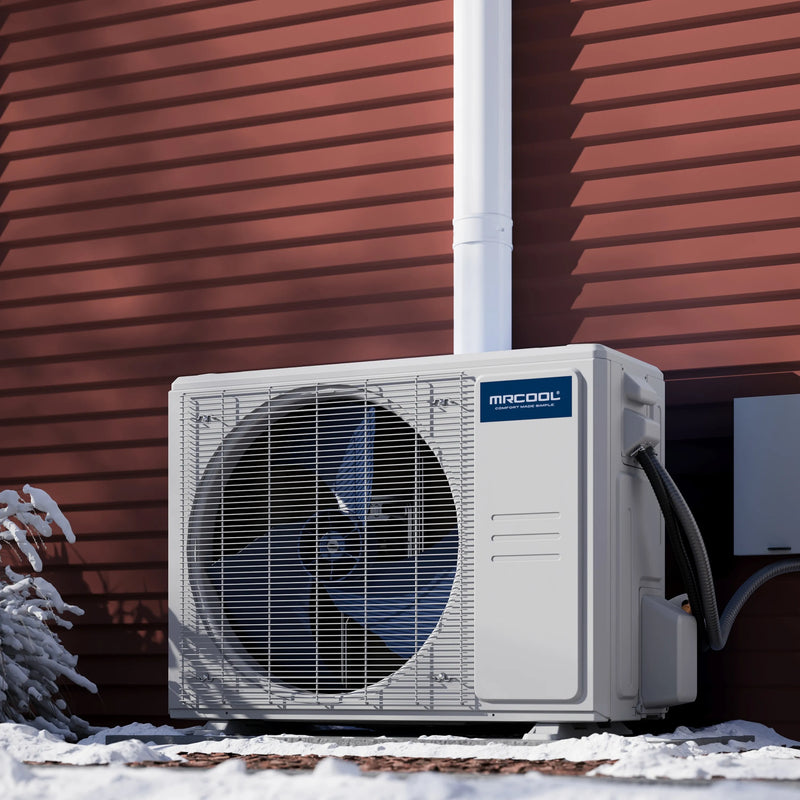

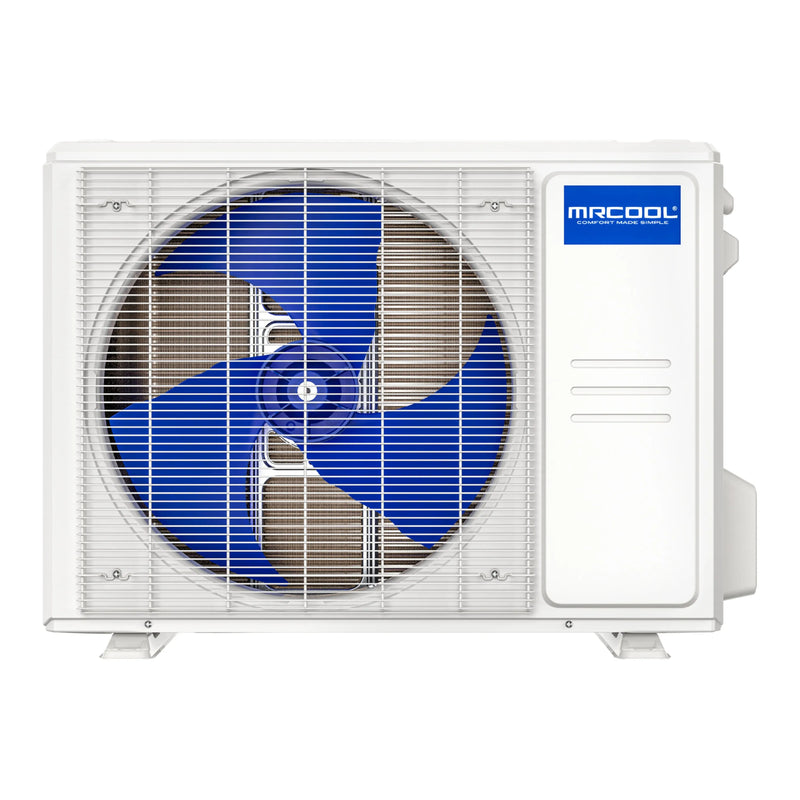

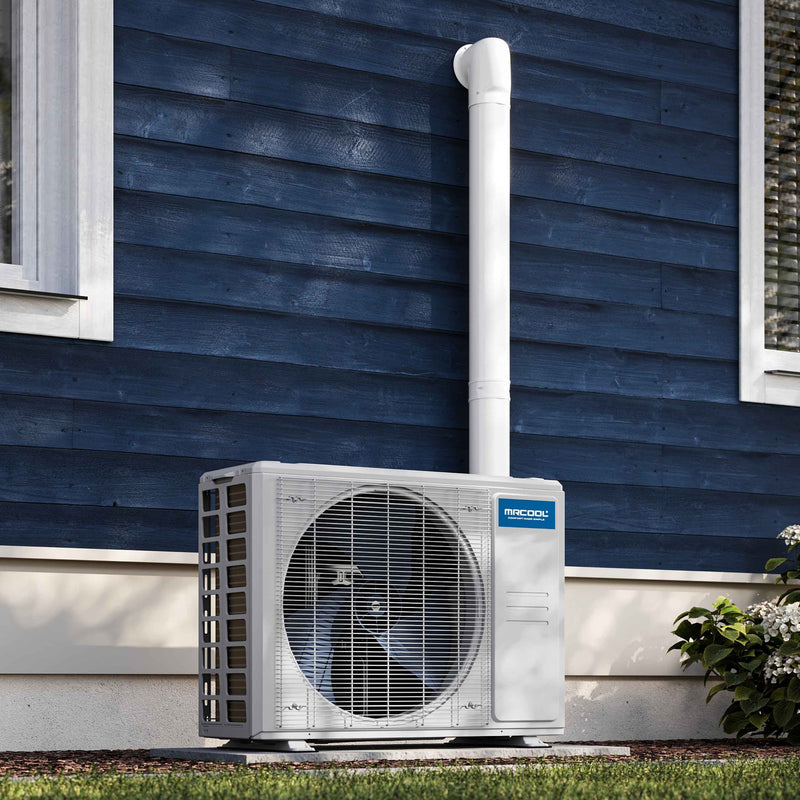

If you’re in need of comfort, our new 5th Generation MRCOOL® DIY® 27k BTU Multi-Zone Ductless Mini Split Condenser is the perfect solution! The acronym in the name is true - you can install this system on your own, without the assistance of an HVAC professional! You’ll save money in more ways than one, too, due to the incredible efficiency of this system, which attains a SEER2 rating of 23 and a HSPF2-4 rating of 9.5.
This condenser in particular is able to support up to 4 air handlers, meaning it can provide heat and air conditioning to four separate spaces equalling a total of 1,000 to 1,200 square feet. This system is unique because it utilizes special, patented Quick Connect® line sets that are pre-charged with R-454B, which is a newer refrigerant that allows the system to be even more sustainable and efficient than its previous generation. These line sets essentially link to the fittings of the condenser and the air handler, making the installation process a breeze.
Once installed, this condenser will be able to do more than you expect! Our SmartHVAC app gives you the opportunity to integrate the system with your phone and Amazon Alexa or Google Home, which will let you control your comfort using just your voice. The app also gives you the ability to customize your comfort with a range of features, from setting schedules to monitoring the system’s energy use. You deserve to have your comfort meet your standards, and this unit can do that for you. Should something happen to the system, we’ve got your back. The DIY® series boasts one of the foremost warranties in the HVAC industry - a 5 year parts warranty, a 7 year compressor warranty, and a Limited Lifetime Replacement warranty if you enroll in the MRCOOL® Care Program. Get the best for your home and install a DIY®!
| Dimensions | 16.14" D x 31.89" H x 37.24" W |
|
SEER2 |
23 |
|
EER2 |
12 |
|
HSPF2-4 |
9.5 |
|
HSPF2-5 |
7 |
|
Tonnage |
2.25 |
|
Cooling Capacity (BTU) |
26000 |
|
Heating Capacity (BTU) |
26000 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
25 |
|
Min Circuit Ampacity (A) |
23 |
|
Color |
White |
|
Zone Capacity |
4 |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (OZ) |
84.66 |
|
Decibel Rating (DBA) |
61 |
|
Inverter |
DC |
|
Line Set Length |
25 |
|
Max Lineset Length (FT) |
221.4 |
|
Liquid LIne Size |
1/4 |
|
Suctio Line Size |
3/8 |
|
Compressor Motor Type |
Rotary |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contans Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |

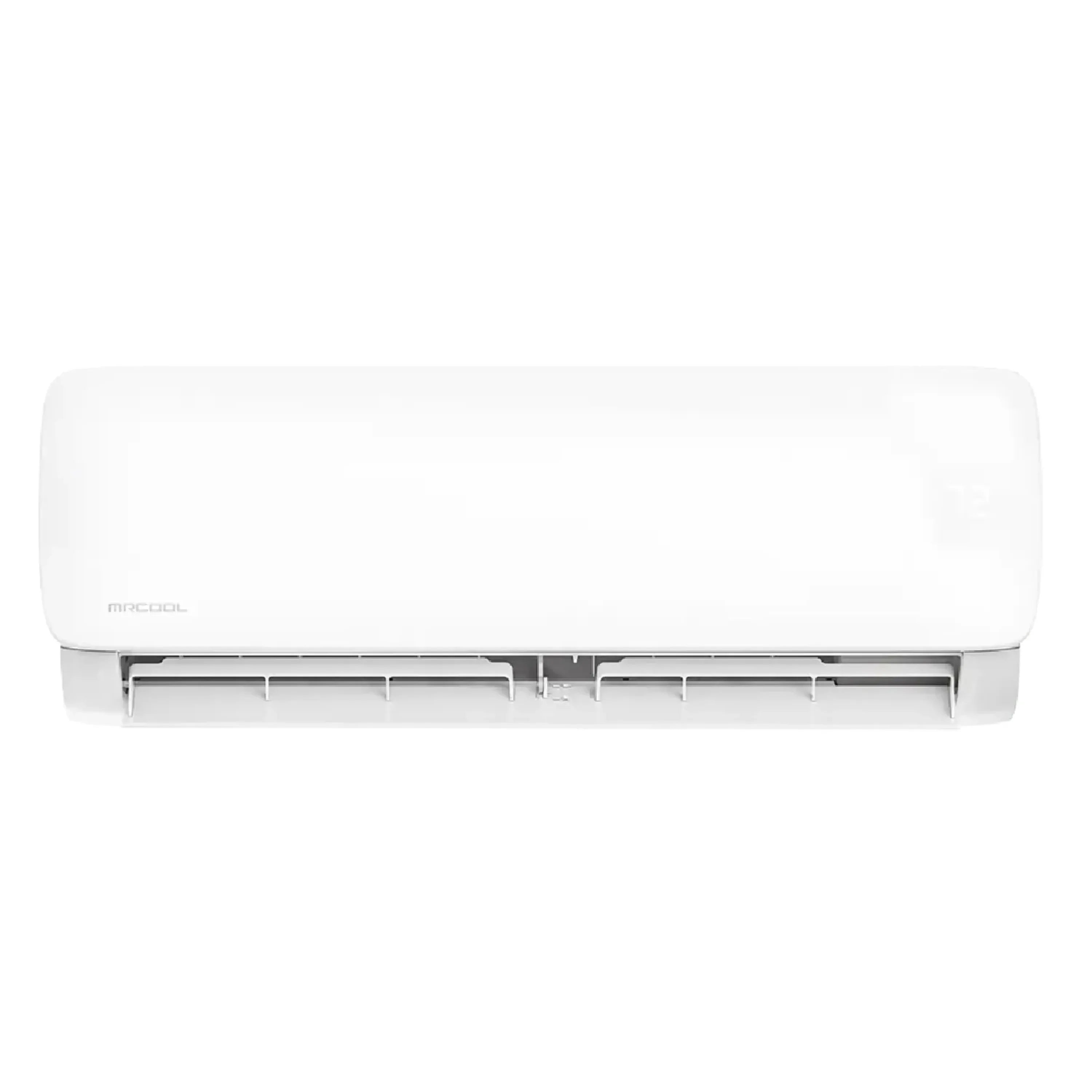

The 5th Generation MRCOOL® DIY® 18K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler is a powerful and efficient solution for heating and cooling spaces up to 800 sq. ft.
Designed with a true DIY installation in mind, this system eliminates the need for special tools or professional assistance, making setup fast, simple, and cost-effective. One of the standout features is the pre-charged 25-foot DIY® QuickConnect® line set, which comes pre-filled with R-454B refrigerant. This means there’s no need for vacuuming, cutting down on installation time and costs. Additionally, the included DIYPRO® cable removes the need for electrical conduit, providing added durability and protection against outdoor elements and wildlife. Controlling your system is effortless with multiple options to fit your lifestyle. Adjust settings using the wireless remote, the SmartHVAC app for Apple and Android devices, or hands-free voice commands through Amazon Alexa and Google Assistant.
Engineered for long-lasting performance, the Gold Fin® Condenser in the outdoor unit offers superior corrosion resistance, especially beneficial in coastal environments. For added comfort, the Follow Me function on the remote allows the air handler to monitor and adjust airflow based on the remote’s location, ensuring even temperature control. Dry Mode helps maintain a comfortable indoor environment by reducing excess humidity and condensation buildup. Backed by industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—the 5th Generation MRCOOL® DIY® is built for reliability. Enjoy smart features, easy installation, and dependable year-round comfort with this innovative ductless mini-split system.
|
Dimensions |
8.9" D x 13.19" H x 42.52" W |
|
Tonnage |
1.5 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
3 |
|
Mount Type |
Wall |
|
Color |
White |
|
Max Coverage Area |
800 sqft |
|
Decibel Rating Low (DBA) |
19 |
|
Decibel Rating High (DBA) |
54.5 |
|
Number of Speeds |
5 |
|
Oscillation |
Yes |
|
Liquid Line Size |
1/4 |
|
Suction Line Size |
1/2 |
|
Filter Type |
Reusable |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
| Works with Android | |
|
Remote Control Included |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
| Energy Star Certified | |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Net Weight (Lbs) |
35.49 |
|
Gross Depth (In) |
17.68 |
|
Gross Height (In) |
14.29 |
|
Gross Width (In) |
46.73 |
|
Gross Weight (Lbs) |
49.6 |
The 5th Generation MRCOOL® DIY® 9K BTU 22.5 SEER Ductless Mini-Split Heat Pump is a highly efficient and powerful solution for heating and cooling areas up to 400 sq. ft. Designed specifically for easy DIY installation, this system removes the need for specialized tools or professional help, allowing for a quick, hassle-free, and budget-friendly setup. One of its most convenient features is the pre-charged 25-foot DIY® QuickConnect® line set, which comes filled with R-454B refrigerant. This eliminates the need for vacuuming, reducing both installation time and labor costs.
Additionally, the DIYPRO® cable replaces the need for electrical conduit, enhancing durability and protection against outdoor elements and wildlife. With multiple control options, adjusting your system is effortless. You can operate it using the wireless remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. The Follow Me function enhances comfort by adjusting airflow based on the remote’s location, ensuring even temperature distribution. Dry Mode also helps regulate humidity, keeping indoor conditions comfortable.
Built for long-term durability, the Gold Fin® Condenser offers superior corrosion resistance, making it ideal for coastal environments. Supported by industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL® DIY® system delivers reliable, year-round climate control with innovative features and easy installation.
| Dimensions | 7.44" D x 11.69" H x 31.57" W |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Mount Type |
Wall |
|
Color |
White |
|
Max Coverage Area |
400 sqft |
|
Oscillation |
Yes |
|
Filter Type |
Reusable |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |

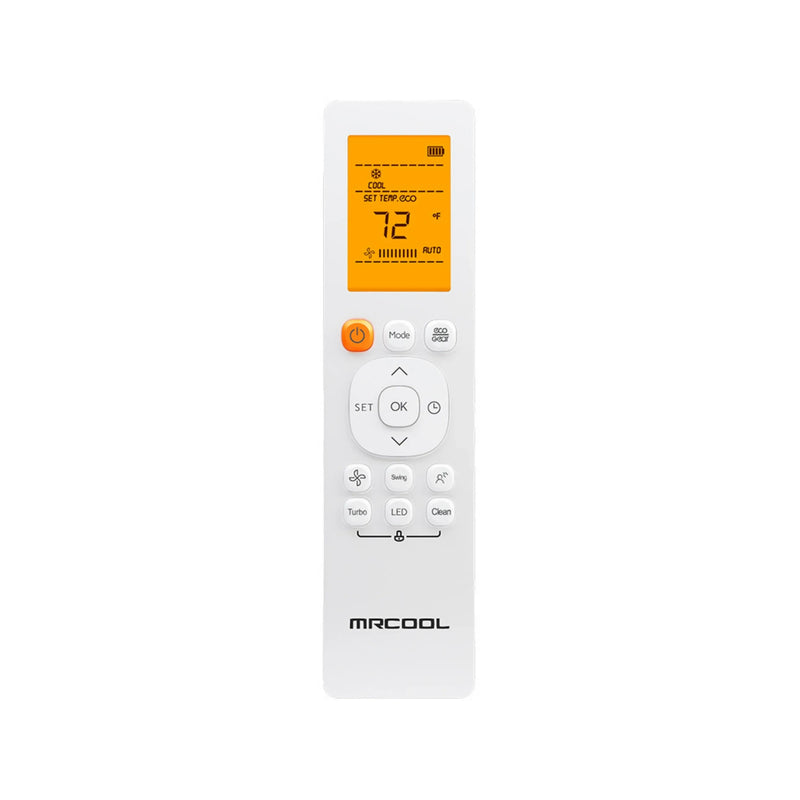

This remote is included with each air handler in MRCOOL's 5th Generation DIY or Advantage Mini Split Systems.
| Dimensions | 2" W x 6" L x 1" H |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States | GU;PR;VI |
| Color | White |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
