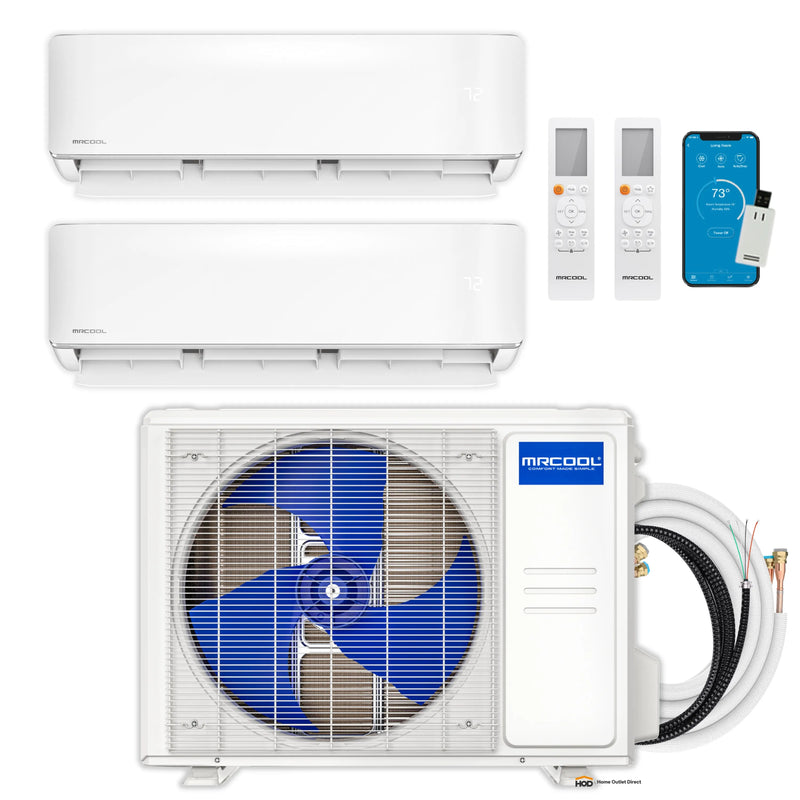

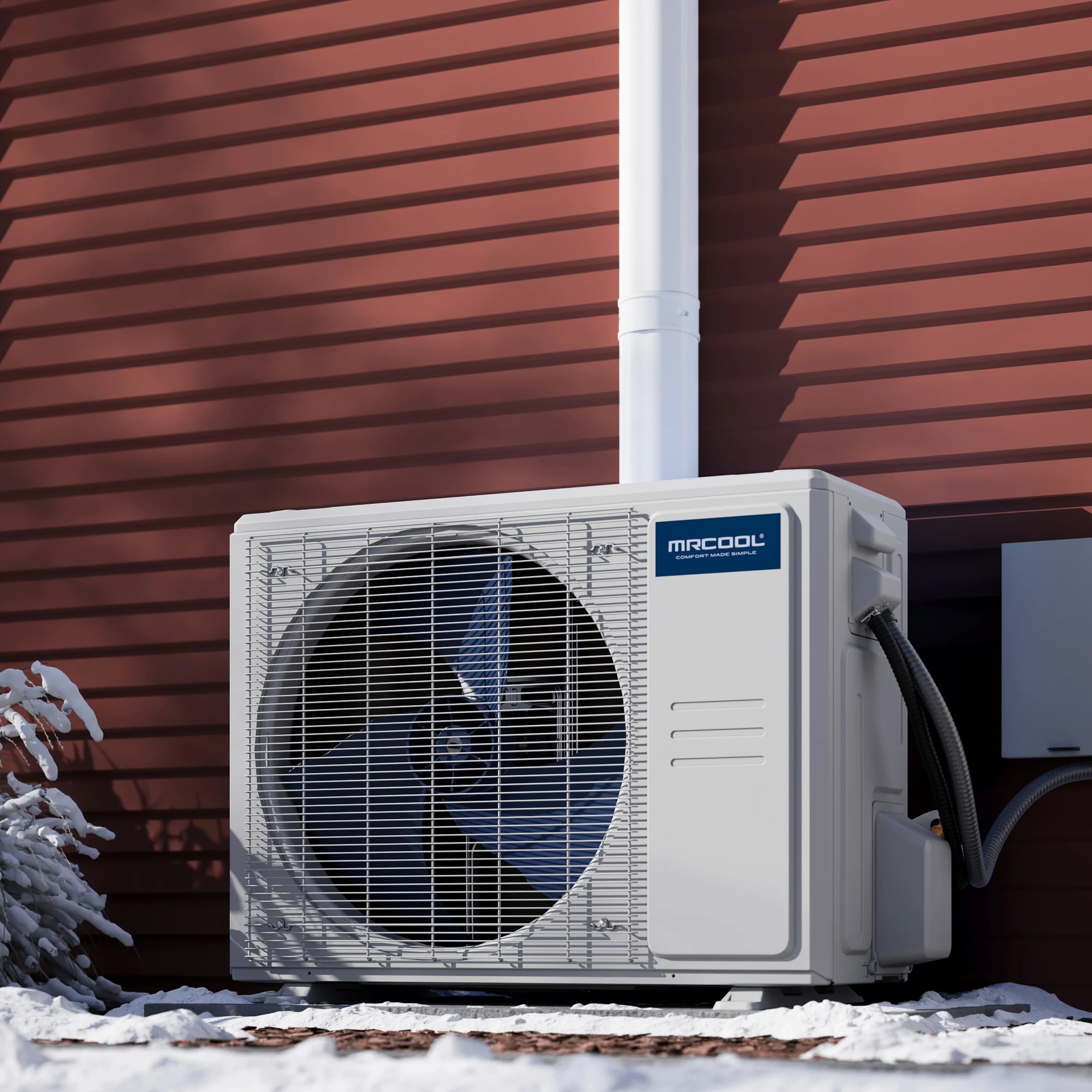

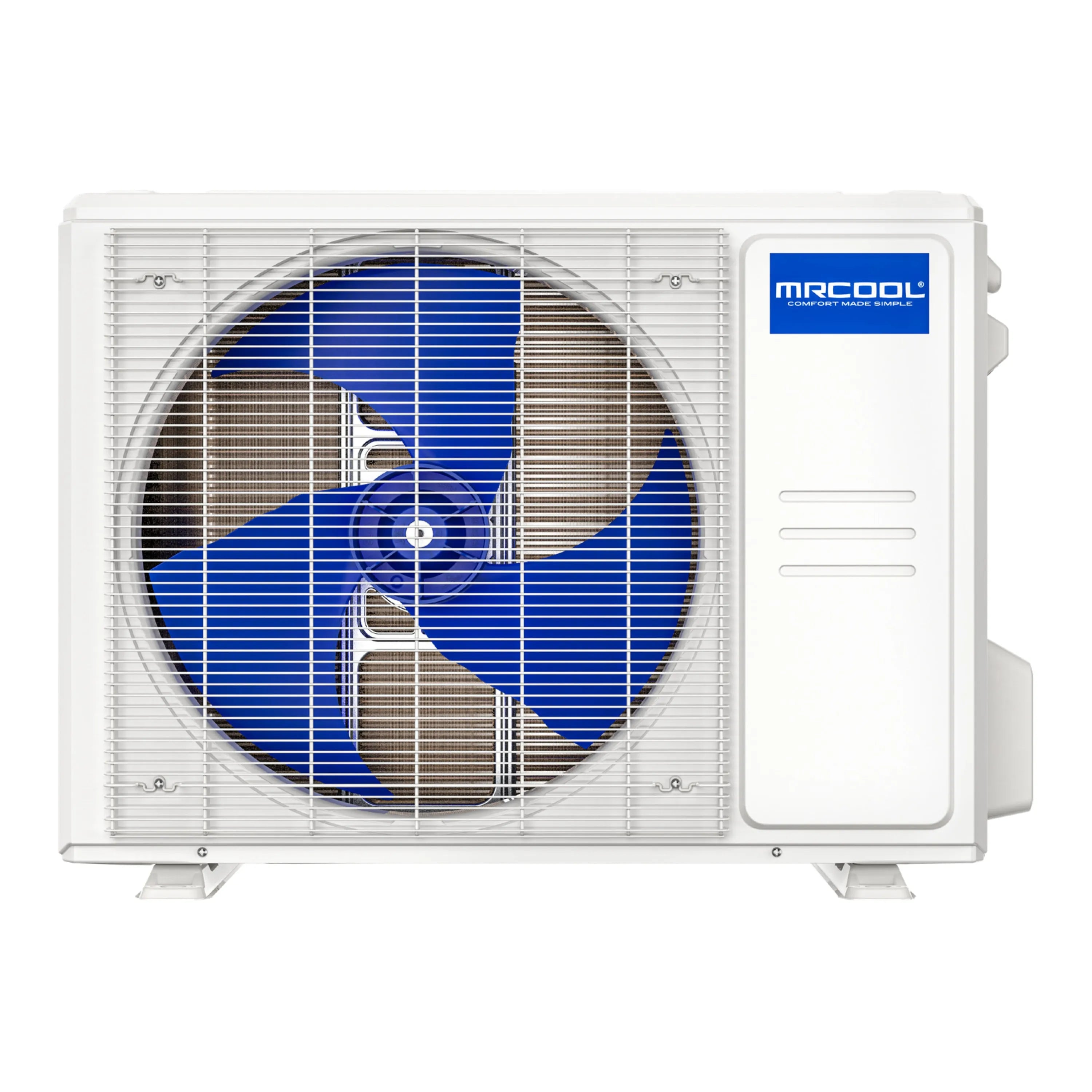

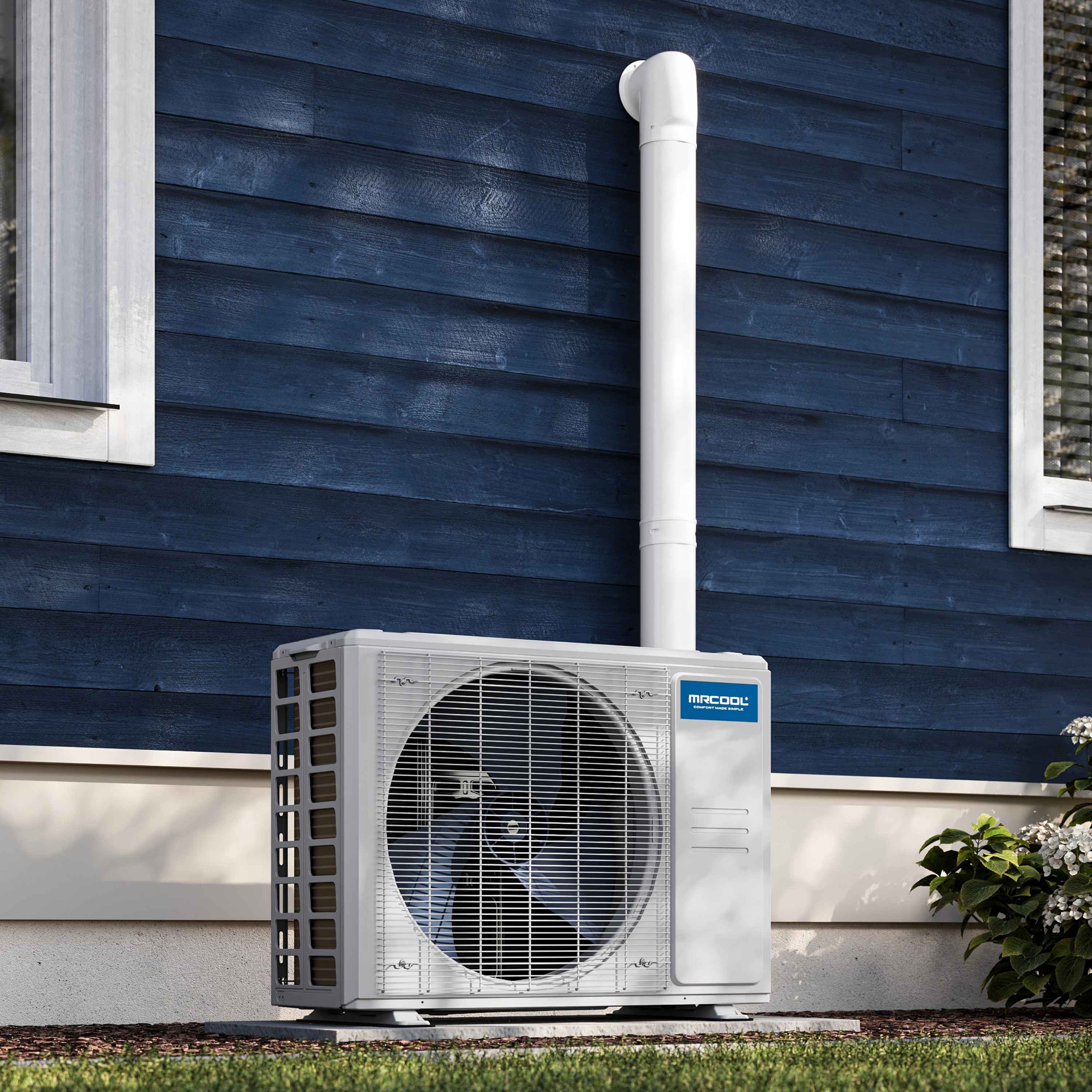

We are thrilled to announce our new 5th Generation MRCOOL® DIY® 18k BTU Multi-Zone Ductless Mini Split Condenser, which is the best and most convenient way to get comfortable. You won’t need the services of an HVAC professional to install this unit, because it’s do-it-yourself! Achieving a SEER2 rating of 23.9 and an HSPF2-4 rating of 10, you can rest easy knowing this unit will help you save money as you chill. This condenser can also support up to three air handlers, meaning it can heat and cool three rooms that are a combined 750 square feet in size, making it a perfect option if you have spare bedrooms in need of heating and cooling.
What makes this system different is our patented pre-charged Quick Connect® line sets filled with R-454B, an incredibly efficient and eco-friendly refrigerant. This switch from the previous refrigerant makes the system even more efficient and sustainable than before. The design of these innovative line sets allow you to install the system yourself, saving you time and money.
This condenser is more than just a heating and cooling unit. When operating as a system, you will be able to experience total customization with the unit’s wealth of features. For example, you can integrate your system with Amazon Alexa or Google Home through the Smart HVAC app, allowing you to control your system with your voice and monitor its operation with the touch of a button. You can also set schedules, temperature ranges, and mode of operation through the app. The power of comfort is in your hands with this system. In the unlikely event that something happens to the system, we’ve got you covered. The DIY® series comes with one of the best warranties in the industry - a 7 year compressor warranty, a 5 year parts warranty, and a Limited Lifetime Replacement warranty with enrollment in the MRCOOL® Care Program. Give yourself the best comfort with the DIY®.
| Dimensions | 13.46" D x 26.5" H x 35.04" W |
|
SEER2 |
23.9 |
|
EER2 |
13 |
|
HSPF2-4 |
10 |
|
HSPF2-5 |
7.8 |
|
Tonnage |
1.5 |
|
Cooling Capacity (BTU) |
18000 |
|
Heating Capacity (BTU) |
18000 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
20 |
|
Min Circuit Ampacity (A) |
16 |
|
Color |
White |
|
Zone Capacity |
3 |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (OZ) |
61.73 |
|
Decibel Rating (DBA) |
60 |
|
Inverter |
DC |
|
Line Set Length |
25 |
|
Max Lineset Length (FT) |
172.2 |
|
Liquid LIne Size |
1/4 |
|
Suctio Line Size |
3/8 |
|
Compressor Motor Type |
Rotary |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contans Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |

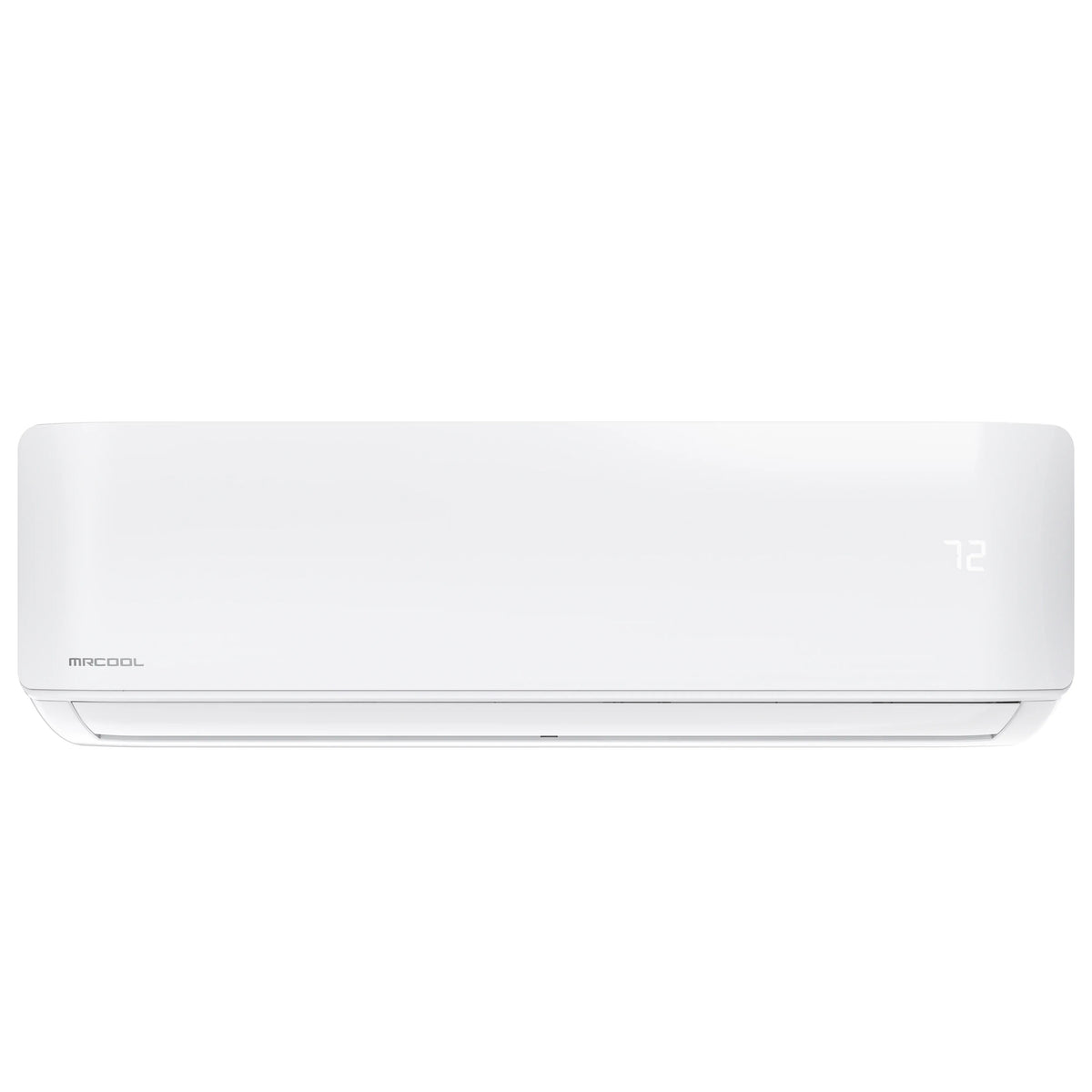

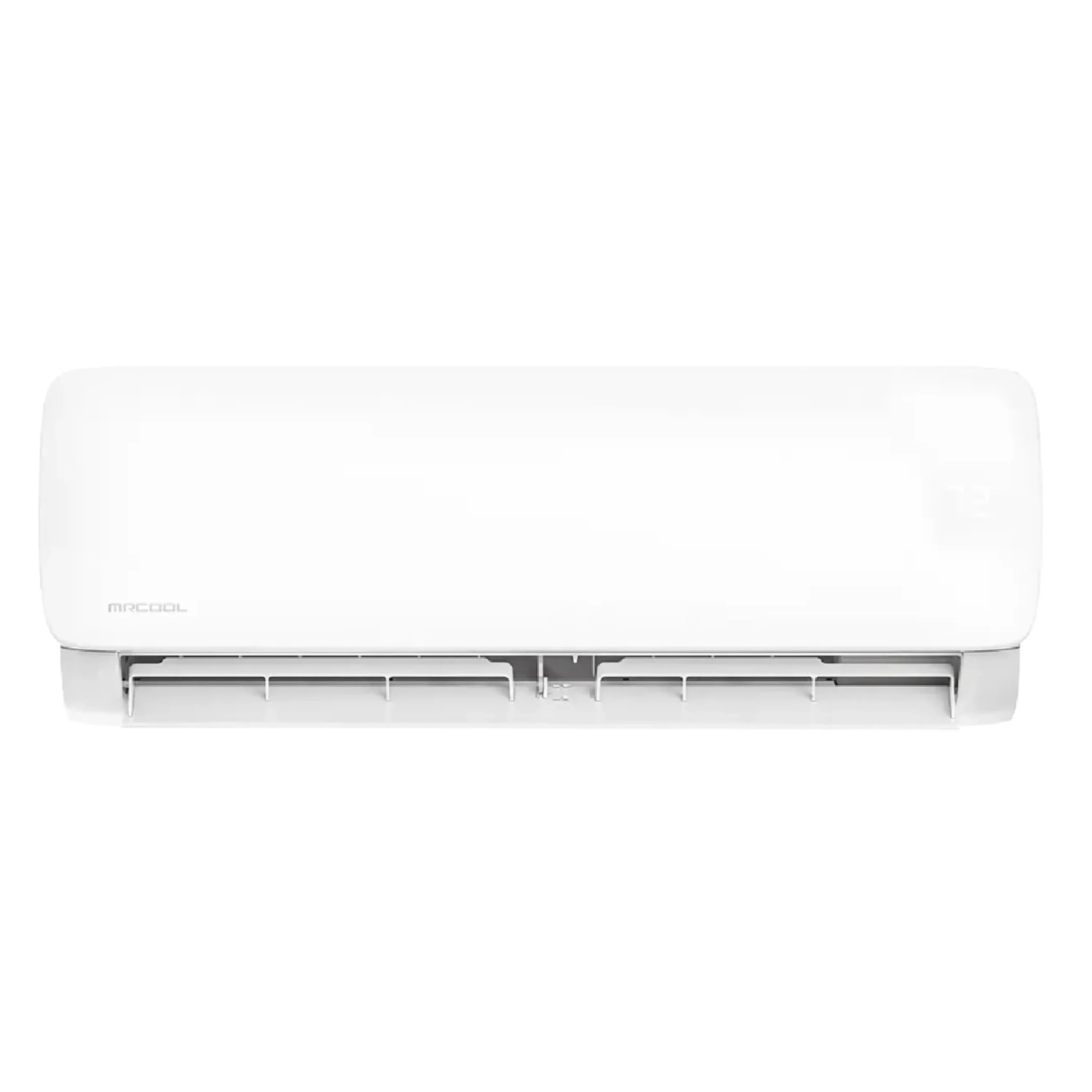

The 5th Generation MRCOOL® DIY® 9K BTU 22.5 SEER Ductless Mini-Split Heat Pump is a highly efficient and powerful solution for heating and cooling areas up to 400 sq. ft. Designed specifically for easy DIY installation, this system removes the need for specialized tools or professional help, allowing for a quick, hassle-free, and budget-friendly setup. One of its most convenient features is the pre-charged 25-foot DIY® QuickConnect® line set, which comes filled with R-454B refrigerant. This eliminates the need for vacuuming, reducing both installation time and labor costs.
Additionally, the DIYPRO® cable replaces the need for electrical conduit, enhancing durability and protection against outdoor elements and wildlife. With multiple control options, adjusting your system is effortless. You can operate it using the wireless remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. The Follow Me function enhances comfort by adjusting airflow based on the remote’s location, ensuring even temperature distribution. Dry Mode also helps regulate humidity, keeping indoor conditions comfortable.
Built for long-term durability, the Gold Fin® Condenser offers superior corrosion resistance, making it ideal for coastal environments. Supported by industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL® DIY® system delivers reliable, year-round climate control with innovative features and easy installation.
| Dimensions | 7.44" D x 11.69" H x 31.57" W |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Mount Type |
Wall |
|
Color |
White |
|
Max Coverage Area |
400 sqft |
|
Oscillation |
Yes |
|
Filter Type |
Reusable |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |

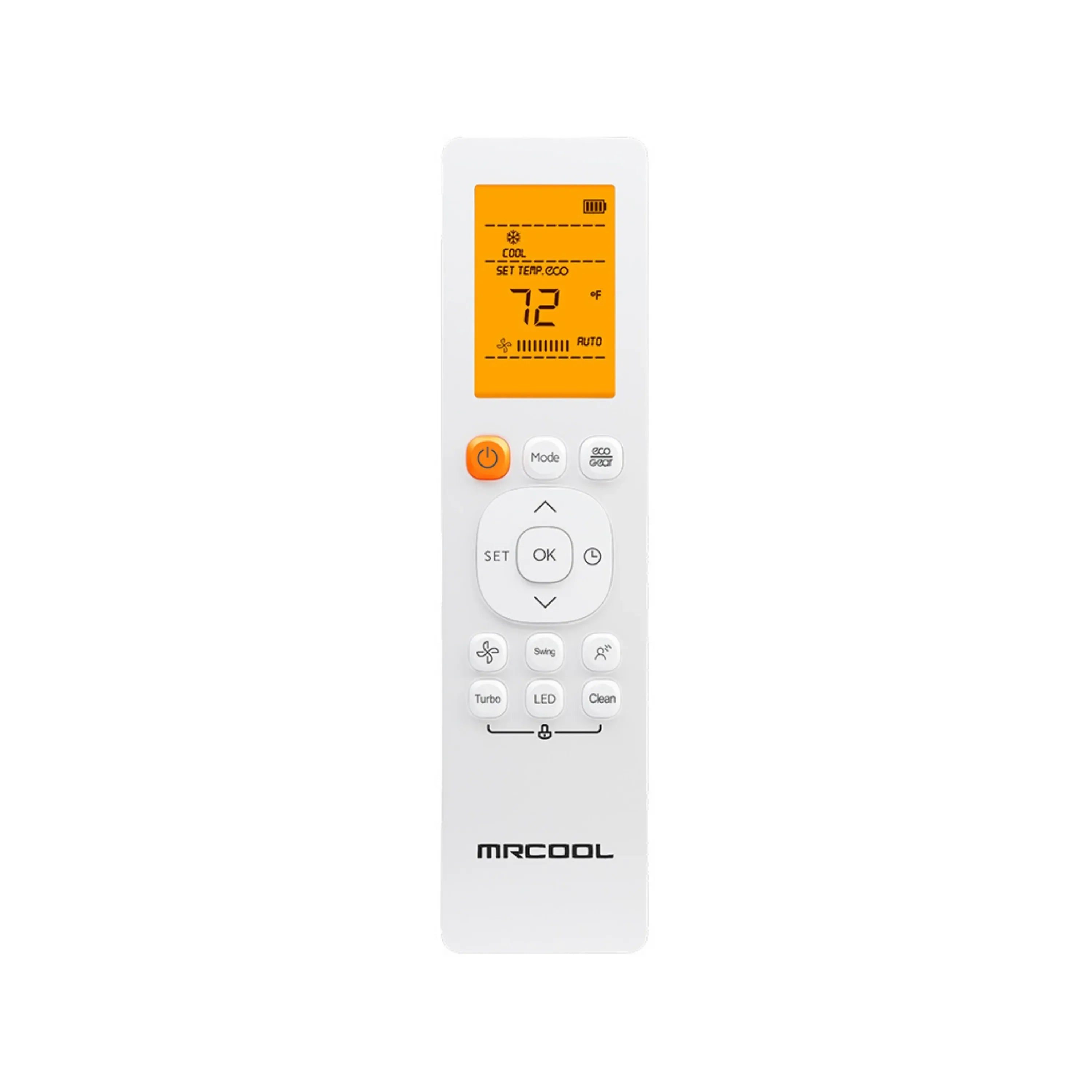

This remote is included with each air handler in MRCOOL's 5th Generation DIY Ductless Mini Split Systems.
| Dimensions | 2" W x 6" L x 1" H |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States | GU;PR;VI |
| Color | White |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
