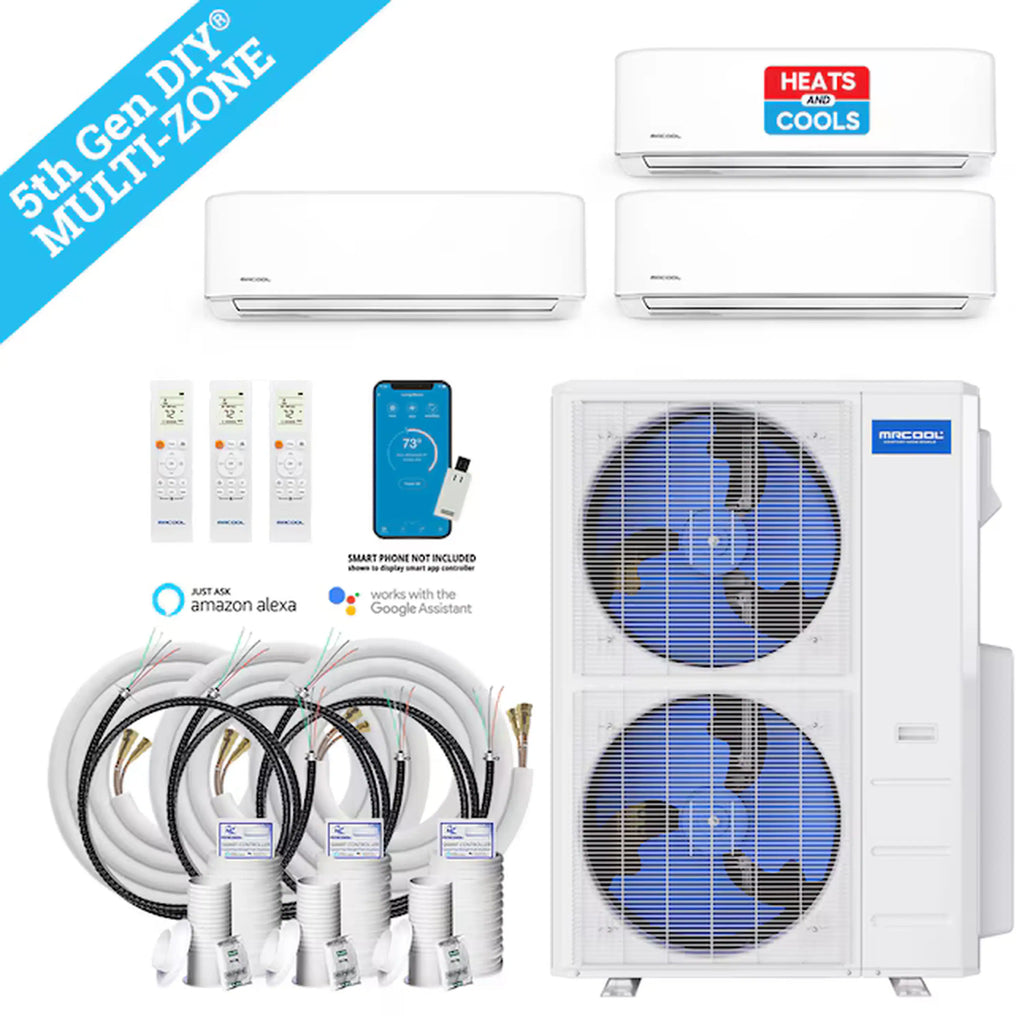

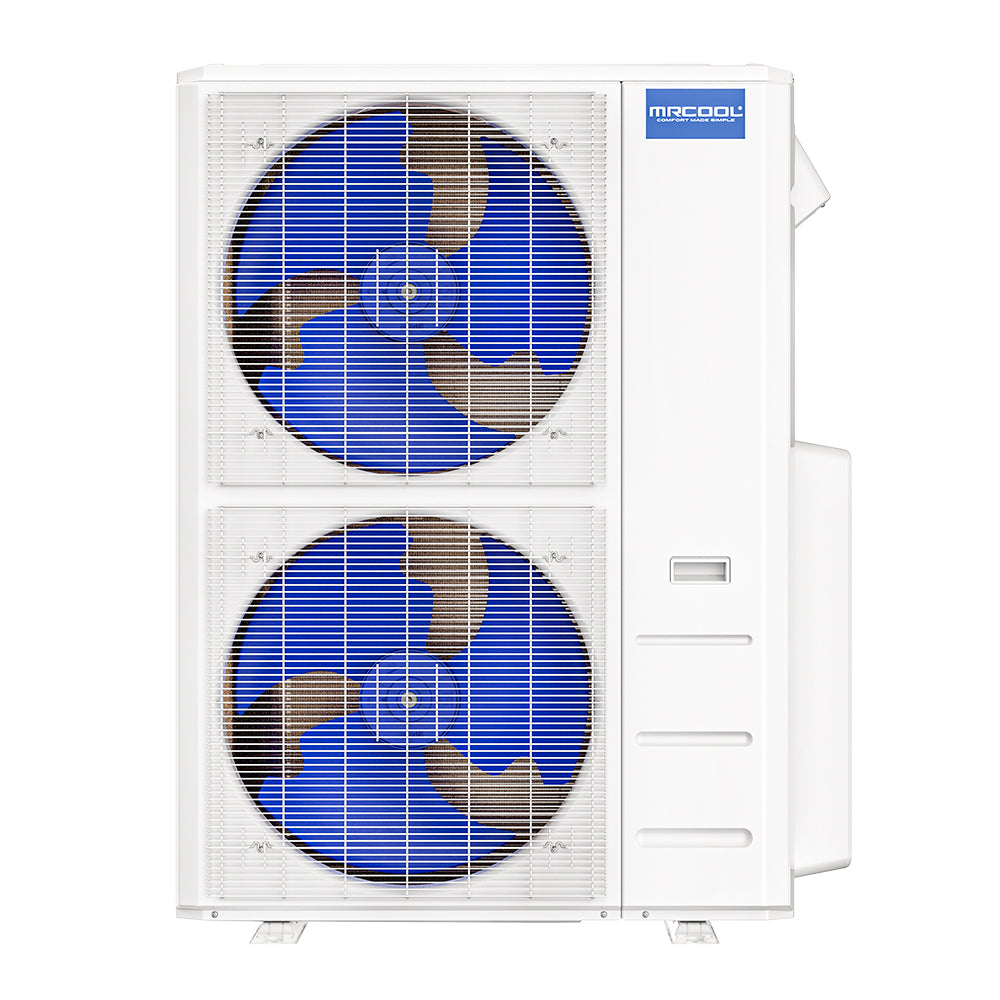

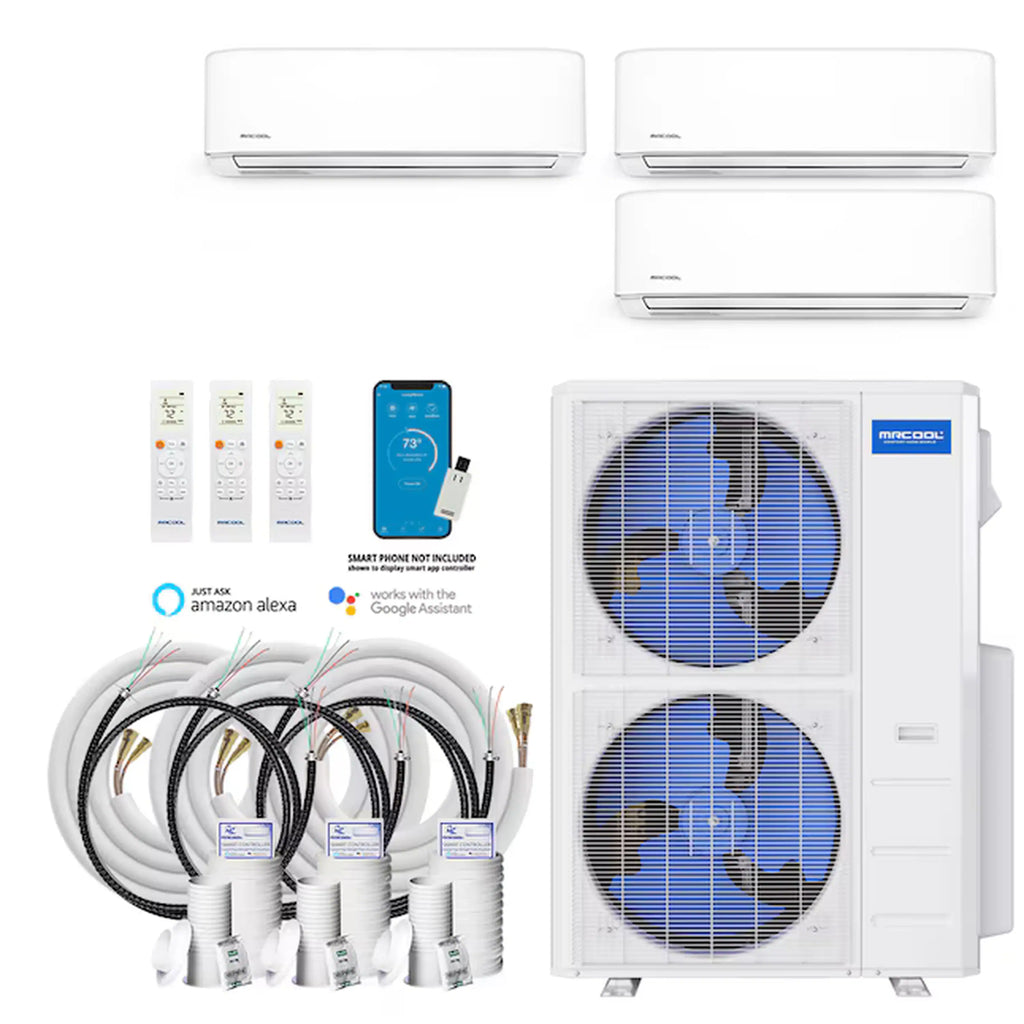

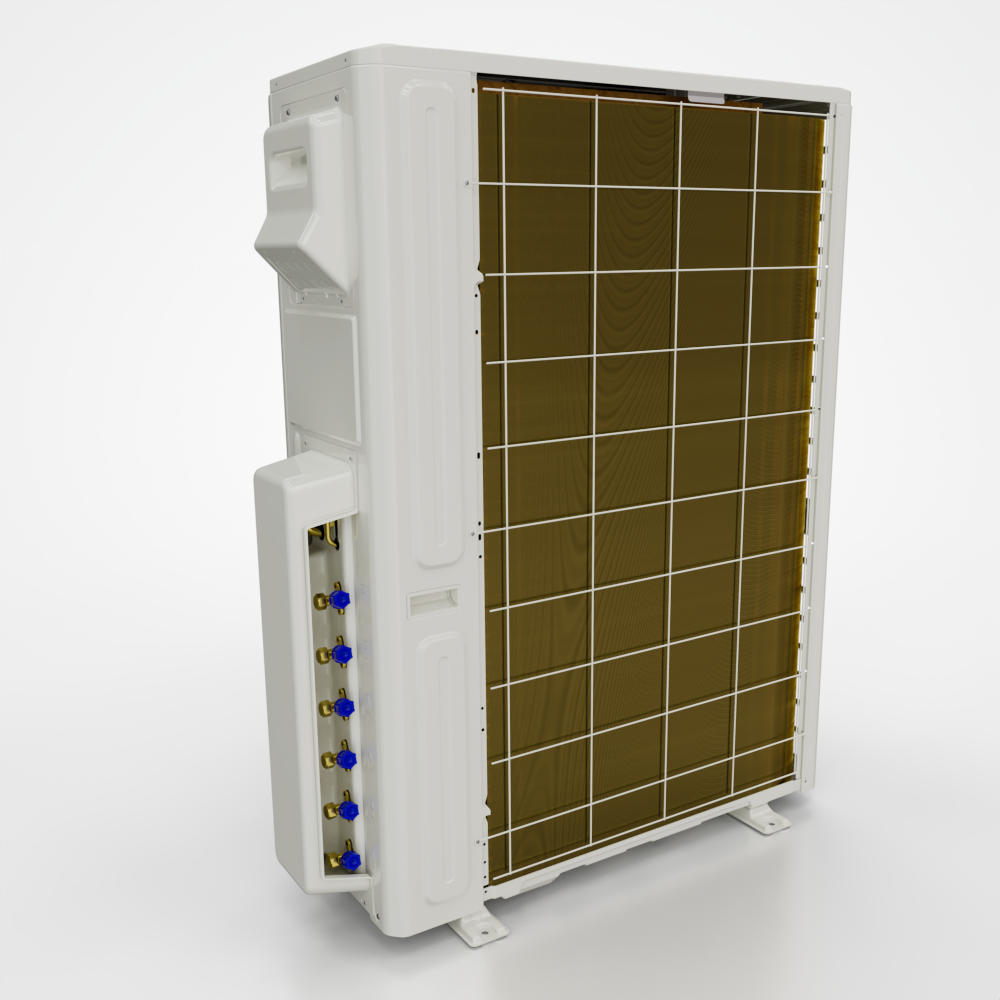

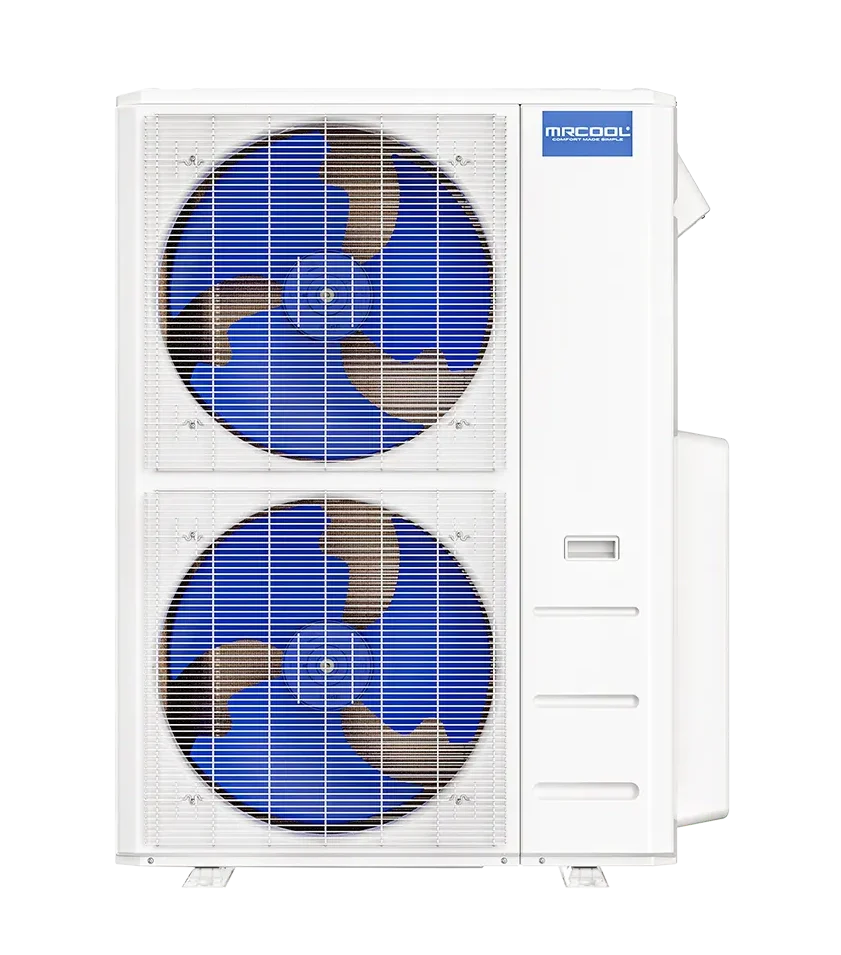

Our new 5th Generation MRCOOL® DIY® 55k BTU Multi-Zone Ductless Mini-Split Condenser is one of the most efficient and innovative units in the industry, and we’re excited to finally share it with you! On top of saving time and money because you won’t need an HVAC professional, this system will give you a good sense of accomplishment because you’ll have installed it yourself! The whole family will be able to enjoy the comfort of this condenser, because it can heat and cool up to 6 different spaces that equal up to 2290 sq. ft., giving you the ability to heat and cool an entire home to your exact specifications using a single MRCOOL® system.

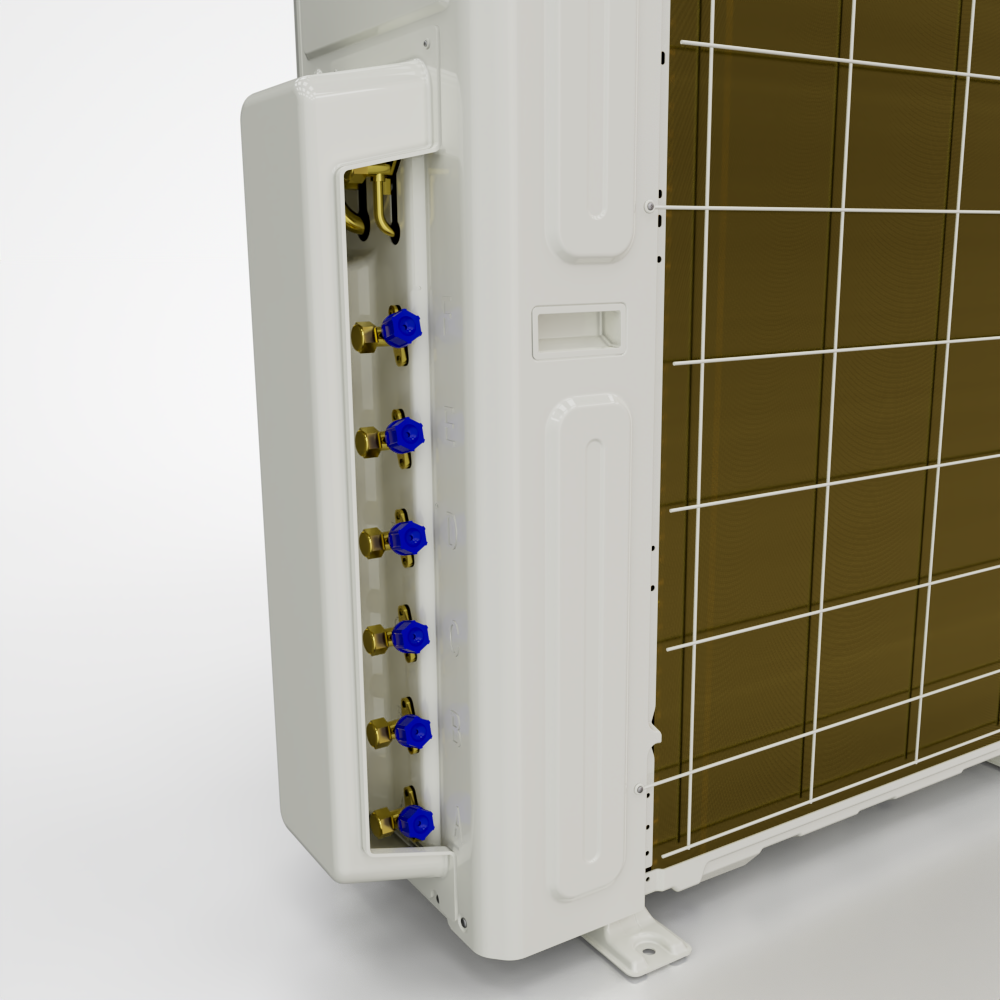

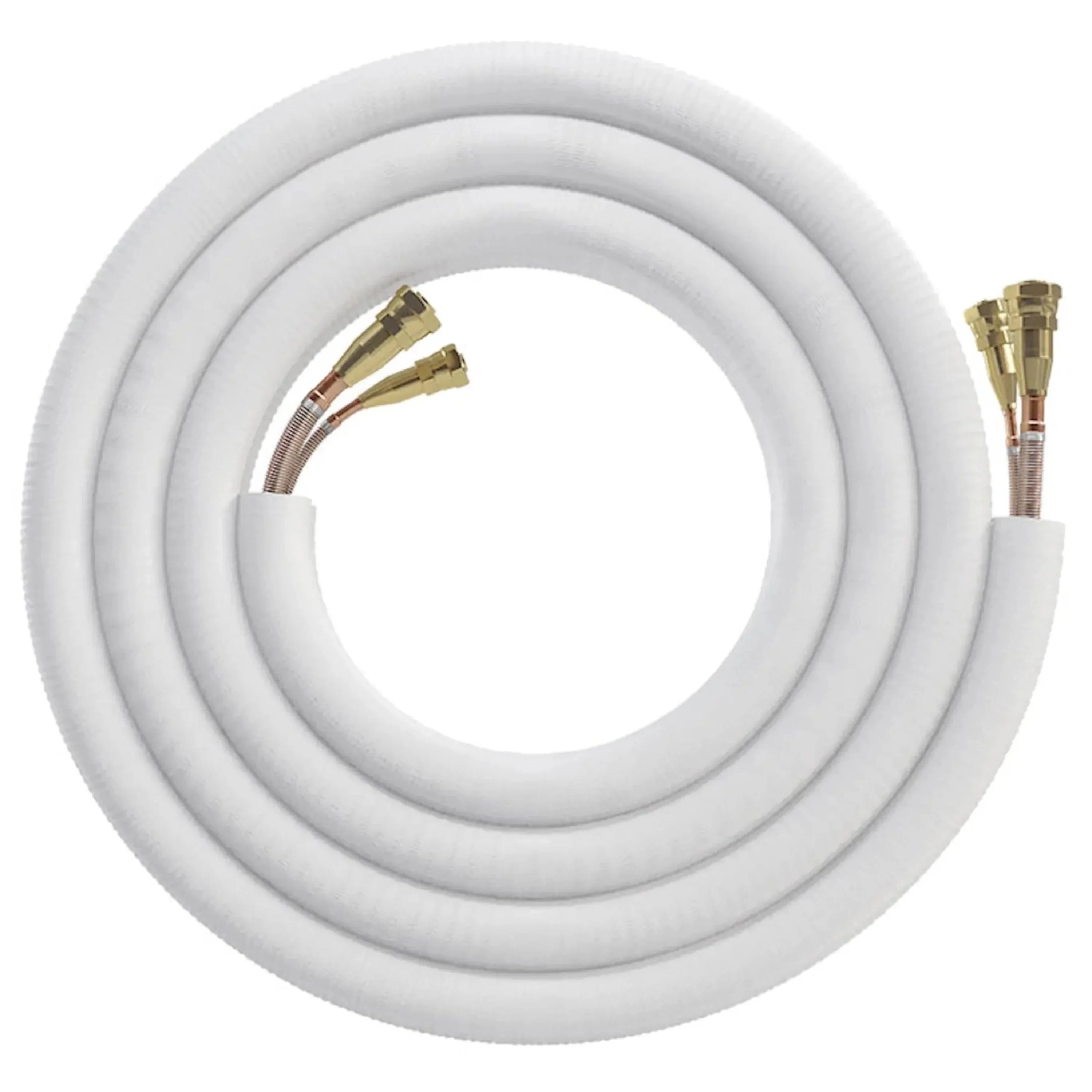

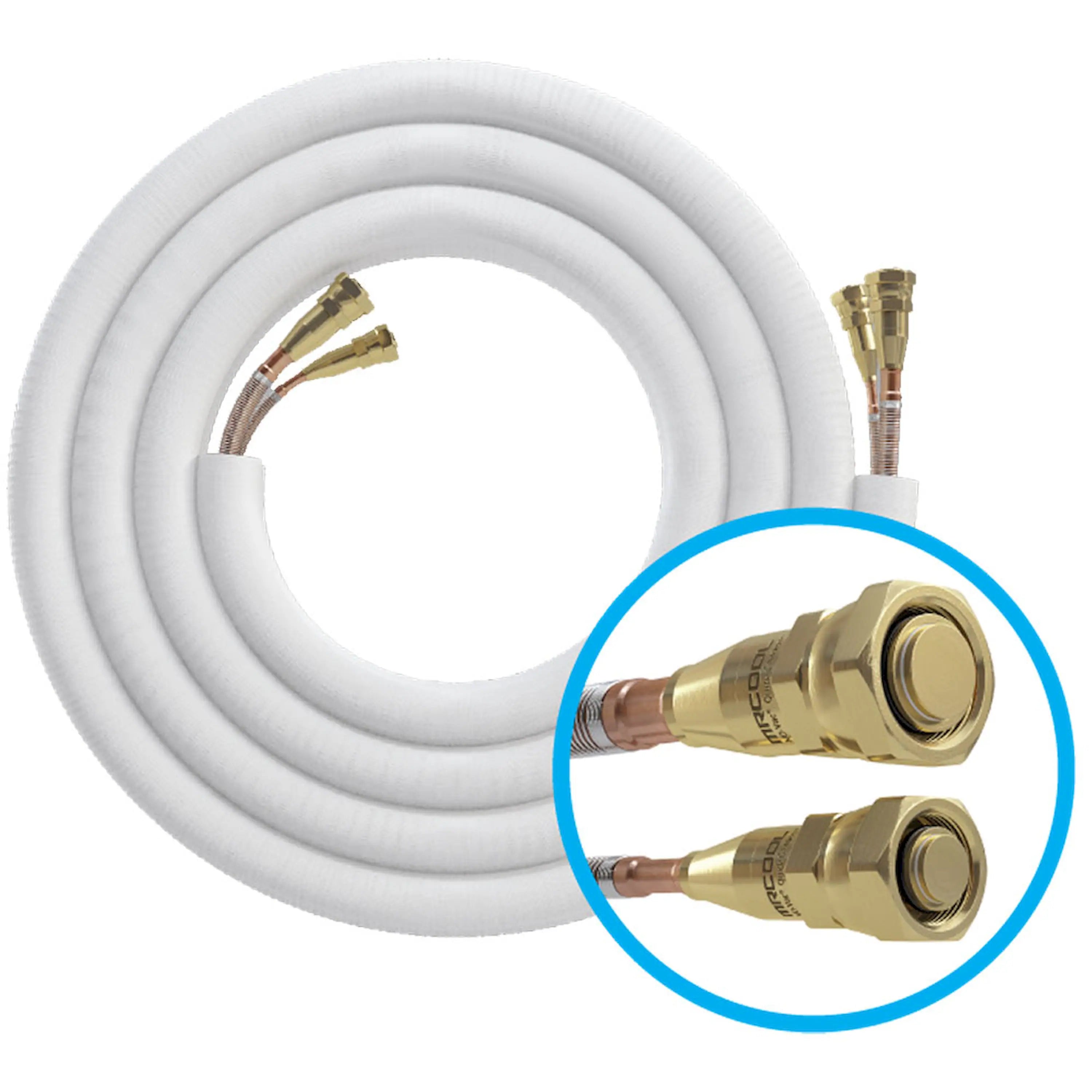

The system’s patented pre-charged Quick-Connect® line sets essentially fast-forward the installation of this system, enabling you to skip the evacuation and charging steps and simplifying the entire process. We utilize new R-454B refrigerant in these line sets, which is a much more environmentally friendly and efficient choice. Features like these assist this unit in achieving its impressive SEER2 of 22, and its HSPF2-4 of 10.6, both of which signify that this system will help you save money throughout the entire time you use it. Once you install this condenser, you’ll be met with a variety of features to help you control your comfort.
One of these features is the Smart HVAC app, available on Apple and Android, that allows you to operate your system from the convenience of your phone. Set schedules, manage different modes, monitor energy consumption, and more all without having to leave the couch! You can also set up voice control through Amazon Alexa or Google Home, meaning you can control your comfort without moving a finger. This system ensures you’ll be enjoying ultimate convenience and superior comfort. The warranty for this unit is one of the best in the industry, and we’re proud to have your back. You can enjoy the peace of mind of a 5 year parts warranty, a 7 year compressor warranty, and, once you enroll in the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. If you need perfect comfort but don’t want to break the bank, this MRCOOL® DIY® condenser is your answer!
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 16.34" D x 52.48" H x 37.48" W |
| GENERAL INFORMATION | |
| Color | White |
| Inverter | DC |
| Quiet Mode | Yes |
| Contans Chemicals | Yes |
| CAPACITY & PERFORMANCE | |
| SEER2 | 22 |
| EER2 | 12 |
| HSPF2-4 | 10.6 |
| HSPF2-5 | 8.5 |
| Tonnage | 4.6 |
| Cooling Capacity (BTU) | 47000 |
| Heating Capacity (BTU) | 55000 |
| Cycle | 60 |
| Zone Capacity | 6 |
| COMPRESSOR & MOTORS | |
| Compressor Motor Type | Rotary |
| NOISE LEVELS | |
| Decibel Rating (DBA) | 64 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 45 |
| Min Circuit Ampacity (A) | 43 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (OZ) | 151.68 |
| Line Set Length | 25 |
| Max Lineset Length (FT) | 221.4 |
| Liquid LIne Size | 1/4 |
| Suctio Line Size | (3/8 X4) (1/2 X2) |
| FILTER & HEATING | |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Auto Cool | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Warranty | Extended Limited Lifetime* |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |

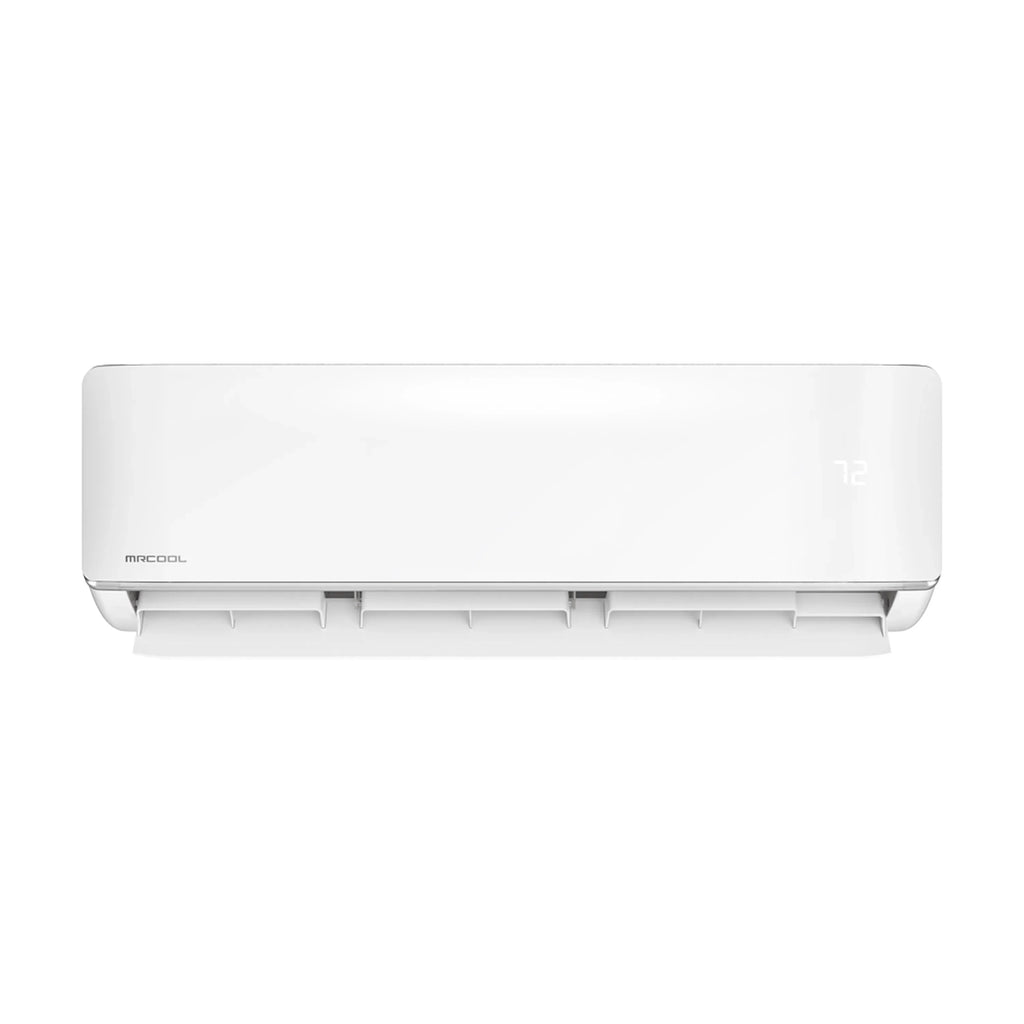

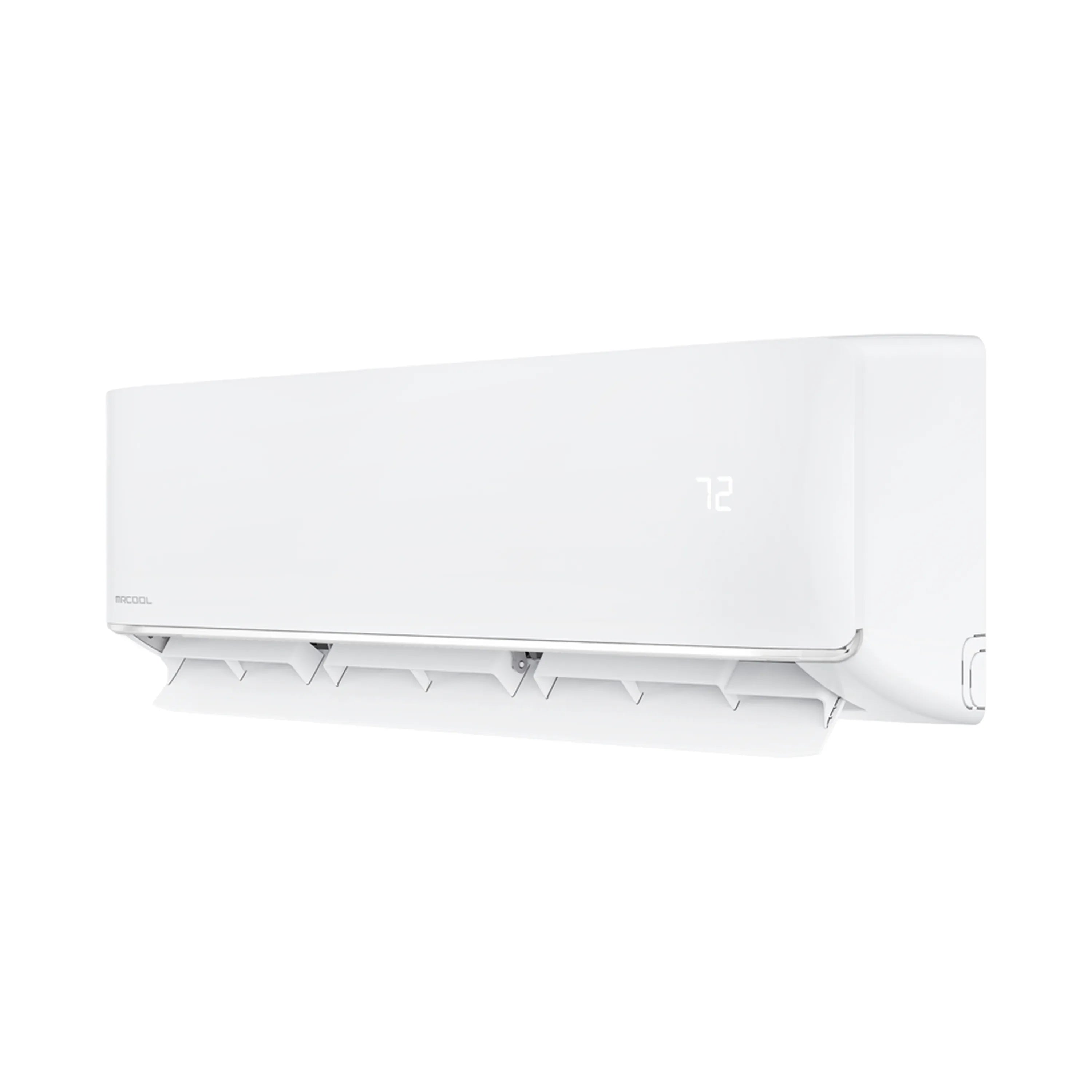

The 5th Generation MRCOOL® DIY® 9K BTU 22.5 SEER Ductless Mini-Split Heat Pump is a highly efficient and powerful solution for heating and cooling areas up to 400 sq. ft. Designed specifically for easy DIY installation, this system removes the need for specialized tools or professional help, allowing for a quick, hassle-free, and budget-friendly setup. One of its most convenient features is the pre-charged 25-foot DIY® QuickConnect® line set, which comes filled with R-454B refrigerant. This eliminates the need for vacuuming, reducing both installation time and labor costs.
Additionally, the DIYPRO® cable replaces the need for electrical conduit, enhancing durability and protection against outdoor elements and wildlife. With multiple control options, adjusting your system is effortless. You can operate it using the wireless remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. The Follow Me function enhances comfort by adjusting airflow based on the remote’s location, ensuring even temperature distribution. Dry Mode also helps regulate humidity, keeping indoor conditions comfortable.
Built for long-term durability, the Gold Fin® Condenser offers superior corrosion resistance, making it ideal for coastal environments. Supported by industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL® DIY® system delivers reliable, year-round climate control with innovative features and easy installation.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 7.44" D x 11.69" H x 31.57" W |
| GENERAL INFORMATION | |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | 400 sqft |
| Oscillation | Yes |
| Quiet Mode | Yes |
| CAPACITY & PERFORMANCE | |
| Cycle | 60 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| FILTER & HEATING | |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Auto Cool | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Warranty | Extended Limited Lifetime* |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |

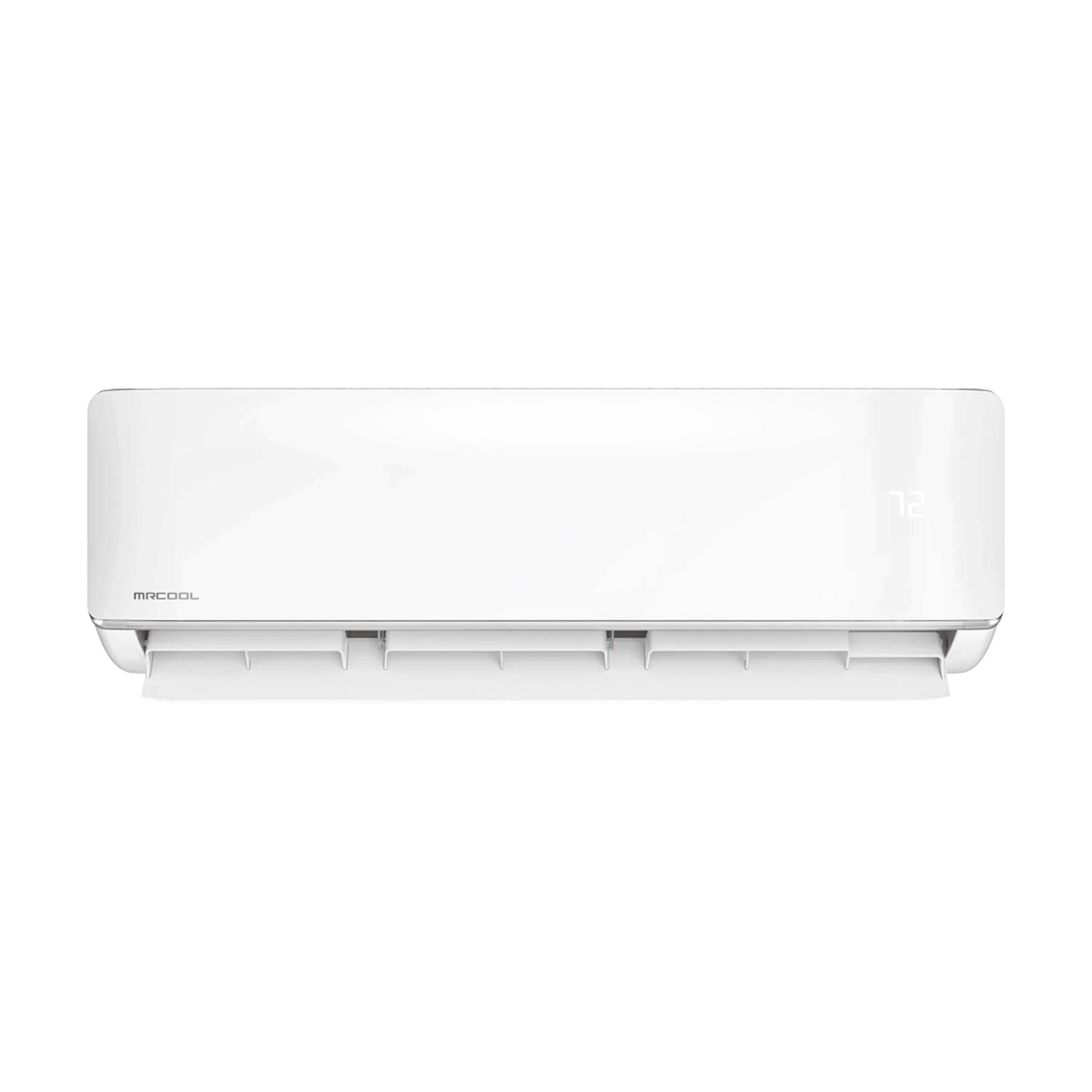

The 5th Generation MRCOOL® DIY® 36k BTU Ductless Mini-Split Heat Pump is a powerful and efficient option for heating and cooling spaces up to 1,550 sq. ft. Perfect for large rooms or open areas, this system is designed for true DIY installation—no special tools or professional assistance required. It’s a fast, affordable way to upgrade your home’s comfort. The included DIYPRO® cable makes installation even easier by eliminating the need for electrical conduit, while offering added protection against outdoor elements and wildlife damage. Controlling your comfort is simple and flexible.
Use the included wireless remote, connect through the SmartHVAC app on iOS or Android, or manage the system hands-free with Amazon Alexa or Google Assistant. With the Follow Me® feature, the system senses the temperature around the remote and adjusts accordingly, providing more precise and even comfort. Dry Mode also helps by reducing humidity and improving indoor air quality. The outdoor unit includes a corrosion-resistant Gold Fin® condenser coating, ideal for homes in coastal or humid environments.
For further peace of mind, you’ll receive a 7-year compressor warranty and 5-year parts warranty. This system is also eligible for the MRCOOL® Care Program. Enjoy smart control, dependable performance, and easy installation with MRCOOL® DIY®.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 11.1" D x 14.25" H x 49.57" W |
| Net Weight (Lbs) | 48.72 |
| Gross Depth (In) | 18.74 |
| Gross Height (In) | 16.57 |
| Gross Width (In) | 53.94 |
| Gross Weight (Lbs) | 67.9 |
| GENERAL INFORMATION | |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | 1550 sqft |
| Number of Speeds | 5 |
| Oscillation | Yes |
| Quiet Mode | Yes |
| CAPACITY & PERFORMANCE | |
| Tonnage | 3 |
| Cycle | 60 |
| NOISE LEVELS | |
| Decibel Rating Low (DBA) | 27.5 |
| Decibel Rating High (DBA) | 55.5 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| REFRIGERANT & PIPING | |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| FILTER & HEATING | |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Auto Cool | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Warranty | Extended Limited Lifetime* |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |
This remote is included with each air handler in MRCOOL's 5th Generation DIY or Advantage Mini Split Systems.
| DIMENSIONS | |
|---|---|
| Dimensions | 2" W x 6" L x 1" H |
| GENERAL INFORMATION | |
| Color | White |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States |
|
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
