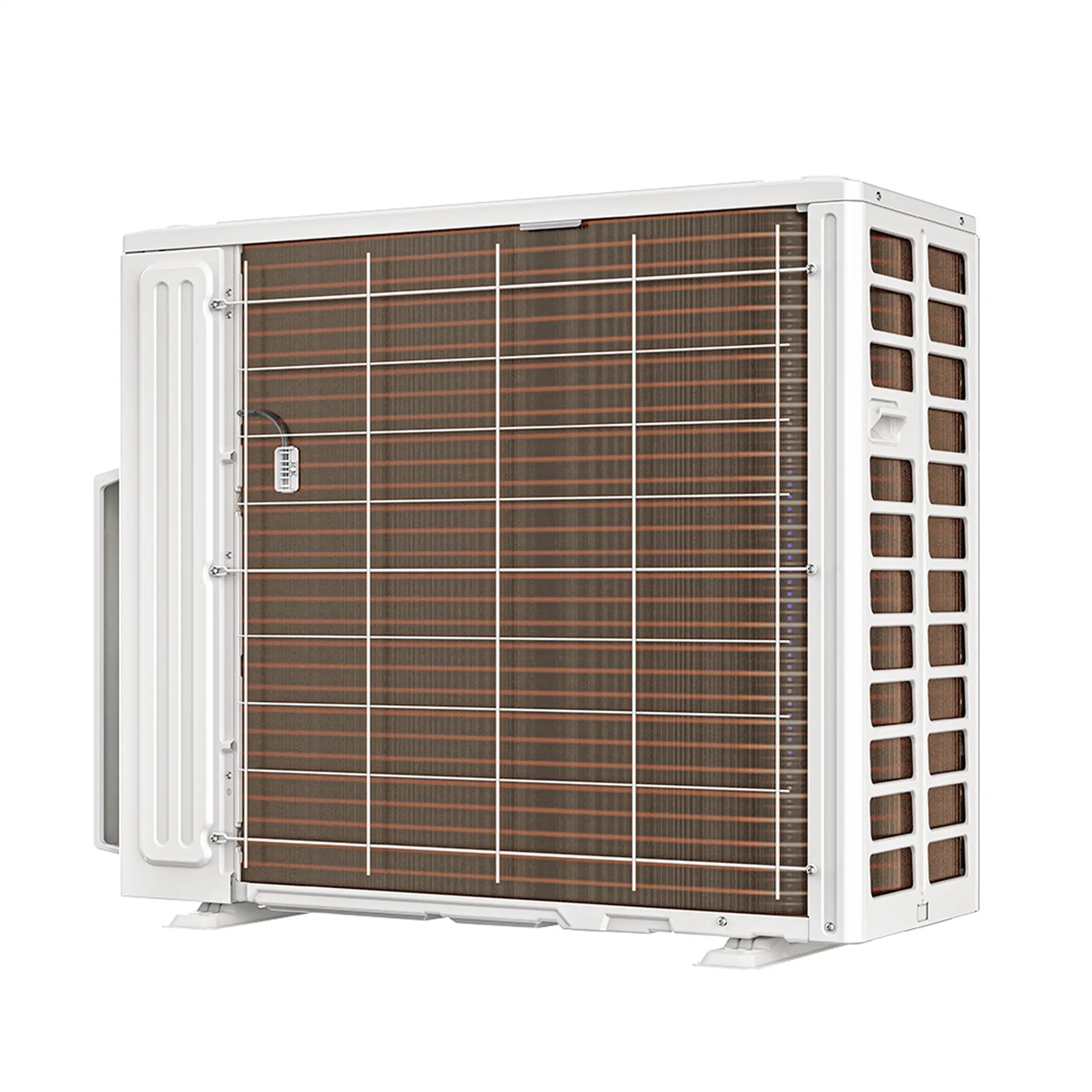

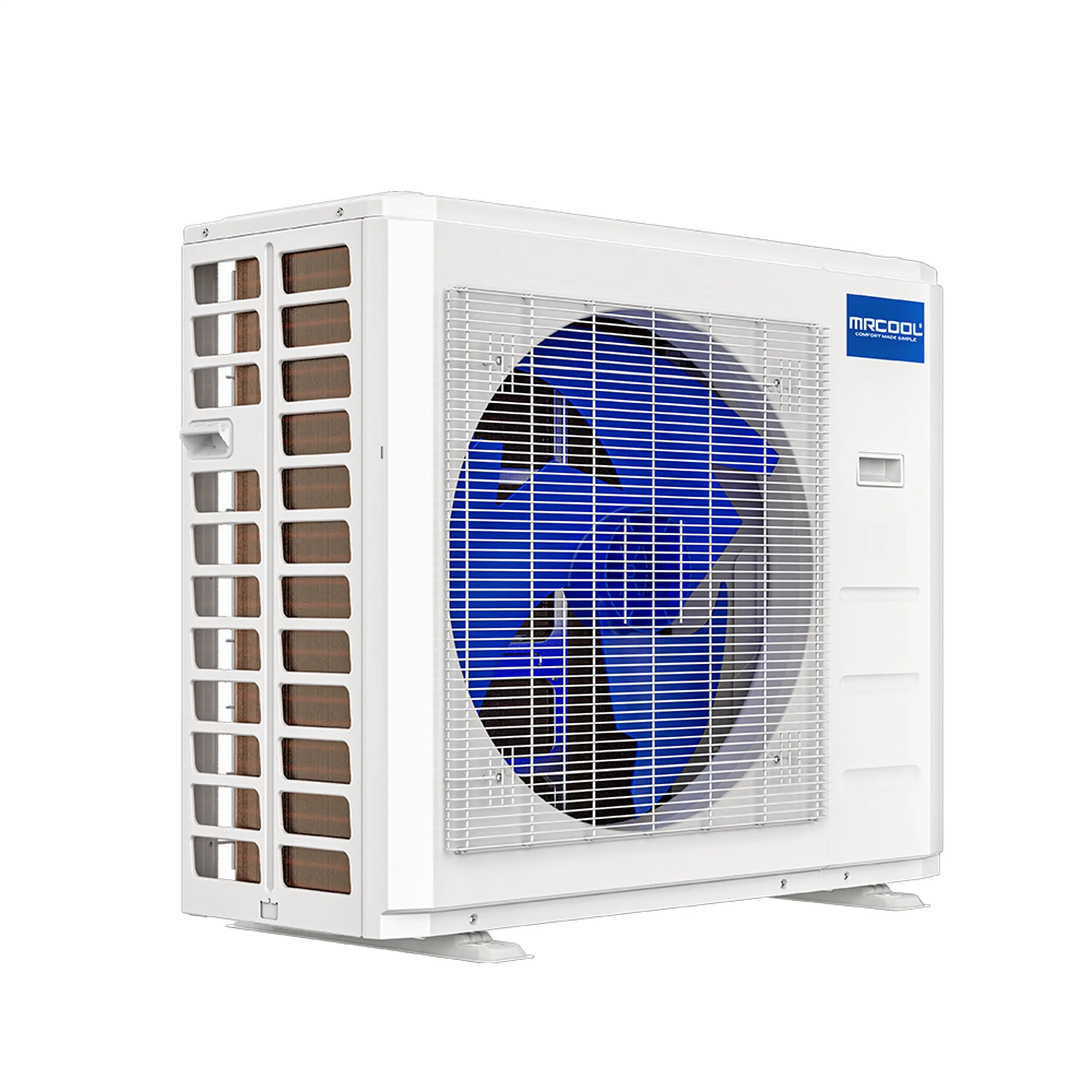

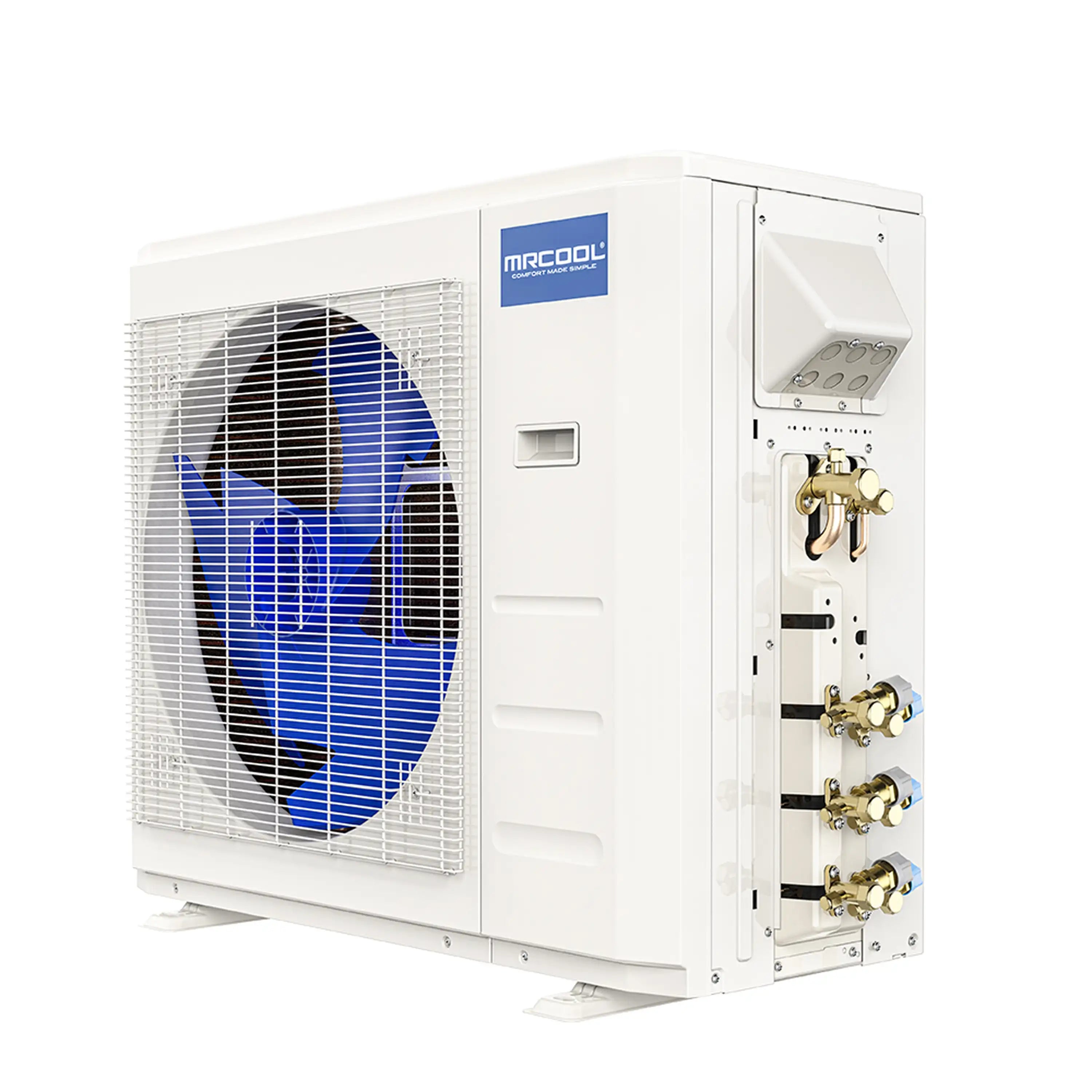

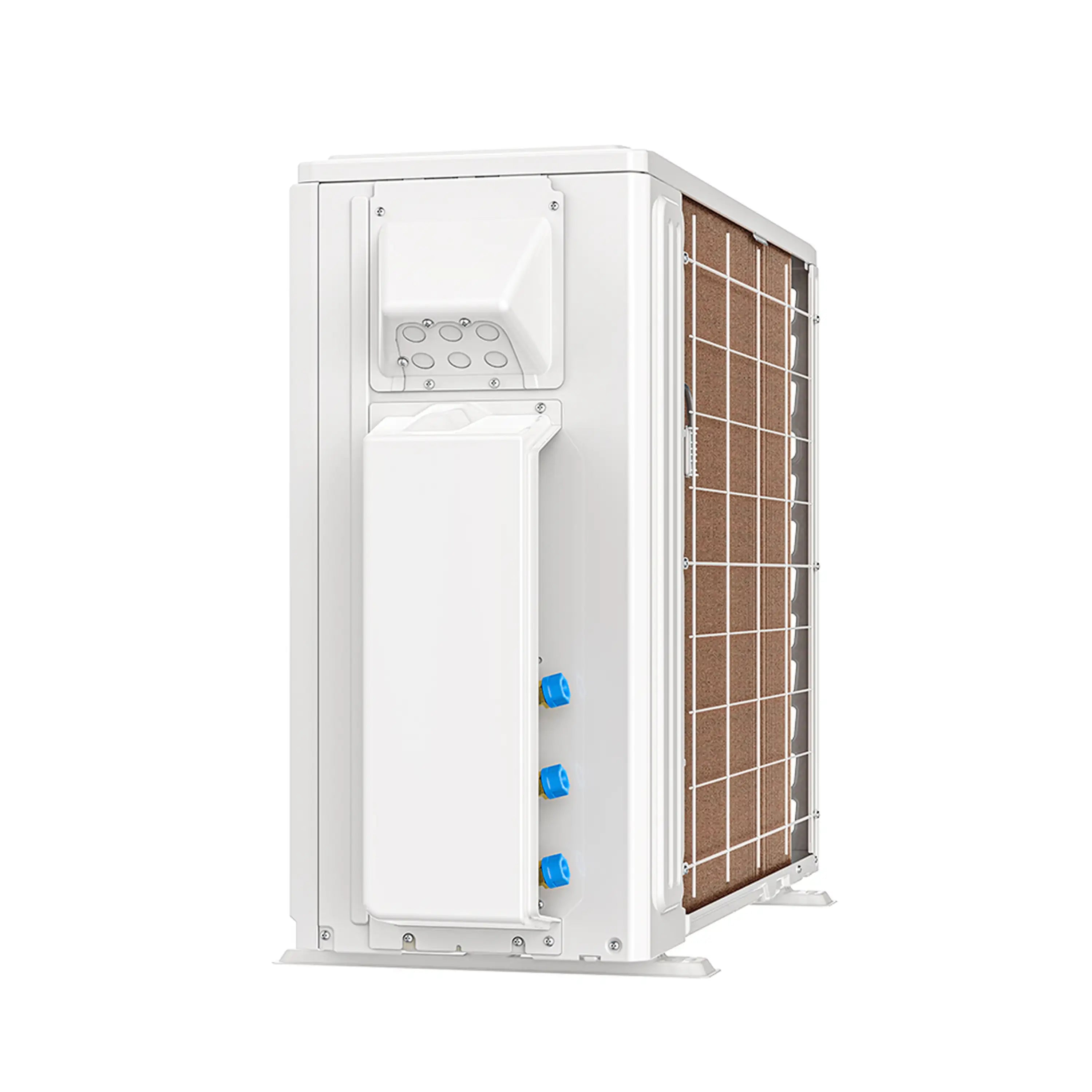

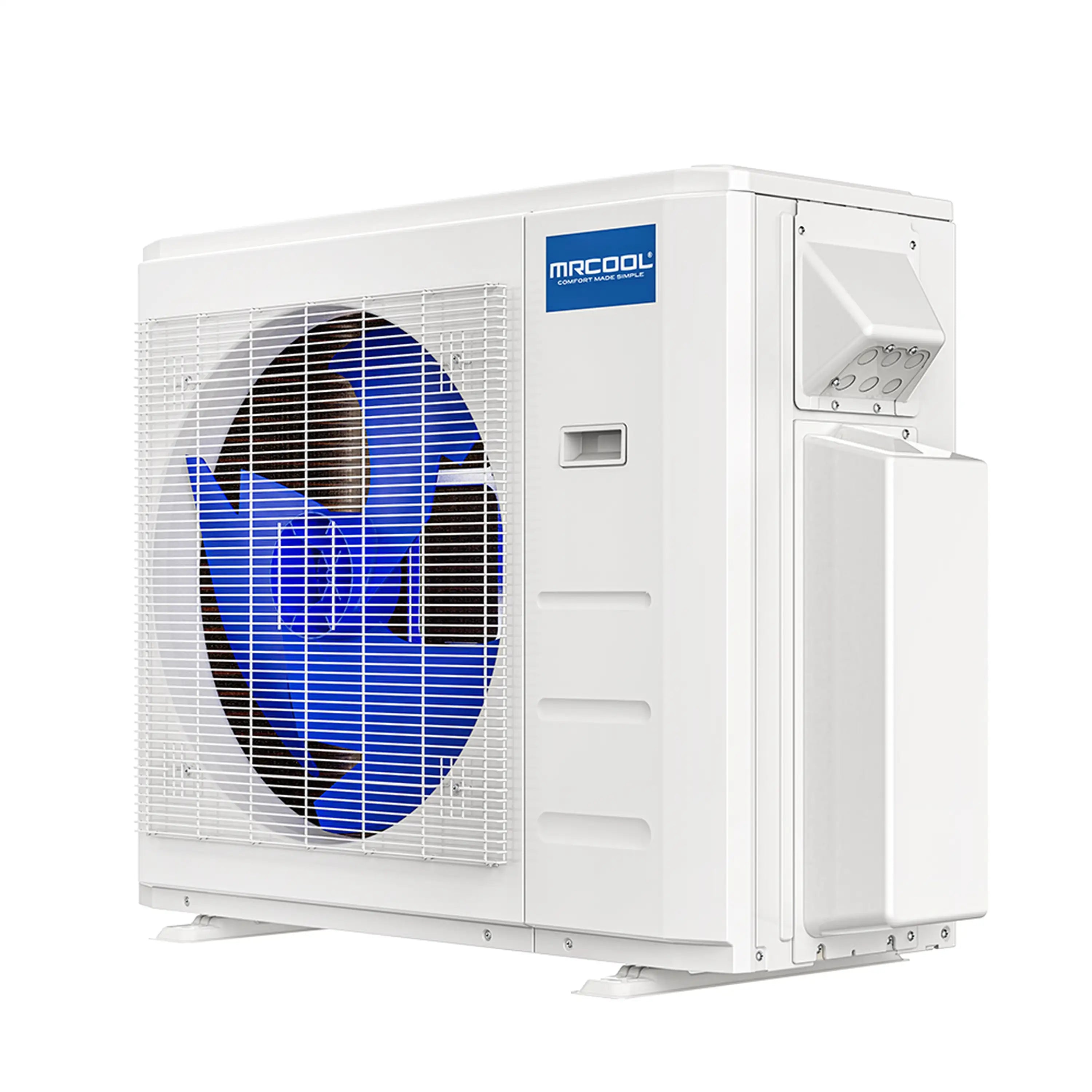

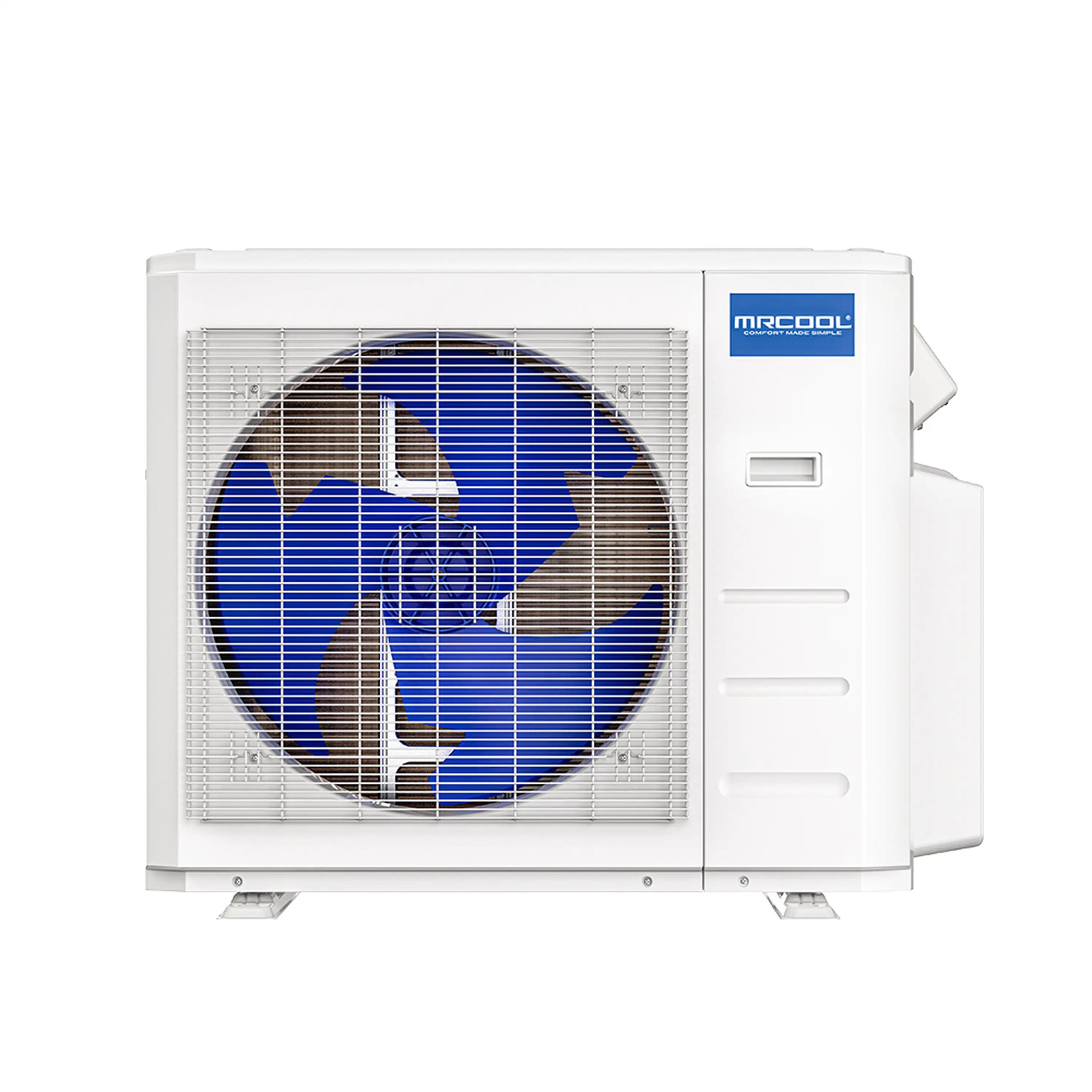

We are thrilled to announce our new 5th Generation MRCOOL® DIY® 18k BTU Multi-Zone Ductless Mini Split Condenser, which is the best and most convenient way to get comfortable. You won’t need the services of an HVAC professional to install this unit, because it’s do-it-yourself! Achieving a SEER2 rating of 23.9 and an HSPF2-4 rating of 10, you can rest easy knowing this unit will help you save money as you chill. This condenser can also support up to three air handlers, meaning it can heat and cool three rooms that are a combined 750 square feet in size, making it a perfect option if you have spare bedrooms in need of heating and cooling.

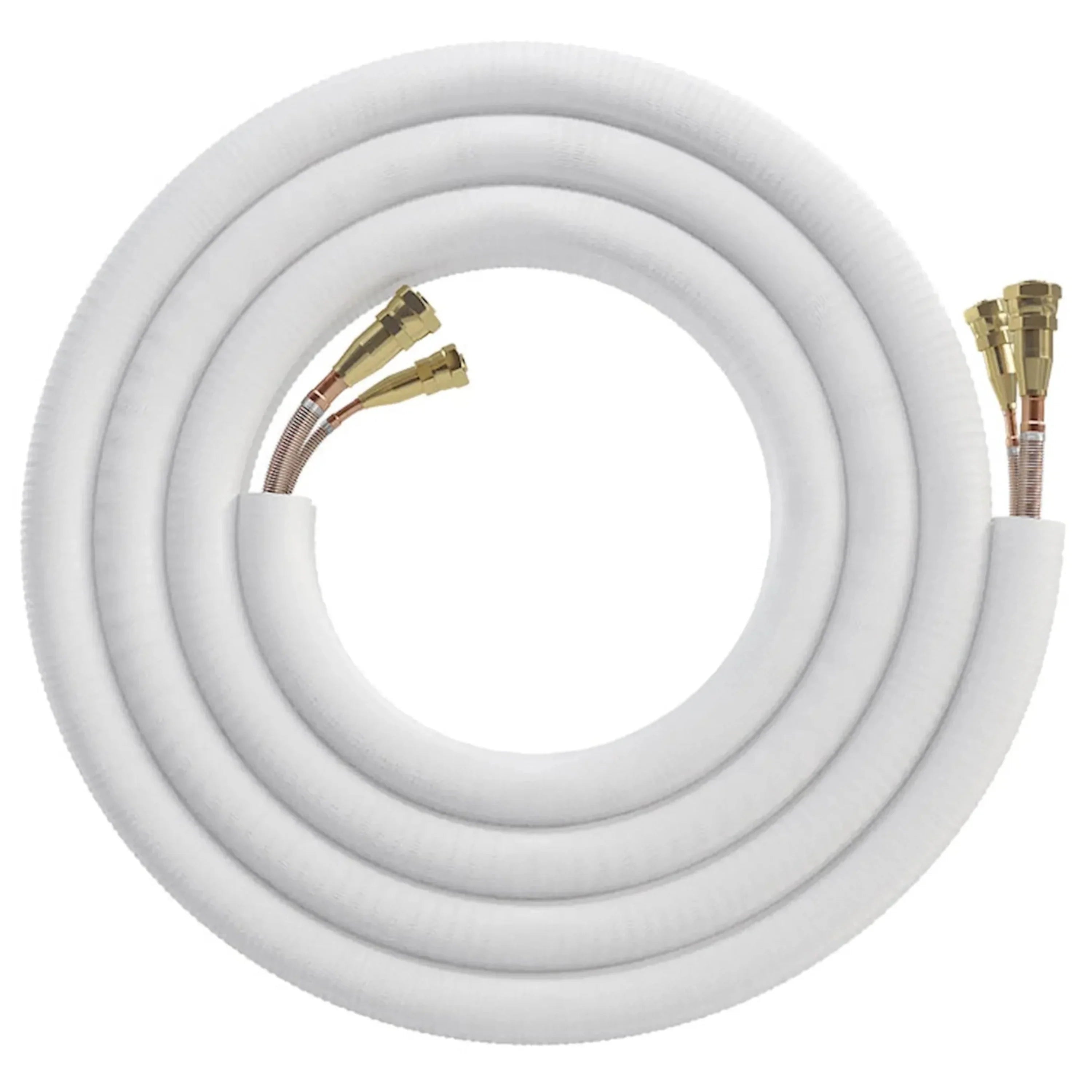

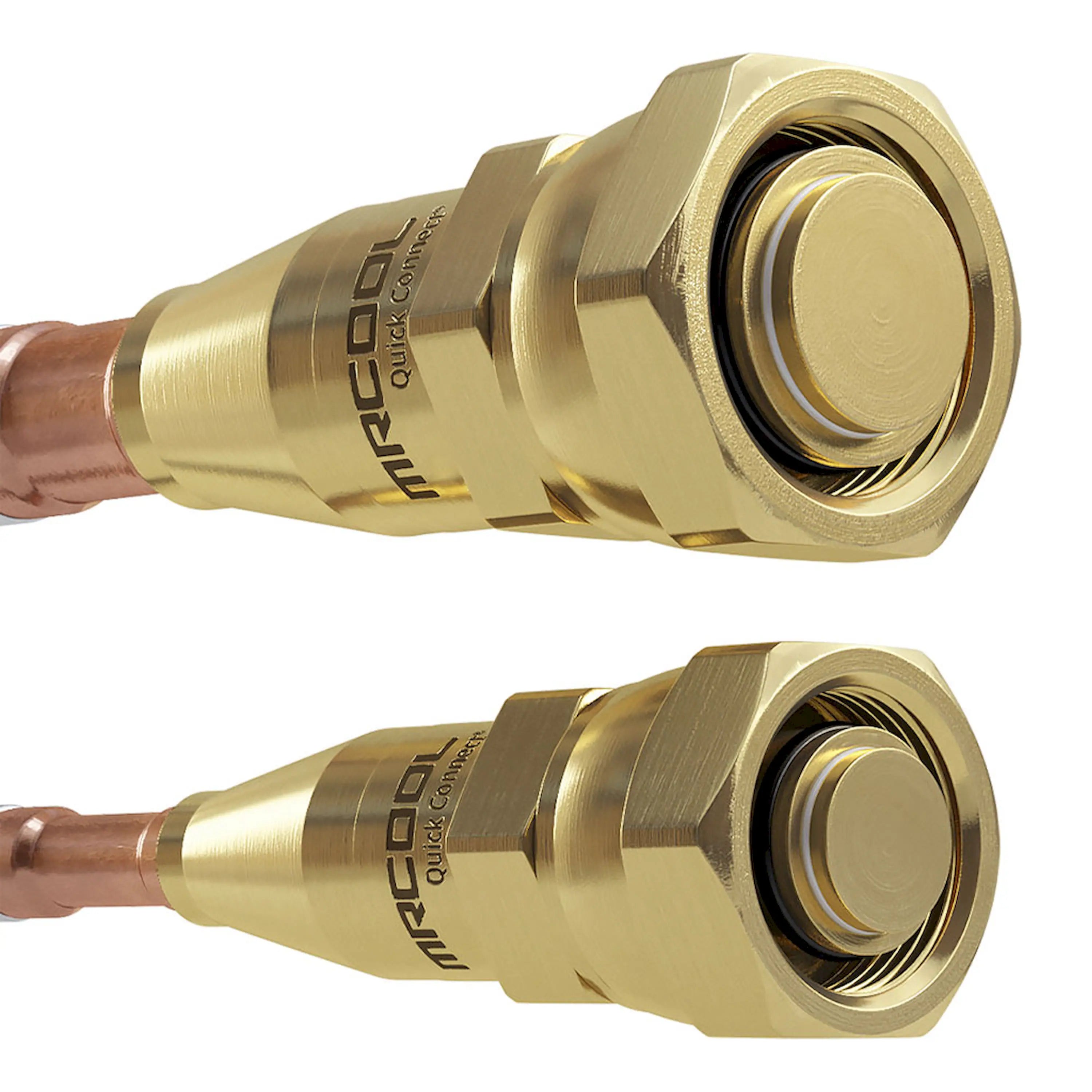

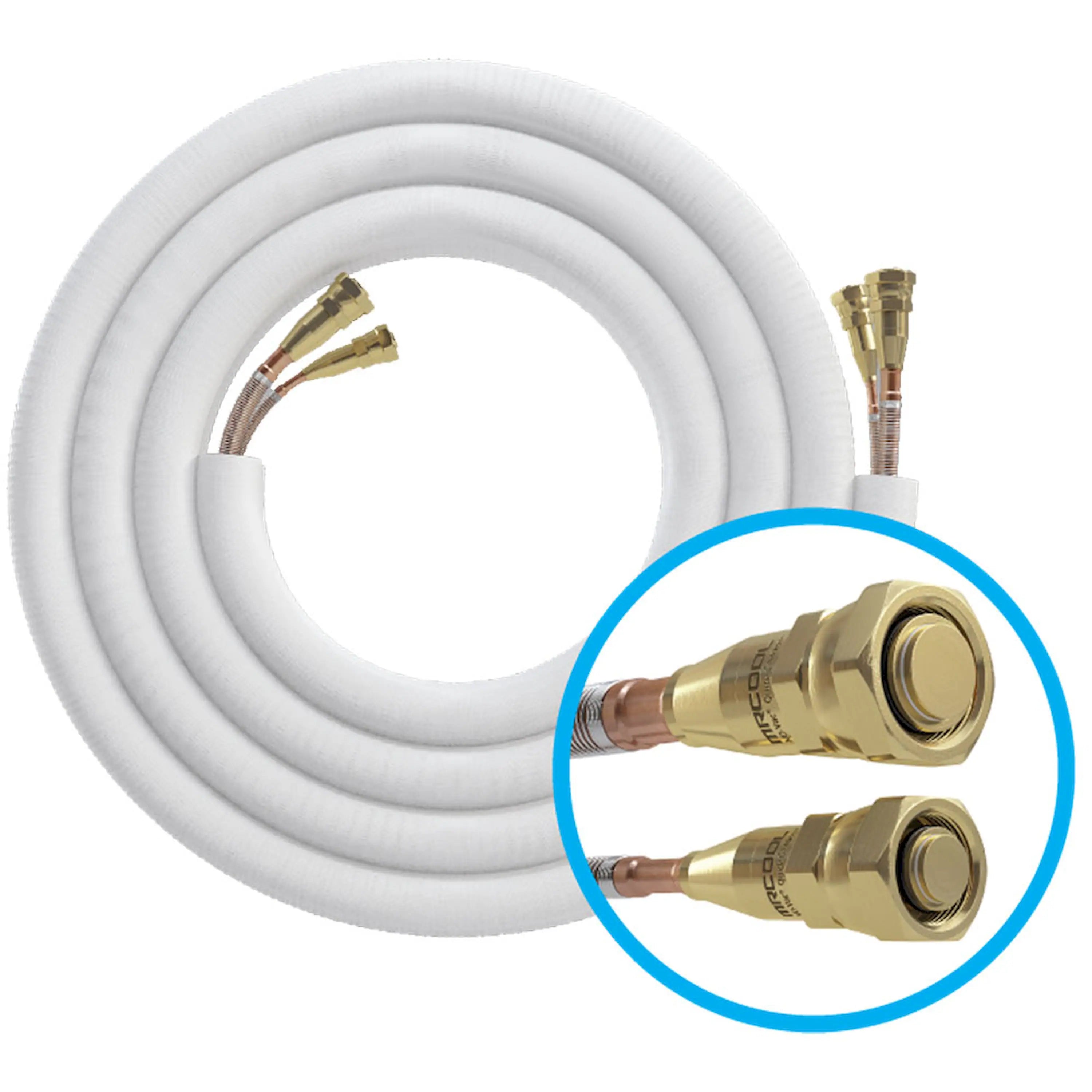

What makes this system different is our patented pre-charged Quick Connect® line sets filled with R-454B, an incredibly efficient and eco-friendly refrigerant. This switch from the previous refrigerant makes the system even more efficient and sustainable than before. The design of these innovative line sets allow you to install the system yourself, saving you time and money.
This condenser is more than just a heating and cooling unit. When operating as a system, you will be able to experience total customization with the unit’s wealth of features. For example, you can integrate your system with Amazon Alexa or Google Home through the Smart HVAC app, allowing you to control your system with your voice and monitor its operation with the touch of a button. You can also set schedules, temperature ranges, and mode of operation through the app. The power of comfort is in your hands with this system. In the unlikely event that something happens to the system, we’ve got you covered. The DIY® series comes with one of the best warranties in the industry - a 7 year compressor warranty, a 5 year parts warranty, and a Limited Lifetime Replacement warranty with enrollment in the MRCOOL® Care Program. Give yourself the best comfort with the DIY®.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 13.46" D x 26.5" H x 35.04" W |
| GENERAL INFORMATION | |
| Color | White |
| Inverter | DC |
| Quiet Mode | Yes |
| Contans Chemicals | Yes |
| CAPACITY & PERFORMANCE | |
| SEER2 | 23.9 |
| EER2 | 13 |
| HSPF2-4 | 10 |
| HSPF2-5 | 7.8 |
| Tonnage | 1.5 |
| Cooling Capacity (BTU) | 18000 |
| Heating Capacity (BTU) | 18000 |
| Cycle | 60 |
| Zone Capacity | 3 |
| COMPRESSOR & MOTORS | |
| Compressor Motor Type | Rotary |
| NOISE LEVELS | |
| Decibel Rating (DBA) | 60 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 20 |
| Min Circuit Ampacity (A) | 16 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (OZ) | 61.73 |
| Line Set Length | 25 |
| Max Lineset Length (FT) | 172.2 |
| Liquid LIne Size | 1/4 |
| Suctio Line Size | 3/8 |
| FILTER & HEATING | |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Auto Cool | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Warranty | Extended Limited Lifetime* |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |

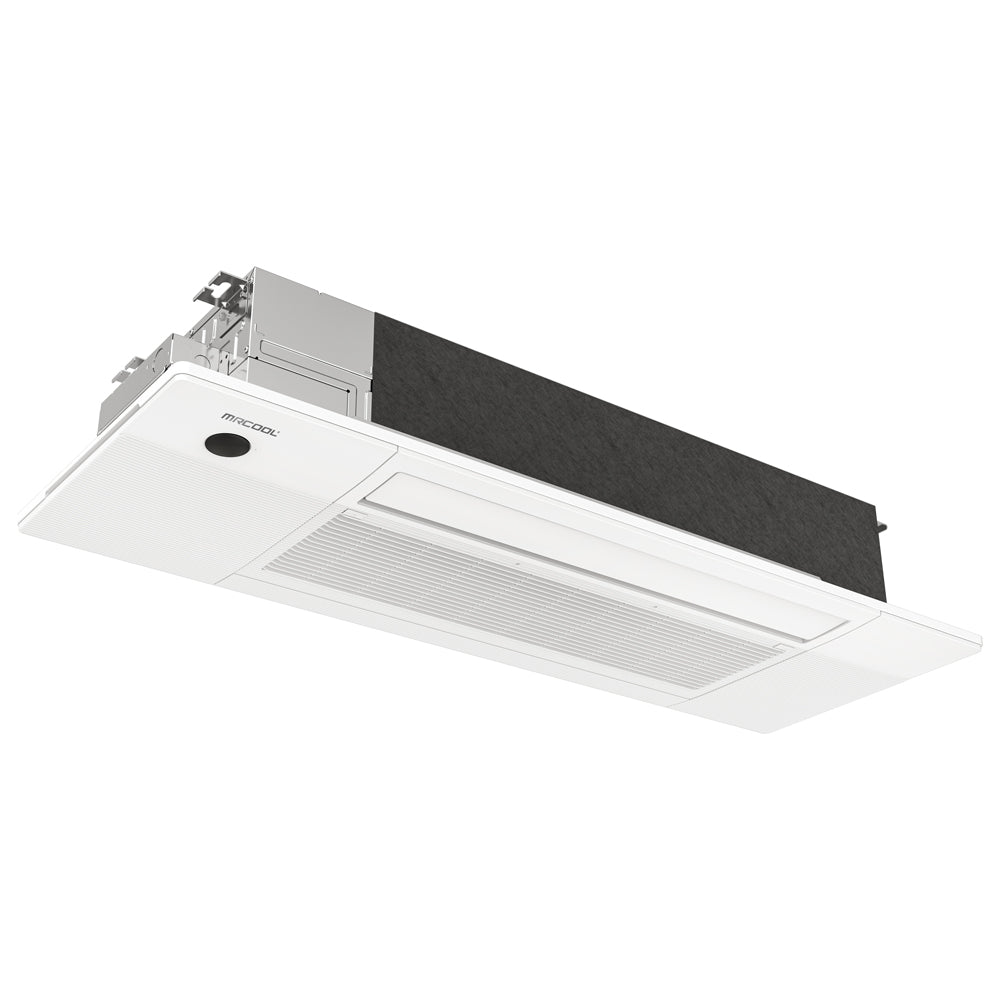

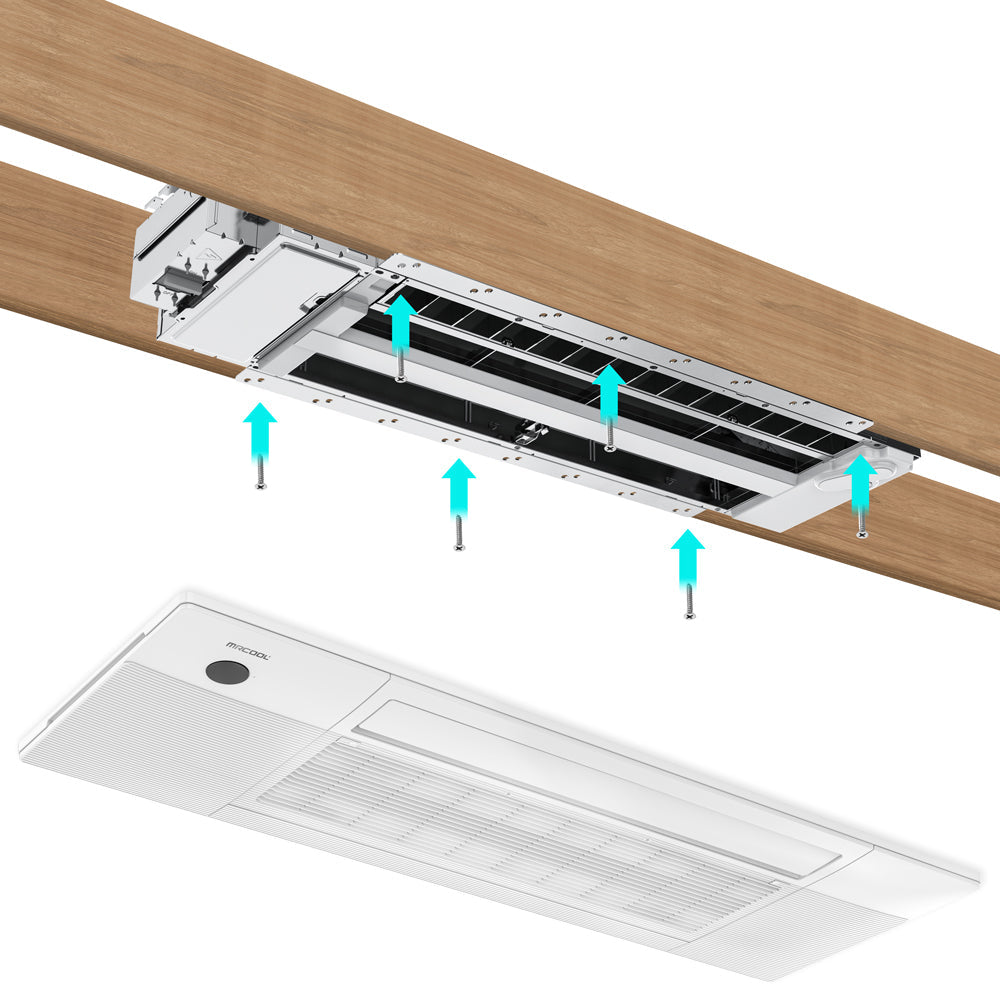

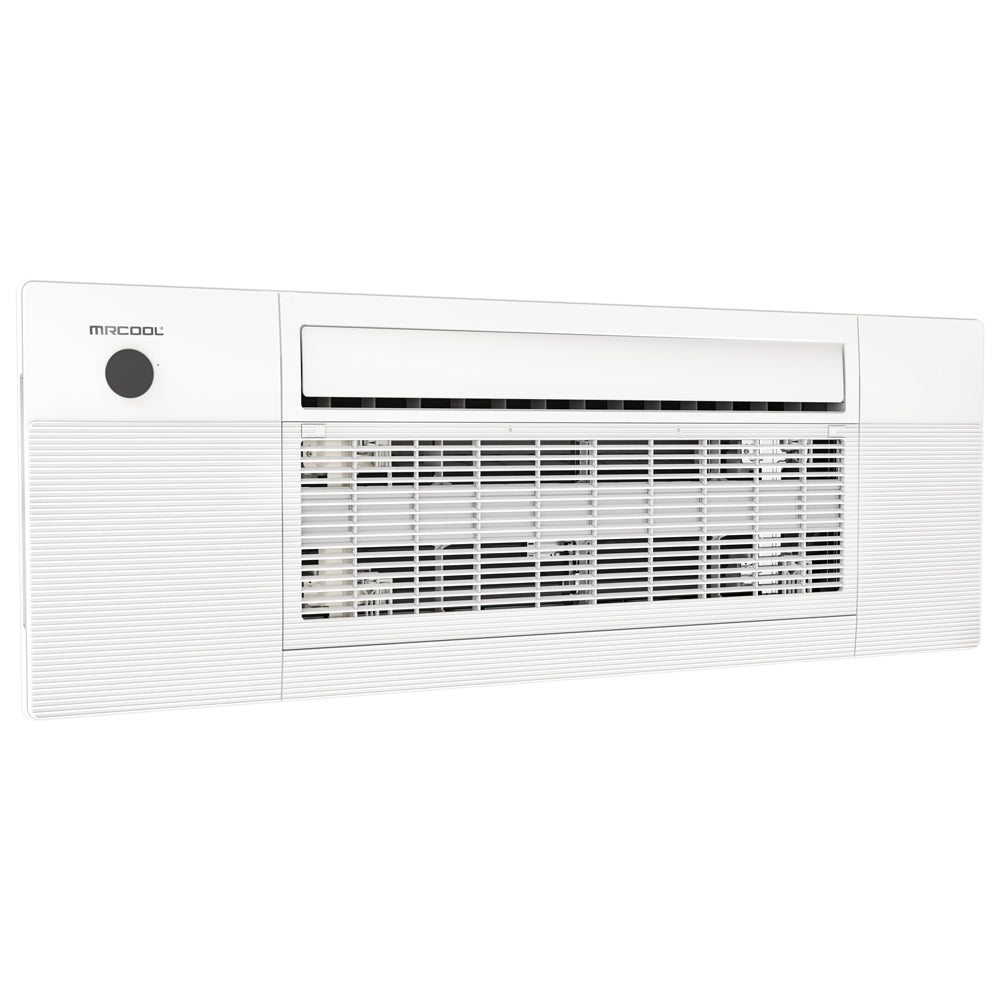

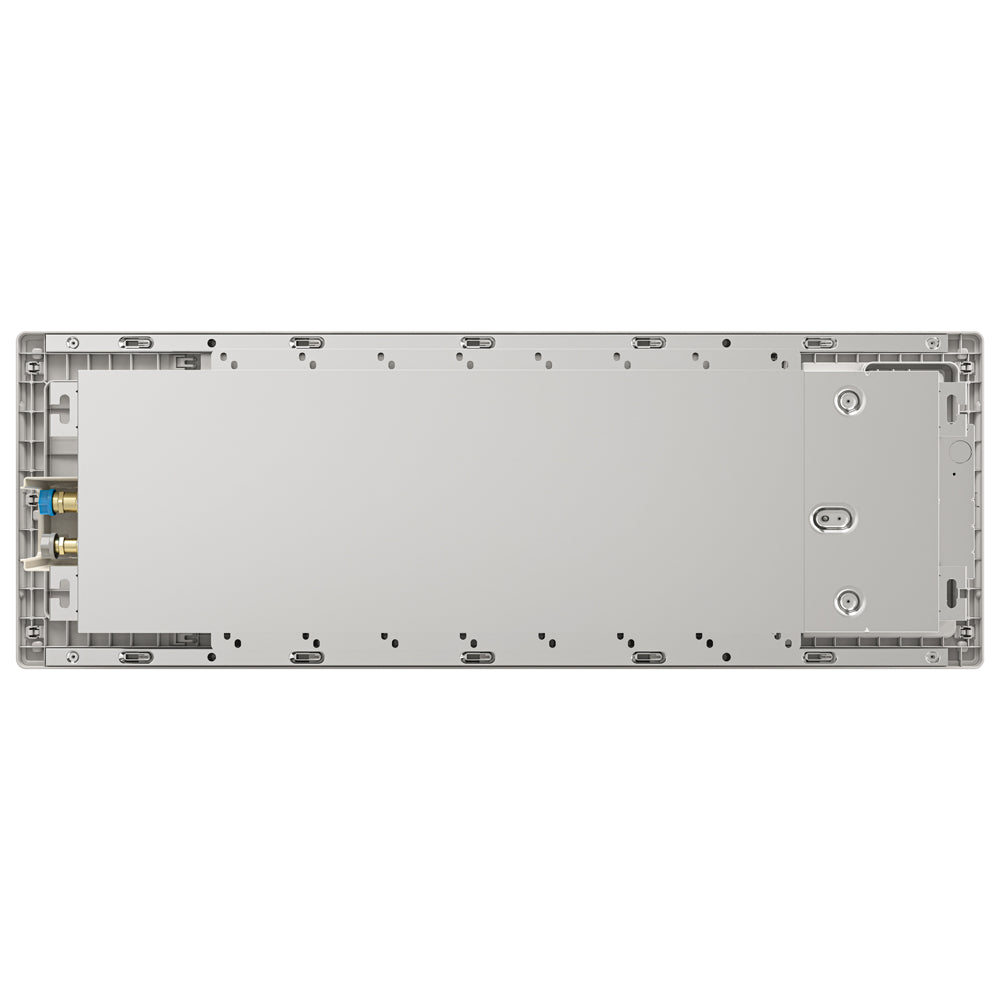

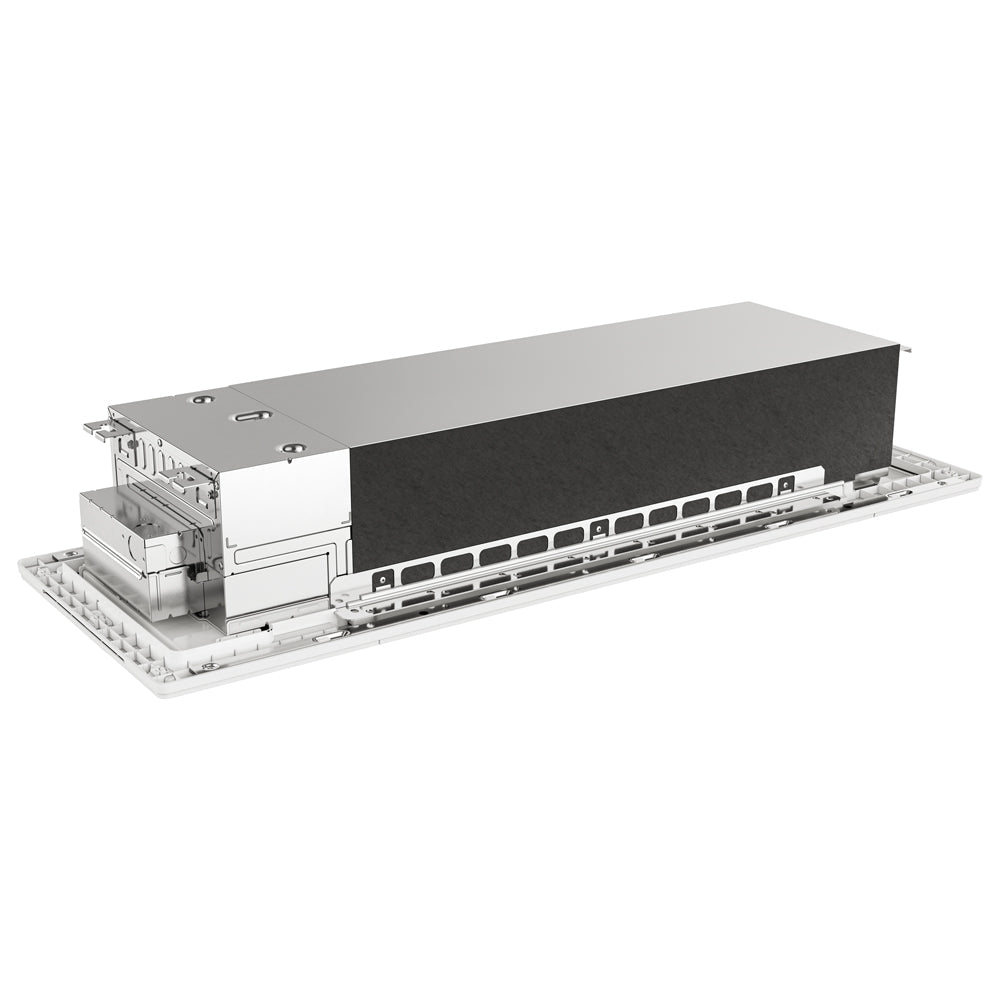

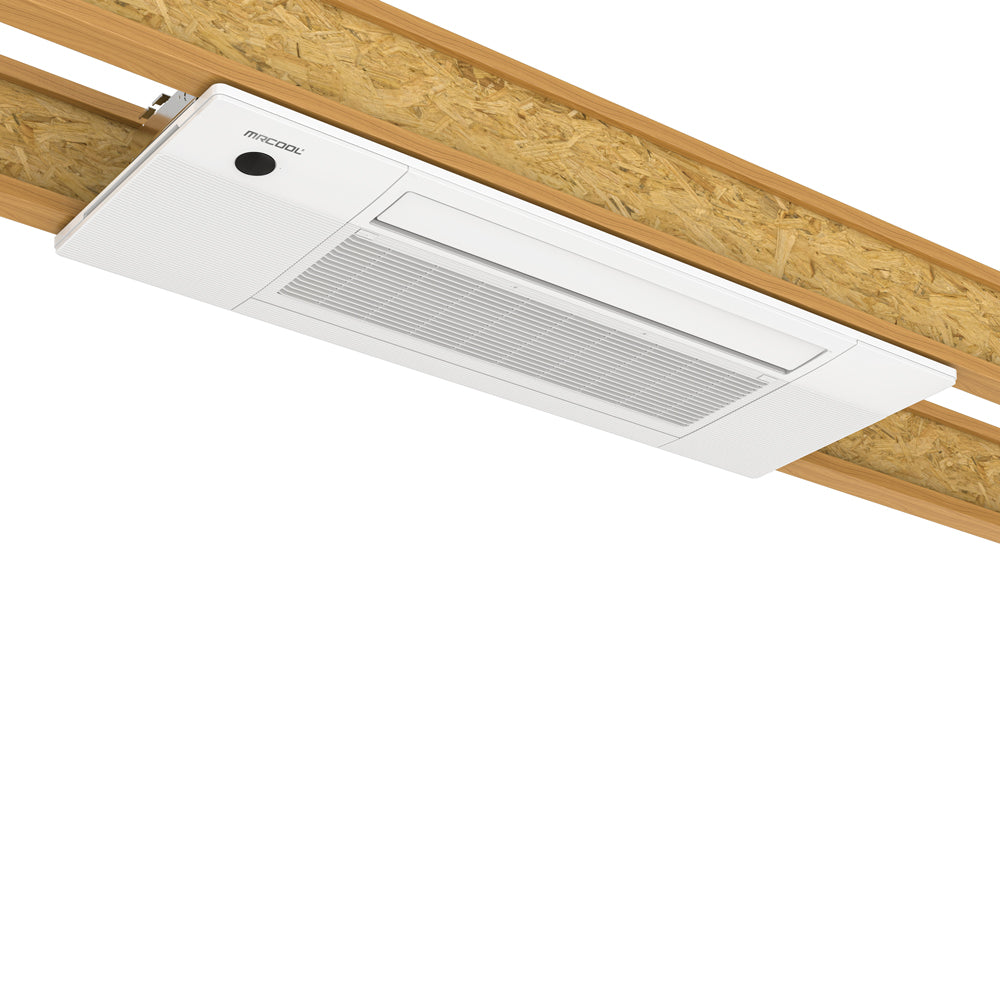

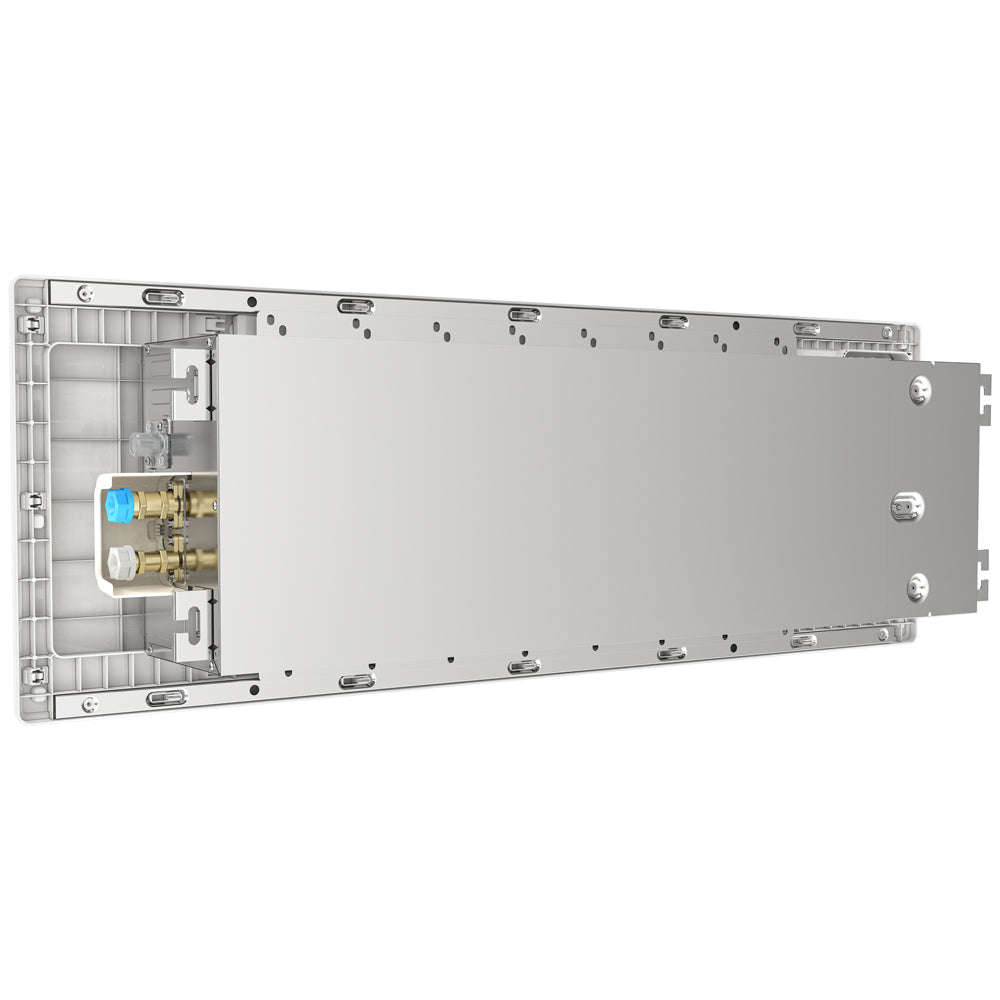

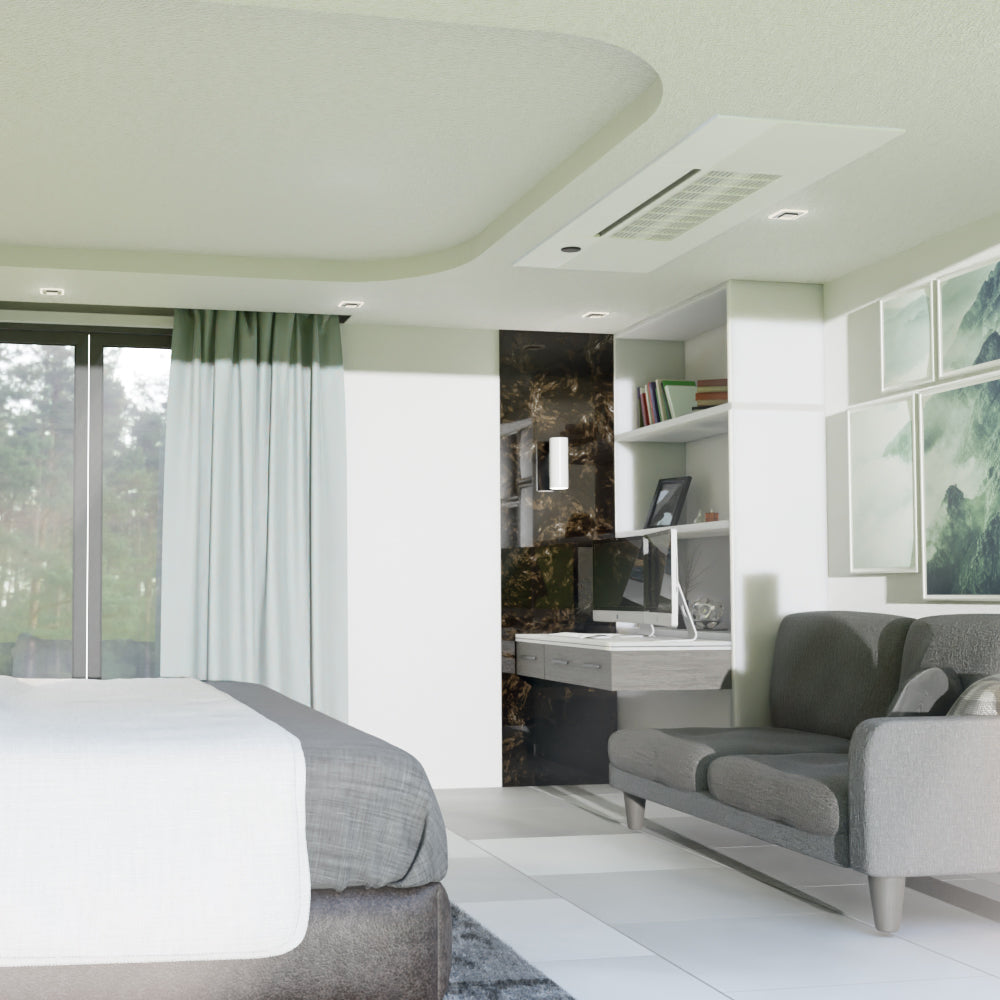

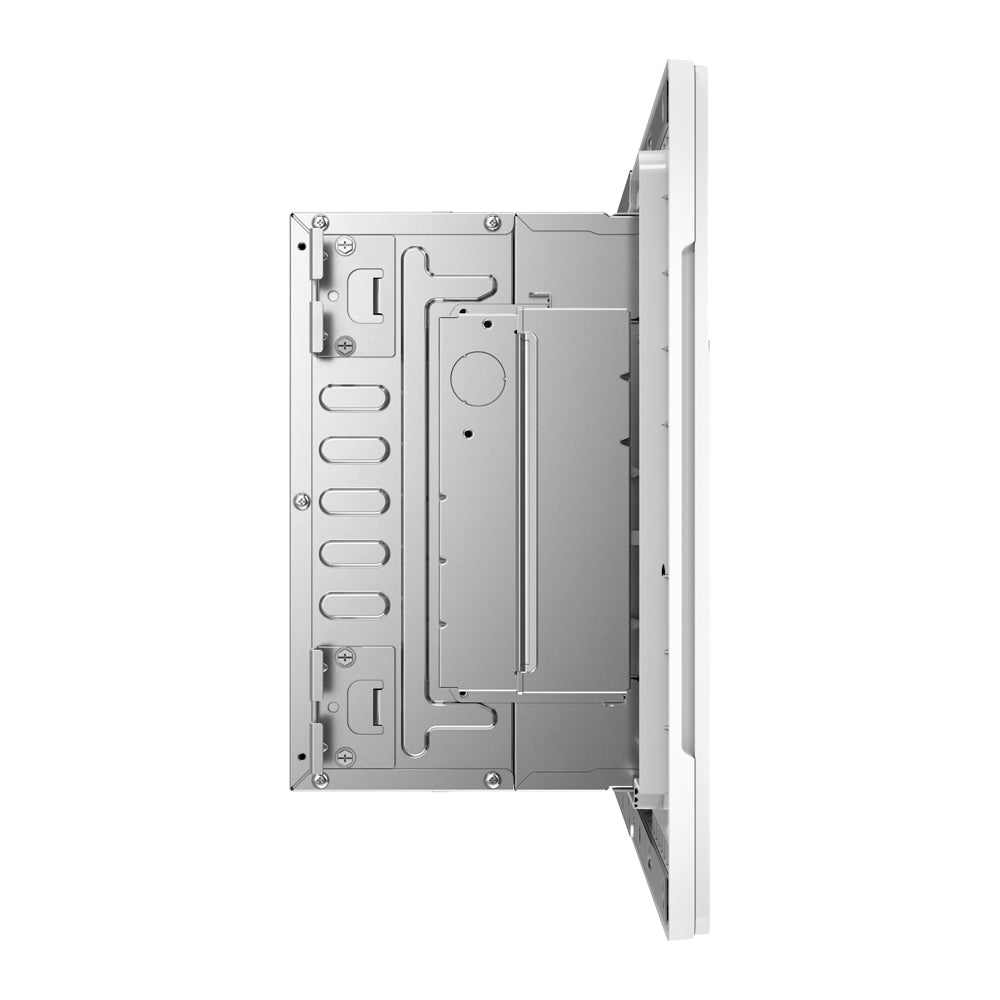

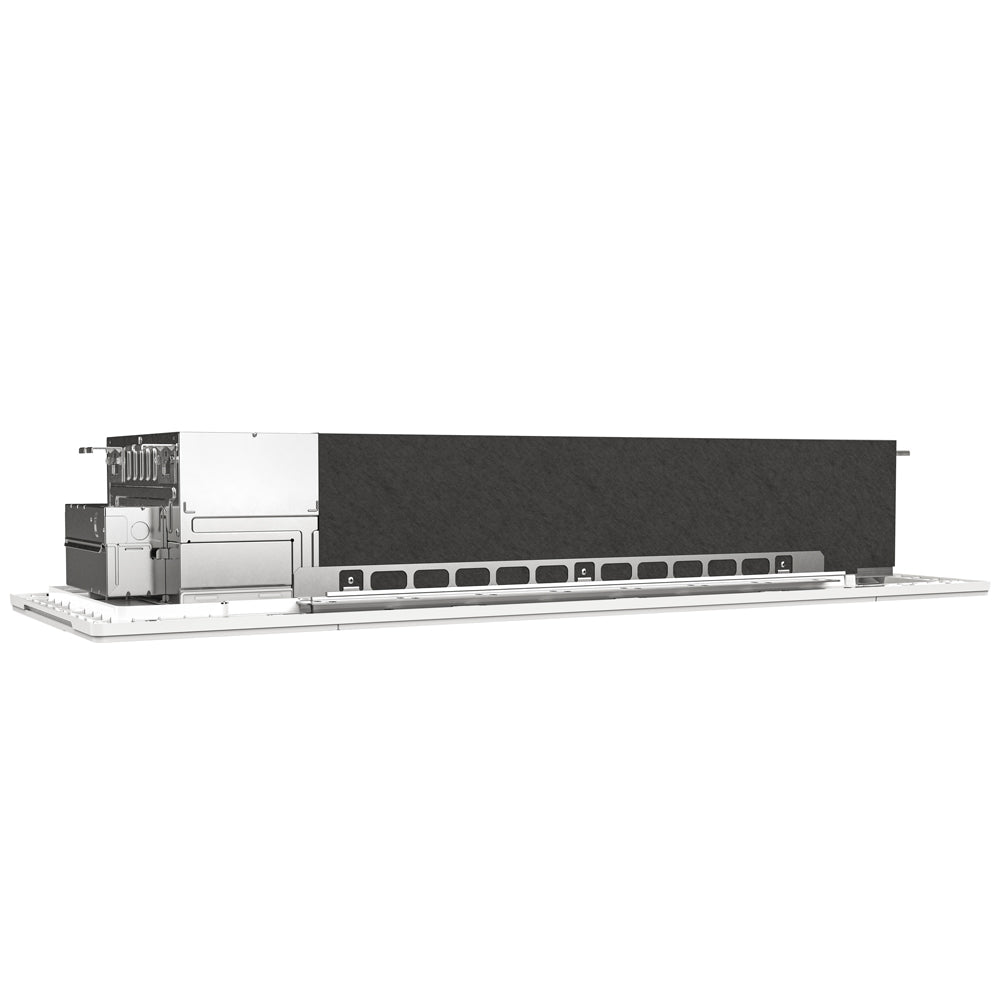

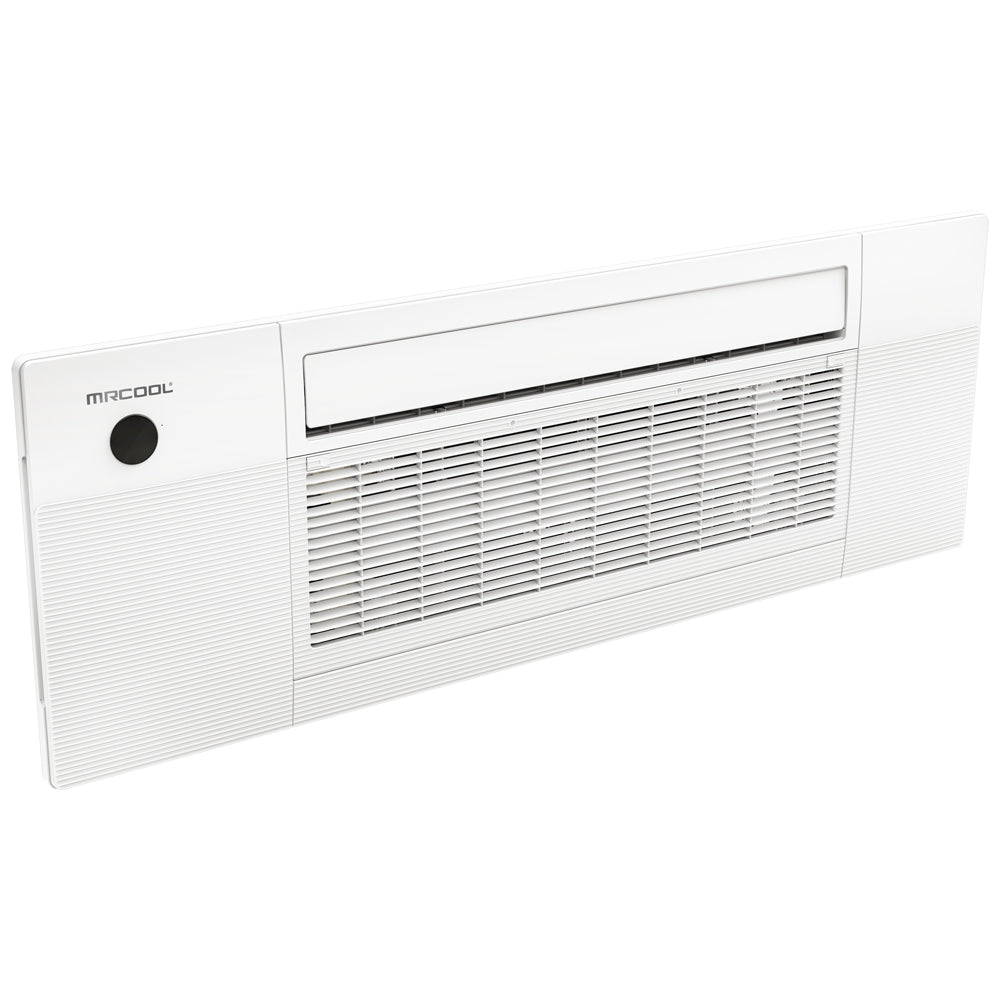

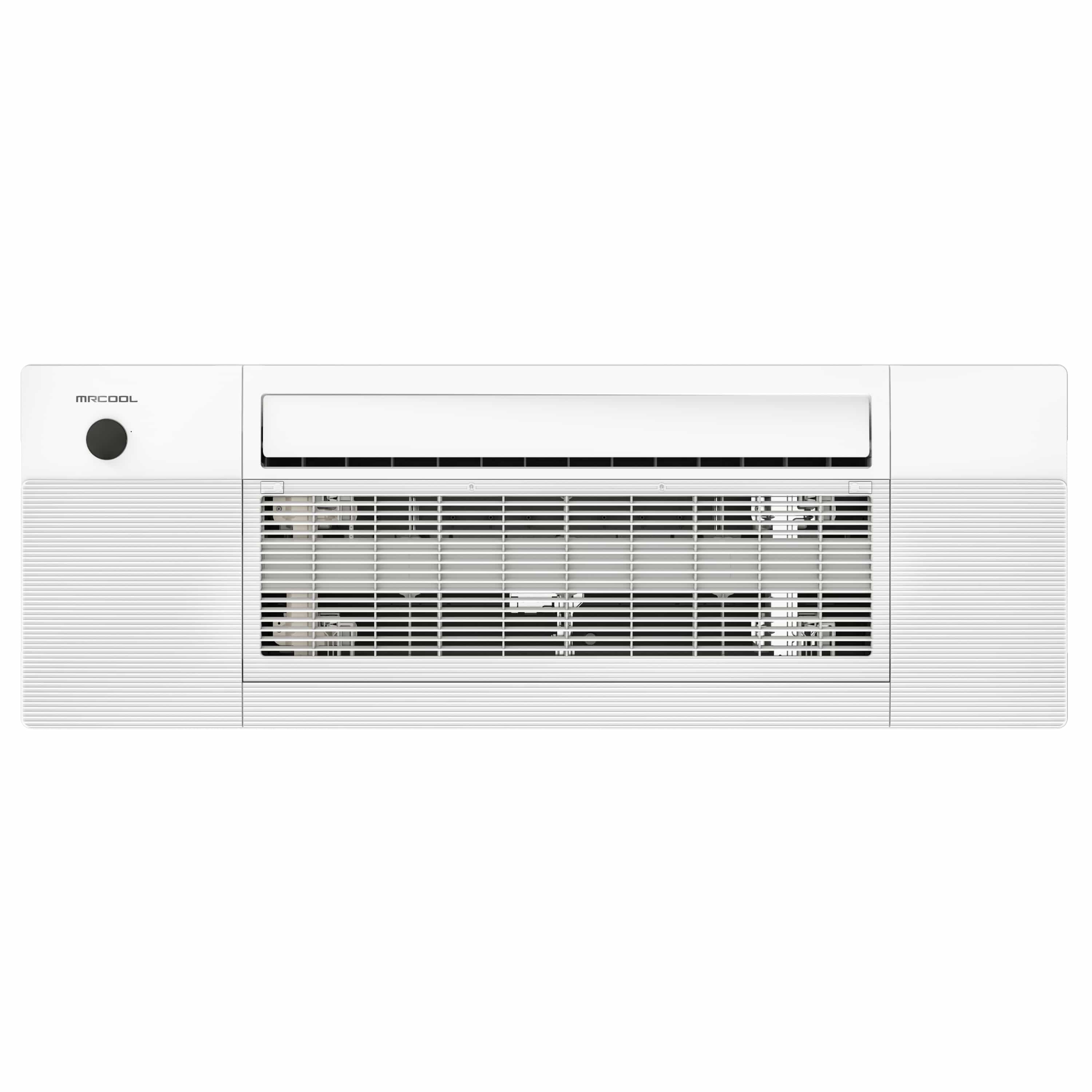

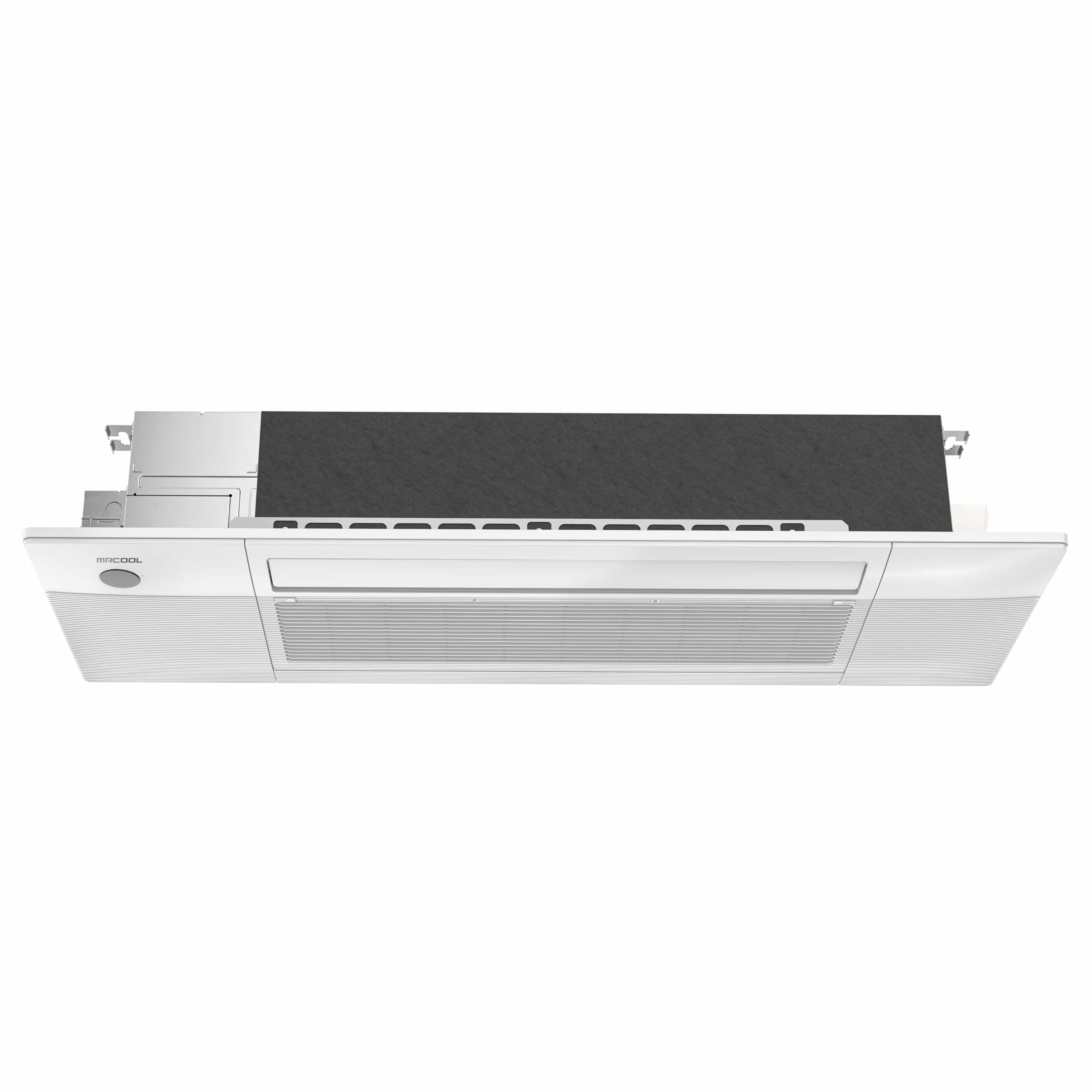

The 5th Generation MRCOOL® DIY® Series OuttaSight® 6K BTU 230V One-Way Ceiling Cassette is a powerful and efficient climate control solution for spaces up to 200 sq. ft. Engineered for easy DIY installation, this system eliminates the need for specialized tools, making setup simple, cost-effective, and hassle-free. Designed to integrate seamlessly into multi-zone configurations, the cassette fits neatly between 16” ceiling joists, including pre-manufactured I-joists, for a clean, flush-mounted appearance. Unlike traditional ceiling cassettes that require extensive ductwork or inconvenient wall space, rethis unit offers a flexible installation ideal for both new builds and retrofit projects.

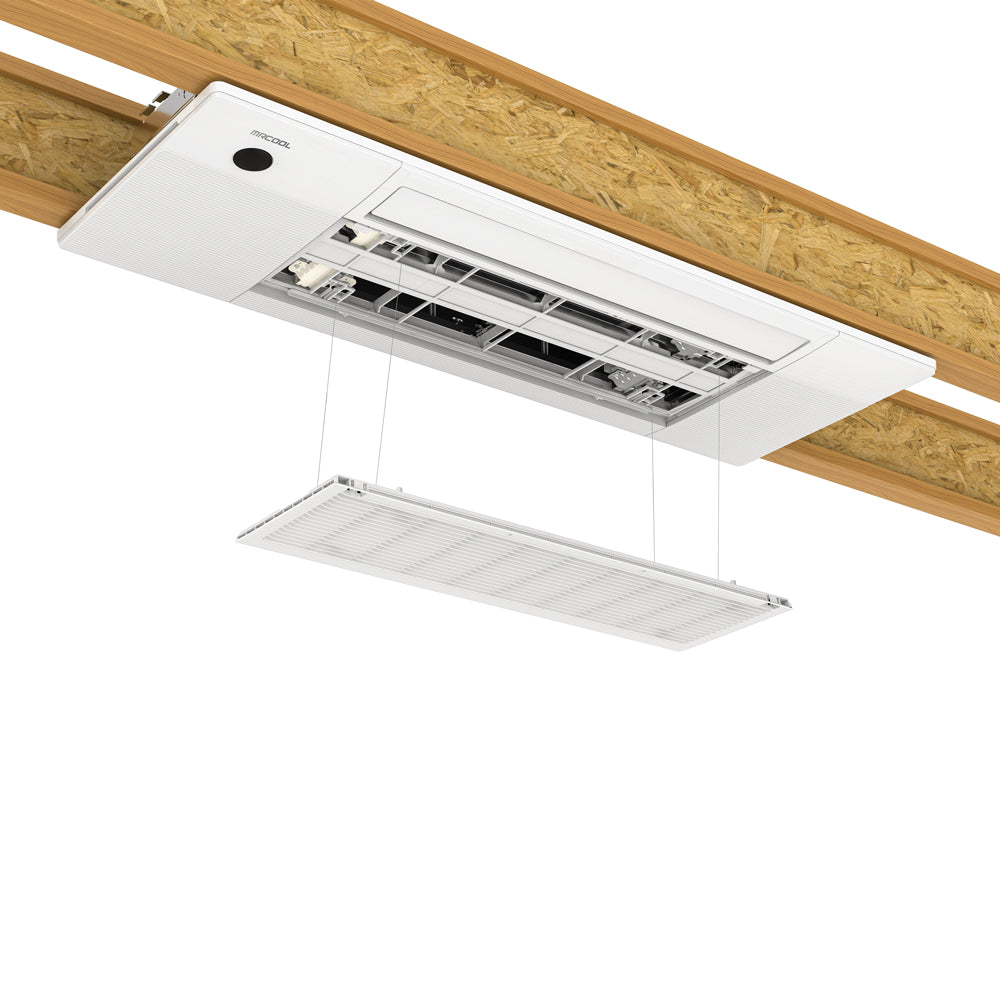

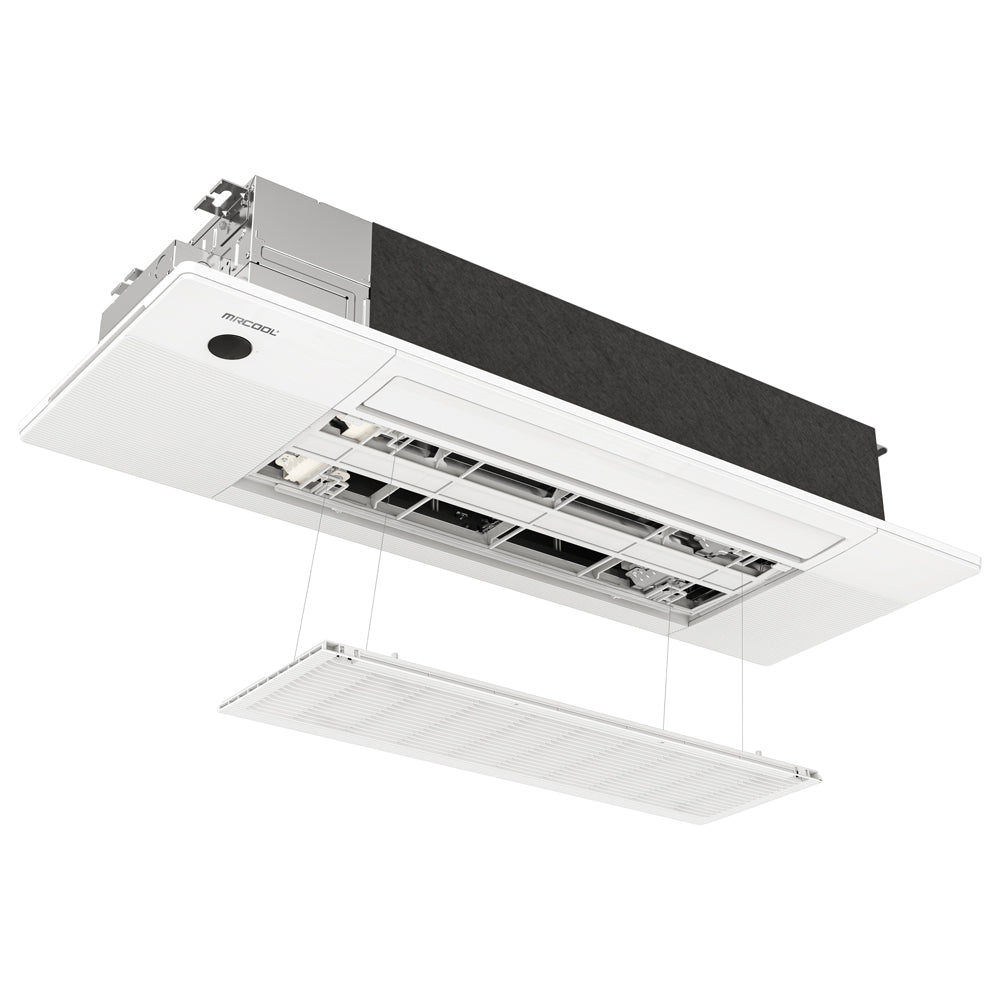

The cassette pairs effortlessly with the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-454B, an environmentally friendly refrigerant that eliminates the need for vacuuming. Advanced filtration enhances indoor air quality, while the Elevation function allows easy filter maintenance by lowering the panel for convenient access. With quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant—this system offers personalized comfort. Backed by an industry-leading limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, the MRCOOL® DIY® Outtasight® Ceiling Cassette delivers long-term reliability, advanced technology, and year-round comfort.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 13.19" D x 8.98" H x 50.31" W |
| Net Weight (Lbs) | 45 |
| Gross Weight (Lbs) | 88 |
| GENERAL INFORMATION | |
| Mount Type | Ceiling |
| Color | White |
| Max Coverage Area | 200 |
| Air Flow Direction | 1-Way |
| Quiet Mode | Yes |
| CAPACITY & PERFORMANCE | |
| CFM | 341 / 294 / 259 / 235 / 235 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Blower Motor RPM | 1024/944/784 |
| NOISE LEVELS | |
| Decibel Rating (DBA) | 35.5 |
| Decibel Rating Low (DBA) | 23.5 |
| Decibel Rating High (DBA) | 46.5 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208-230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Rated Load | 0.8 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| FILTER & HEATING | |
| Filter Type | Reusable |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| SAFETY | |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States |
|
| WARRANTY | |
| Registered Warranty | Limited Lifetime Compressor |
| Base Warranty | 5-Year Part/7-Year Compressor |
| Bas Parts Warranty | 5 Years |
| Registered Compressor Warranty | Limited Lifetime Compressor |
| Base Compressor Warranty | 7 Years |
This remote is included with each air handler in MRCOOL's 5th Generation DIY or Advantage Mini Split Systems.
| DIMENSIONS | |
|---|---|
| Dimensions | 2" W x 6" L x 1" H |
| GENERAL INFORMATION | |
| Color | White |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States |
|
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
