Description
- Air Handler Net Dimension (WxDxH)
- 28.43 x 7.36 x 11.42 inch
- Air Handler Net/Gross Weight
- 16.98/22.27 Lbs
- Condenser Net Dimension (WxDxH)
- 30.12 x 11.93 x 21.85 inch
- Condenser Net/Gross Weight
- 54.23 / 59.74

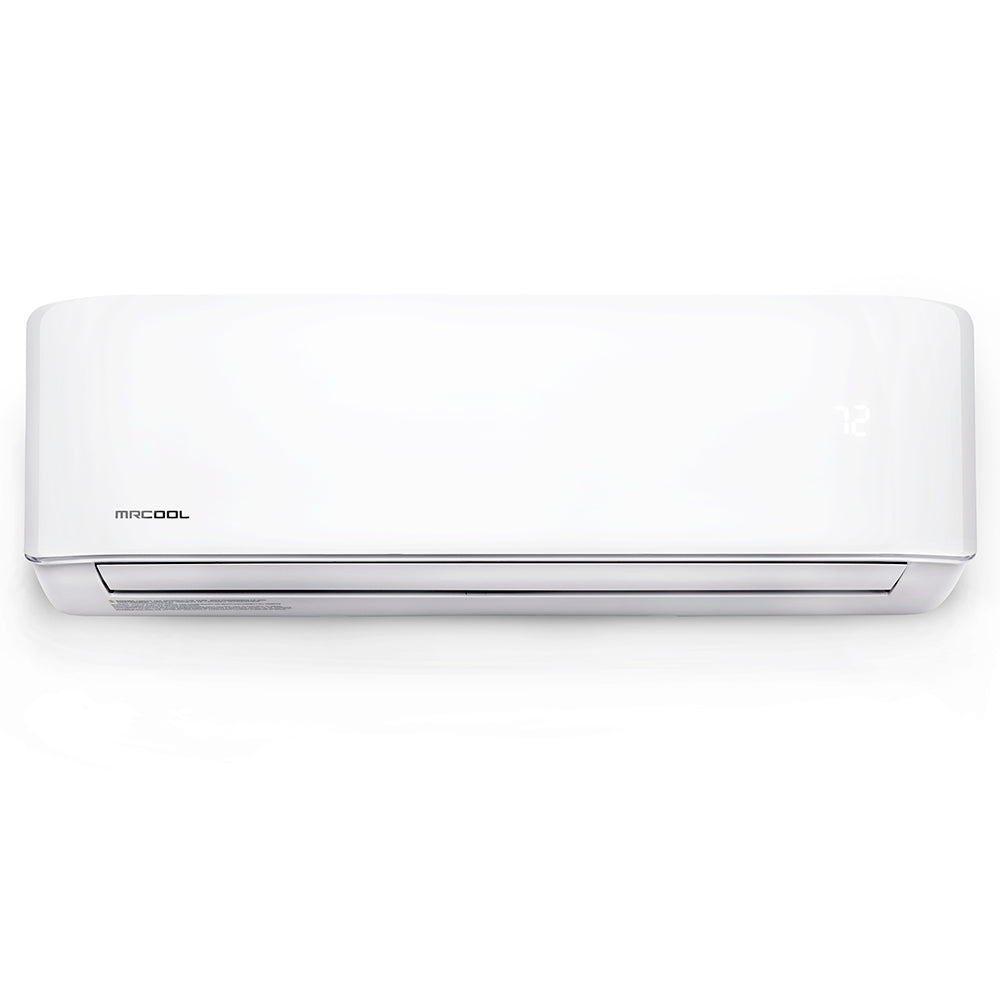

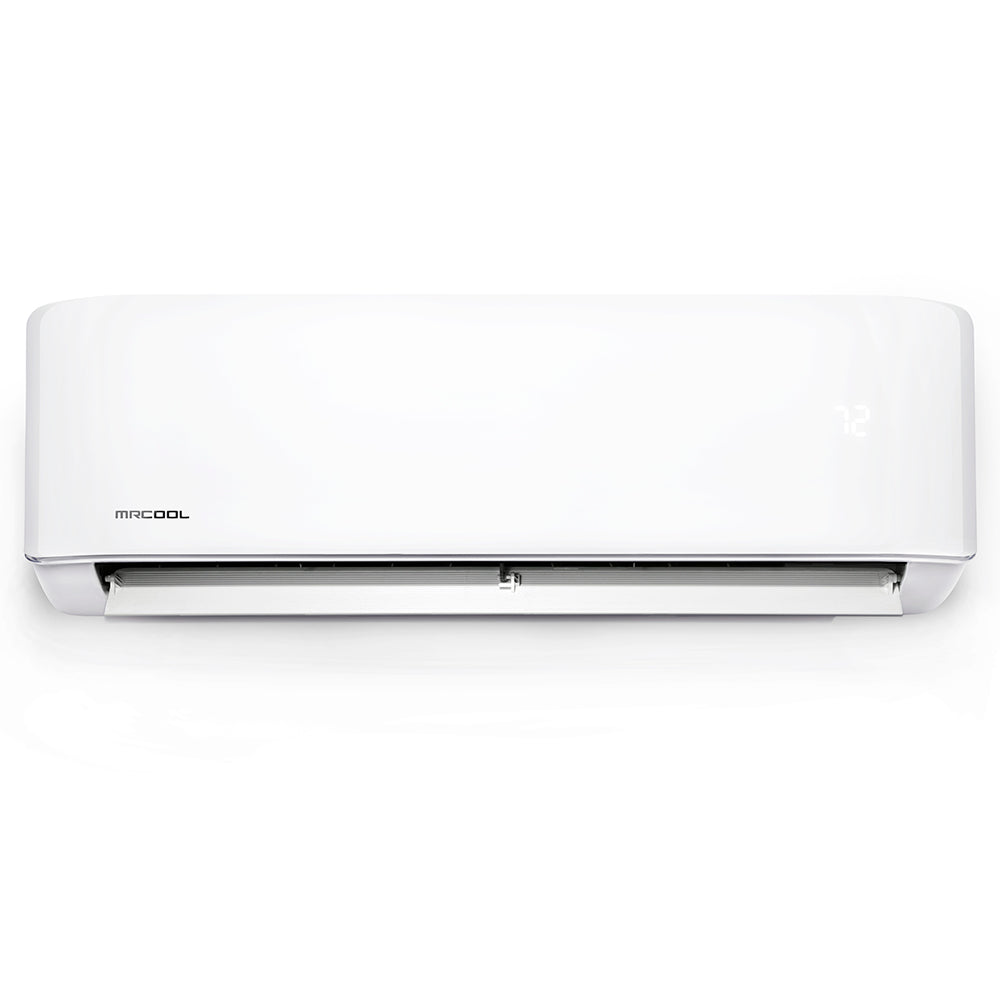

- Air Handler Model
- A-09-HP-WMAH-230D-O

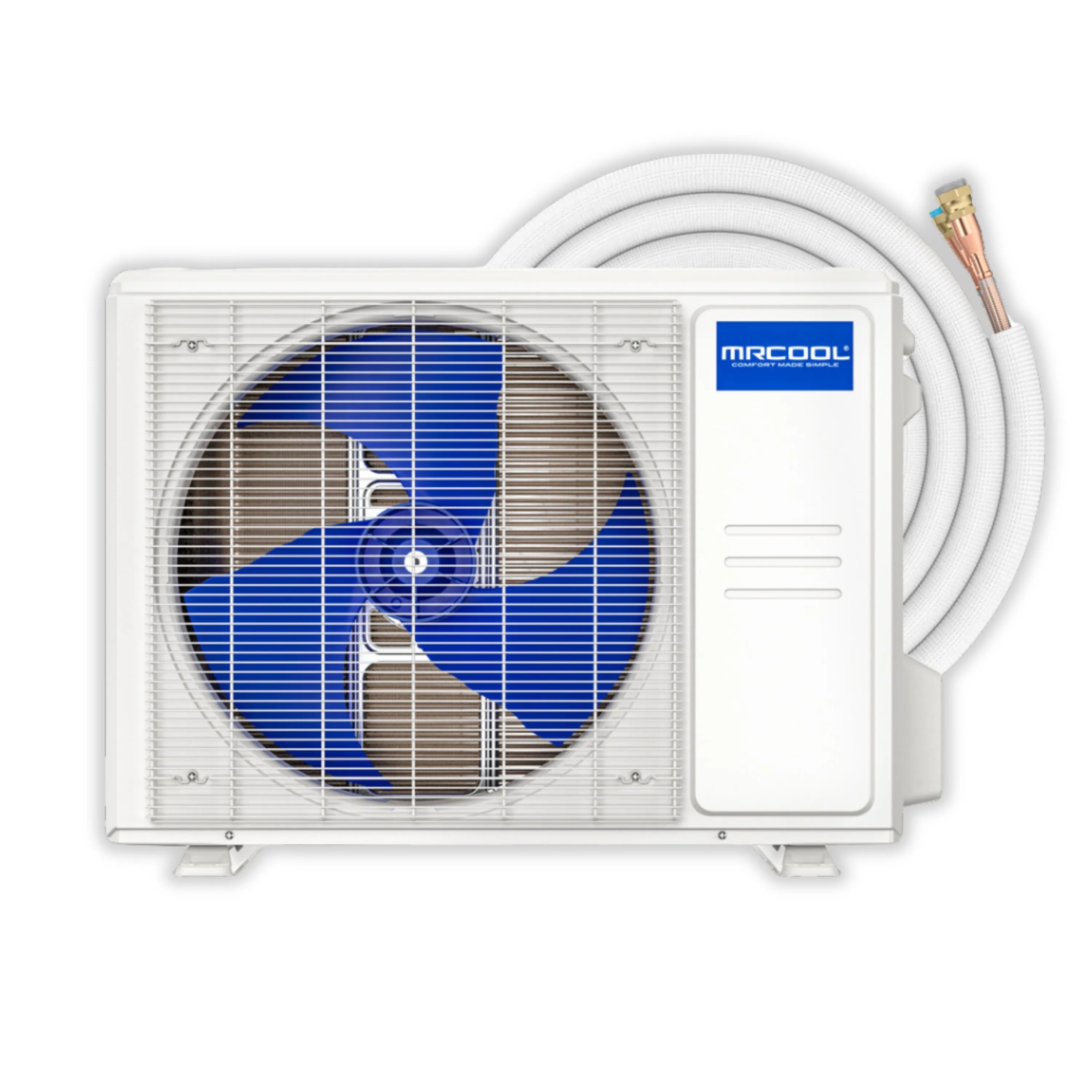

- Condenser Model
- A-09-HP-C-230D-O
- Max Coverage Area*
- Up to 400
- Power Supply
- 208-230V-60Hz. 1Ph
- Cooling Capacity
- 9000 BTU/h
- SEER2
- 21.2 BTU/w
- EER2
- 12.6 BTU/w
- Heating Capacity
- 10000 BTU/h
- HSPF2-4
- 9.1 BTU/h
- HSPF2-5
- 7.0 BTU/h
- Air Handler noise level (Turbo/Hi/Mi/Lo/Si)
- 40.5/35.5/31.5/23.0/18.5
- Condenser noise level (Hi)
- 53.5 dB (A)
- Air Handler Maximum Fuse (Breaker)
- 15.0 A
- Condenser Maximum Fuse (Breaker)
- 15.0 A
- †Refrigerant R-454B
- 21.52

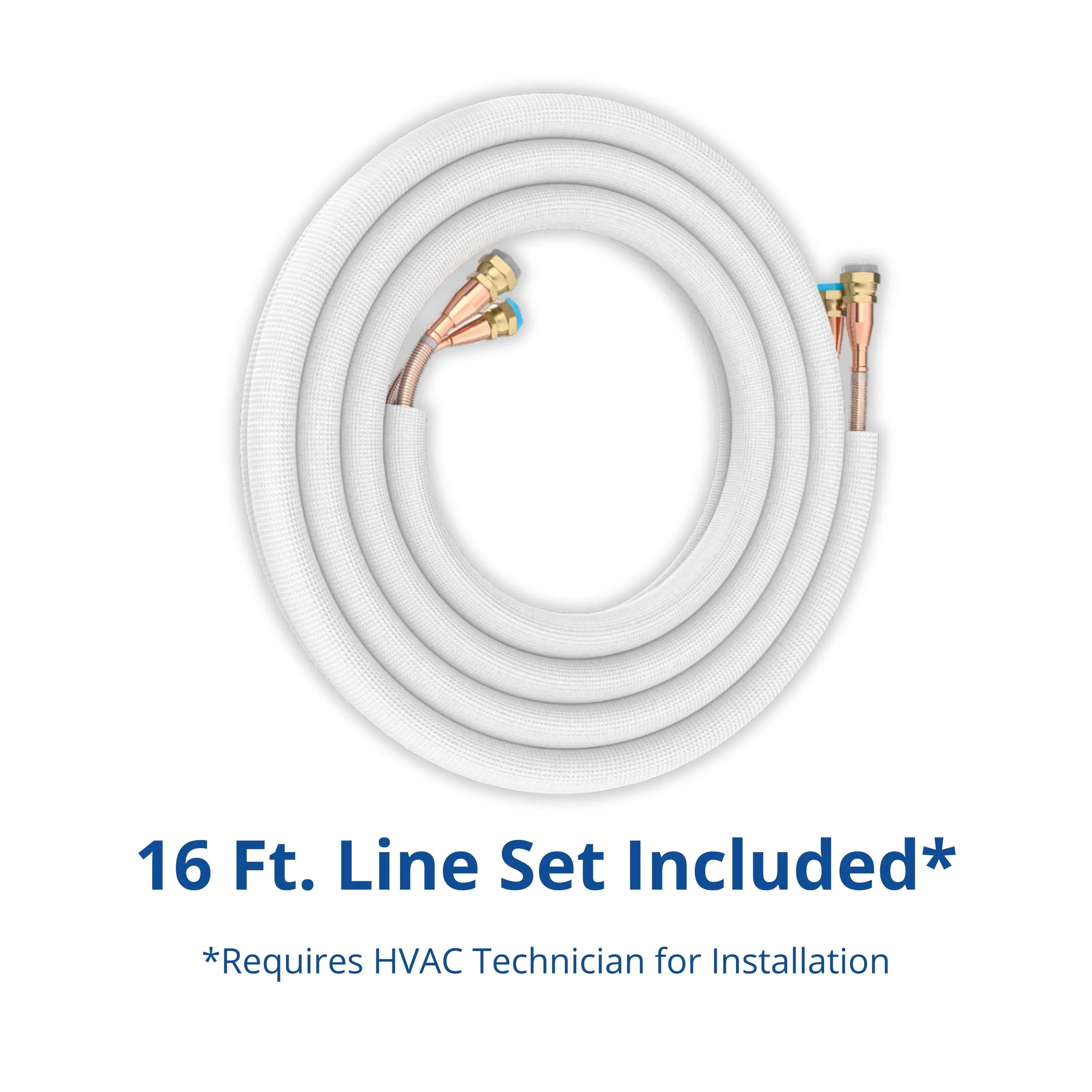

- Piping Size Liquid side/Gas side
- 1/4”-3/8”
- Air Handler Minimum Circuit (Disconnect)
- 3.0 A
- Condenser Minimum Circuit (Disconnect)
- 12.0 A
