Description
- Air Handler Net Dimension (WxDxH)
- 28.43 x 7.36 x 11.42 inch
- Air Handler Net/Gross Weight
- 17.42/22.93 lbs
- Condenser Net Dimension (WxDxH)
- 30.12 x 11.93 x 21.85 inch
- Condenser Net/Gross Weight
- 56.66/62.17 lbs

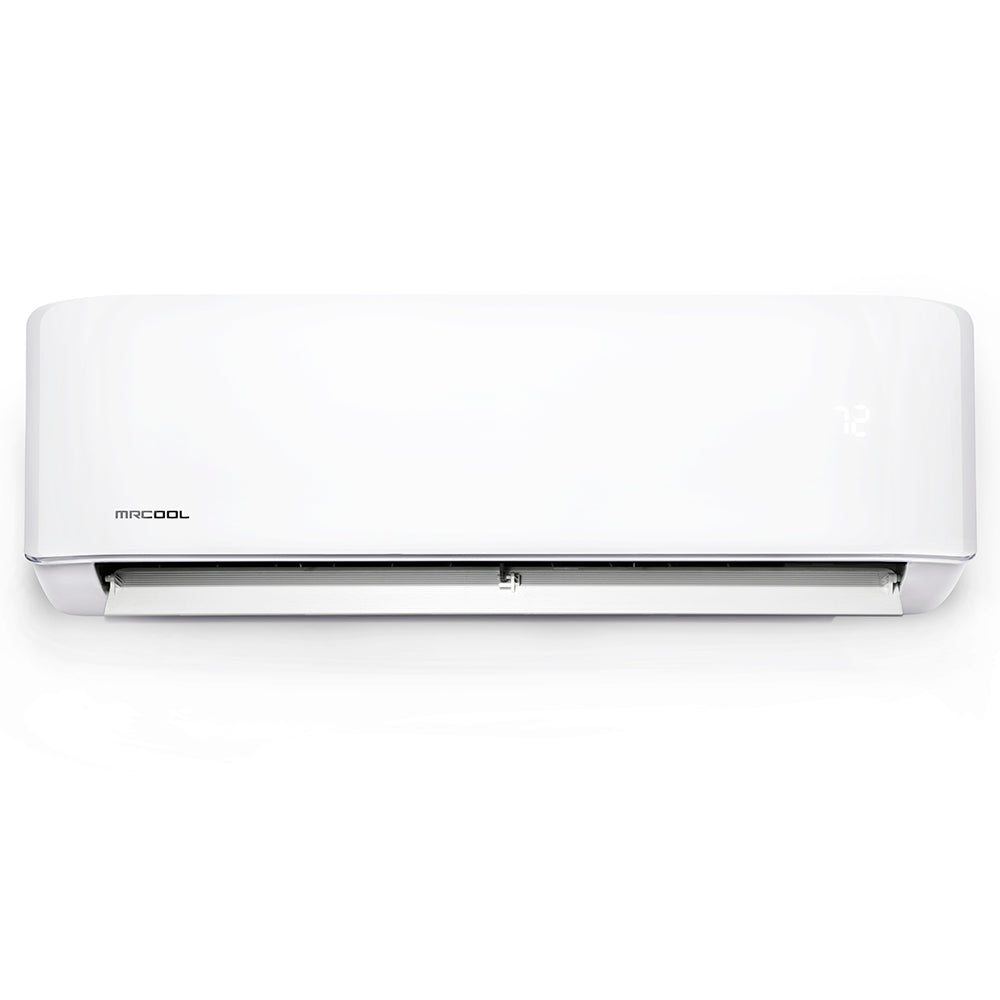

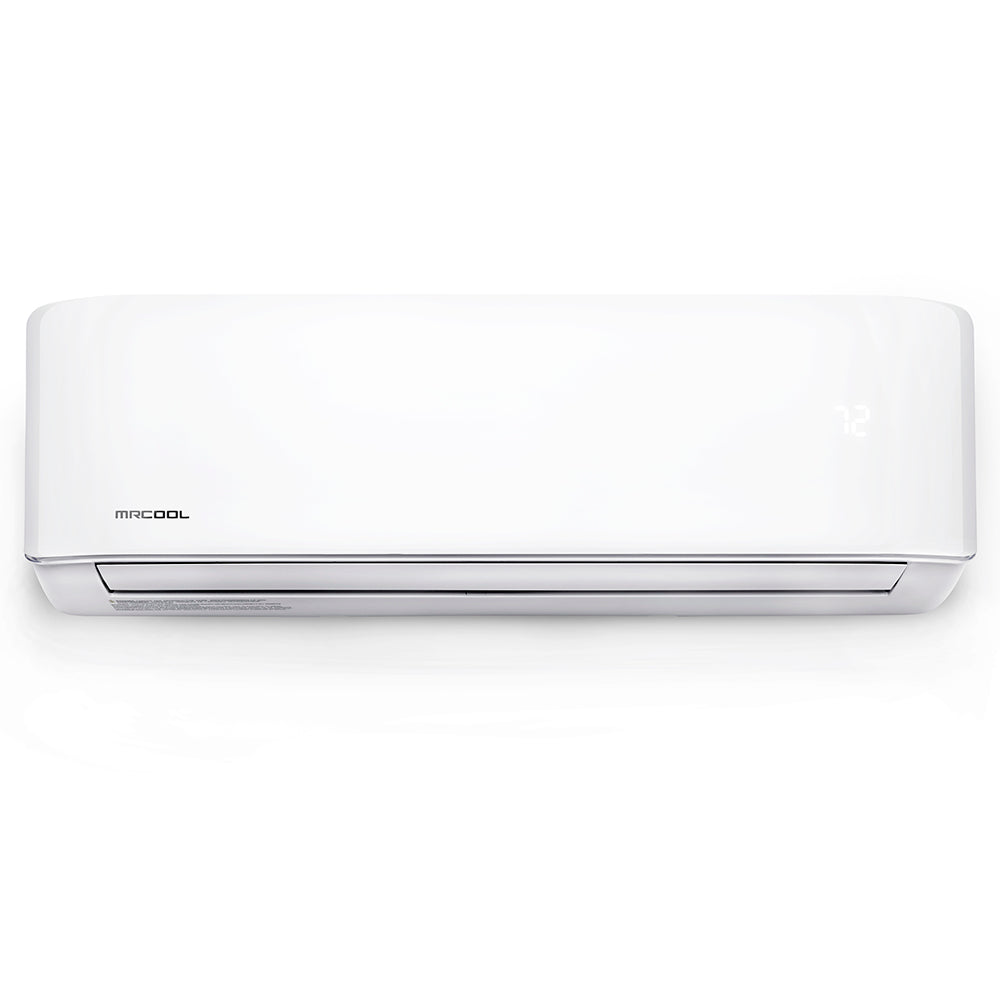

- Air Handler Model
- A-09-HP-WMAH-115D-O
- Condenser Model
- A-09-HP-C-115D-O
- Max Coverage Area*
- Up to 400
- Power Supply
- 115V~ 60Hz, 1Ph V ~ Hz.Ph
- Cooling Capacity
- 9000 BTU/h
- SEER2
- 21.5 BTU/w
- Heating Capacity
- 10000 BTU/h
- HSPF2-4
- 9.0 BTU/h
- HSPF2-5
- 7.0 BTU/h
- Air Handler Noise level (Turbo/Hi/Mi/Lo/Si)
- 43.0/37.5/33.5/25.0/18.0
- Condenser noise level (Hi)
- 52.5 dB(A)
- Air Handler Maximum Fuse (Breaker)
- 15.0 A
- Condenser Maximum Fuse (Breaker)
- 20.0 A
- †Refrigerant R-454B Piping Size Liquid side/Gas side
- 21.52 oz 1/4”-3/8”
- Air Handler Minimum Circuit (Disconnect)
- 3.0 A
- Condenser Minimum Circuit (Disconnect)
- 18.0 A
MRCOOL Mini Split BTU Guide
Drawn to scale — 1 square = 2 × 2 ft
