Description
- Air Handler Net Dimension (WxDxH)
- 49.57 x 11.10 x 14.25 inch
- Air Handler Net/Gross Weight
- 40.34/54.01 Lbs
- Condenser Net Dimension (WxDxH)
- 37.24 x 16.14 x 31.89 inch
- Condenser Net/Gross Weight
- 150.35/160.27 Lbs

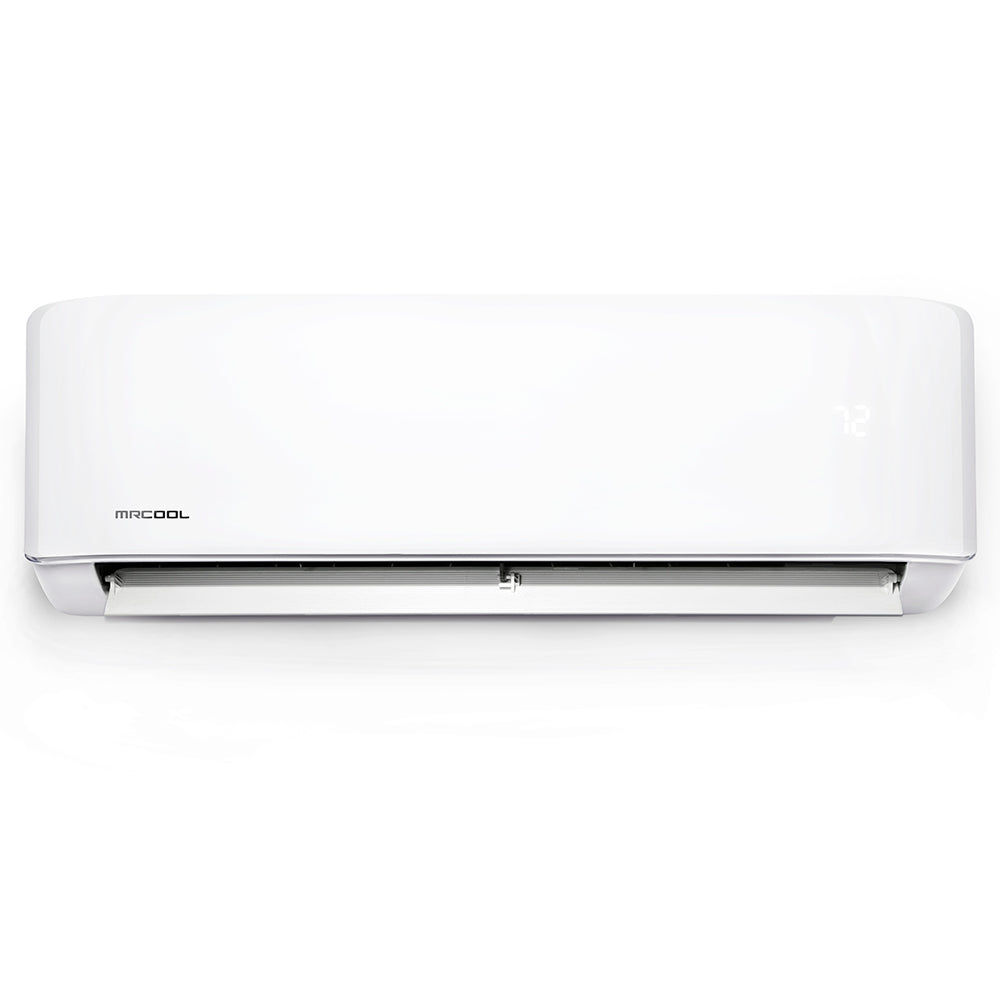

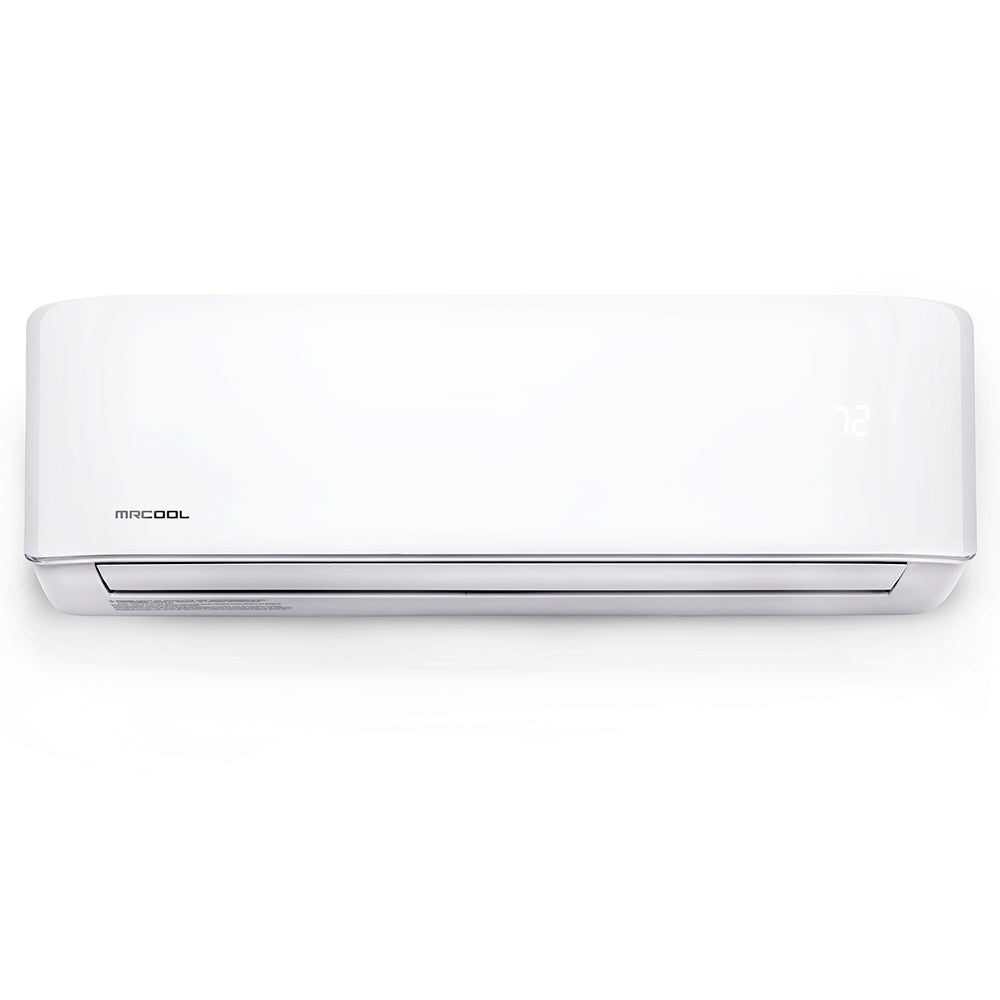

- Air Handler Model
- A-36-HP-WMAH-230D-O

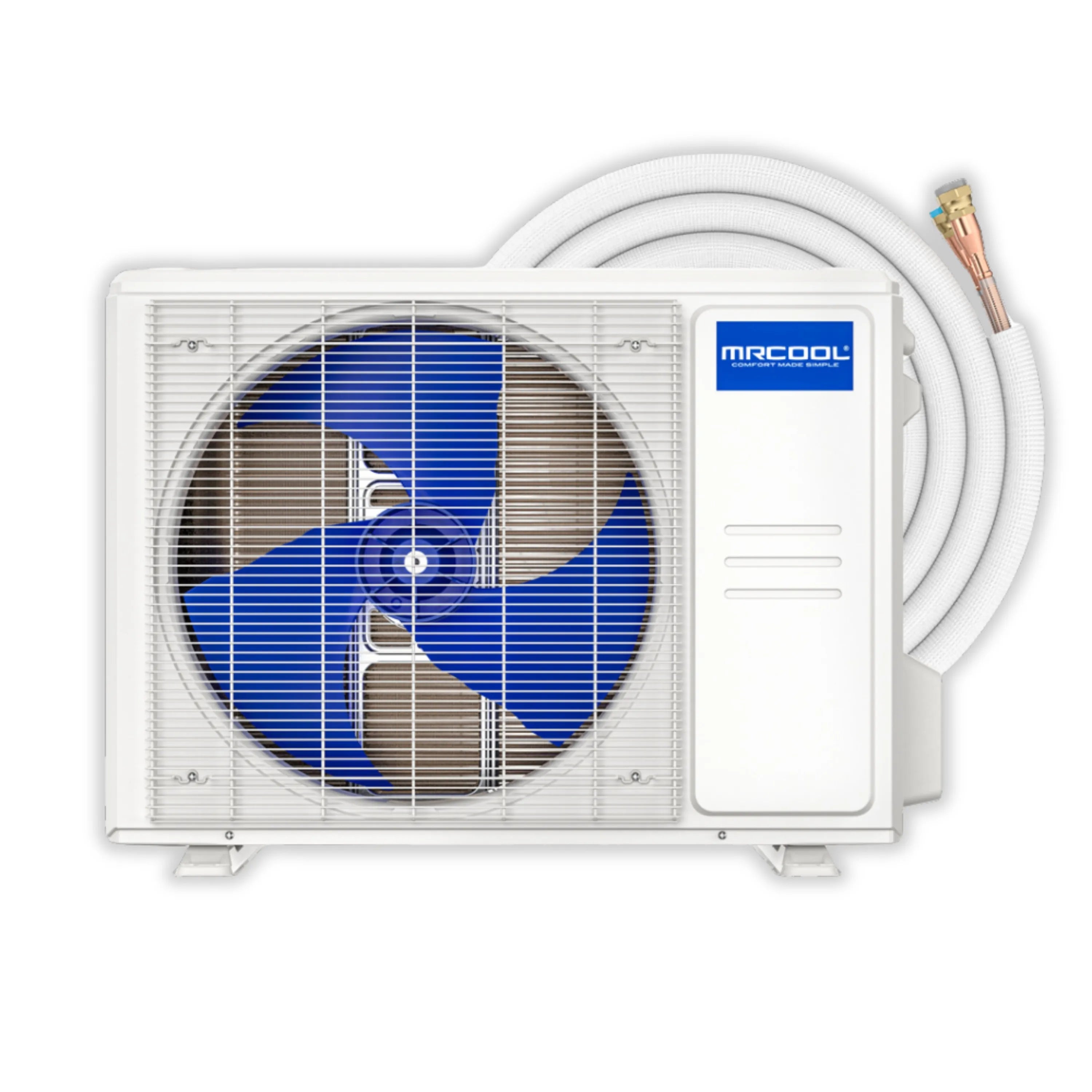

- Condenser Model
- A-36-HP-C-230D-O
- Max Coverage Area*
- Up to 1550
- Power Supply
- 208-230V-60Hz. 1Ph
- Cooling Capacity
- 36000 BTU/h
- SEER2
- 18 BTU/w
- EER2
- 9.0 BTU/w
- Heating Capacity
- 36,000 BTU/h
- HSPF2-4
- 8.5 BTU/h
- HSPF2-5
- 6.8 BTU/h
- Air Handler noise level (Turbo/Hi/Mi/Lo/Si)
- 56.5/50.5/44.5/34/28
- Condenser noise level (Hi)
- 60.5 dB (A)
- Air Handler Maximum Fuse (Breaker)
- 15.0 A
- Condenser Maximum Fuse (Breaker)
- 35.0 A
- †Refrigerant R-454B
- 112.88

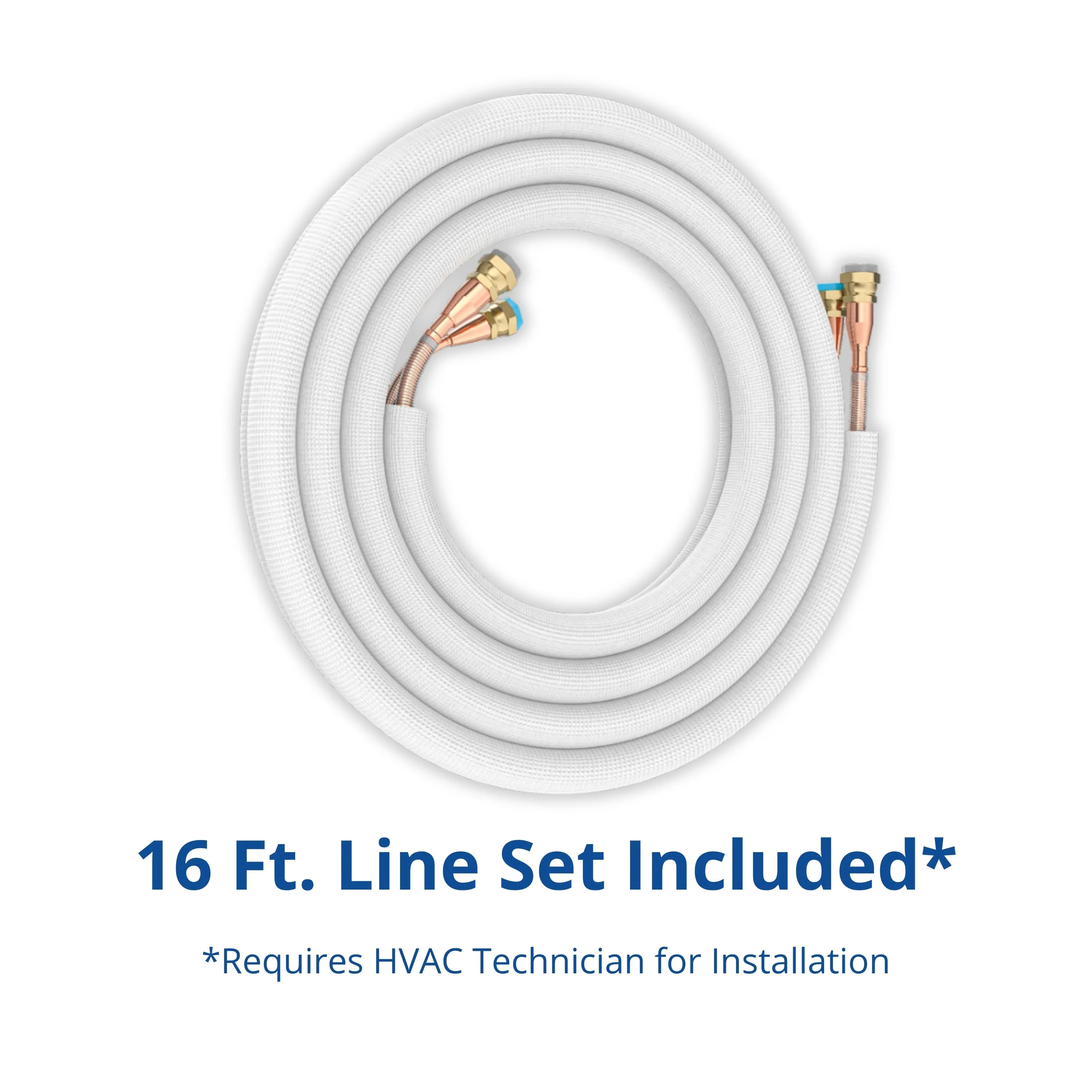

- Piping Size Liquid side/Gas side
- 3/8”-5/8”
- Air Handler Minimum Circuit (Disconnect)
- 3.0 A
- Condenser Minimum Circuit (Disconnect)
- 33.0 A
MRCOOL Mini Split BTU Guide
Drawn to scale — 1 square = 2 × 2 ft
