Description
- Air Handler Net Dimension (WxDxH)
- 42.52 x 8.90 x 13.19 Inch
- Air Handler Net/Gross Weight
- 30.64/39.46 Lbs
- Condenser Net Dimension (WxDxH)
- 35.04 x 13.46 x 26.50 Inch
- Condenser Net/Gross Weight
- 94.58/102.29 Lbs

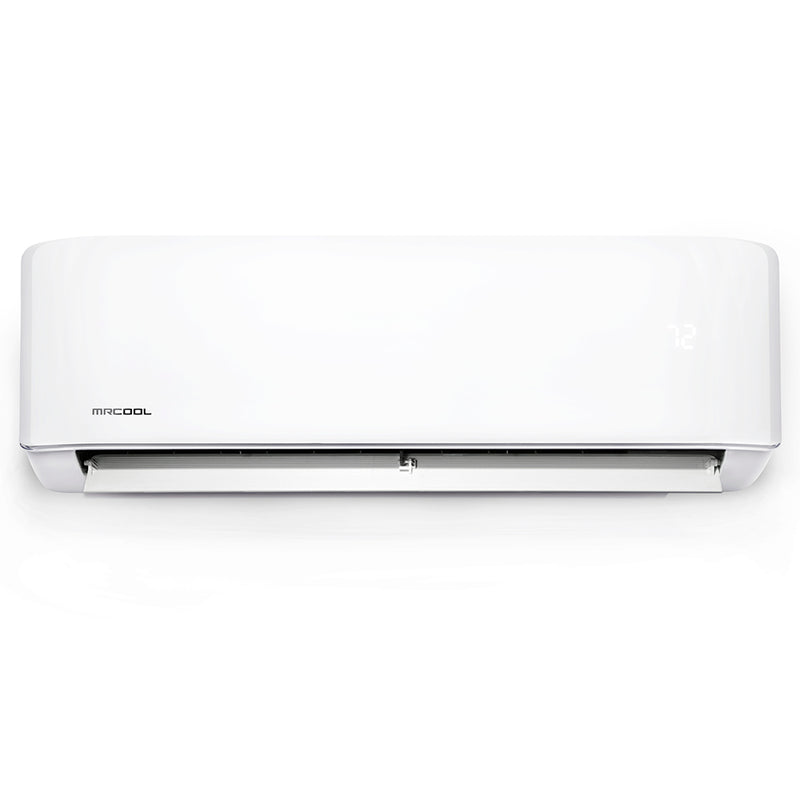

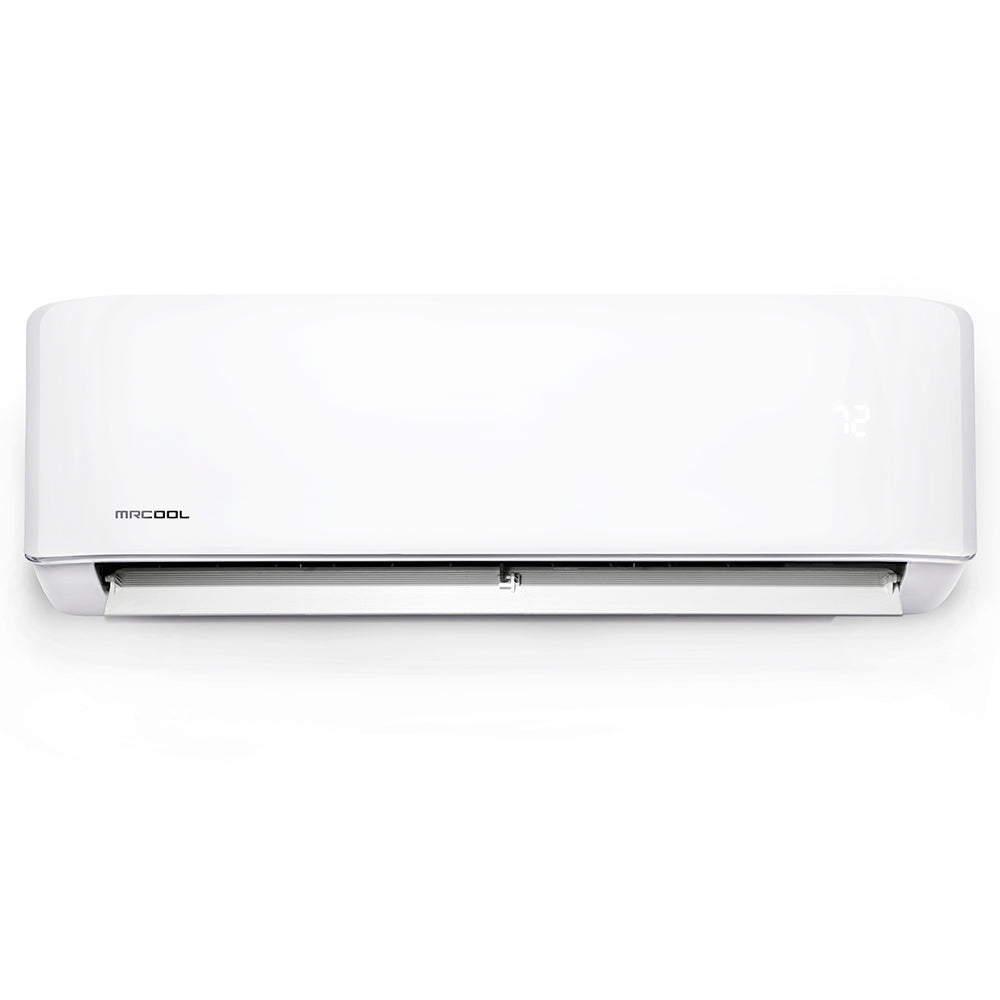

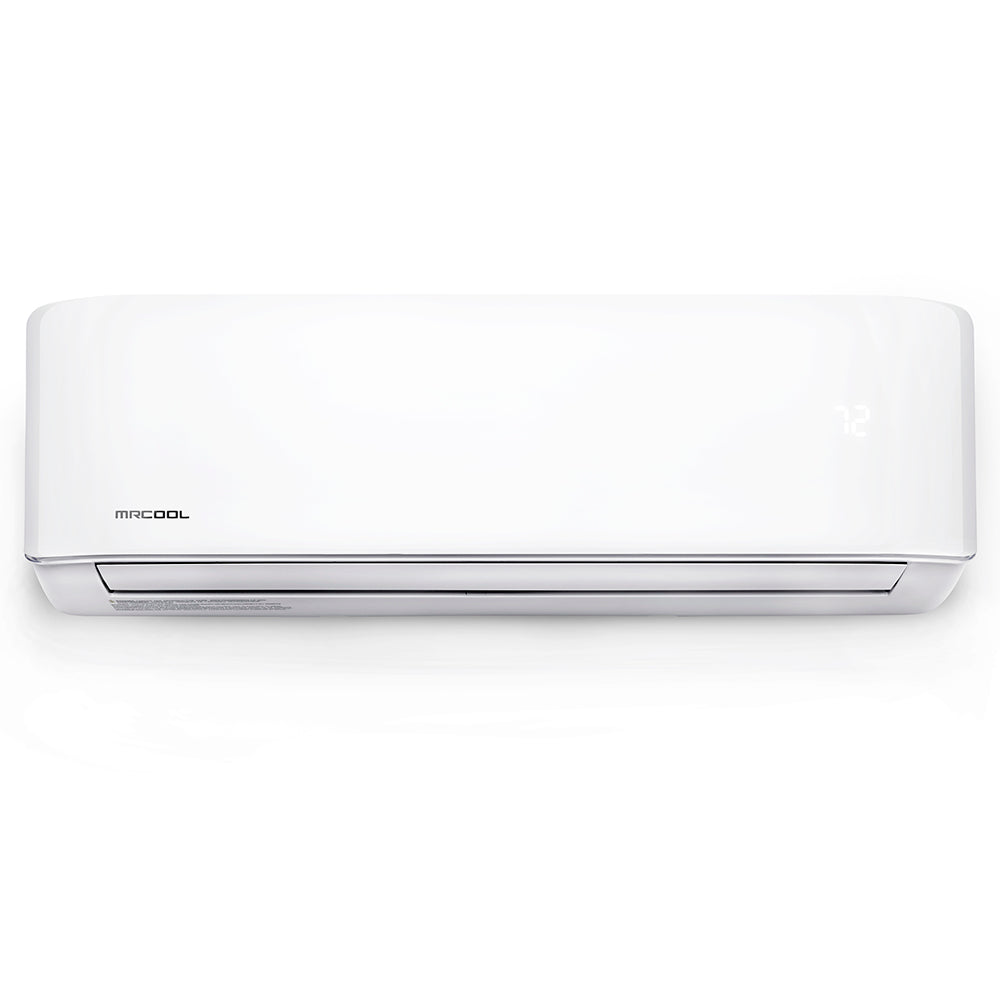

- Air Handler Model
- A-24-HP-WMAH-230D-O

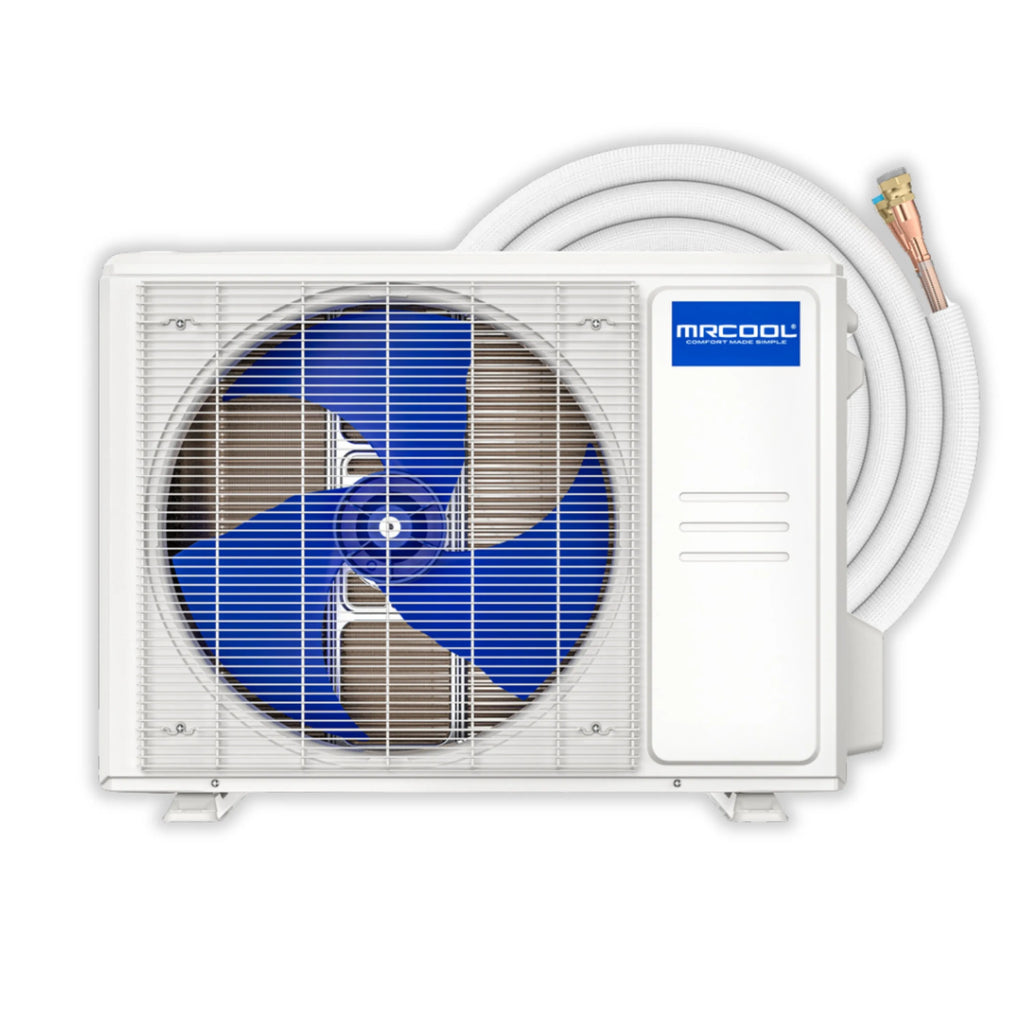

- Condenser Model
- A-24-HP-C-230D-O
- Max Coverage Area*
- Up to 1050
- Power Supply
- 208-230V-60Hz. 1Ph
- Cooling Capacity
- 24000 BTU/h
- SEER2
- 18.7 BTU/w
- EER2
- 10.0 BTU/w
- Heating Capacity
- 24000 BTU/h
- HSPF2-4
- 9.3 BTU/h
- HSPF2-5
- 7.3 BTU/h
- Air Handler noise level (Turbo/Hi/Mi/Lo/Si)
- 54.0/45.0/41.5/27.0/21.5
- Condenser noise level (Hi)
- 59 dB (A)
- Air Handler Maximum Fuse (Breaker)
- 15.0 A
- Condenser Maximum Fuse (Breaker)
- 20.0 A
- †Refrigerant R-454B
- 53.62

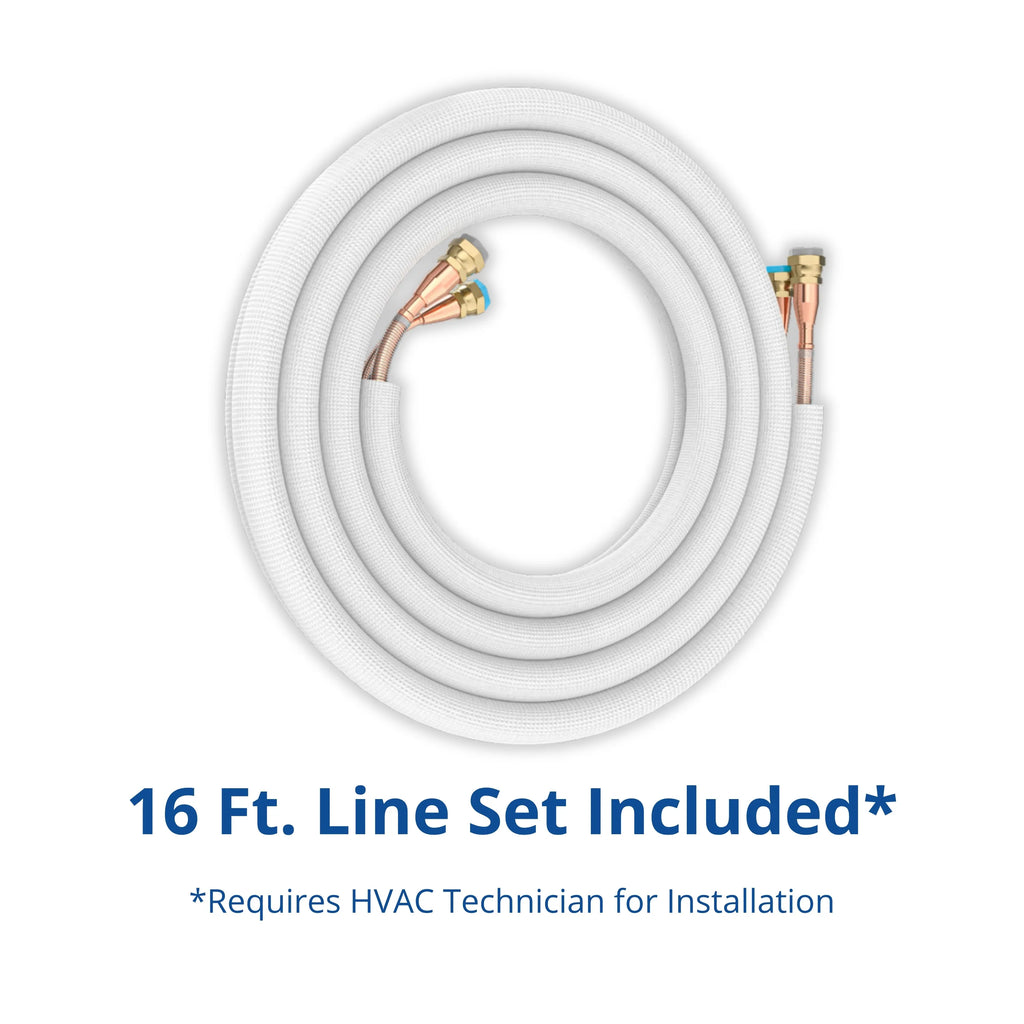

- Piping Size Liquid side/Gas side
- 3/8”-5/8”
- Air Handler Minimum Circuit (Disconnect)
- 3.0 A
- Condenser Minimum Circuit (Disconnect)
- 19.0 A
