Description
- Air Handler Net Dimension (WxDxH)
- 31.57 x 7.44 x 11.69 inch
- Air Handler Net/Gross Weight
- 19.40/25.13 Lbs
- Condenser Net Dimension (WxDxH)
- 30.12 x 11.93 x 21.85 inch
- Condenser Net/Gross Weight
- 59.08/64.37 Lbs

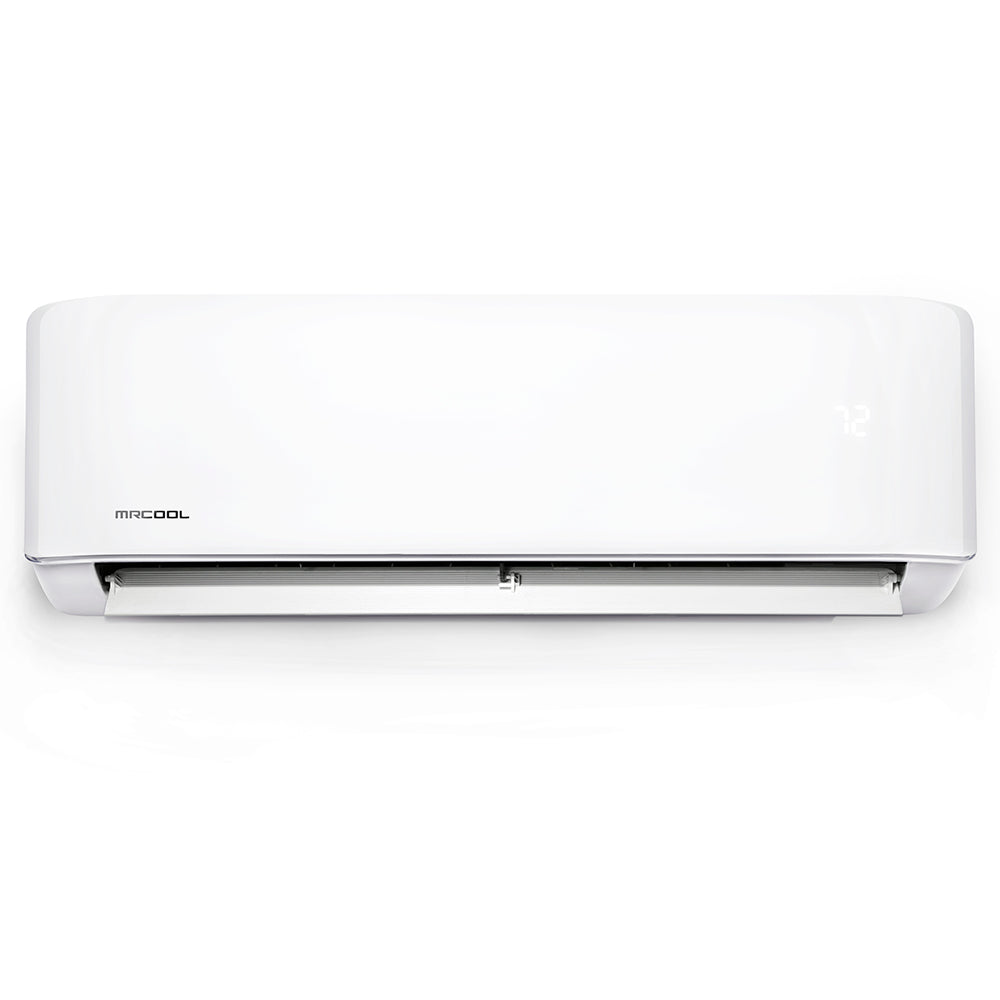

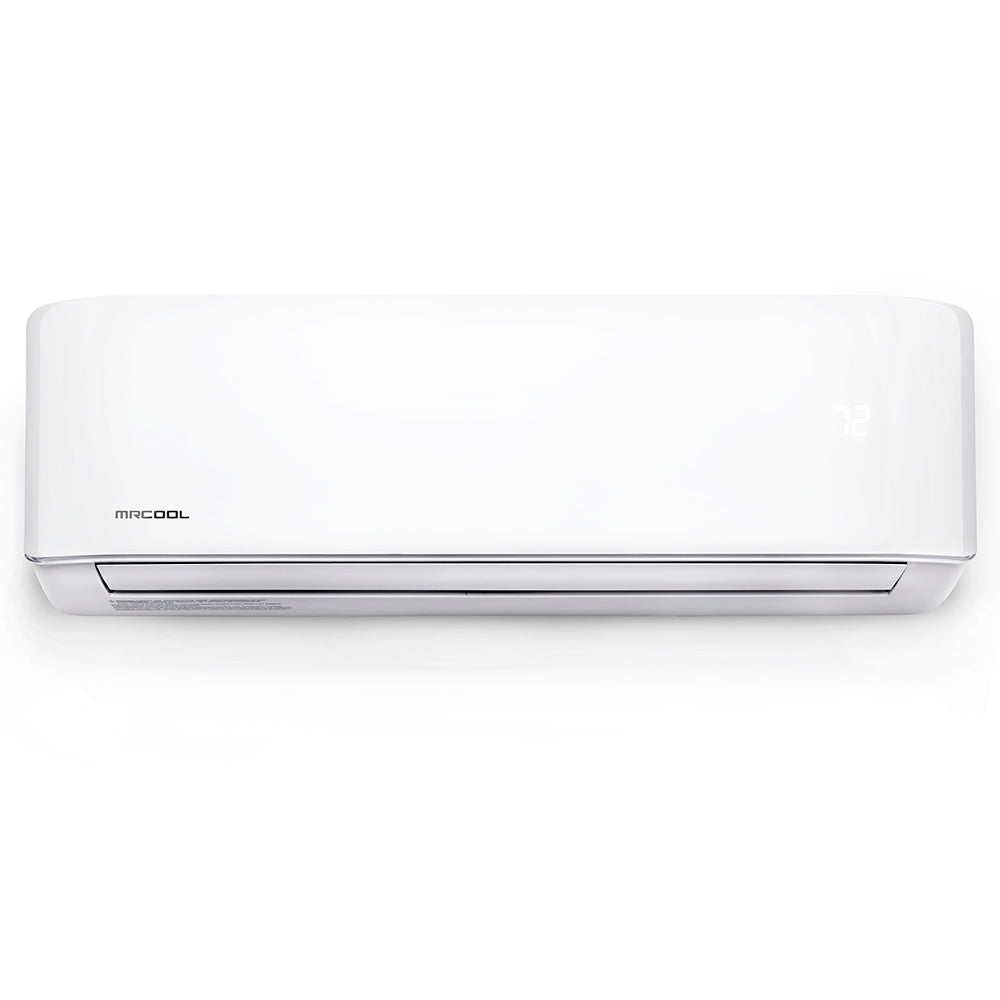

- Air Handler Model
- A-12-HP-WMAH-230D-O

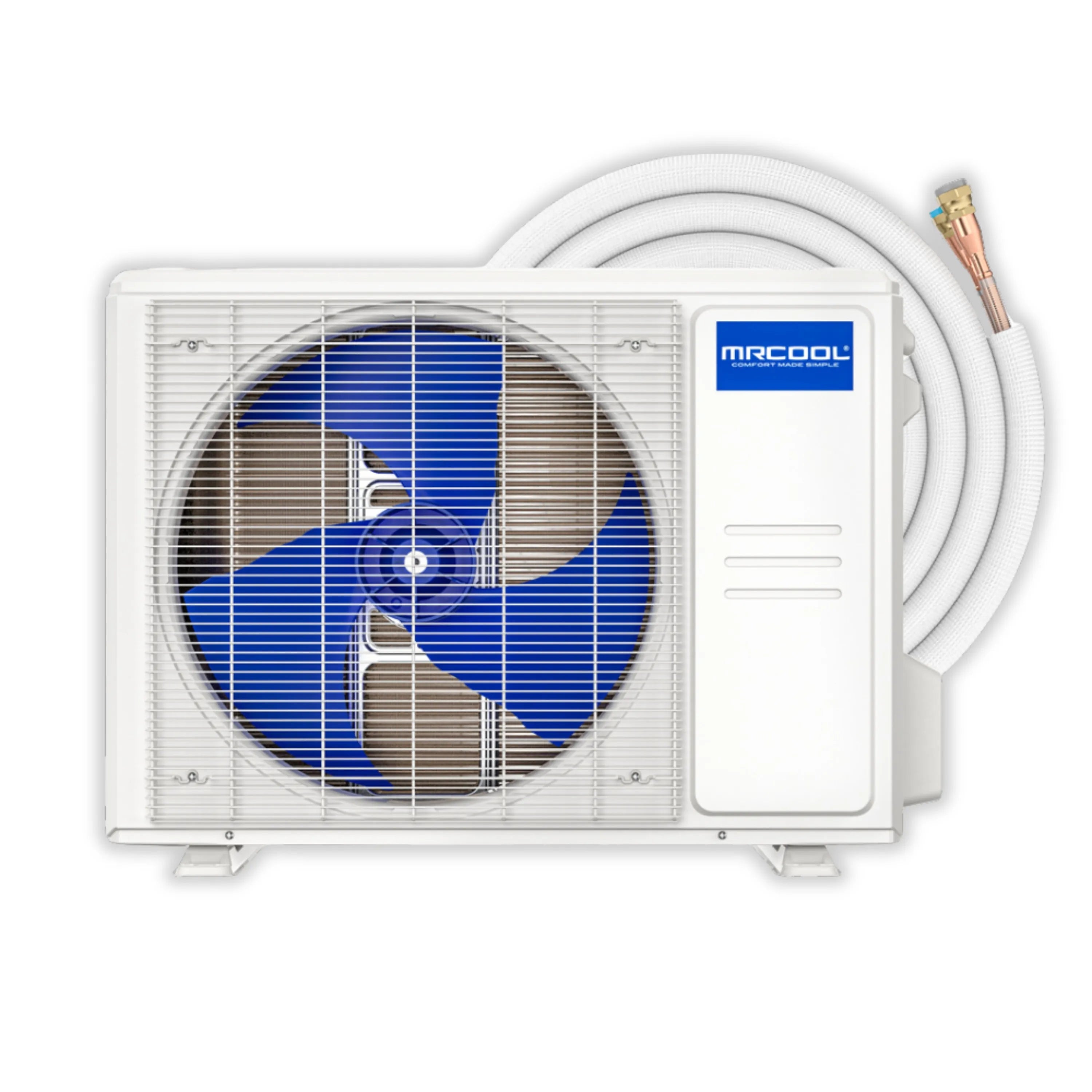

- Condenser Model
- A-12-HP-C-230D-O
- Max Coverage Area*
- Up to 550
- Power Supply
- 208-230V-60Hz. 1Ph
- Cooling Capacity
- 12000 BTU/h
- SEER2
- 21.3 BTU/w
- EER2
- 10.8 BTU/w
- Heating Capacity
- 12000 BTU/h
- HSPF2-4
- 9.1 BTU/h
- HSPF2-5
- 7.0 BTU/h
- Air Handler noise level (Turbo/Hi/Mi/Lo/Si)
- 44.0/38.0/32.0/22.5/21
- Condenser noise level (Hi)
- 54 dB (A)
- Air Handler Maximum Fuse (Breaker)
- 15.0 A
- Condenser Maximum Fuse (Breaker)
- 15.0 A
- †Refrigerant R-454B
- 24.69

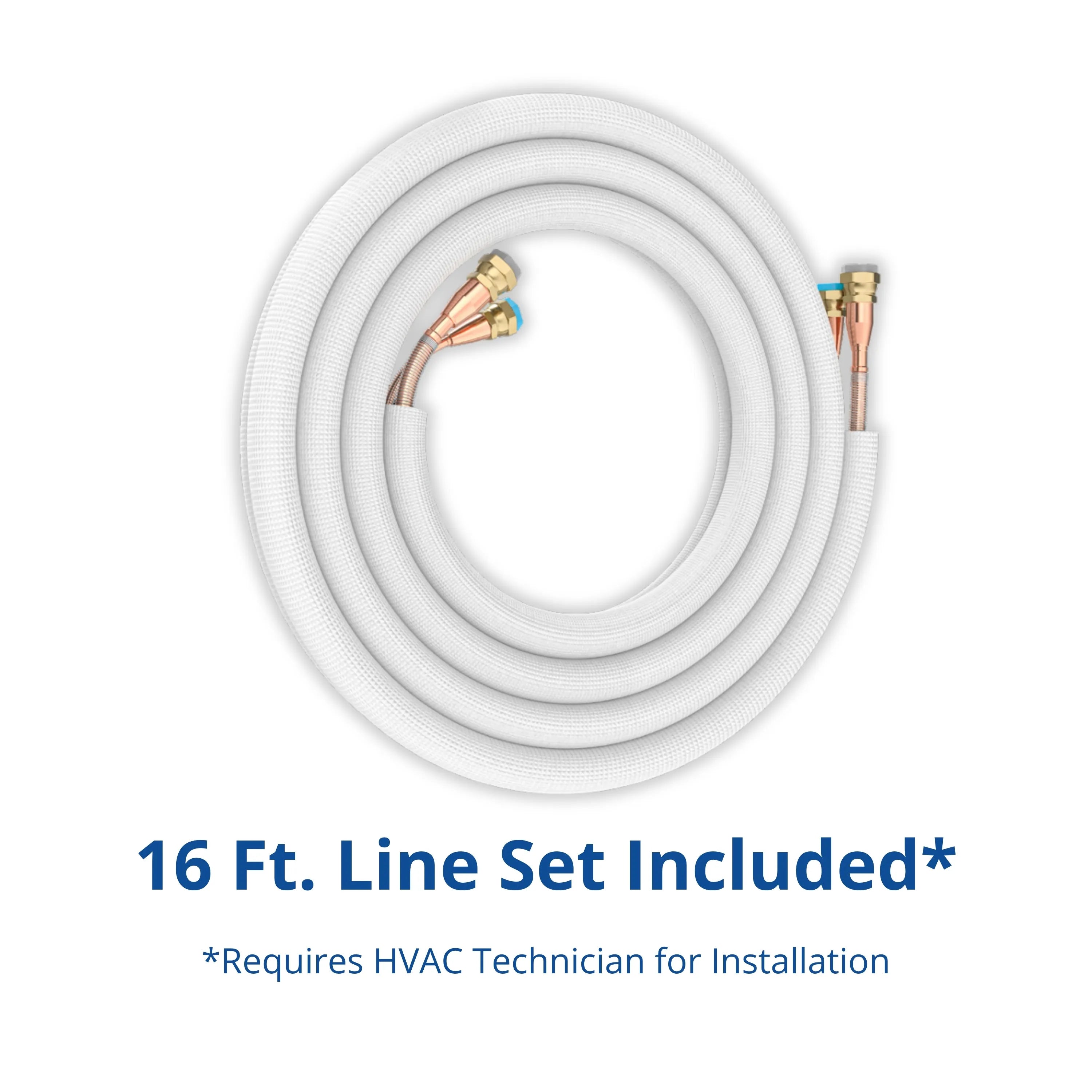

- Piping Size Liquid side/Gas side
- 1/4”-3/8”
- Air Handler Condenser Minimum Circuit (Disconnect)
- 3.0 A
- Condenser Minimum Circuit (Disconnect)
- 13.0 A
MRCOOL Mini Split BTU Guide
Drawn to scale — 1 square = 2 × 2 ft
