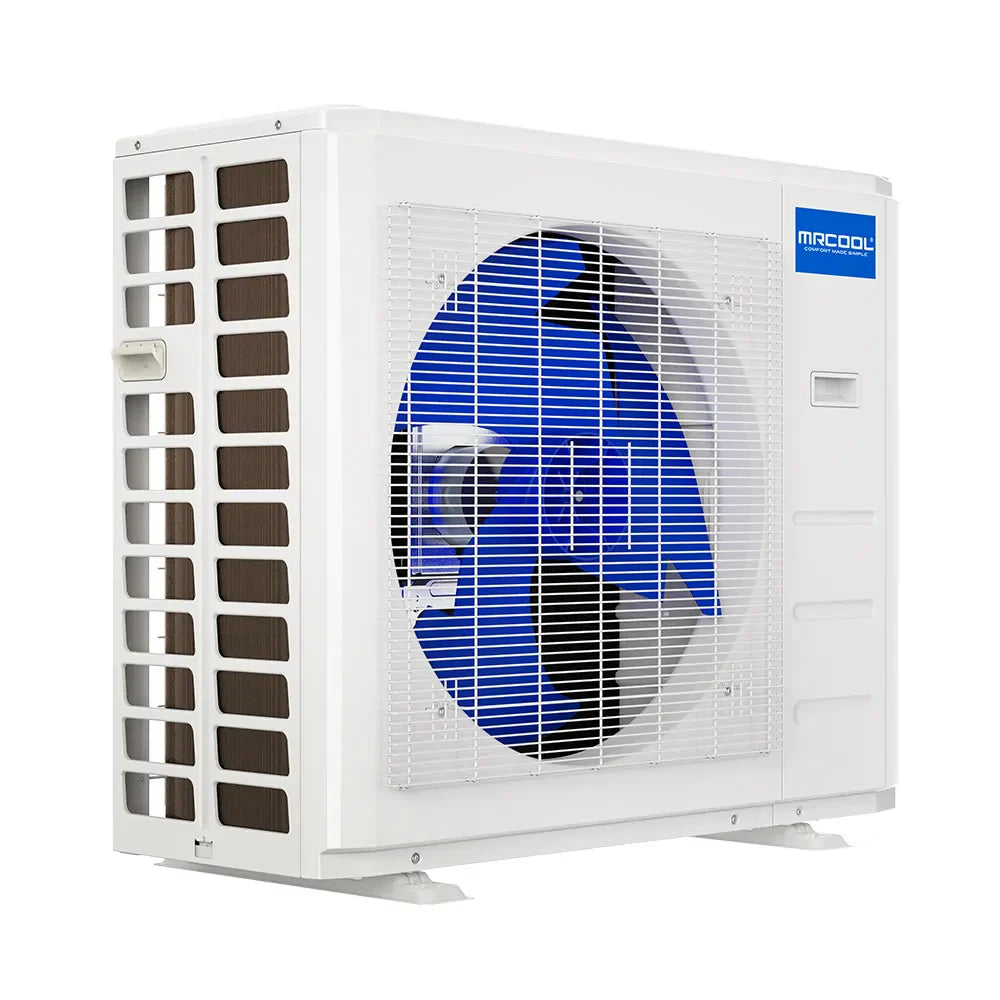

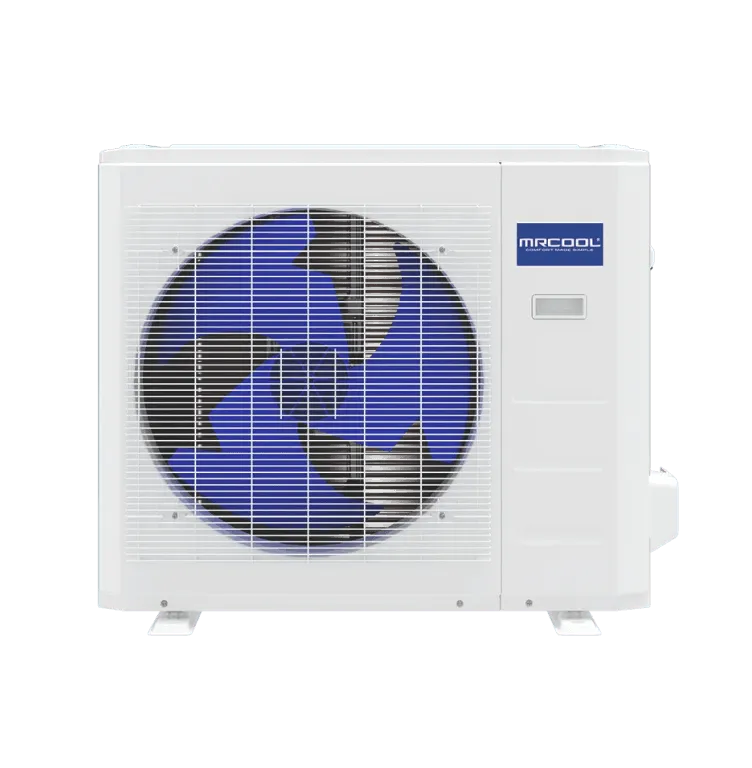

The MRCOOL® OLYMPUS E-STAR® 24k Series condenser is a powerful and efficient solution for heating and cooling areas up to 1,050 square feet, making it perfect for medium to large rooms, home offices, garages, and more. Its compact size simplifies installation, even in limited or unique spaces. Equipped with Wi-Fi and the MRCOOL® Smart HVAC app, you can control your system from anywhere using your smartphone or tablet. For those who prefer more direct control, the included remote control provides quick access to all settings. This air handler is designed with energy efficiency in mind, offering excellent SEER2 and EER2 ratings of 23 and 14, respectively, along with a HSPF2-4 rating of 11.7. These features help you save on energy bills while maintaining consistent and comfortable temperatures. The outdoor fan operates quietly at just 51.5 dB, ensuring minimal noise and disruption.
The system uses R-454B refrigerant, an environmentally friendly choice that delivers optimal performance while helping to reduce the system's carbon footprint. In addition, the MRCOOL® OLYMPUS E-STAR® 24k Series is compatible with voice control through Amazon Alexa and Google Assistant, allowing you to adjust settings hands-free. The unit is backed by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, ensuring durable performance, cutting-edge features, and lasting peace of mind.
| Net Dimensions (In) | 16.14 D x 31.89 H x 37.24 W |
| Net Weight (Lbs) | 130.29 |
| SEER2 | Up to 21 |
| EER2 | Up to 13 |
| HSPF2-4 | 13.5 |
| HSPF2-5 | 9.8 |
| TONNAGE | 2 |
| Cooling Capacity (Btu) | 24000 |
| Heating Capacity (Btu) | 29000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 25 |
| Min Circuit Ampacity (A) | 24.9 |
| Color | White |
| Max Coverage Area | Up to 1050 |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 63.49 |
| Decibel Rating (Dba) | 61.5 |
| Inverter | DC |
| Max Lineset Length (Ft) | 164 |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Rpm | 950/800/500 |
| Metering Device | EXV + Throttle Valve |
| Ul Listed | Yes |
| Csa Listed | Yes |
| Etl Listed | Yes |
| Energy Star Certified | Yes |
| Ahri Certified | Yes |
| Base Warranty | 5-Year Parts/7-Year Compressor |
| Base Parts Warranty | 5-Year |
| Base Compressor Warranty | 7-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Depth (In) | 19.69 |
| Gross Height (In) | 34.45 |
| Gross Width (In) | 42.91 |
| Gross Weight (Lbs) | 141.31 |

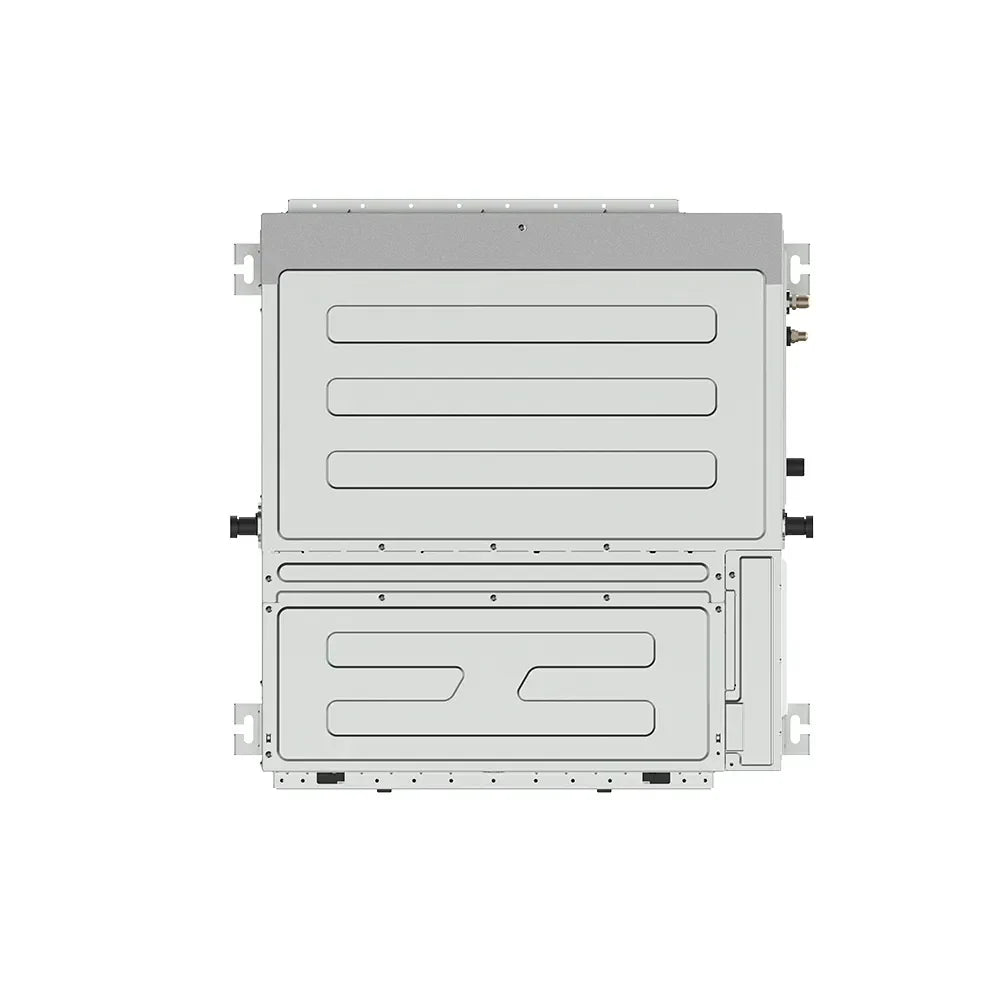

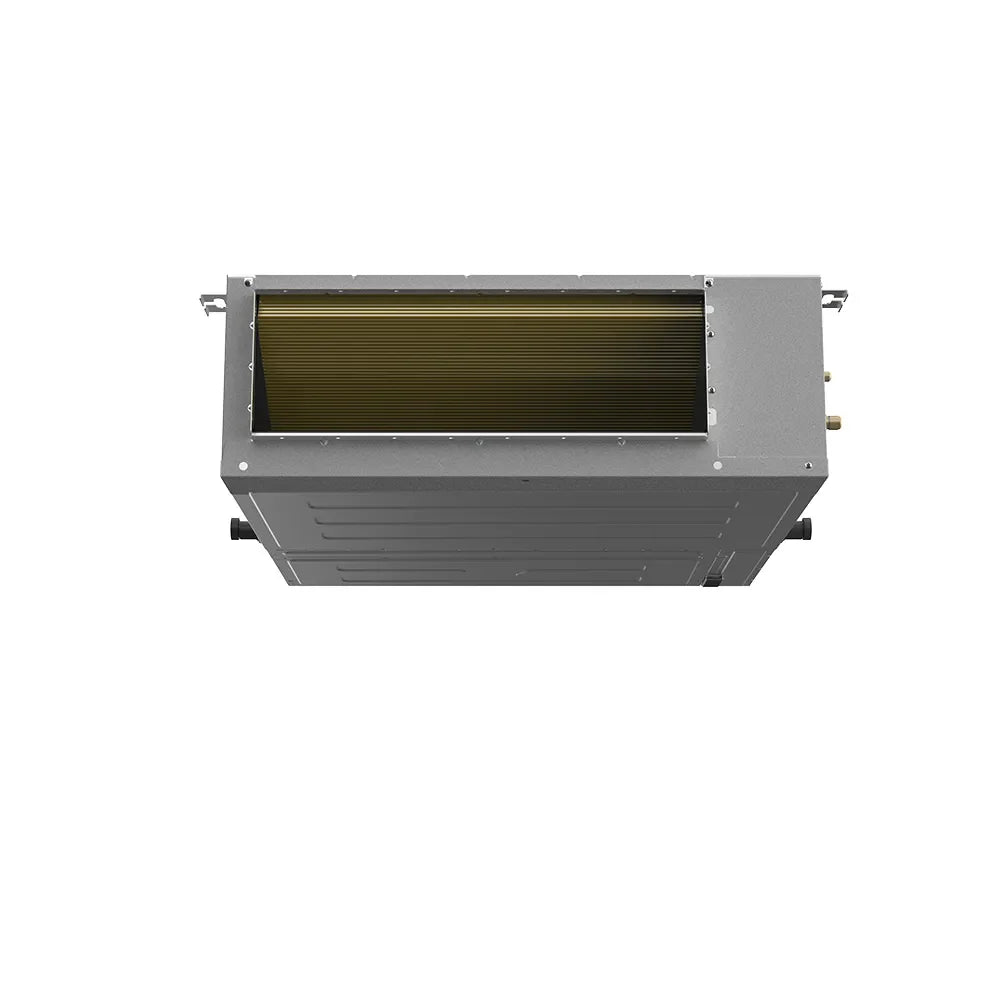

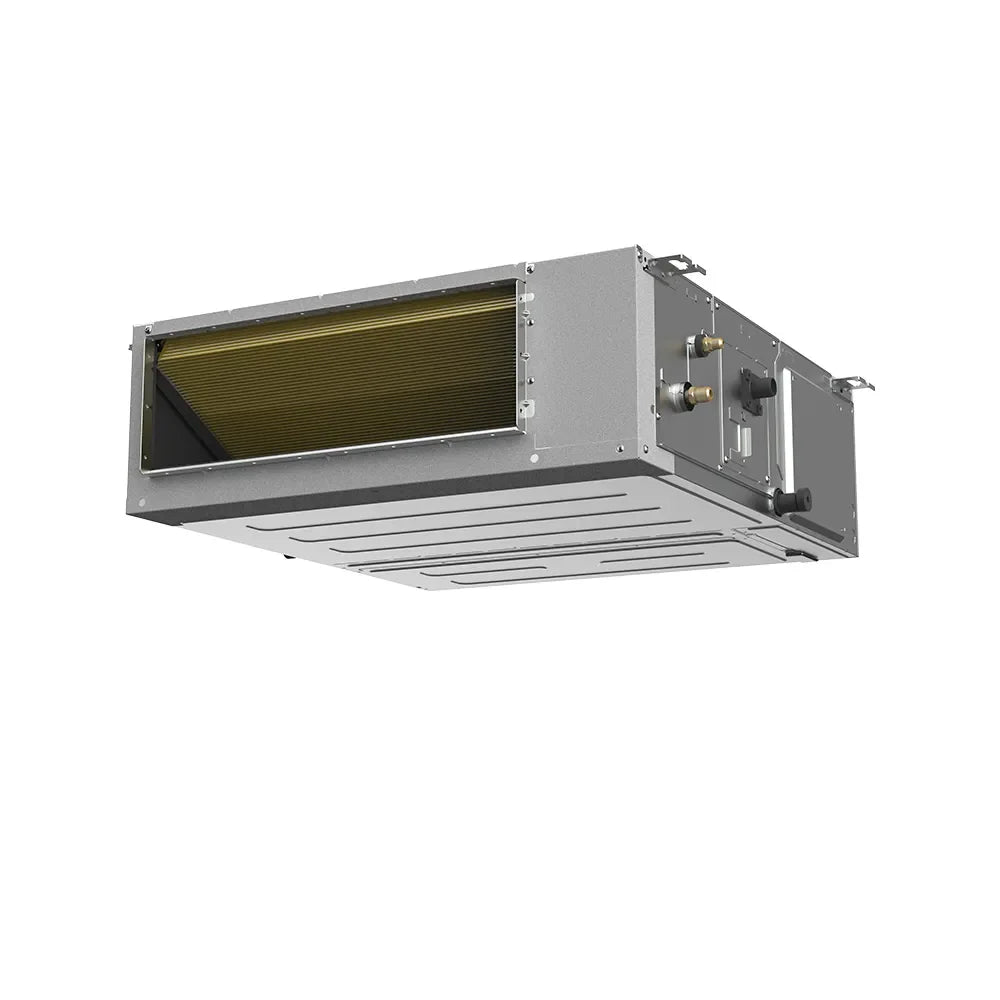

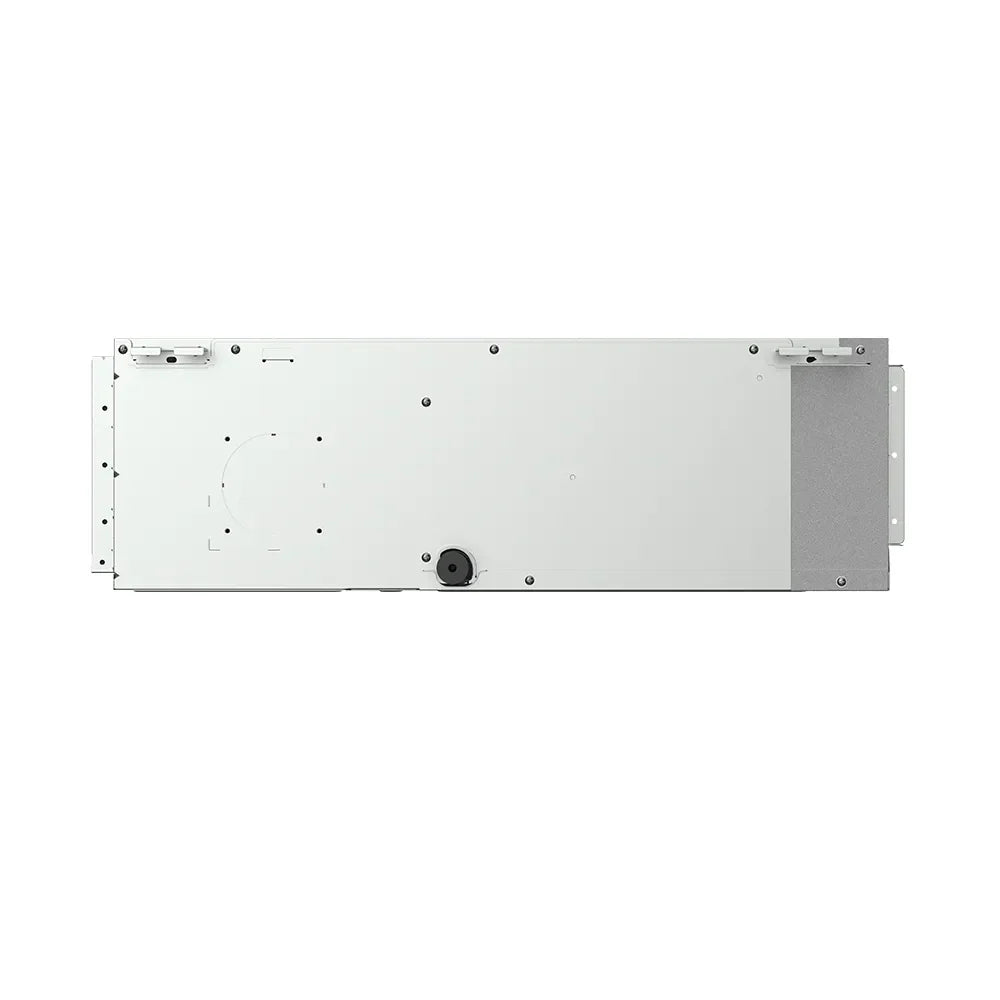

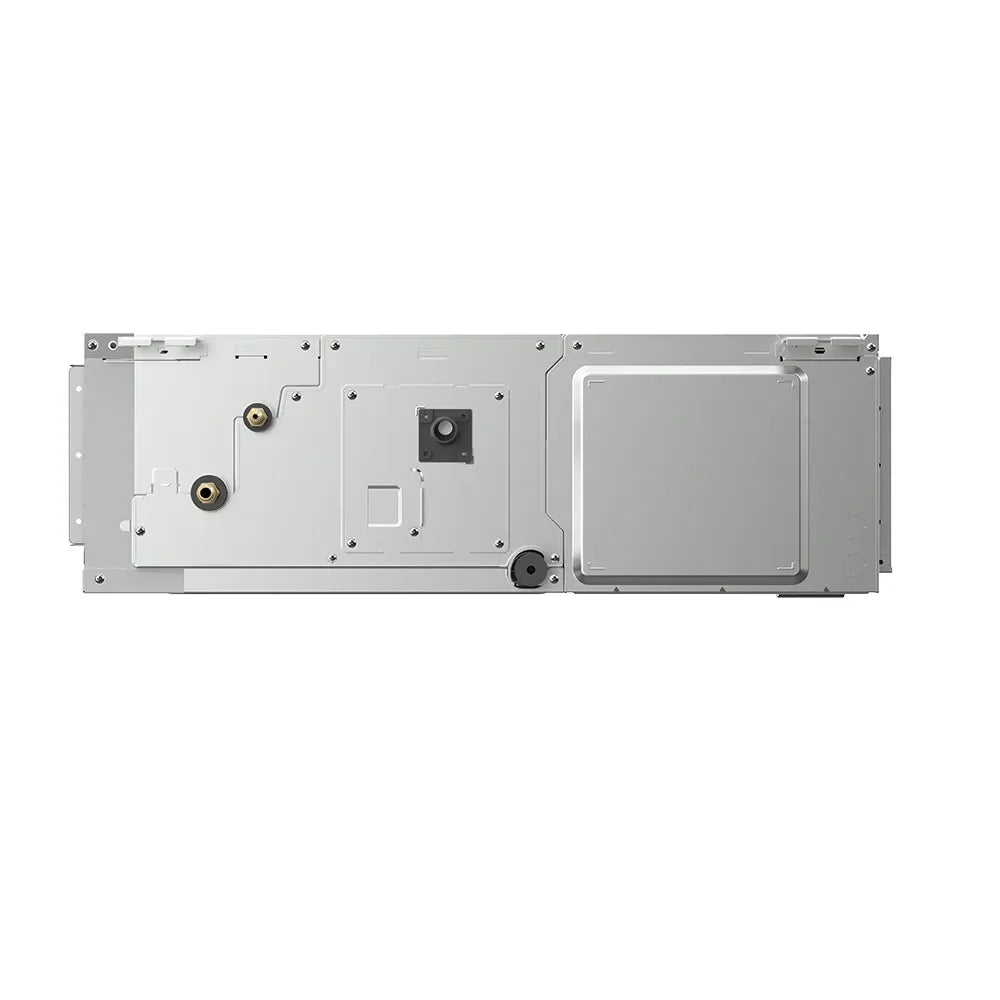

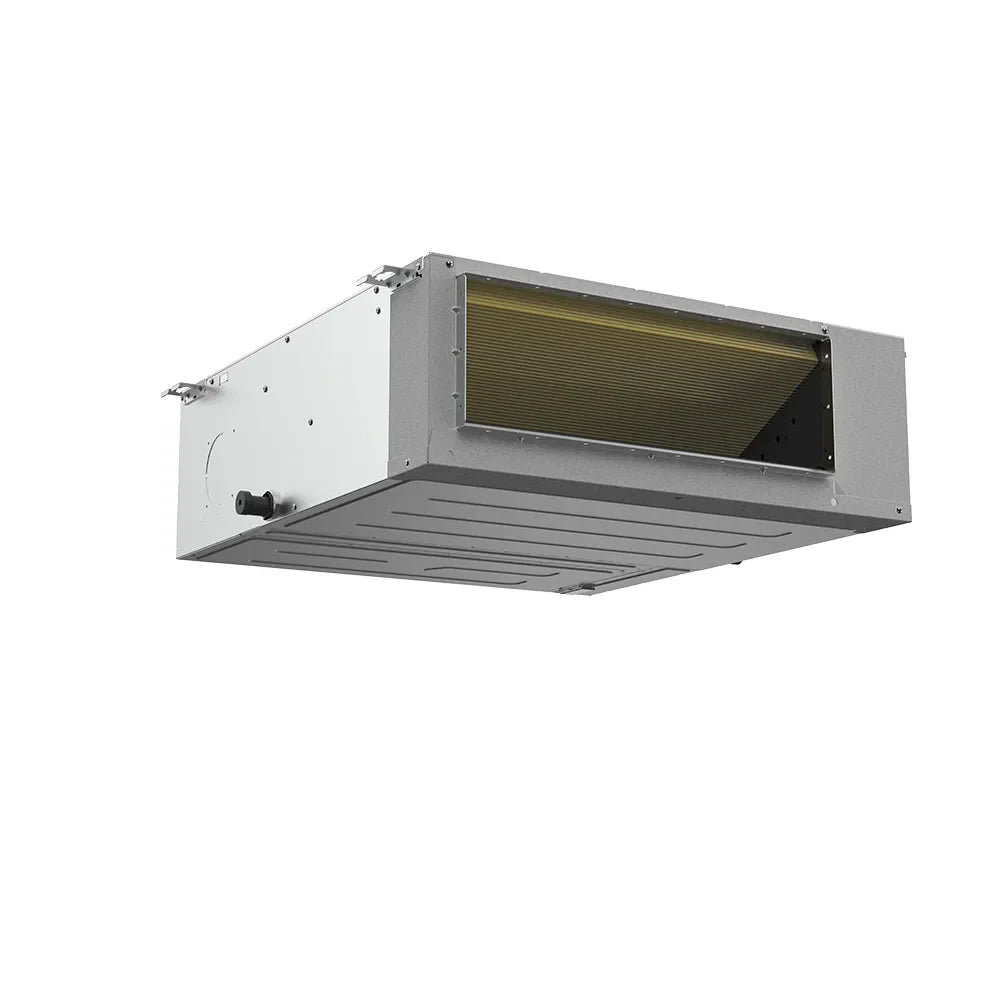

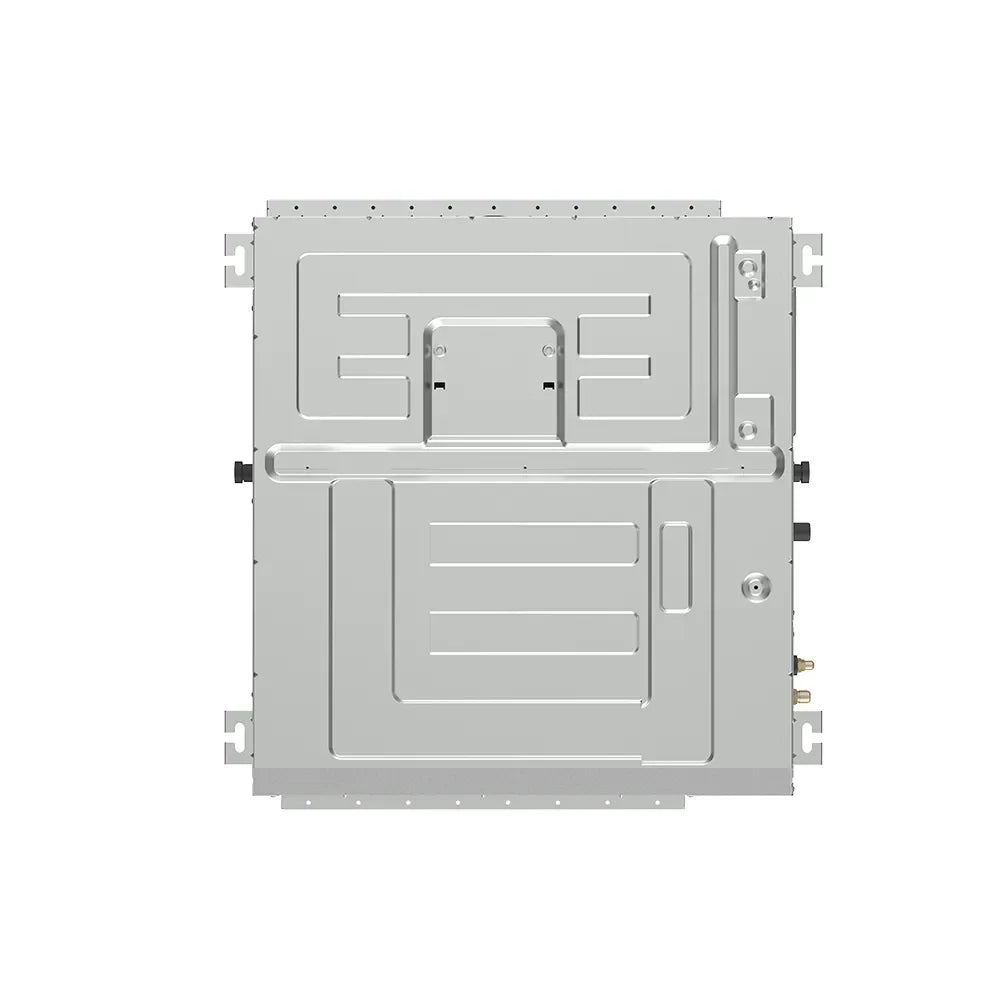

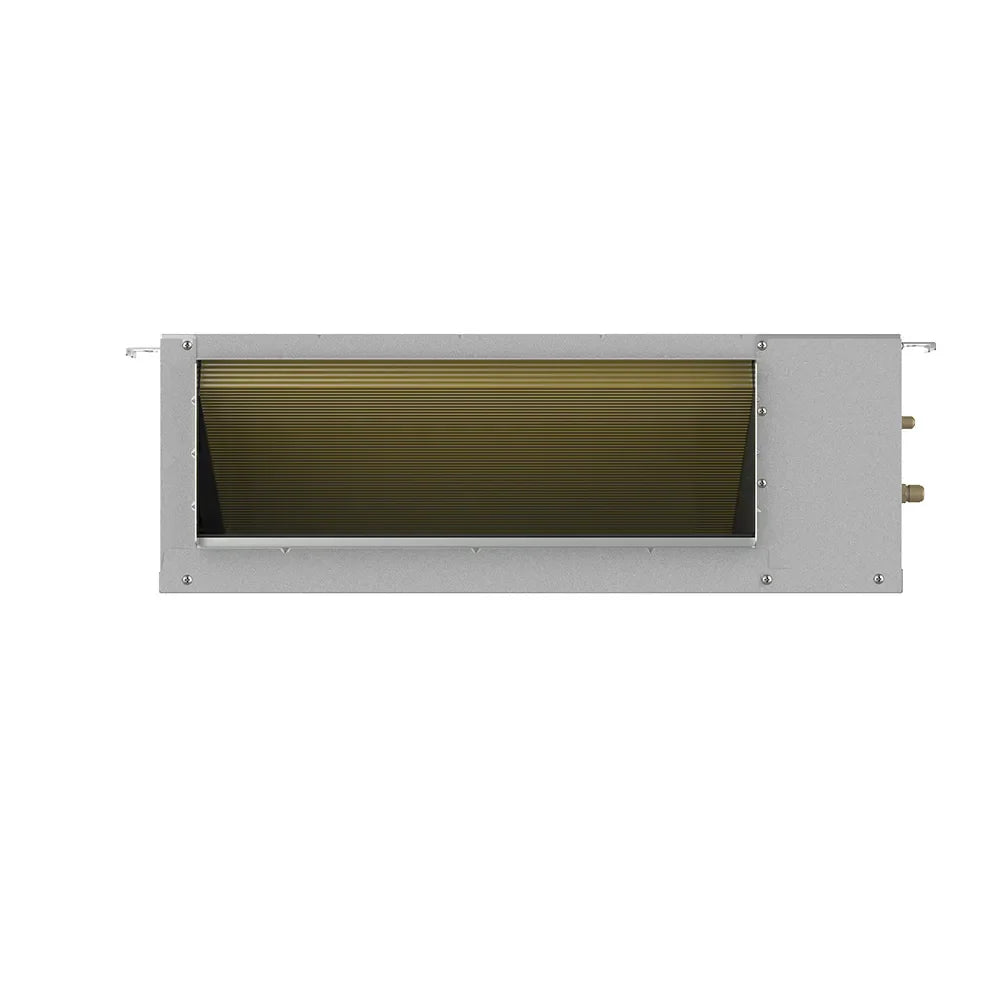

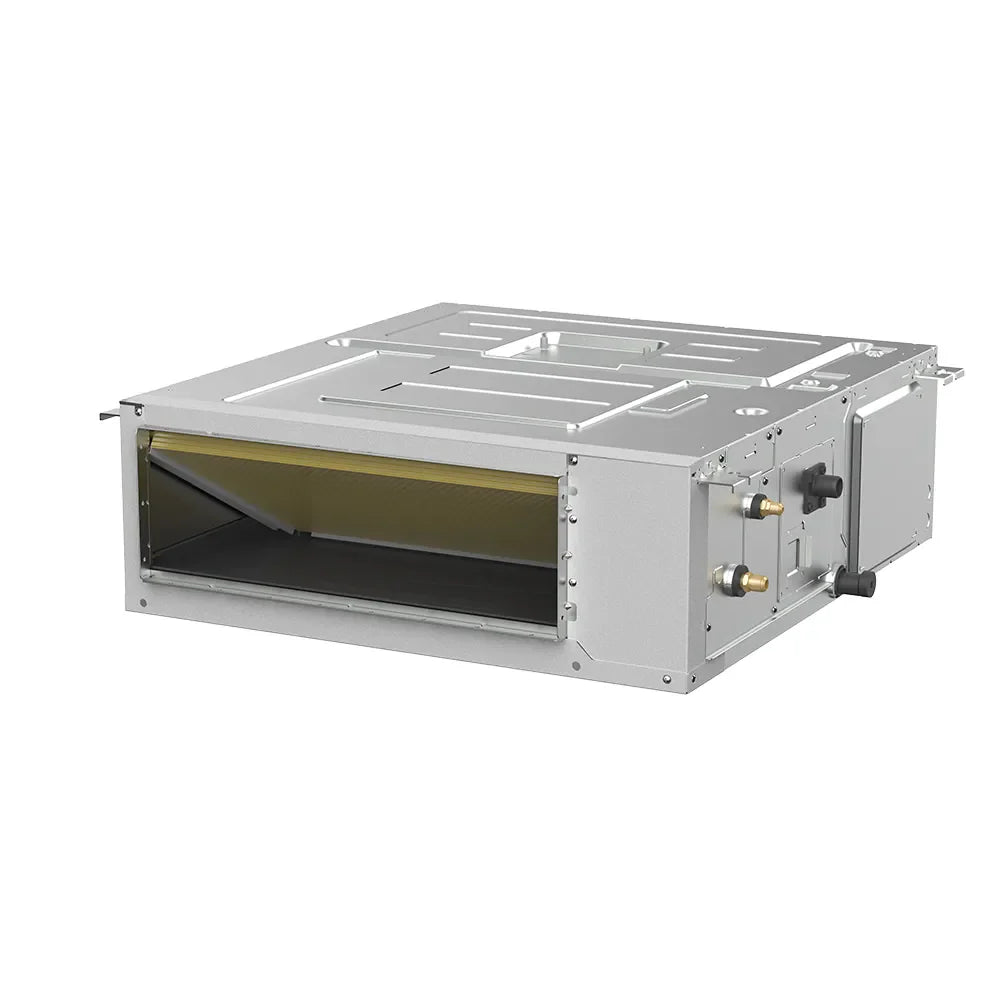

The MRCOOL® OLYMPUS 24K DUCT Air Handler offers powerful and efficient heating and cooling for areas up to 1,050 square feet, making it an excellent choice for larger bedrooms, home offices, and compact commercial spaces. Its low-profile ceiling-mounted design allows for a flush installation that blends effortlessly into any space, maintaining a clean and contemporary look. Ideal for both residential and light commercial use, this air handler is engineered for flexibility and style—delivering high performance while preserving valuable floor and wall space.
Whether you're outfitting a modern home or a small office, it’s designed to meet your comfort needs without disrupting your room’s layout or design. For convenient operation, the unit includes both a wired wall controller and a handheld remote, offering flexible options for temperature control whether you're working, relaxing, or entertaining. No need to interrupt your day to adjust the settings—just set your ideal climate with ease. Environmentally responsible, the system uses R-454B refrigerant, which offers strong performance with a significantly lower global warming potential. This helps reduce your carbon footprint while keeping energy efficiency and indoor comfort at the forefront.
The MRCOOL® OLYMPUS 24K DUCT Air Handler is supported by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, providing long-term reliability and peace of mind. For those seeking an energy-efficient, discreet, and modern comfort solution, this system delivers performance without compromise.
| Net Dimensions (In) | 29.53 D x 9.65 H x 39.37 W |
| Net Weight (Lbs) | 80.47 |
| Tonnage | 2 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Ducted |
| Color | Metal |
| Max Coverage Area | Up to 1050 |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 40/40/37/35/29.5 |
| Decibel Rating Low (Dba) | 29.5 |
| Decibel Rating High (Dba) | 40 |
| Air Flow Direction | Ducted |
| Number Of Speeds | 5 (Variable) |
| Oscillation | No |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| Blower Motor Speeds | 853.5/706.3/618/500.3/500.3 |
| Blower Motor Rpm | 950/800/500 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works With Ios | No |
| Works With Android | No |
| Remote Control Included | Yes |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Weight (Lbs) | 91.93 |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
