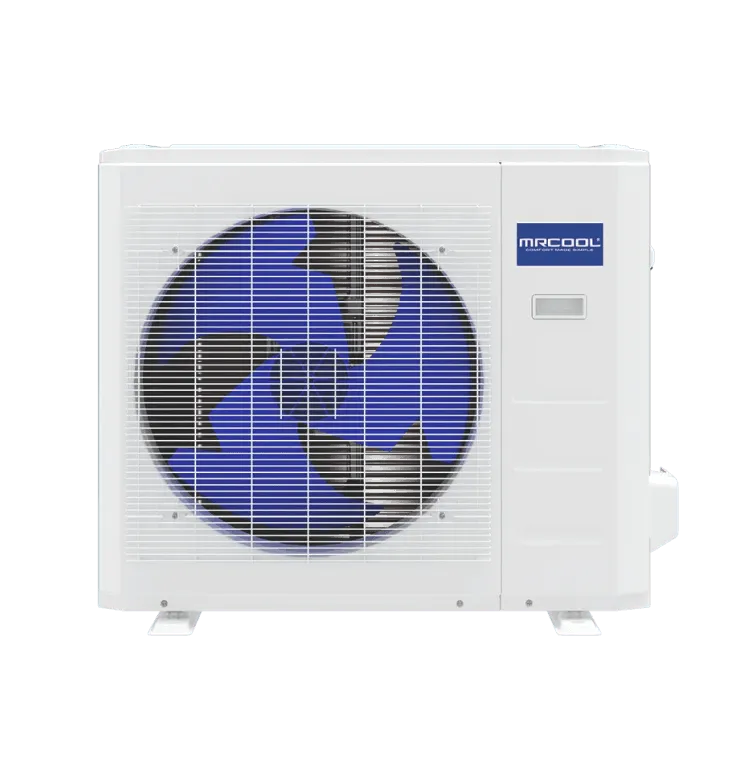

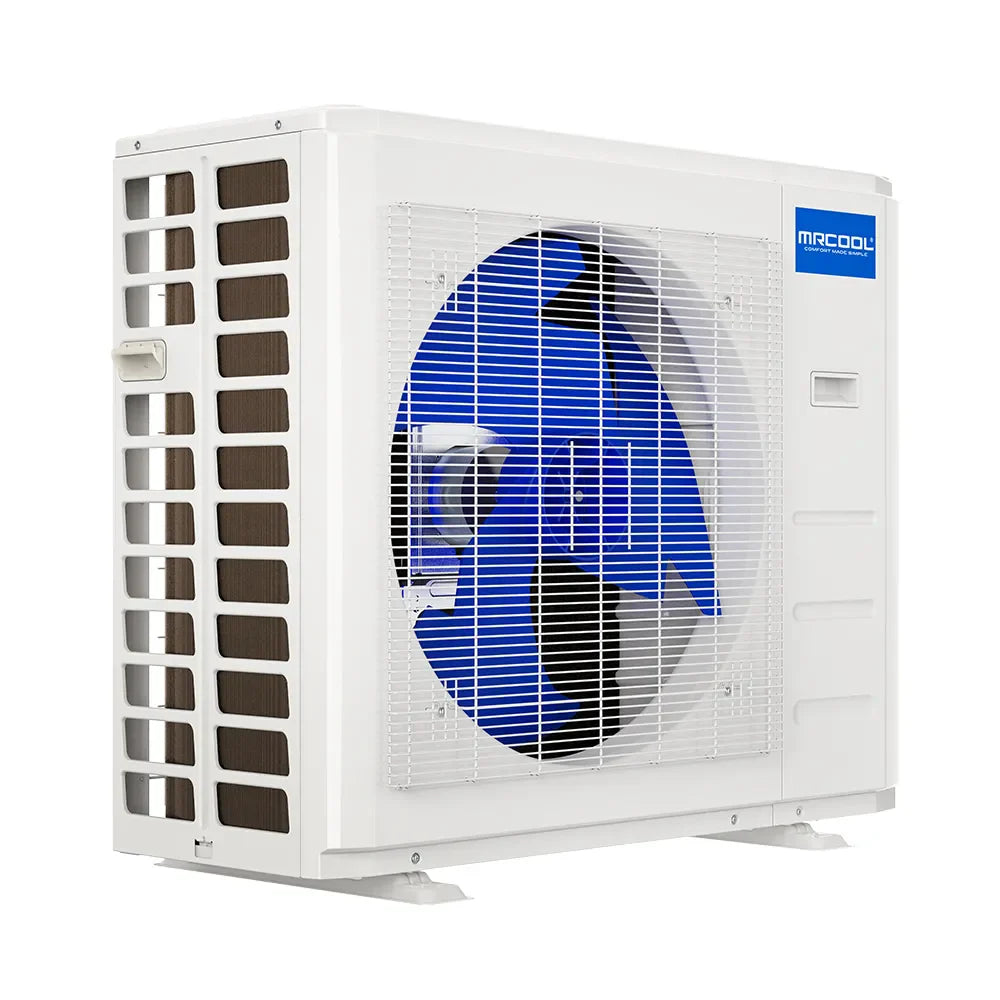

The MRCOOL® OLYMPUS E-STAR® 24k Series condenser is a powerful and efficient solution for heating and cooling areas up to 1,050 square feet, making it perfect for medium to large rooms, home offices, garages, and more. Its compact size simplifies installation, even in limited or unique spaces. Equipped with Wi-Fi and the MRCOOL® Smart HVAC app, you can control your system from anywhere using your smartphone or tablet. For those who prefer more direct control, the included remote control provides quick access to all settings. This air handler is designed with energy efficiency in mind, offering excellent SEER2 and EER2 ratings of 23 and 14, respectively, along with a HSPF2-4 rating of 11.7. These features help you save on energy bills while maintaining consistent and comfortable temperatures. The outdoor fan operates quietly at just 51.5 dB, ensuring minimal noise and disruption.
The system uses R-454B refrigerant, an environmentally friendly choice that delivers optimal performance while helping to reduce the system's carbon footprint. In addition, the MRCOOL® OLYMPUS E-STAR® 24k Series is compatible with voice control through Amazon Alexa and Google Assistant, allowing you to adjust settings hands-free. The unit is backed by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, ensuring durable performance, cutting-edge features, and lasting peace of mind.
| Net Dimensions (In) | 16.14 D x 31.89 H x 37.24 W |
| Net Weight (Lbs) | 130.29 |
| SEER2 | Up to 21 |
| EER2 | Up to 13 |
| HSPF2-4 | 13.5 |
| HSPF2-5 | 9.8 |
| TONNAGE | 2 |
| Cooling Capacity (Btu) | 24000 |
| Heating Capacity (Btu) | 29000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 25 |
| Min Circuit Ampacity (A) | 24.9 |
| Color | White |
| Max Coverage Area | Up to 1050 |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 63.49 |
| Decibel Rating (Dba) | 61.5 |
| Inverter | DC |
| Max Lineset Length (Ft) | 164 |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Rpm | 950/800/500 |
| Metering Device | EXV + Throttle Valve |
| Ul Listed | Yes |
| Csa Listed | Yes |
| Etl Listed | Yes |
| Energy Star Certified | Yes |
| Ahri Certified | Yes |
| Base Warranty | 5-Year Parts/7-Year Compressor |
| Base Parts Warranty | 5-Year |
| Base Compressor Warranty | 7-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Depth (In) | 19.69 |
| Gross Height (In) | 34.45 |
| Gross Width (In) | 42.91 |
| Gross Weight (Lbs) | 141.31 |

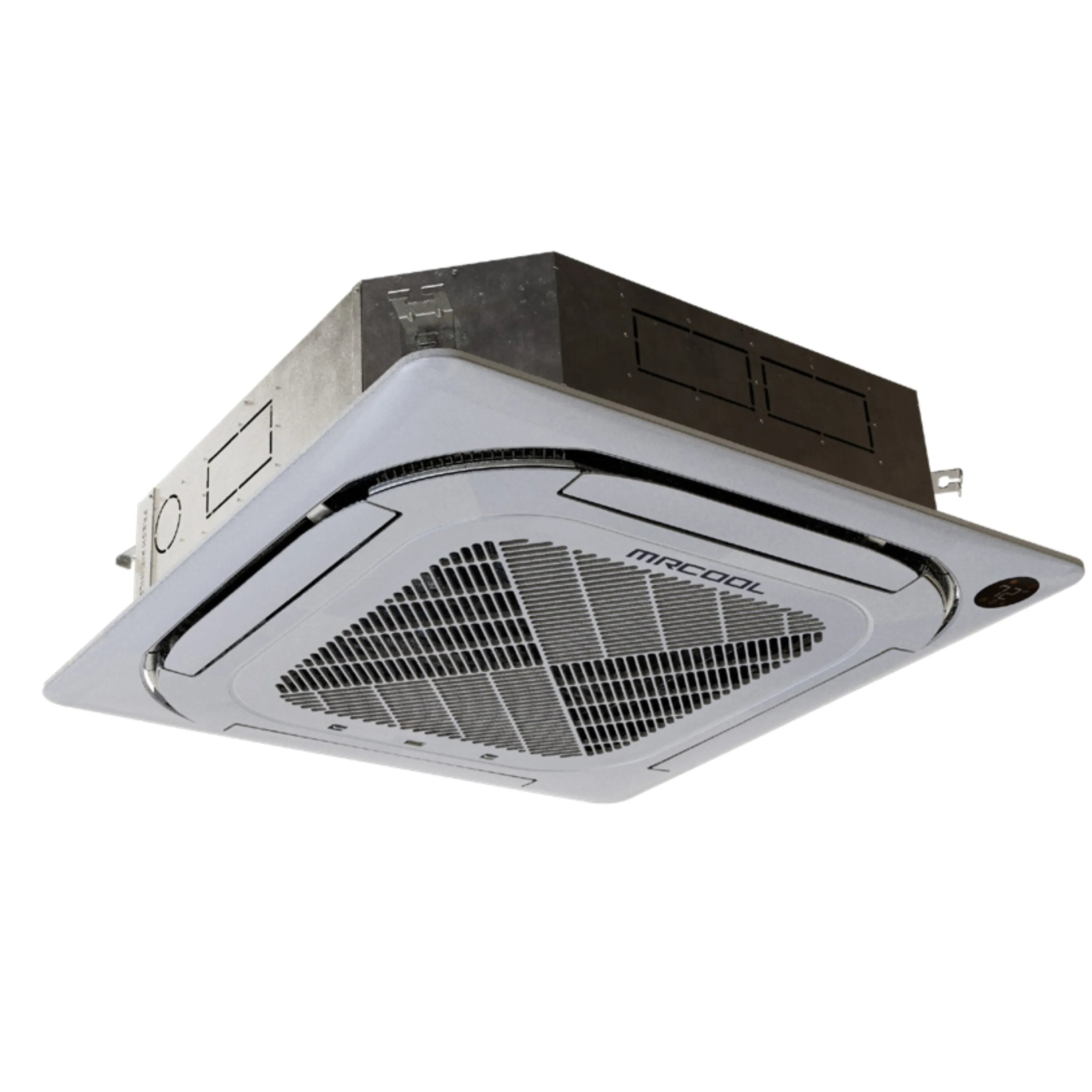

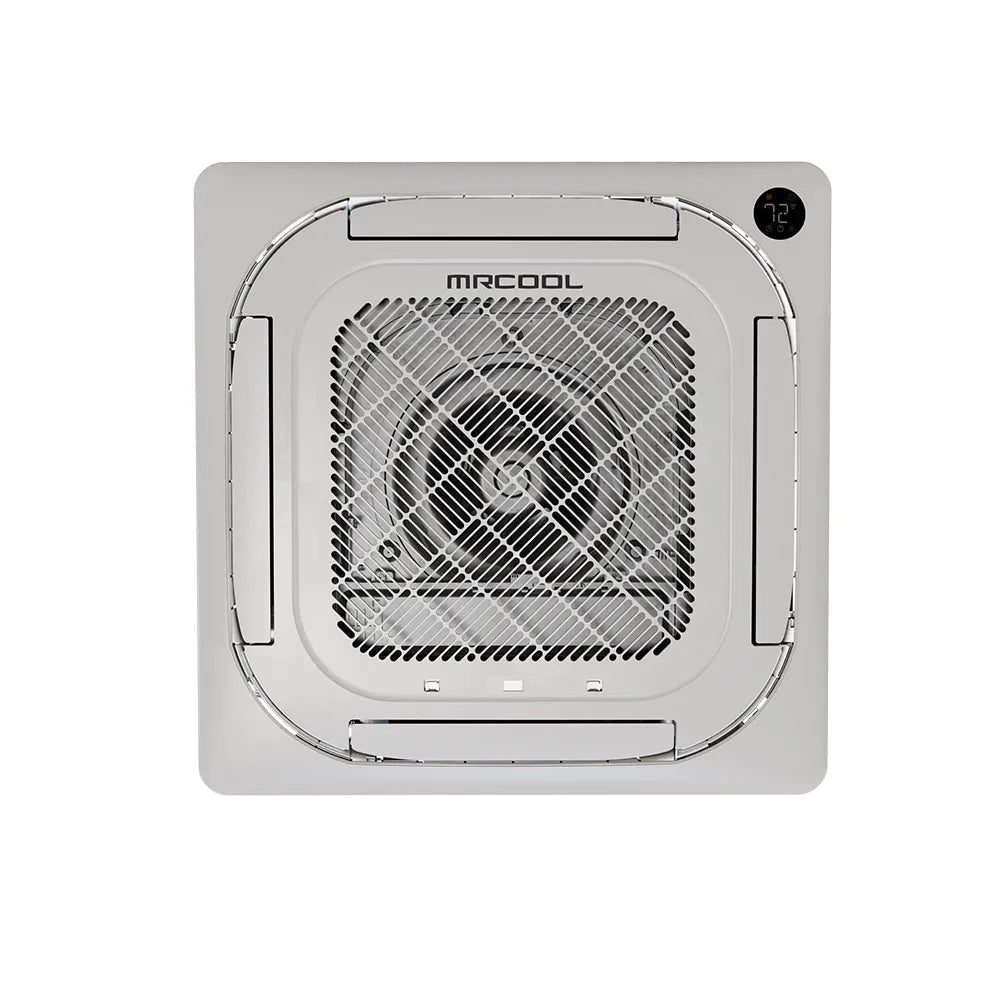

The MRCOOL® OLYMPUS 24K CASSETTE offers powerful heating and cooling for areas up to 1,050 square feet, making it a perfect solution for larger bedrooms, home offices, or smaller commercial spaces. Designed to mount seamlessly within the ceiling, this system integrates effortlessly into your environment, providing a modern and sophisticated aesthetic that complements any room’s décor. Its versatile design makes it a great option for both residential and business settings, optimizing space while delivering efficient climate control. Operating at a quiet 48.5 dB, the indoor fan ensures a serene atmosphere without sacrificing performance. The minimal noise level allows for uninterrupted comfort, making it ideal for noise-sensitive areas like bedrooms, offices, or nurseries. The quiet operation promotes a peaceful setting that enhances relaxation and productivity.
The unit is equipped with R-454B refrigerant, an environmentally friendly choice that offers superior performance with a reduced environmental impact. With its low global warming potential, R-454B refrigerant not only minimizes the carbon footprint of your system but also maintains high energy efficiency. This makes it a great option for homeowners and businesses looking to reduce their environmental impact while enjoying reliable, energy-saving performance. Backed by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, the MRCOOL® OLYMPUS 24K CASSETTE ensures long-lasting durability and cutting-edge technology. This unit is an ideal choice for those who seek a balance of efficiency, modern aesthetics, and exceptional comfort.
| Net Dimensions (In) | 32.68 D x 8.07 H x 32.68 W |
| Net Weight (Lbs) | 47.18 |
| Tonnage | 2 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Ceiling |
| Color | White |
| Max Coverage Area | Up to 1050 |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 48.5/45/42.5/33.5/33.5 |
| Decibel Rating Low (Dba) | 33.5 |
| Decibel Rating High (Dba) | 48.5 |
| Air Flow Direction | Downflow |
| Number Of Speeds | 5 (Variable) |
| Oscillation | Yes |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| Blower Motor Speeds | 765.2/706.3/635.7/547.4/547.4 |
| Blower Motor Rpm | 624/568/426 |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works With Ios | No |
| Works With Android | No |
| Remote Control Included | Yes |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Weight (Lbs) | 59.08 |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
