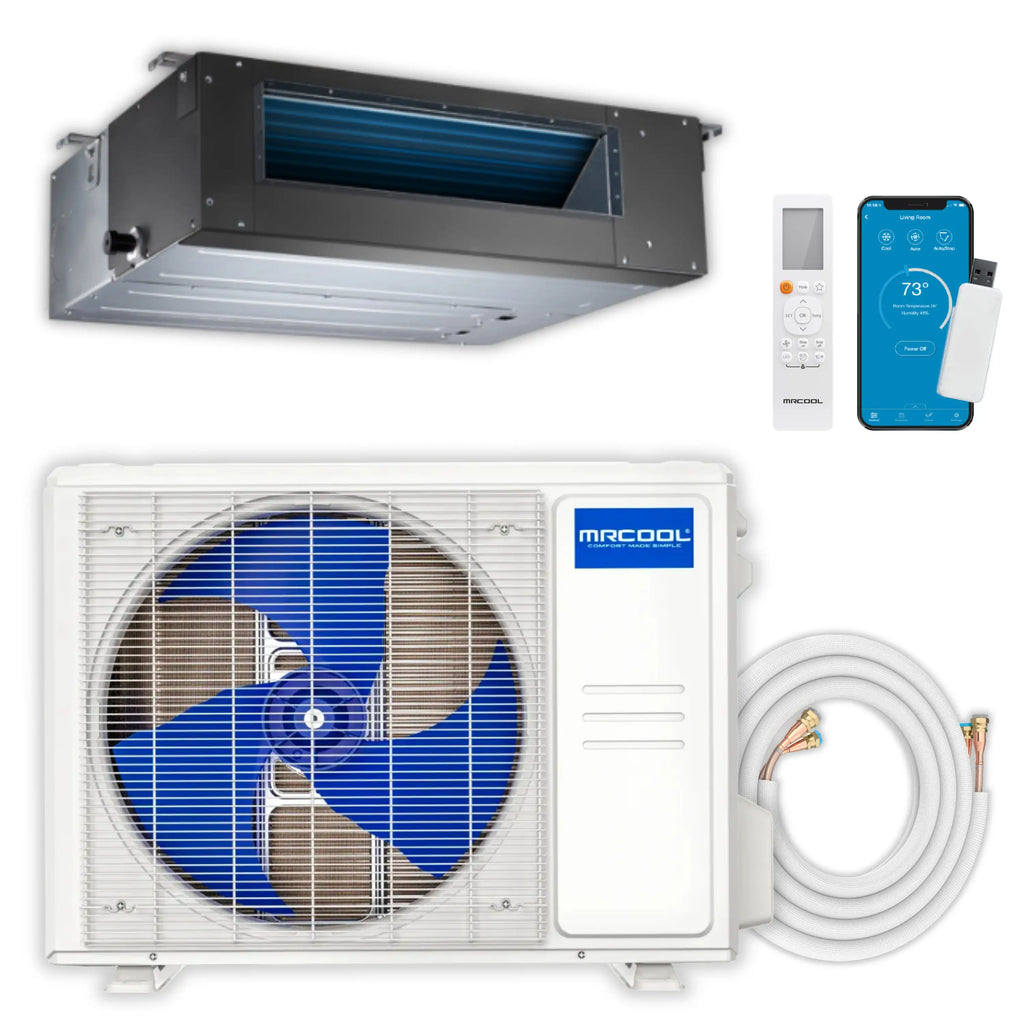

What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

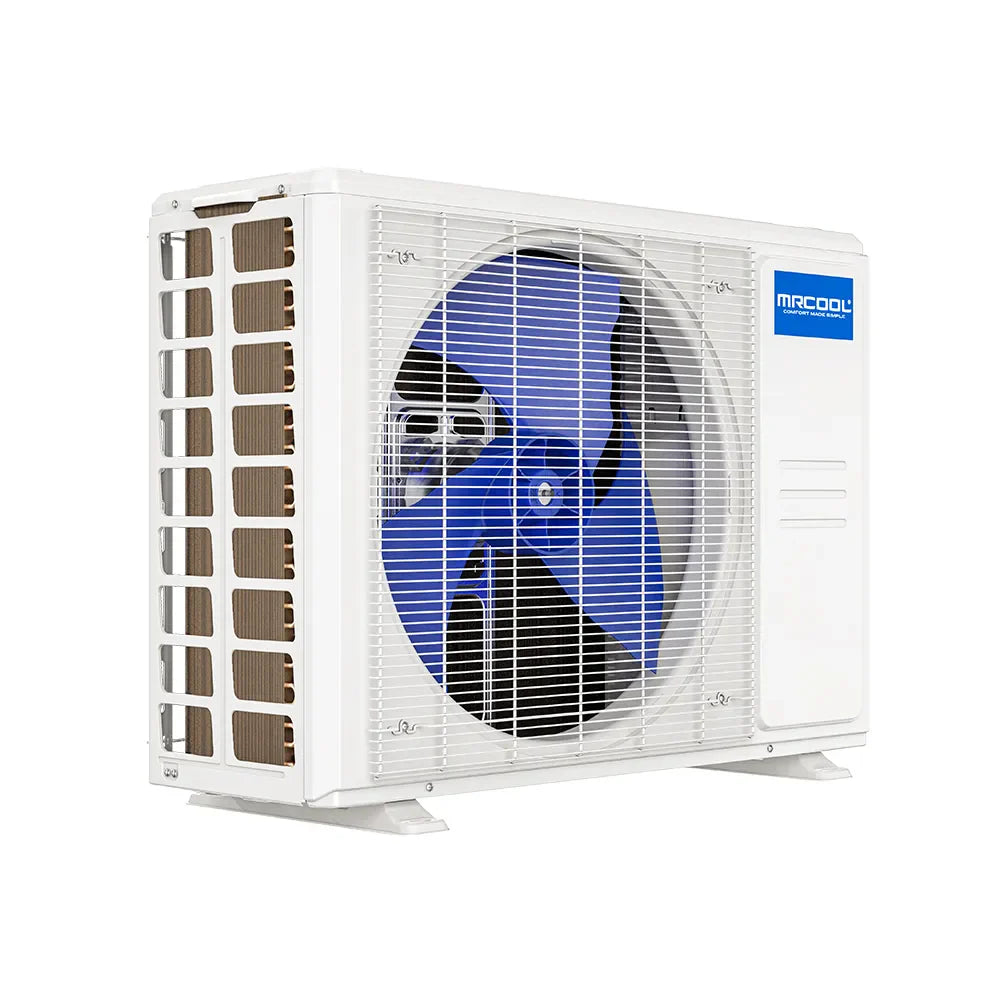

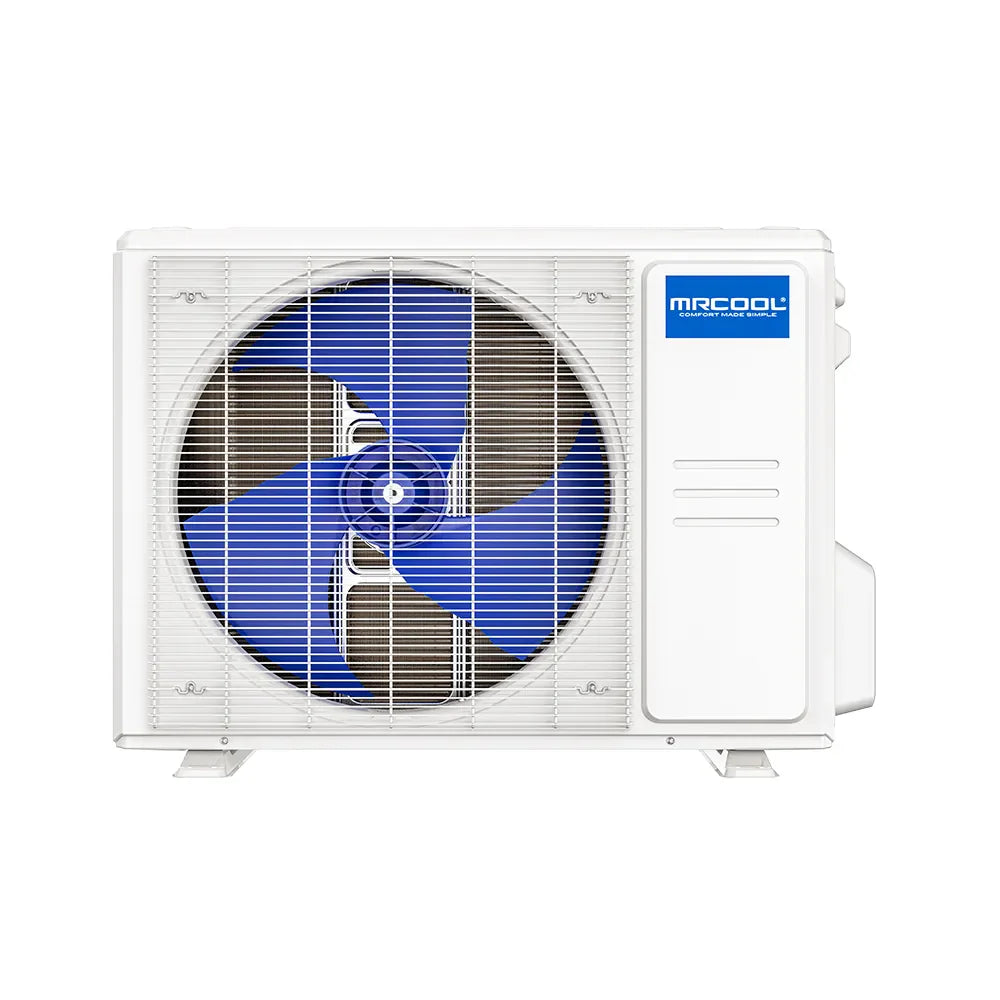

The MRCOOL® OLYMPUS E-STAR® 12k Series condenser provides dependable heating and cooling for spaces up to 550 square feet, making it perfect for bedrooms, home offices, garages, and other smaller areas. Its compact design ensures a hassle-free installation, even in tight or unconventional spaces. With Wi-Fi capability and the MRCOOL® Smart HVAC app, you can conveniently adjust the system's temperature, fan speed, and settings from your smartphone or tablet, giving you full control no matter where you are. Prefer a more hands-on approach? The included remote control offers easy access to all the essential features. Optimized for energy efficiency, the unit boasts impressive SEER2 and EER2 ratings of 25.5 and 13, respectively, along with a HSPF2-4 rating of 10.6, allowing you to reduce energy costs while enjoying ideal comfort. The outdoor fan operates at a quiet 56 dB, ensuring a peaceful environment without compromising performance.
The unit uses R-454B refrigerant, an eco-friendly solution that provides top-tier performance while being environmentally responsible. For added convenience, the system is compatible with voice control through Amazon Alexa and Google Assistant, allowing for hands-free operation. The MRCOOL® OLYMPUS E-STAR® 12k Series also comes with a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, ensuring long-term reliability, cutting-edge technology, and peace of mind.
Features
- Installation by a licensed professional required where applicable 7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional R-454B environmentally friendly friendly refrigerant Energy Star Certified
Works With
- O-12-HP-WMAH-230C-O
- DUCT-12HP-230B-O
- CASSETTE12HP-230C-O
- Net Dimensions (In)
- 12.99 D x 21.81 H x 31.69 W
- Net Weight (Lbs)
- 72.75
- Gross Depth (In)
- 14.57
- Gross Height (In)
- 24.21
- Gross Width (In)
- 36.02
- Gross Weight (Lbs)
- 78.7
- Color
- White
- Max Coverage Area
- Up to 550
- Inverter
- DC
- Metering Device
- EXV
- SEER2
- Up to 25.4
- EER2
- Up to 13.4
- HSPF2-4
- 10.5
- HSPF2-5
- 8
- Tonnage
- 1
- Cooling Capacity (Btu)
- 12000
- Heating Capacity (Btu)
- 12000
- Cycle
- 60
- Compressor Motor Type
- Rotary
- Condenser Fan Motor Rpm
- 780/680/580
- Decibel Rating (Dba)
- 56
- Voltage (V)
- 208/230
- Phase
- 1
- Max Fuse Breaker (A)
- 15
- Min Circuit Ampacity (A)
- 15
- Refrigerant Type
- R-454B
- Refrigerant Volume (Oz)
- 35.27
- Max Lineset Length (Ft)
- 82
- Lineset Fitting Type
- Flare
- Liquid Line Size
- 1/4
- Suction Line Size
- 3/8
- UL Listed
- Yes
- CSA Listed
- Yes
- ETL Listed
- Yes
- Energy Star Certified
- Yes
- AHRI Certified
- Yes
- Has Batteries
- Yes
- Contains Electronics
- Yes
- Contains Chemicals
- Yes
- Contains Compressed Gas
- Yes
- Proposition 65 Warning
- Yes
- Restricted States
- GU, PR, VI
- Base Warranty
- 5-Year Parts/7-Year Compressor
- Base Parts Warranty
- 5-Year
- Base Compressor Warranty
- 7-Year
- Base Remote Warranty
- 5 Year
- Registered Labor Warranty
- None
- Base Labor Warranty
- None

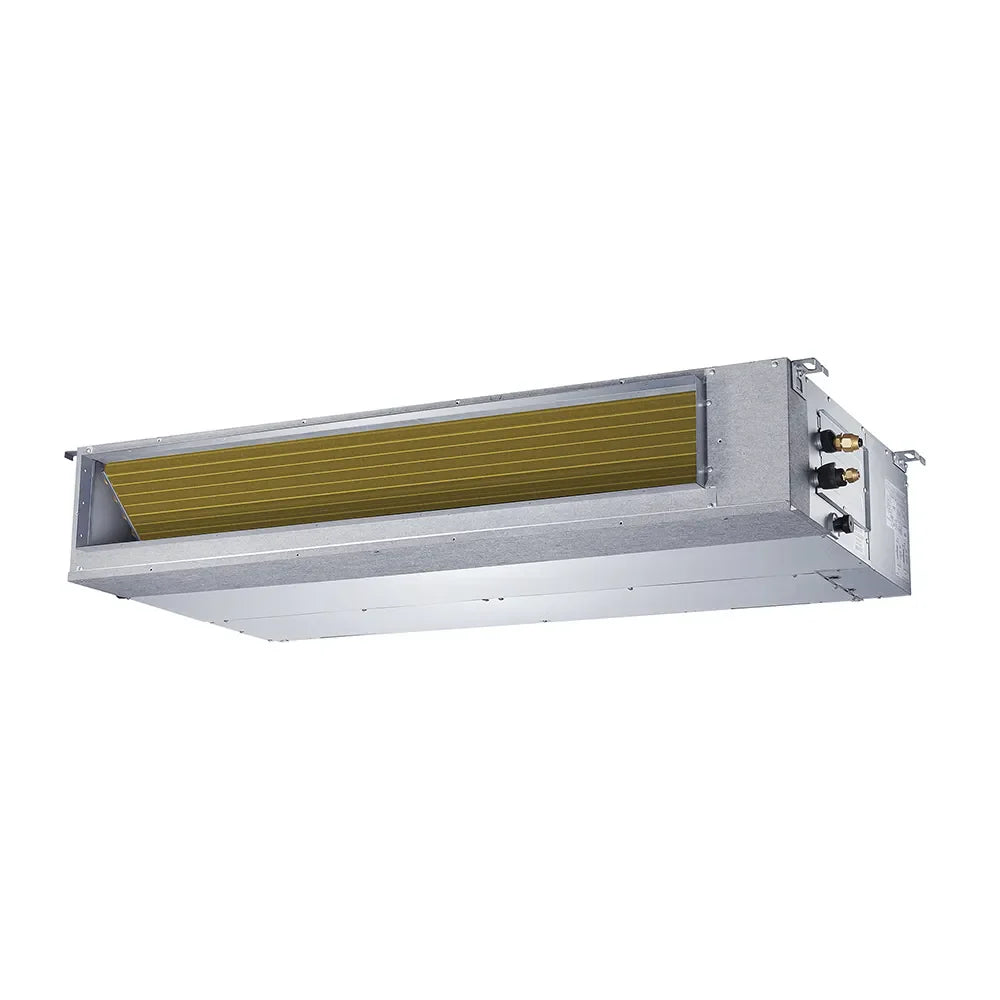

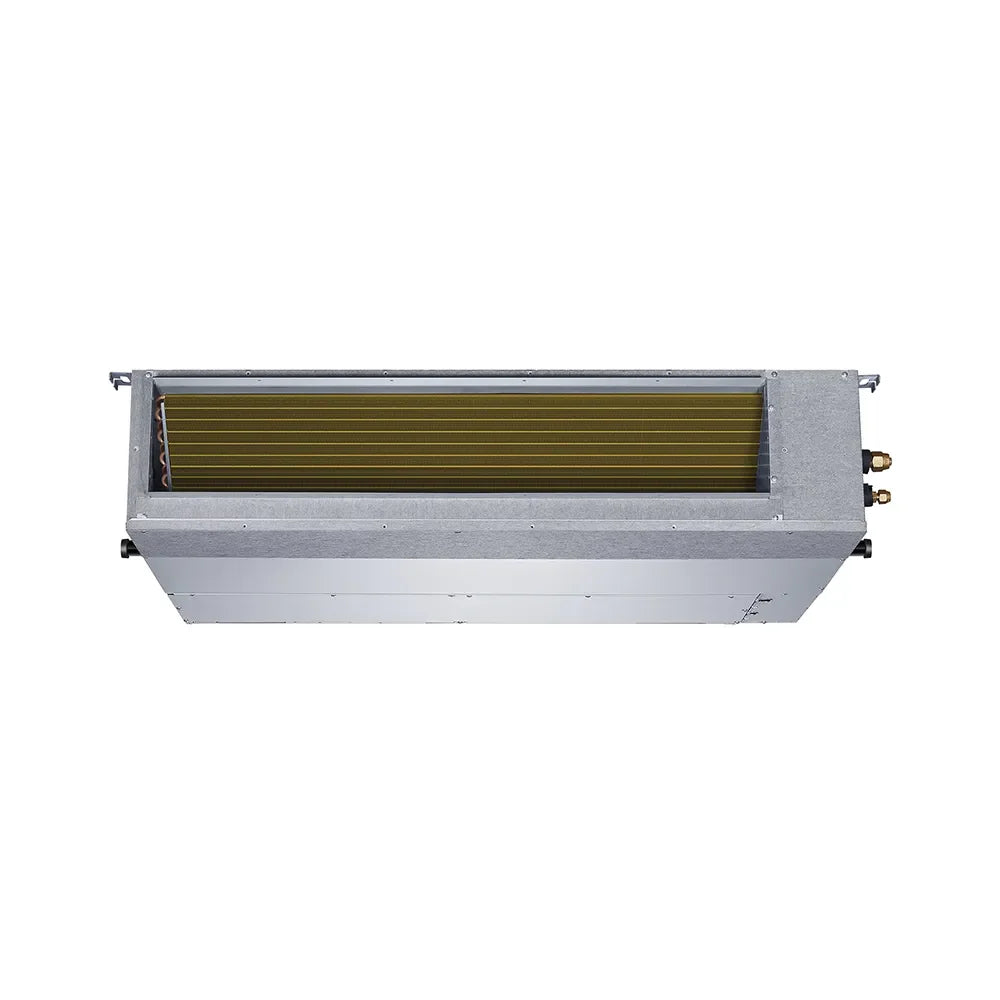

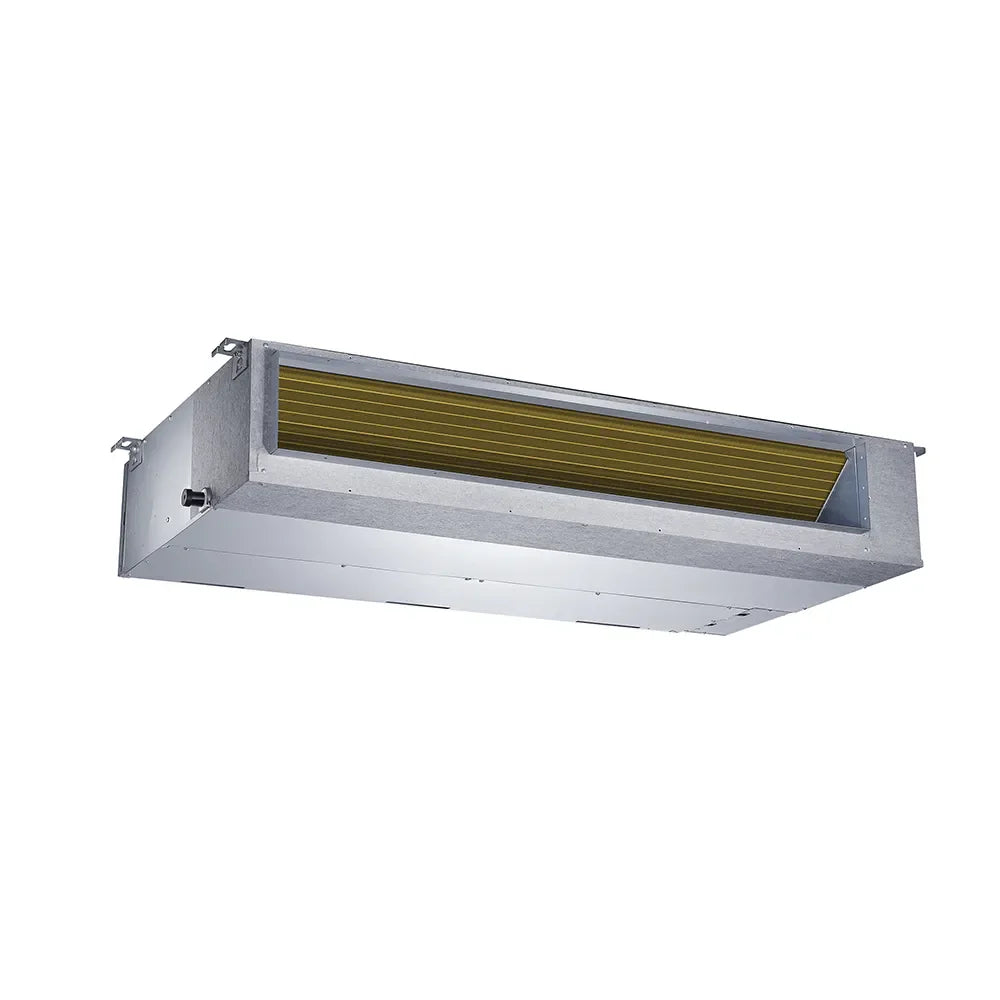

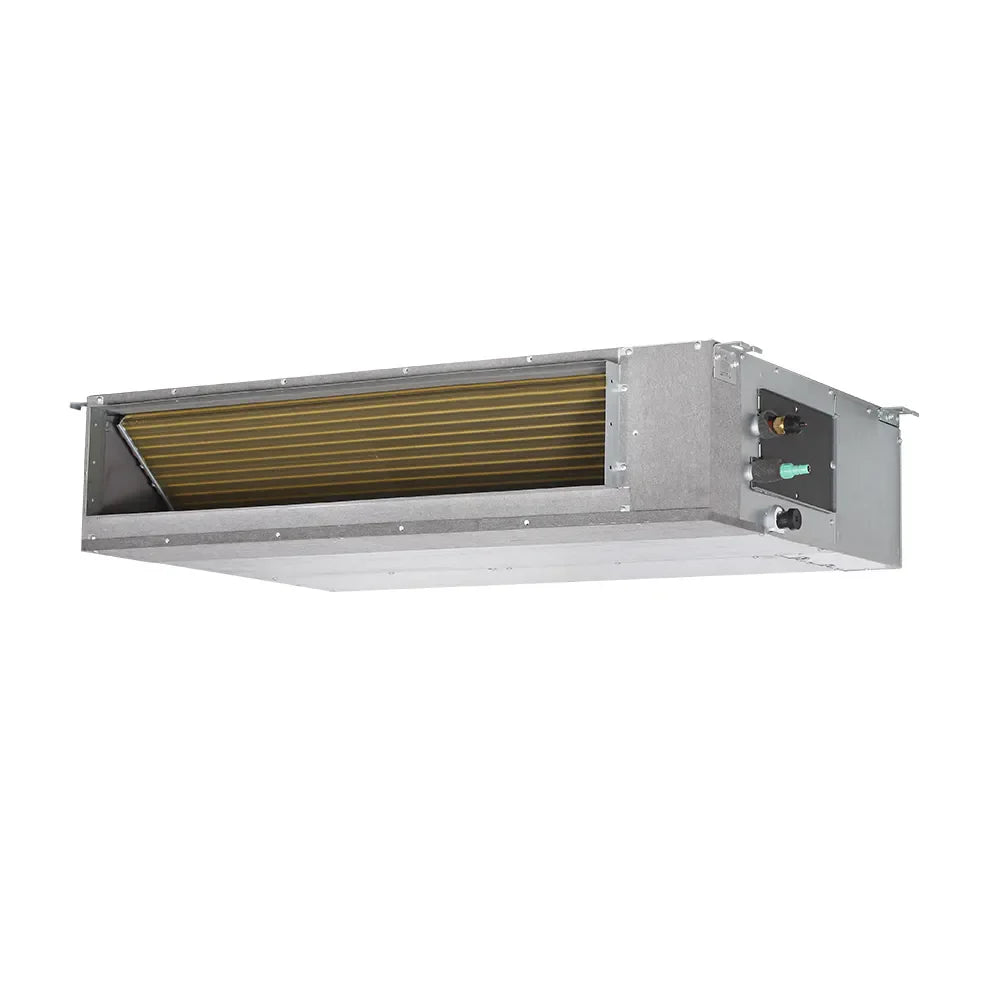

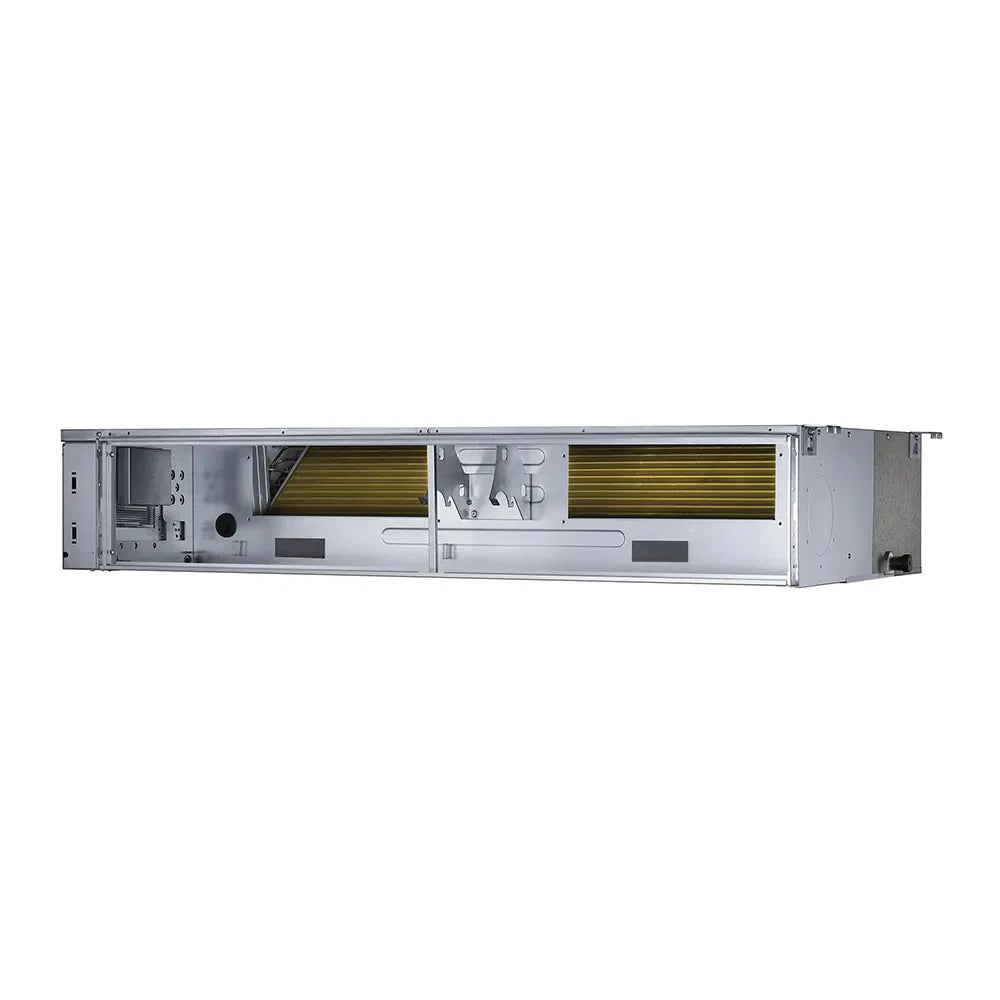

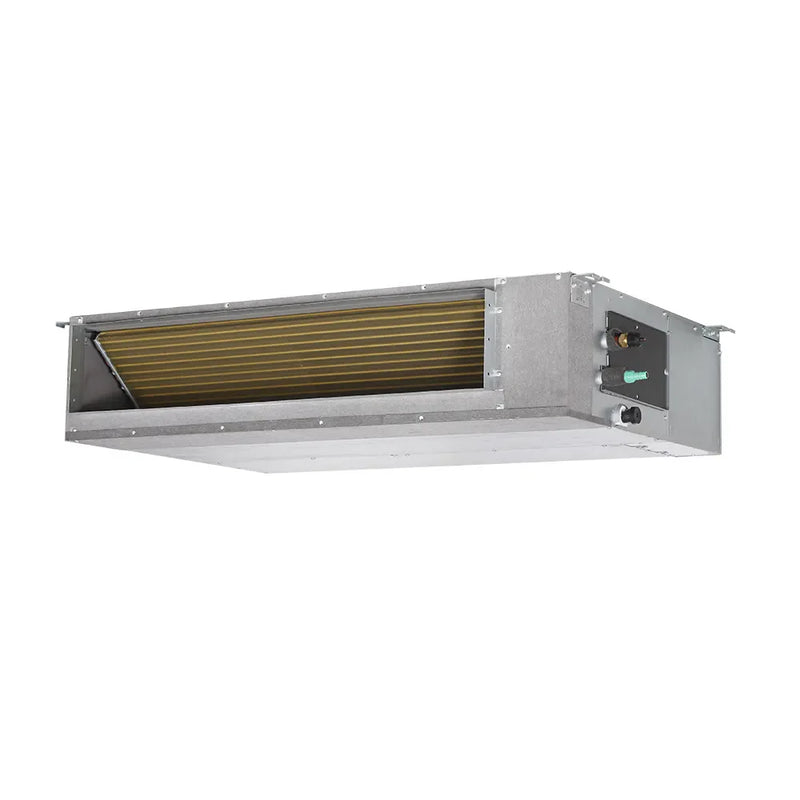

The MRCOOL® OLYMPUS 12K DUCT Air Handler delivers efficient and reliable heating and cooling for spaces up to 550 square feet, making it a great choice for bedrooms, home offices, and similarly sized areas. Designed for a discreet ceiling installation, the unit offers a flush-mount finish that seamlessly integrates with your space, enhancing the room’s aesthetic with a clean, modern look. Its compact and versatile design suits both residential and commercial applications, providing an ideal climate solution without sacrificing valuable square footage. For added convenience, the system includes both a wired wall-mounted controller and a handheld remote. Whether you prefer adjusting settings from the wall or without leaving the comfort of your couch, climate control is always within easy reach. This model features R-454B refrigerant, a high-efficiency, environmentally friendly option that delivers outstanding performance while minimizing environmental impact. With a low global warming potential, R-454B supports sustainability and helps reduce your household’s carbon footprint, all without compromising system effectiveness or energy efficiency.
The MRCOOL® OLYMPUS 12K DUCT Air Handler is backed by a limited lifetime warranty, along with 7-year compressor protection and a 5-year parts warranty—ensuring long-lasting performance and peace of mind. For those seeking energy-conscious comfort, modern design, and reliable climate control, this unit offers a high-performance solution tailored to today’s demands.
Works With
- O-ES-12-HP-C-230C-O1
- MULTI3-18HP230C-O
- MULTI4-27HP230C-O
- MULTI5-36HP230C-O
- MULTI6-48HP230C-O
- Net Dimensions (In)
- 19.92 D x 7.87 H x 27.56 W
- Net Weight (Lbs)
- 39.46
- Gross Weight (Lbs)
- 46.74
- Mount Type
- Ducted
- Color
- Metal
- Max Coverage Area
- Up to 550
- Air Flow Direction
- Ducted
- Number Of Speeds
- 5 (Variable)
- Oscillation
- No
- Tonnage
- 1
- Cycle
- 60
- Blower Motor Speeds
- 400.2/323.7/264.9/176.6/117.7
- Blower Motor Rpm
- 780/680/580
- Decibel Rating (Dba)
- 36/36/34.5/32.5/25.5
- Decibel Rating Low (Dba)
- 25.5
- Decibel Rating High (Dba)
- 36
- Voltage (V)
- 208/230
- Phase
- 1
- Max Fuse Breaker (A)
- 15
- Min Circuit Ampacity (A)
- 3
- Refrigerant Type
- R-454B
- Lineset Fitting Type
- Flare
- Liquid Line Size
- 1/4
- Suction Line Size
- 3/8
- Auxiliary Heater Included
- No
- Auxiliary Heater Available
- No
- Fan Only Option
- Yes
- Sleep Mode
- Yes
- Auto Cool
- Yes
- Wifi Compatibility
- No
- App Compatibility
- No
- Works With Ios
- No
- Works With Android
- No
- Remote Control Included
- Yes
- UL Listed
- Yes
- CSA Listed
- Yes
- ETL Listed
- Yes
- Has Batteries
- Yes
- Contains Electronics
- Yes
- Contains Chemicals
- Yes
- Contains Compressed Gas
- Yes
- Proposition 65 Warning
- Yes
- Restricted States
- GU, PR, VI
- Base Warranty
- 5-Year Parts
- Base Parts Warranty
- 5-Year
- Base Remote Warranty
- 5 Year
- Registered Labor Warranty
- None
- Base Labor Warranty
- None
MRCOOL Mini Split BTU Guide
Drawn to scale — 1 square = 2 × 2 ft
