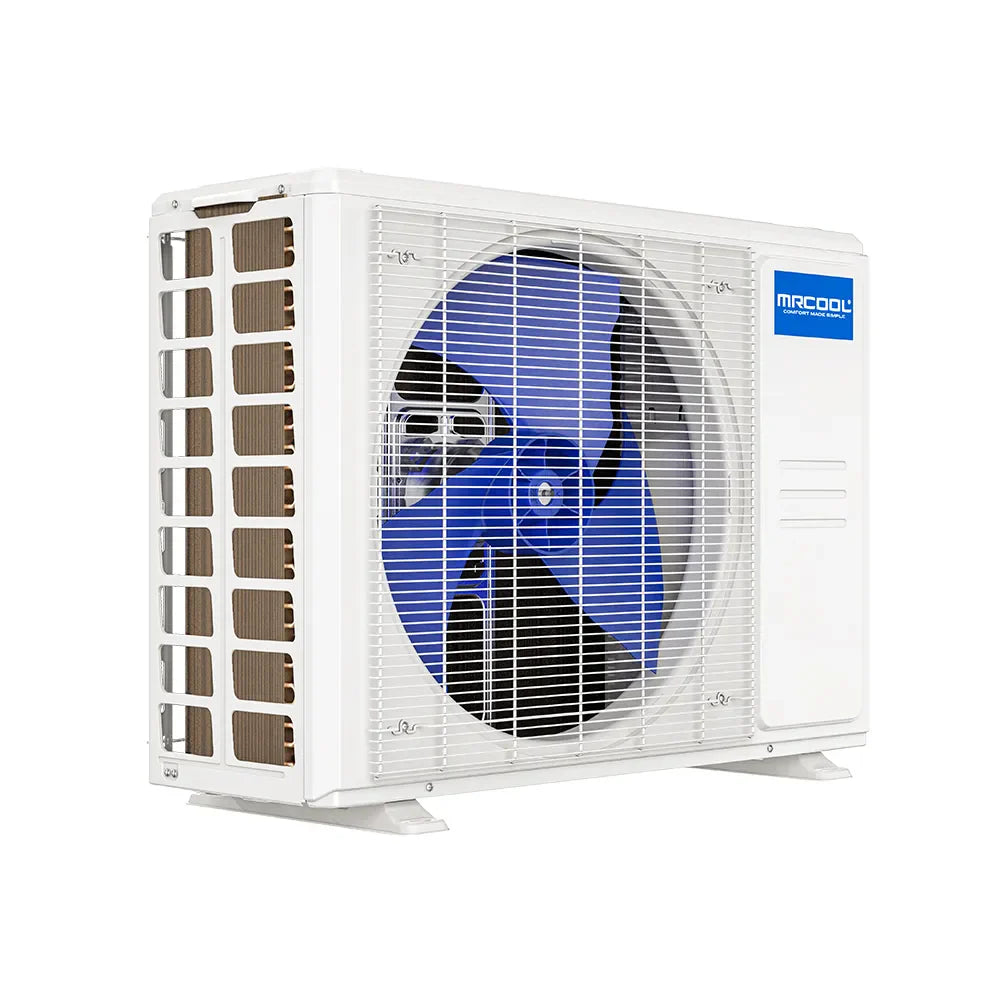

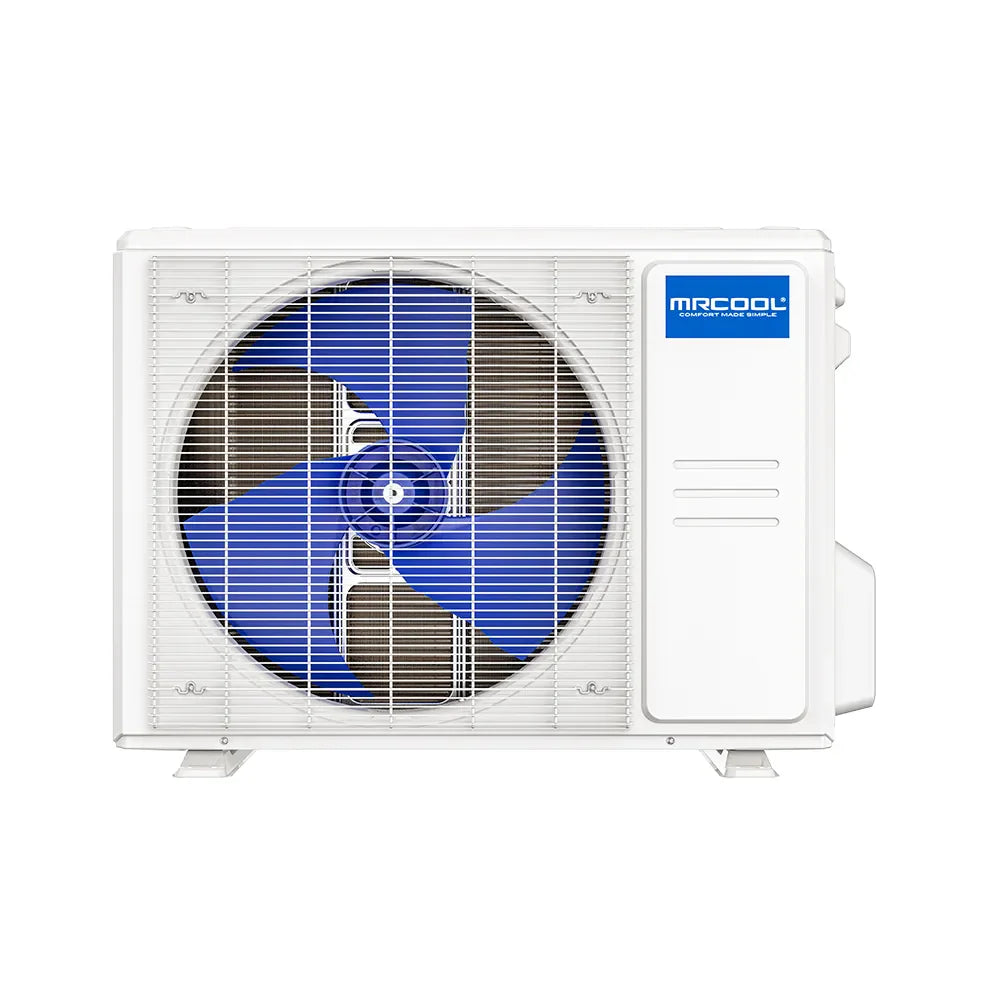

The MRCOOL® OLYMPUS E-STAR® 12k Series condenser provides dependable heating and cooling for spaces up to 550 square feet, making it perfect for bedrooms, home offices, garages, and other smaller areas. Its compact design ensures a hassle-free installation, even in tight or unconventional spaces. With Wi-Fi capability and the MRCOOL® Smart HVAC app, you can conveniently adjust the system's temperature, fan speed, and settings from your smartphone or tablet, giving you full control no matter where you are. Prefer a more hands-on approach? The included remote control offers easy access to all the essential features. Optimized for energy efficiency, the unit boasts impressive SEER2 and EER2 ratings of 25.5 and 13, respectively, along with a HSPF2-4 rating of 10.6, allowing you to reduce energy costs while enjoying ideal comfort. The outdoor fan operates at a quiet 56 dB, ensuring a peaceful environment without compromising performance.
The unit uses R-454B refrigerant, an eco-friendly solution that provides top-tier performance while being environmentally responsible. For added convenience, the system is compatible with voice control through Amazon Alexa and Google Assistant, allowing for hands-free operation. The MRCOOL® OLYMPUS E-STAR® 12k Series also comes with a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, ensuring long-term reliability, cutting-edge technology, and peace of mind.
| Net Dimensions (In) | 12.99 D x 21.81 H x 31.69 W |
| Net Weight (Lbs) | 72.75 |
| SEER2 | Up to 25.4 |
| EER2 | Up to 13.4 |
| HSPF2-4 | 10.5 |
| HSPF2-5 | 8 |
| Tonnage | 1 |
| Cooling Capacity (Btu) | 12000 |
| Heating Capacity (Btu) | 12000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 15 |
| Color | White |
| Max Coverage Area | Up to 550 |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 35.27 |
| Decibel Rating (Dba) | 56 |
| Inverter | DC |
| Max Lineset Length (Ft) | 82 |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Rpm | 780/680/580 |
| Metering Device | EXV |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Base Warranty | 5-Year Parts/7-Year Compressor |
| Base Parts Warranty | 5-Year |
| Base Compressor Warranty | 7-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Depth (In) | 14.57 |
| Gross Height (In) | 24.21 |
| Gross Width (In) | 36.02 |
| Gross Weight (Lbs) | 78.7 |

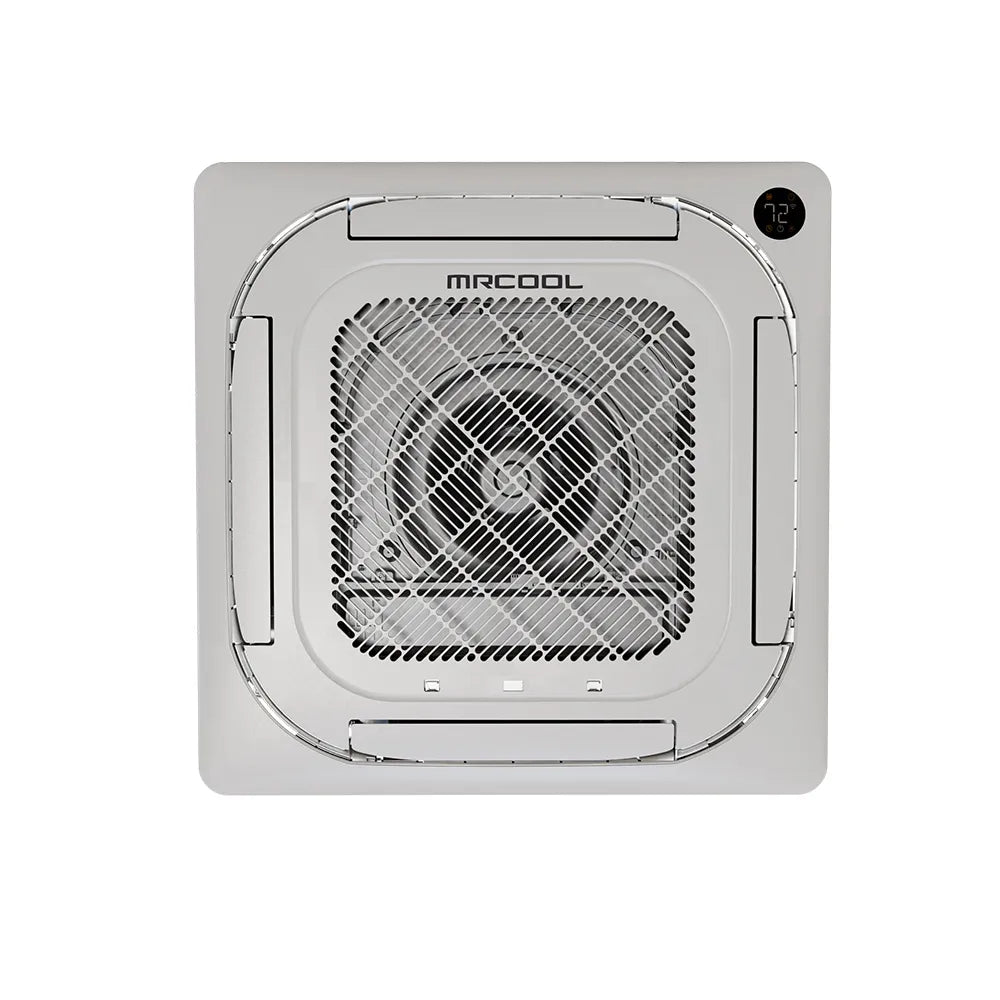

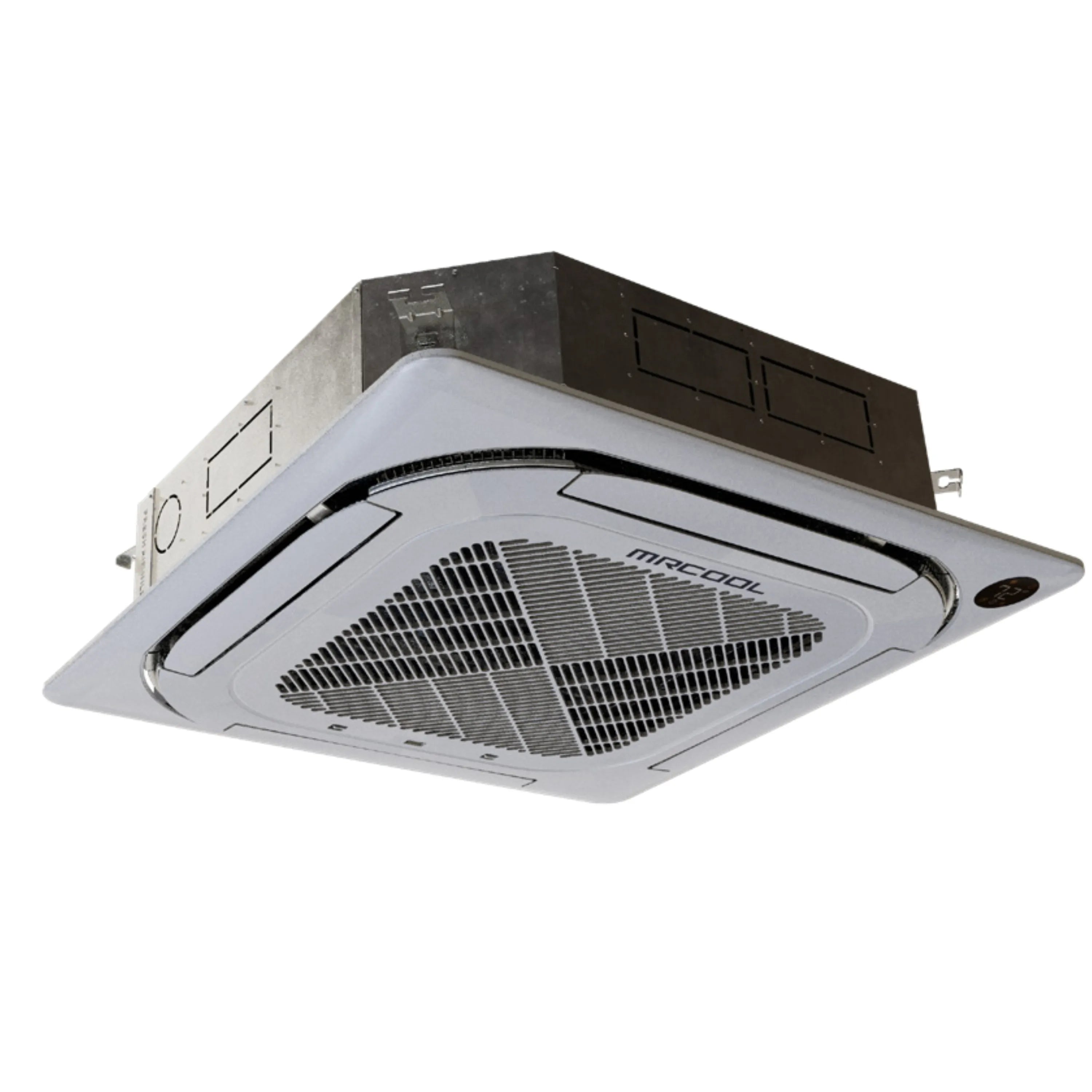

The MRCOOL® OLYMPUS 12K CASSETTE delivers reliable heating and cooling for areas up to 550 square feet, making it an excellent option for bedrooms, home offices, or other smaller spaces. Designed to be installed flush within the ceiling, it blends seamlessly into your room, offering a sleek, modern look that enhances any décor.
This versatile system is perfect for both residential and commercial spaces, maximizing room usage while providing an efficient and stylish climate control solution. Operating at a quiet 46 dB, the indoor fan ensures that your space remains calm and undisturbed while still delivering consistent performance. Its low noise level allows for optimal heating or cooling without distracting sounds, making it ideal for environments that require peace, such as bedrooms, home offices, or nurseries. The quiet operation creates a comfortable atmosphere that enhances relaxation and productivity. The system uses R-454B refrigerant, a sustainable choice that balances high performance with environmental responsibility. With its low global warming potential, R-454B minimizes the environmental impact of your unit while offering exceptional efficiency. This makes it a great option for homeowners looking to reduce their carbon footprint while still enjoying reliable, top-quality performance.
The MRCOOL® OLYMPUS 12K CASSETTE is backed by a limited lifetime warranty, 7 years of compressor coverage, and a 5-year parts warranty, ensuring lasting reliability and cutting-edge technology. This system is the perfect fit for those who prioritize energy efficiency, modern style, and optimal comfort.
| Net Dimensions (In) | 24.44 D x 9.65 H x 22.44 W |
| Net Weight (Lbs) | 35.27 |
| Tonnage | 1 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Ceiling |
| Color | White |
| Max Coverage Area | Up to 550 |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 46/43.5/40.5/27.5/26 |
| Decibel Rating Low (Dba) | 26 |
| Decibel Rating High (Dba) | 46 |
| Air Flow Direction | Downflow |
| Number Of Speeds | 5 (Variable) |
| Oscillation | Yes |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Blower Motor Speeds | 417.9/364.9/306.1/194.2/147.2 |
| Blower Motor Rpm | 700/600/400 |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works With Ios | No |
| Works With Android | No |
| Remote Control Included | Yes |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Weight (Lbs) | 41.89 |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
