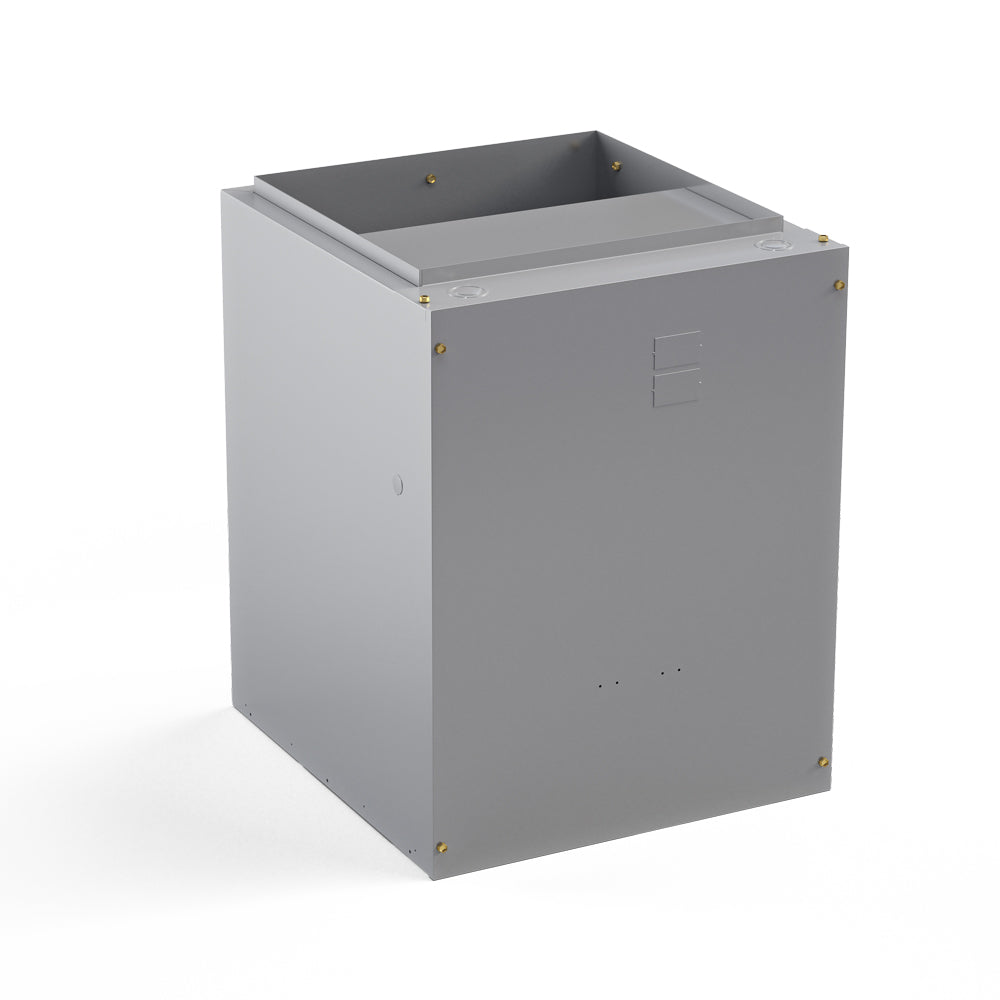

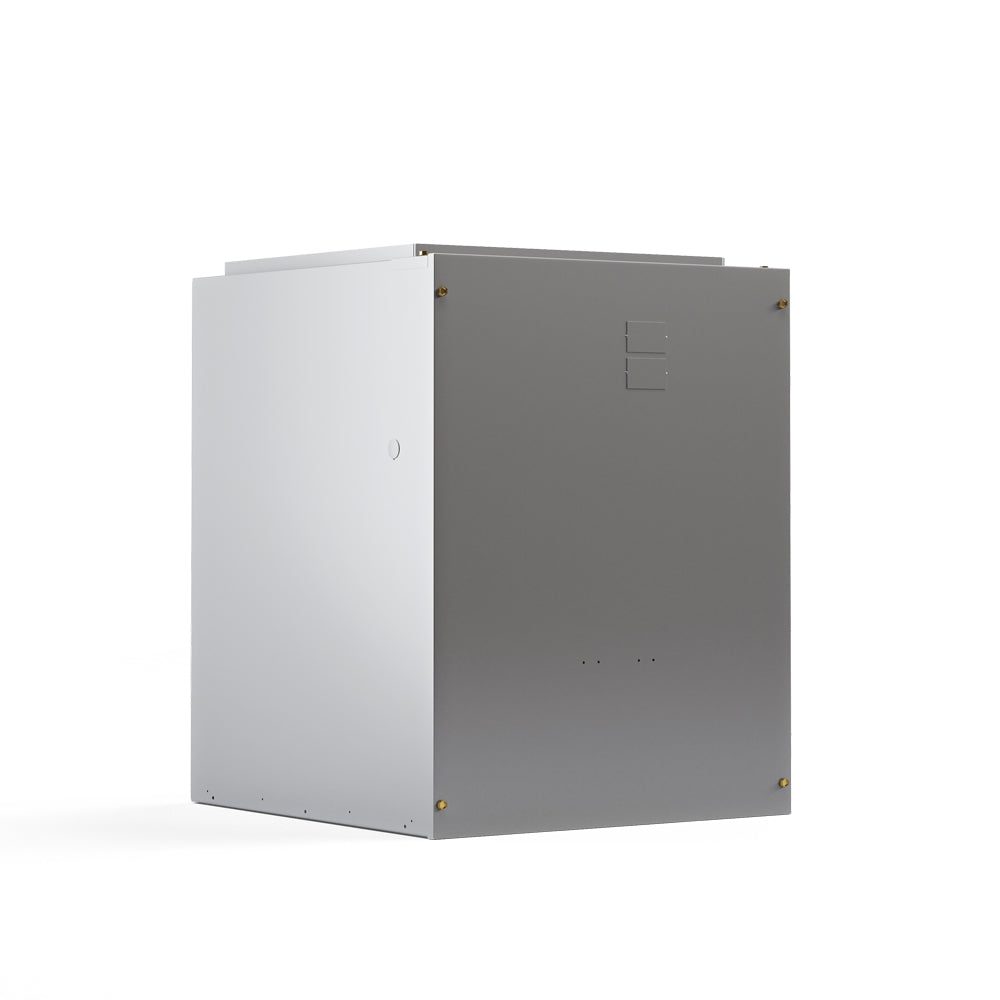

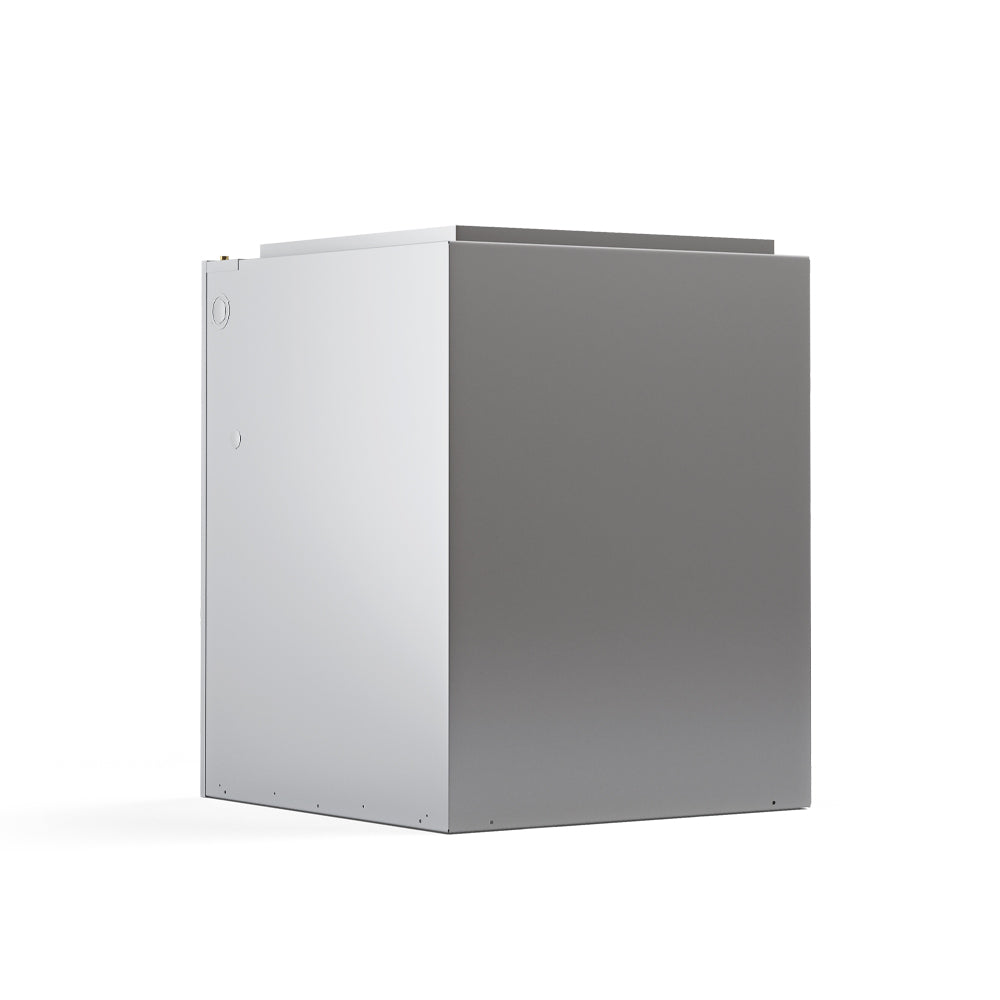

3 Ton Multi-Positional Variable Speed Modular Blower
The MRCOOL Multi-Position Modular Blower is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times. When choosing a MRCOOL Multi-Position Modular Blower, you can always know that you are being energy and time efficient.
|
Dimensions |
21" D x 25" H x 17.5" W |
|
CFM |
1210 |
|
Tonnage |
3 |
|
Cooling Capacity |
400-1210 |
|
Voltage |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker |
15 |
|
Min Circuit Ampacity |
2.9 |
|
Color |
Gray |
|
Color Family |
Gray |
|
Max Coverage Area |
1500 |
|
Refrigerant Type |
R-410A |
|
Number Of Speeds |
Variable |
|
Inverter |
No |
|
Blower Motor Type |
ECM |
|
Blower Motor HP |
1/2 |
|
Blower Motor Speeds |
Variable Speed |
|
Filter Type |
Replaceable |
|
Filter Size |
14x25(2) |
|
AUXILIARY HEATER SIZES |
15kw |
|
UL Reconized |
No |
|
UL Listed |
No |
|
ETL Listed |
Yes |
|
ETL Certified |
No |
|
ISO Certified |
No |
|
LEED Certified |
No |
|
Energy Star Compliant |
No |
|
Energy Star Certified |
No |
|
AHRI Certified |
Yes |
|
Registered Warranty |
10 Year Limited Parts Warranty |
|
Registered Parts Warranty |
10 Year Limited Parts Warranty |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed GAS |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
No |
|
Net Weight |
72 |
|
Gross Depth |
23.5 |
|
Gross Height |
27 |
|
Gross Width |
20 |
|
Gross Weight |
86 |
*Shipping Policy
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Overall Great Unit and working with HOD was simple. Unit arrived on time and in good shape.
Install was as stated and works good but struggles at heating house when temperatures are below freezing. I am concerned what will happen once we get to 20 and lower. Over all I like the product but they should be more honest about heating at low temperatures.
