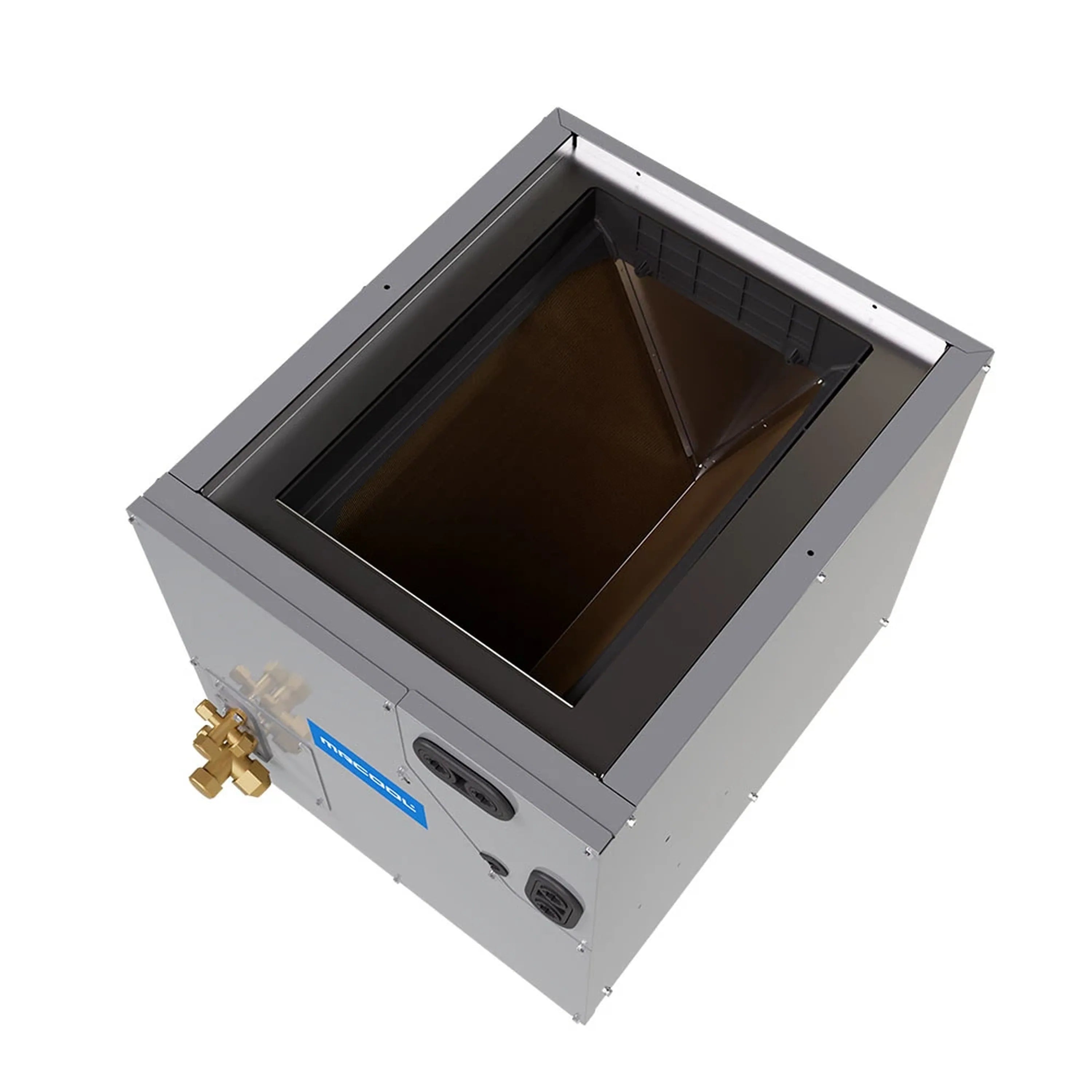

Gray cased coil unit with open top access panel and side brass fittings

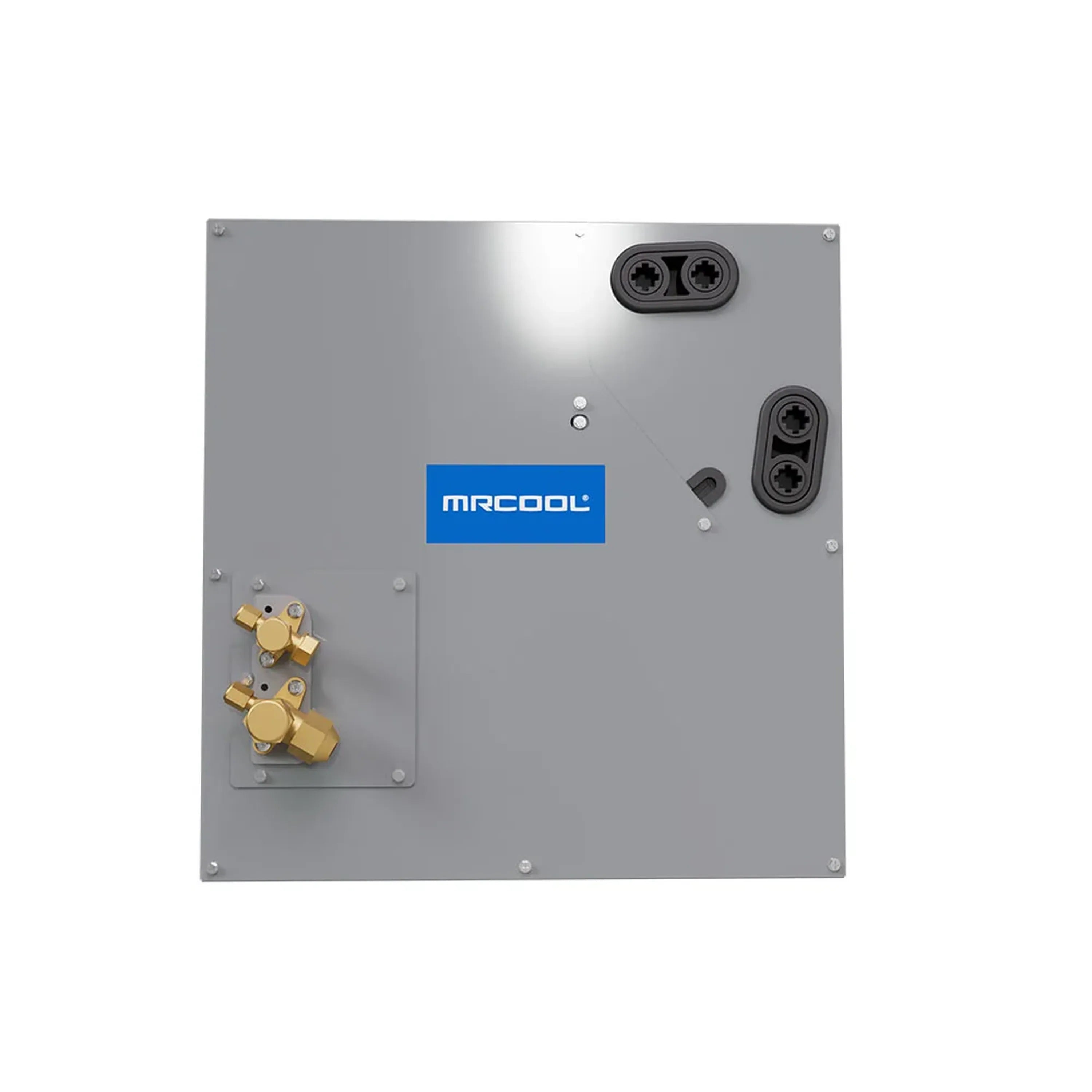

Gray MRCOOL cased coil panel with two circular connectors and service port

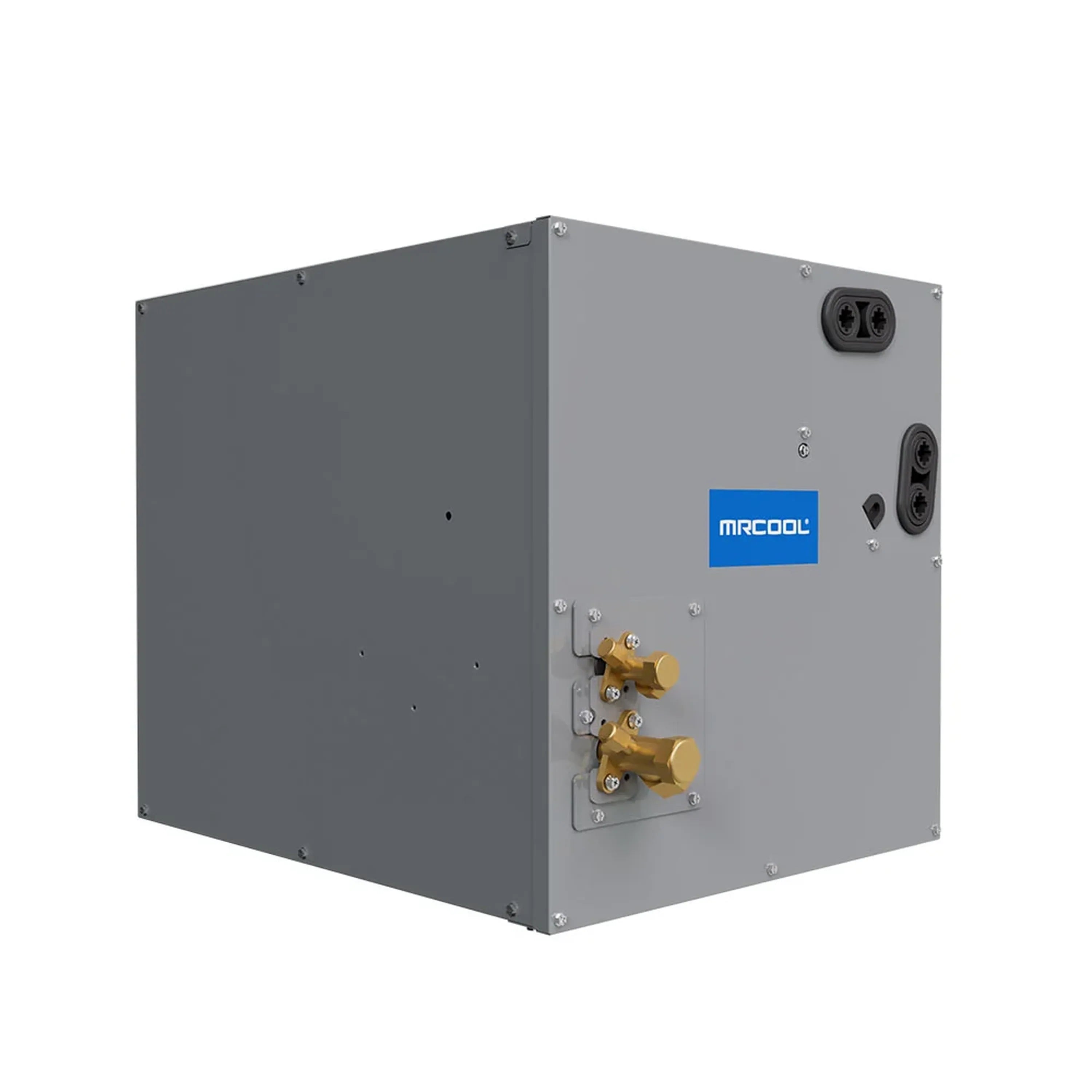

Gray cased coil unit with brass valve fittings and MRCOOL label on side

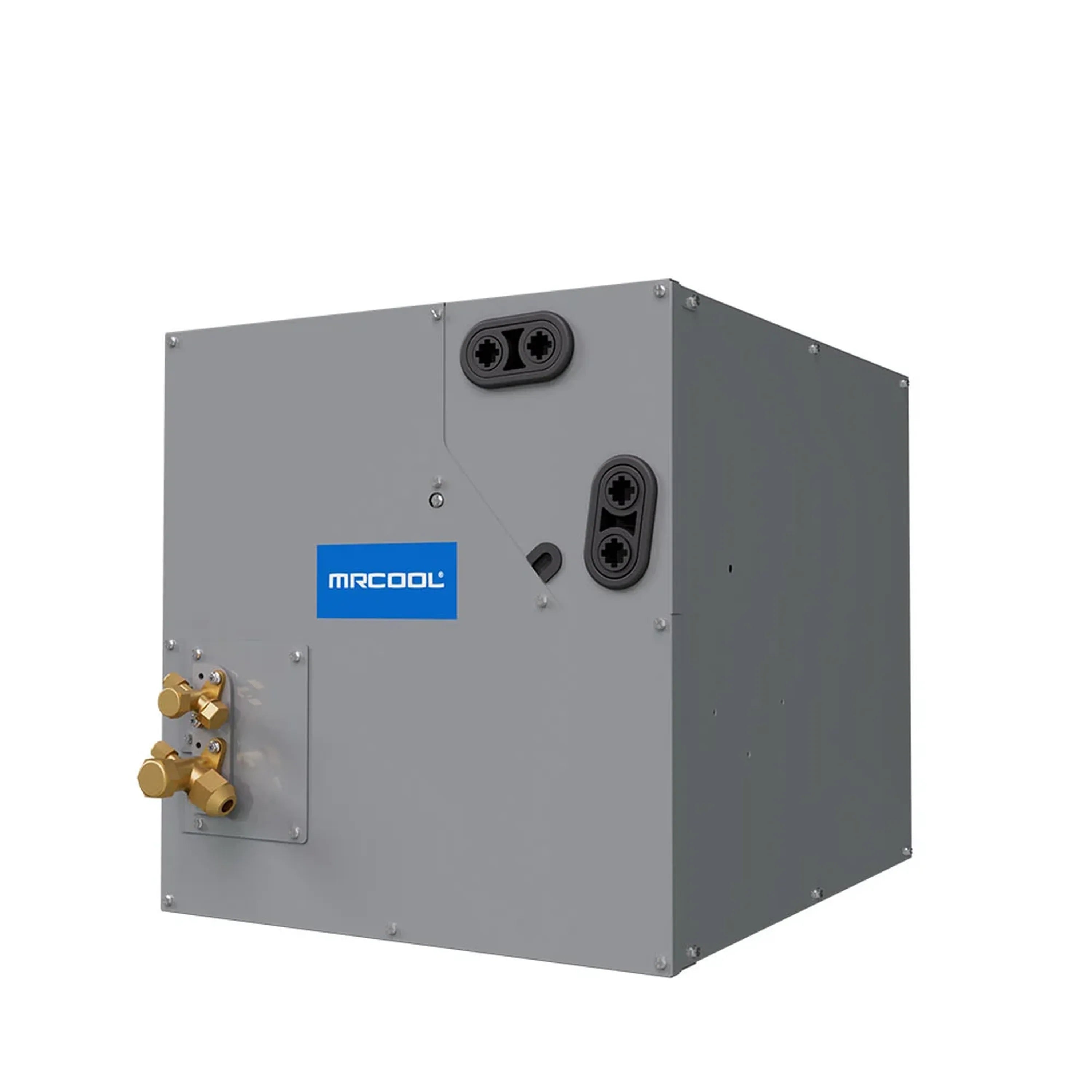

Gray MRCOOL cased coil cabinet with three circular connector ports and brass valve

Roll over image to zoom in Click on image to zoom

Click on image to zoom

MRCOOL 17.5-Inch, 2.5-3 Ton Pre-Charged R454B Cased Coil, Multi-Positional (MCMP3036BOTB)

Name: MRCOOL 17.5-Inch, 2.5-3 Ton Pre-Charged R454B Cased Coil, Multi-Positional (MCMP3036BOTB)
Brand: MRCOOL
SKU: MCMP3036BOTB
Price: 671.00 USD
Availability: InStock

MRCOOLSKU: MCMP3036BOTB

47 reviews

Price:

$671.00 $899.00SAVE 25%

Size:

14.5" 14.5"
17.5" 17.5"
21" 21"
24.5" 24.5"

Backorder

Estimated restock: 2-4 Weeks

Free shipping — delivered to your door by parcel carrier

The MRCOOL® 2.5-3 Ton Pre-Charged A-Coil is built to simplify installation and deliver dependable comfort for a wide range of HVAC applications. Designed to pair perfectly with most R-454B systems with No-Vac® Quick Connect® line set or a flare to sweat connections—this coil is an ideal choice for both retrofit projects and new setups.

Pre-charged with environmentally friendly R-454B refrigerant, this coil meets today’s climate-conscious standards. R-454B offers a significantly lower Global Warming Potential than older refrigerants, helping reduce your home’s environmental impact without sacrificing performance.

The factory charge also eliminates the need for field-charging, cutting down on installation time, labor costs, and complexity. Compact and adaptable, the MRCOOL Pre-Charged A-Coil supports upflow, downflow, and horizontal applications, making it easy to install in tight or unconventional spaces.

It features dual front drains for flexible utility connections, built-in side drain pan for horizontal configurations, and an A2L leak detection sensor as an additional safety measure—each detail is designed with homeowner and contractor convenience in mind.

Constructed with CoolGuard® corrosion-resistant aluminum, the coil is engineered for long-lasting performance, even in tough operating conditions. Its durable build helps extend system life and reduce maintenance needs over time.

Backed by a 10-year limited parts warranty, the MRCOOL® 3036-B Pre-Charged A-Coil offers homeowners and contractors a reliable, energy-efficient solution that delivers season after season. It’s the smart way to upgrade your system while saving time, energy, and installation effort.

Works with: Hyper Heat Condensers, Universal Split Condensers, and the VersaPro 2nd Generation Furnaces

DIMENSIONS

Net Width (in.): 17.5
Net Depth (in.): 21
Net Height (in.): 23.5
Net Weight (lbs.): 59.5
Gross Weight (lbs.): 68
Liquid Line Size: 3/8"
Suction Line Size: 3/4"

GENERAL INFORMATION

Color/Finish: Grey
Tonnage: 2.5-3 Ton
Refrigerant Type: R-454B
Metering Device: TXV
Contains Electronics: Yes
Contains Chemicals: Yes
Contains Compressed Gas: Yes
Base Warranty: 10 Year Parts Warranty
Base Parts Warranty: 10 Year
