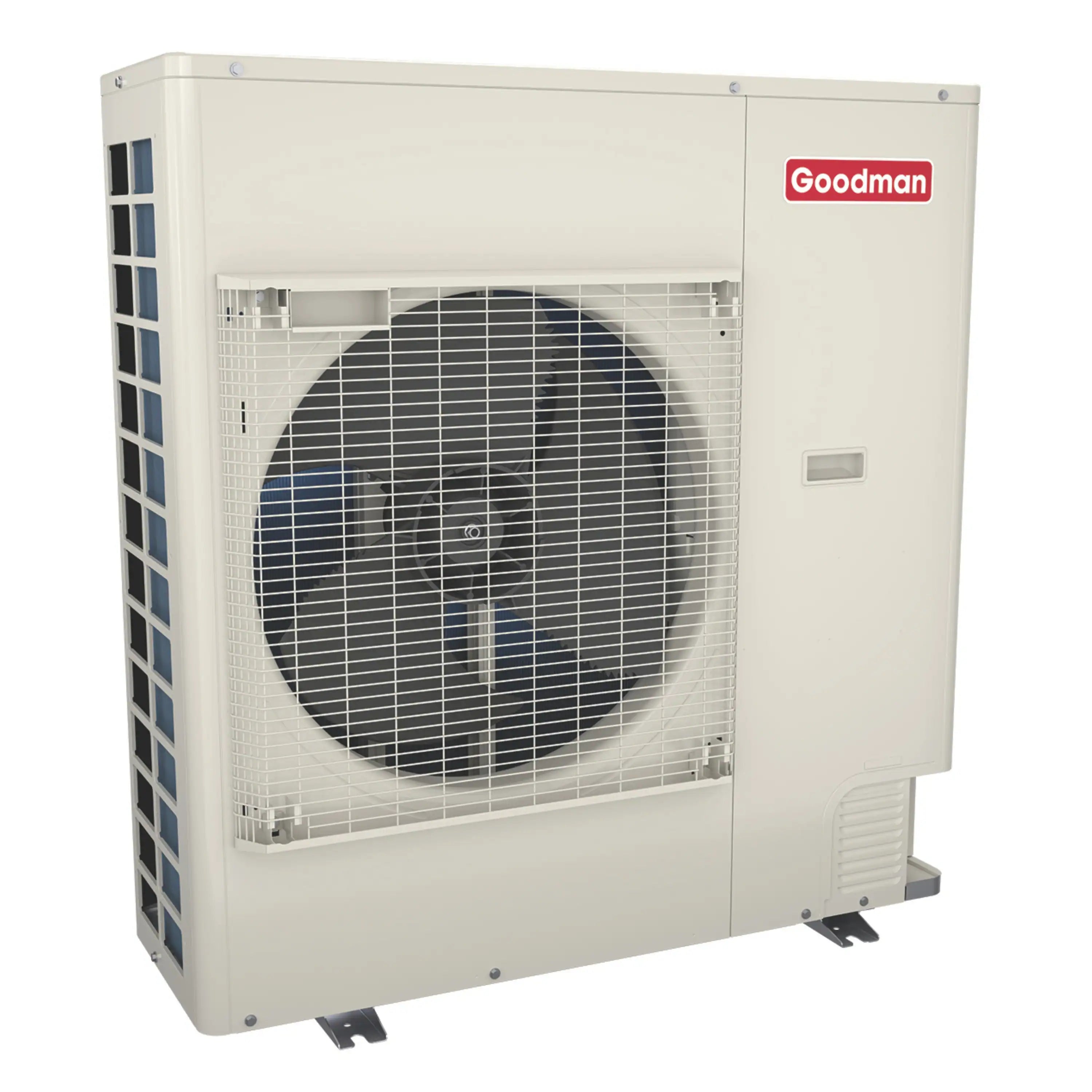

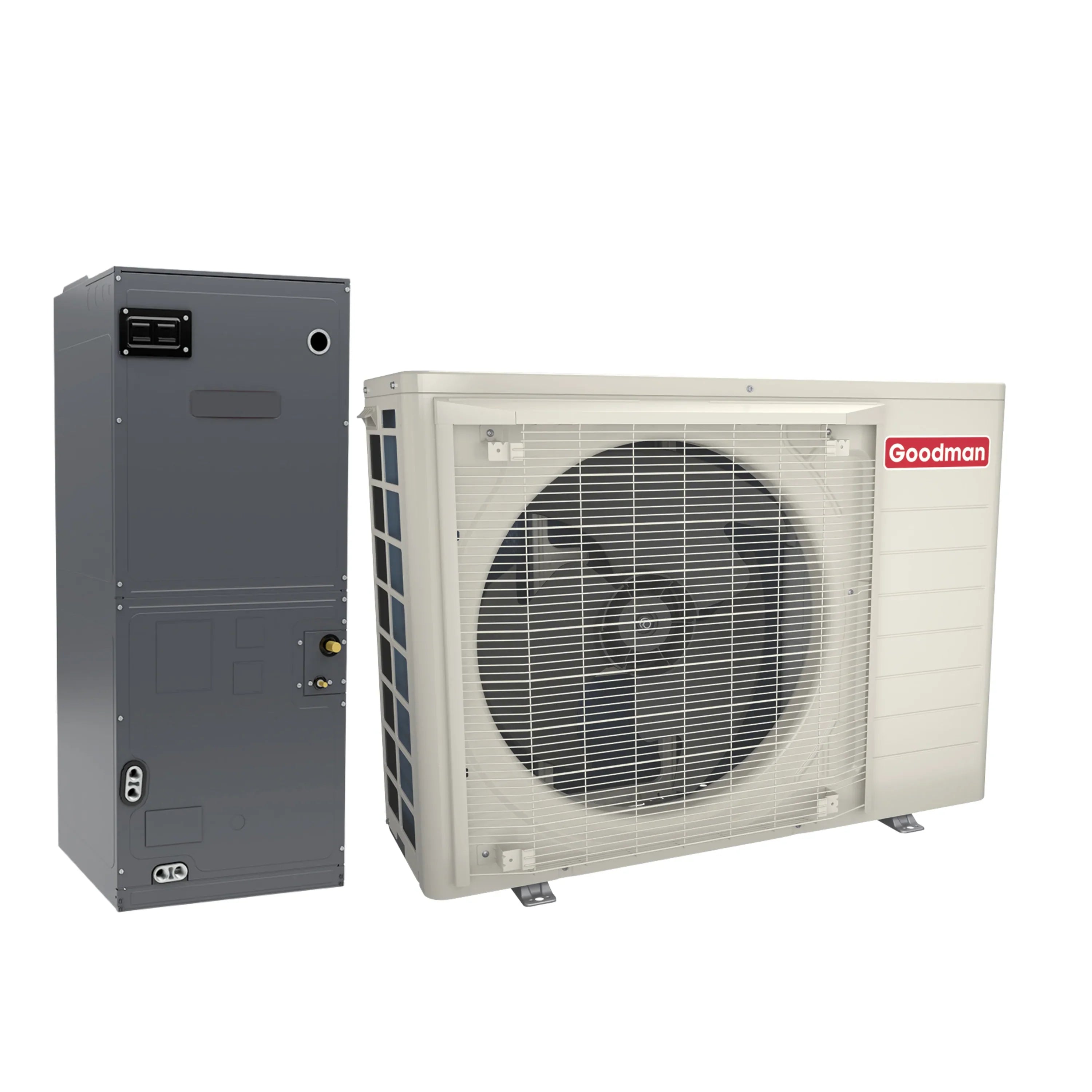

Goodman 5 Ton 16.2 SEER2 R-32 Heat Pump Condenser & Variable-Speed Air Handler with 10kW Heat Kit

The Goodman GSV6S is a 5 Ton variable-speed split system heat pump delivering 16.2 SEER2 efficiency with inverter technology. Features variable-speed swing compressors, quiet digitally commutated fan motor, and Quiet-mode with sound levels as low as 45dBA. Compatible with Goodman GTST connected thermostat. Built in a heavy-gauge galvanized steel cabinet with Ivory white finish and ZAM corrosion-resistant frame. AHRI Certified and ETL Listed.

• Variable-speed swing compressors
• Quiet digitally commutated fan motor High-density compressor sound blanket
• Compatible with Goodman GTST connected thermostat and other Goodman communicating equipment
• Propietary control algorithmic logic
• In communicating mode, only two lowvoltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment LED display, and fault code storage
• Propietary Inside intelligence for diagnostics
• Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
• Field-selectable boost mode increases compressor speed during unusually high loads
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• Suction pressure transducer
• Sweat connection service valves with easy access to gauge ports
• AHRI Certified
• ETL Listed

• Heavy-gauge galvanized steel cabinet with grille-style sound control side design
• Custom Ivory white powder-paint finish
• High corrosion (ZAM®), unpainted steel bottom frame and legs
• 500-hour salt-spray tested
• Wire fan discharge grille
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

The Goodman 5-Ton R-32 Inverter Variable-Speed Air Handler (AHVE60DP0300) delivers superior comfort and efficiency with a variable-speed ECM blower motor and Electronic Expansion Valve (EEV) for precise temperature and humidity control. Featuring an all-aluminum evaporator coil with 7mm tubing, this AHRI-certified, ETL-listed unit maintains constant CFM across a wide range of static pressure conditions, ensuring consistent airflow regardless of duct configuration. The rigid SmartFrame™ cabinet offers tool-less filter access, screw-less sides and back to minimize condensation, and foil-faced insulation for added efficiency — all in a compact 21" depth design for easy attic installation. Compatible with the Goodman smart thermostat and configurable for horizontal or vertical applications, this air handler is built for flexibility, durability, and long-term performance.

Features

•  Electronic Expansion Valve (EEV) for cooling and heat pump applications.

• 7mm evaporator coil tube size

• Variable-speed ECM blower motor

• Compatible with Goodman brand smart thermostat

• Provides constant CFM over a wide range of static pressure conditions independent of duct system

• CFM indicator

• Thermostat provides adjustable lowCFM for efficient fan-only operation

• All-aluminum evaporator coil

• Fault recall of six most recent faults

• Improved humidity and comfort control

• AHRI certified; ETL listed

• Coil mounting track for quick repositioning

• Rigid SmartFrame™ cabinet

• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193

• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193

• Horizontal or vertical configuration capabilities

• 21" depth for easier attic access

• DecaBDE-free thermoplastic drain pan with secondary drain connections

• Screw-less sides and back helps to reduce condensation when installed in humid locations

• Foil-faced insulation covers the internal casing to reduce cabinet condensation

• Galvanized, leather grain-embossed finish

• Glue-less cabinet insulation retention

• Tool-less filter access
