What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

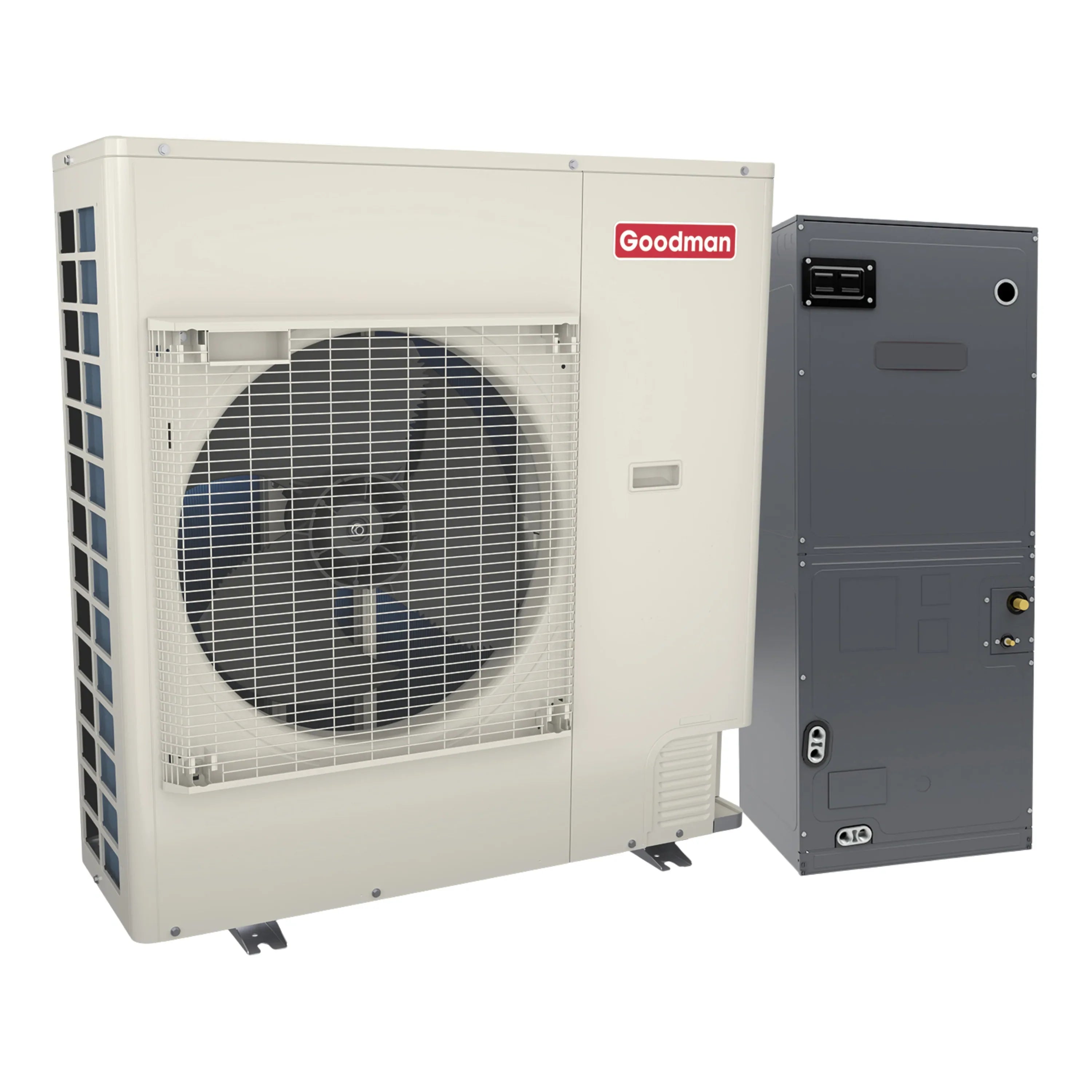

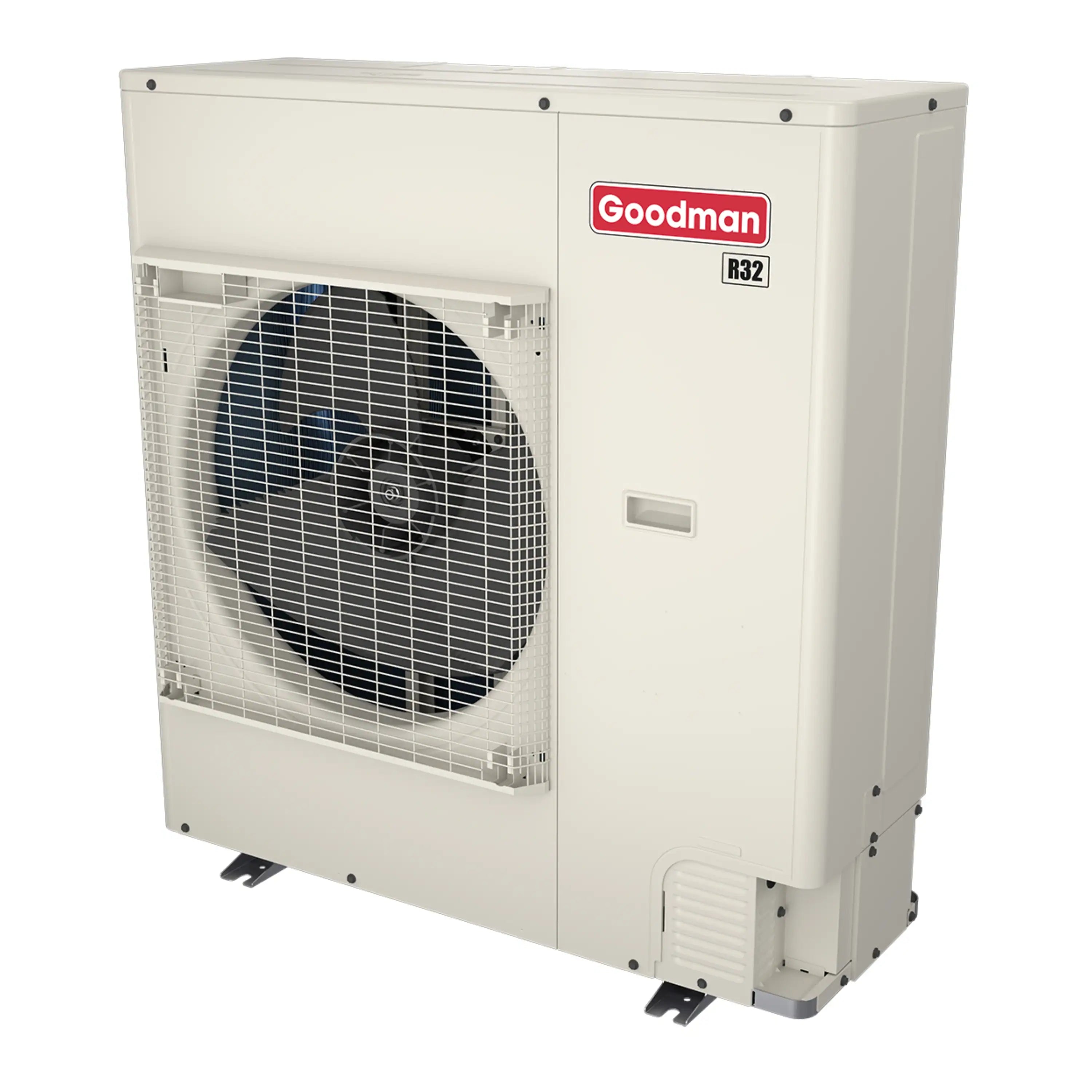

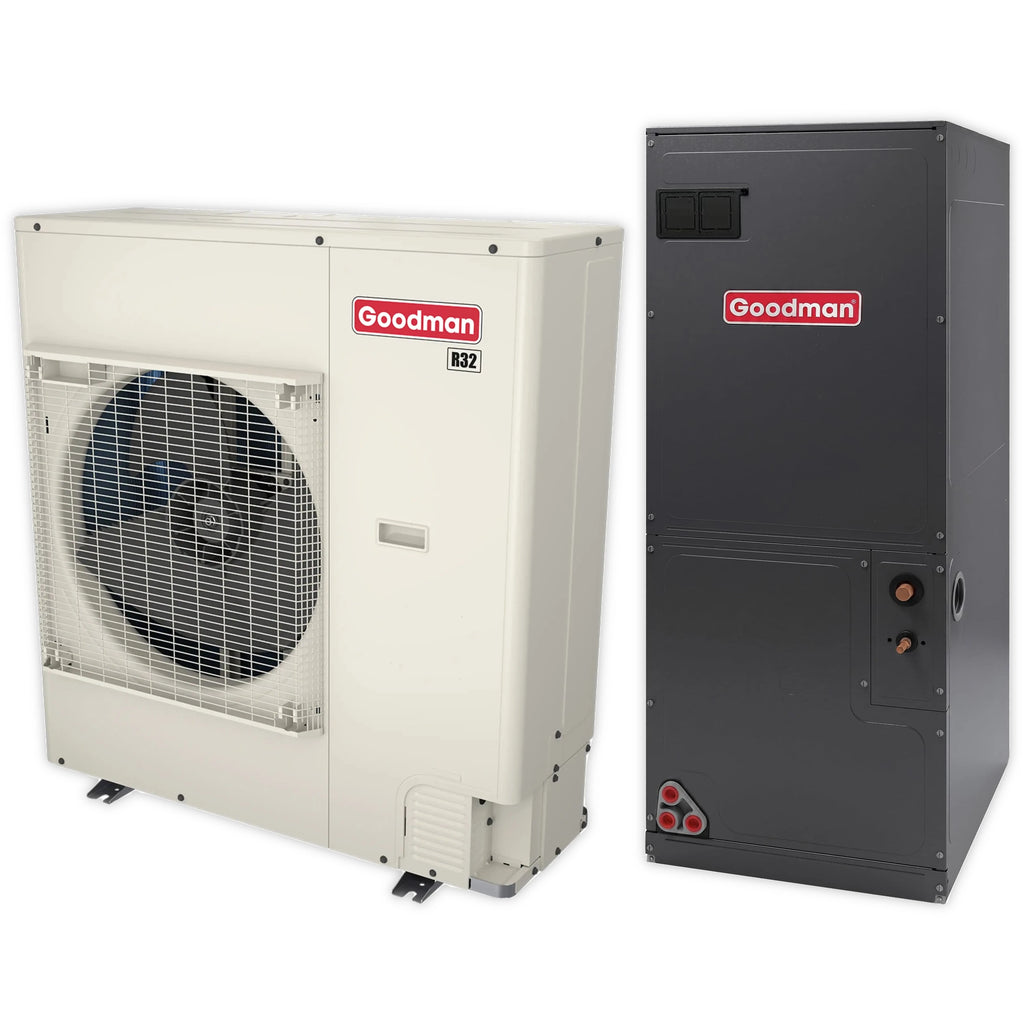

Piece 1 of 2 — MINI SPLIT CONDENSER
The Goodman GSV7SA is a premium 4 Ton variable-speed split system heat pump delivering 17.5 SEER2 efficiency with strong heating capacity. Features variable-speed swing compressors, quiet digitally commutated fan motor, and Quiet-mode with sound levels as low as 45dBA. Compatible with Goodman GTST connected thermostat. Built in a heavy-gauge galvanized steel cabinet with Ivory white finish. AHRI Certified and ETL Listed.
Features- Variable-speed swing compressors
- Strong heating capacity
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman GTSTconnected thermostat and otherGoodman communicating equipment
- Proprietary control algorithmic logic
- In communicating mode, only two low-voltagewires to outdoor unit required
- Diagnostic indicator lights, seven-segmentLED display, and fault code storage
- Proprietary Inside intelligence for diagnostics
- Quiet-mode - provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45dBA)
- Field-selectable boost mode increasescompressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Sweat connection service valves with easyaccess to gauge ports
- AHRI Certified
- ETL Listed
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
DIMENSIONS & WEIGHT
- Height
- 39 in
- Width
- 37 in
- Depth
- 12.625 in
- Weight
- 179 lb
GENERAL INFORMATION
- Brand
- Goodman
- Series
- GSV7SA
- SKU
- GZV7SA4810
- Product Category
- Unitary
- Unit Type
- Outdoor
- Manufacturer
- Goodman
- Product Features
- Variable-speed swing compressors
- Strong heating capacity
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman GTSTconnected thermostat and otherGoodman communicating equipment
- Proprietary control algorithmic logic
- In communicating mode, only two low-voltagewires to outdoor unit required
- Diagnostic indicator lights, seven-segmentLED display, and fault code storage
- Proprietary Inside intelligence for diagnostics
- Quiet-mode - provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45dBA)
- Field-selectable boost mode increasescompressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Sweat connection service valves with easyaccess to gauge ports
- AHRI Certified
- ETL Listed
CAPACITY & PERFORMANCE
- Tonnage
- 4.0
- Cooling BTU
- 46500 Btu/H
- Heating BTU
- 47500 Btu/H
- Cooling Operating Range
- 0 °F to 115 °F
- Heating Operating Range
- -10 °F to 70 °F
- SEER2
- 17.5
- HSPF2
- 8.8
- EER2
- 10.0
COMPRESSOR & MOTORS
- Compressor Type
- Inverter
- Compressor Stages
- Variable
NOISE LEVELS
- Decibel Level (dBA)
- 71 dBA
ELECTRICAL REQUIREMENTS
- Voltage/Phase/Hz
- 208/230 V / 1 Ph / 60 Hz
- Max Breaker Size
- 40 A
- Min. Breaker Size
- 37.5 A
REFRIGERANT & PIPING
- Refrigerant
- R-32
- Factory Refrigerant Charge
- 118 oz
- Liquid Line
- 3/8 in
- Suction Line
- 7/8 in
- Max Line Set Length
- 100 ft
SAFETY
- ENERGY STAR® Certified
- Yes
- Safety Information
- R32 Outdoor
- Proposition 65 Warning
- Yes
WARRANTY
- Warranty
- ALL PARTS - 5 YEARS PARTS
Piece 2 of 2 — CENTRAL AIR HANDLER
The Goodman 5-Ton R-32 Inverter Variable-Speed Air Handler (AHVE60DP0300) delivers superior comfort and efficiency with a variable-speed ECM blower motor and Electronic Expansion Valve (EEV) for precise temperature and humidity control. Featuring an all-aluminum evaporator coil with 7mm tubing, this AHRI-certified, ETL-listed unit maintains constant CFM across a wide range of static pressure conditions, ensuring consistent airflow regardless of duct configuration. The rigid SmartFrame™ cabinet offers tool-less filter access, screw-less sides and back to minimize condensation, and foil-faced insulation for added efficiency — all in a compact 21" depth design for easy attic installation. Compatible with the Goodman smart thermostat and configurable for horizontal or vertical applications, this air handler is built for flexibility, durability, and long-term performance.
Features
- Electronic Expansion Valve (EEV) for cooling and heat pump applications.
- 7mm evaporator coil tube size
- Variable-speed ECM blower motor
- Compatible with Goodman brand smart thermostat
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Thermostat provides adjustable lowCFM for efficient fan-only operation
- All-aluminum evaporator coil
- Fault recall of six most recent faults
- Improved humidity and comfort control
- AHRI certified; ETL listed
- Coil mounting track for quick repositioning
- Rigid SmartFrame™ cabinet
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
DIMENSIONS & WEIGHT
- Width
- 21 1/8in
- Depth
- 21in
- Height
- 58in
- Blower Width
- 10in
- Product Weight
- 158 lbs
- Shipping Weight
- 158 lbs
GENERAL INFORMATION
- Product Type
- Multi-Positional Air Handler
- Configuration
- Downflow / Horizontal / Upflow
- Fuel Type
- Electricity
- Requires Downflow Kit
- Yes
- Mobile Home Compatible
- No
- High Output Cool
- 60000 BTU
- Electric Heat Capabilities (Optional)
- 5 / 8 / 10 / 15 / 19 kW
- Blower Type
- Variable Speed
- Metering Device
- TXV (Factory Installed)
- RDS On-Board
- Yes
- RDS Factory-Programmed For
- R-32
- R-32 Air Conditioner
- Yes
- R-410A Air Conditioner
- No
- R-454B Air Conditioner
- No
- Cabinet/Chassis Size
- C
- Blower Diameter
- 10in
- Return Air Opening Size
- 19.5 x 14.63in
- Supply Air Opening Size
- 19.813 x 11.313in
CAPACITY & PERFORMANCE
- Tonnage
- 5 Tons
- Blower Cooling Capacity
- 5 Tons
COMPRESSOR & MOTORS
- Blower Motor Horse Power
- 3/4 HP
- Multi-Stage Compressor Compatible
- Yes
ELECTRICAL REQUIREMENTS
- Voltage
- 208 - 240V
- Frequency
- 60 Hz
- Voltage Phase
- 1
- Minimum Ampacity
- 6.5 Amps
- Maximum Fuse/Breaker
- 15 Amps
REFRIGERANT & PIPING
- Primary Refrigerant
- R-32
- Refrigerant Metering Device Compatibility
- R-32
- Liquid Line Size (OD)
- 3/8in
- Suction Line Size (OD)
- 7/8in
FILTER & HEATING
- R-32 Heat Pump
- Yes
- R-410A Heat Pump
- No
- R-454B Heat Pump
- No
CONTROLS & CONNECTIVITY
- Drain Connection (I.D.)
- 0.75in
SAFETY
- ENERGY STAR Certified
- Yes
- Qualified Manufacturer ID (QMID)
- I7Q6
WARRANTY
- Parts Warranty
- 10 Years (With Online Registration)
Authorized Goodman Dealer
Full manufacturer warranty on every Goodman product we sell.
Central Split System FAQs
What is a central HVAC system?
A central HVAC system uses a network of ducts to heat and cool your entire home from a single unit. It typically consists of an outdoor condenser (or heat pump) and an indoor air handler connected by refrigerant lines, distributing conditioned air through vents in every room.
What's the difference between a heat pump system and a traditional A/C system?
A heat pump can both heat and cool your home by reversing its refrigerant cycle, making it a year-round solution without a separate furnace. A traditional central A/C system only cools — you'd pair it with a gas furnace or electric air handler for heating. Heat pumps are generally more energy-efficient in moderate climates.
What size central HVAC system do I need?
Sizing depends on your home's square footage, insulation, climate zone, and ceiling height. As a general rule: 1 ton of cooling covers roughly 400–600 sq ft. A 2,000 sq ft home typically needs a 3–4 ton system. Use our live chat to speak with an HVAC specialist who can help you size correctly.
Can I buy a central HVAC system online and install it myself?
You can purchase central HVAC equipment online and save significantly versus buying through a local contractor. However, installation must be performed by a licensed HVAC technician in most states — the refrigerant handling and electrical work require certification. We recommend buying the equipment here and hiring a local installer separately.
What SEER2 rating should I look for?
SEER2 (Seasonal Energy Efficiency Ratio 2) measures cooling efficiency — higher numbers mean lower energy costs. Federal minimums are 14–15 SEER2 depending on your region. For the best long-term savings, look for systems rated 16 SEER2 or higher. Many of our MRCOOL and Senville systems reach 17–18 SEER2.
Does Home Outlet Direct offer financing for central HVAC purchases?
Yes. Financing is available on qualifying orders, making it easier to invest in a high-efficiency central HVAC system without paying everything upfront. See our financing page for details on terms and eligibility.
Do central HVAC systems from Home Outlet Direct come with a warranty?
All systems come with the manufacturer's warranty. We also offer extended warranty and protection plans for added peace of mind. Brands like MRCOOL and Goodman are backed by industry-leading coverage.
What is a Goodman split system?
A Goodman split system is a central HVAC setup with an outdoor condenser and an indoor air handler or furnace. Together they provide whole-home heating and cooling, offering better efficiency and quieter operation than window units.
What SEER2 ratings do Goodman split systems come in?
Goodman central split systems range from 14.3 SEER2 up to 22.5 SEER2 depending on the model, with higher ratings meaning greater energy savings on monthly utility bills.
Do Goodman split systems come with a warranty?
Yes. Goodman offers industry-leading limited warranties — typically up to 10 years on parts when registered — giving homeowners long-term peace of mind on their investment.
What size Goodman split system do I need?
Sizing depends on your home's square footage. For example, a 1.5-ton system typically covers 600–1,000 sq. ft., while a 4-ton system suits 2,200–2,600 sq. ft. An HVAC professional can perform a Manual J load calculation for accuracy.
What refrigerant do Goodman central split systems use?
Current Goodman split systems use R-32 refrigerant, which has a lower global warming potential (GWP) than older R-410A systems, making them a more eco-friendly choice.
Can I install a Goodman split system myself?
Goodman split systems require professional installation by a licensed HVAC technician, both for safety and to keep the manufacturer's warranty valid.
Does Home Outlet Direct offer free shipping on Goodman split systems?
Yes, Home Outlet Direct offers free shipping on Goodman central split systems along with wholesale pricing, making it one of the most affordable ways to purchase a full HVAC kit online.
