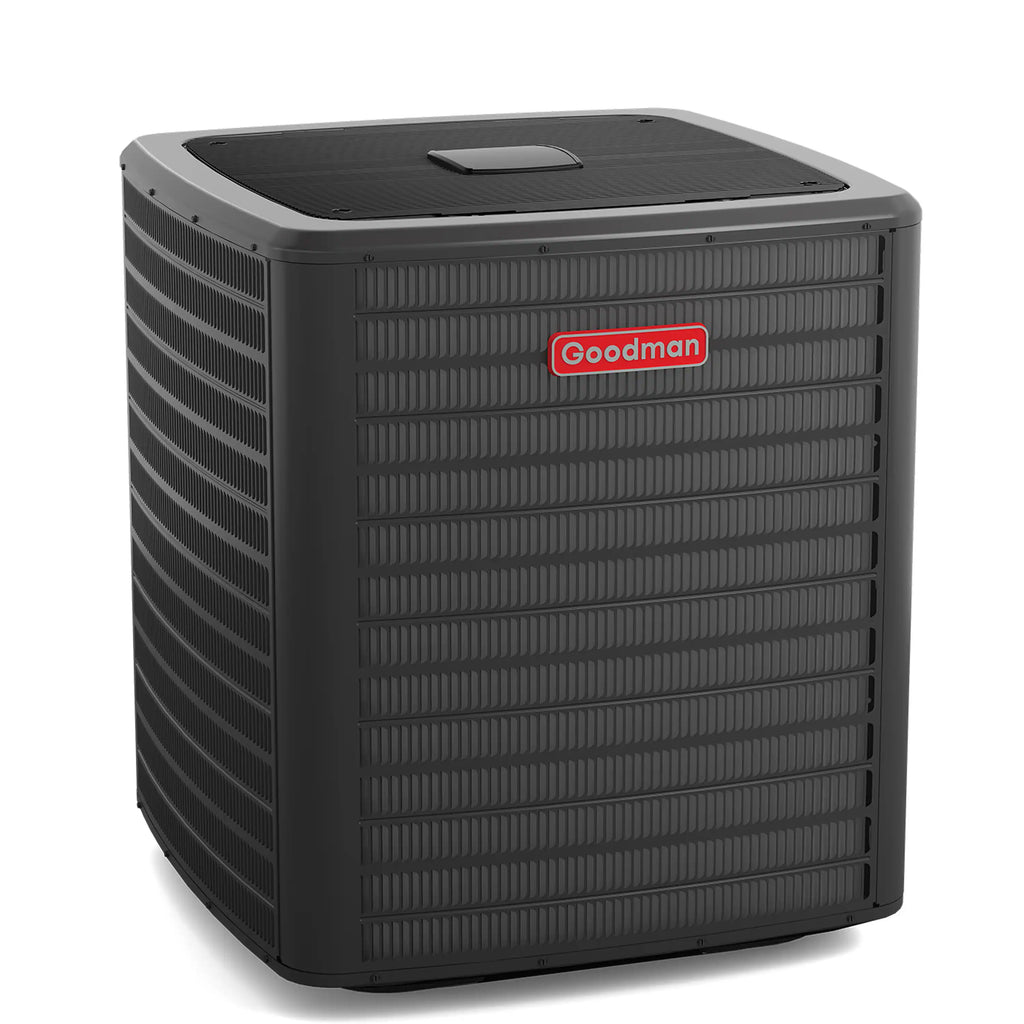

The Goodman GLXT7C Split System Air Conditioner delivers 17.2 SEER2 efficiency at 4 Ton capacity. Features two-stage scroll compressor for enhanced comfort and efficiency, and durable powder-painted cabinet with easy service access. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GLXT7C |
| SKU | GLXT7CA4810 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 50 A |
| Min. Breaker Size | 31.6 A |
| Capacity & Performance | |
| Tonnage | 4.0 |
| Cooling BTU | 48000 Btu/H |
| Cooling Operating Range | 55 °F to 125 °F |
| Decibel Level (dBA) | 73 dBA |
| Efficiency Ratings | |
| SEER2 | 15.2 |
| EER2 | 12.0 |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Two Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 180 oz |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Max Line Set Length | 200 ft |
| Dimensions & Weight | |
| Height | 41.625 in |
| Width | 35-1/2 in |
| Depth | 35.5 in |
| Weight | 276 lb |
| Additional Information | |
| Product Features | • Two-Stage Copeland Ultra-Tech scroll compressor;• Quiet two-speed ECM outdoor fan motor;• Integrated communicating ComfortBridge™ Technology;• Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App;• Copeland® ComfortAlert™ built in diagnostics;• Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T;• Color-coded terminal strip for non-communicating set-up;• Only two low-voltage wires required in communication mode;• Factory-installed filter drier;• Factory-installed transformer;• Factory-installed high and low-pressure switches;• High-density foam compressor sound blanket;• Fully charged for 15’ of tubing length;• Ambient temperature sensors;• Ground lug connection;• AHRI Certified - ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
Goodman AMVT Variable Speed Air Handlers with all-aluminum evaporator coils provide top of the line performance and efficiency in your home HVAC system. The all-aluminum evaporator coil is constructed from aluminum tubing, fins, and end plates, giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. The AMVT air handler is compatible with the ComfortNet system of communicating control products.
| General Information | |
|---|---|
| Product Type | Multi-Positional Air Handler |
| Configuration | Downflow / Horizontal / Upflow |
| Fuel Type | Electricity |
| Requires Downflow Kit | Yes |
| Mobile Home Compatible | No |
| ENERGY STAR Certified | Yes |
| Performance | |
| Tonnage | 4 Tons |
| High Output Cool | 48000 BTU |
| Electric Heat Capabilities (Optional) | 5 / 8 / 10 / 15 / 19 kW |
| Blower Cooling Capacity | 4 Tons |
| Blower Motor Horse Power | 3/4 HP |
| Blower Type | Variable Speed |
| Refrigerant Information | |
| Primary Refrigerant | R-32 |
| Metering Device | TXV (Factory Installed) |
| Refrigerant Metering Device Compatibility | R-32 |
| RDS On-Board | Yes |
| RDS Factory-Programmed For | R-32 |
| Compatibility | |
| Multi-Stage Compressor Compatible | Yes |
| R-32 Air Conditioner | Yes |
| R-32 Heat Pump | Yes |
| R-410A Air Conditioner | No |
| R-410A Heat Pump | No |
| R-454B Air Conditioner | No |
| R-454B Heat Pump | No |
| Electrical Information | |
| Voltage | 208 - 240V |
| Frequency | 60 Hz |
| Voltage Phase | 1 |
| Minimum Ampacity | 6.5 Amps |
| Maximum Fuse/Breaker | 15 Amps |
| Line Set Information | |
| Liquid Line Size (OD) | 3/8in |
| Suction Line Size (OD) | 7/8in |
| Dimensions | |
| Width | 21 1/8in |
| Depth | 21in |
| Height | 58in |
| Cabinet/Chassis Size | C |
| Blower Width | 10in |
| Blower Diameter | 10in |
| Return Air Opening Size | 19.5 x 14.63in |
| Supply Air Opening Size | 19.813 x 11.313in |
| Drain Connection (I.D.) | 0.75in |
| Weight | |
| Product Weight | 158 lbs |
| Shipping Weight | 158 lbs |
| Certifications | |
| ENERGY STAR Certified | Yes |
| Qualified Manufacturer ID (QMID) | I7Q6 |
| Warranty | |
| Parts Warranty | 10 Years (With Online Registration) |
