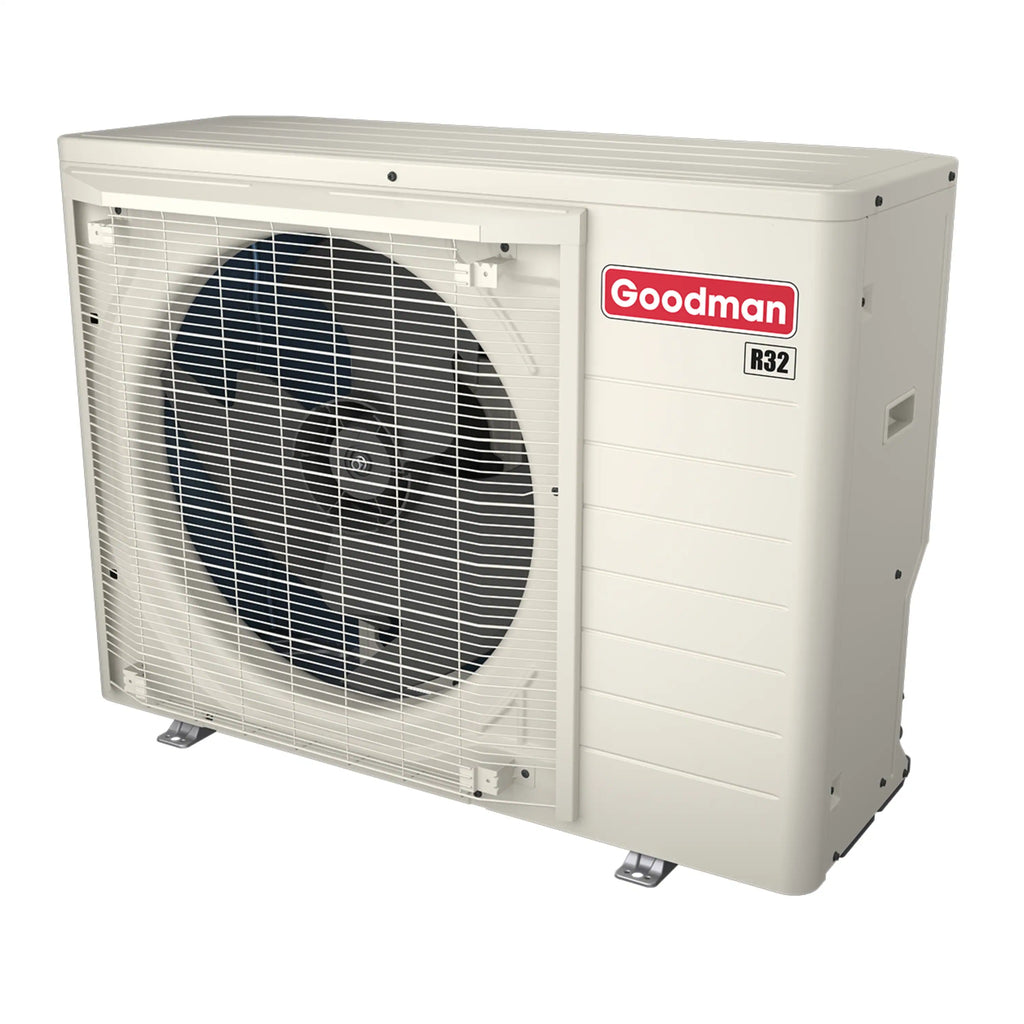

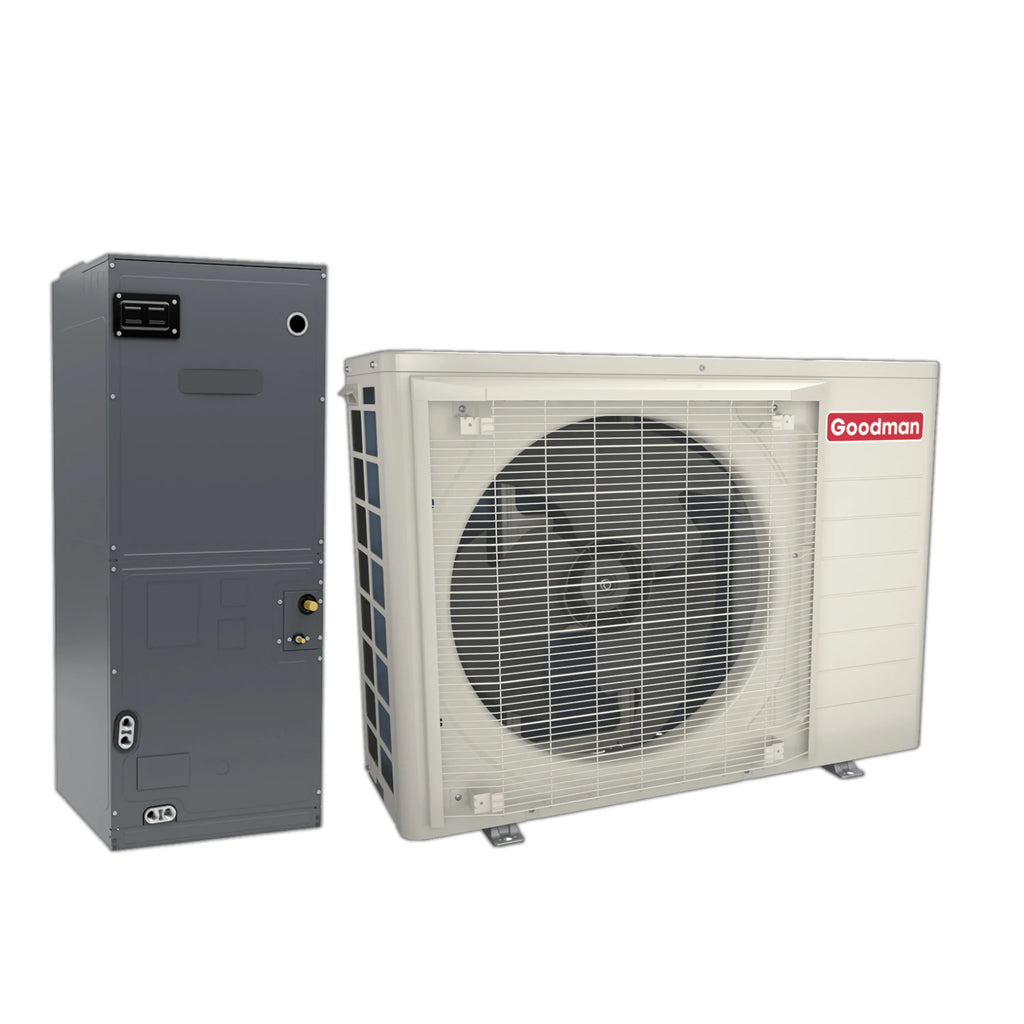

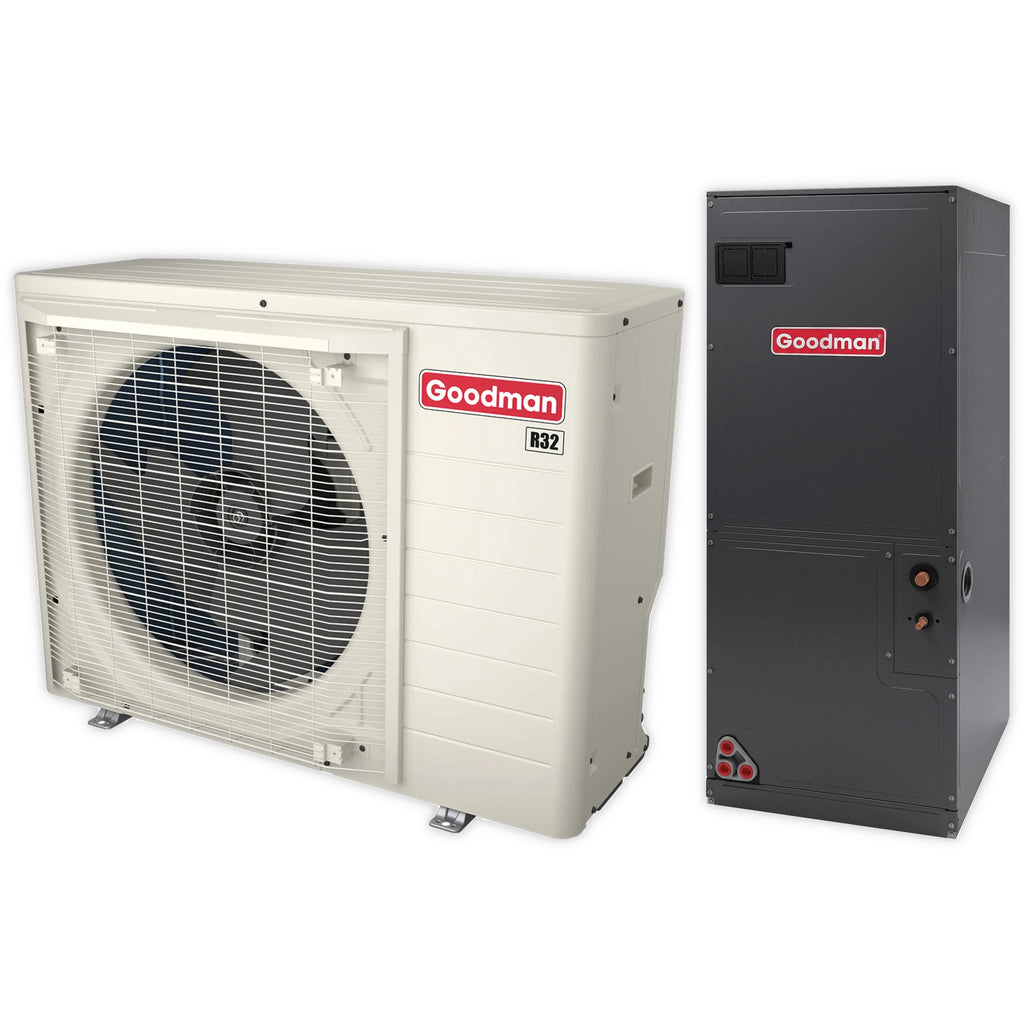

The Goodman GXV9S Split System Air Conditioner delivers premium 19.2 SEER2 efficiency with R-32 refrigerant at 3 Ton capacity. Features variable-speed inverter compressor for maximum efficiency and precise comfort control. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GXV9S |
| SKU | GXV9SA3610 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 35 A |
| Min. Breaker Size | 31.8 A |
| Capacity & Performance | |
| Cooling BTU | 35000 Btu/H |
| Cooling Operating Range | 0 °F to 115 °F |
| Decibel Level (dBA) | 70 dBA |
| Efficiency Ratings | |
| SEER2 | 19.0 |
| EER2 | 10.5 |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Inverter |
| Compressor Stages | Variable |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 100 oz |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Max Line Set Length | 100 ft |
| Dimensions & Weight | |
| Height | 39 in |
| Width | 37 in |
| Depth | 12.625 in |
| Weight | 163 lb |
| Additional Information | |
| Product Features | Variable-speed swing compressors;Quiet digitally commutated fan motor;High-density compressor sound blanket;Compatible with Goodman connected thermostatand other Goodman communicating equipment;Propietary control algorithmic logic;In communicating mode, only two lowvoltagewires to outdoor unit required;Diagnostic indicator lights, seven-segment;LED display, and fault code storage;Propietary Inside intelligence for diagnostics;Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA);Field-selectable boost mode increasescompressor speed during unusually high loads;Field-installed filter drier;Coil and ambient temperature sensors;Suction pressure transducer;Sweat connection service valves witheasy access to gauge ports;AHRI Certified; ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |

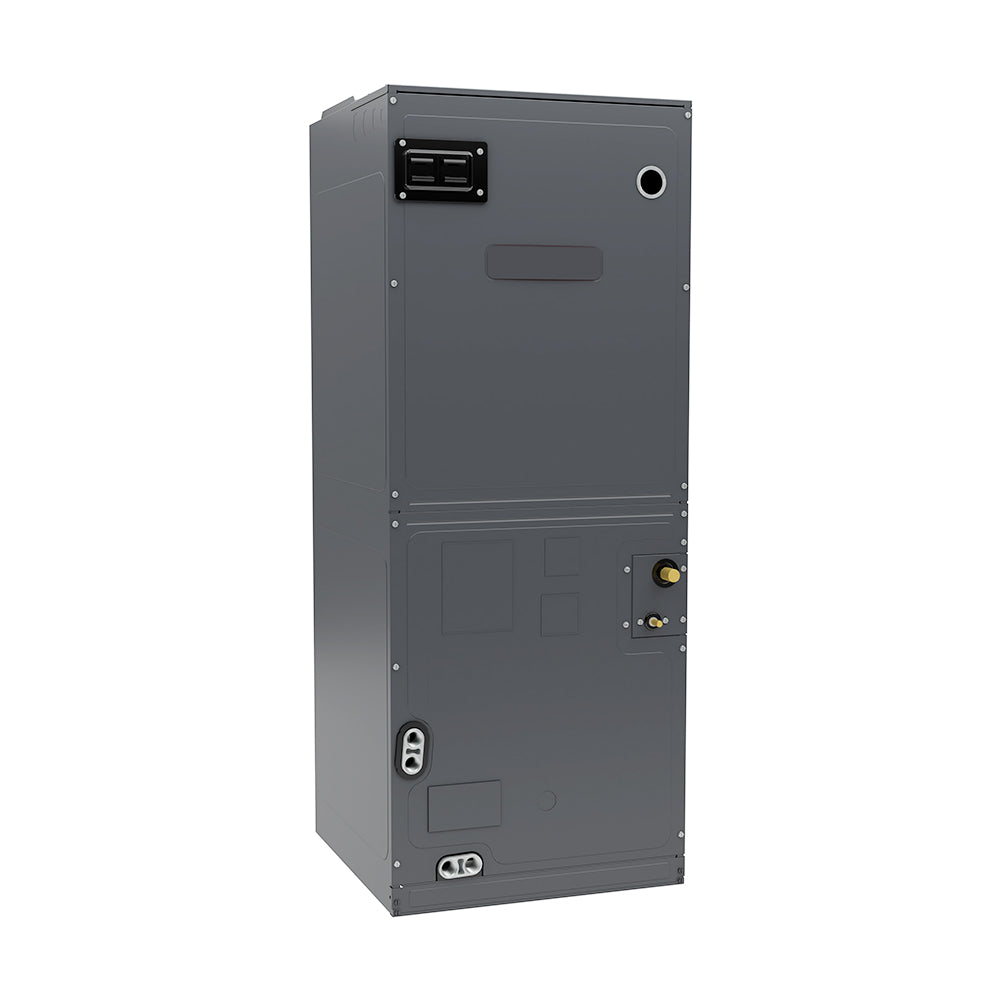

The Goodman 5-Ton R-32 Inverter Variable-Speed Air Handler (AHVE42CP1300) delivers superior comfort and efficiency with a variable-speed ECM blower motor and Electronic Expansion Valve (EEV) for precise temperature and humidity control. Featuring an all-aluminum evaporator coil with 7mm tubing, this AHRI-certified, ETL-listed unit maintains constant CFM across a wide range of static pressure conditions, ensuring consistent airflow regardless of duct configuration. The rigid SmartFrame™ cabinet offers tool-less filter access, screw-less sides and back to minimize condensation, and foil-faced insulation for added efficiency — all in a compact 21" depth design for easy attic installation. Compatible with the Goodman smart thermostat and configurable for horizontal or vertical applications, this air handler is built for flexibility, durability, and long-term performance.
| General Information | |
|---|---|
| Brand | Goodman |
| Series | Inverter compatible Air Handler |
| SKU | AHVE48DP1300 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 15/15 A |
| Min. Breaker Size | 6.5/6.5 A |
| Capacity & Performance | |
| Tonnage | 4.0 |
| Compressor & Refrigerant | |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 0 oz |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Dimensions & Weight | |
| Height | 53.4375 in |
| Width | 24-1/2 in |
| Depth | 21 in |
| Weight | 150 lb |
| Additional Information | |
| Product Features | Electronic Expansion Valve (EEV) for cooling and heat pump applications;7 mm evaporator coil tube size;Variable-speed ECM blower motor;Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment;Provides constant CFM over a wide range of static pressure conditions independent of duct system;CFM indicator;Thermostat provides adjustable low CFM for efficient fan-only operation;All-aluminum evaporator coil;Fault recall of six most recent faults;Improved humidity and comfort control;AHRI certified;ETL listed;Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193;Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193;3 kW – 25 kW electric heater kits;Horizontal or vertical configuration capabilities;21" depth for easier attic access;DecaBDE-free thermoplastic drain pan with secondary drain connections;Screw-less sides and back helps to reduce condensation when installed in humid locations;Foil-faced insulation covers the internal casing to reduce cabinet condensation;Galvanized, leather grain-embossed finish;Glue-less cabinet insulation retention;Tool-less filter access |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
