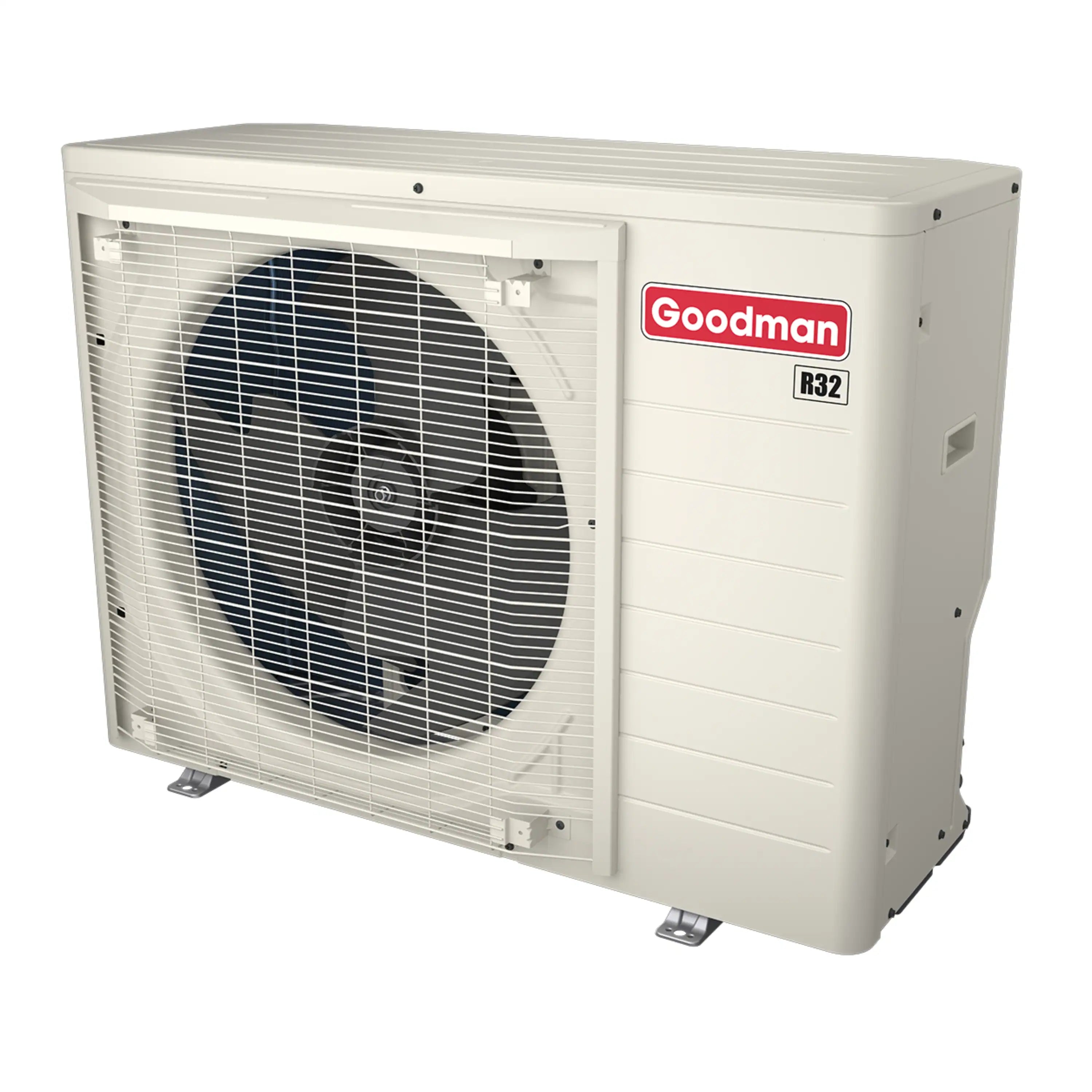

Goodman split heat pump outdoor unit with R-32 refrigerant label
Roll over image to zoom in Click on image to zoom
Goodman split heat pump outdoor unit with R-32 refrigerant label
Click on image to zoom

Goodman GXV9S Split Air Conditioner 19.2 SEER2 R-32 (GXV9SA3610)

GoodmanSKU: GXV9SA3610
Price:
$4,478.31 $5,576.00SAVE 19%
In Stock
Estimated delivery: Sep 9th-23rd
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Goodman GXV9S Split System Air Conditioner delivers premium 19.2 SEER2 efficiency with R-32 refrigerant at 3 Ton capacity. Features variable-speed inverter compressor for maximum efficiency and precise comfort control. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

Features
  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostatand other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two lowvoltagewires to outdoor unit required
  • Diagnostic indicator lights, seven-segment
  • LED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
  • Field-selectable boost mode increasescompressor speed during unusually high loads
  • Field-installed filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves witheasy access to gauge ports
  • AHRI Certified
  • ETL Listed
Cabinet Features
  • Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
DIMENSIONS & WEIGHT
Height
39 in
Width
37 in
Depth
12.625 in
Weight
163 lb
GENERAL INFORMATION
Brand
Goodman
Series
GXV9S
SKU
GXV9SA3610
Product Category
Unitary
Unit Type
Outdoor
Manufacturer
Goodman
Product Features
  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostatand other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two lowvoltagewires to outdoor unit required
  • Diagnostic indicator lights, seven-segment
  • LED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
  • Field-selectable boost mode increasescompressor speed during unusually high loads
  • Field-installed filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves witheasy access to gauge ports
  • AHRI Certified
  • ETL Listed
CAPACITY & PERFORMANCE
Cooling BTU
35000 Btu/H
Cooling Operating Range
0 °F to 115 °F
SEER2
19.0
EER2
10.5
COMPRESSOR & MOTORS
Compressor Type
Inverter
Compressor Stages
Variable
NOISE LEVELS
Decibel Level (dBA)
70 dBA
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz
208/230 V / 1 Ph / 60 Hz
Max Breaker Size
35 A
Min. Breaker Size
31.8 A
REFRIGERANT & PIPING
Refrigerant
R-32
Factory Refrigerant Charge
100 oz
Liquid Line
3/8 in
Suction Line
7/8 in
Max Line Set Length
100 ft
SAFETY
ENERGY STAR® Certified
No
Proposition 65 Warning
Yes
WARRANTY
Warranty
ALL PARTS - 5 YEARS PARTS
