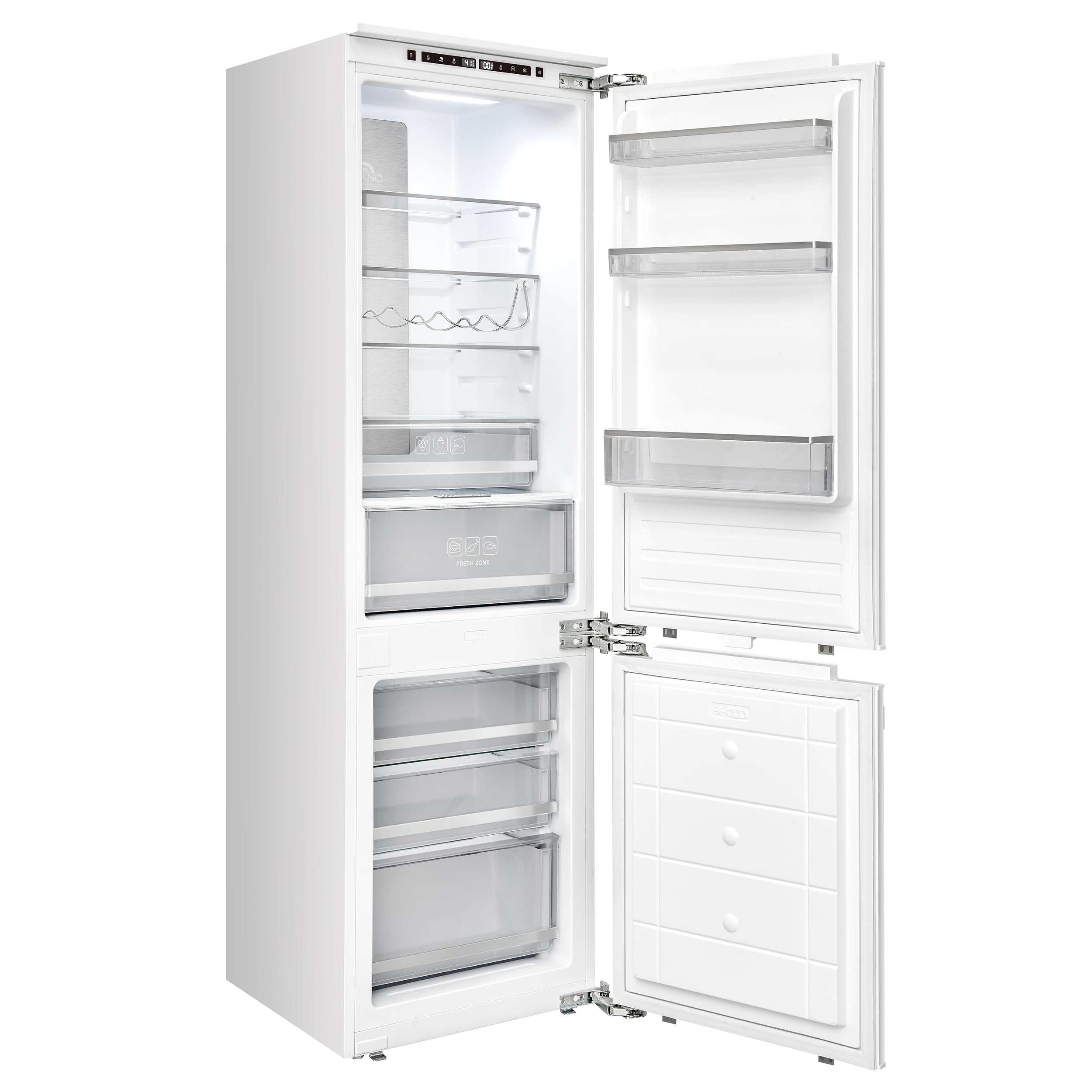

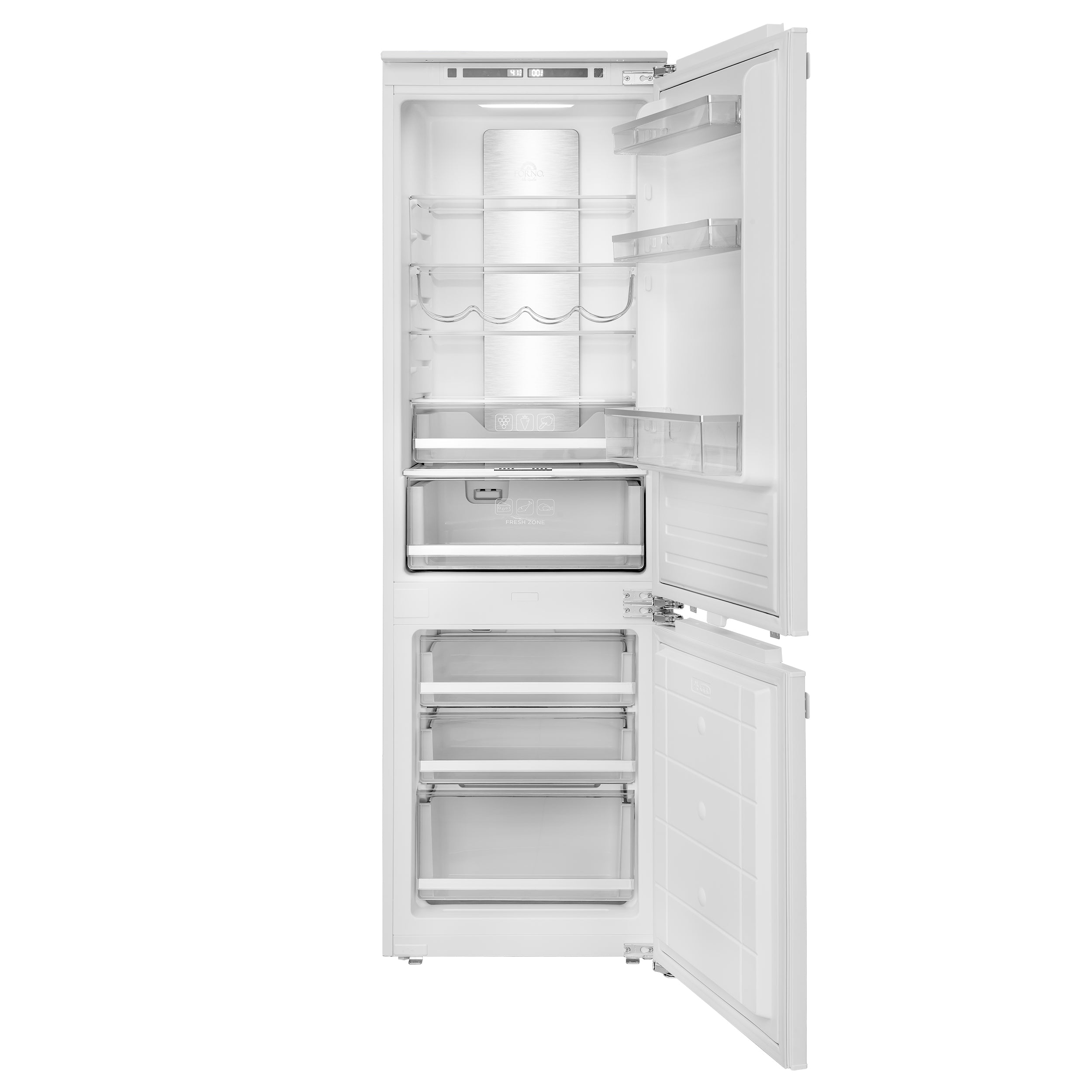

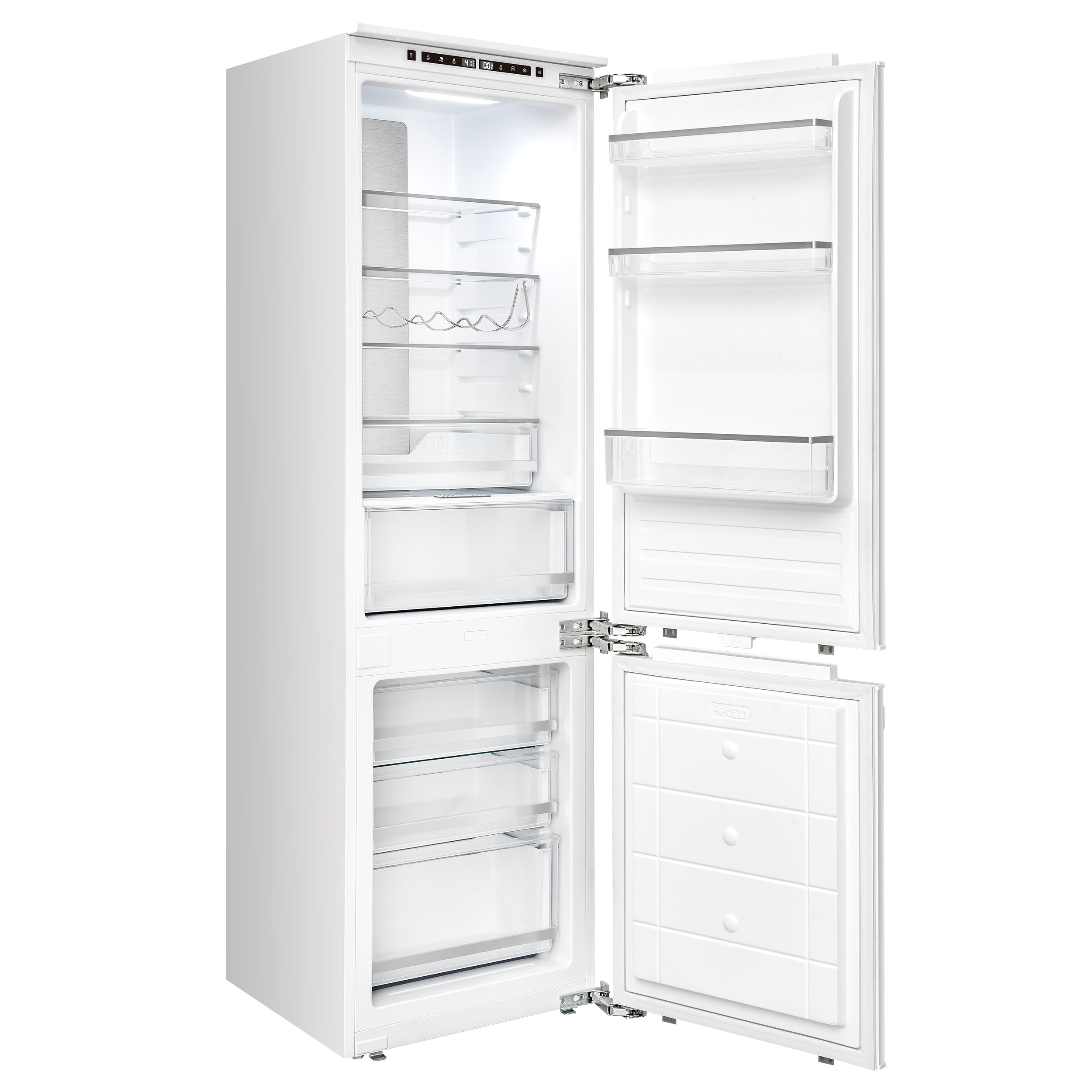

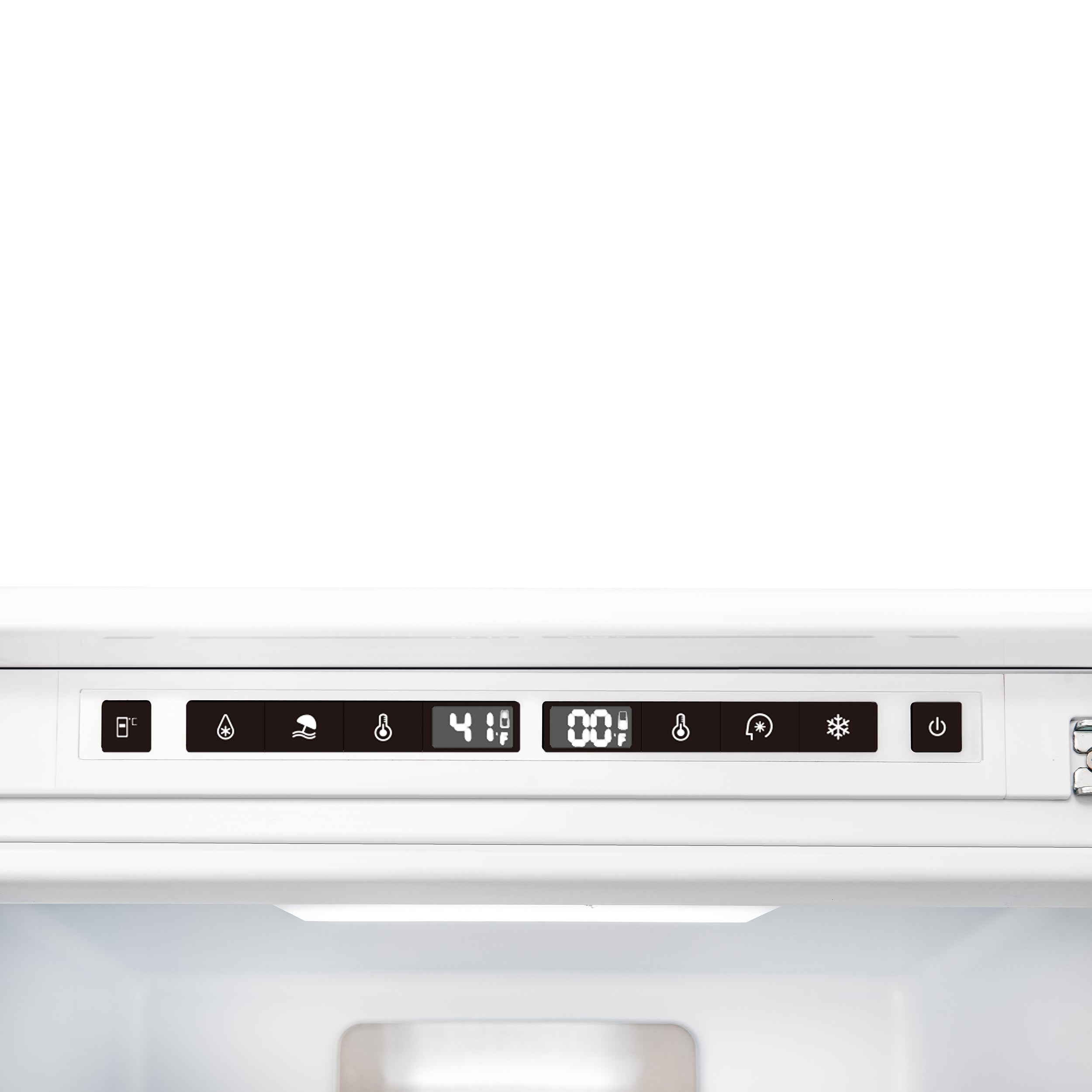

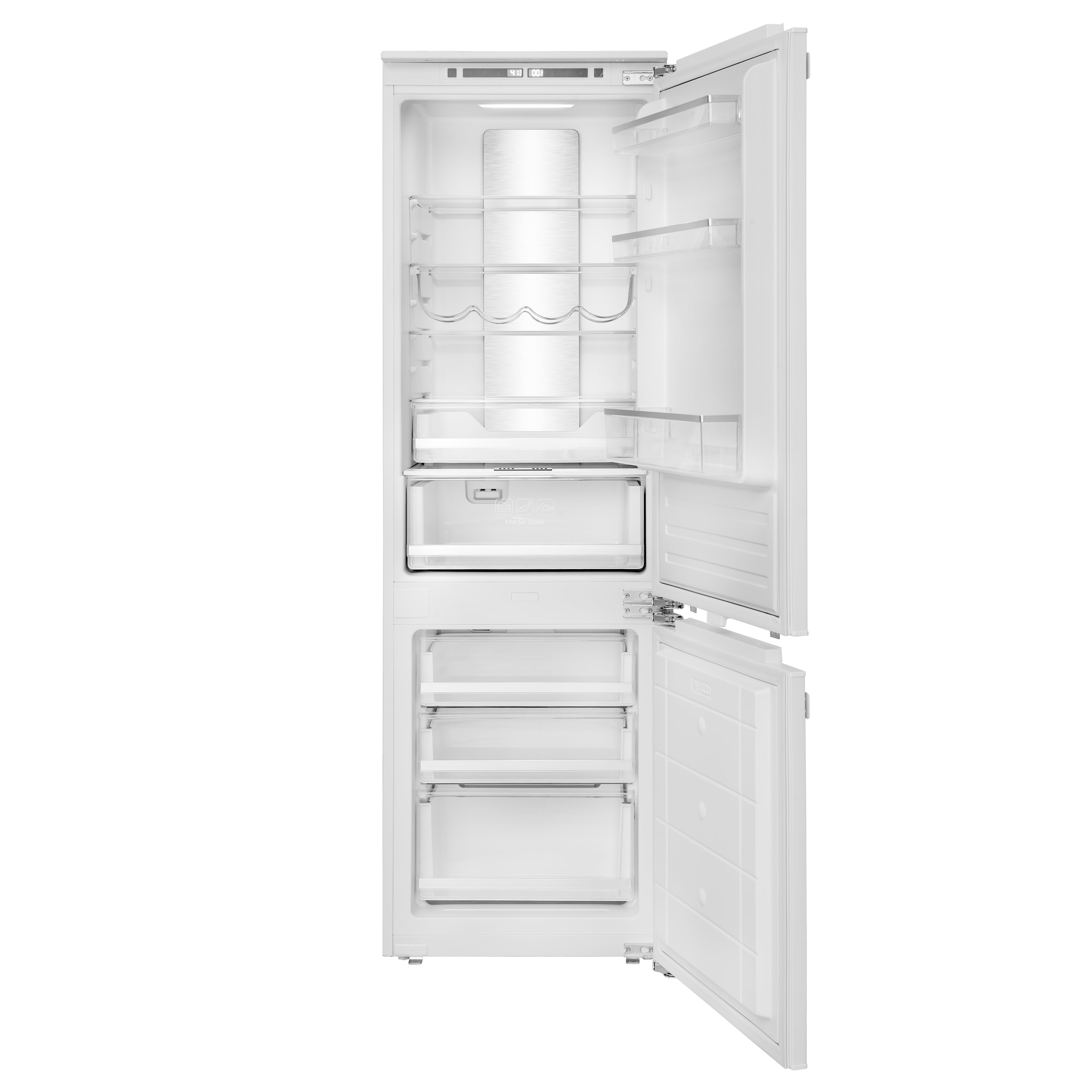

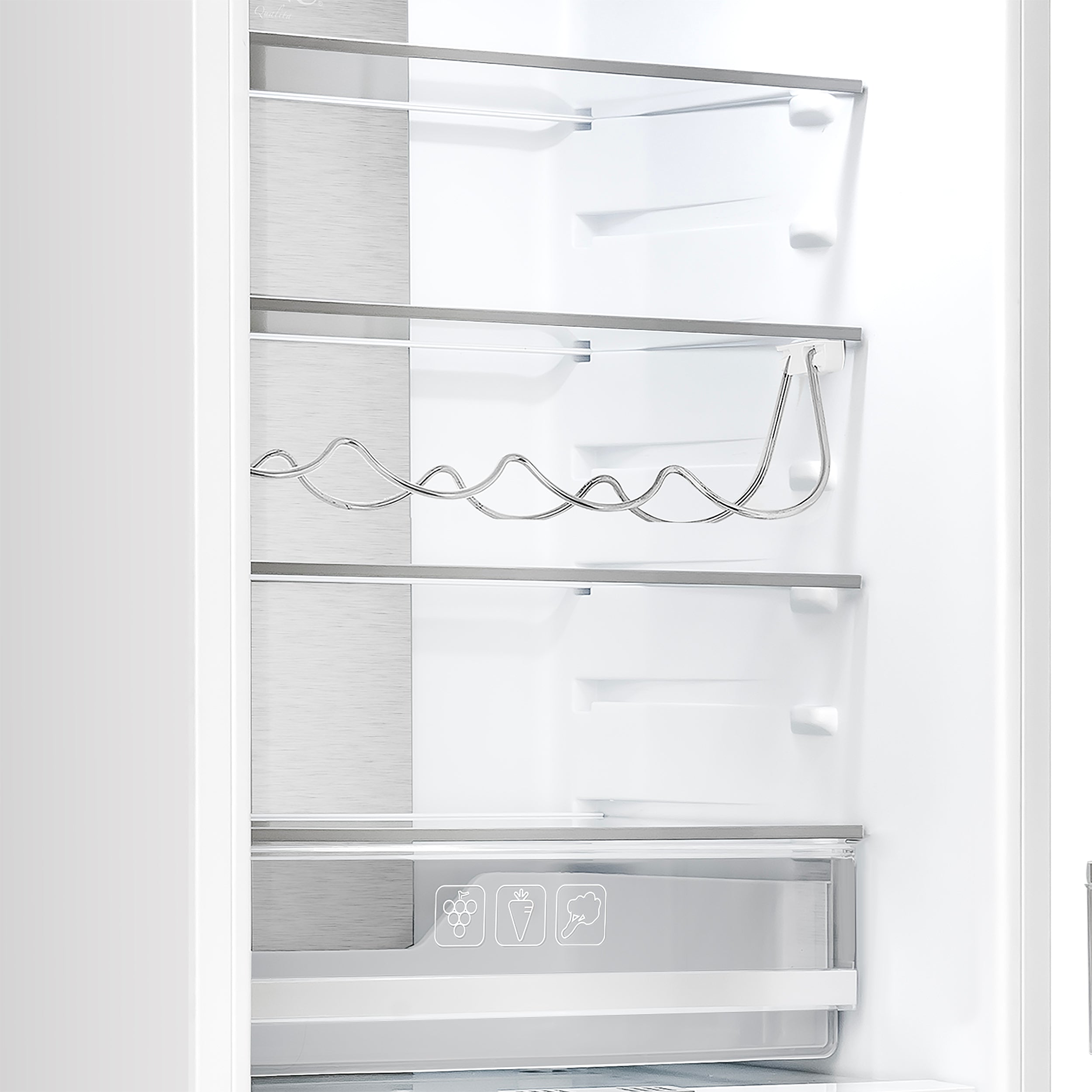

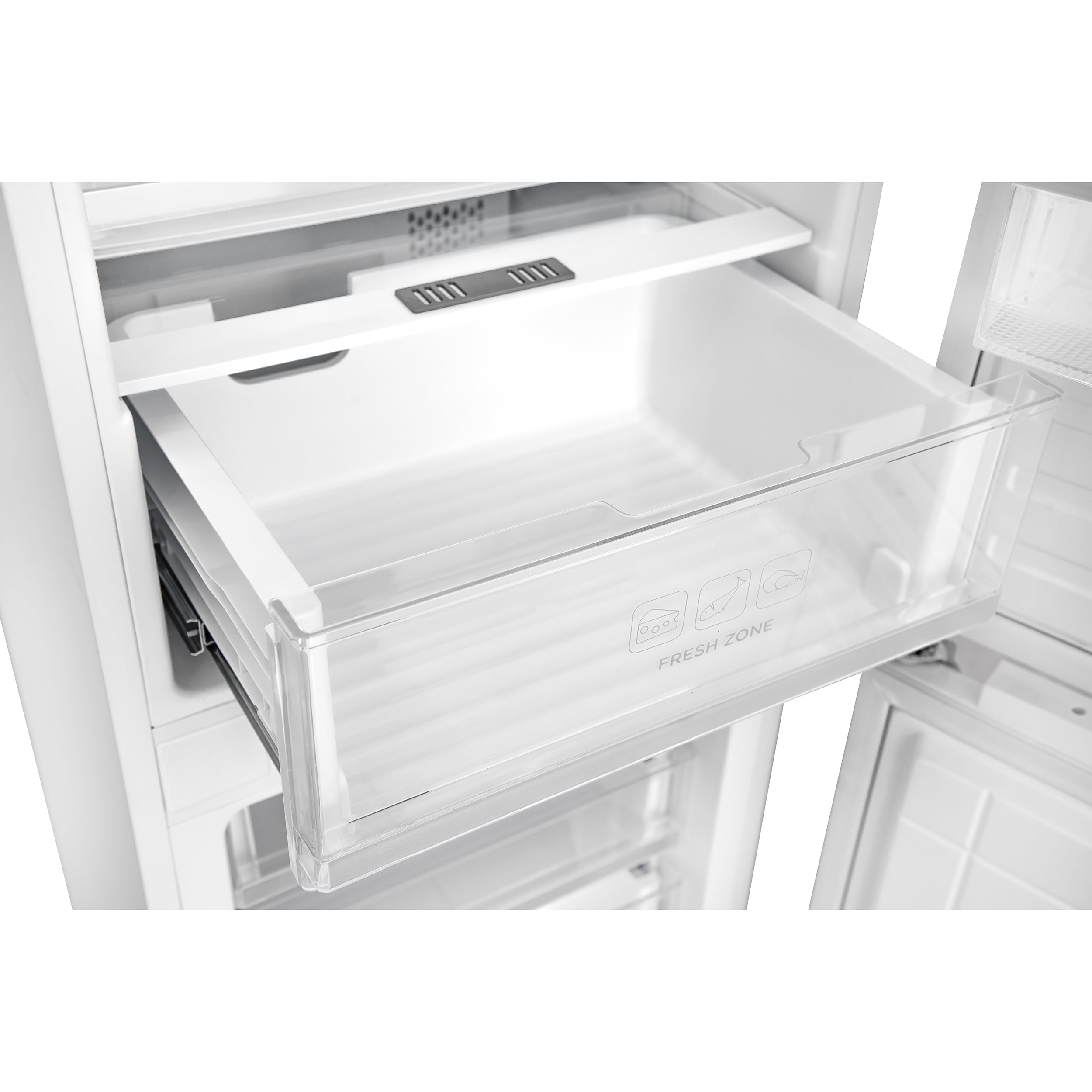

Discover the perfect blend of customization and performance with the 22-inch Built-in Bottom Freezer Refrigerator. With its a Panel-Ready design and Counter-Depth dimensions, this refrigerator integrates seamlessly with your custom cabinetry for a clean, high-end kitchen look. Enjoy 8.6 cu. ft. of space in a compact, space-saving profile. The Total No-Frost system keeps both fridge and freezer ice-free, while the humidity-controlled drawer preserves fresh produce longer. A dedicated wire wine rack and three spacious freezer drawers keep your storage organized and convenient. Fast Cool & Freeze modes quickly restore temperatures after grocery runs. Easily adjust settings with the modern Touch Control panel, and ensure flawless cabinet integration with 3D door adjustment. Energy-efficient and feature-rich, this built-in refrigerator combines premium design with effortless performance.
| DIMENSIONS | |
|---|---|
| Product Overall Weight (lbs) | 123 |
| Product Dimensions W x D x H (inches) | 21.25 x 21.62 x 69.62 |
| Cutout dimensions W x D x H (inch) | 22.06 x 22.12 x 69.84 |
| Minimum Top Clearance (IN) | 0.18 |
| Sides Clearance - On Each Sides (IN) | 0.43 |
| Height Top of Door Hinge (inches) | 67.5 |
| Depth Drawer(s) Open (inches) | 32.25 |
| GENERAL INFORMATION | |
| Number of pallet | 0 |
| Estimated Annual Operating Cost (USD) | 53 |
| Adjustable Door Storage | Yes |
| Cooling Type | Total No Frost |
| Fast Cool Function | Yes |
| Energy Saver Mode | Yes |
| DESIGN & FINISH | |
| Color/Finish | White |
| Control Location | Top |
| Primary Material | Metal/Plastic |
| Door Bins Material | Plastic |
| Fresh Food Shelves Material | Glass With Silver Trim |
| Door Liner Color | White |
| TECHNICAL DETAILS | |
| Number of Power Cord | 1 |
| Power Consumption Defrost Wattage (W) | 160 |
| Noise Level (dBA) | 39 |
| REFRIGERATOR FEATURES | |
| Interior Fresh Food Dimensions W x D x H (inches) | 18.56 x 17.31 x 36. 81 |
| Temperature Range Refrigerator (°C) | 1 to 6 |
| Standard Door Bins Size WxDxH | Upper: 17.18 x 4.81 x 1.93 Lower: 17.18 x 4.81 x 3.93 |
| Fresh Food Door Type | Swing Door |
| Number of Adjustable Shelves | 3 |
| Fresh Food drawer(s) Size WxDxH | 17.93 x 11.25 x 4.81 |
| Temperature Controlled Drawer(s) | Yes |
| Interior Fresh Food Dimensions Height | 36.81 |
| Interior Fresh Food Dimensions Width | 18.56 |
| Fresh Food Capacity Cu. Ft. | 6.3 |
| Matching Replacement Water Filter Model | No |
| Cabinet Color | White |
| FREEZER FEATURES | |
| Interior Freezer Dimensions W x D x H (in) | 17 x 12.12 x 22.18 |
| Temperature Range Freezer (°C) | -22 to -15 |
| Freezer door storage | No |
| Upper Freezer Drawer(s)/Basket Size WxDxH | 16.5 x 10.5 x 5.5 |
| Number of Freezer Drawers | 3 |
| Freezer Door Style | Swing Door |
| WARRANTY & CERTIFICATIONS | |
| NSF/ANSI/CAN 372 Certified | No |
| Energy Star Most Efficient | No |
